Fish Passage Site 20400591

Coordinates (dec. deg.): 61.72791°, -148.91054°
Legal Description: S019N003E21
Region: South Central
Road Name: Jonesville Mine Road

Datum: NAD83
Quad Name / ITM: Anchorage C-6
AWC Stream #:
Stream Name: Eska Creek

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey CRB02-JV269

Observers: Dean Beers, James Laurence, James Laurence

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Site Observations:

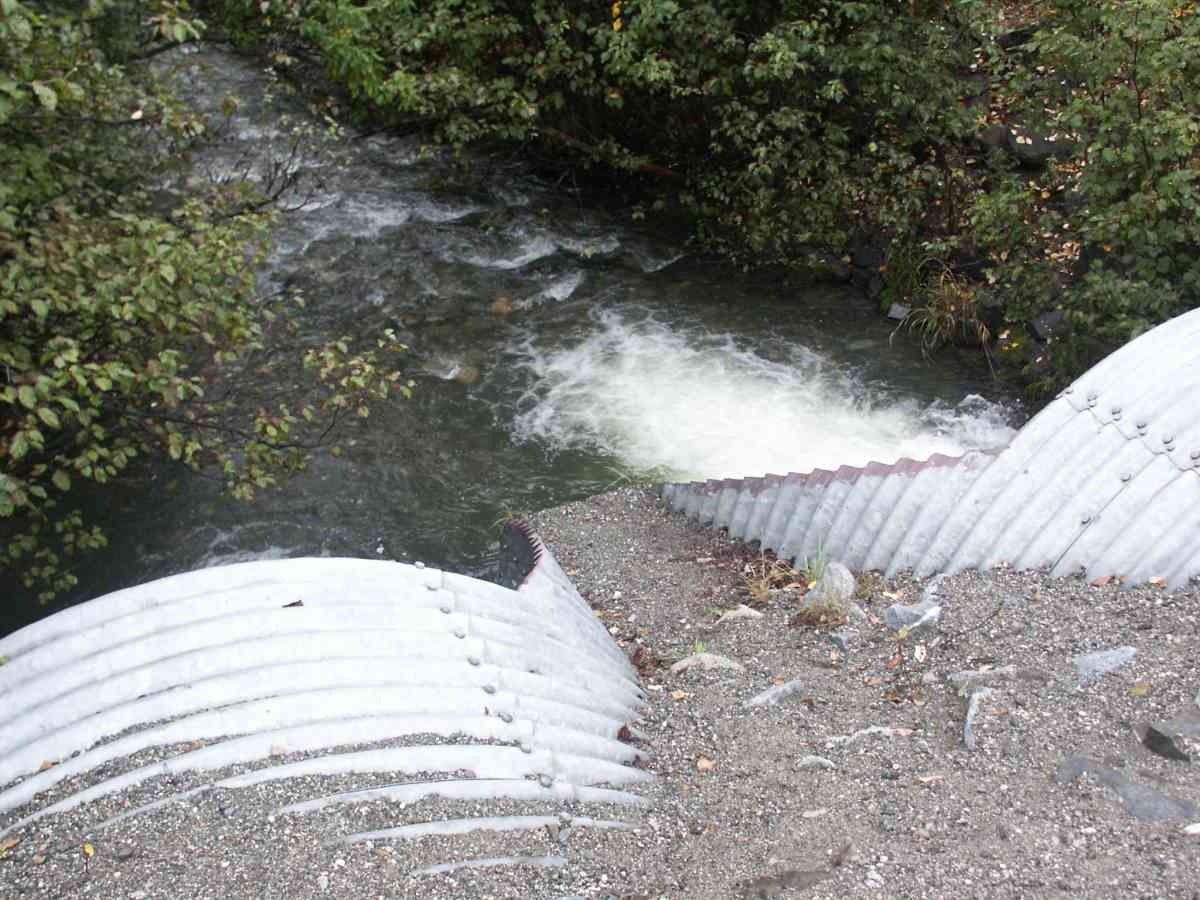

  1. Outfall height red

Comments: None

Culvert Measurements

ID: 1 Structure Type:N/A Fish Passage Rating: Gray

Length(ft): 100.0
Inlet Type:
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):12.0
Height(ft):7.0
Apron Length(ft):
Water Depth(ft): 0.4
Rustline Height(ft):0.9
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:

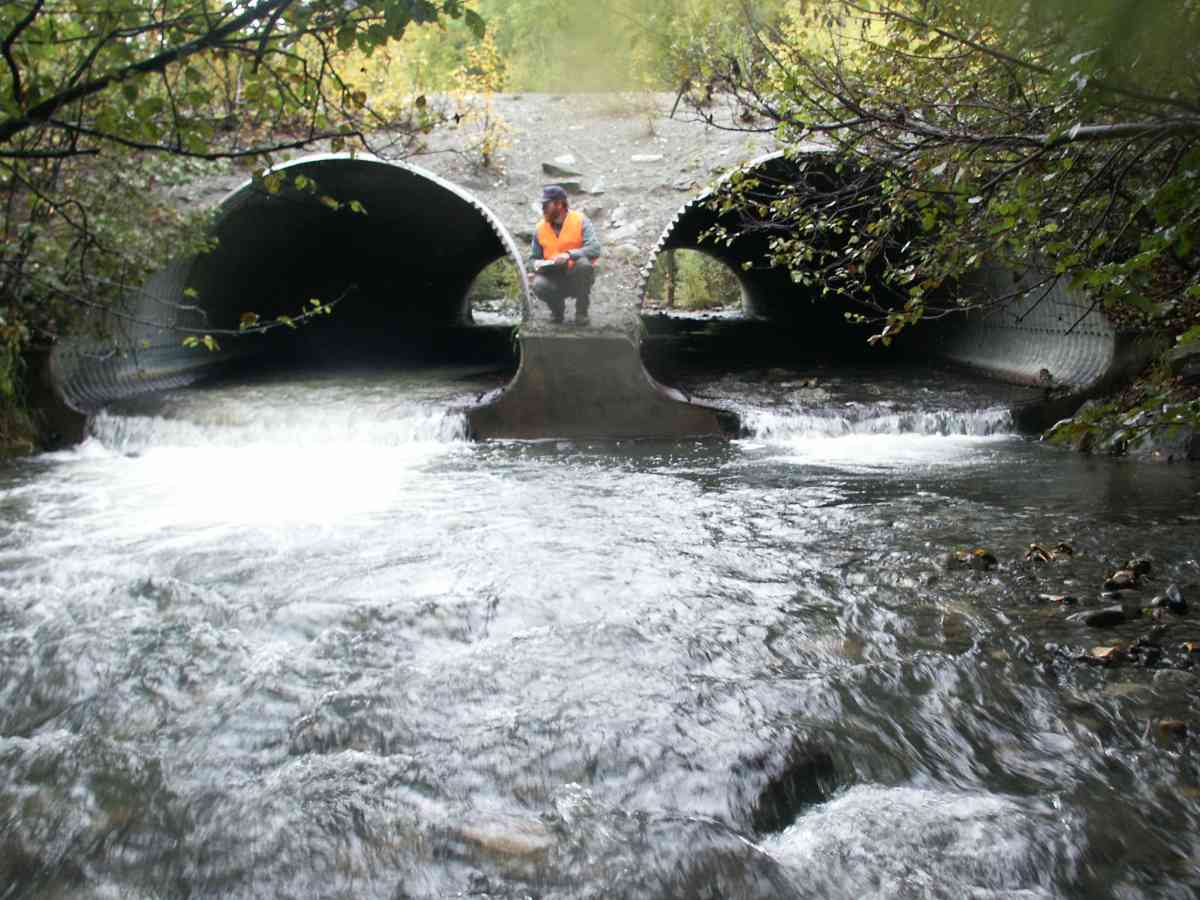

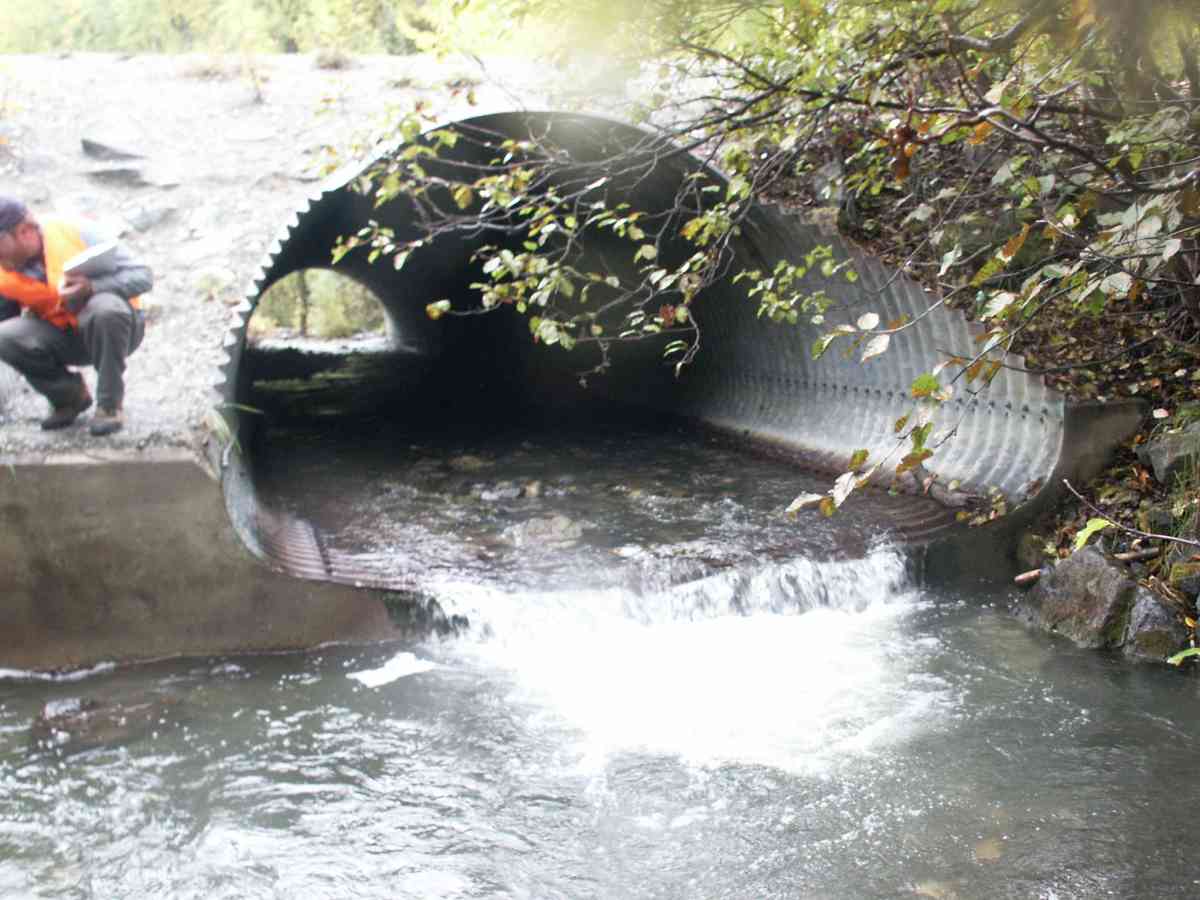

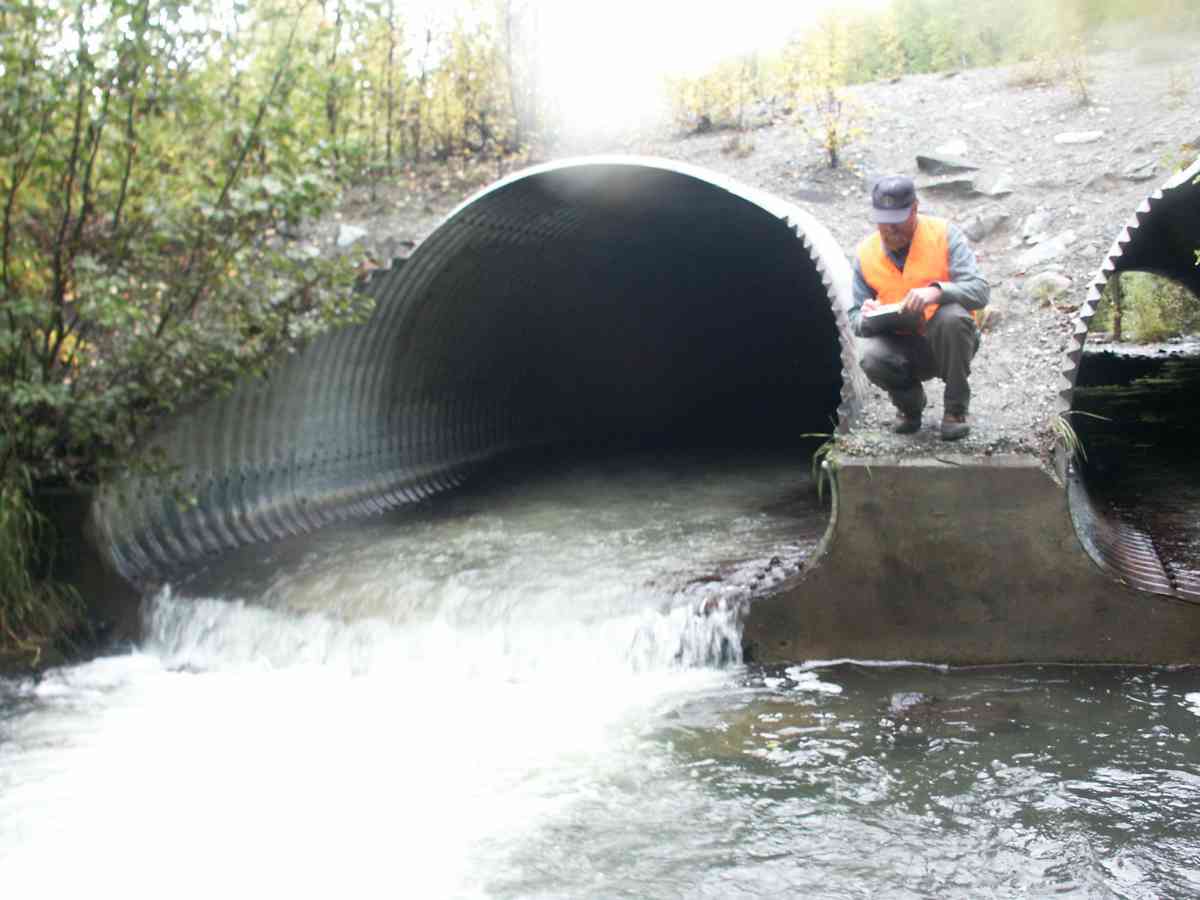

Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient: 0.94%
Max Slope:
Max Slope Length:


Comments: Gradient measured using top of pipe
ID: 2 Structure Type:N/A Fish Passage Rating: Red

Length(ft): 100.0
Inlet Type:
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):12.0
Height(ft):8.3
Apron Length(ft):
Water Depth(ft): 0.3
Rustline Height(ft):1.2
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type:
Constriction Ratio:
Culvert Gradient: 2.95%
Max Slope:
Max Slope Length:


Comments: Gradient measured using inverts.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)

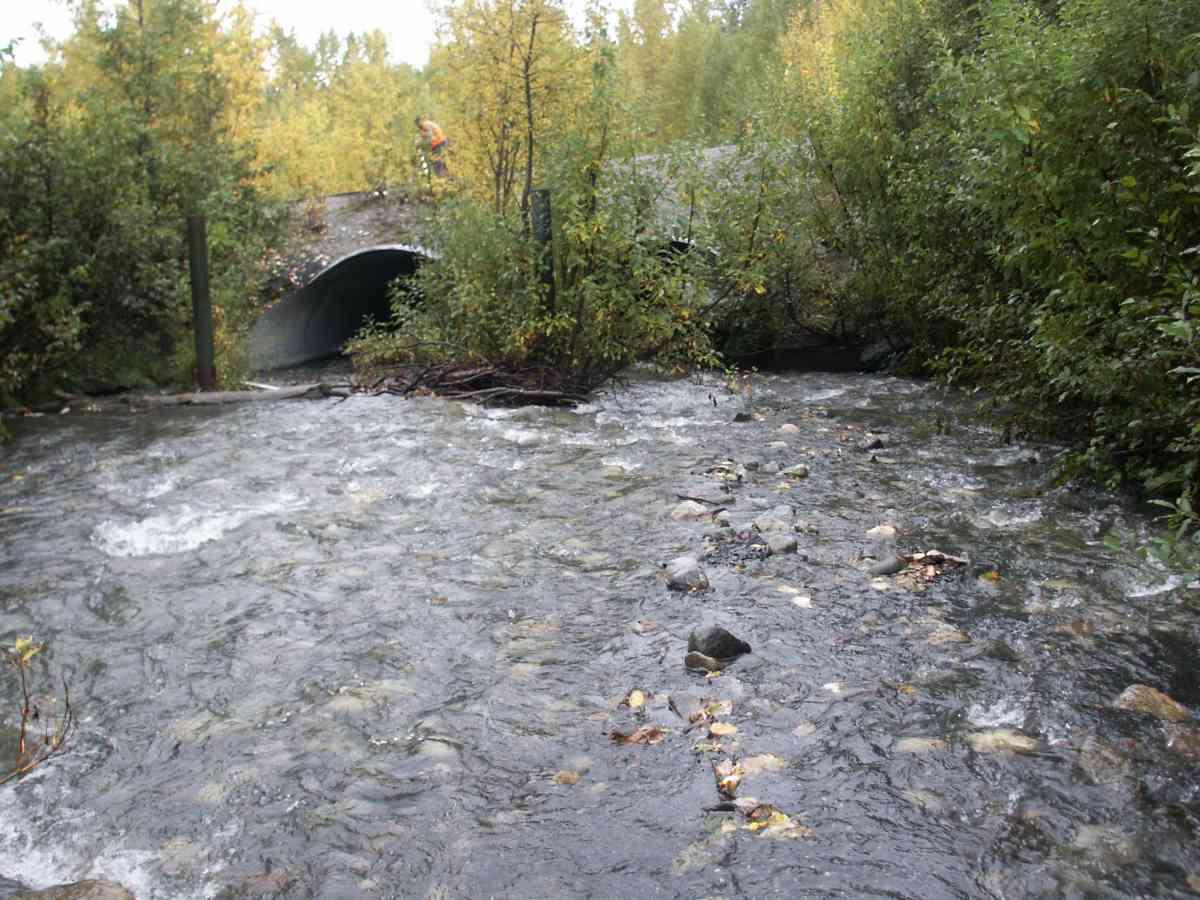

Upstream ordinary high water 50.0 28.00
Upstream ordinary high water 75.0 21.00
Upstream ordinary high water 100.0 17.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Tailcrest or 1st Thalweg 81.69
Outlet Thalweg 2 0.00 0.0 80.67
Outlet Invert 2 0.00 0.0 81.00
Outlet Thalweg 1 0.00 0.0 81.24
Outlet Culvert Top 1 0.00 0.0 90.99
Inlet Culvert Invert 1 100.00 0.0 91.93
Inlet Culvert Invert 2 100.00 0.0 83.95
Inlet Thalweg 2 100.00 0.0 83.95
Inlet Thalweg 1 100.00 0.0 84.84

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
