Fish Passage Site 20400588

Coordinates (dec. deg.): 61.73048°, -148.79633°
Legal Description: S019N004E18
Region: South Central
Road Name: Glenn Highway

Datum: NAD83
Quad Name / ITM: Anchorage C-5
AWC Stream #:
Stream Name: Matanuska River tributary

Elevation:

Site Comments: Site is between Mile Post 64 and 65. Under 4 lanes of traffic.

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey CRB02-GL264

Observers: Dean Beers, James Laurence, James Laurence

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Site Observations:

  1. Culvert gradient red

Comments: None

Culvert Measurements

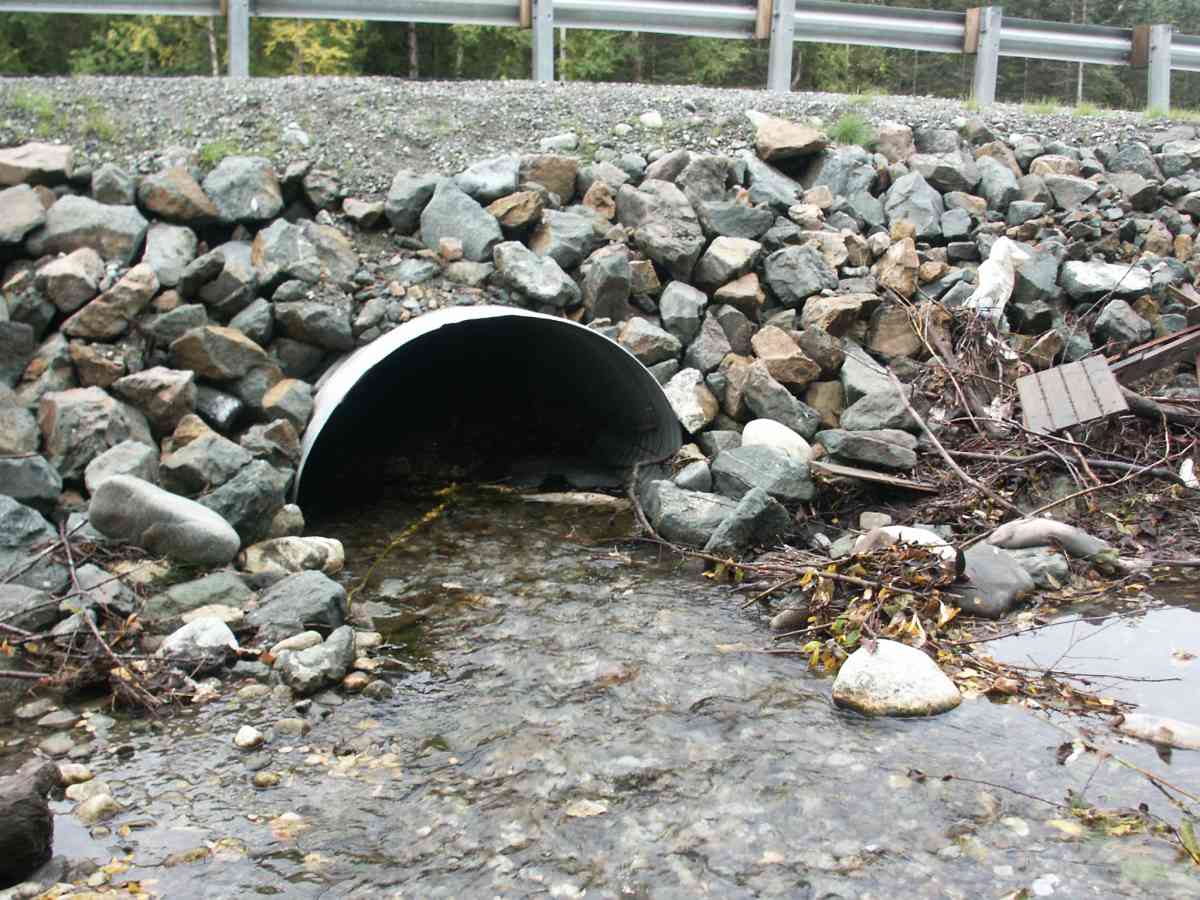

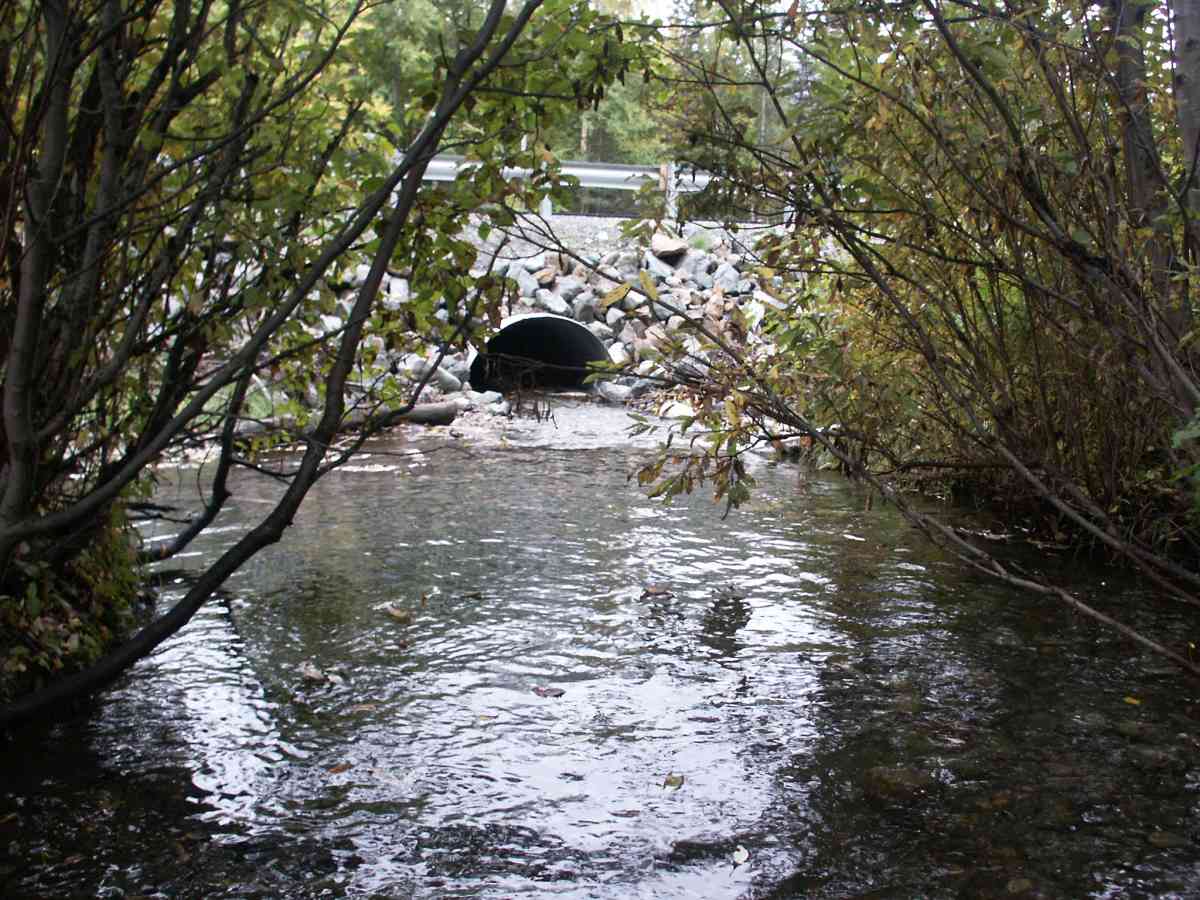

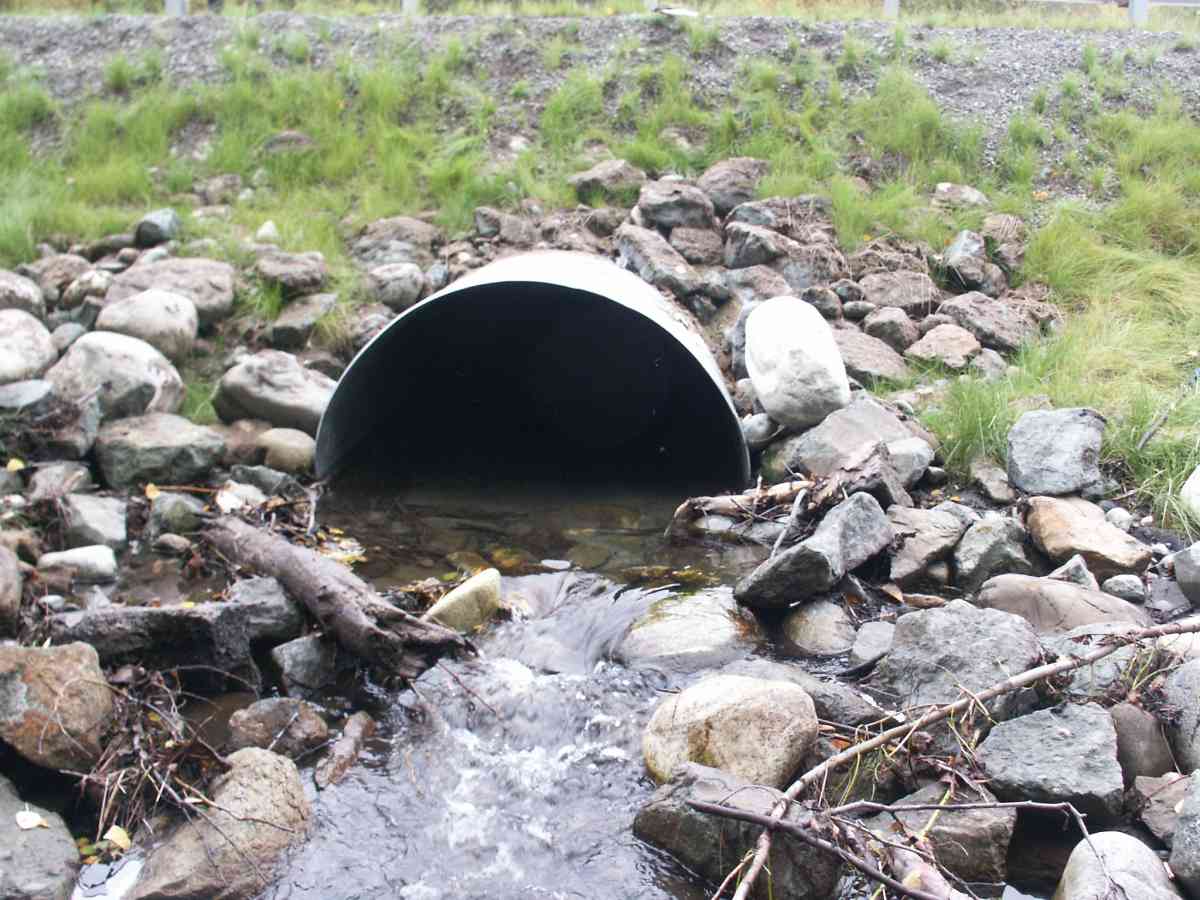

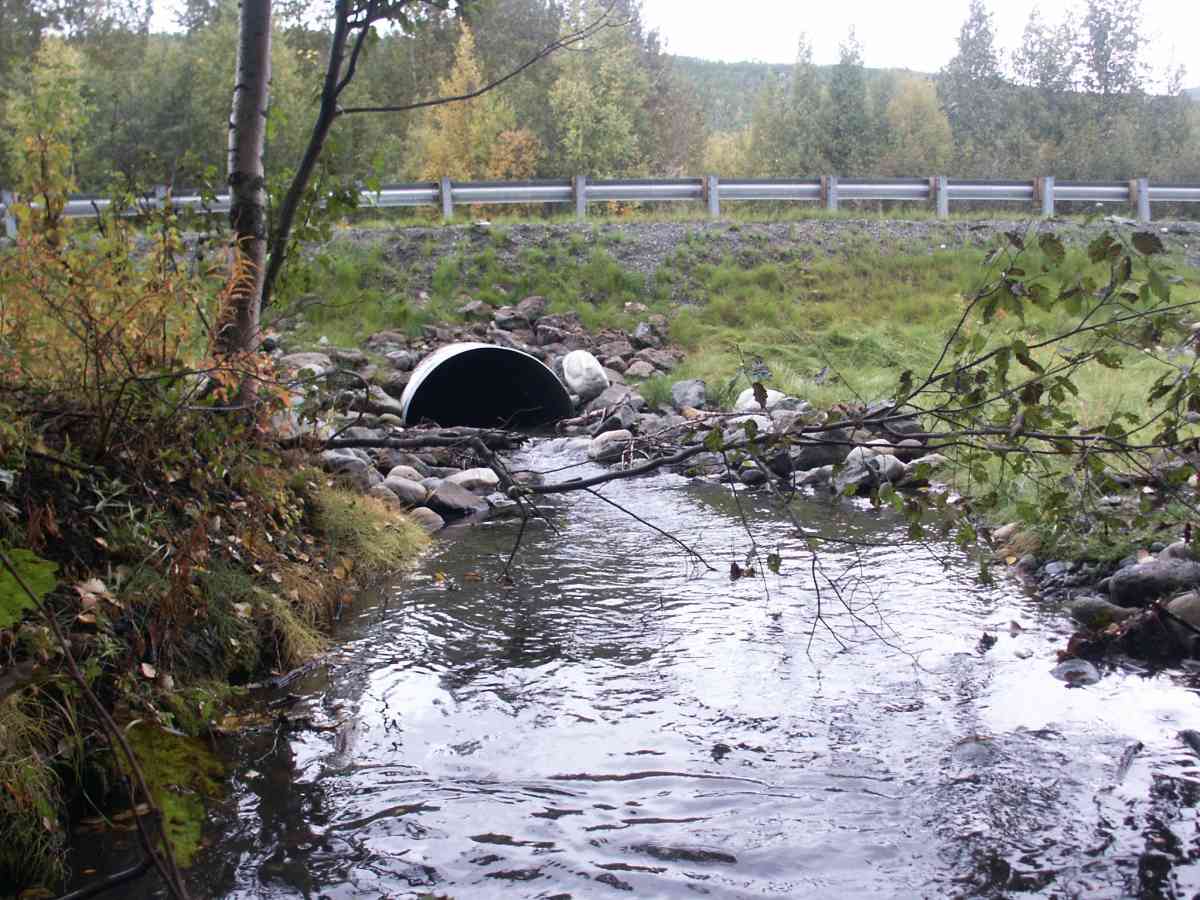

ID: 1 Structure Type: Pipe-arch (Corrugated Metal) Fish Passage Rating: Red

Length(ft): 92.0
Inlet Type:
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):5.0
Height(ft):3.1
Apron Length(ft):
Water Depth(ft): 1.0
Rustline Height(ft):0.0
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type:
Constriction Ratio:
Culvert Gradient: 1.12%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 50.0 16.00
Upstream ordinary high water 75.0 18.00
Upstream ordinary high water 100.0 22.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Tailcrest or 1st Thalweg 87.84
Outlet Invert 1 0.00 0.0 91.08
Outlet Thalweg 1 0.00 0.0 87.56
Inlet Culvert Invert 1 92.00 0.0 92.11
Inlet Thalweg 1 92.00 0.0 88.96

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
