Fish Passage Site 20300925

Coordinates (dec. deg.): 59.28940°, -151.68706°
Legal Description: S010S014W20
Region: South Central
Road Name: Port Graham

Datum: NAD83
Quad Name / ITM: Seldovia B-5
AWC Stream #:
Stream Name:

Elevation:

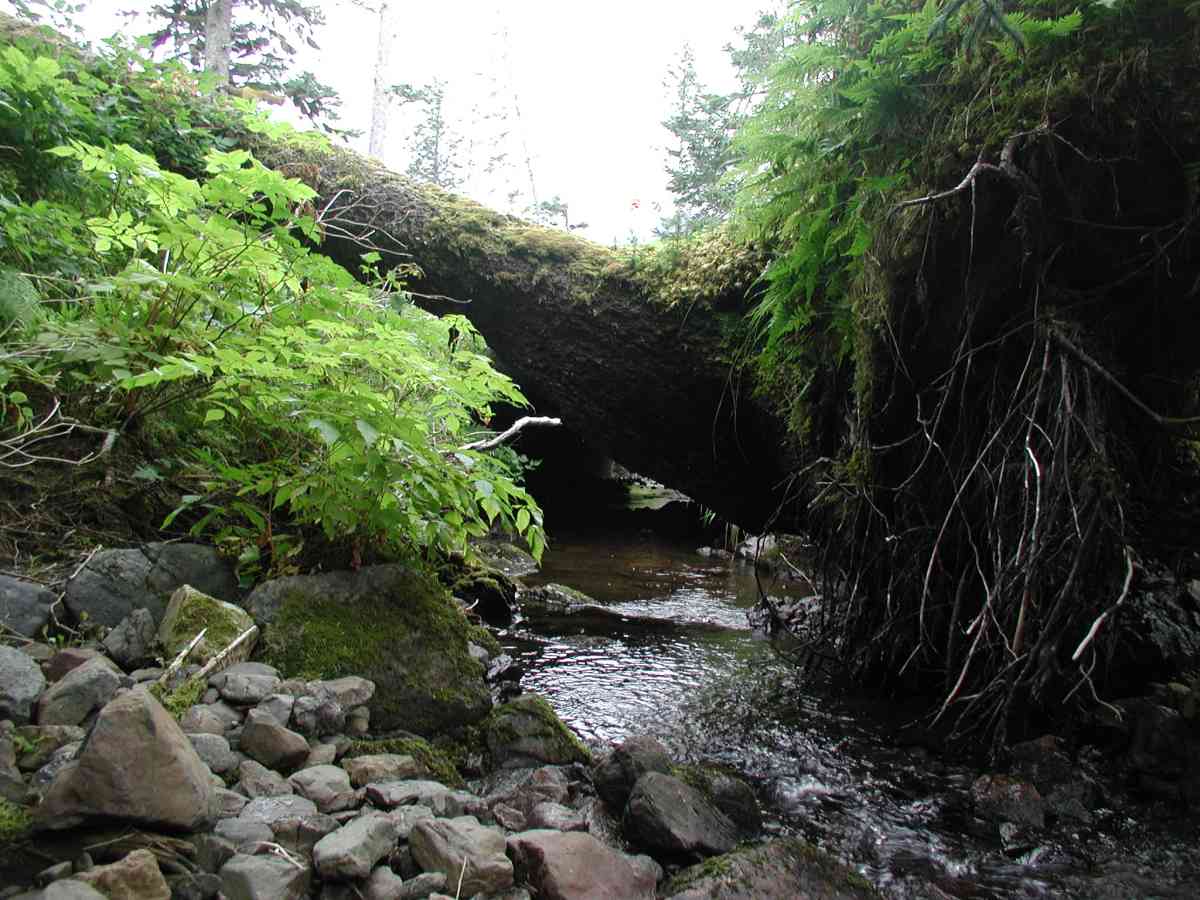

Site Comments: Location: Port Graham Stream: Steeper gradient creating many riffles and pools. Substrate is cobble with large rocks. Streambank is densely vegetated.

Survey Date: Aug 18, 2004

Survey KPC04-1A105

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

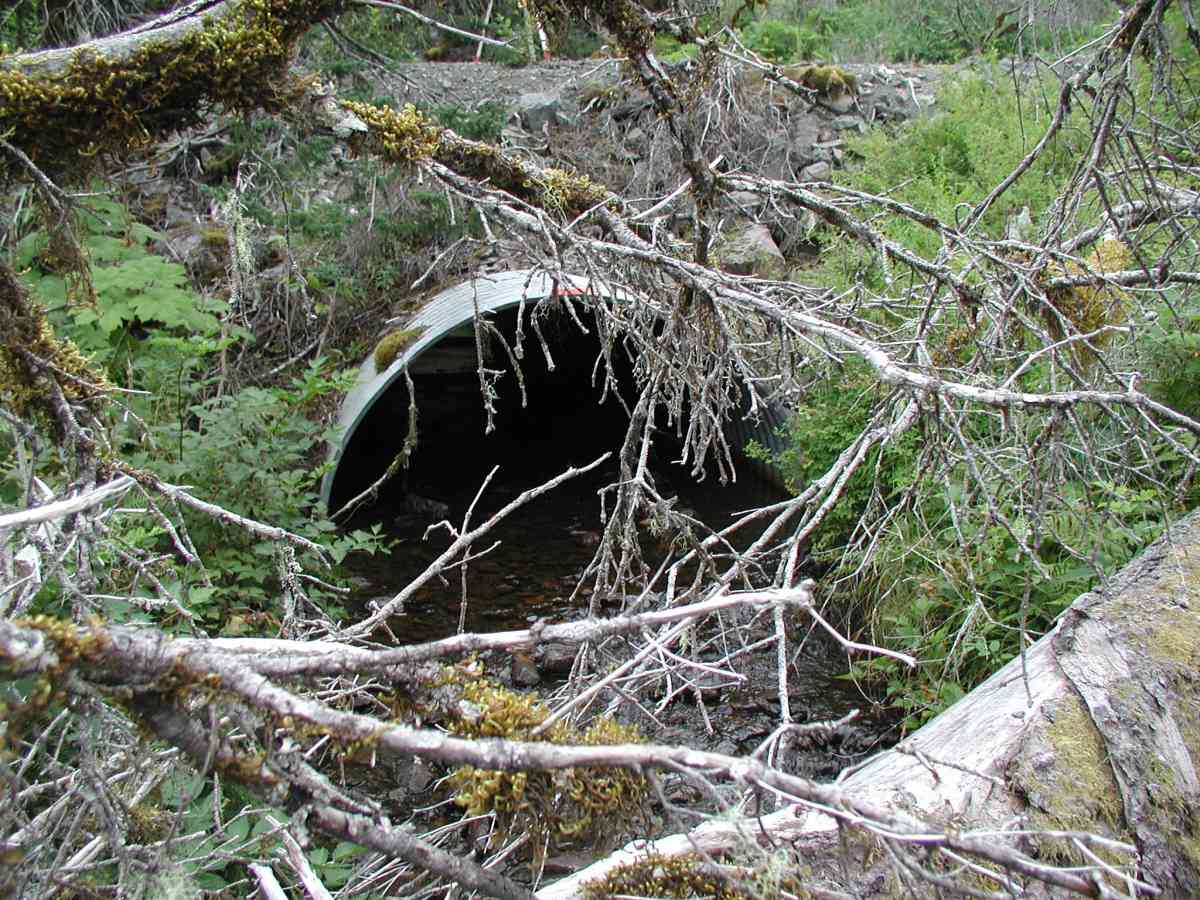

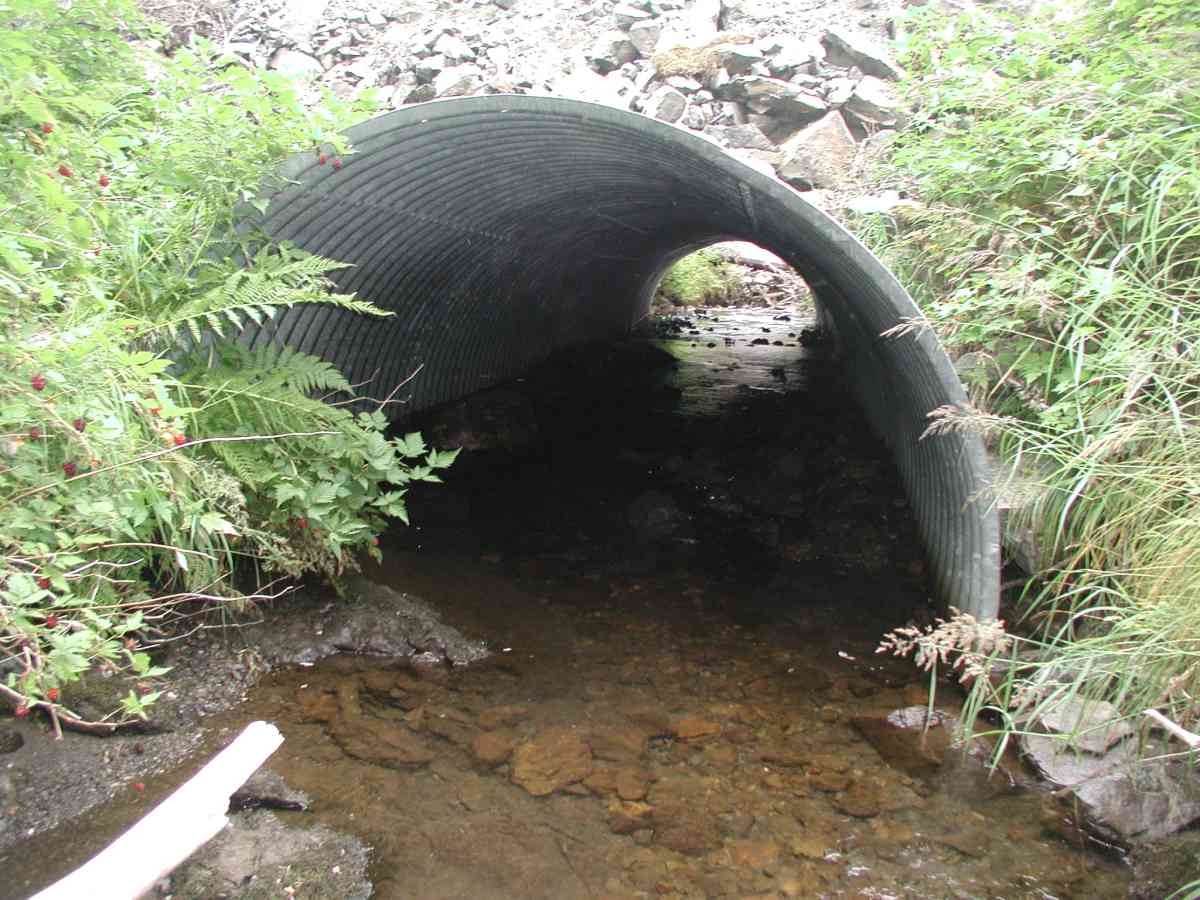

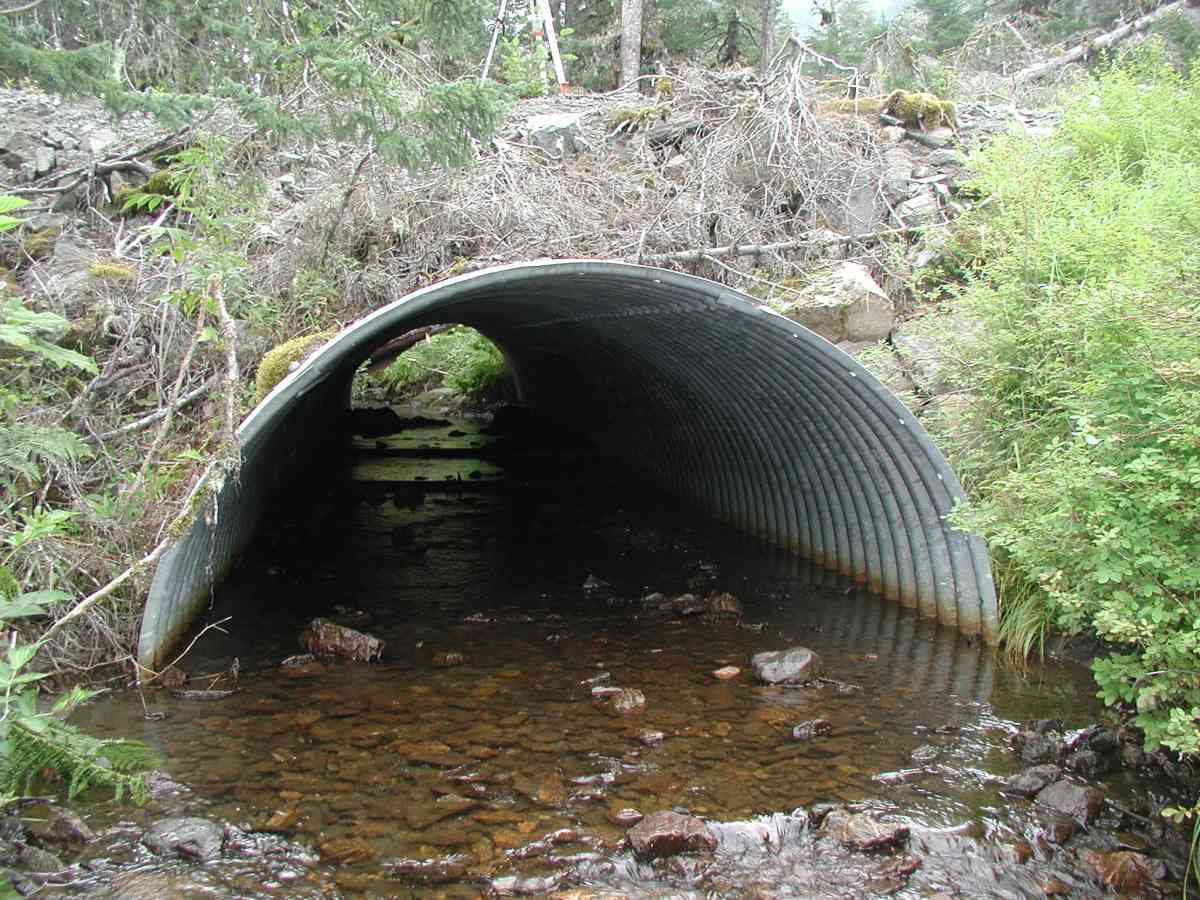

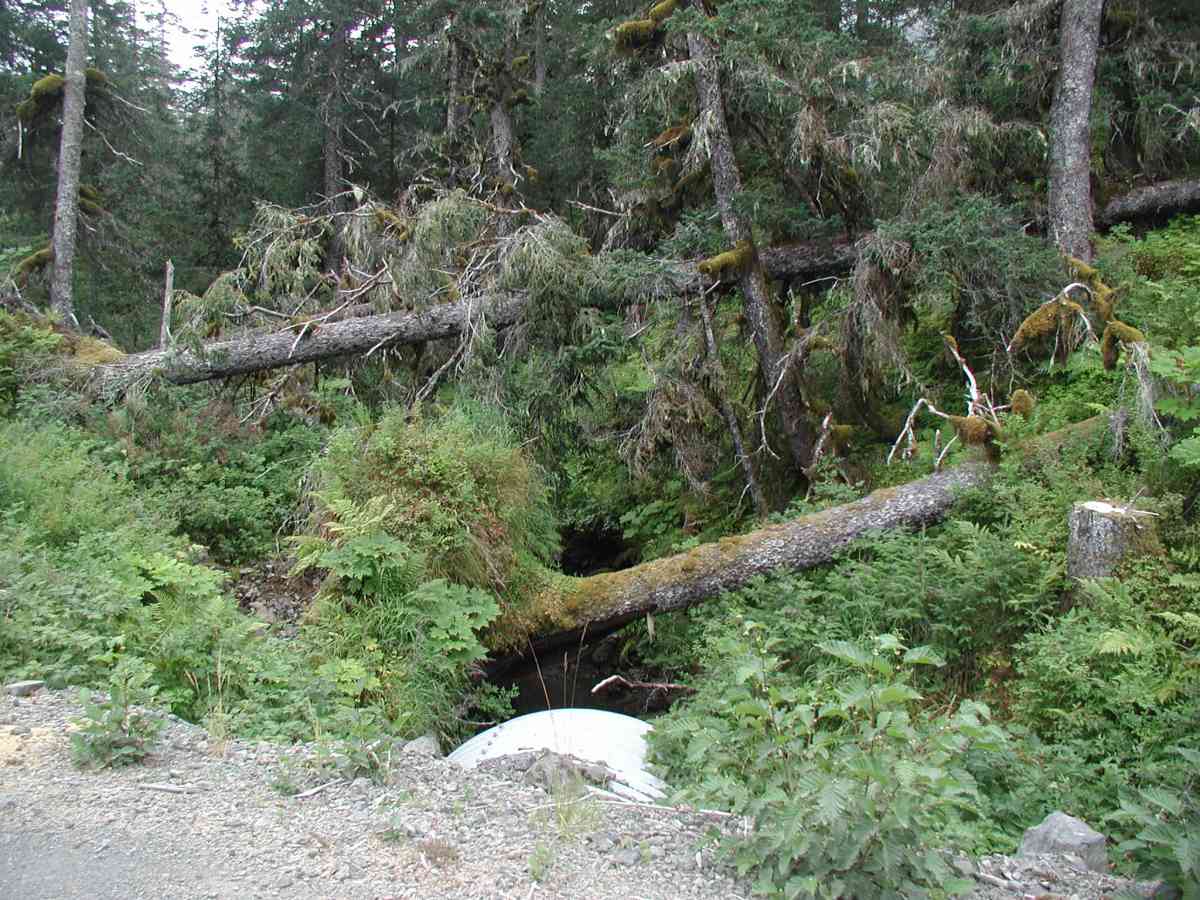

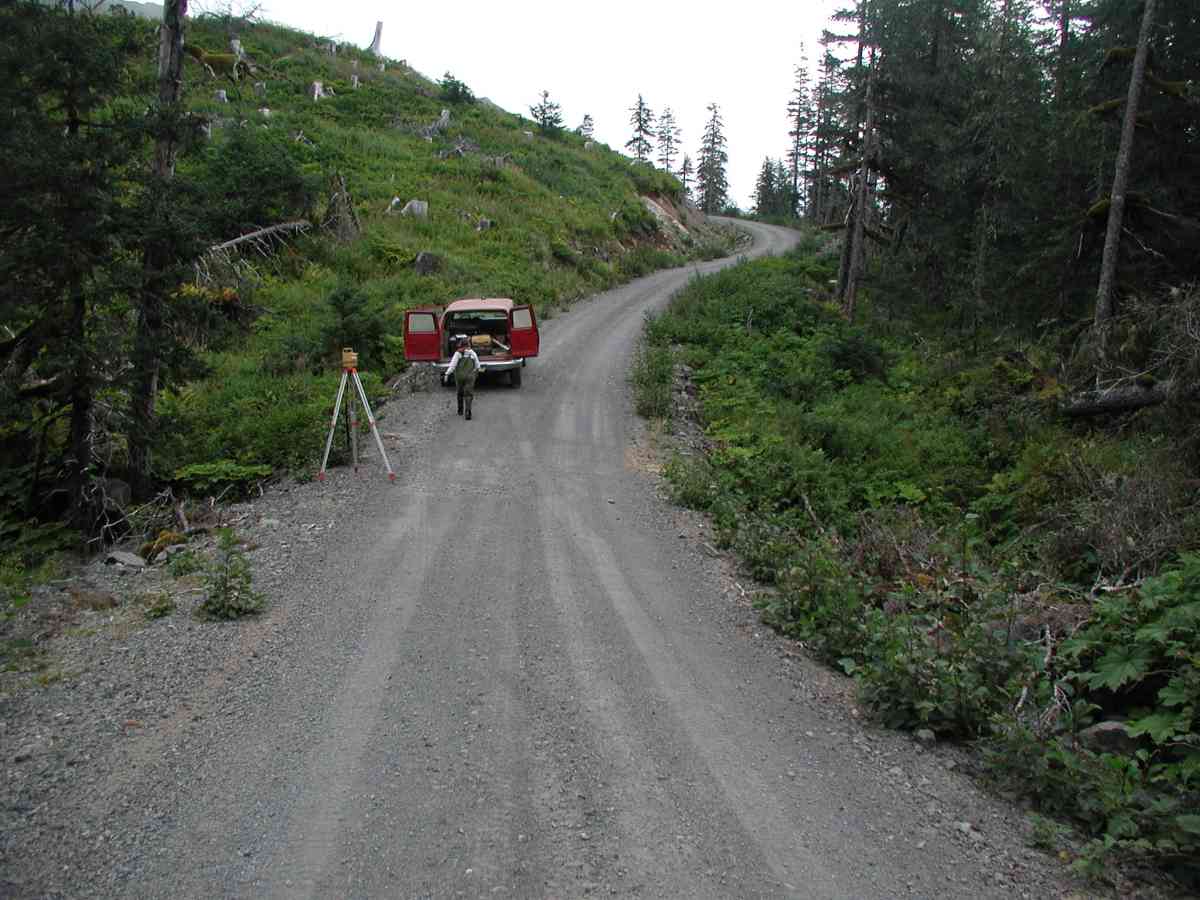

Comments: Location: Port Graham Stream: Steeper gradient creating many riffles and pools. Substrate is cobble with large rocks. Streambank is densely vegetated. Flow measurements were done at 40' upstream; rocks and an eddy were problematic. Culvert: Arch foundation is rocks. Pipe condition=5. Not embedded (natural substrate). Good, functional pipe.

Culvert Measurements

ID: 1 Structure Type: Open-bottom arch (Corrugated Metal) Fish Passage Rating:

Length(ft): 50.72
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):9.25
Height(ft):6.0
Apron Length(ft):
Water Depth(ft): 0.3
Rustline Height(ft):0.42
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.2
Outfall Type:
Constriction Ratio: 0.94
Culvert Gradient: 0.37%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 11.58
Upstream bank full 100.0 10.08
Upstream bank full 125.0 12.75
Upstream bank full 150.0 12.33
Upstream bed width 75.0 7.25
Upstream bed width 100.0 5.17
Upstream bed width 125.0 2.83
Upstream bed width 150.0 4.83
Upstream ordinary high water 75.0 9.50
Upstream ordinary high water 100.0 9.92
Upstream ordinary high water 125.0 10.33
Upstream ordinary high water 150.0 9.67

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
OHW Left Bank 95.64
U/S Thalweg 1 96.08

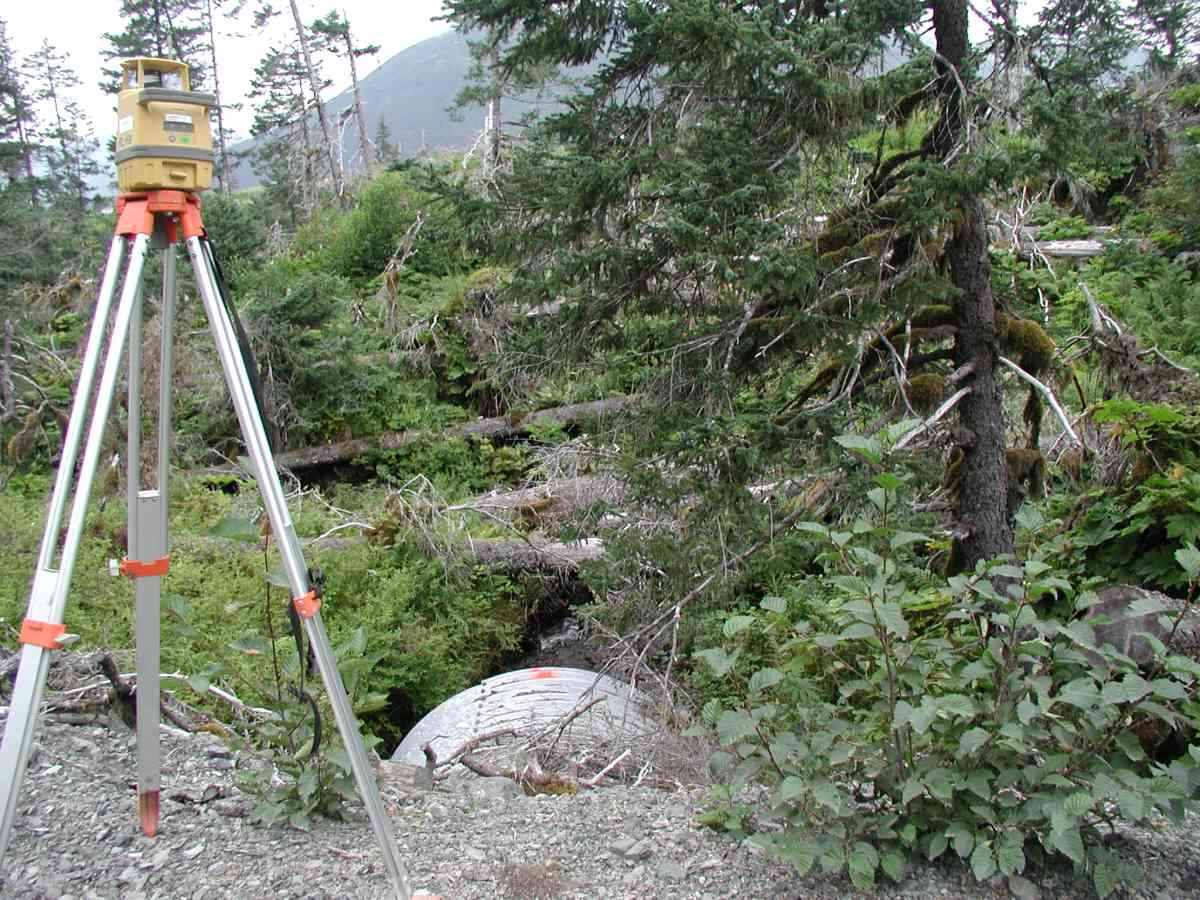

Outlet Culvert Top (Orange painted "X" on top of culvert, measurement taken on 1st corrugation.) 1 100.00
Max Pool Depth 0.00 5.0 95.26
Outlet Invert 1 5.00 0.0 95.54
Road Elev (Road surface.) 30.00 105.96
Inlet Culvert Invert 1 55.00 0.0 95.73

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
