Fish Passage Site 20300922

Coordinates (dec. deg.): 59.30243°, -151.70588°
Legal Description: S010S014W19
Region: South Central

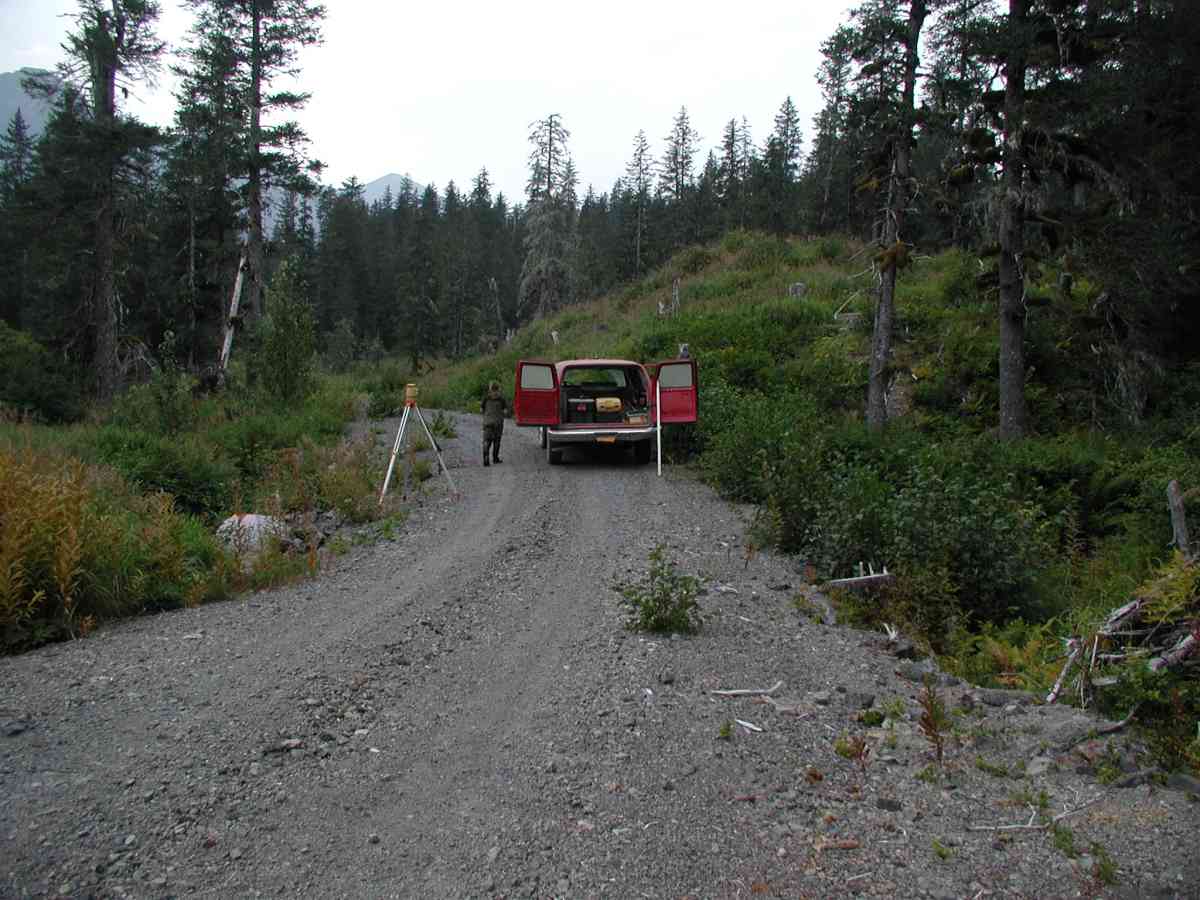

Road Name: Port Graham

Datum: NAD83
Quad Name / ITM: Seldovia B-5
AWC Stream #: 241-20-10550-2021
Stream Name:

Elevation:

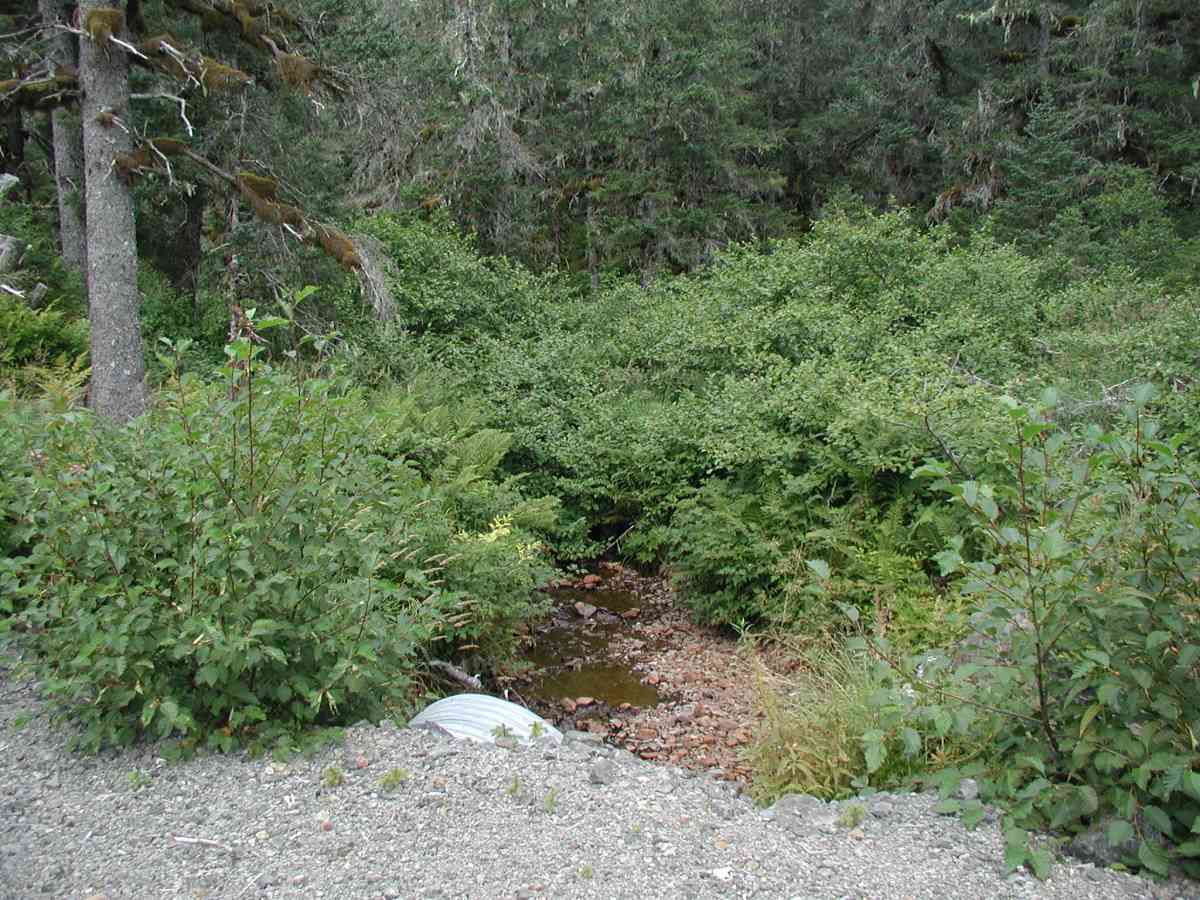

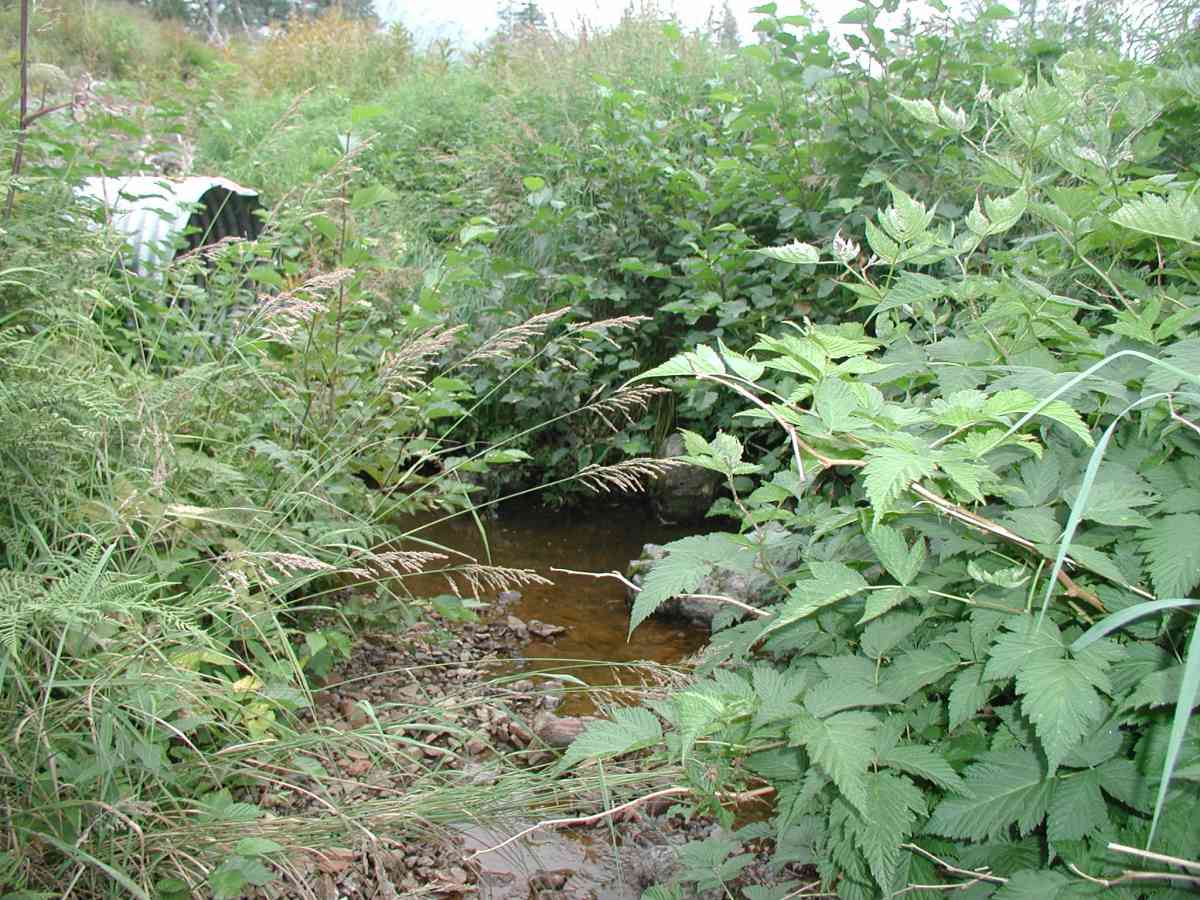

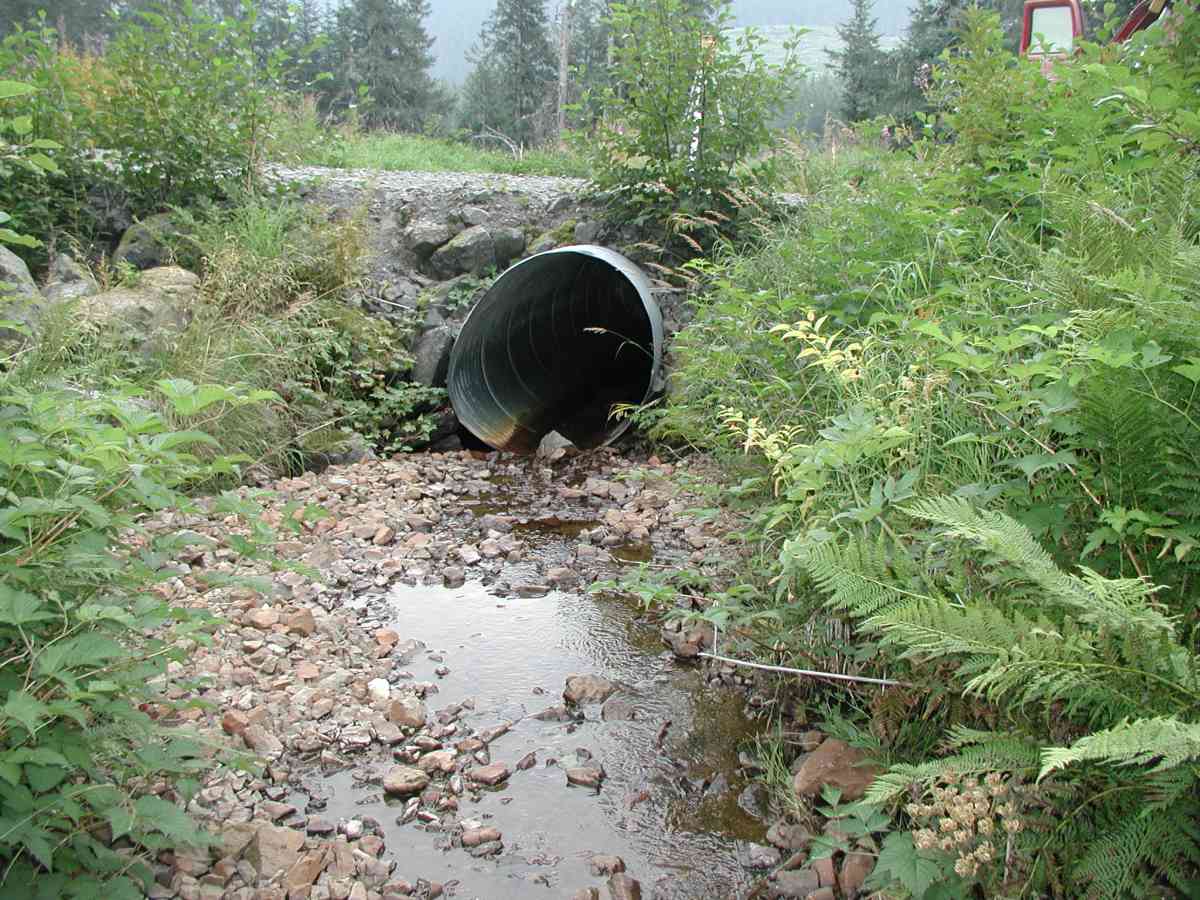

Site Comments: Location: Port Graham Stream: Good flow with a small pool at the outlet. Substrate is cobble/pebble and boulders. Stream bank is well vegetated.

Survey Date: Aug 17, 2004

Survey KPC04-1A102

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

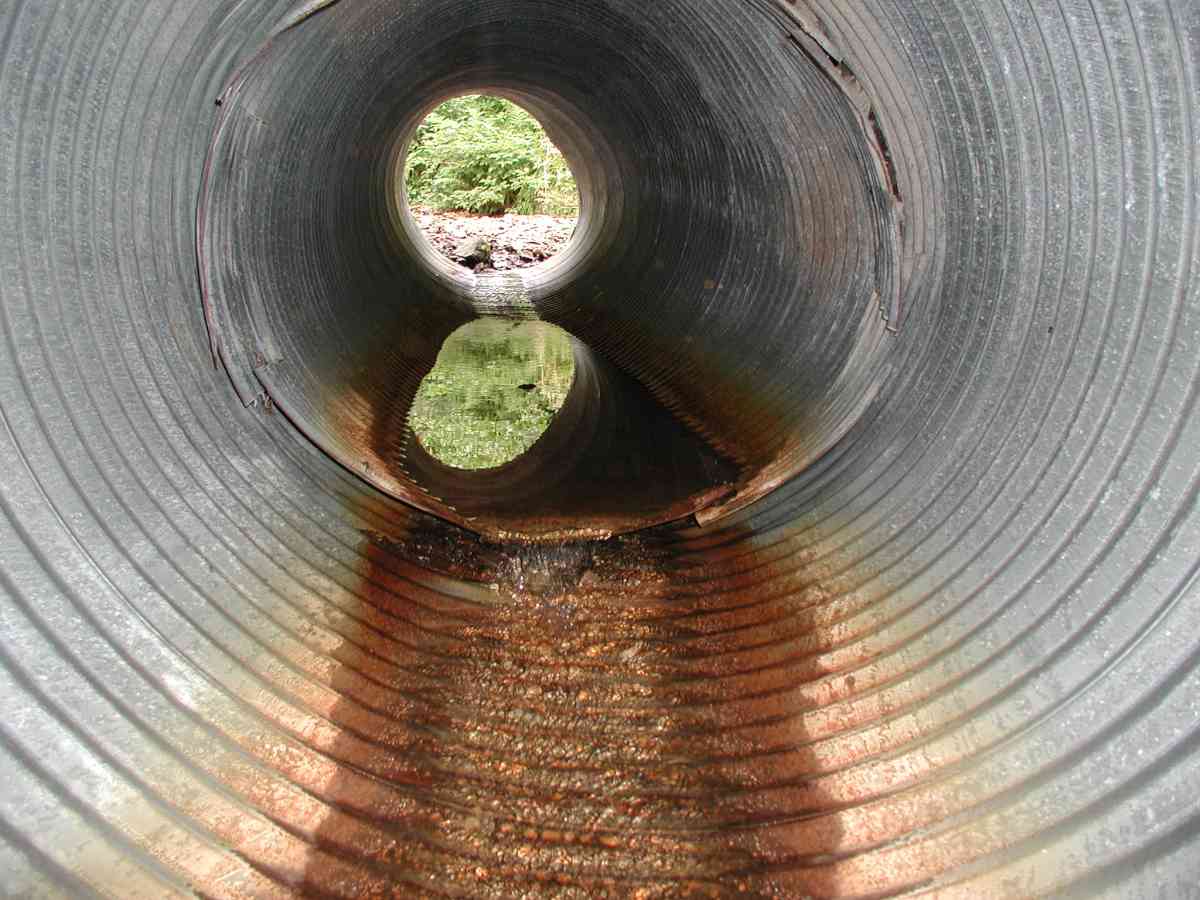

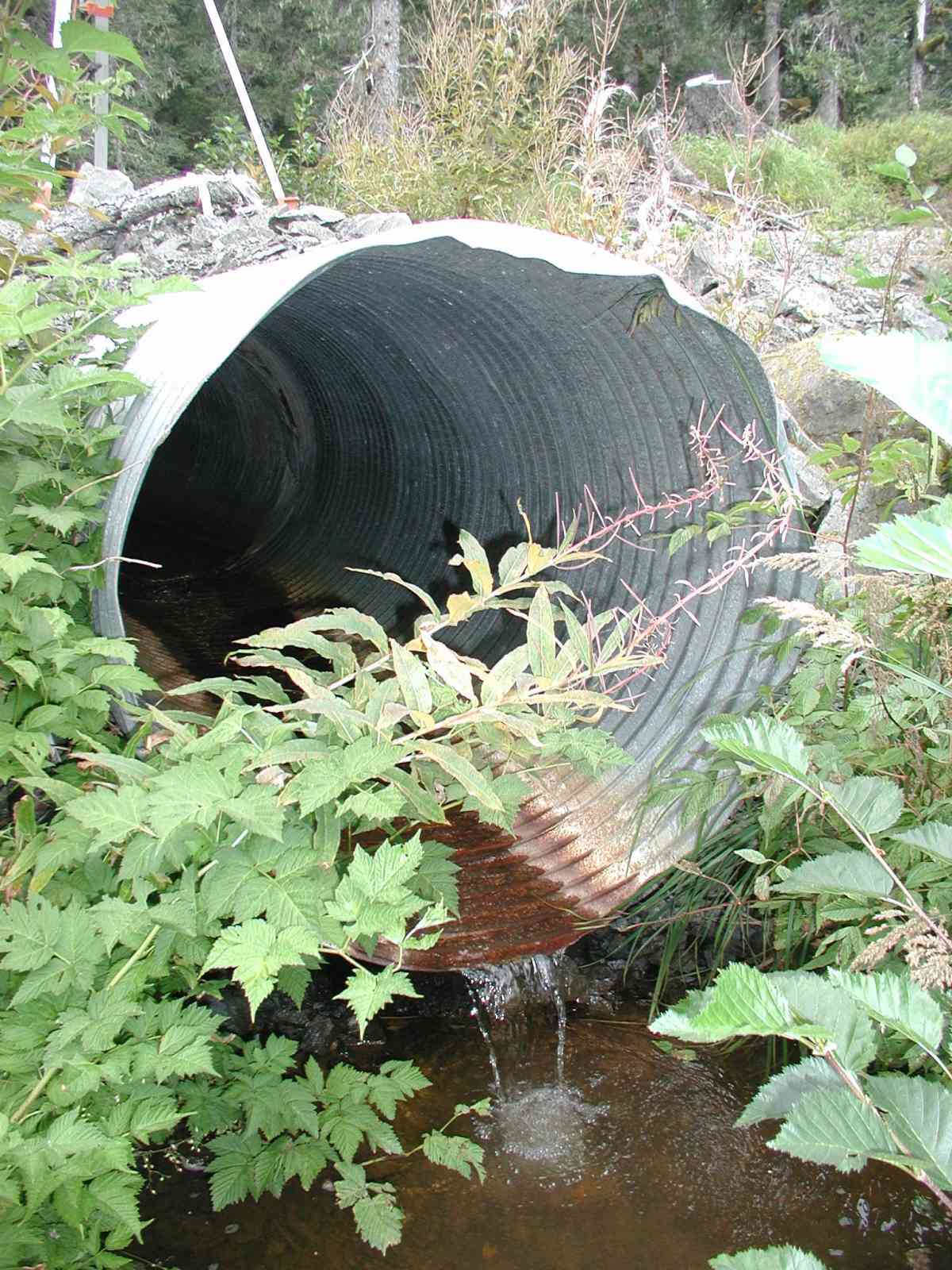

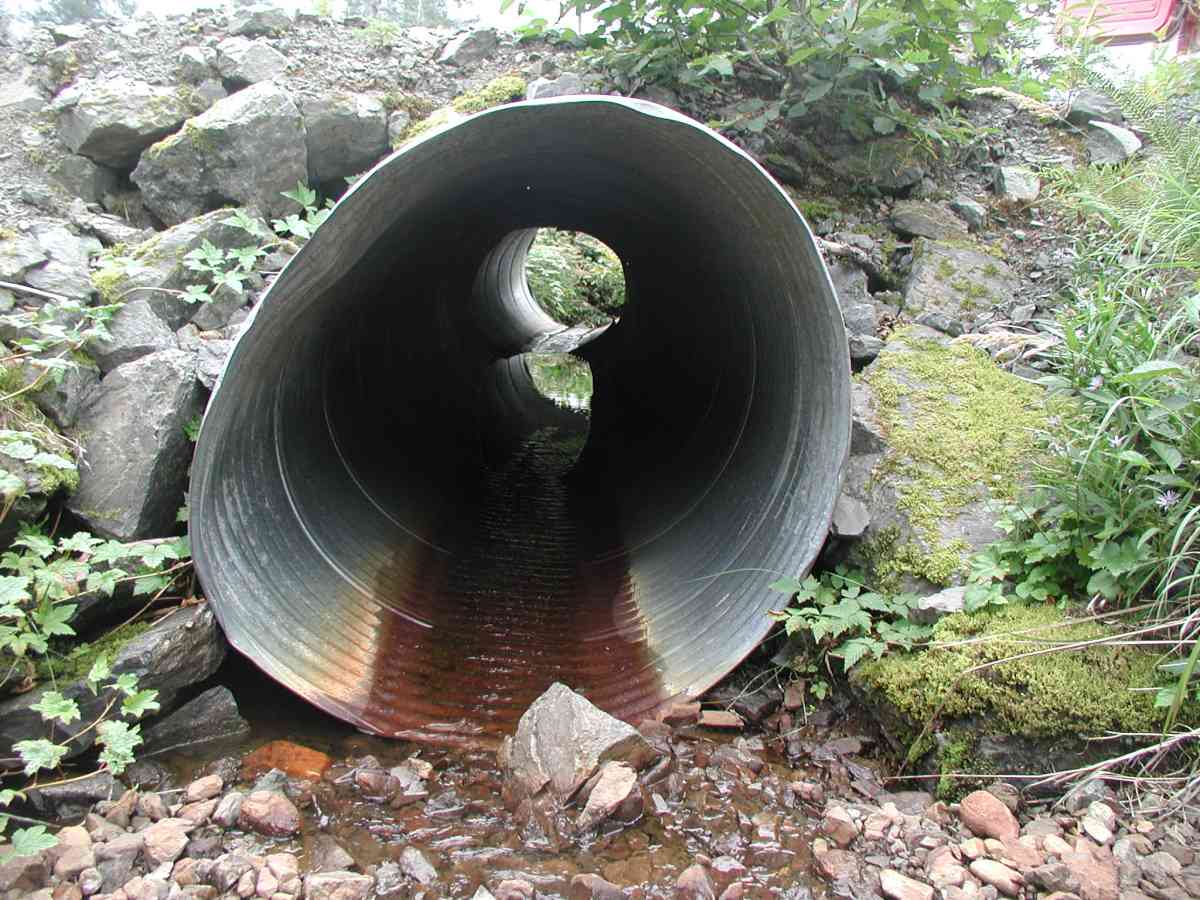

Comments: Location: Port Graham Stream: Good flow with a small pool at the outlet. Substrate is cobble/pebble and boulders. Stream bank is well vegetated. Flow measurements done at 40' upstream; shallow water level was problematic. Culvert: Pipe is perched (3-4") midway thru (one pipe was retro-fitted inside another) Outlet perched ~6-8". Pipe condition=3. Not embedded.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 30.22
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):3.92
Height(ft):4.0
Apron Length(ft):
Water Depth(ft): 0.04
Rustline Height(ft):0.33
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 2.67
Outfall Type:
Constriction Ratio: 0.79
Culvert Gradient: -3.54%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 10.08
Upstream bank full 100.0 7.50
Upstream bank full 125.0 5.08
Upstream bank full 150.0 5.17
Upstream bed width 75.0 1.67
Upstream bed width 100.0 2.17
Upstream bed width 125.0 1.42
Upstream bed width 150.0 0.67
Upstream ordinary high water 75.0 6.33
Upstream ordinary high water 100.0 5.42
Upstream ordinary high water 125.0 4.33
Upstream ordinary high water 150.0 3.75

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Tailcrest or 1st Thalweg 94.90
OHW Left Bank 95.23
OHW Left Bank 95.33
D/S Thalweg 94.18
U/S Thalweg 1 97.84

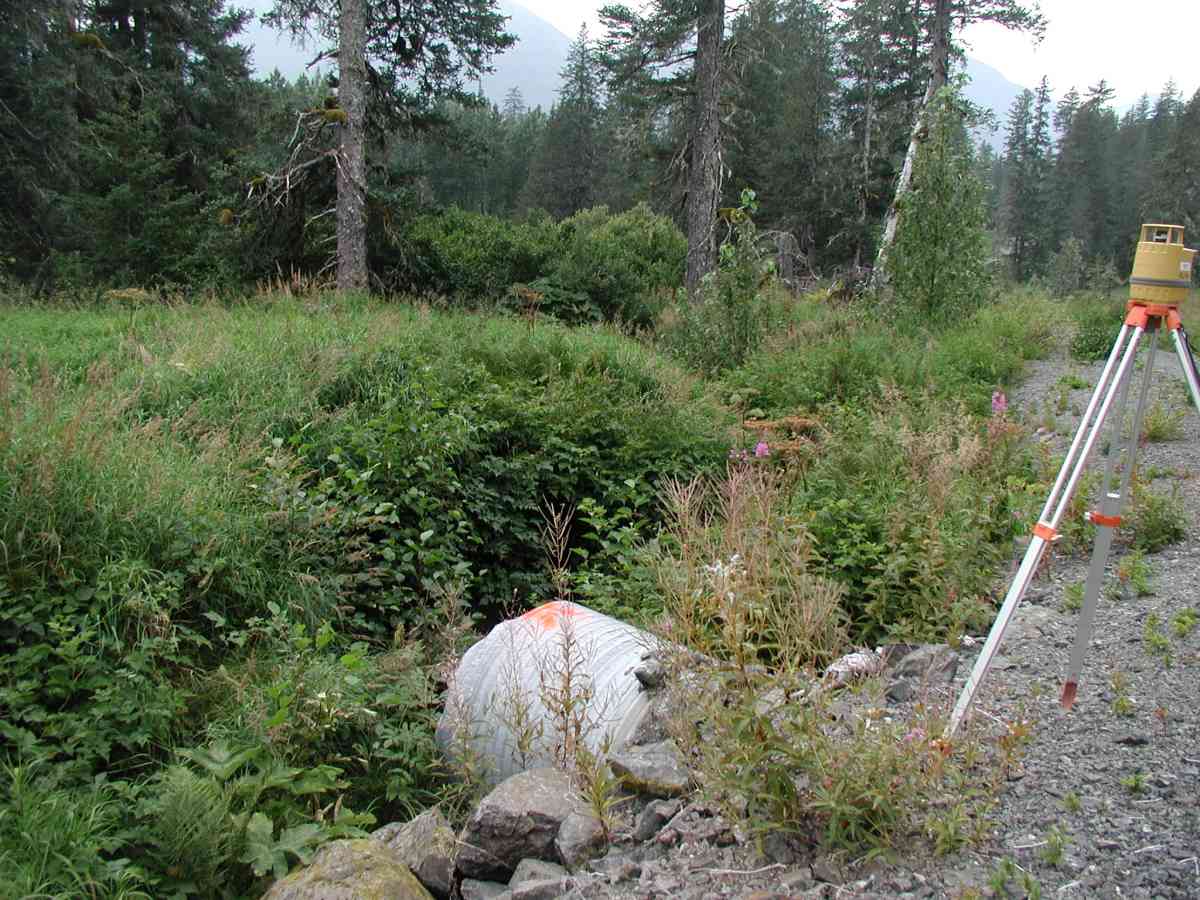

Outlet Culvert Top (Orange Painted "X", measurement taken at 1st corrugation.) 1 100.00
Max Pool Depth 0.00 5.0 94.81
Outlet Invert 1 5.00 0.0 97.96
Road Elev (Road surface.) 20.00 100.40
Inlet Culvert Invert 1 35.00 0.0 96.89

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
