Fish Passage Site 20300921

Coordinates (dec. deg.): 59.30214°, -151.70023°
Legal Description: S010S014W19
Region: South Central
Road Name: Port Graham

Datum: NAD83
Quad Name / ITM: Seldovia B-5
AWC Stream #:
Stream Name:

Elevation:

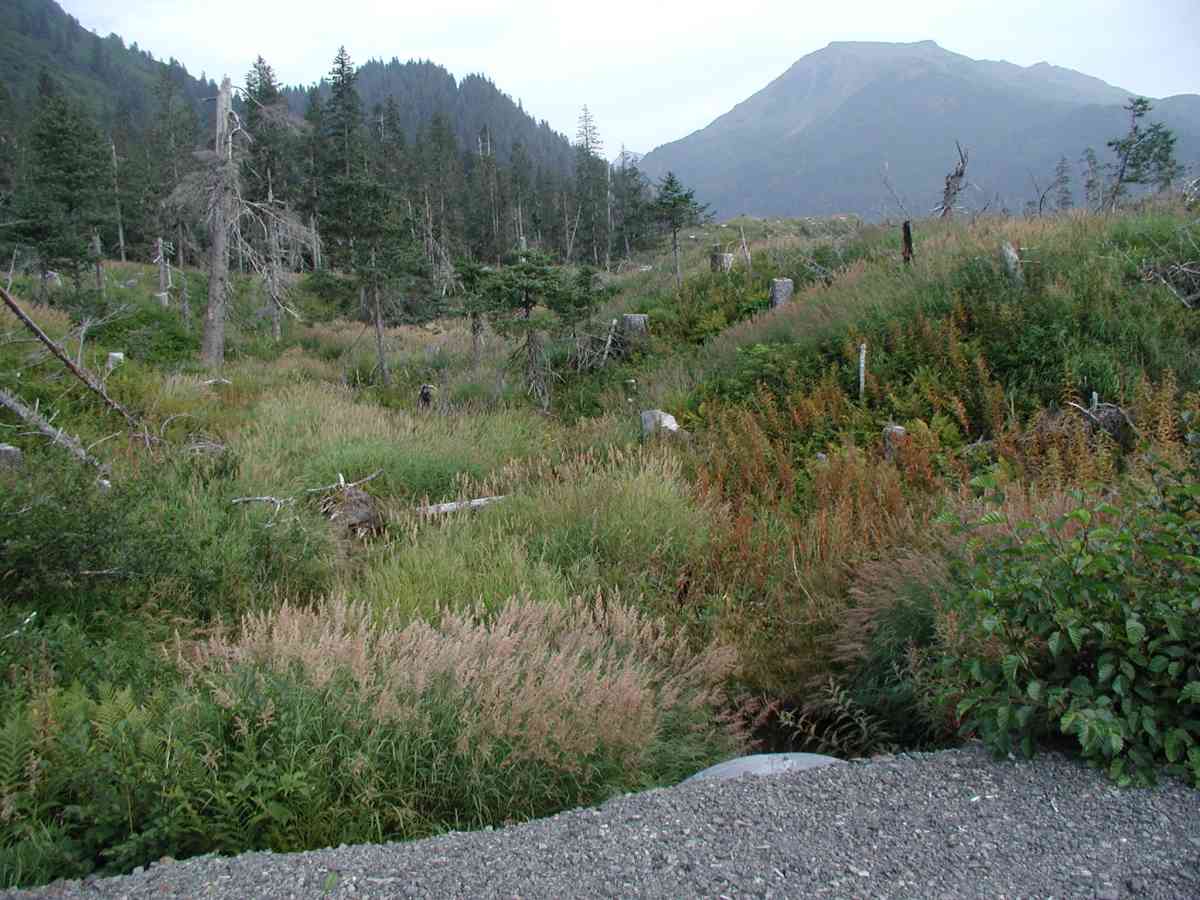

Site Comments: Location: Port Graham Stream: Good flow. Stream meanders thru arch. Stream bank is well vegetated up and downstream. Substrate is pebble/cobble and some large rocks.

Survey Date: Aug 17, 2004

Survey KPC04-1A099

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

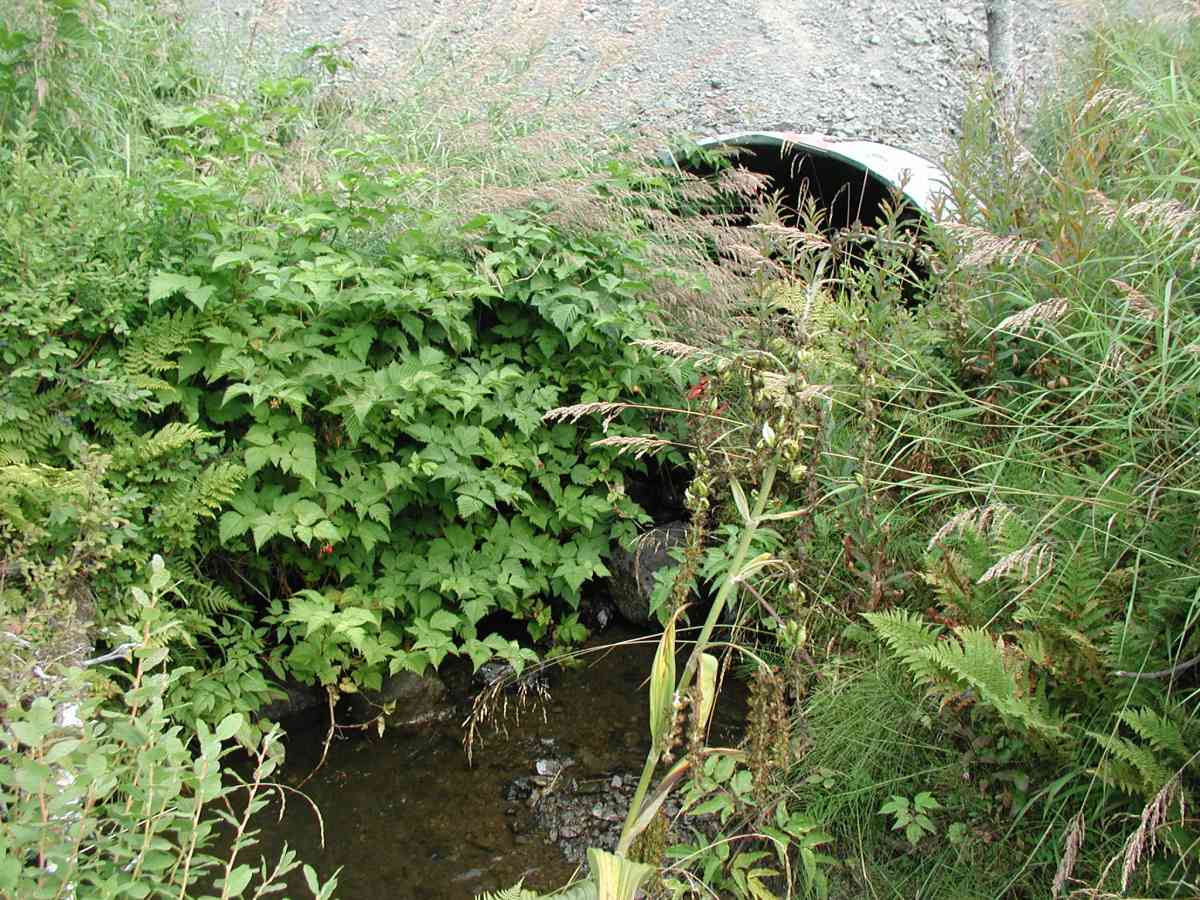

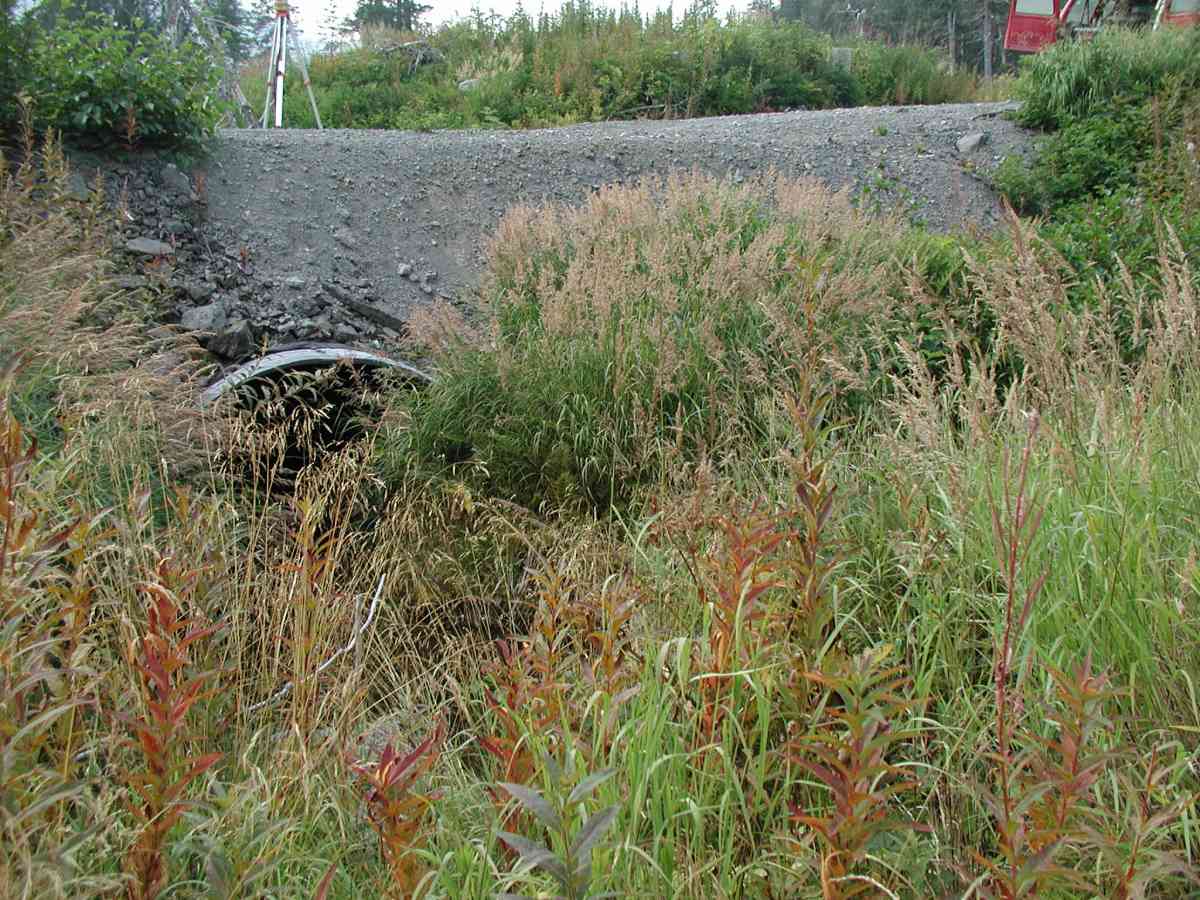

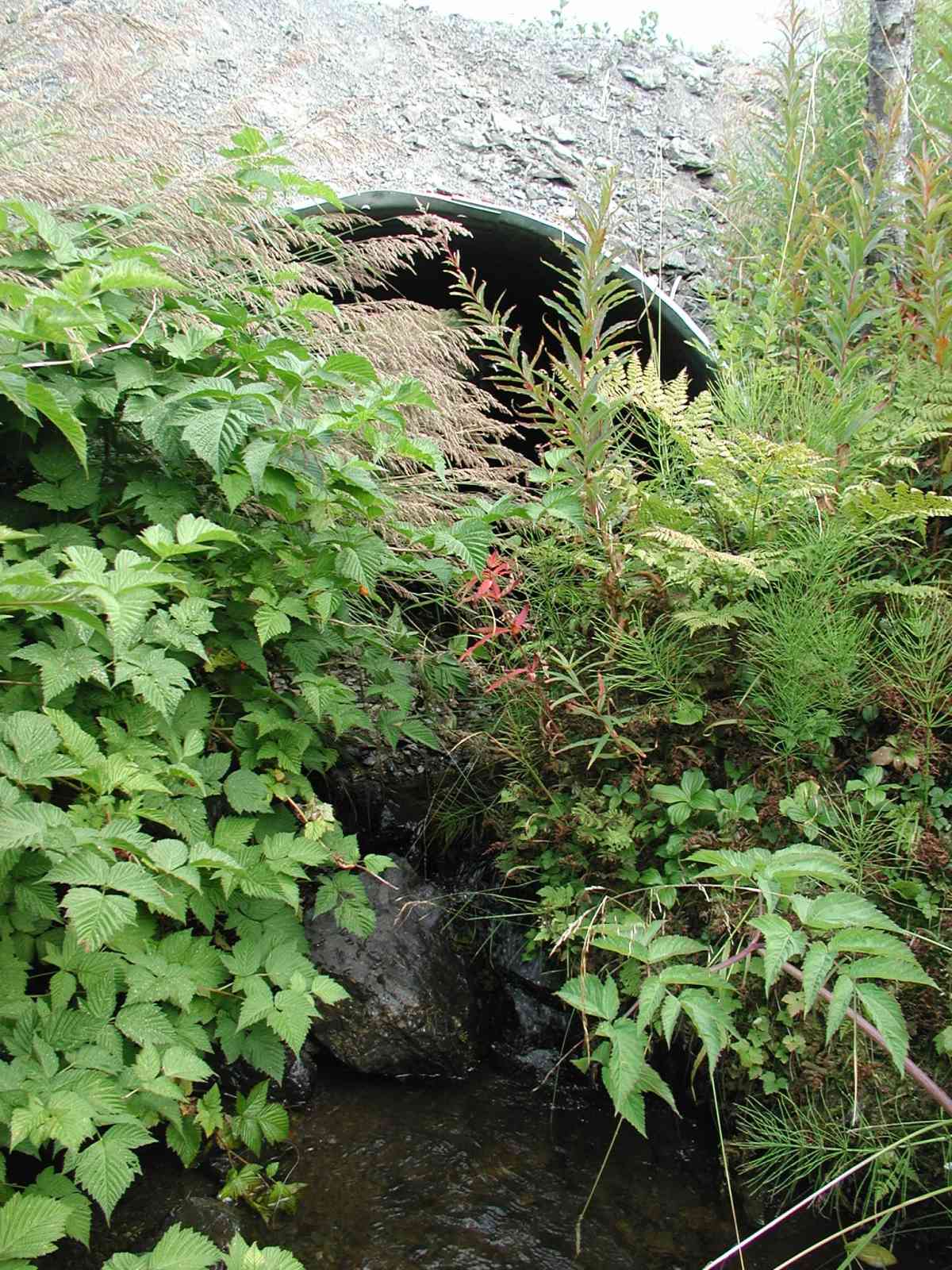

Comments: Location: Port Graham Stream: Good flow. Stream meanders thru arch. Stream bank is well vegetated up and downstream. Substrate is pebble/cobble and some large rocks. Outlet flow is on RB of arch (invert dry). Large rocks immediately downstream of outlet may prohibit fish passage, particularly upstream movement. Bank undercut is 1' at 100'. Culvert: Pipe condition=5. Not embedded (natural substrate).

Culvert Measurements

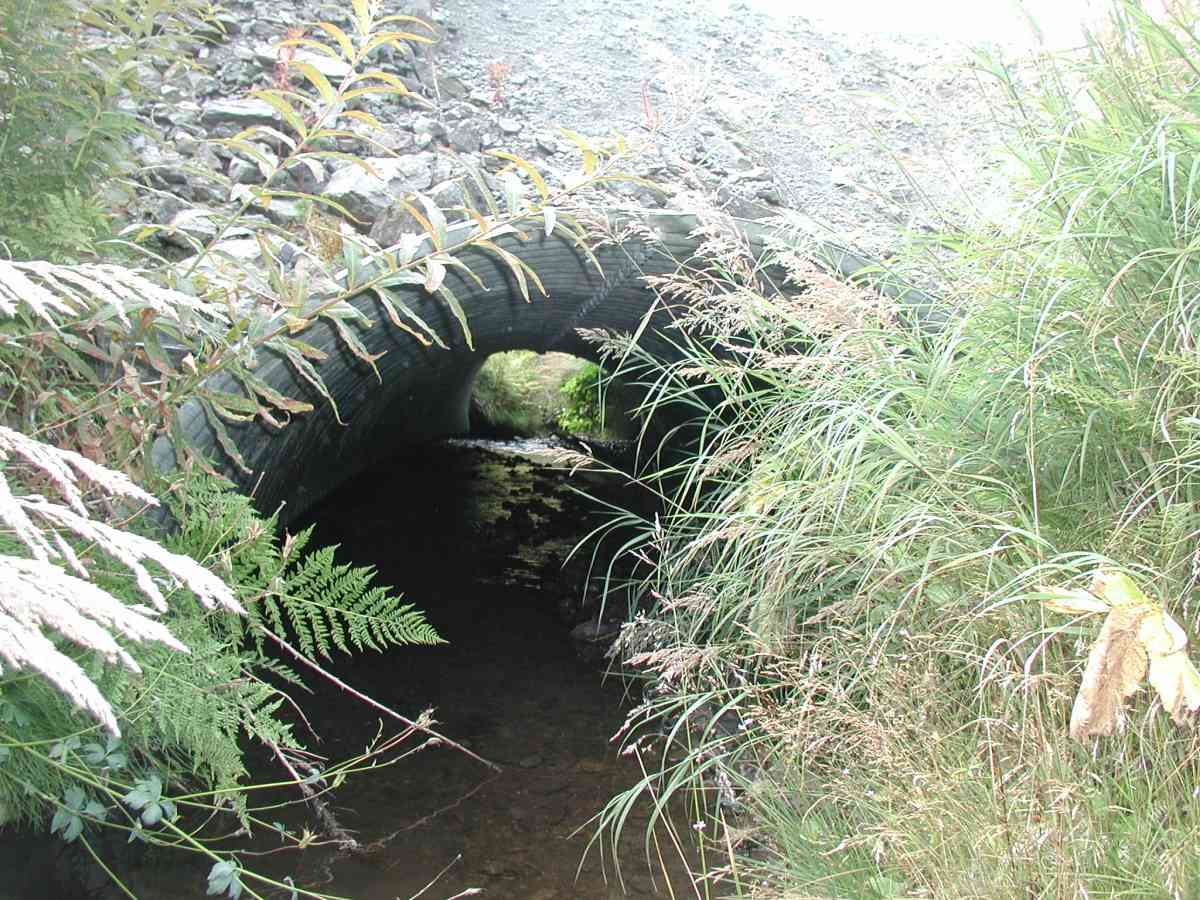

ID: 1 Structure Type: Open-bottom arch (Corrugated Metal) Fish Passage Rating:

Length(ft): 40.86
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):7.08
Height(ft):4.0
Apron Length(ft):
Water Depth(ft): 0.26
Rustline Height(ft):0.0
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.38
Outfall Type:
Constriction Ratio: 2.17
Culvert Gradient: 0.86%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:CobbleCobble
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 5.50
Upstream bank full 100.0 4.50
Upstream bank full 125.0 5.50
Upstream bank full 150.0 6.58
Upstream bed width 75.0 1.33
Upstream bed width 100.0 2.00
Upstream bed width 125.0 1.50
Upstream bed width 150.0 1.75
Upstream ordinary high water 75.0 3.00
Upstream ordinary high water 100.0 2.83
Upstream ordinary high water 125.0 3.75
Upstream ordinary high water 150.0 3.50

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 94.37
D/S Tailcrest or 1st Thalweg 94.74
OHW Left Bank 95.25
OHW Left Bank 95.49
U/S Thalweg 1 96.14

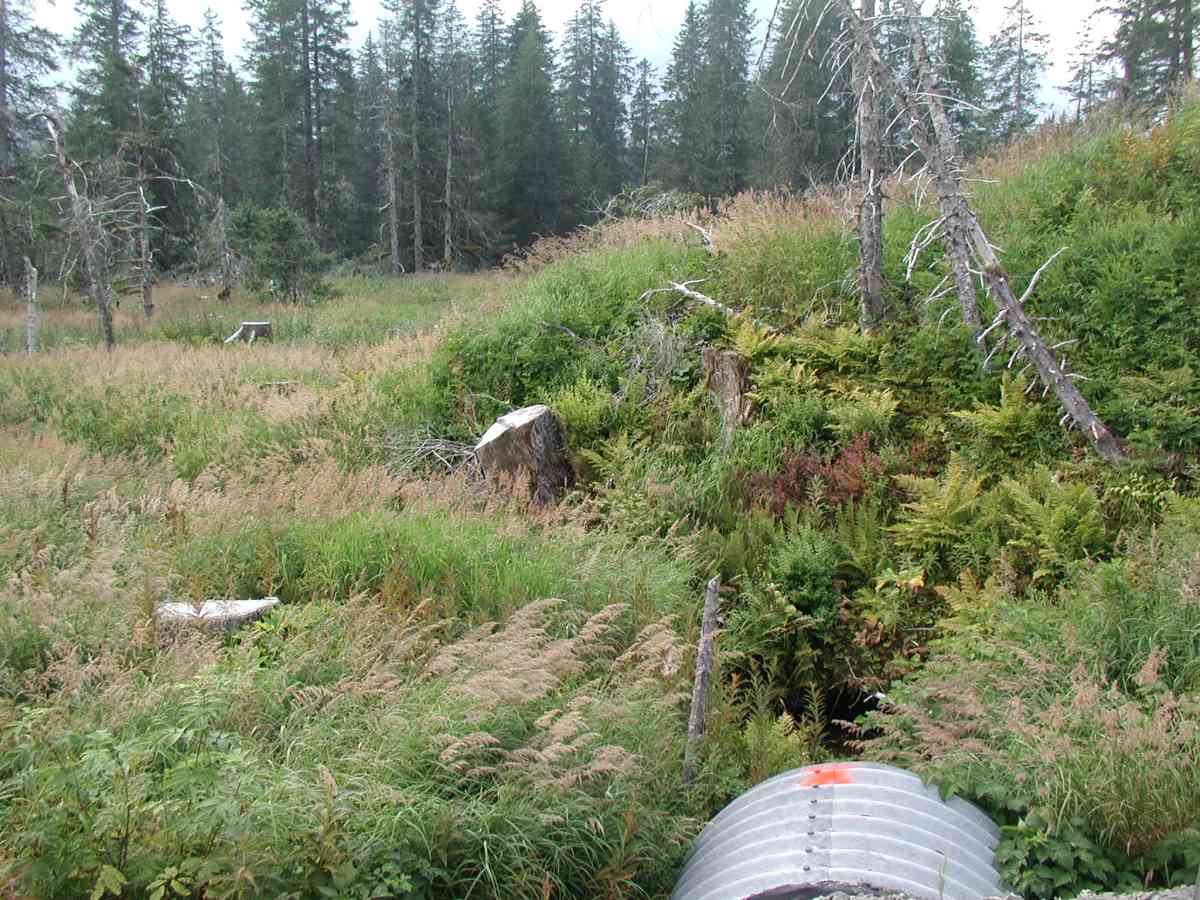

Outlet Culvert Top (Orange Painted "X" on top of outlet, measurement on 1st corrugation.) 1 100.00
Max Pool Depth (Same location as max pool depth.) 0.00 5.0 94.37
Outlet Invert (Measured from substrate.) 1 5.00 0.0 95.61

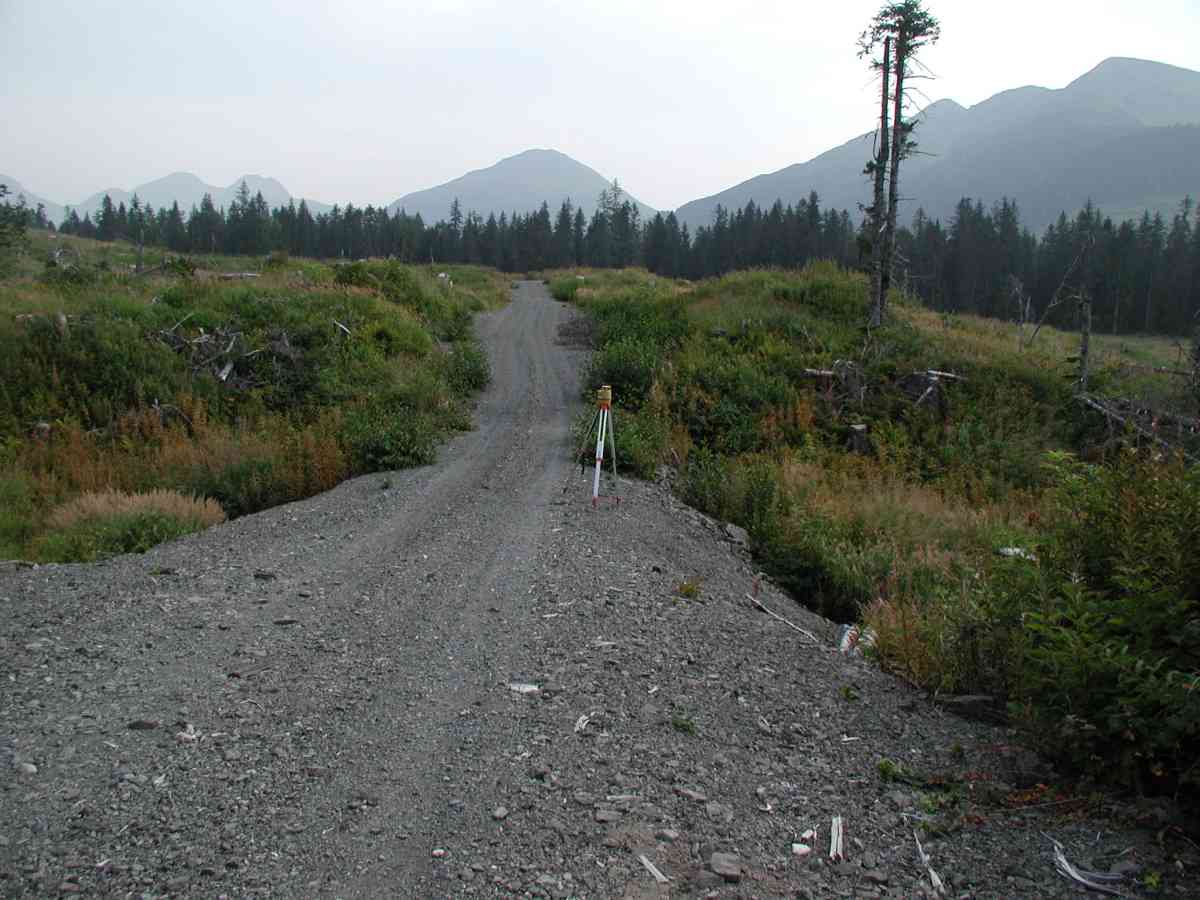

Road Elev (Road surface.) 25.00 103.76
Inlet Culvert Invert 1 45.00 0.0 95.96

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
