Fish Passage Site 20300917

Coordinates (dec. deg.): 59.30608°, -151.72583°
Legal Description: S010S015W13
Region: South Central

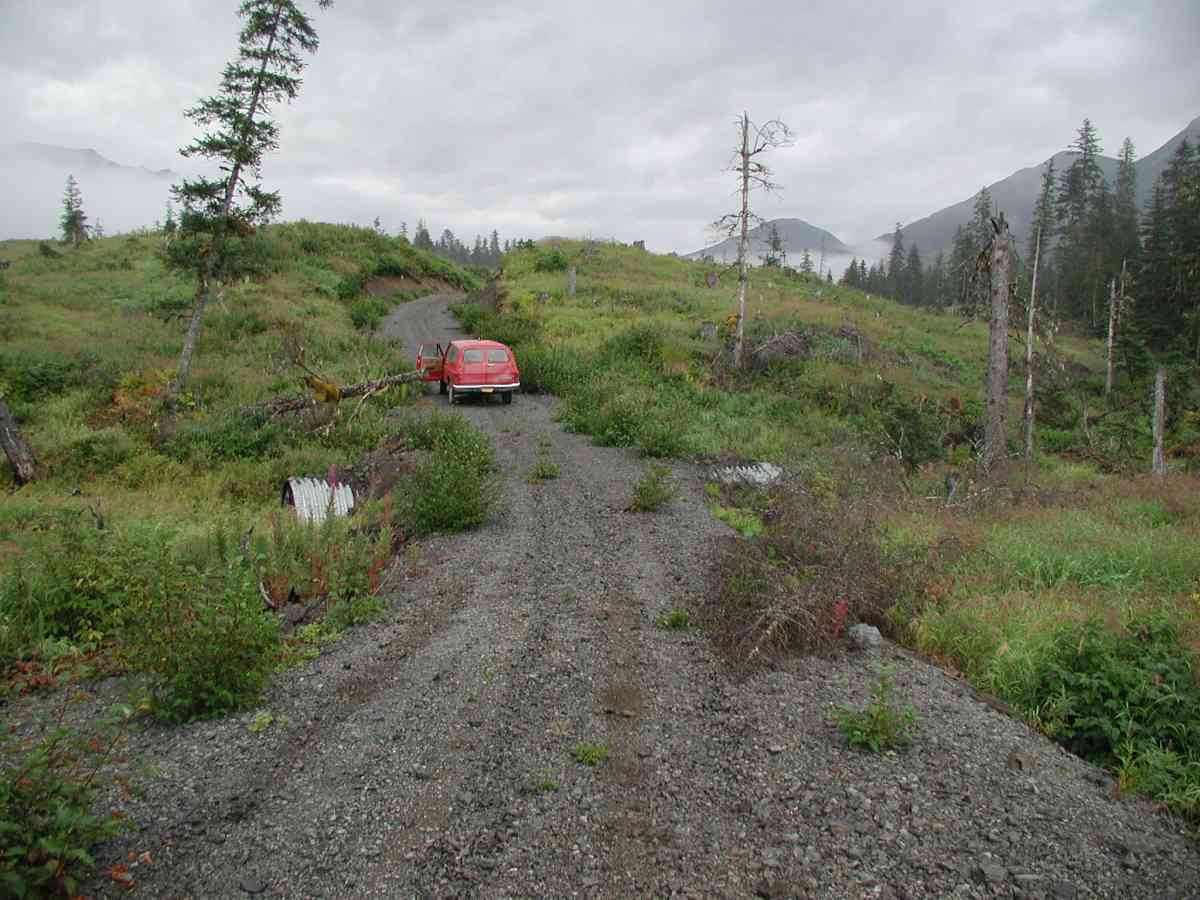

Road Name: Port Graham

Datum: NAD83
Quad Name / ITM: Seldovia B-5
AWC Stream #: 241-20-10550-2015
Stream Name:

Elevation:

Site Comments: Location: Port Graham Stream: Flow is slow

Survey Date: Aug 17, 2004

Survey KPC04-1A095

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

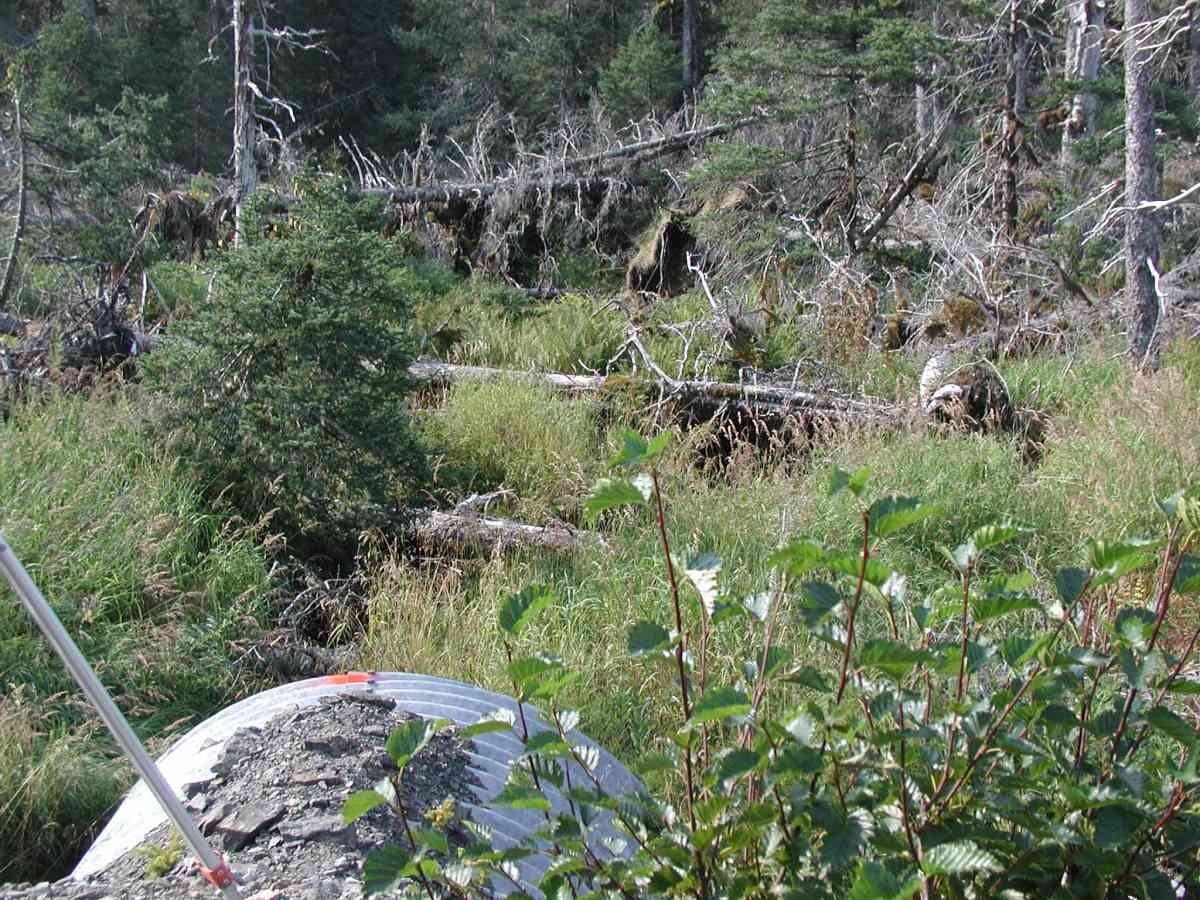

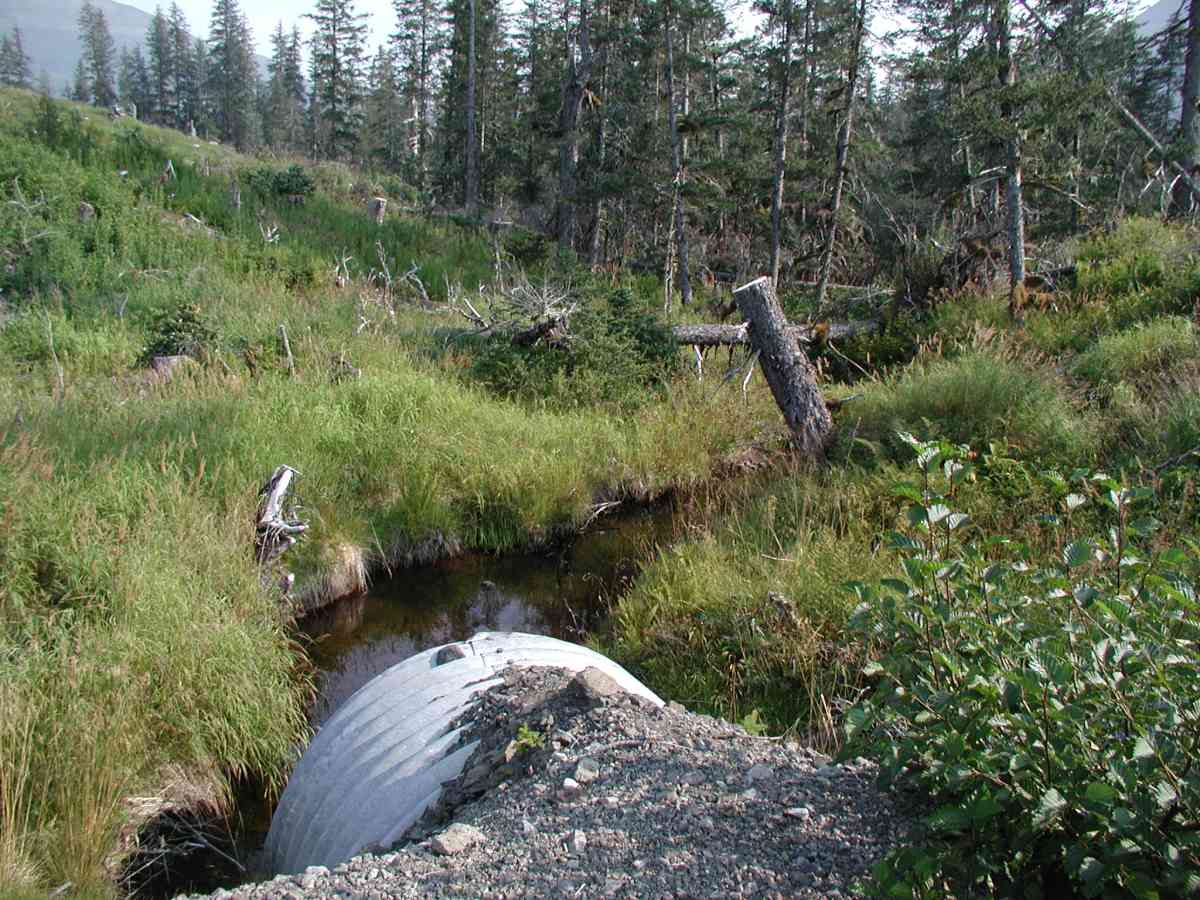

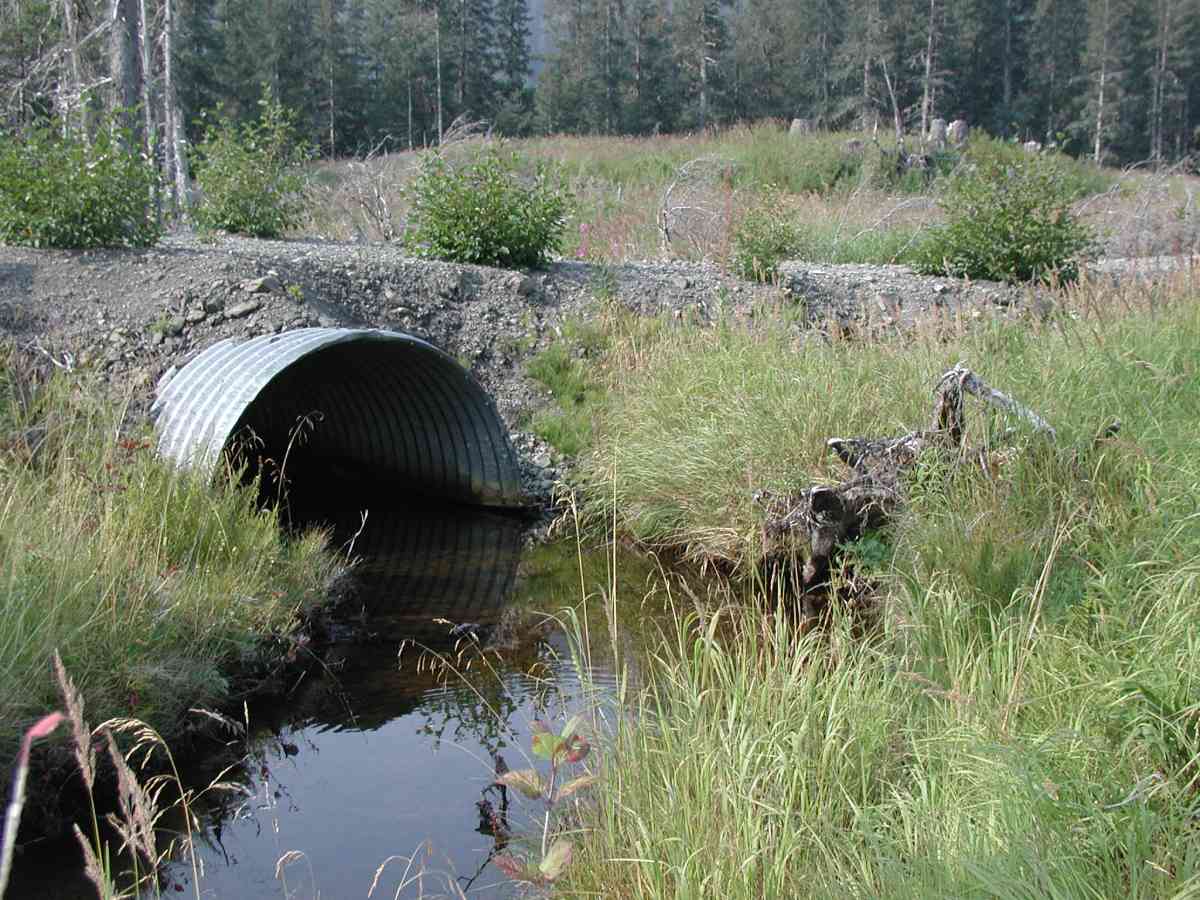

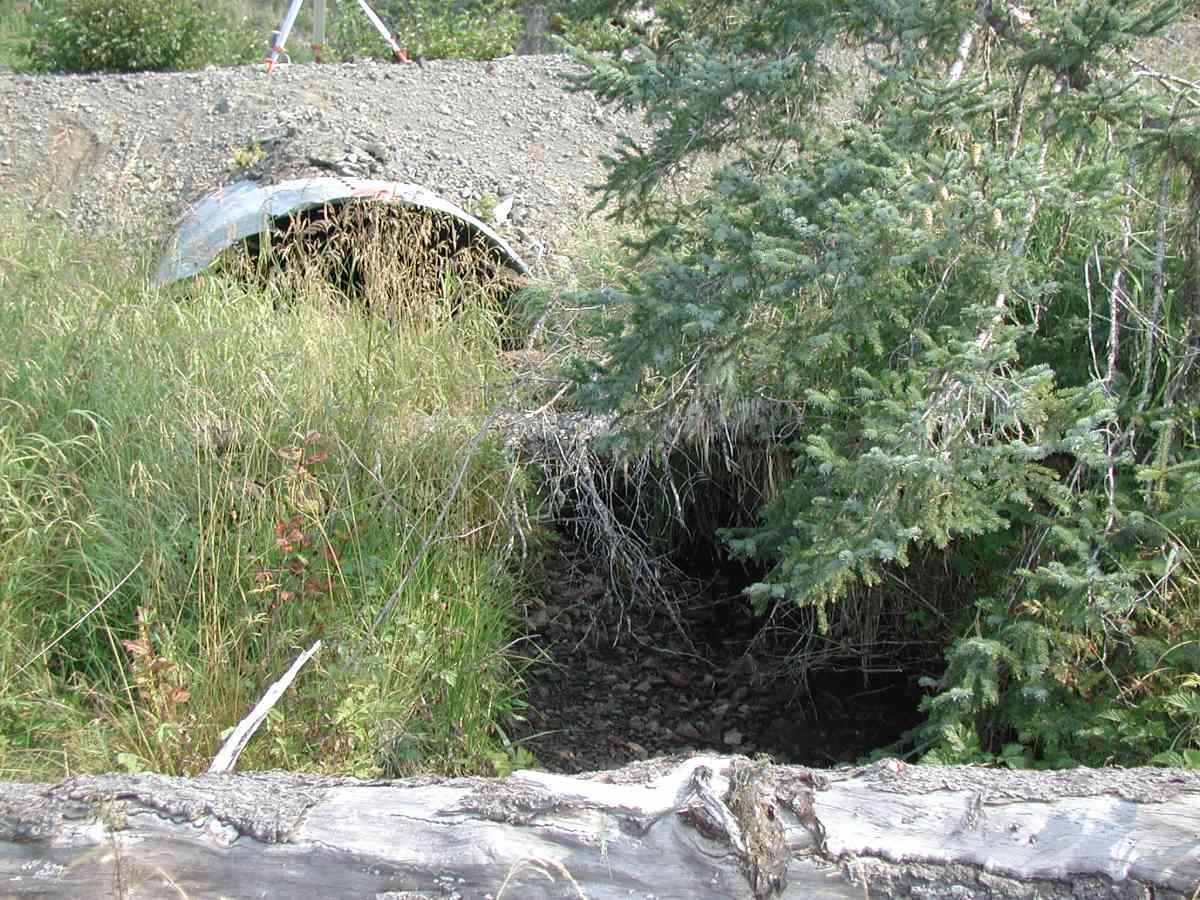

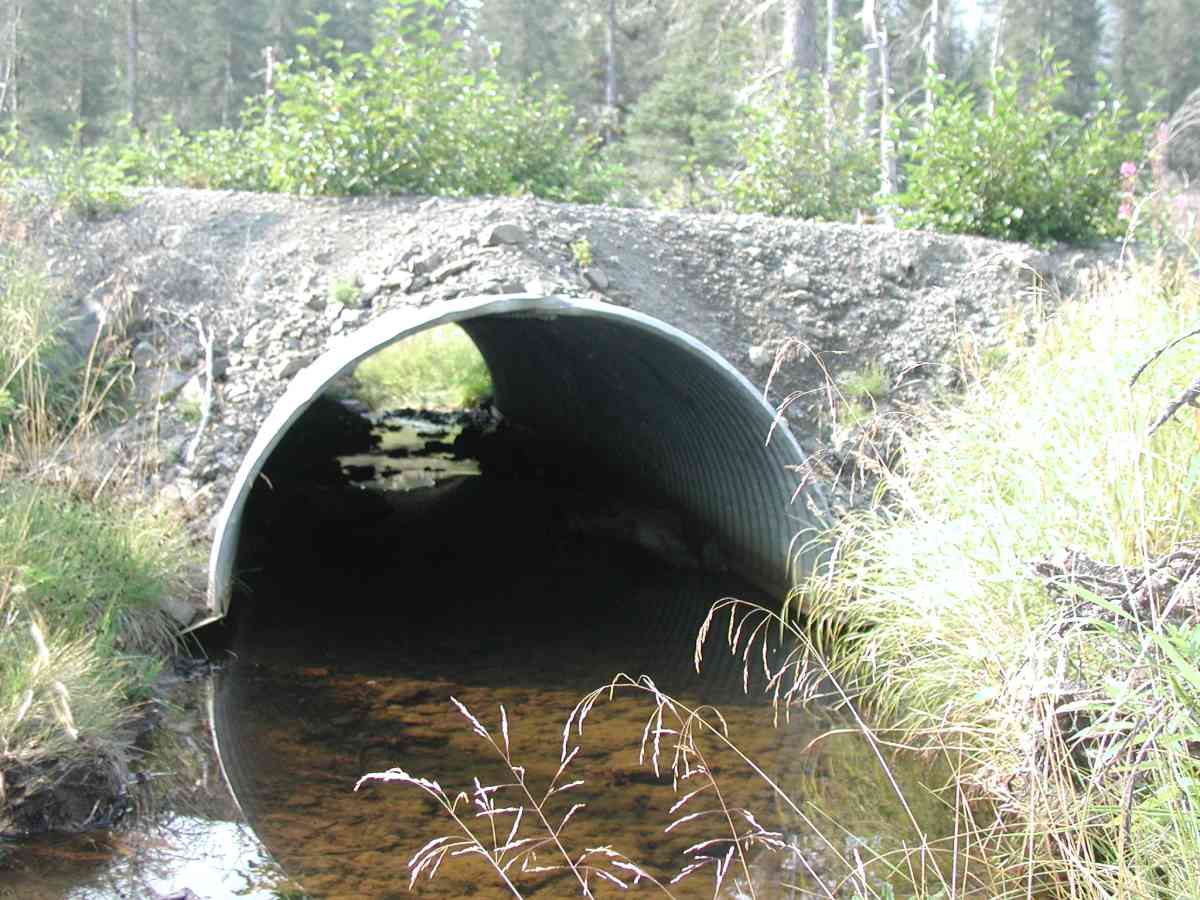

Comments: Location: Port Graham Stream: Flow is slow but not restricted by the culvert. The channel is wider near the inlet and outlet; channel width narrows ~25' upstream of inlet and 75' downstream of outlet. Substrate is small cobble; some larger rocks inside of the arch. Bank undercut is ~6". Flow measurements were done 75' upstream of inlet; rocks were problematic. Culvert: Pipe Condition =5. Arch is set on a large rock foundation. Not embedded (natural substrate).

Culvert Measurements

ID: 1 Structure Type: Open-bottom arch (Corrugated Metal) Fish Passage Rating:

Length(ft): 89.15
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):7.03
Height(ft):3.83
Apron Length(ft):
Water Depth(ft): 0.11
Rustline Height(ft):5.04
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: -0.15
Outfall Type:
Constriction Ratio: 1.29
Culvert Gradient: 0.00%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:CobbleCobble
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 6.92
Upstream bank full 100.0 11.42
Upstream bank full 125.0 11.67
Upstream bank full 150.0 10.33
Upstream bed width 75.0 1.83
Upstream bed width 100.0 3.83
Upstream bed width 125.0 5.50
Upstream bed width 150.0 7.17
Upstream ordinary high water 75.0 3.83
Upstream ordinary high water 100.0 3.92
Upstream ordinary high water 125.0 6.58
Upstream ordinary high water 150.0 7.50

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Tailcrest or 1st Thalweg 95.64
D/S Thalweg 95.71
OHW Left Bank 95.78
OHW Left Bank 96.00
U/S Thalweg 1 96.01

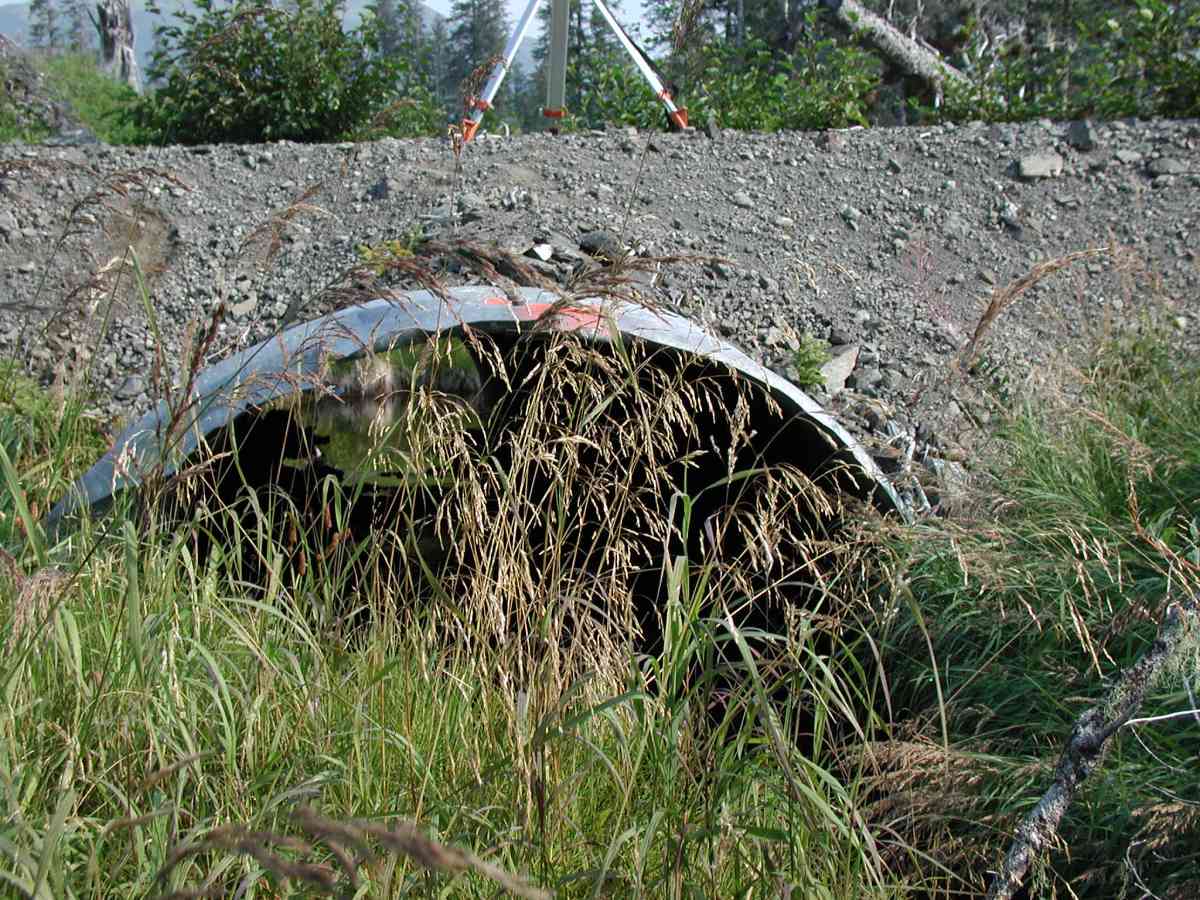

Outlet Culvert Top (Orange painted "X" on top of outlet (measurement on top of 1st corrugation)) 1 100.00
Max Pool Depth (Not a pool.) 0.00 5.0 95.43
Outlet Invert (Meaurement from substrate.) 1 5.00 0.0 95.74
Road Elev (Road surface.) 49.50 101.63
Inlet Culvert Invert (Measurement from substrate.) 1 94.00 0.0 95.74

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
