Fish Passage Site 20300916

Coordinates (dec. deg.): 59.30369°, -151.72045°
Legal Description: S010S015W13
Region: South Central
Road Name: Port Graham

Datum: NAD83
Quad Name / ITM: Seldovia B-5
AWC Stream #: 241-20-10550-2017
Stream Name:

Elevation:

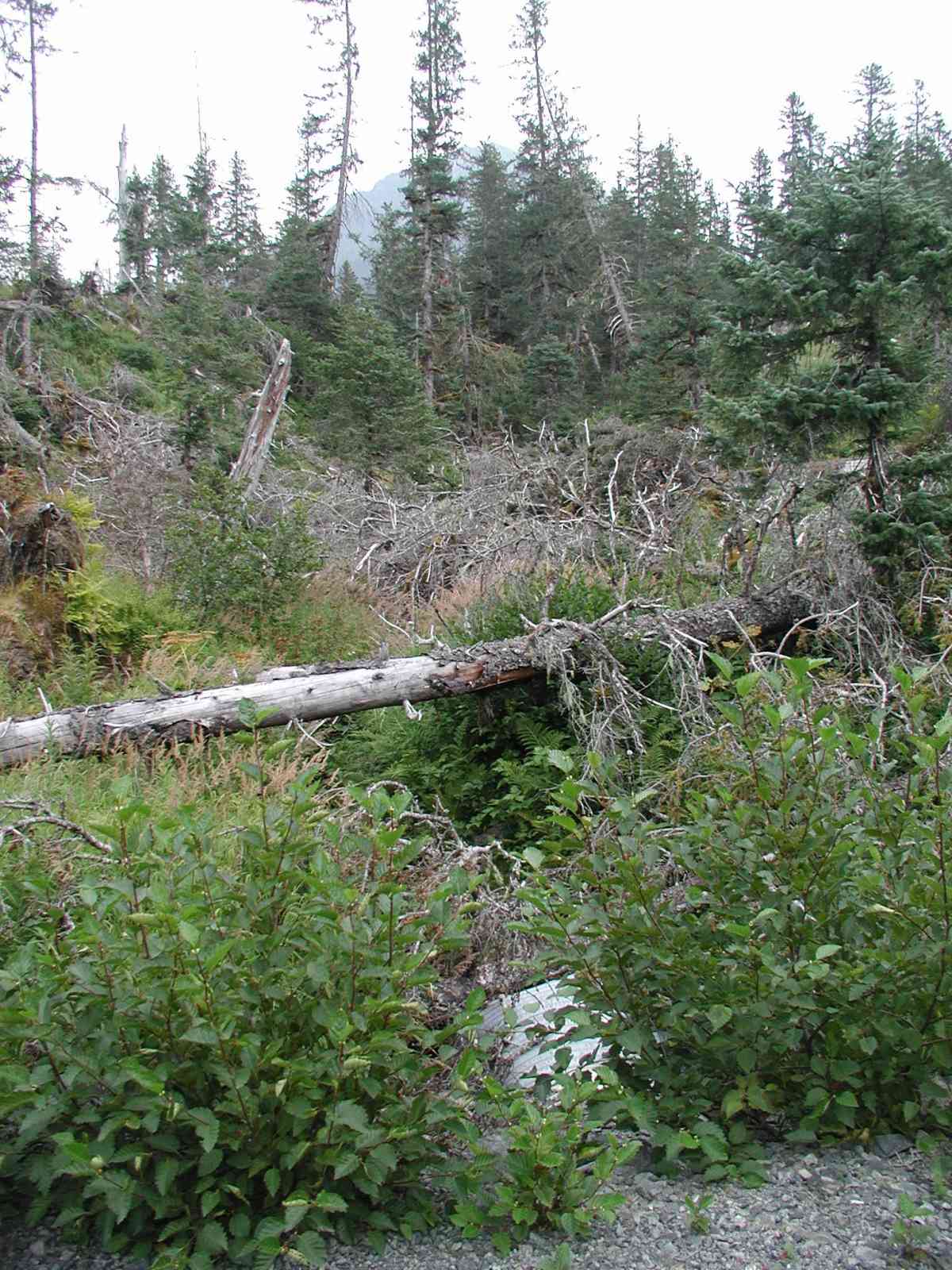

Site Comments: Location: Port Graham Stream: Channel impassable 85' upstream-many windfall trees and dense vegetation.

Survey Date: Aug 17, 2004

Survey KPC04-1A094

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

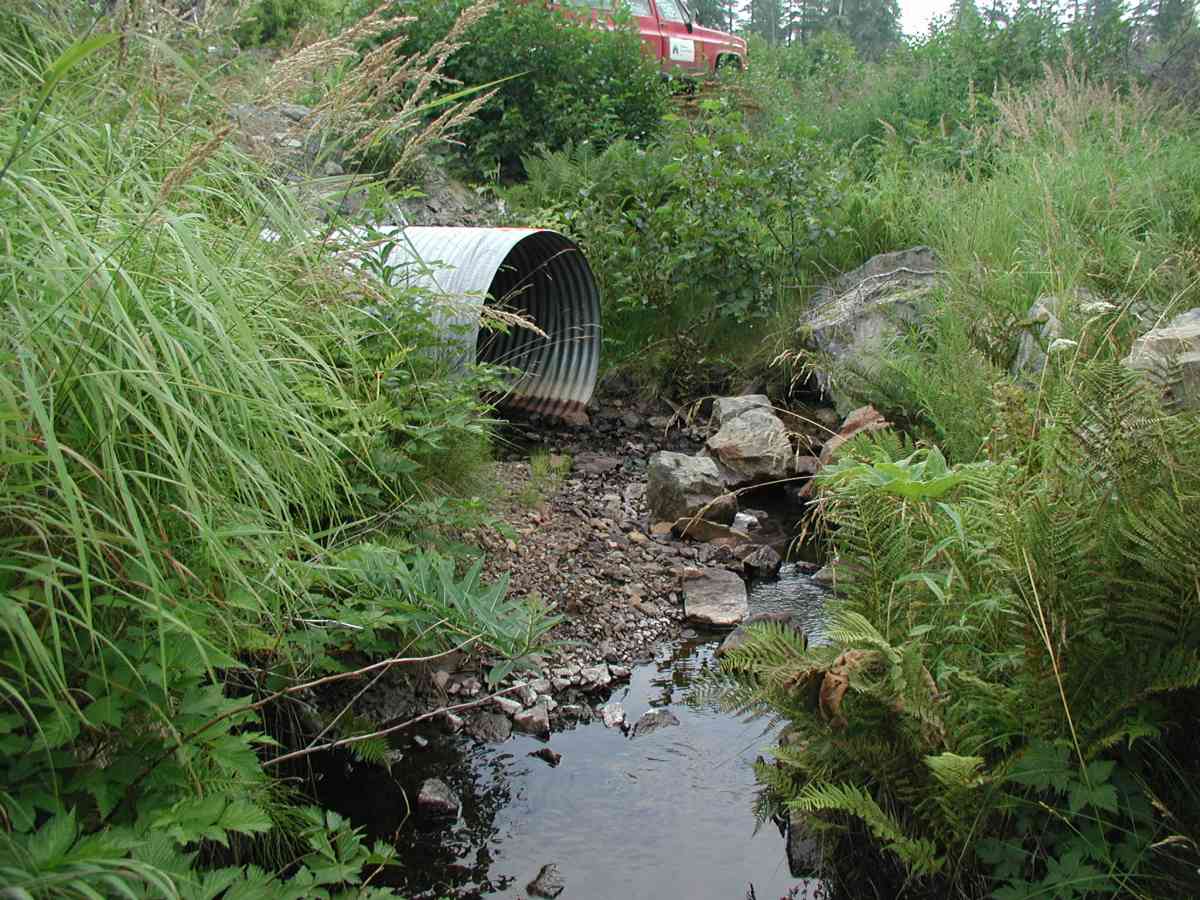

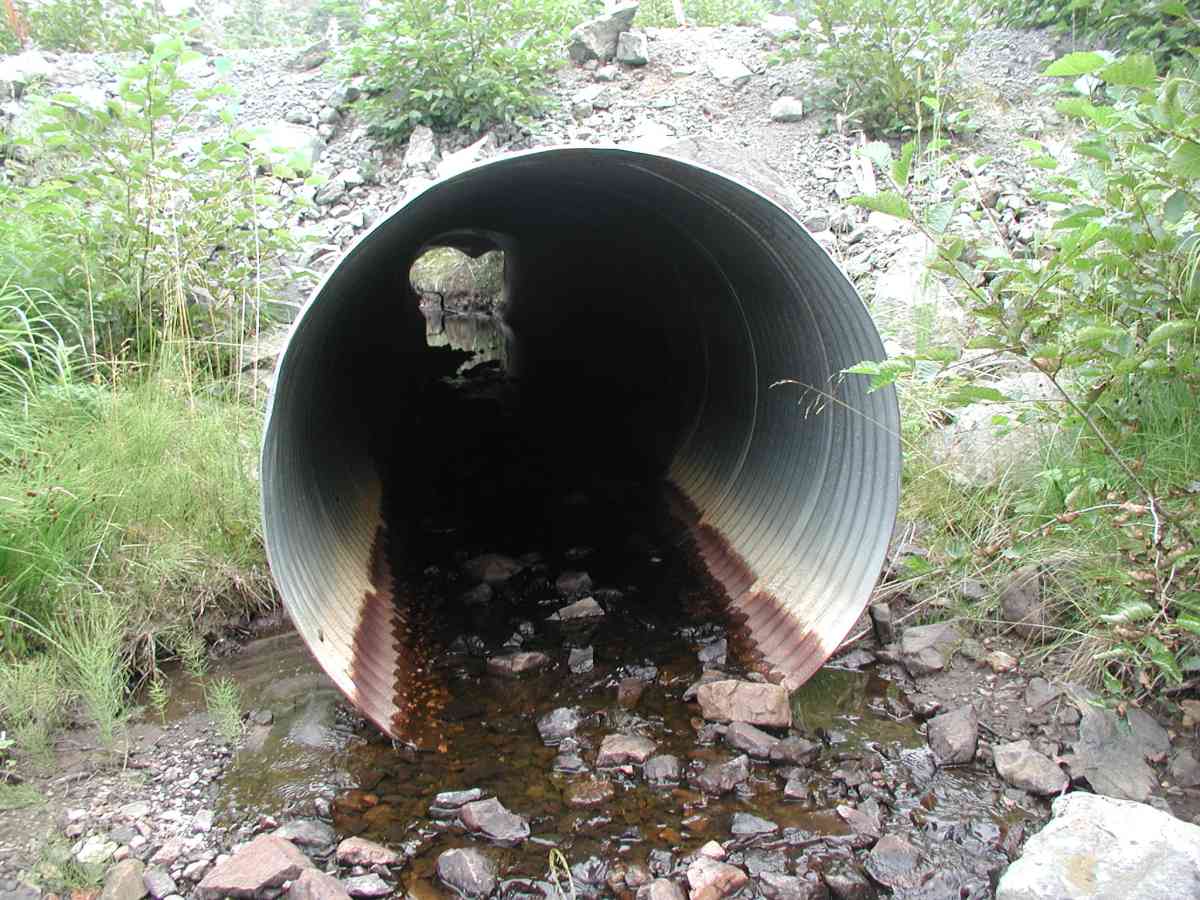

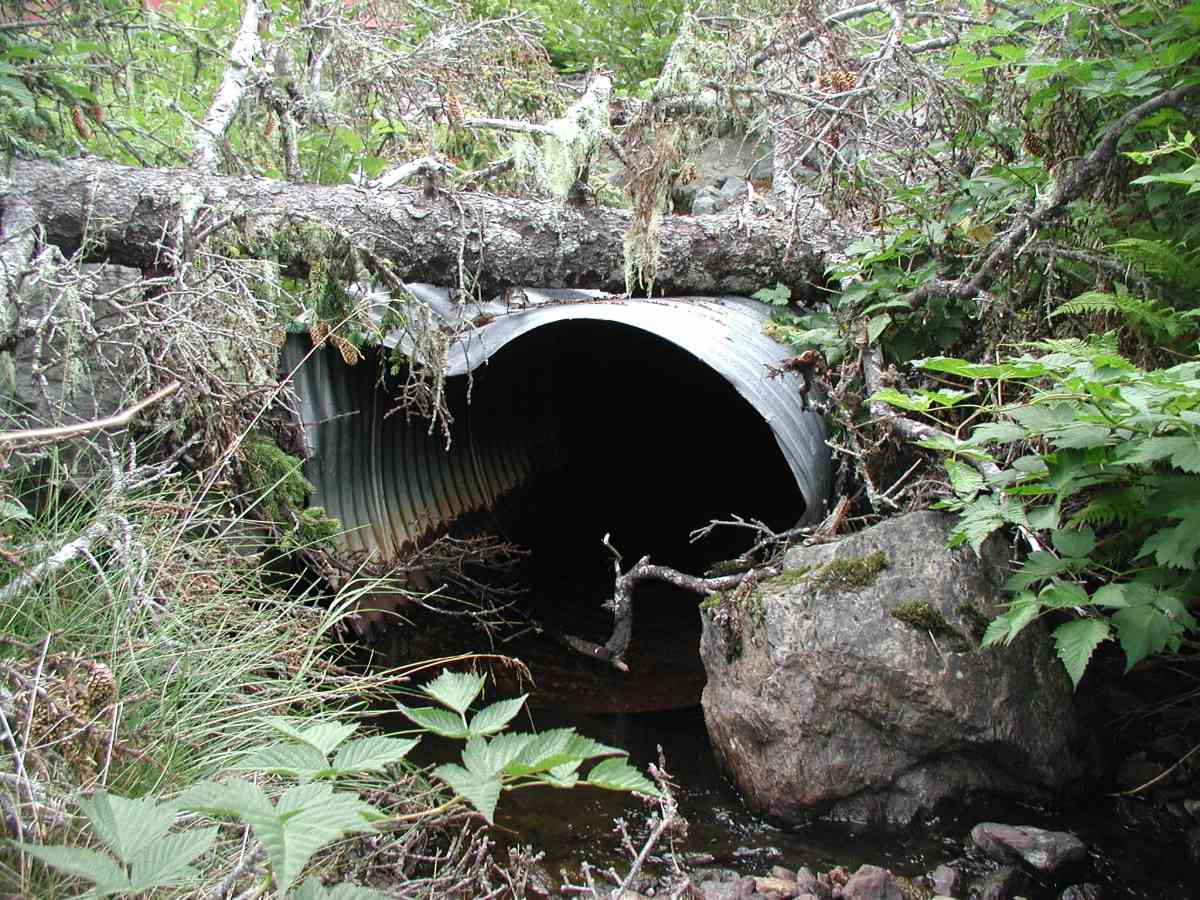

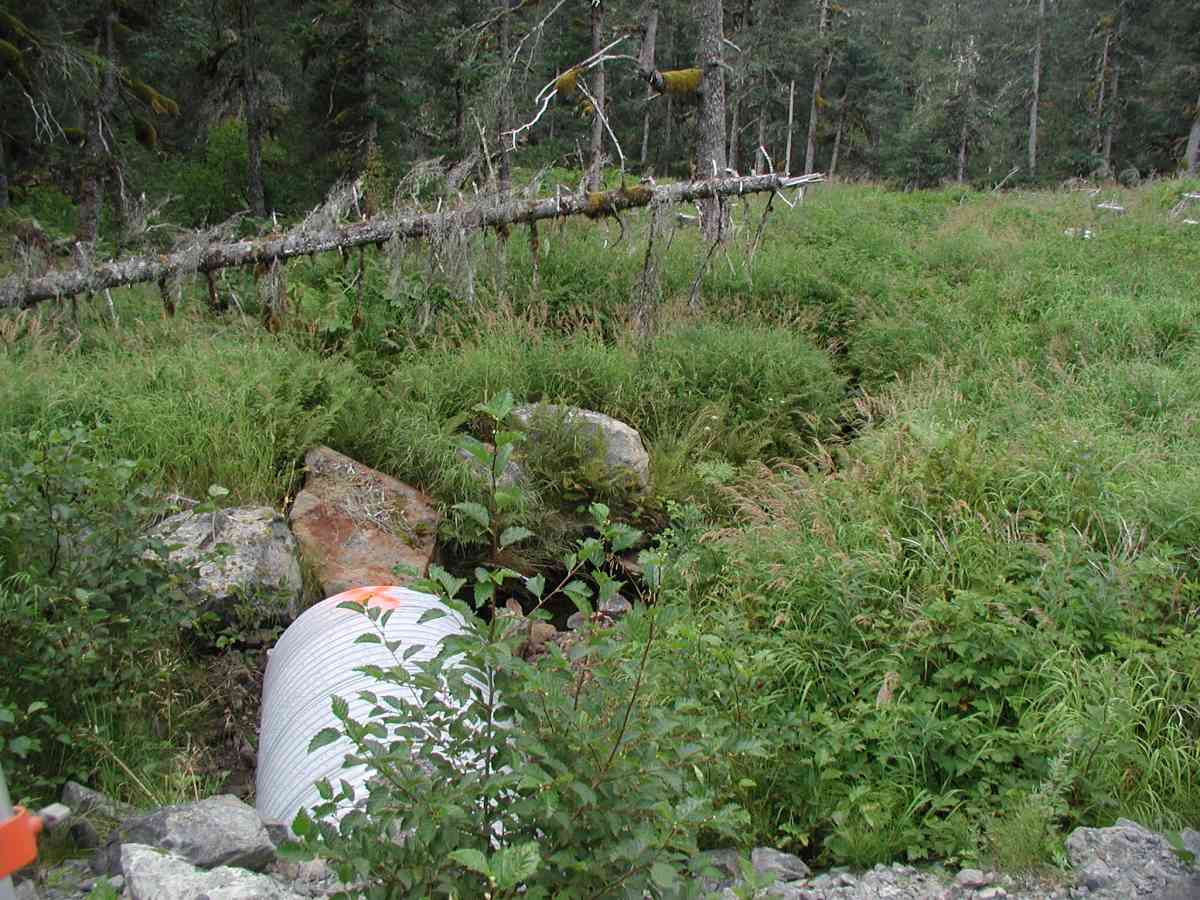

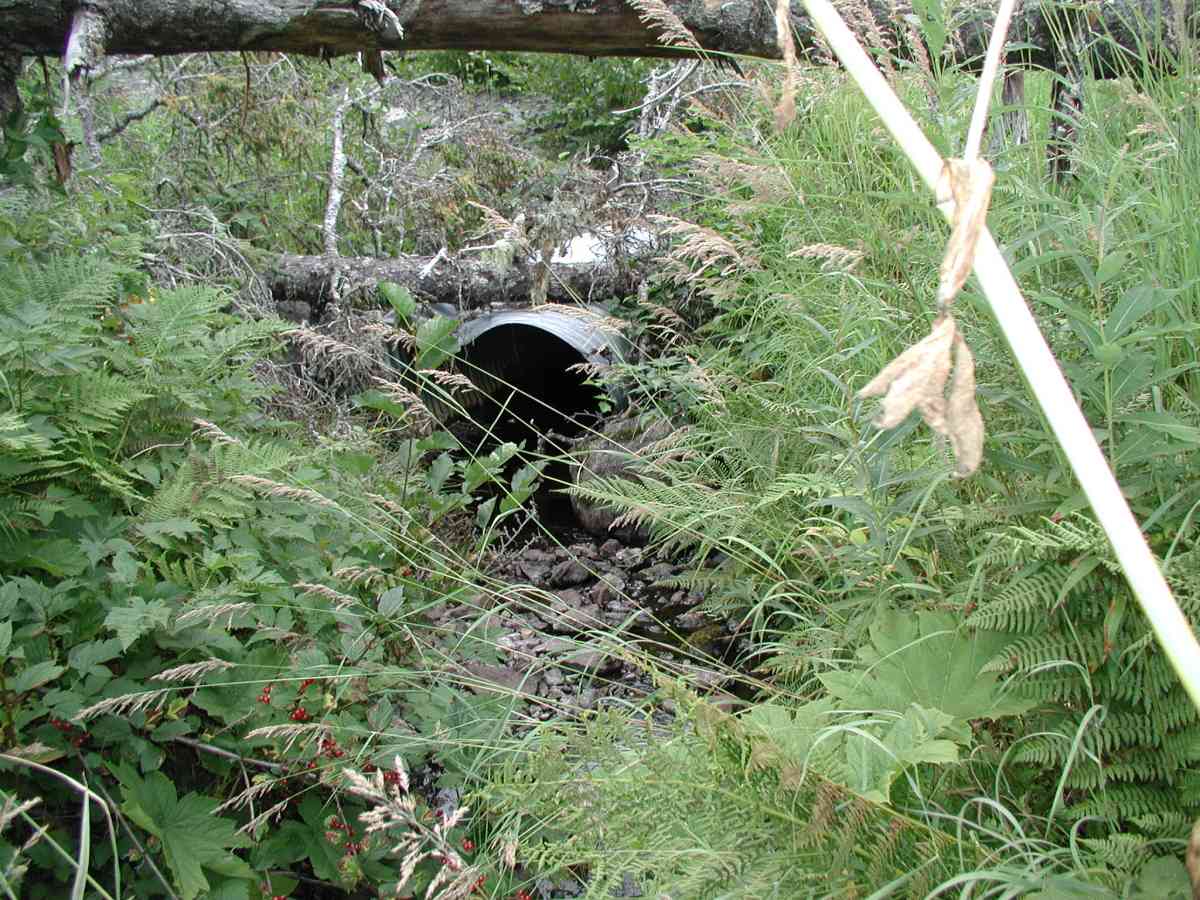

Comments: Location: Port Graham Stream: Channel impassable 85' upstream-many windfall trees and dense vegetation. Substrate: pebble/cobble up and downstream of the pipe; some larger rocks downstream. Stream has good flow. Culvert: Inlet pipe squashed with a large tree resting on top. Pipe condition=5. Embedded.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 40.3
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):4.17
Height(ft):3.17
Apron Length(ft):
Water Depth(ft): 0.26
Rustline Height(ft):0.83
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: -0.03
Outfall Type:
Constriction Ratio: 0.89
Culvert Gradient: 0.15%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 6.33
Upstream bed width 75.0 3.00
Upstream ordinary high water 75.0 4.67

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Tailcrest or 1st Thalweg 95.92
OHW Left Bank 95.98
OHW Left Bank 96.35
U/S Thalweg 1 97.21
Outlet Culvert Top (Orange "X" painted on top of outlet, measurement on 2nd corrugation.) 1 100.00
D/S Thalweg 95.36
Max Pool Depth 0.00 5.0 95.48
Outlet Invert 1 5.00 0.0 96.06

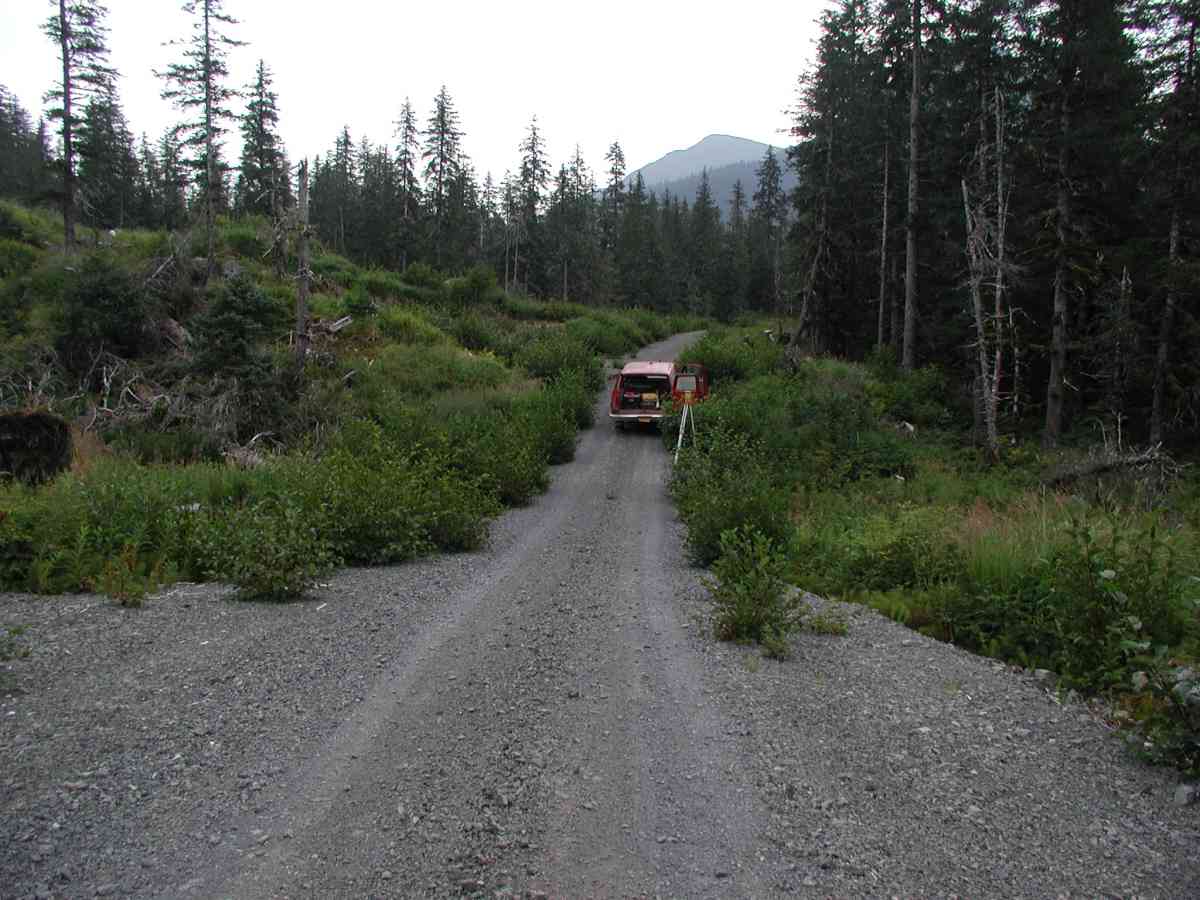

Road Elev (Road surface.) 25.00 103.55
Inlet Culvert Invert 1 45.00 0.0 96.12

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
