Fish Passage Site 20300914

Coordinates (dec. deg.): 59.29291°, -151.70038°
Legal Description: S010S014W19
Region: South Central
Road Name: Port Graham

Datum: NAD83
Quad Name / ITM: Seldovia B-5
AWC Stream #:
Stream Name:

Elevation:

Site Comments: Location: Port Graham Stream: Wide stream with steep gradient, many small falls with pools. Substrate is large cobble and boulders.

Survey Date: Aug 18, 2004

Survey KPC04-1A091

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

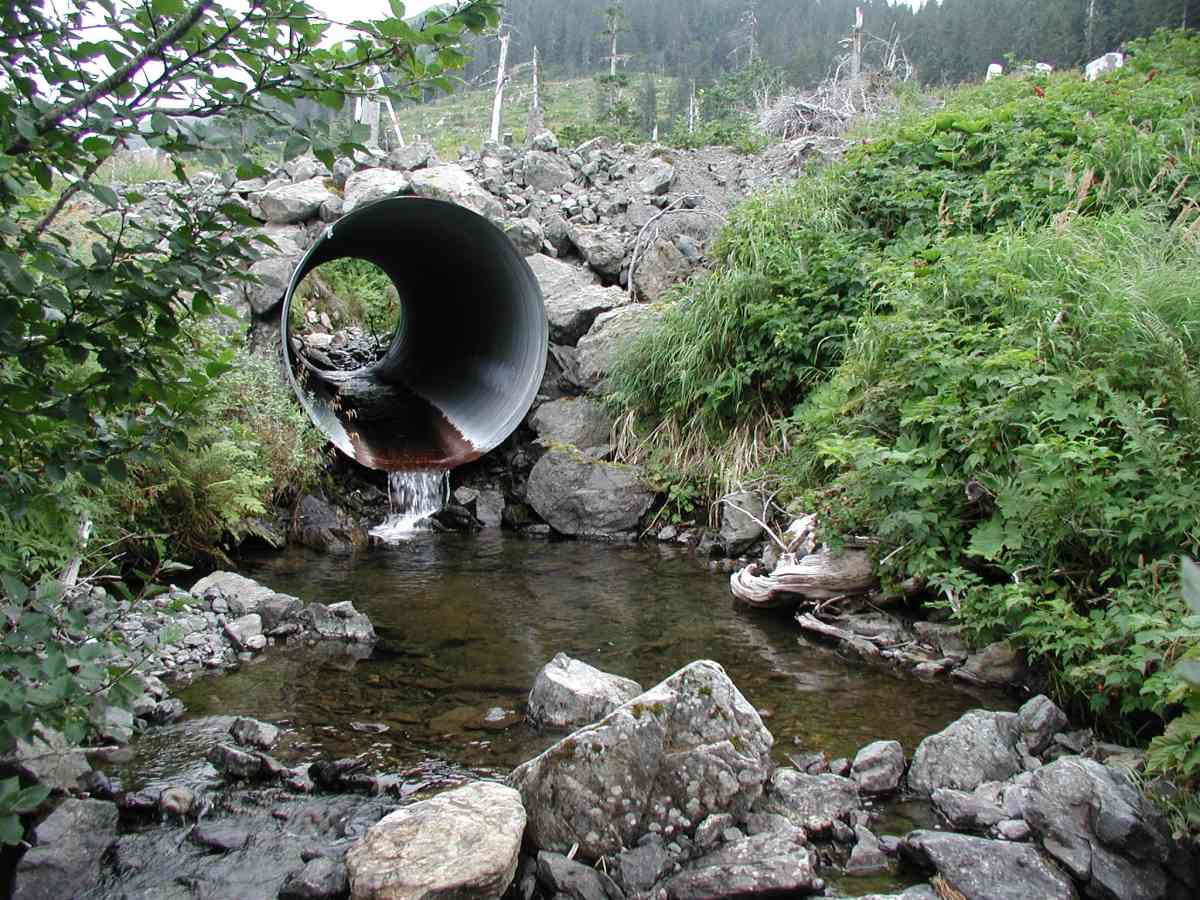

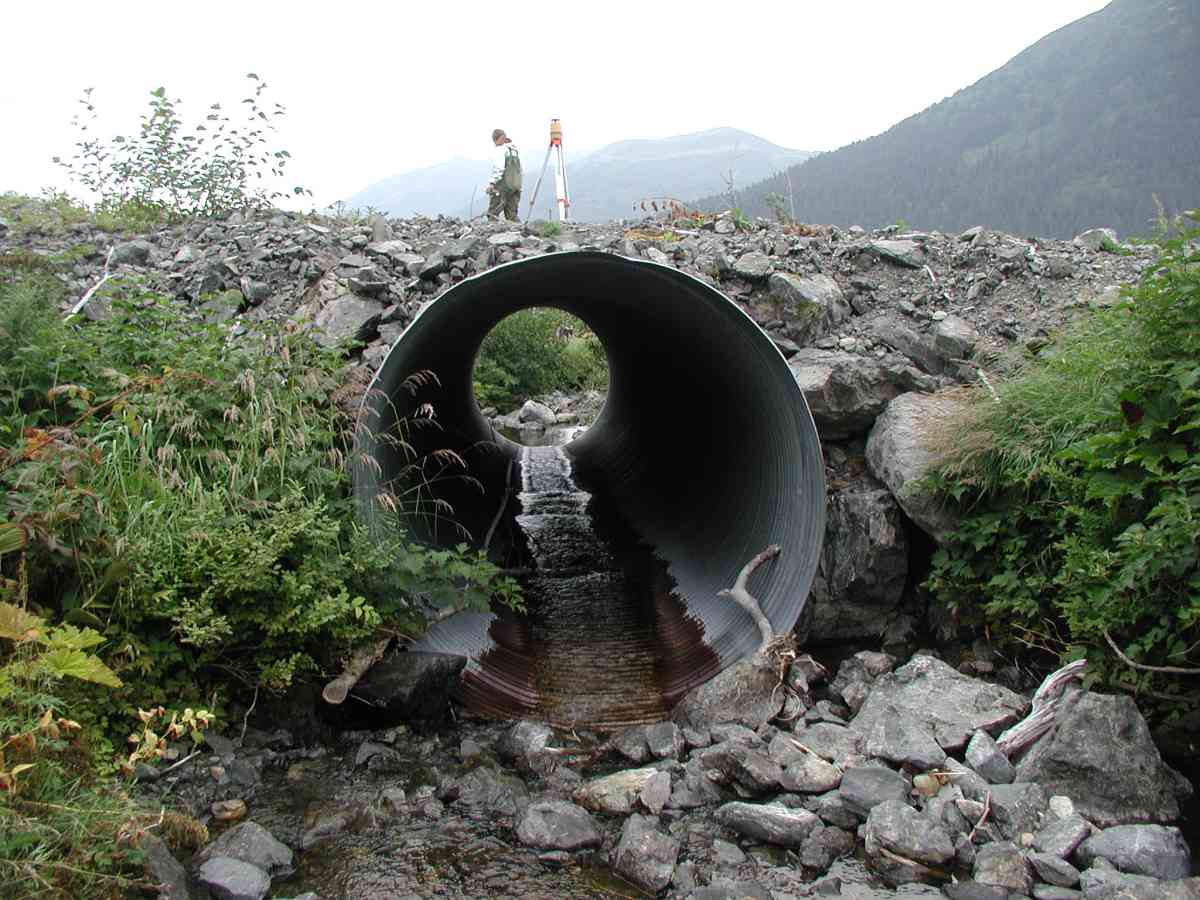

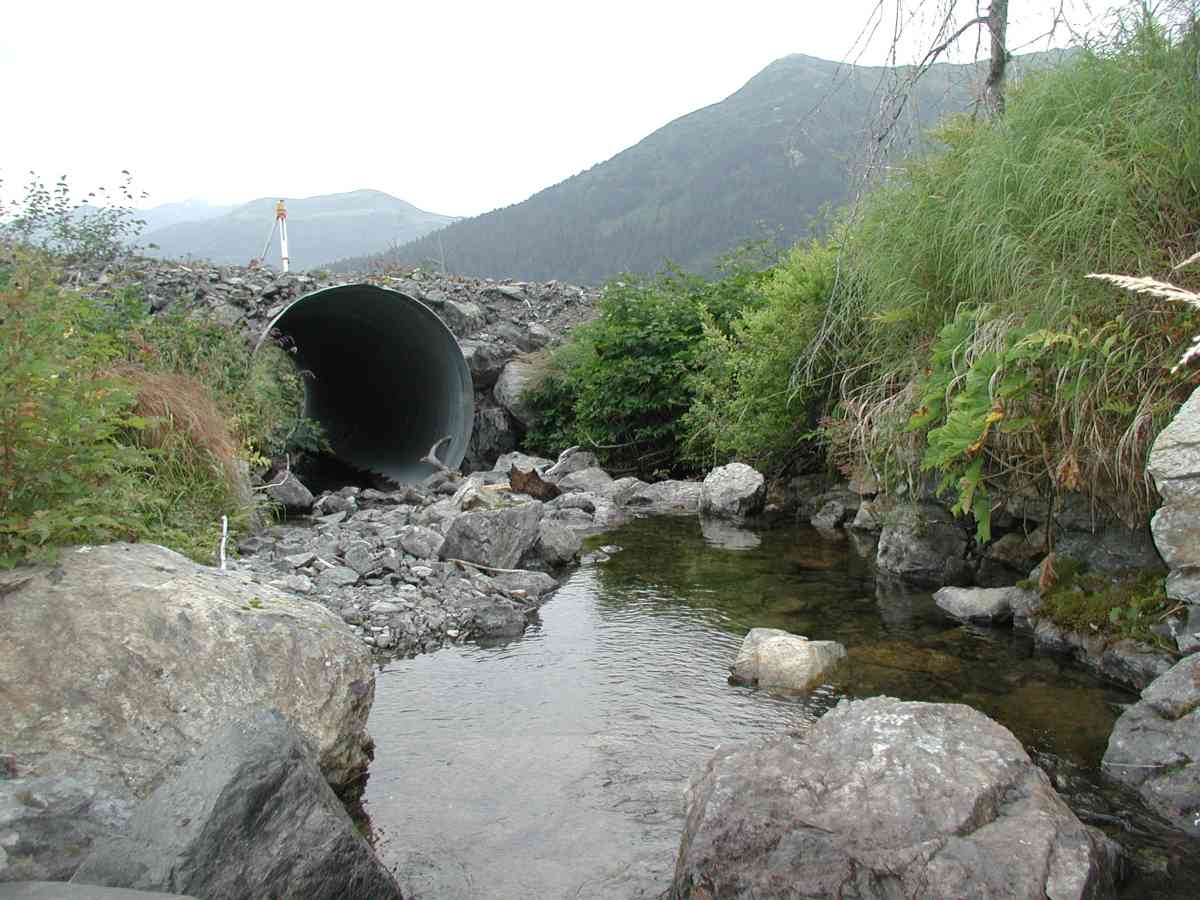

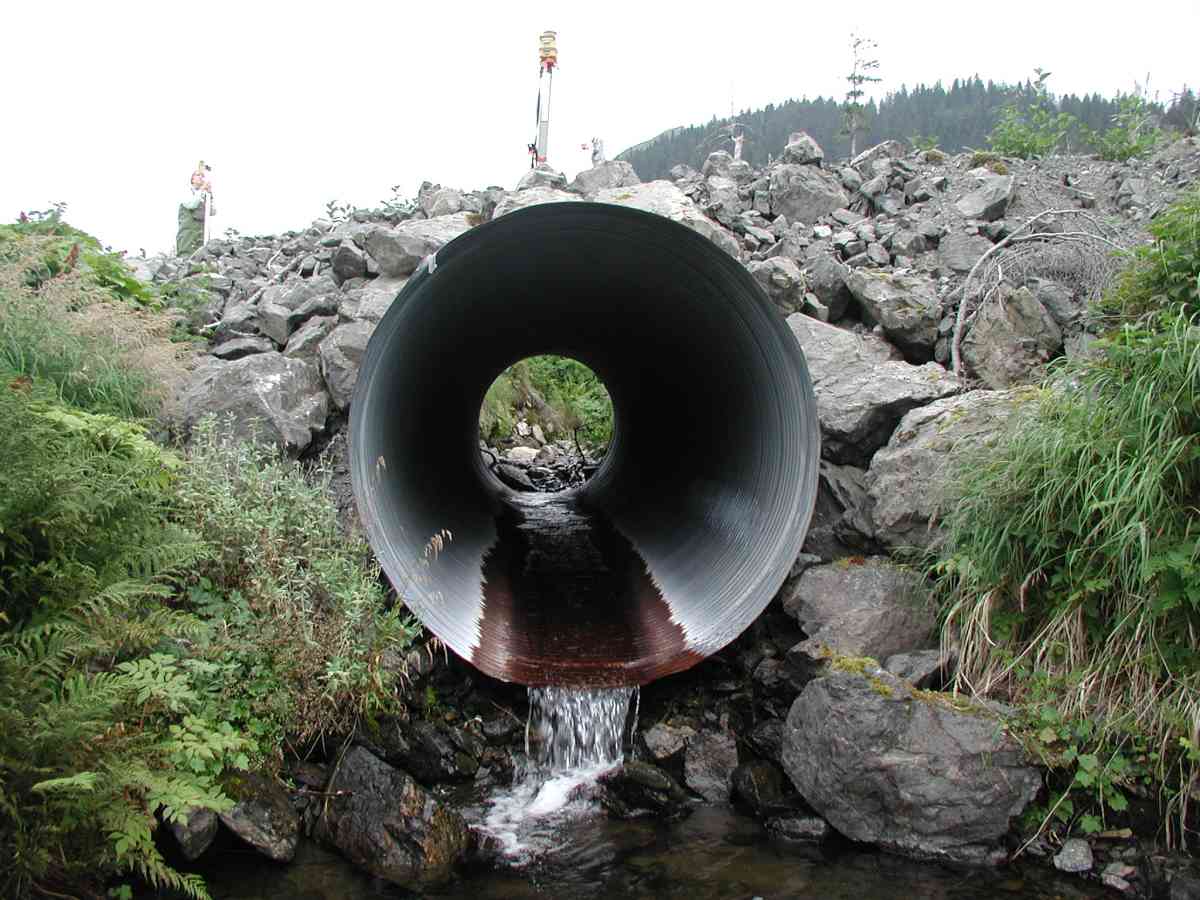

Comments: Location: Port Graham Stream: Wide stream with steep gradient, many small falls with pools. Substrate is large cobble and boulders. Rocks influenced flow measurements--taken 35' upstream. Short dense vegetation along stream bank. Culvert: Outlet is perched. Pipe condition=5. Not embedded.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 41.17

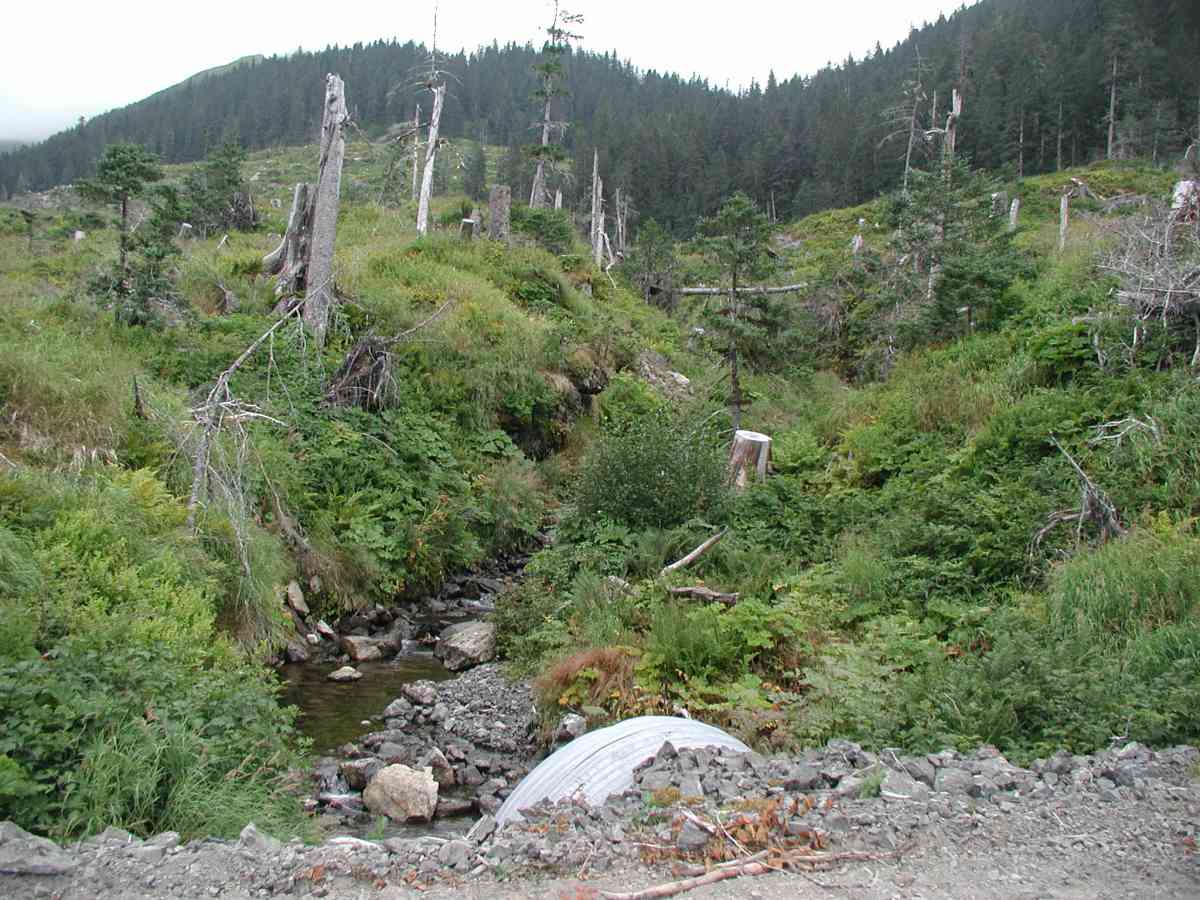

Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 2.67
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: Cobble
Outlet Substrate: Cobble
InletOutlet
Width(ft):6.83
Height(ft):7.33
Apron Length(ft):
Water Depth(ft): 0.14
Rustline Height(ft):0.92
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 1.33
Outfall Type:
Constriction Ratio: 0.63
Culvert Gradient: 4.42%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:CobbleCobble
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 11.67
Upstream bank full 100.0 13.67
Upstream bank full 125.0 17.08
Upstream bank full 150.0 11.75
Upstream bed width 75.0 5.17
Upstream bed width 100.0 3.92
Upstream bed width 125.0 3.50
Upstream bed width 150.0 3.08
Upstream ordinary high water 75.0 10.83
Upstream ordinary high water 100.0 10.08
Upstream ordinary high water 125.0 12.58
Upstream ordinary high water 150.0 10.17

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 89.65
D/S Tailcrest or 1st Thalweg 91.03
OHW Left Bank 91.53
OHW Left Bank 91.60
U/S Thalweg 1 96.60

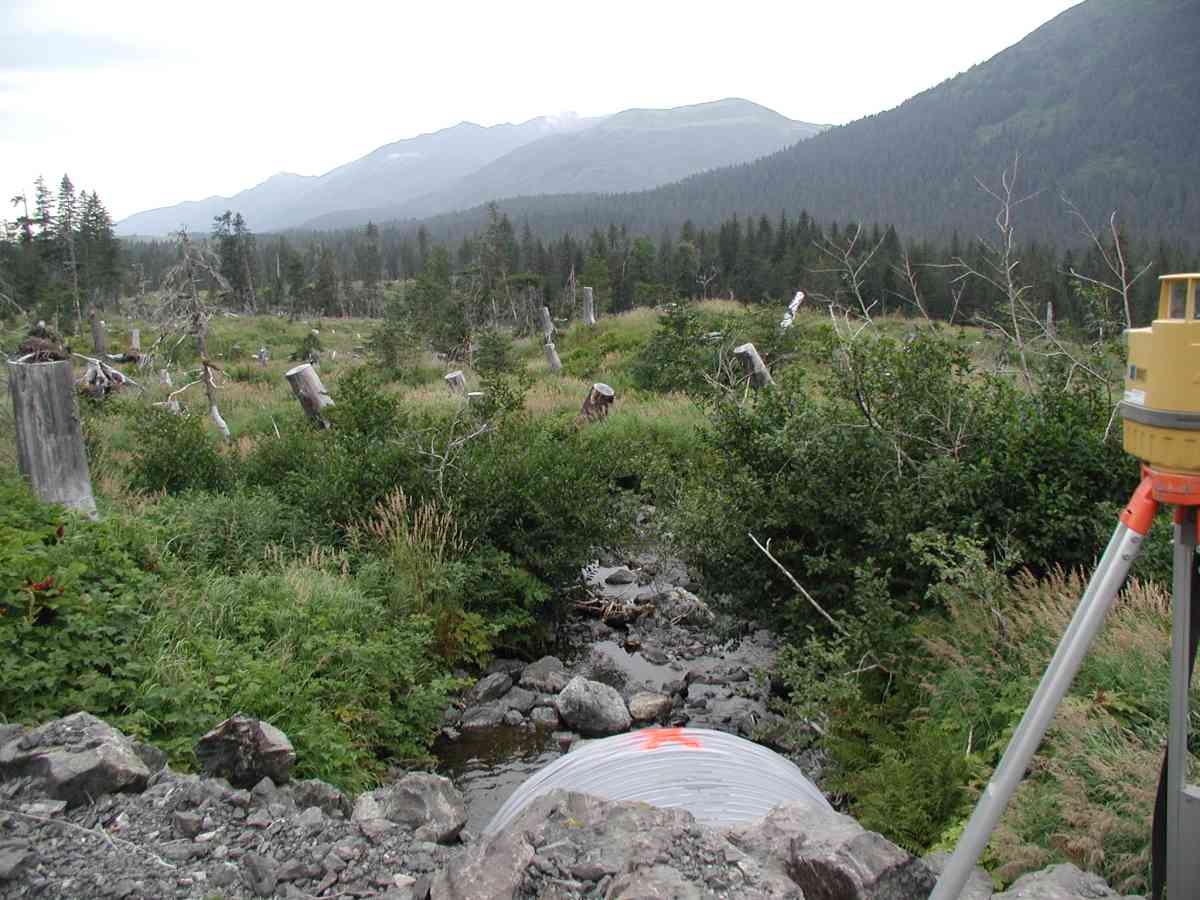

Outlet Culvert Top (Orange Painted "X" on top of outlet, measured on 2nd corrugation.) 1 100.00
Max Pool Depth 0.00 5.0 89.65
Outlet Invert 1 5.00 0.0 92.72

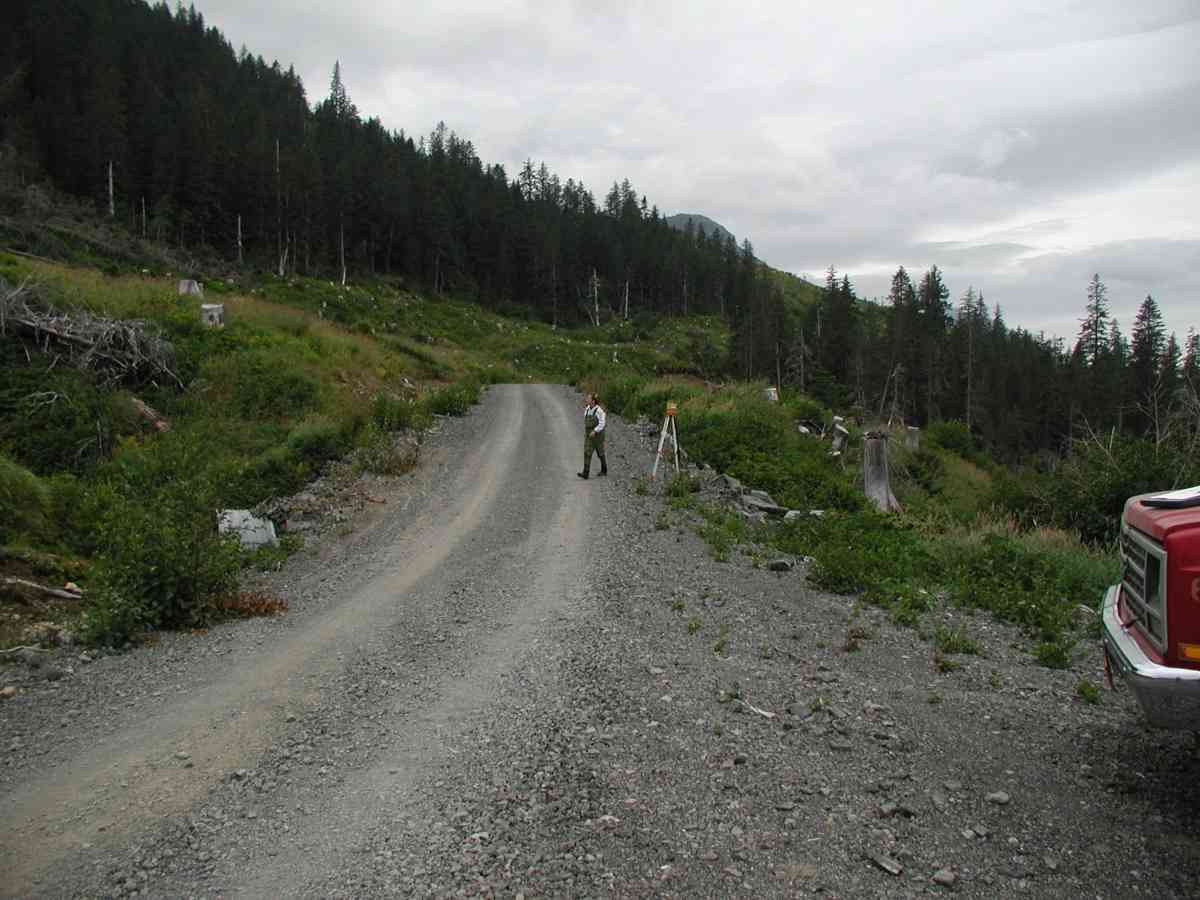

Road Elev (Road surface.) 25.50 101.18
Inlet Culvert Invert 1 46.00 0.0 94.54

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
