Fish Passage Site 20300910

Coordinates (dec. deg.): 59.32600°, -151.79452°
Legal Description: S010S015W10
Region: South Central
Road Name: Port Graham

Datum: NAD83
Quad Name / ITM: Seldovia B-5
AWC Stream #:
Stream Name:

Elevation:

Site Comments: Location: Port Graham Stream

Survey Date: Aug 19, 2004

Survey KPC04-1A086

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

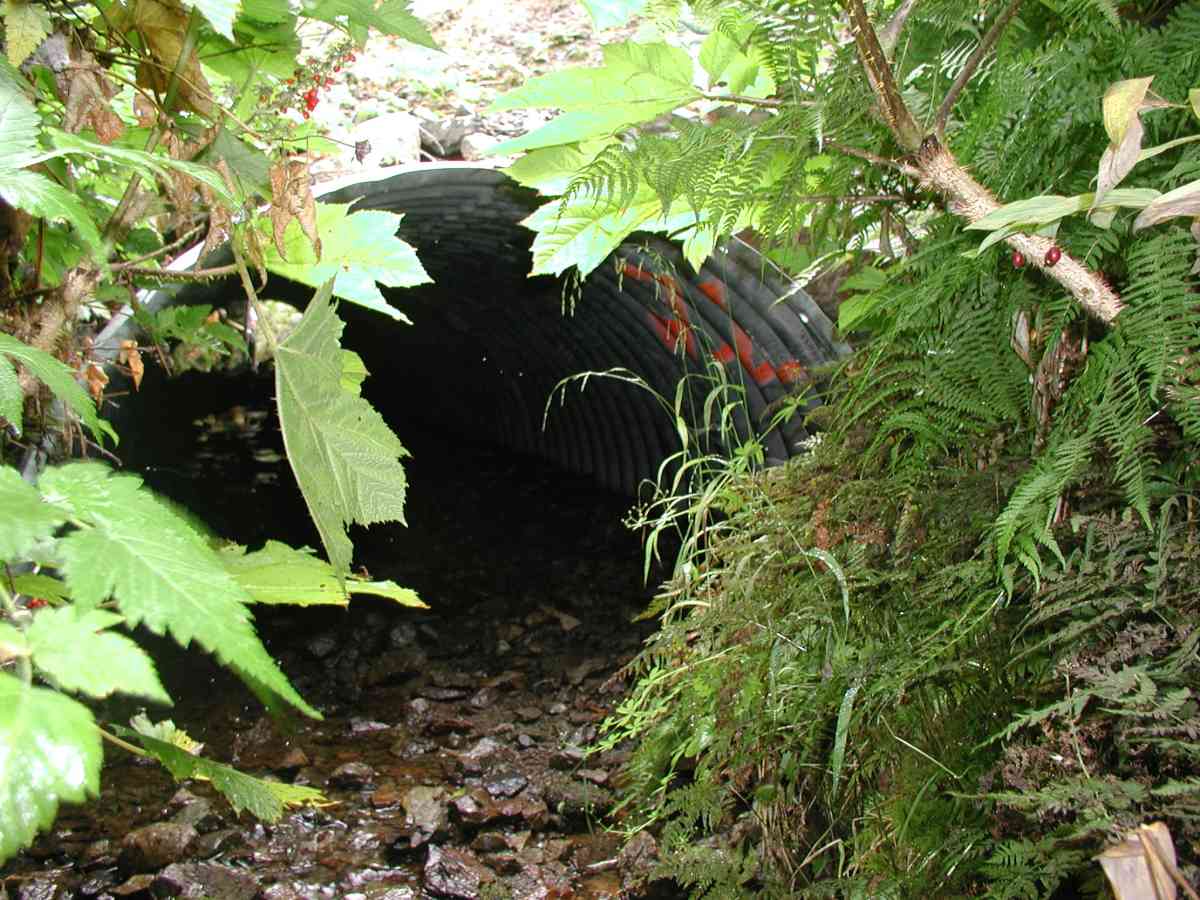

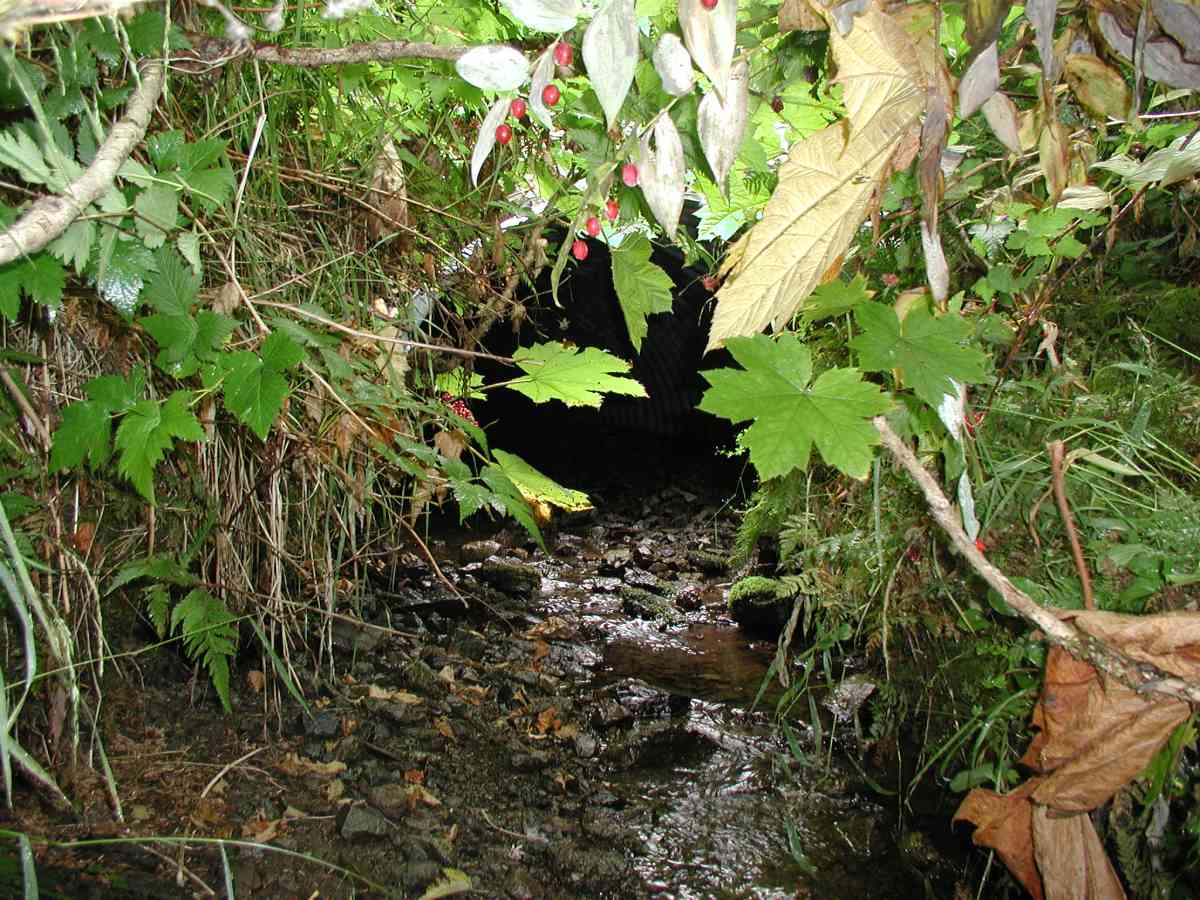

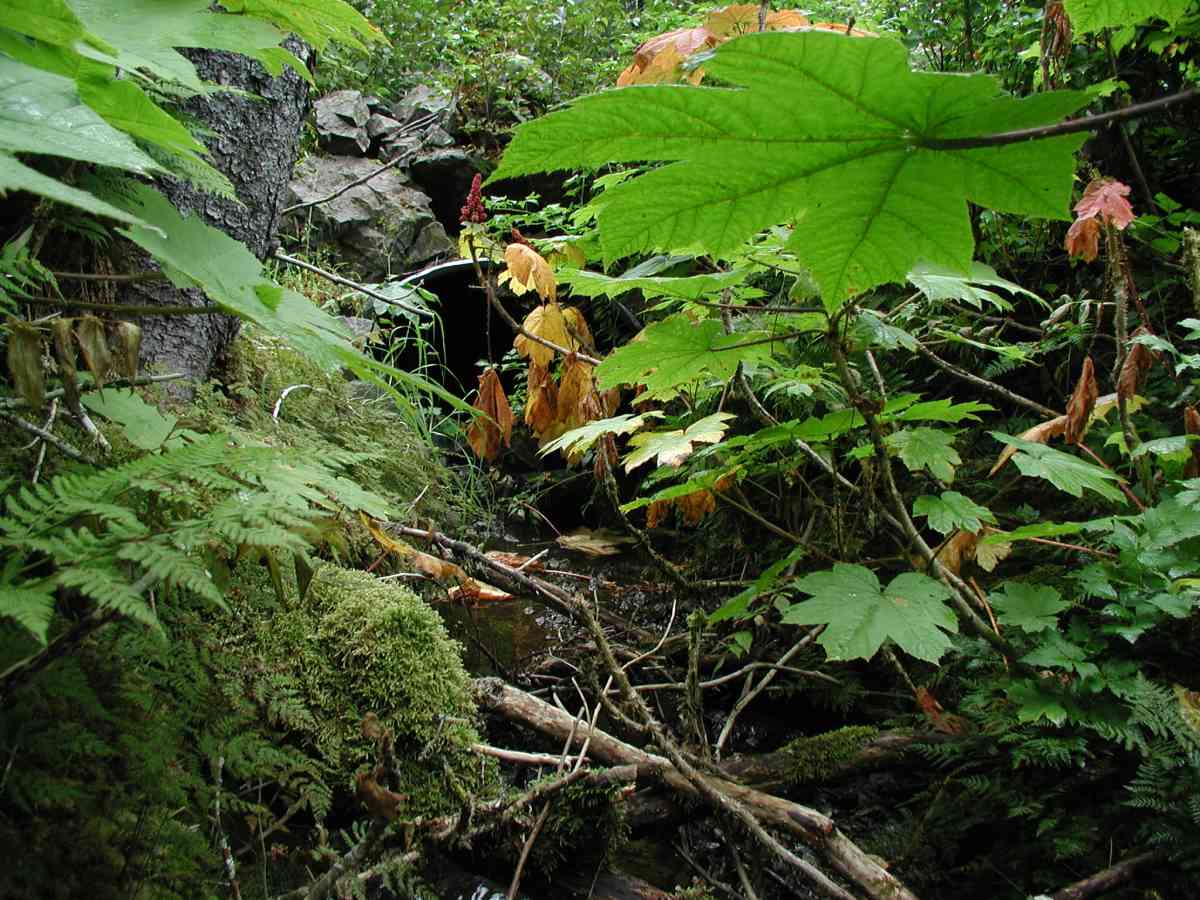

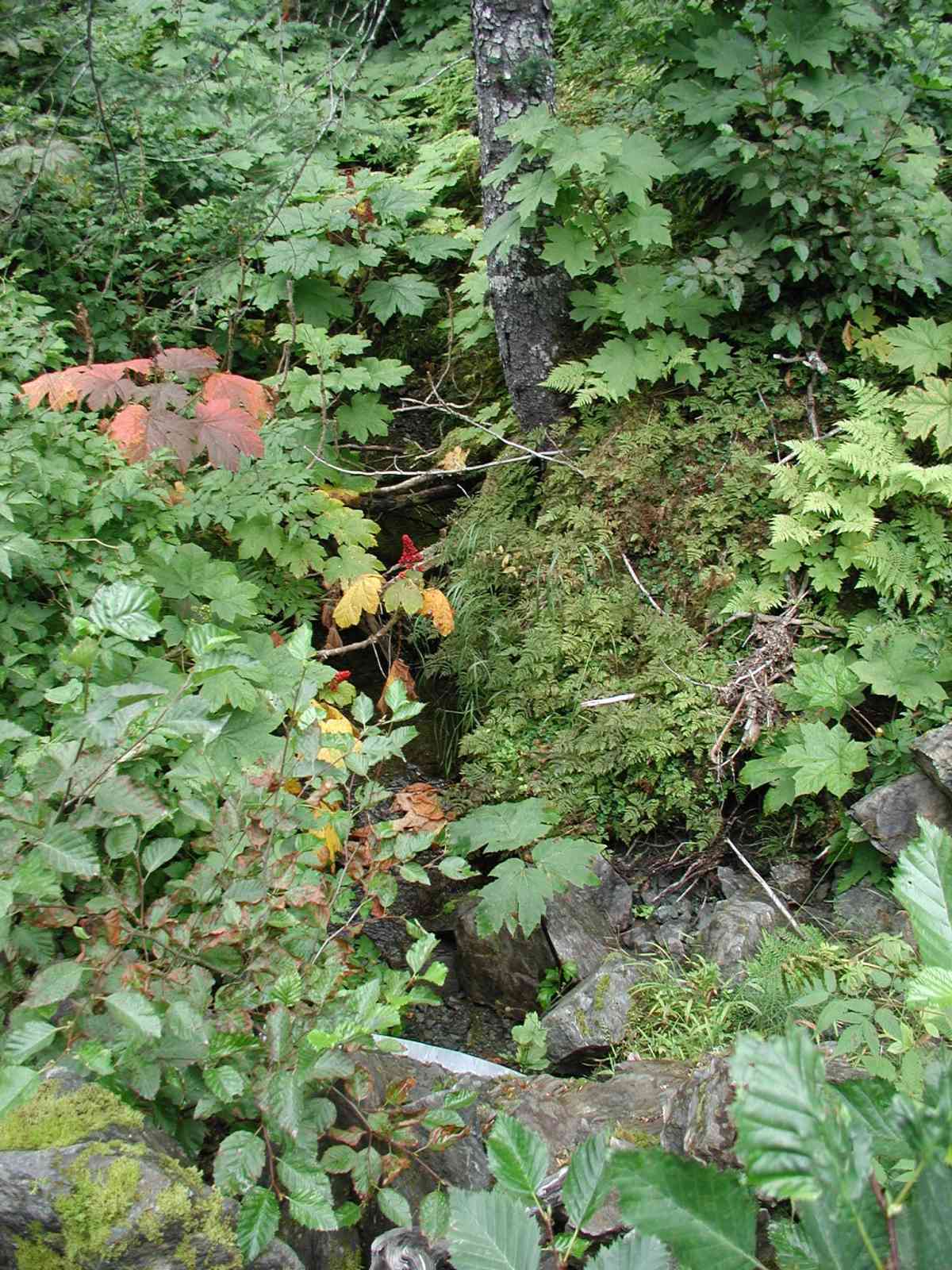

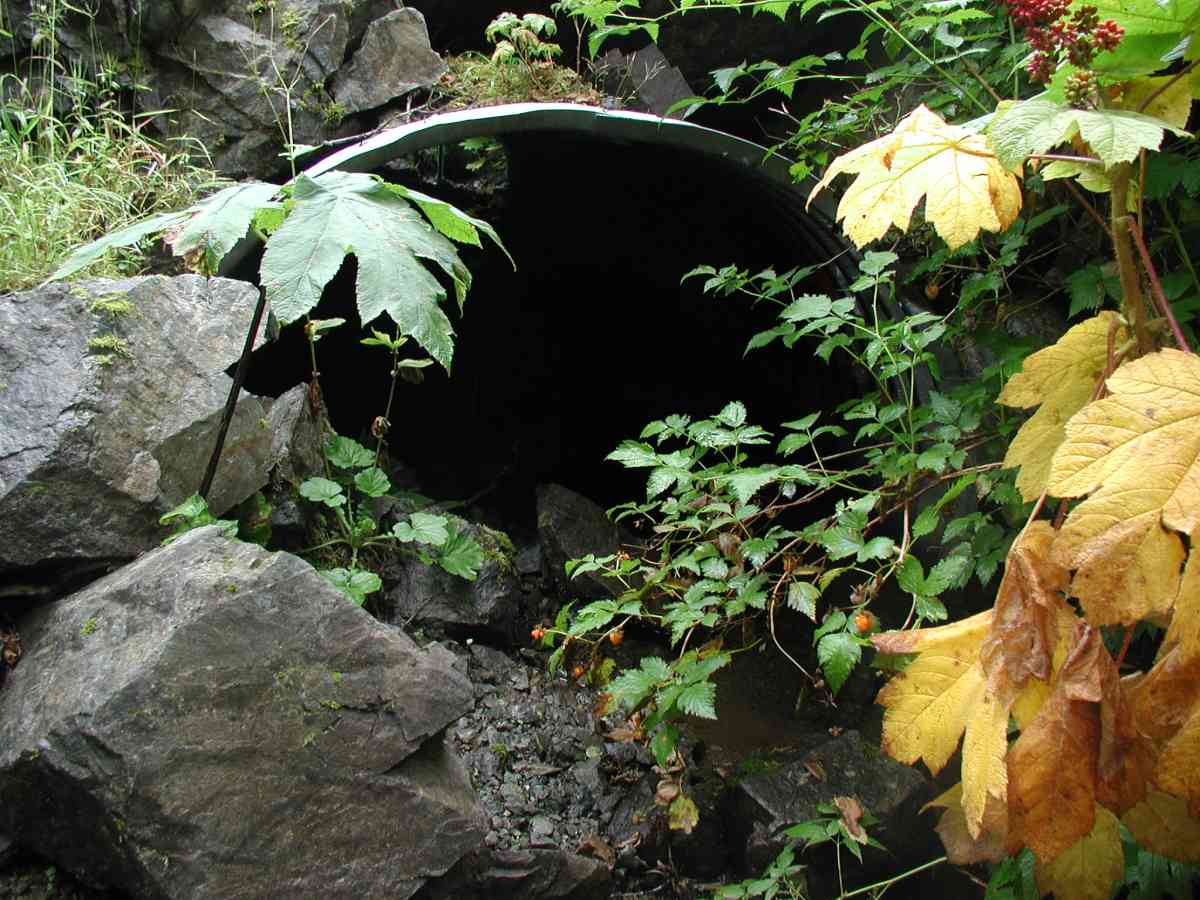

Comments: Location: Port Graham Stream: Channel meanders thru arch. Large rocks blocking inlet, altering the flow and increasing sedimentation. Bank undercut ~ 5". Substrate: gravel to small cobble, no sand. Minimal flow or too shallow, ( no measurements taken). Entire area densely vegetated with devil's club. Outlet invert and water surface elevation lie on a gravel bar not in the water Culvert: Pipe condition=5. Rust appears on right bank side of culvert. Not embedded ( arch;natural substrate).

Culvert Measurements

ID: 1 Structure Type: Open-bottom arch (Corrugated Metal) Fish Passage Rating:

Length(ft): 40.71
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.0
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):6.33
Height(ft):3.58
Apron Length(ft):
Water Depth(ft): 0.1
Rustline Height(ft):0.33
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.16
Outfall Type:
Constriction Ratio: 1.12
Culvert Gradient: 2.43%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 50.0 7.83
Upstream bed width 50.0 1.25
Upstream ordinary high water 50.0 5.67

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
OHW Left Bank (From substrate (see site info notes).) 96.23
U/S Thalweg 1 97.58

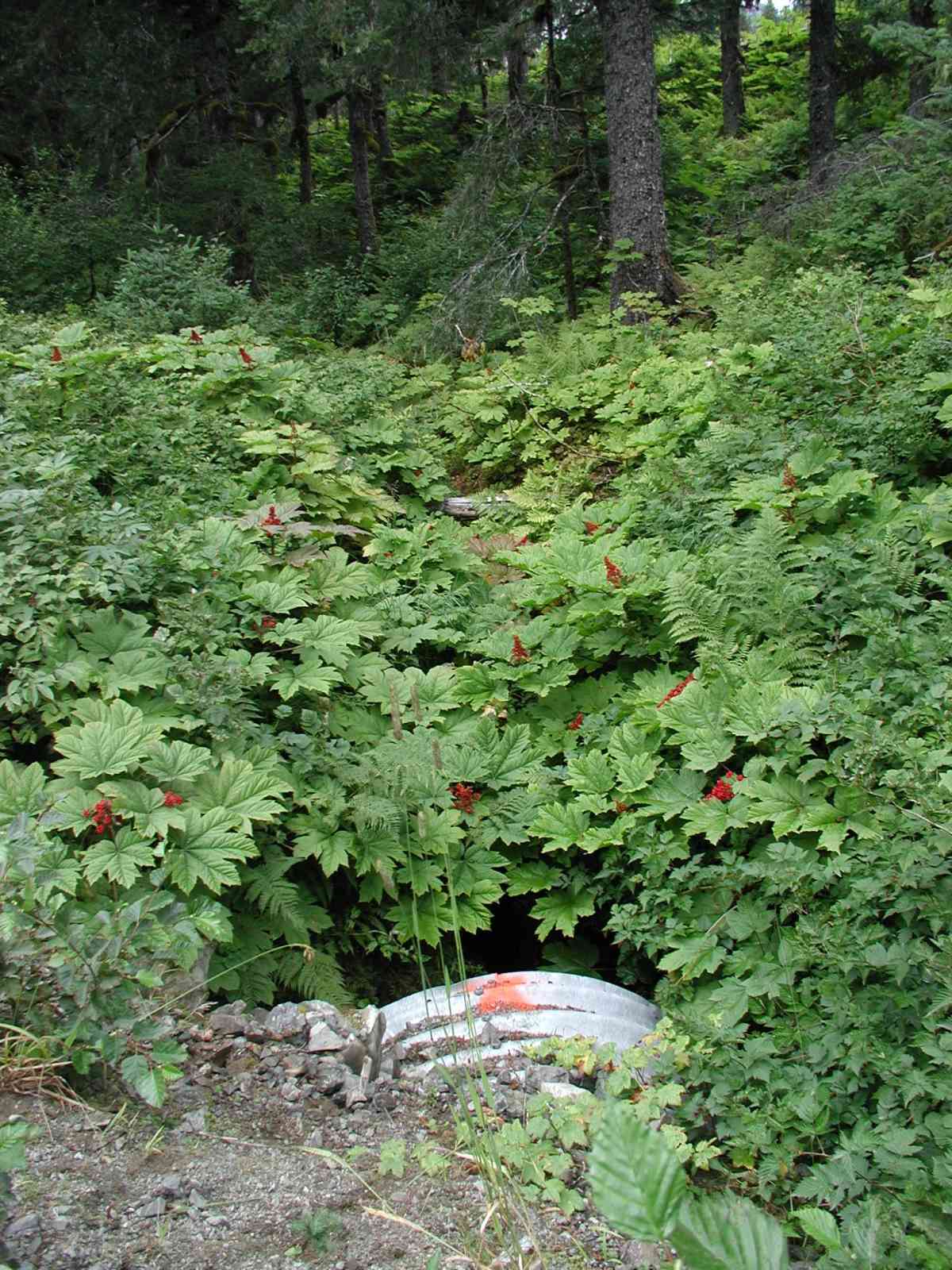

Outlet Culvert Top (Orange painted "X" on top of outlet, measured from second corrugation.) 1 100.00
Max Pool Depth 0.00 5.0 95.90
Outlet Invert (From substrate,(see site info notes).) 1 5.00 0.0 96.29

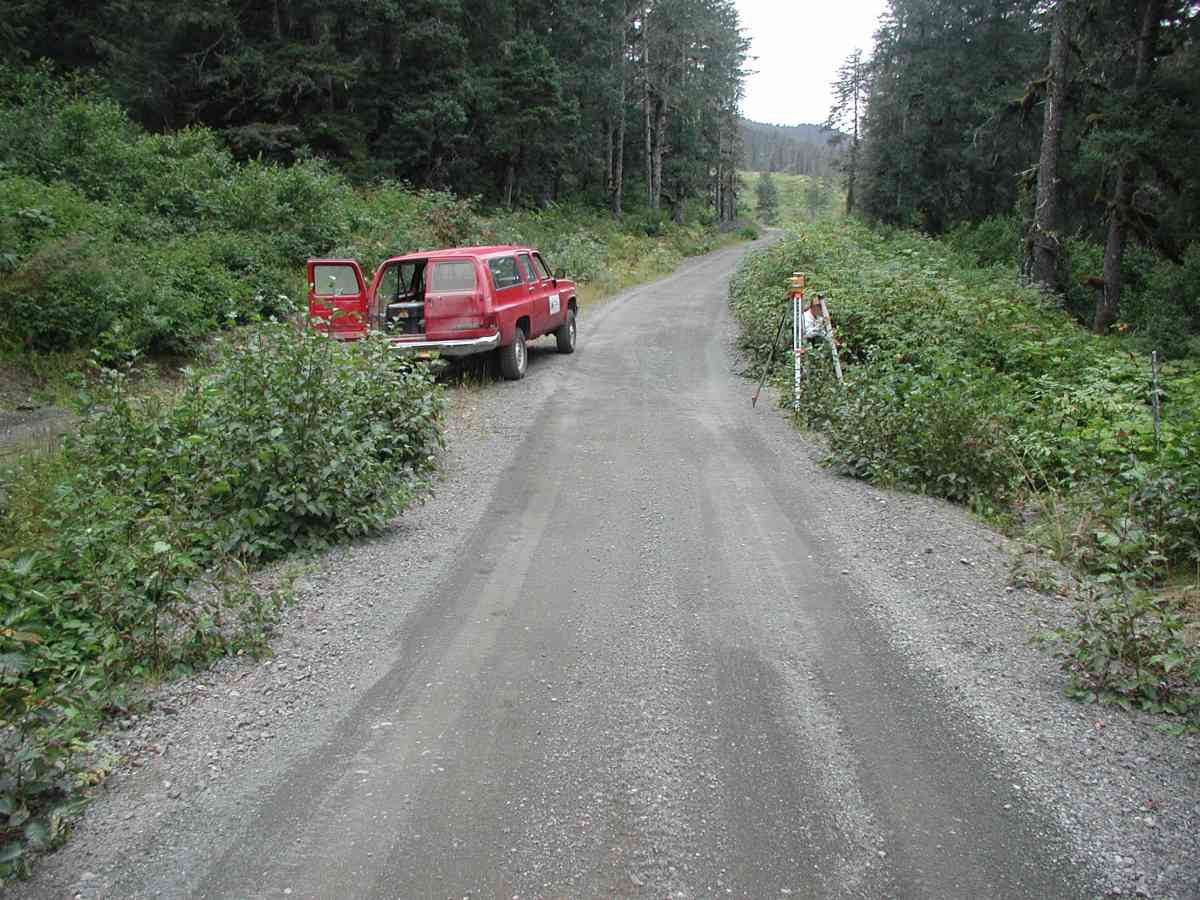

Road Elev (Road surface.) 25.00 104.53
Inlet Culvert Invert 1 45.00 0.0 97.28

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
