Fish Passage Site 20300909

Coordinates (dec. deg.): 59.33091°, -151.80555°
Legal Description: S010S015W09
Region: South Central

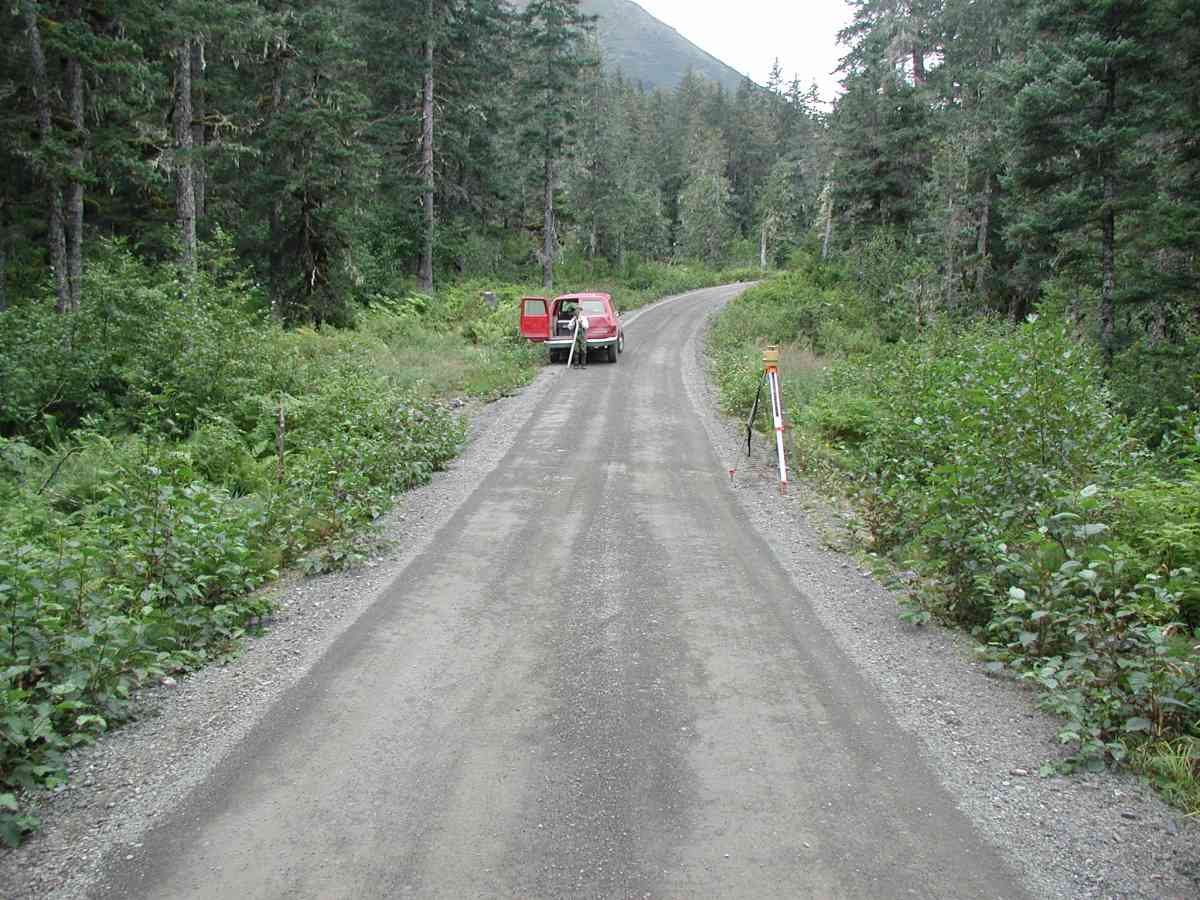

Road Name: Port Graham

Datum: NAD83
Quad Name / ITM: Seldovia B-5
AWC Stream #:
Stream Name:

Elevation:

Site Comments: Location: Port Graham Stream

Survey Date: Jul 19, 2004

Survey KPC04-1A084

Observers:

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

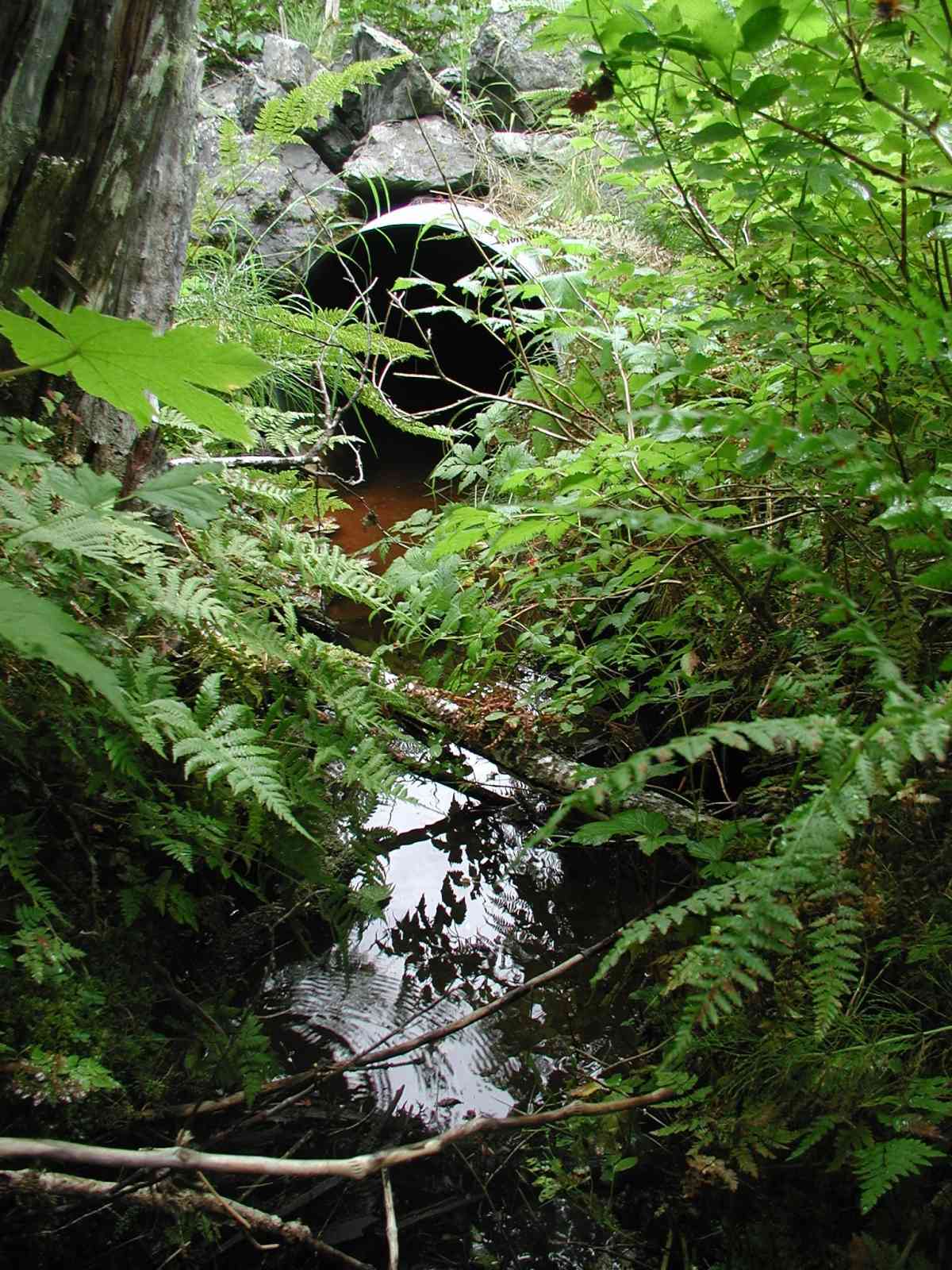

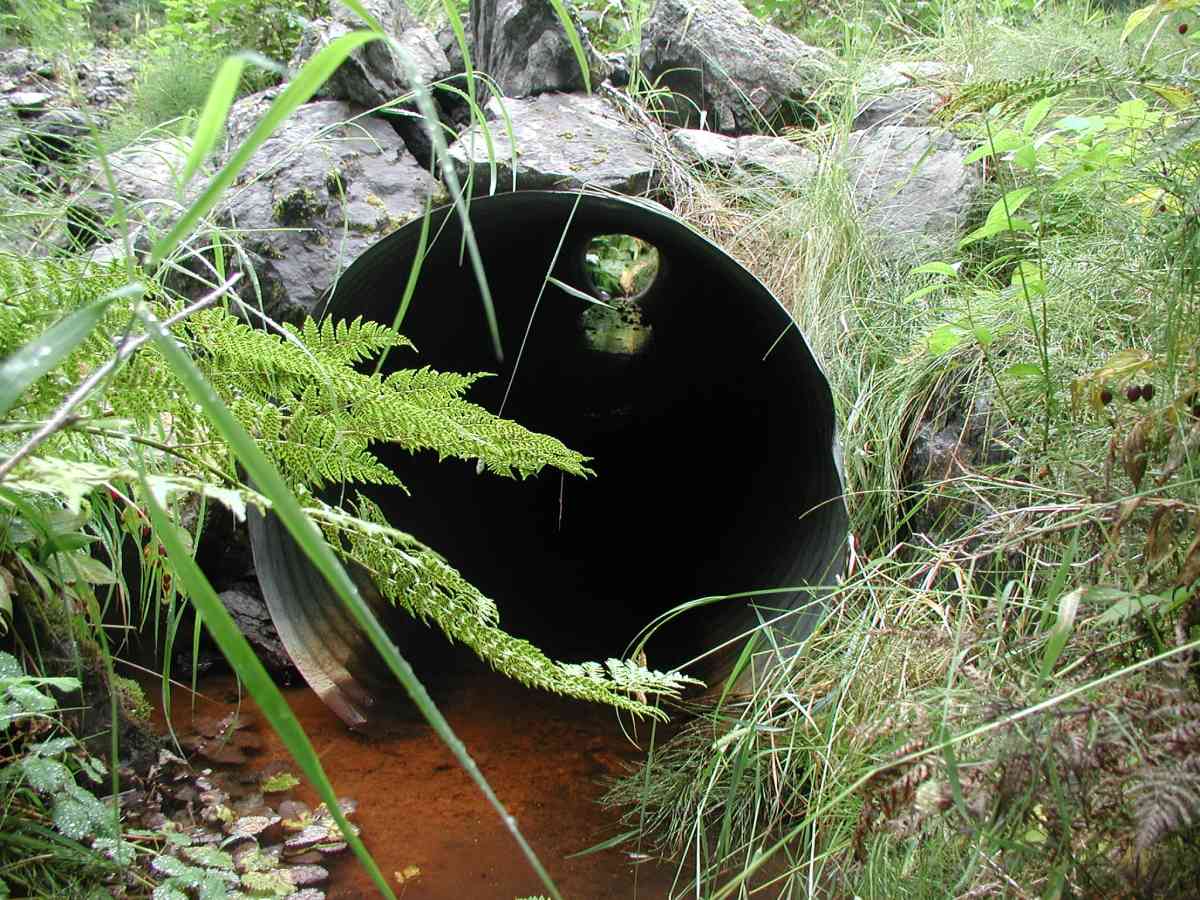

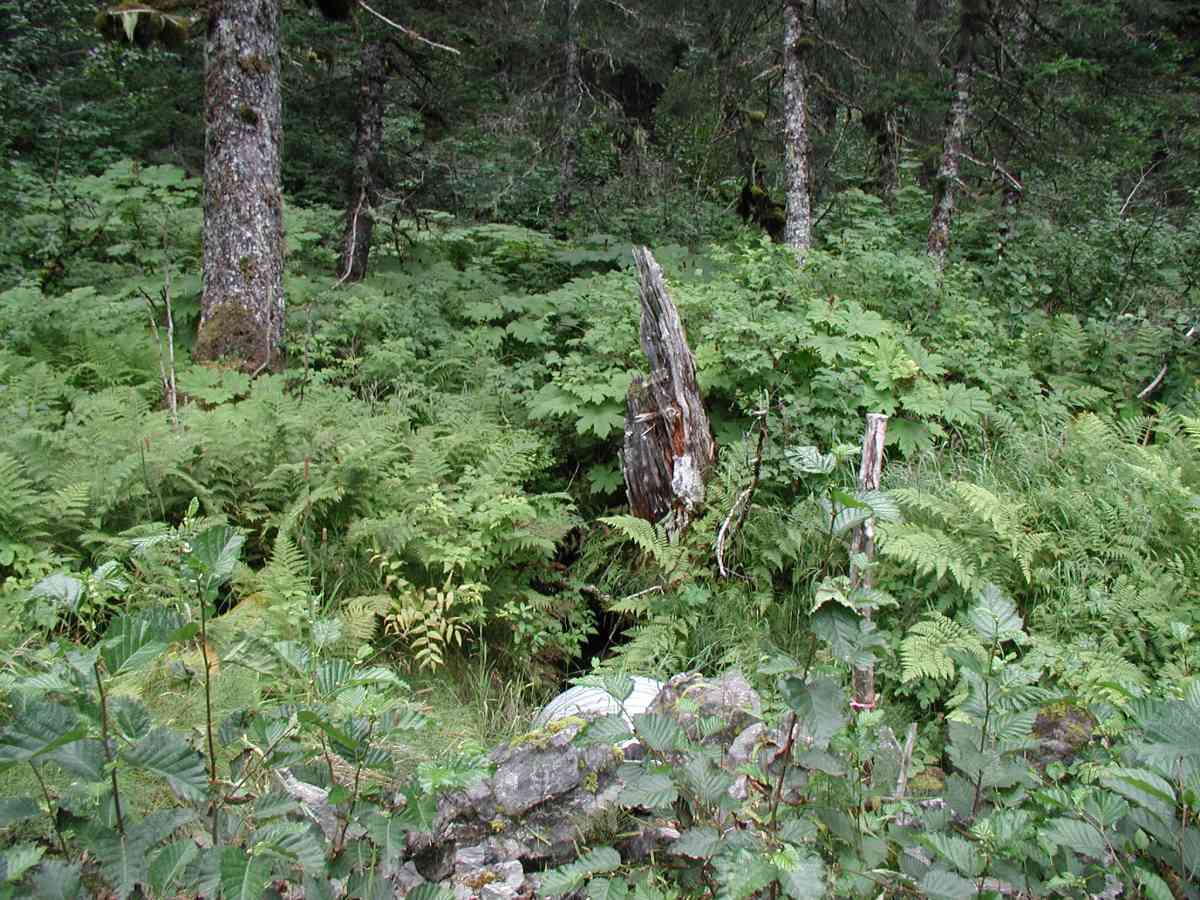

Comments: Location: Port Graham Stream: Minimal ponding at inlet: ~3-4' upstream, but reduces flow. Outlet has a slight pool. Substrate is mostly pebble and gravel. Streamside veg: dense Devil's Club. No stream flow conducted (too shallow or ponded or pooled). Culvert: Pipe condition=5. Not embedded.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 40.58

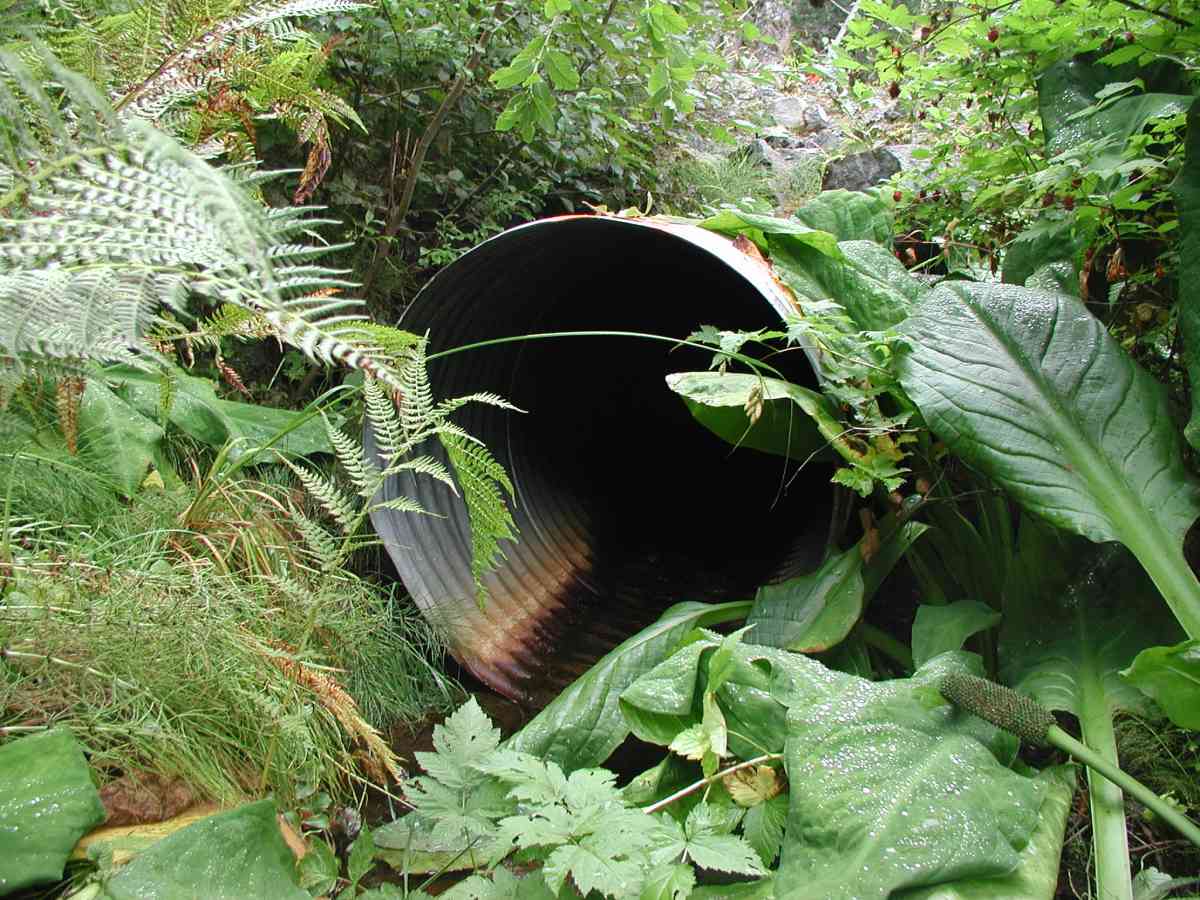

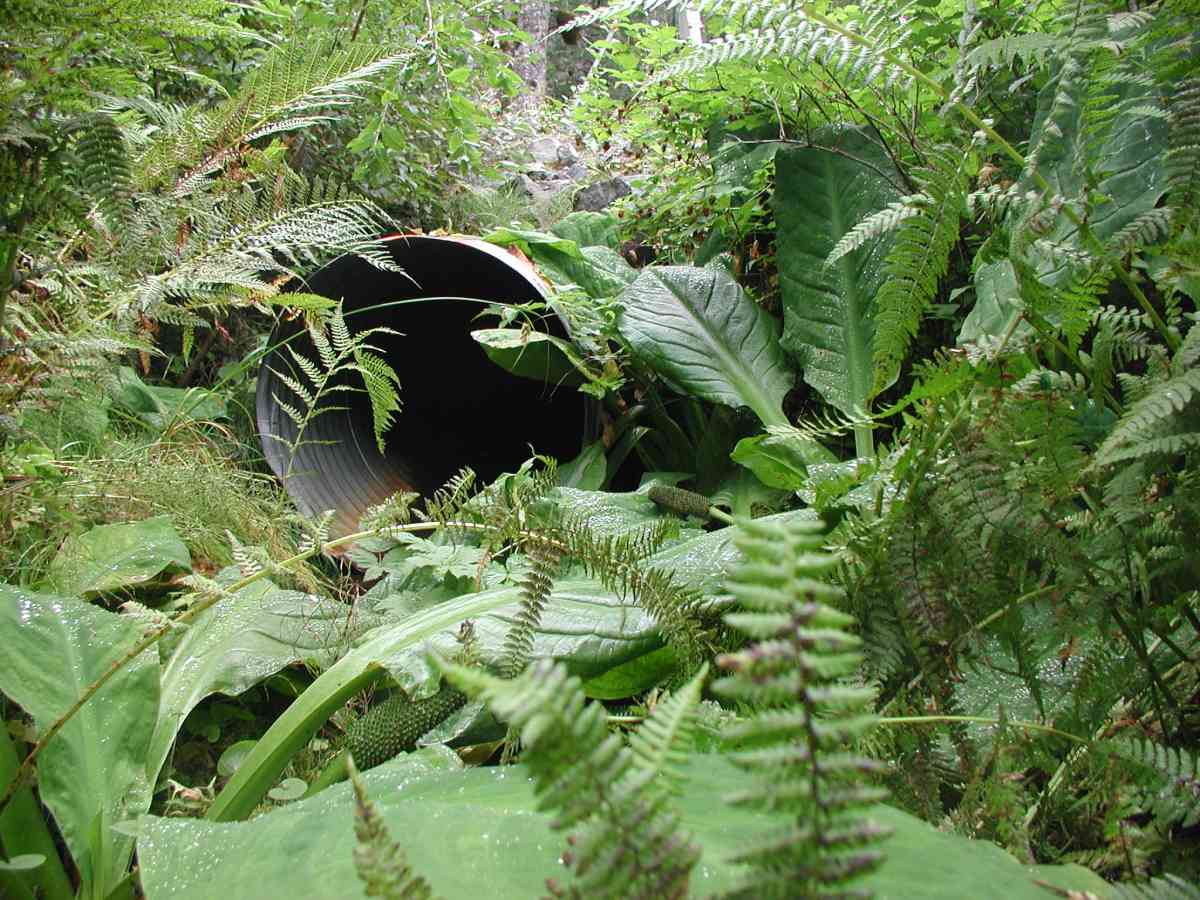

Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):3.0
Height(ft):3.08
Apron Length(ft):
Water Depth(ft): 0.04
Rustline Height(ft):0.05
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.02
Outfall Type:
Constriction Ratio: 1.09
Culvert Gradient: 0.64%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 5.83
Upstream bed width 75.0 0.92
Upstream ordinary high water 75.0 2.75

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Tailcrest or 1st Thalweg 96.75
D/S Thalweg 96.76
U/S Thalweg 1 96.86
OHW Left Bank 96.91
OHW Left Bank 97.36

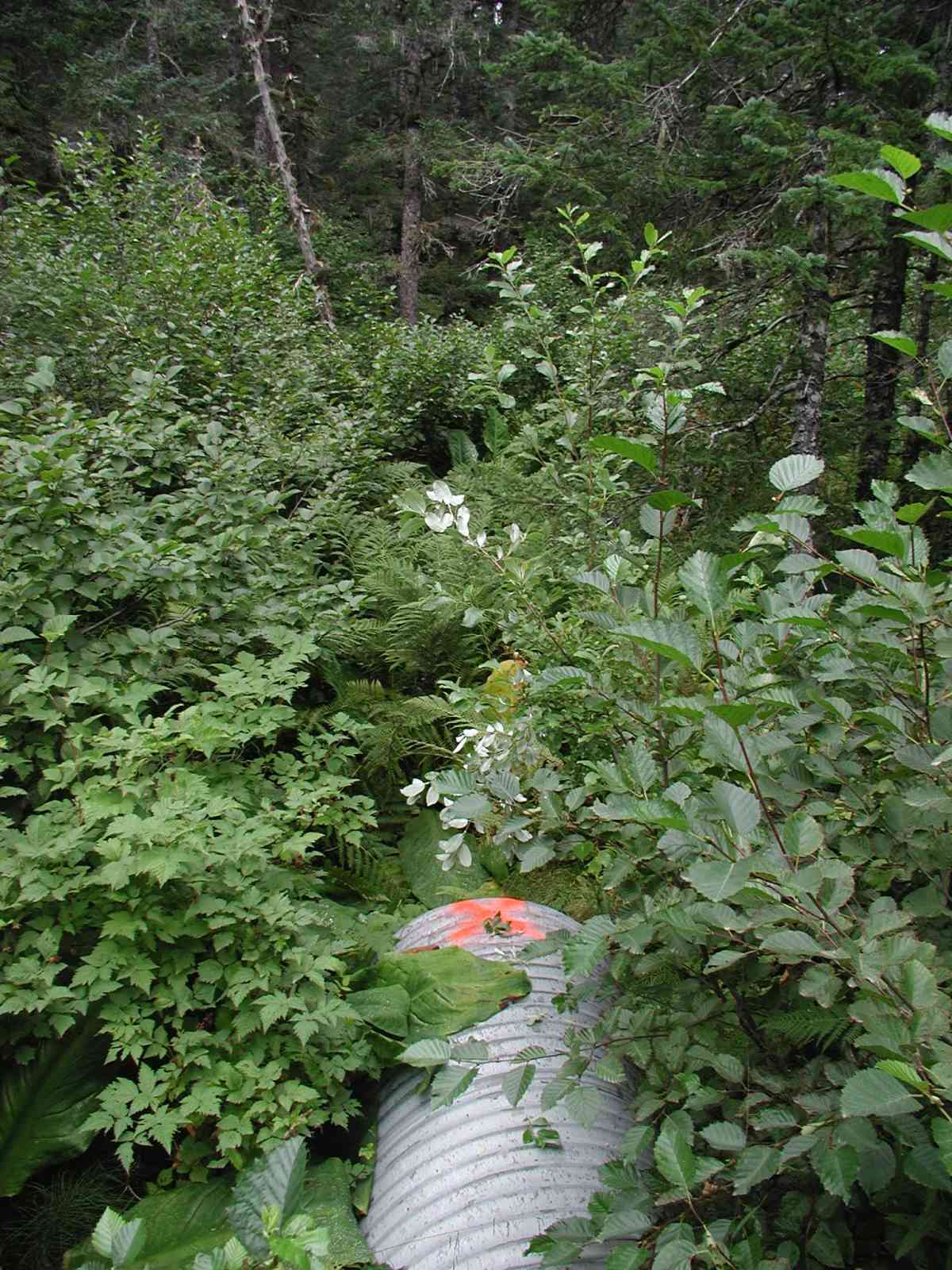

Outlet Culvert Top (Flourescent orange painted "X" on top of outlet. Measurement taken on 2nd corrugation.) 1 100.00
Max Pool Depth 0.00 5.0 96.38
Outlet Invert 1 5.00 0.0 96.89
Road Elev (Road surface.) 25.00 101.70
Inlet Culvert Invert 1 45.00 0.0 97.15

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
