Fish Passage Site 20300907

Coordinates (dec. deg.): 59.98388°, -151.62916°
Legal Description: S002S014W23
Region: South Central
Road Name: East Road

Datum: NAD83
Quad Name / ITM: Seldovia D-5
AWC Stream #:
Stream Name:

Elevation:

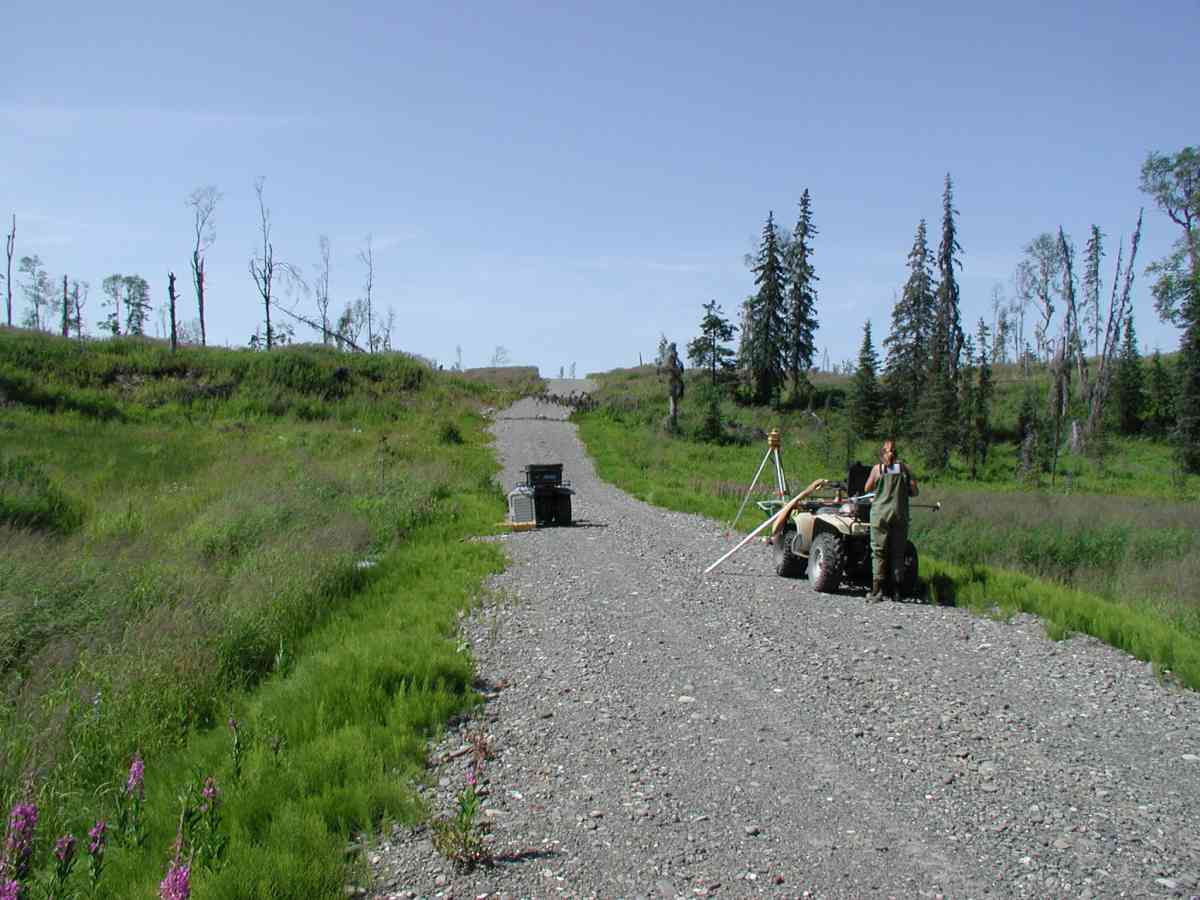

Site Comments: Location: East Rd. Stream: Good flow into pipe, but upstream flow reduced by ponding. Gravel substrate downstream of the pipe.

Survey Date: Jul 12, 2004

Survey KPC04-1A063

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

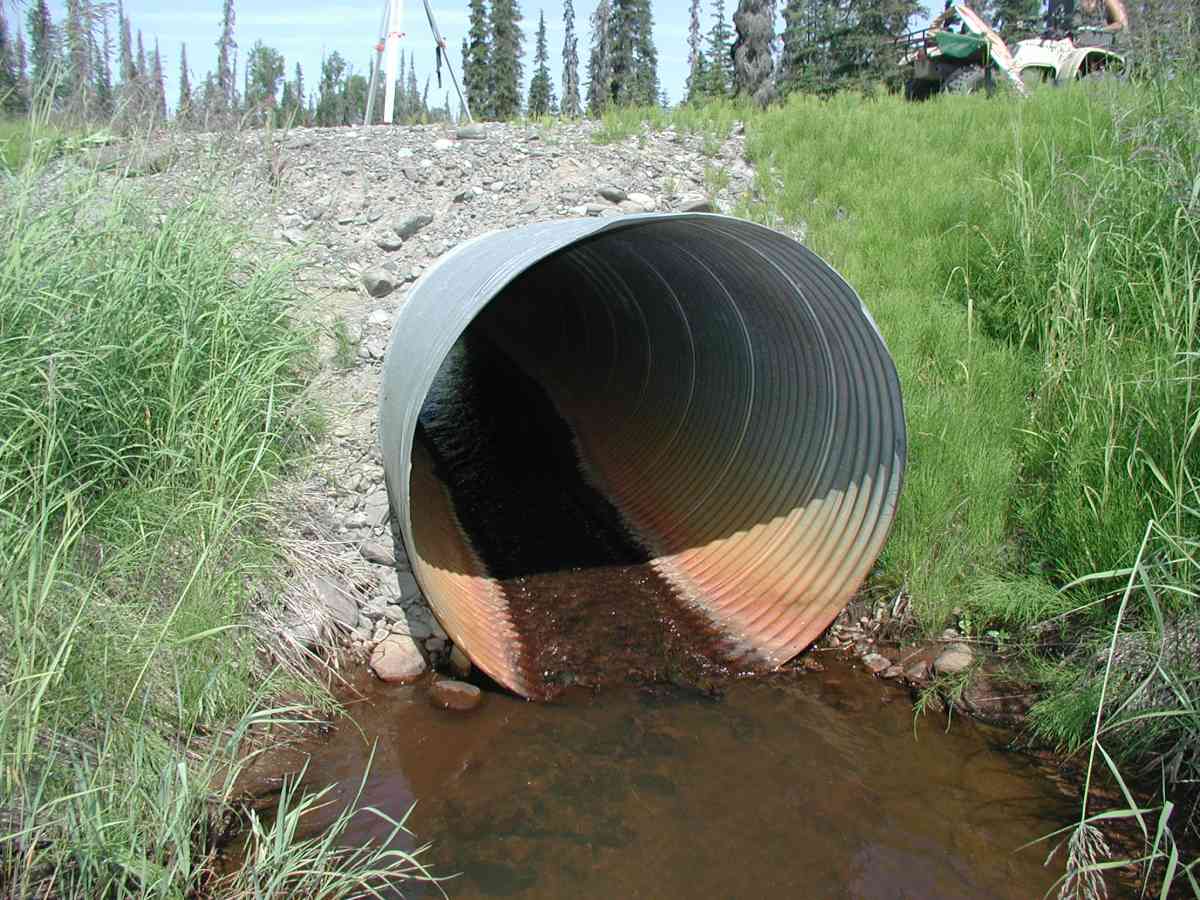

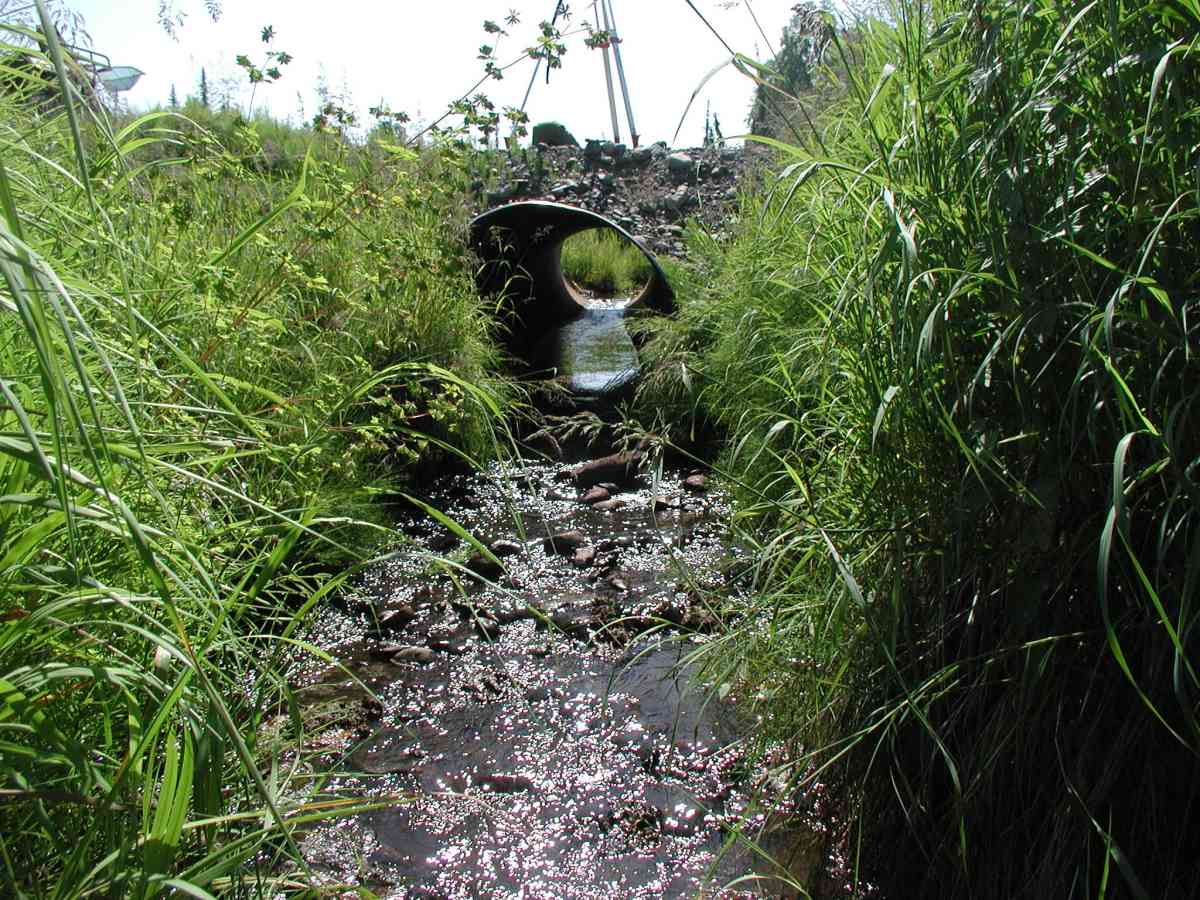

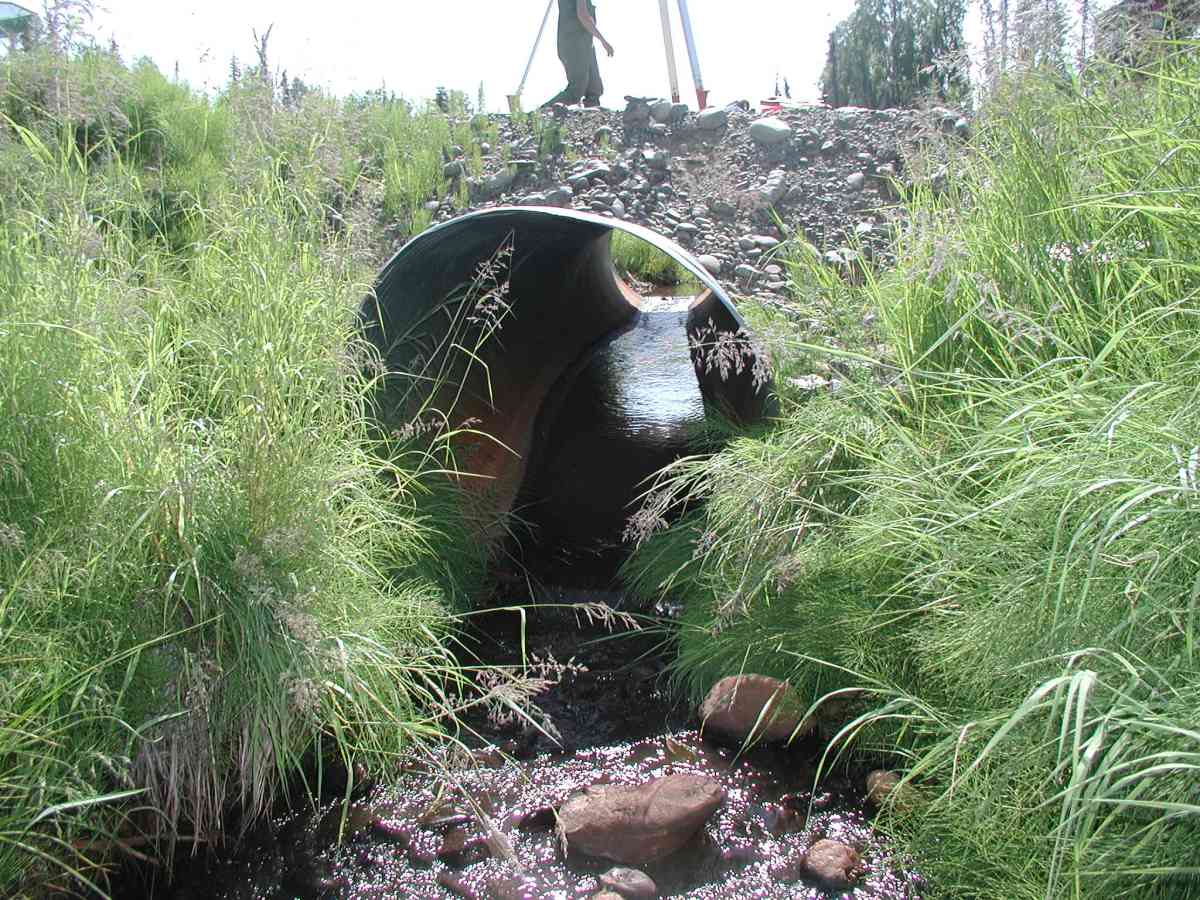

Comments: Location: East Rd. Stream: Good flow into pipe, but upstream flow reduced by ponding. Gravel substrate downstream of the pipe. Bank undercut 6-18". No stream flow at 75' upstream and becomes subterranean at 150'. Culvert: 1 overflow pipe, good condition. Outlet is perched a few inches. pipe condition=5. Not embedded.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 30.54
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):4.25
Height(ft):3.75
Apron Length(ft):
Water Depth(ft): 0.17
Rustline Height(ft):1.17
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.26
Outfall Type:
Constriction Ratio: 1.18
Culvert Gradient: 1.24%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 3.83
Upstream bank full 100.0 4.83
Upstream bank full 125.0 4.00
Upstream bank full 150.0 4.17
Upstream bed width 75.0 2.83
Upstream bed width 100.0 3.58
Upstream bed width 125.0 2.50
Upstream bed width 150.0 3.67
Upstream ordinary high water 75.0 3.08
Upstream ordinary high water 100.0 4.00
Upstream ordinary high water 125.0 3.33
Upstream ordinary high water 150.0 4.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 95.74
D/S Tailcrest or 1st Thalweg 95.90
U/S Thalweg 1 95.94
OHW Left Bank 96.14
OHW Left Bank 96.80
Outlet Culvert Top (Flourescent orage "X" painted on top of outlet pipe. Place rod right of the center of the "X".) 1 100.00
Max Pool Depth 0.00 5.0 95.53
Outlet Invert 1 5.00 0.0 96.23
Road Elev (Road surface) 20.00 101.10
Inlet Culvert Invert 1 35.00 0.0 96.61

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
