Fish Passage Site 20300901

Coordinates (dec. deg.): 60.05031°, -151.58200°
Legal Description: S001S013W31
Region: South Central

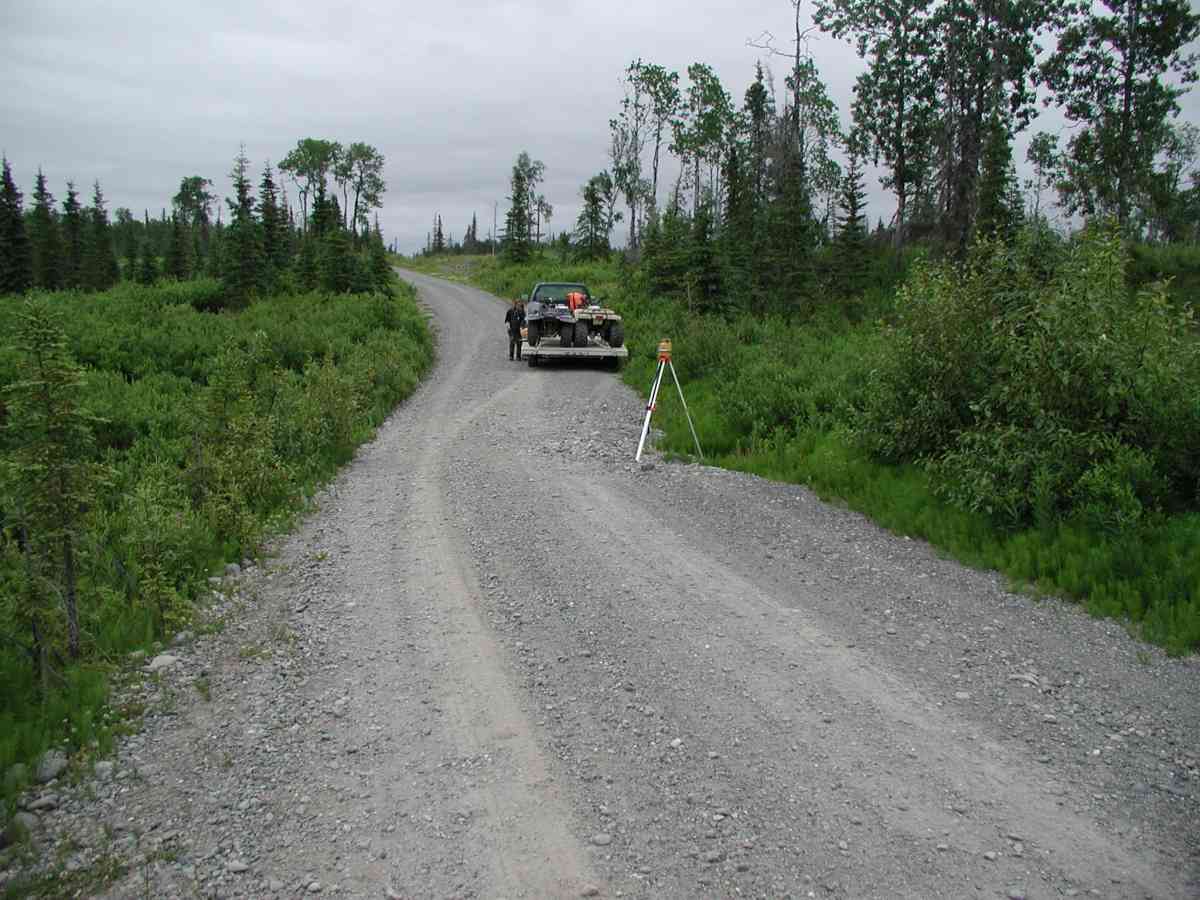

Road Name: Oil Well Road

Datum: NAD83
Quad Name / ITM: Kenai A-5
AWC Stream #:
Stream Name:

Elevation:

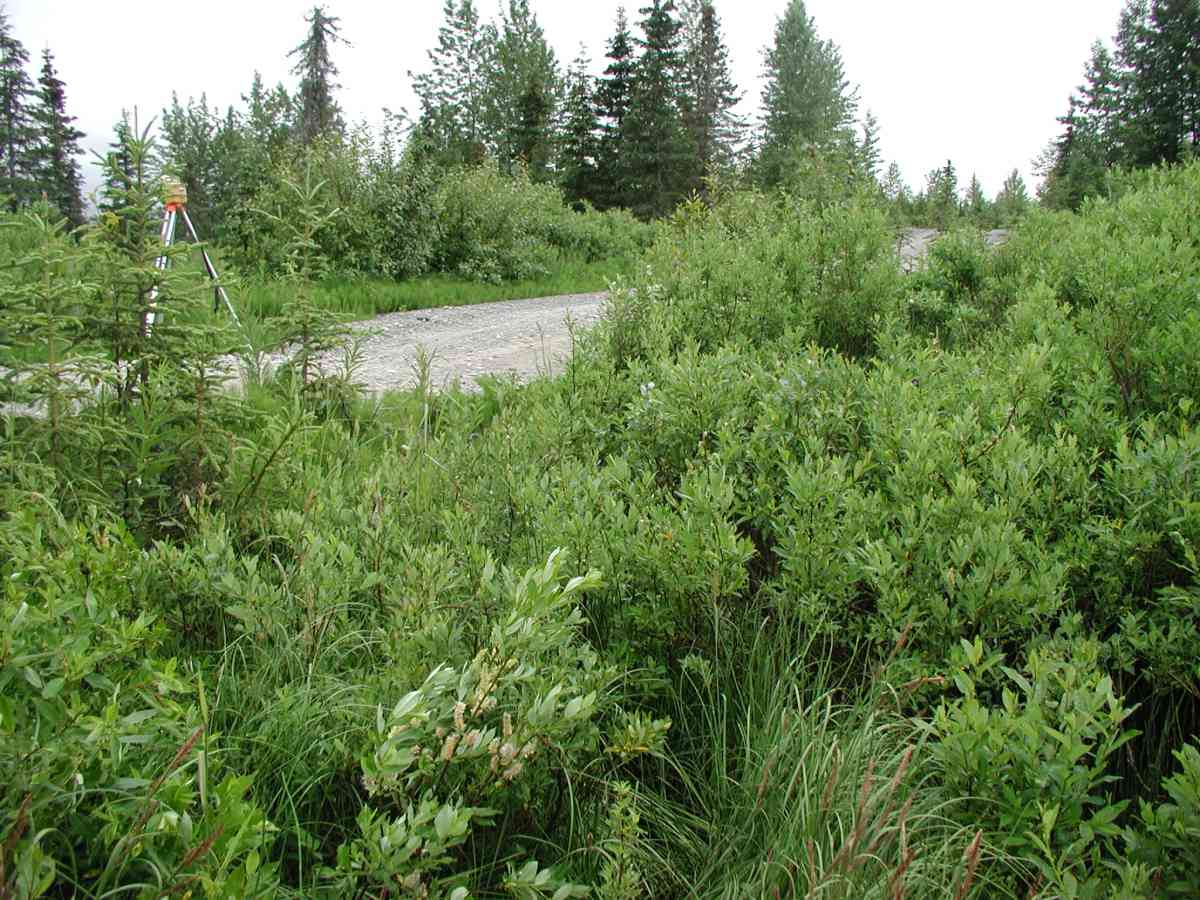

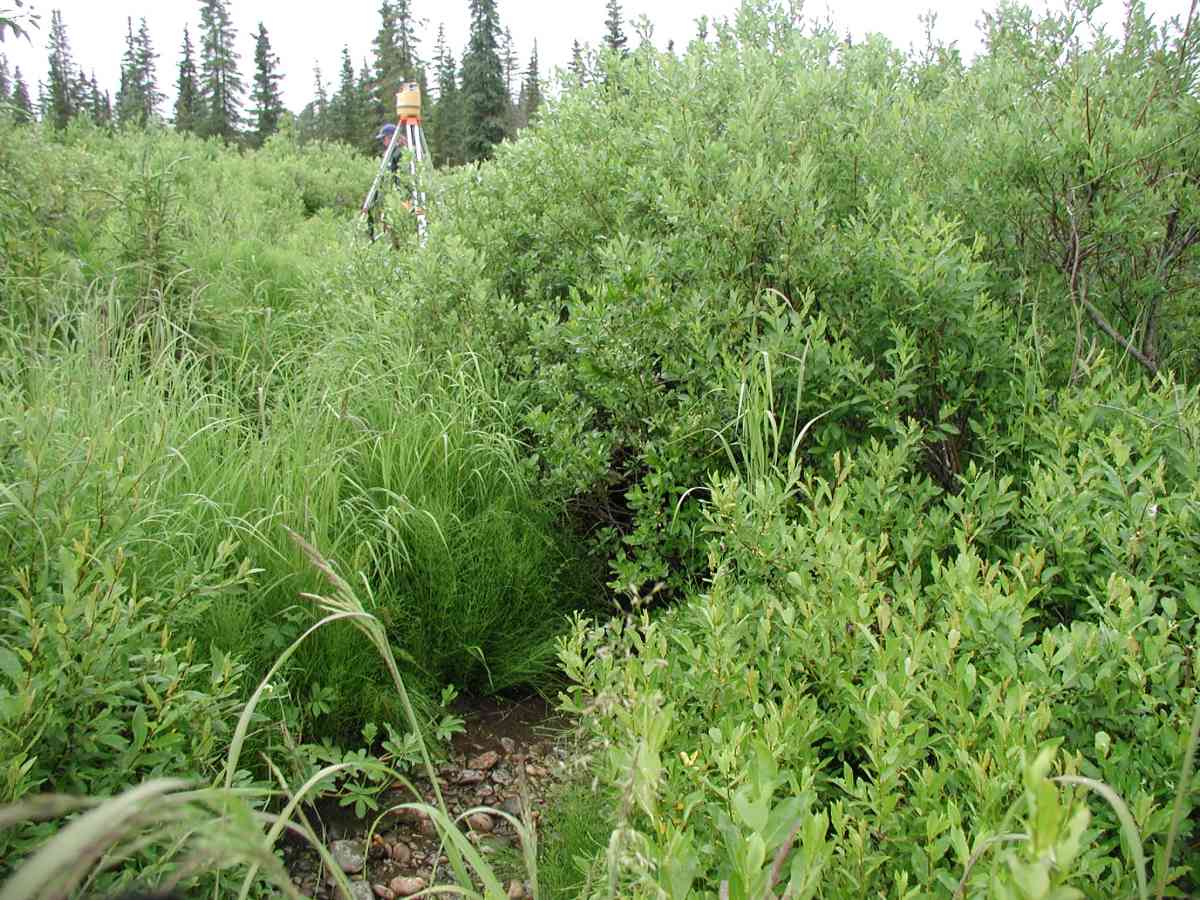

Site Comments: Location: Oilwell to Brody Rd. Ponding present a short distance upstream; then stream forms narrow channel and is overgrown with willows.

Survey Date: Jun 28, 2004

Survey KPC04-1A045

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

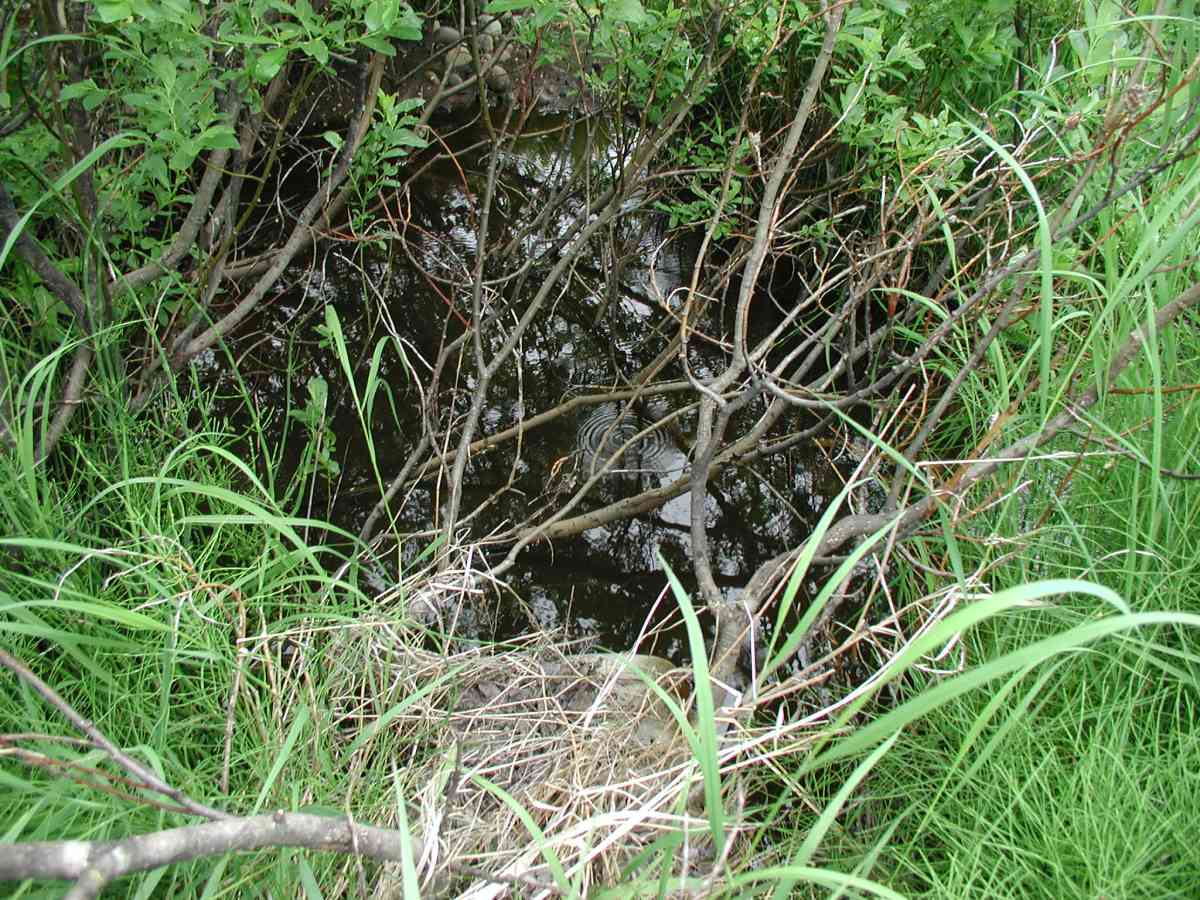

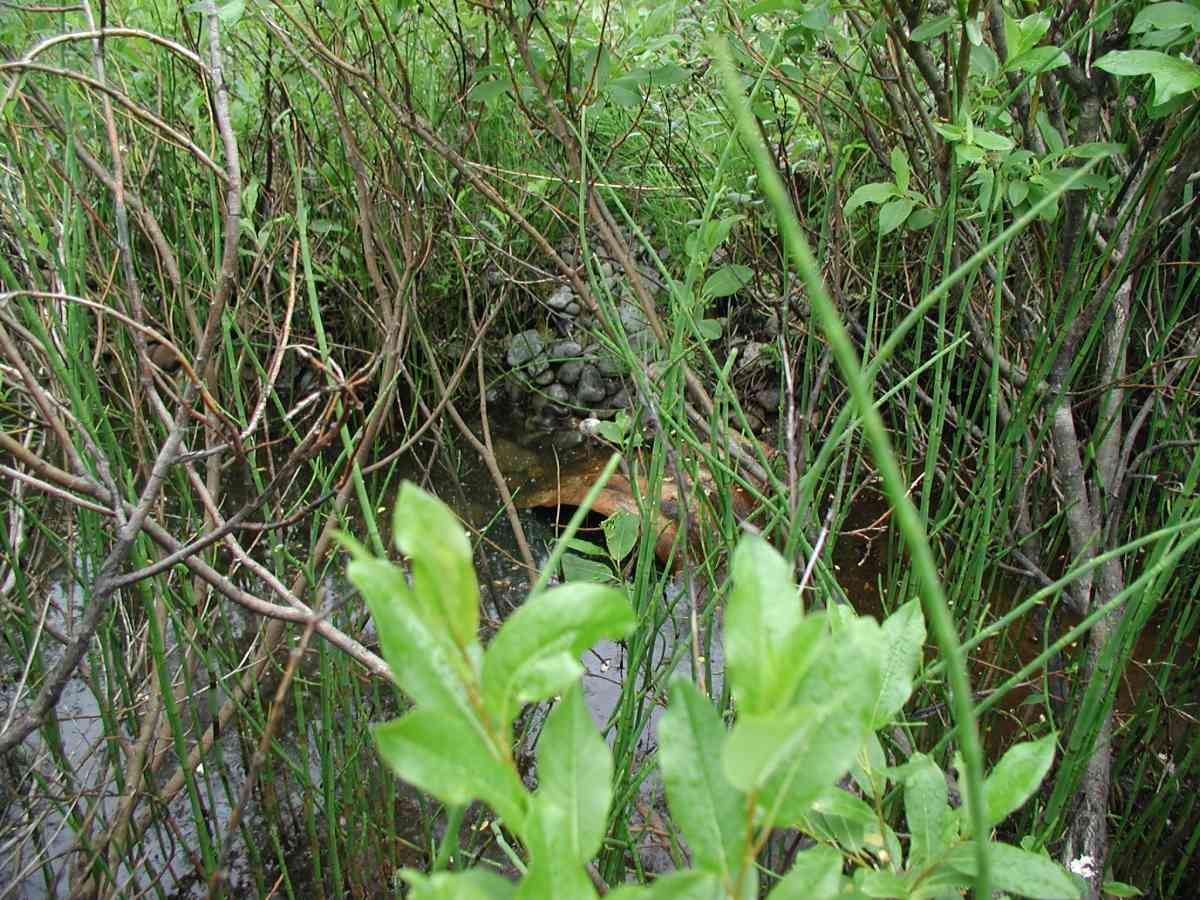

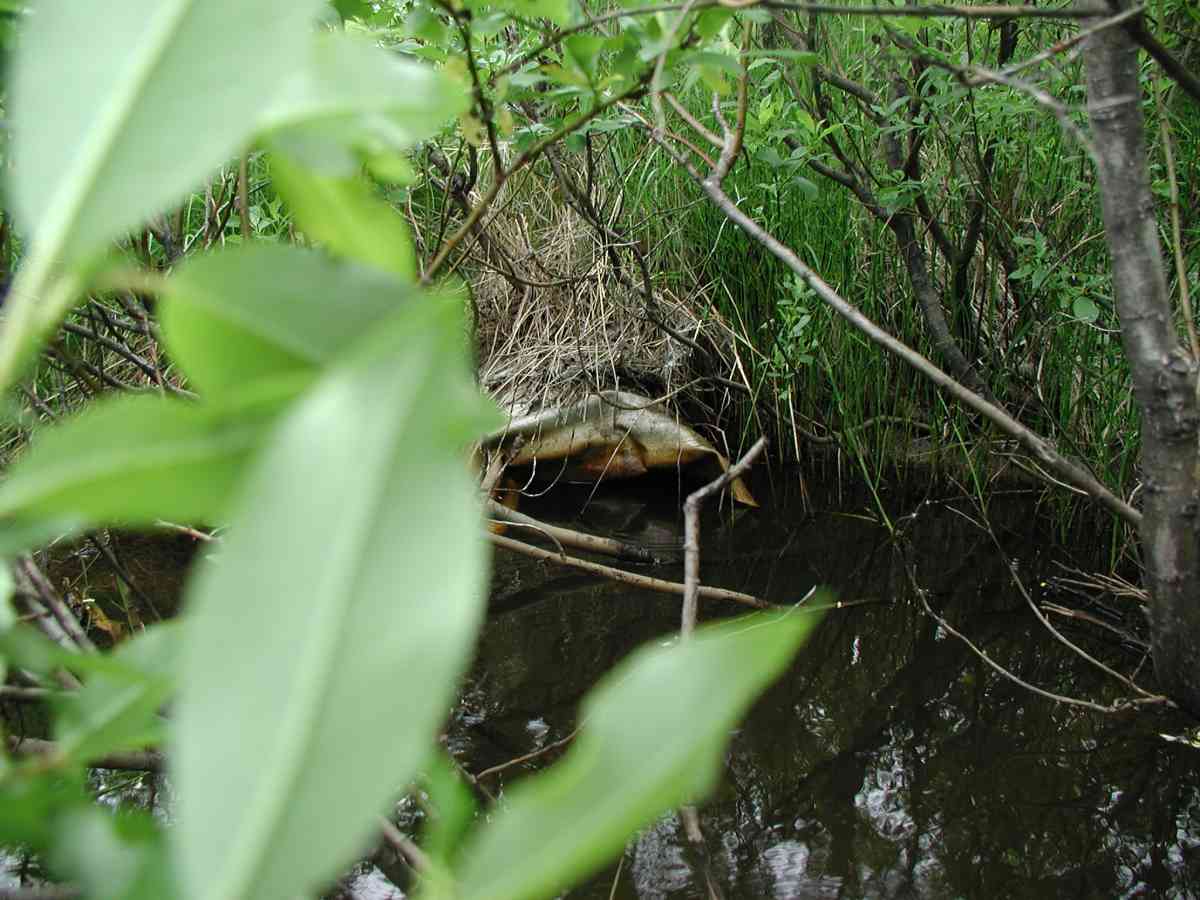

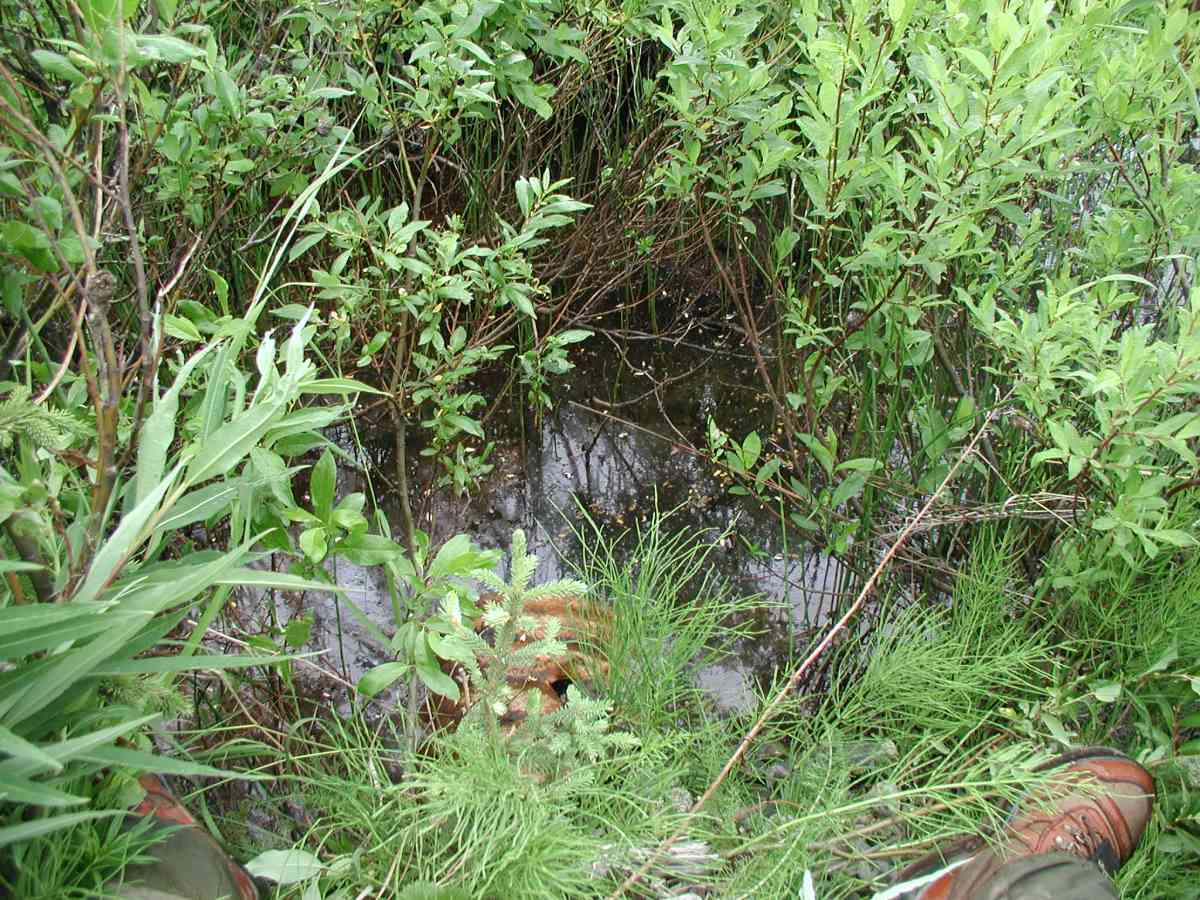

Comments: Location: Oilwell to Brody Rd. Stream: Ponding present a short distance upstream; then stream forms narrow channel and is overgrown with willows. Bank undercut was 6-24". Substrate is gravel downstream and soft silt upstream until channel forms and is then gravel. Culvert: Outlet is squashed and rolled over below water surface; has a small hole on top. The inlet has rust all the way around with a 3" hole 10" from the end. Pipe condition=3. Not embedded.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 30.36
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):1.5
Height(ft):1.5
Apron Length(ft):
Water Depth(ft): 0.9
Rustline Height(ft):1.5
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: -0.04
Outfall Type:
Constriction Ratio: 0.66
Culvert Gradient: -0.72%
Max Slope:
Max Slope Length:


Comments: Culvert: Outlet is squashed and rolled over below water surface; has a small hole on top. The inlet has rust all the way around with a 3" hole 10" from the end. Pipe condition=3. Not embedded.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:Silt/ClayGravel
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 3.75
Upstream bank full 100.0 4.00
Upstream bank full 125.0 2.83
Upstream bank full 150.0 4.17
Upstream bed width 75.0 2.00
Upstream bed width 100.0 1.17
Upstream bed width 125.0 1.67
Upstream bed width 150.0 1.92
Upstream ordinary high water 75.0 2.33
Upstream ordinary high water 100.0 3.17
Upstream ordinary high water 125.0 1.67
Upstream ordinary high water 150.0 1.92

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 98.23
U/S Thalweg 1 98.52
D/S Tailcrest or 1st Thalweg 99.14
OHW Left Bank 99.40
OHW Left Bank 99.63
Outlet Culvert Top (Flourescent orange "X" on top of oulet, taken from top of corregation.) 1 100.00
Max Pool Depth 0.00 5.0 99.01
Outlet Invert 1 5.00 0.0 98.46
Road Elev (Road surface) 20.00 102.02
Inlet Culvert Invert 1 35.00 0.0 98.24

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
