Fish Passage Site 20300900

Coordinates (dec. deg.): 60.04575°, -151.30012°
Legal Description: S001S012W35
Region: South Central
Road Name: Oil Well Road

Datum: NAD83
Quad Name / ITM: Kenai A-4
AWC Stream #:
Stream Name:

Elevation:

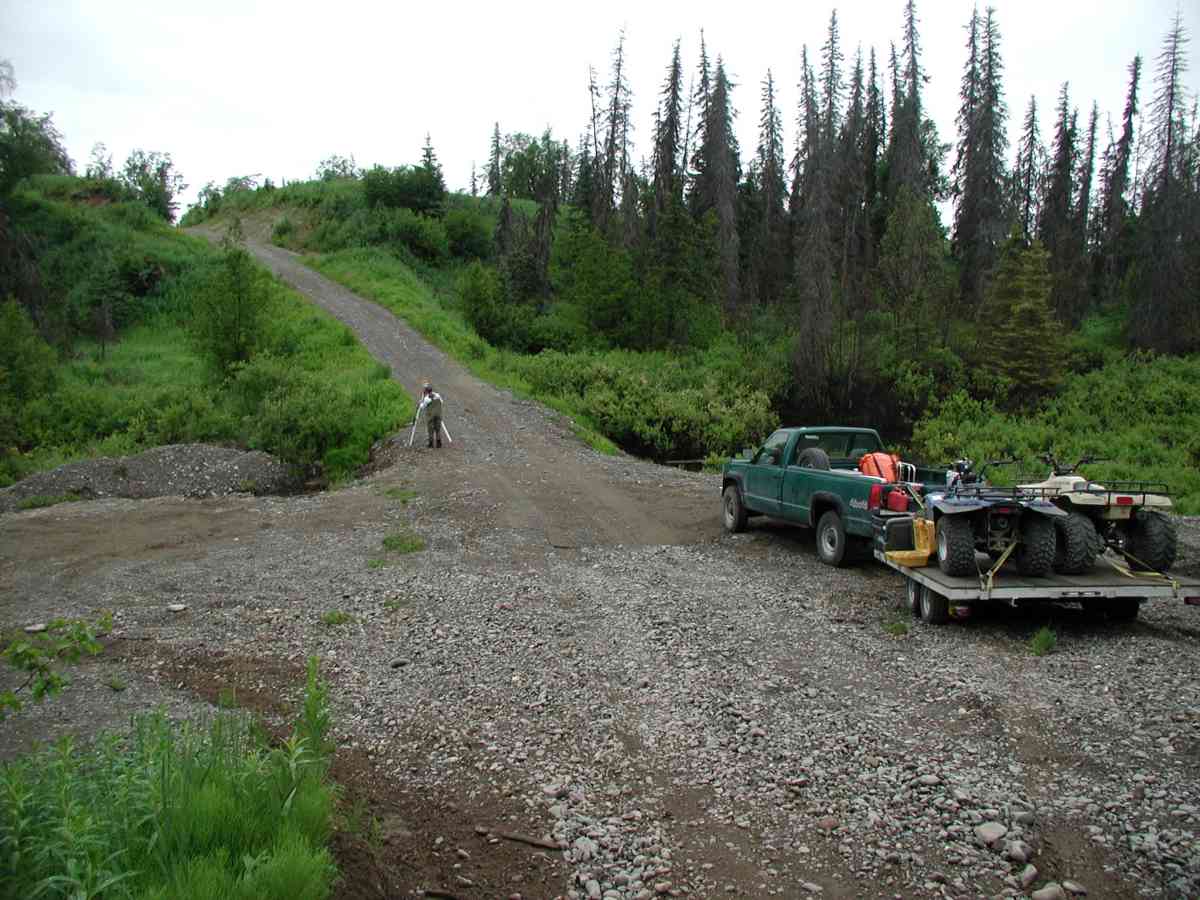

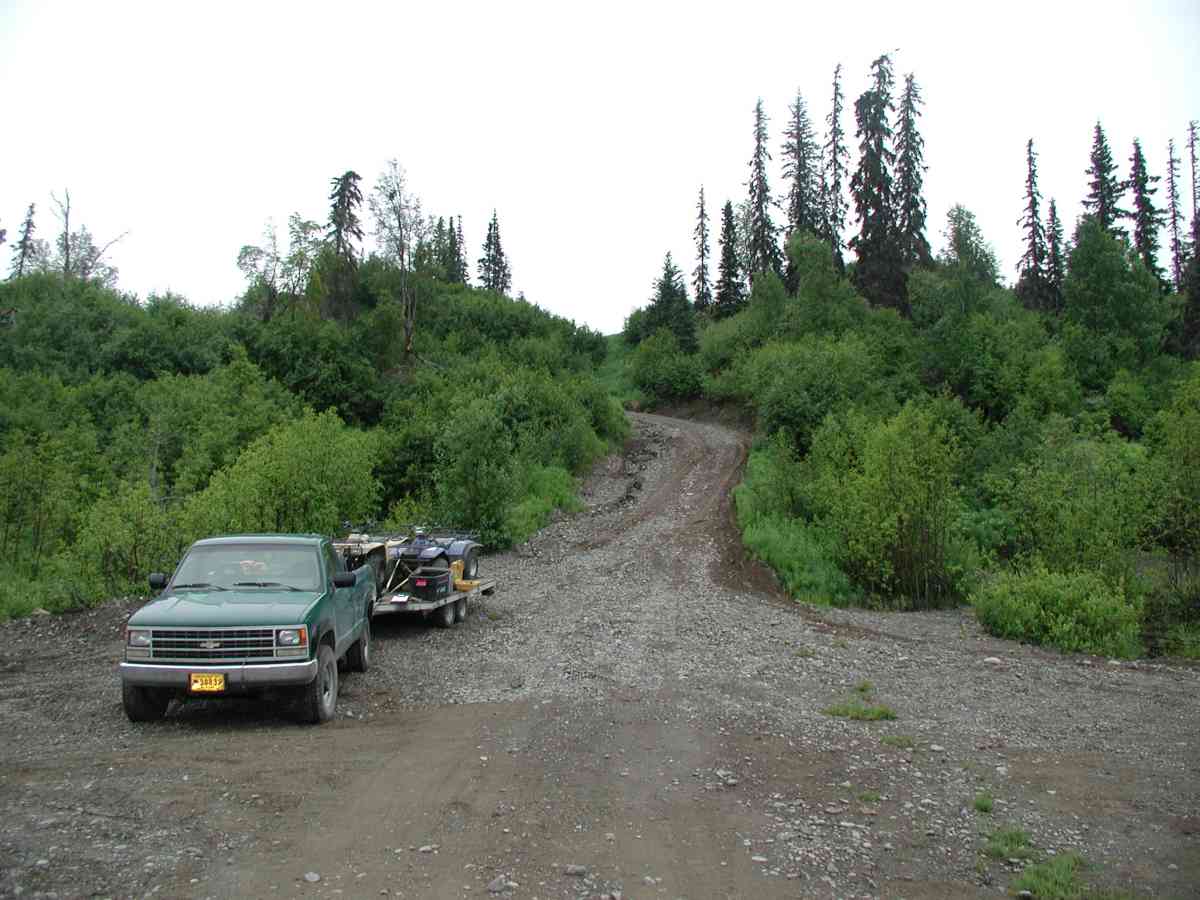

Site Comments: Location: Oilwell Rd. Stream lies at the base of a steep hill.

Survey Date: Jun 28, 2004

Survey KPC04-1A032

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

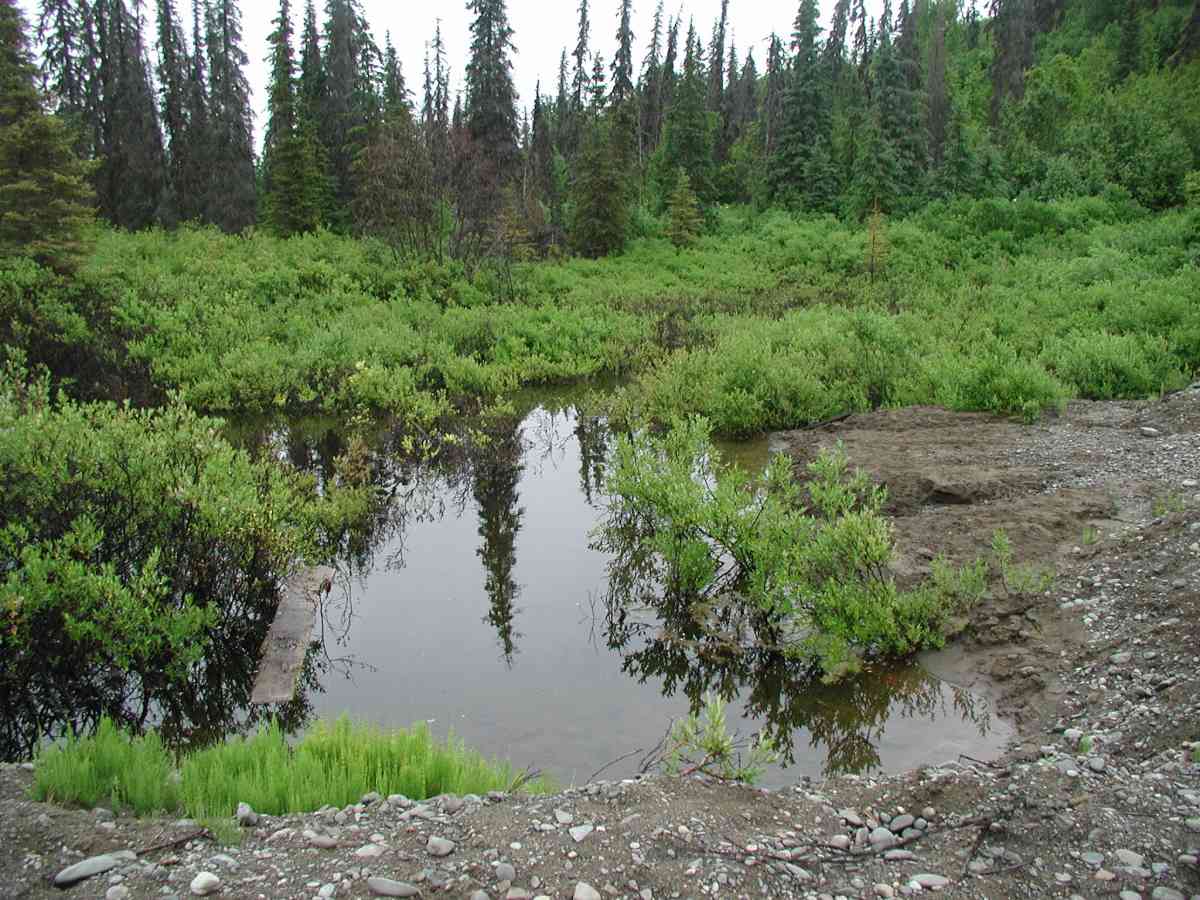

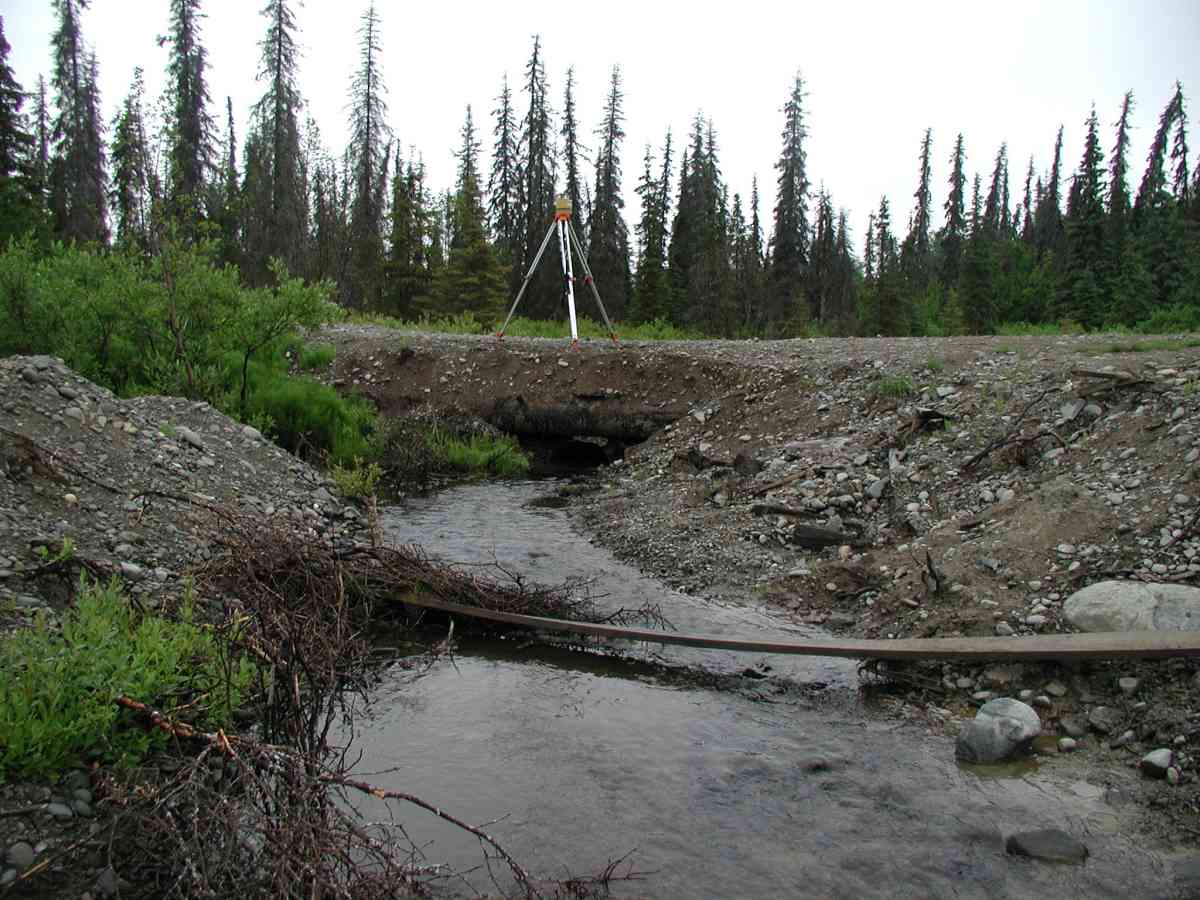

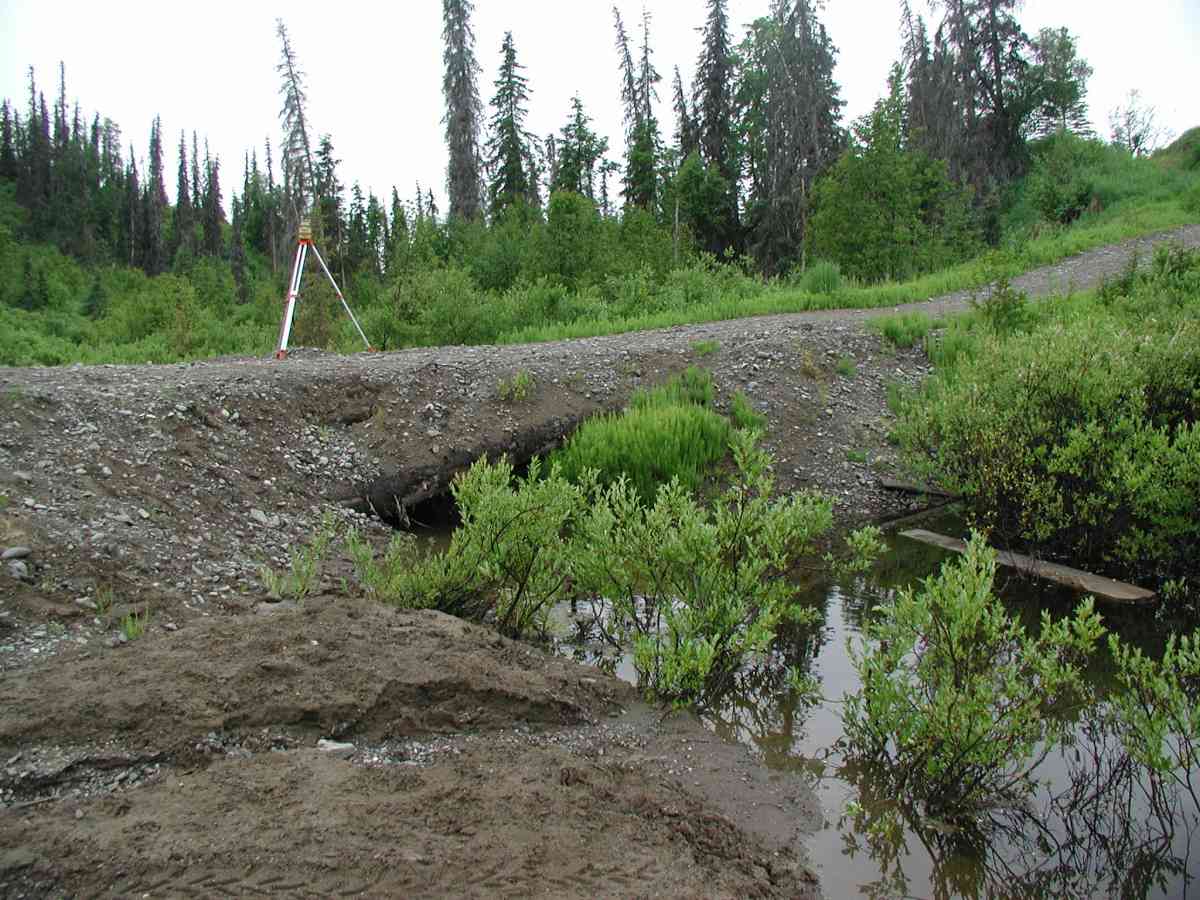

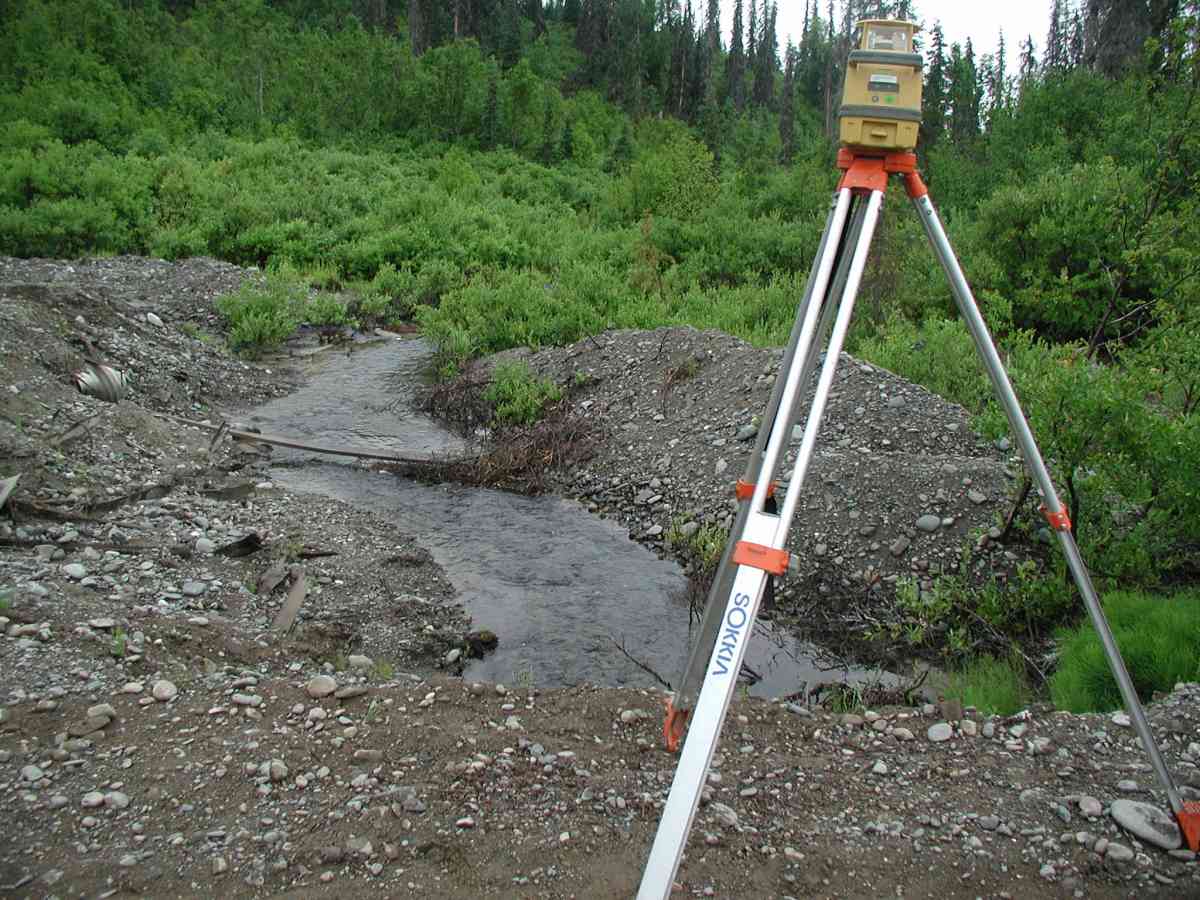

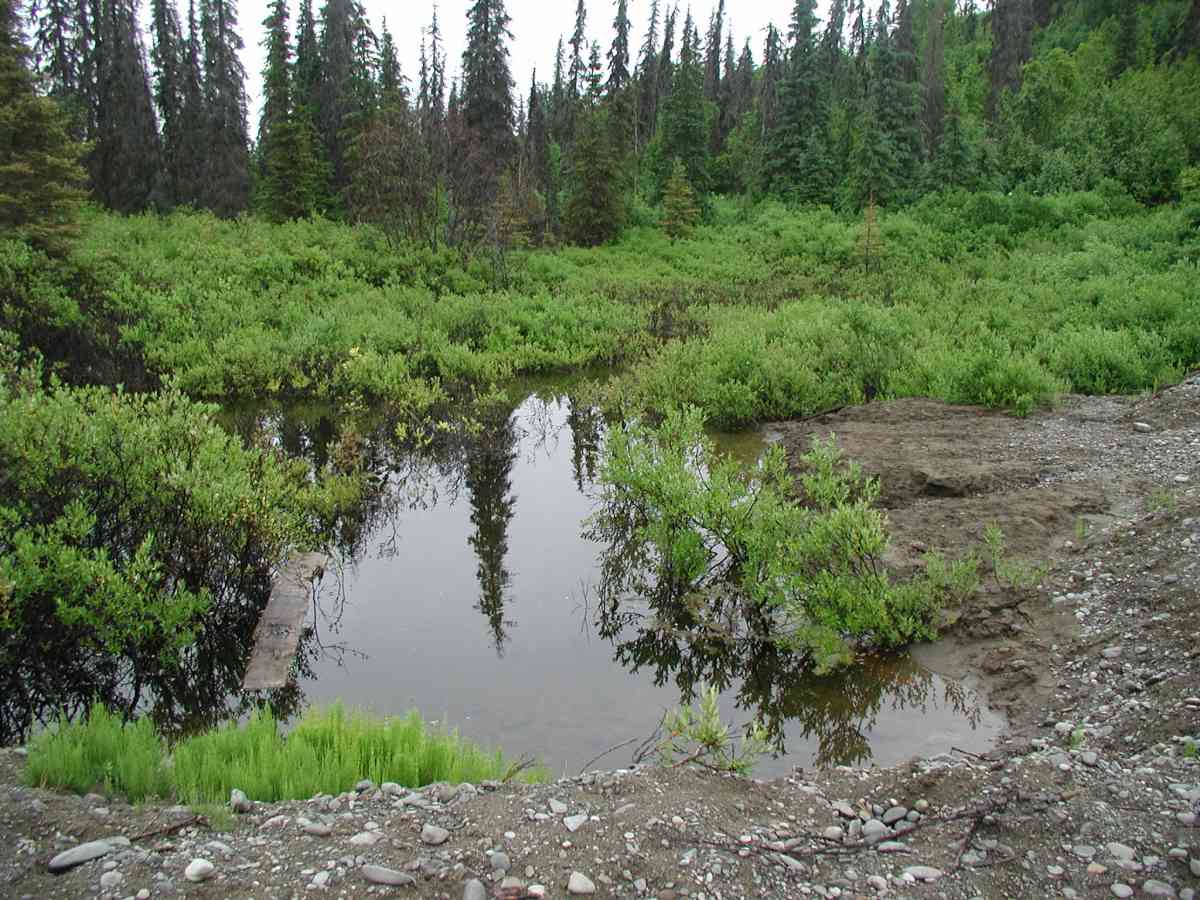

Comments: Location: Oilwell Rd. Stream: Stream lies at the base of a steep hill. Extensive ponding: 3' deep, 50' wide, and extends beyond 75' from the inlet. Measurements from the inlet and outlet were problematic due to logs. Gravel from washout is in large pile downstream of outlet. Dense alder and willow growth along stream. Culvert: It appears as if the road had washed out partially and was rebuilt by laying logs over the culvert and then adding gravel. The pipe is heavily embedded. Benchmark is located on tree stump located on the right bank near the outlet (see data form for more info.). Pipe condition=3 (should be replaced).

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 20.58
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):1.5
Height(ft):1.5
Apron Length(ft):
Water Depth(ft): 0.62
Rustline Height(ft):0.75
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: -0.18
Outfall Type:
Constriction Ratio:
Culvert Gradient: 0.92%
Max Slope:
Max Slope Length:

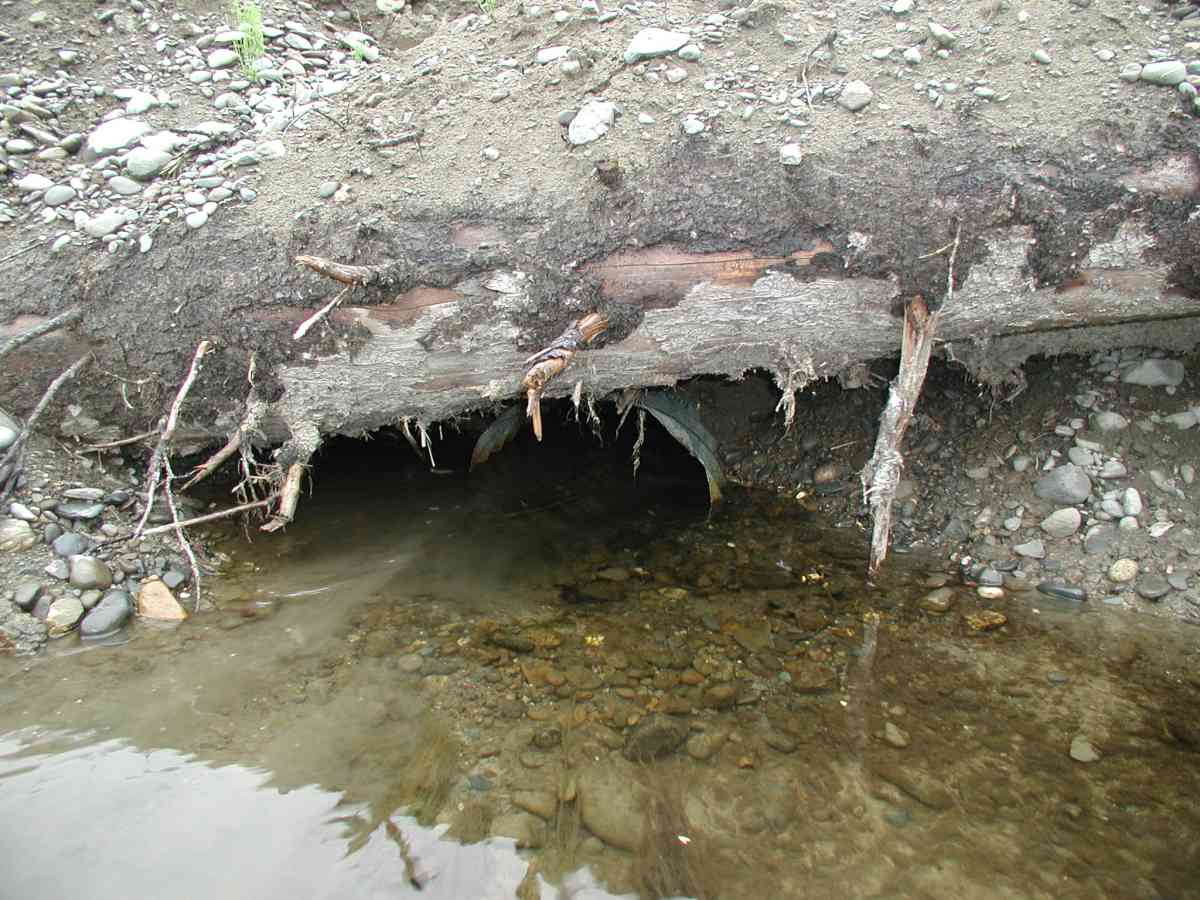

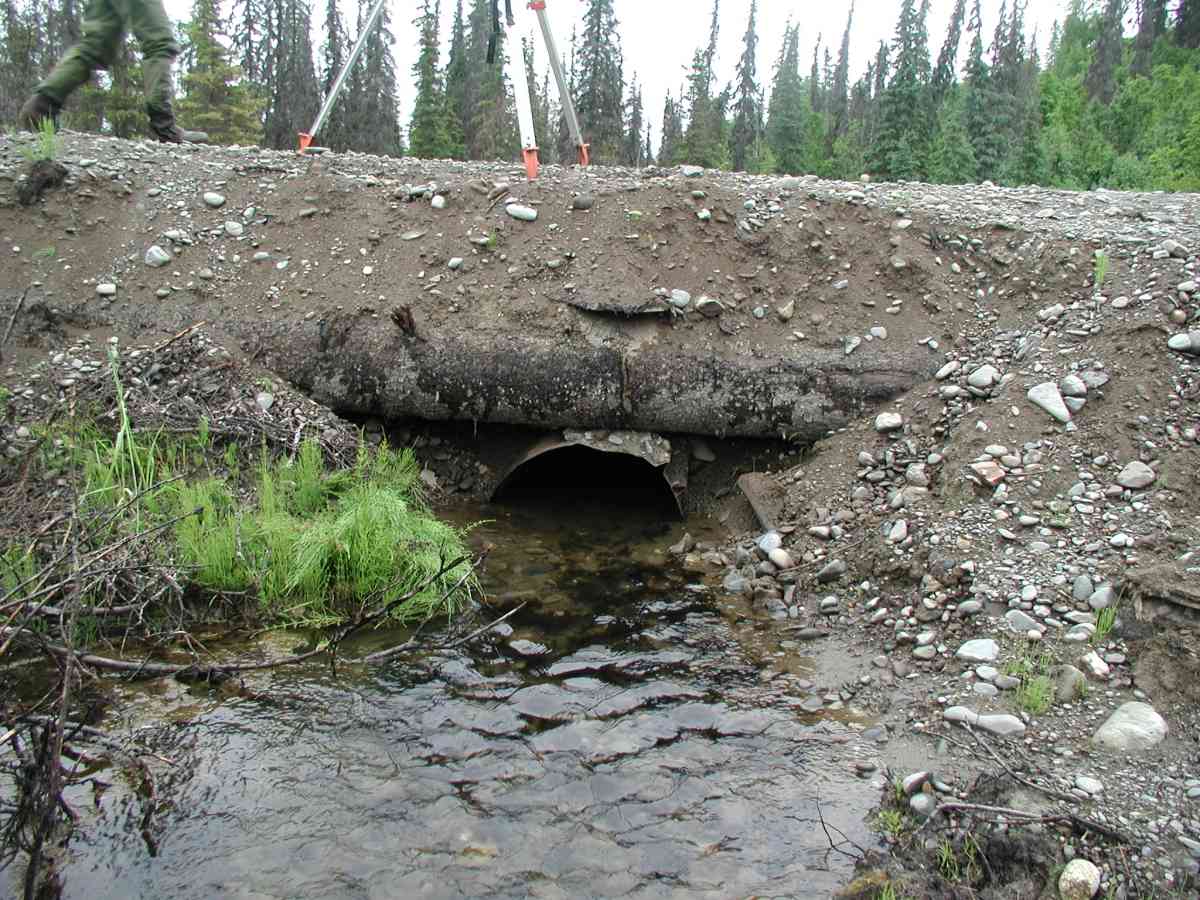

Comments: Culvert: It appears as if the road had washed out partially and was rebuilt by laying logs over the culvert and then adding gravel. The pipe is heavily embedded. Benchmark is located on tree stump located on the right bank near the outlet (see data form for more info.). Pipe condition=3 (should be replaced).

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 98.84
D/S Tailcrest or 1st Thalweg 99.01
OHW Left Bank 99.20
OHW Left Bank 99.33
Outlet Culvert Top (Four tree stumps (cut at base) "X" painted on stump near right bank near outlet.) 1 100.00
U/S Thalweg 1 98.58
Max Pool Depth 0.00 5.0 98.69
Outlet Invert 1 5.00 0.0 98.53
Road Elev (Road surface.) 15.00 103.14
Inlet Culvert Invert 1 25.00 0.0 98.72

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
