Fish Passage Site 20300895

Coordinates (dec. deg.): 60.00980°, -151.33167°
Legal Description: S002S012W15
Region: South Central

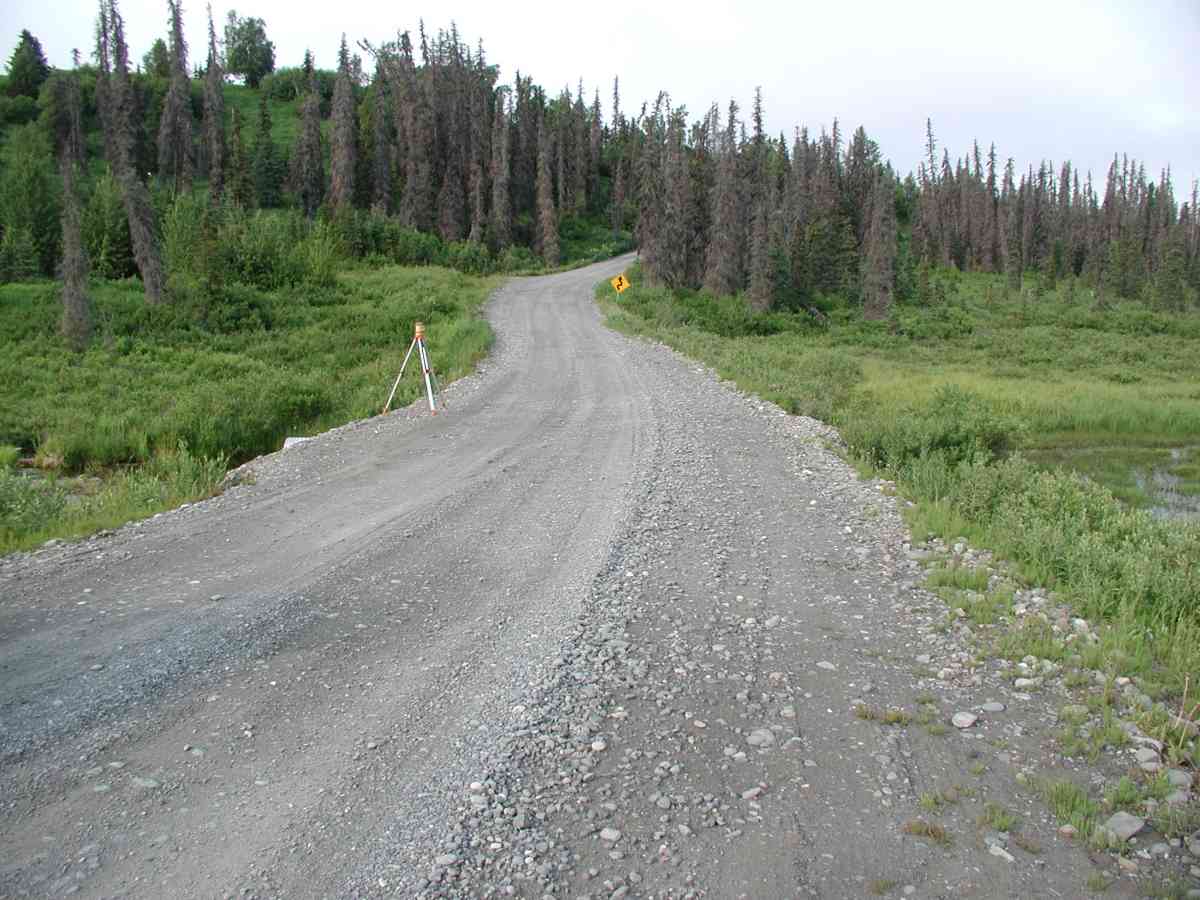

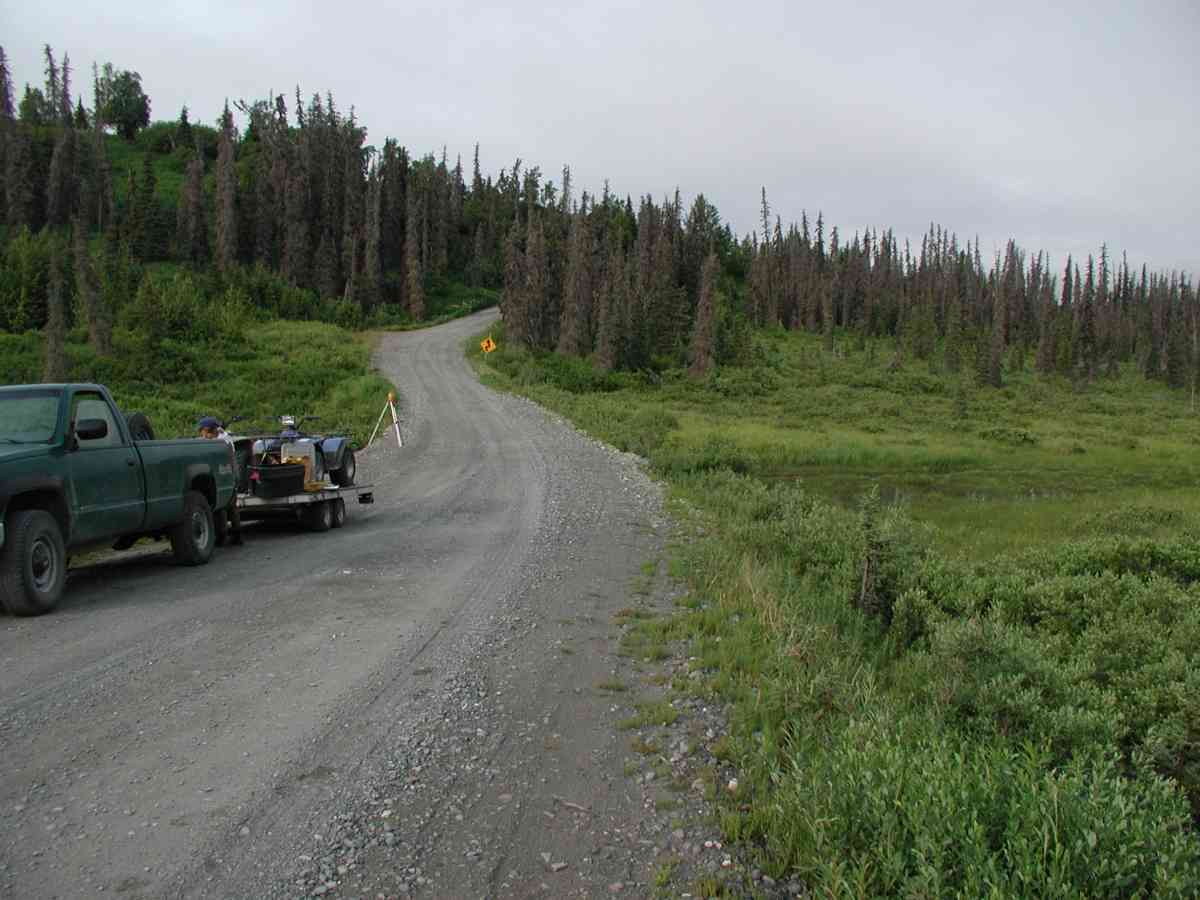

Road Name: Oil Well Road

Datum: NAD83
Quad Name / ITM: Kenai A-4
AWC Stream #: 244-20-10100-2019
Stream Name:

Elevation:

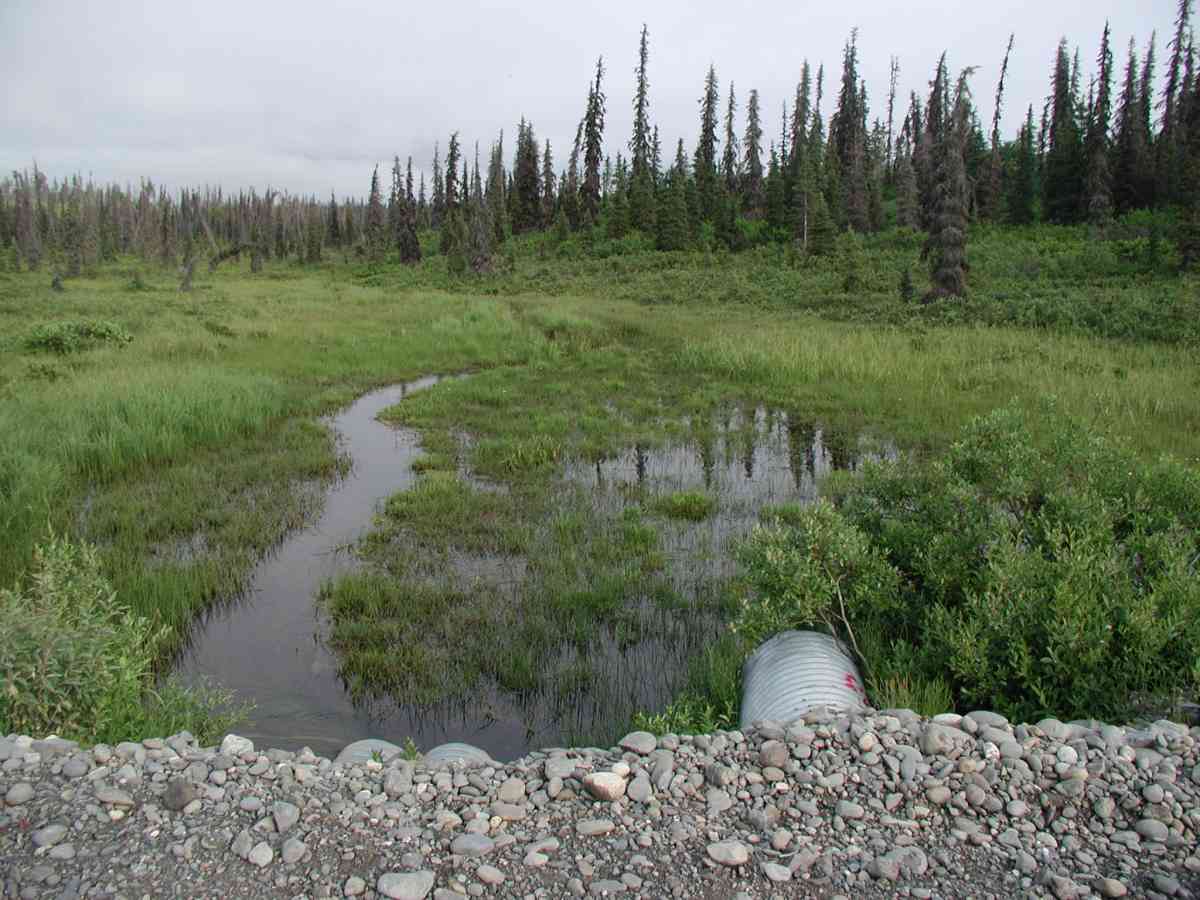

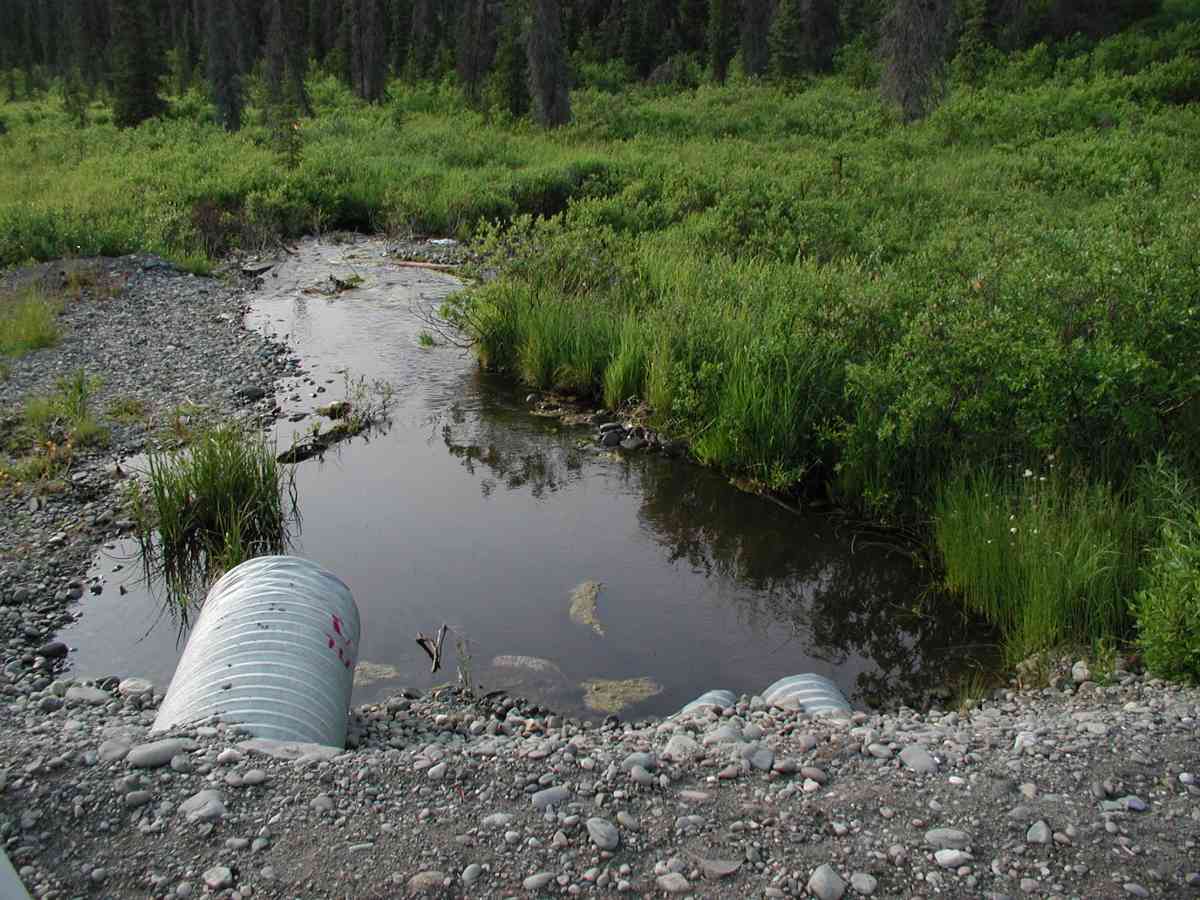

Site Comments: Location: Oilwell Road. Slow stream flow with moderate ponding upstream and significant gradient changes downstream.

Survey Date: Jun 28, 2004

Survey KPC04-1A024

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

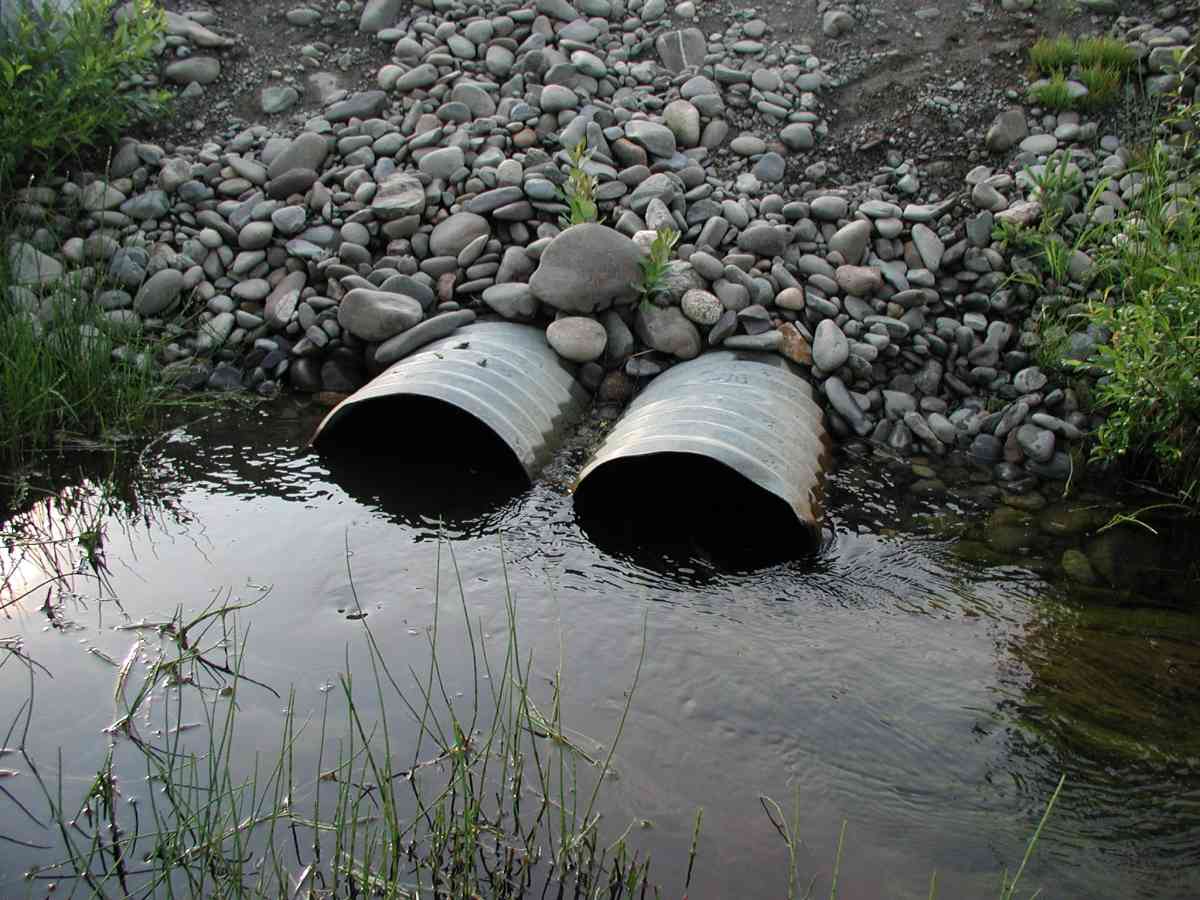

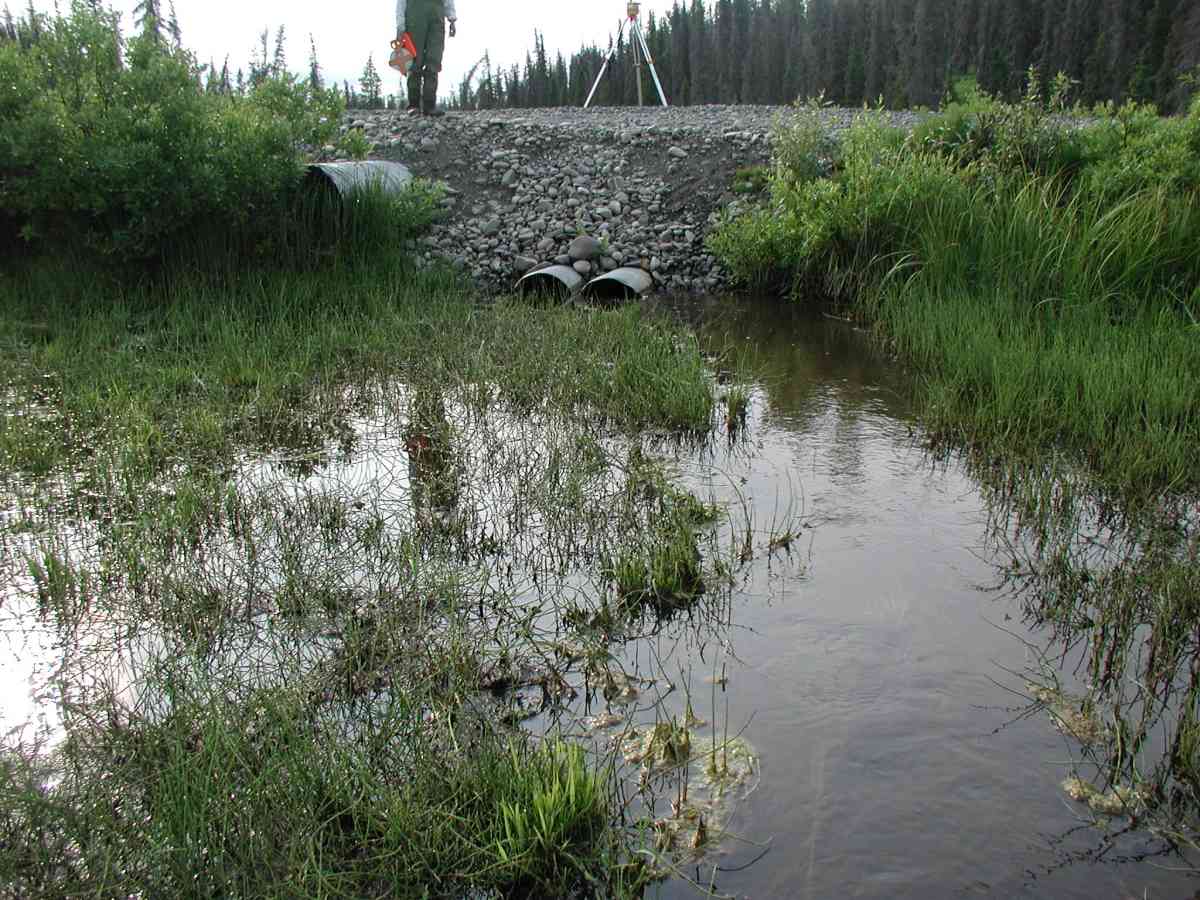

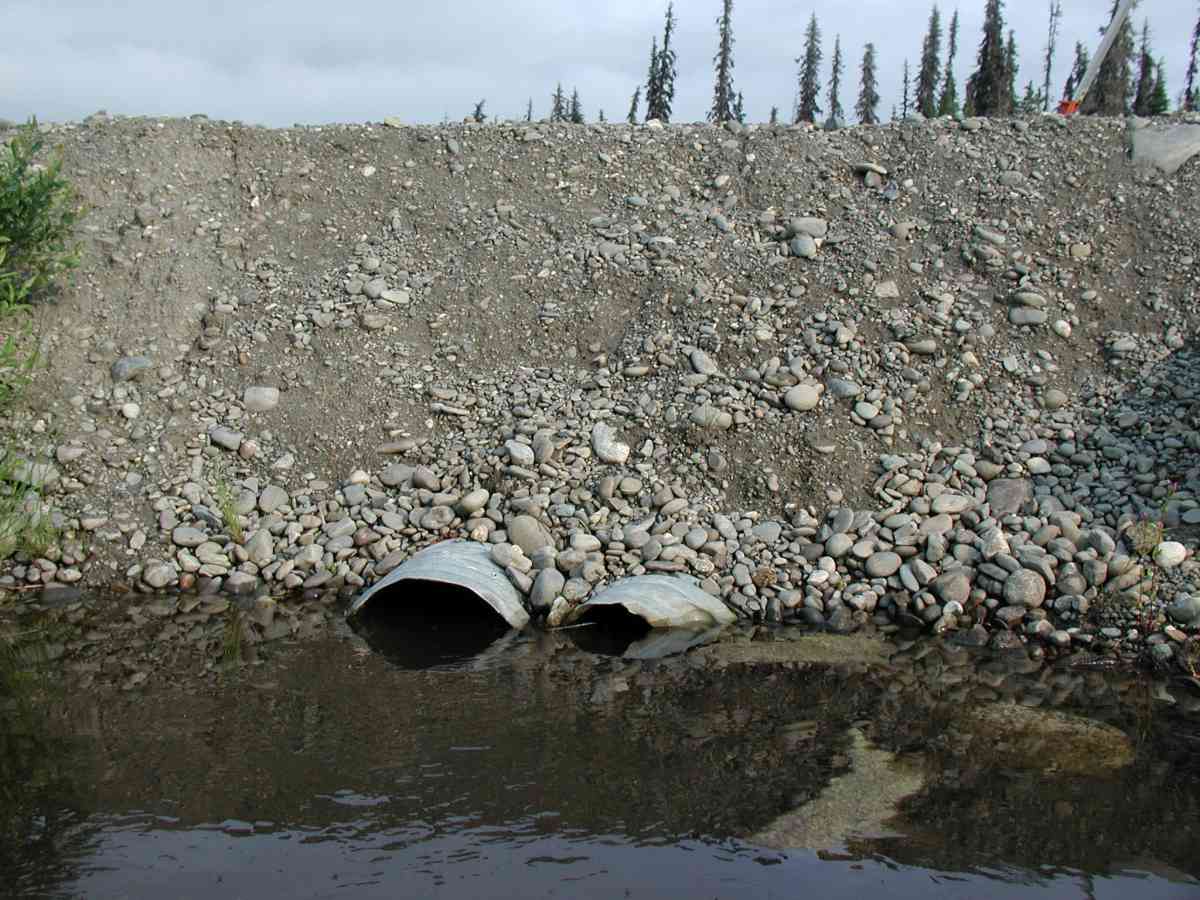

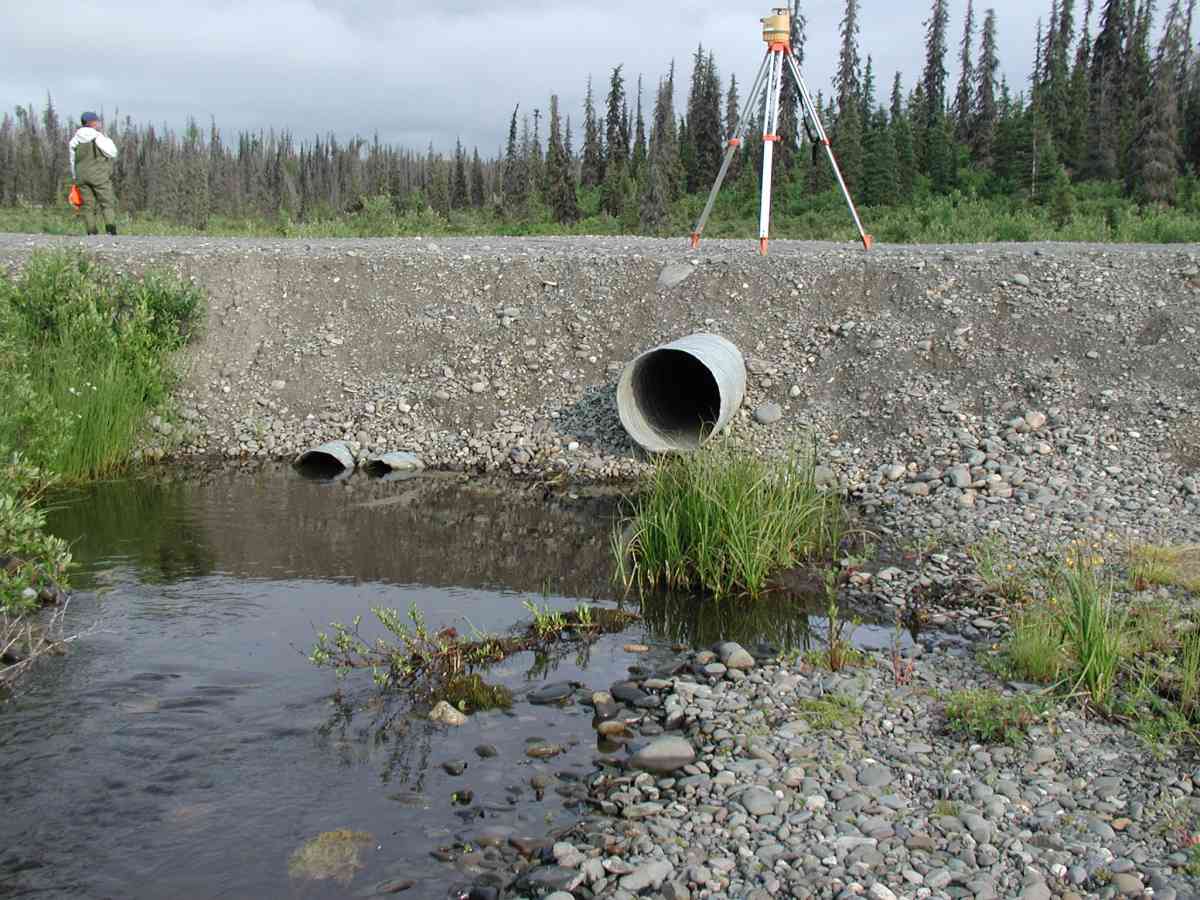

Comments: Location: Oilwell Road. Stream: Slow stream flow with moderate ponding upstream and significant gradient changes downstream. Substrate was very soft/silty at inlet and gravel at the outlet. Flow measurements done at 175' with very slow surface flow. Culvert: Three pipes were side by side at this site with only one as an overflow pipe. The center pipe was slightly squashed but functional. Pipe condition= 4-5. Not embedded.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 40.47
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):1.5
Height(ft):1.5
Apron Length(ft):
Water Depth(ft): 1.3
Rustline Height(ft):1.08
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.03
Outfall Type:
Constriction Ratio: 0.8
Culvert Gradient: 0.69%
Max Slope:
Max Slope Length:


Comments: Culvert: Three pipes were side by side at this site with only one as an overflow pipe. The center pipe was slightly squashed but functional. Pipe condition= 4-5. Not embedded.
ID: 2 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 40.47
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):1.5
Height(ft):1.5
Apron Length(ft):
Water Depth(ft): 1.2
Rustline Height(ft):1.08
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.03
Outfall Type:
Constriction Ratio: 0.8
Culvert Gradient: 0.47%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 3.00
Upstream bank full 100.0 2.83
Upstream bank full 125.0 3.33
Upstream bank full 150.0 5.83
Upstream bed width 75.0 1.83
Upstream bed width 100.0 4.00
Upstream bed width 125.0 2.50
Upstream bed width 150.0 3.50
Upstream ordinary high water 75.0 2.92
Upstream ordinary high water 100.0 3.67
Upstream ordinary high water 125.0 3.00
Upstream ordinary high water 150.0 5.50

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 95.73
U/S Thalweg 1 96.23
D/S Tailcrest or 1st Thalweg 96.95
OHW Left Bank 97.41
OHW Left Bank 97.47
Outlet Culvert Top 1 100.00
Outlet Culvert Top 2 100.00
U/S Thalweg 2 96.33
Max Pool Depth 0.00 5.0 95.94
Outlet Invert 1 5.00 0.0 96.16
Outlet Invert 2 5.00 0.0 96.30
Road Elev 25.00 100.89
Inlet Culvert Invert 1 45.00 0.0 96.44
Inlet Culvert Invert 2 45.00 0.0 96.49

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
