Fish Passage Site 20300894

Coordinates (dec. deg.): 59.99458°, -151.49387°
Legal Description: S002S013W22
Region: South Central

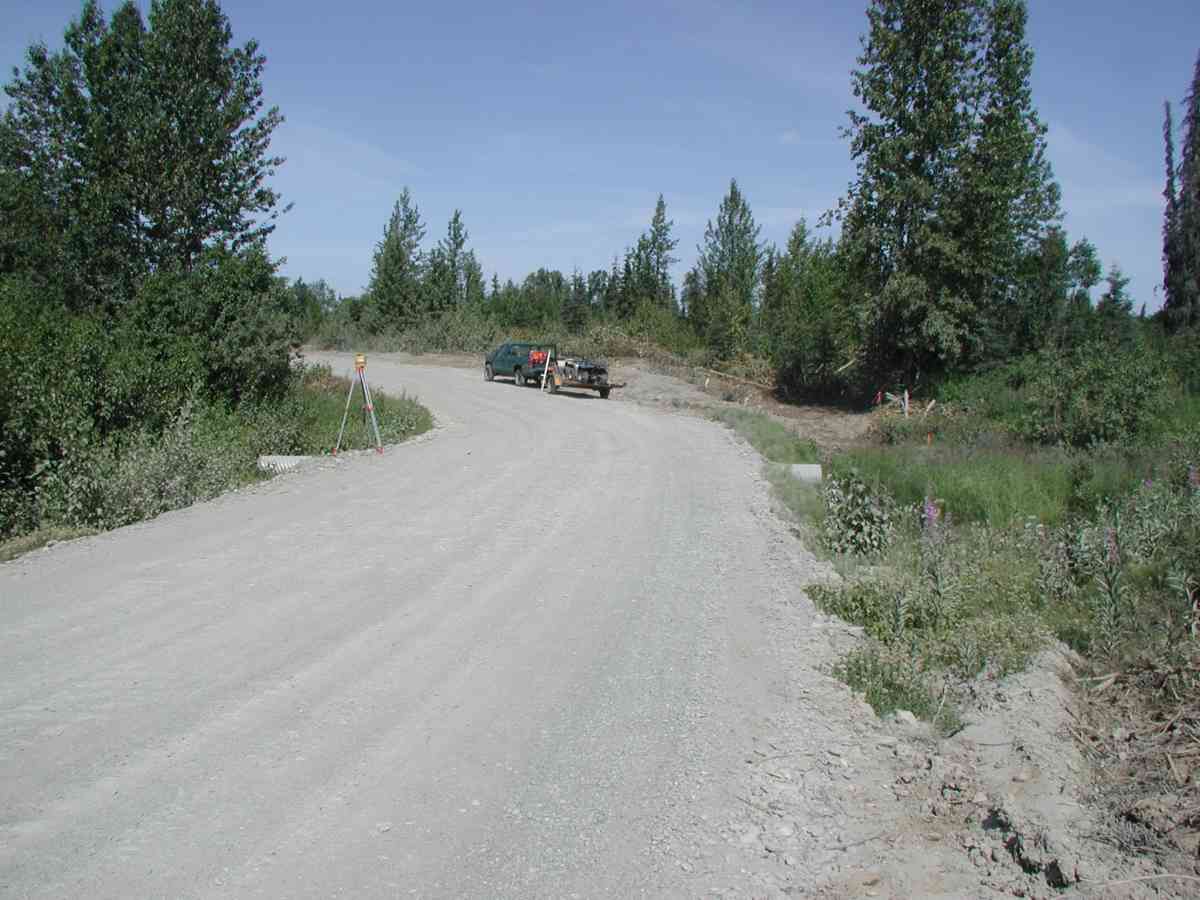

Road Name: Oil Well Road

Datum: NAD83
Quad Name / ITM: Seldovia D-4
AWC Stream #: 244-20-10100-2019-3018-4009
Stream Name:

Elevation:

Site Comments: Location: Oilwell Road. Stream bed is dry upstream of the pipe with some ponds at 125' .

Survey Date: Apr 12, 2004

Survey KPC04-1A023

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

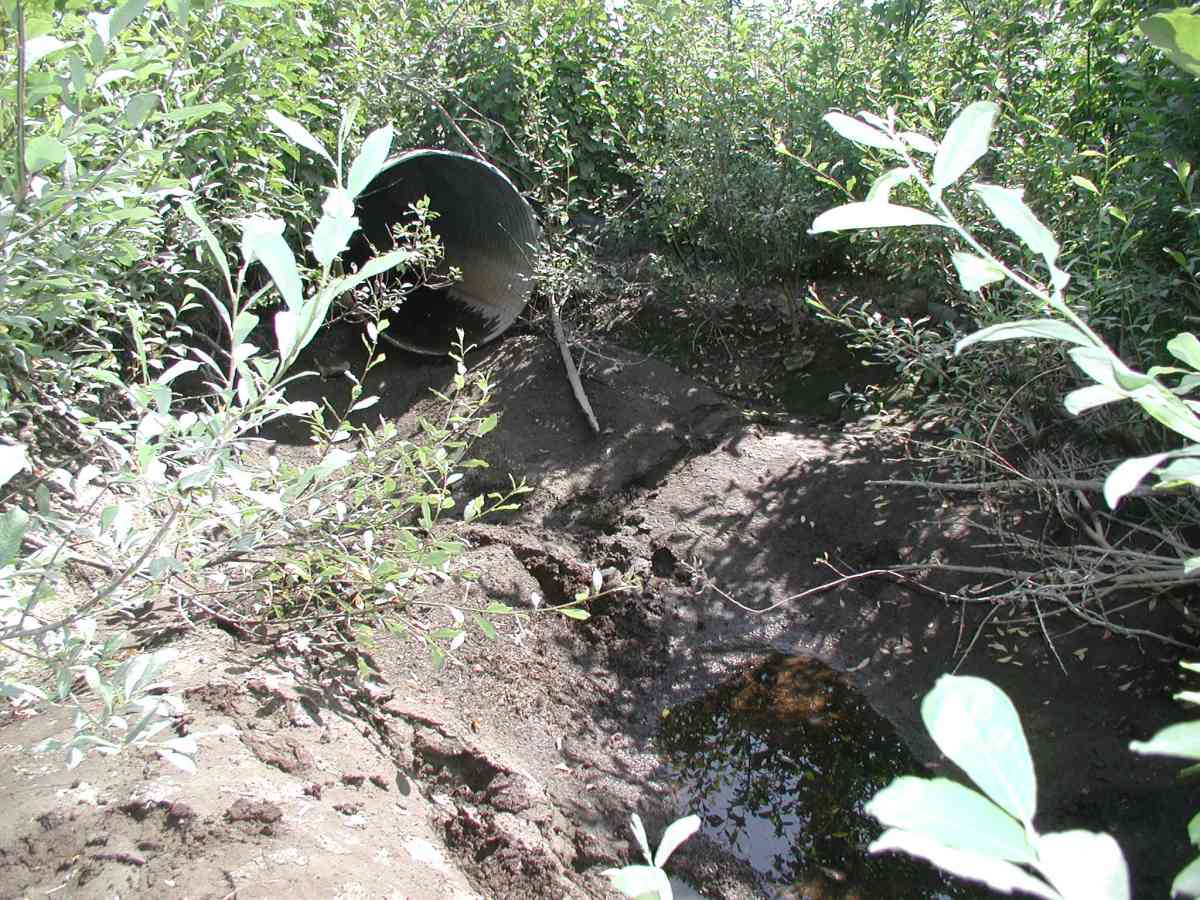

Comments: Location: Oilwell Road. Stream: Stream bed is dry upstream of the pipe with some ponds at 125' . A pond is present 5' downstream of the outlet, contains 2 land locked Dolly Varden juveniles (6"). No stream flow (no measurements taken). Culvert: No water in pipe. The inlet is ripped, smashed and perched. Pipe condition=4. Not embedded.

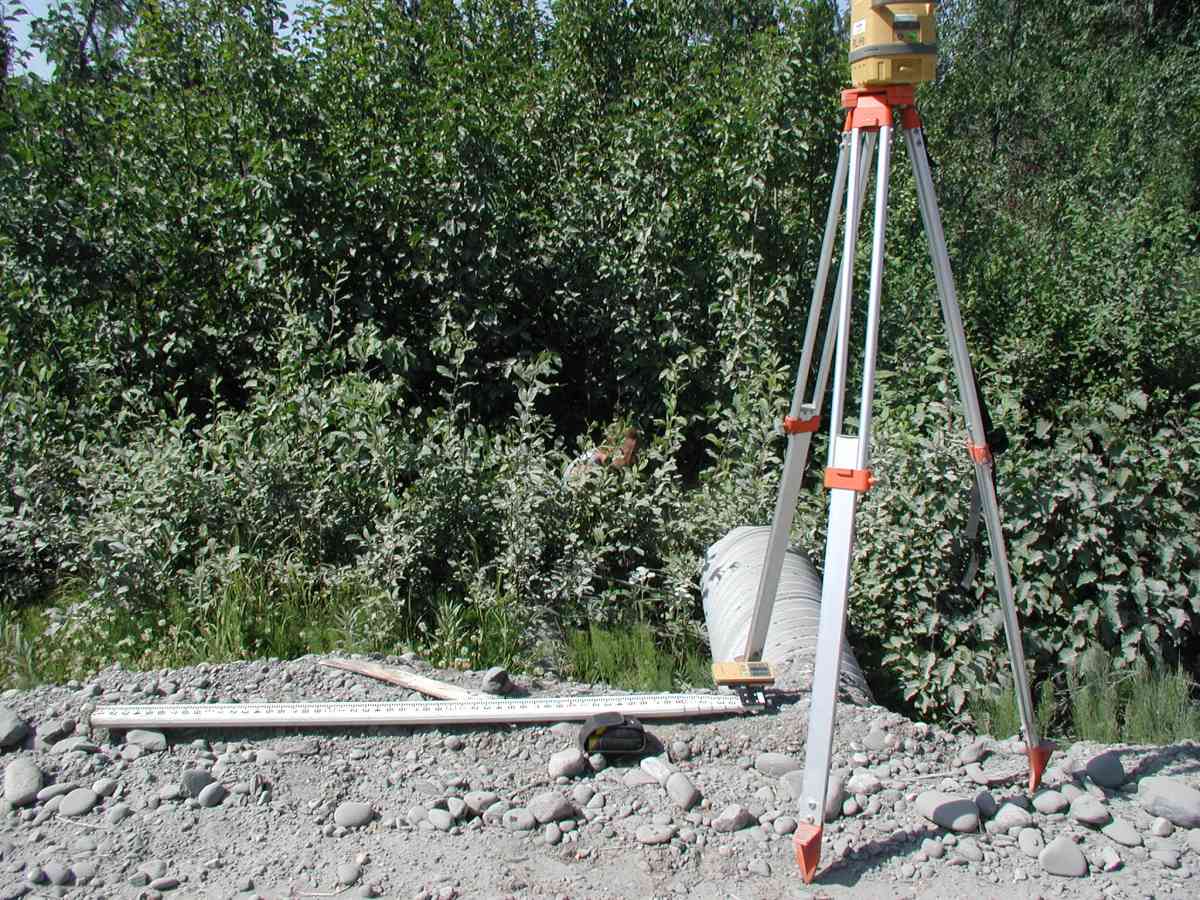

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 40.7

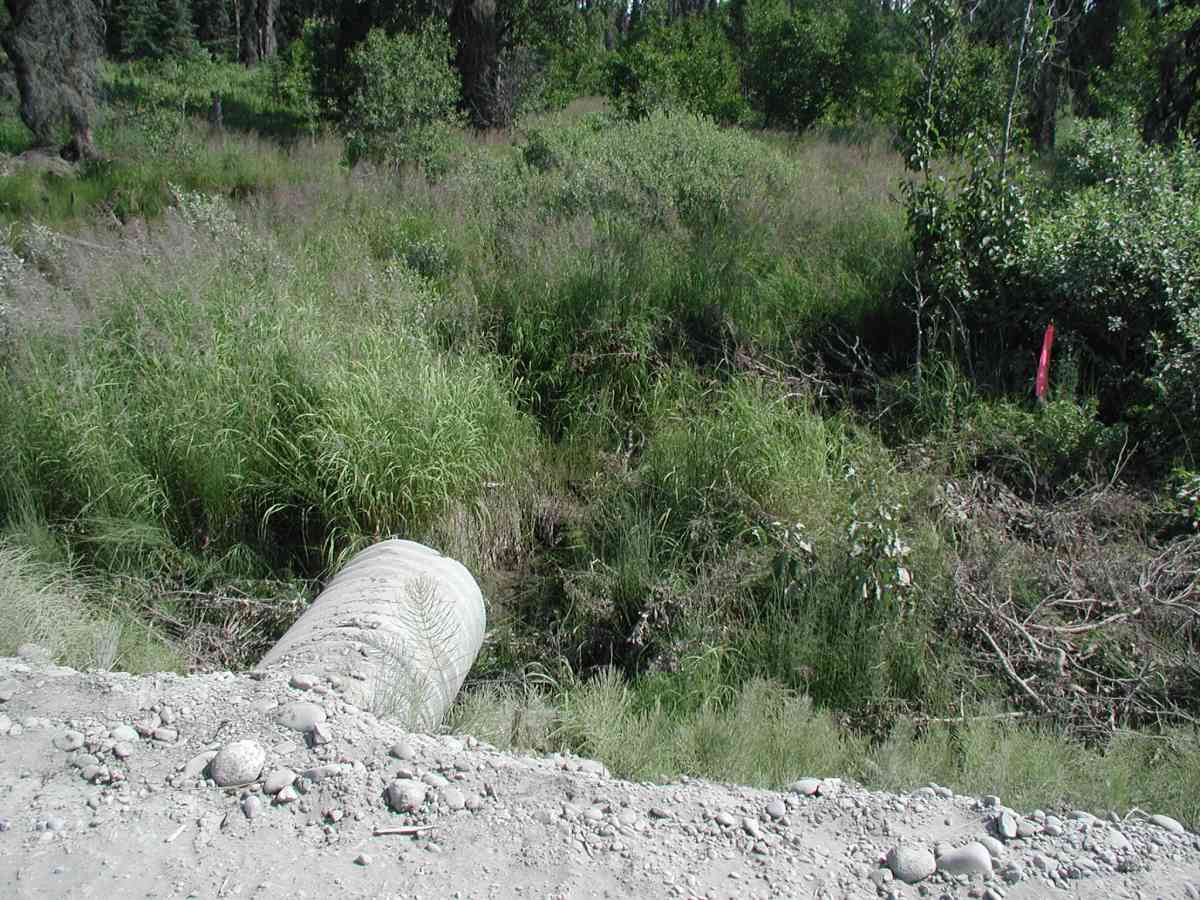

Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):3.08
Height(ft):3.0
Apron Length(ft):
Water Depth(ft): 0.0
Rustline Height(ft):0.75
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type:
Constriction Ratio: 1.01
Culvert Gradient: 1.23%
Max Slope:
Max Slope Length:

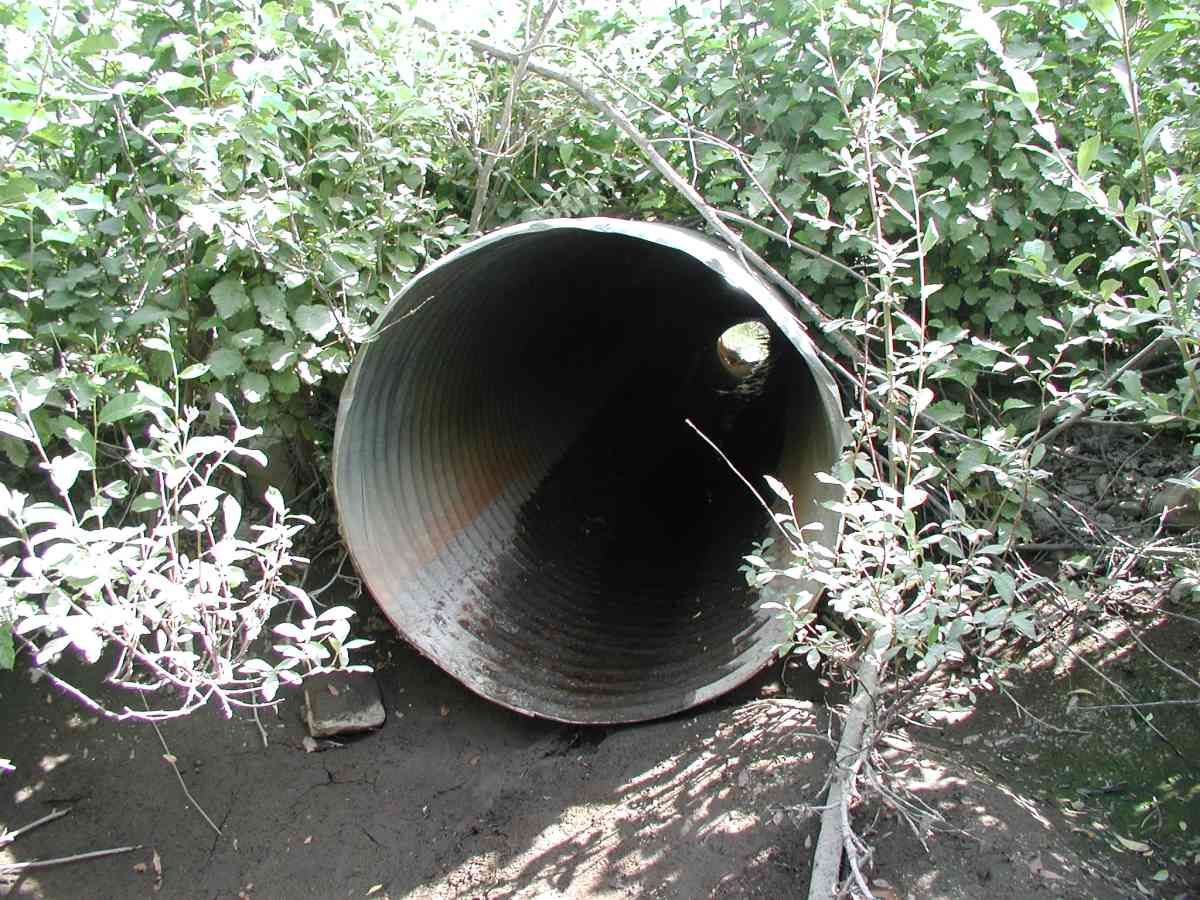

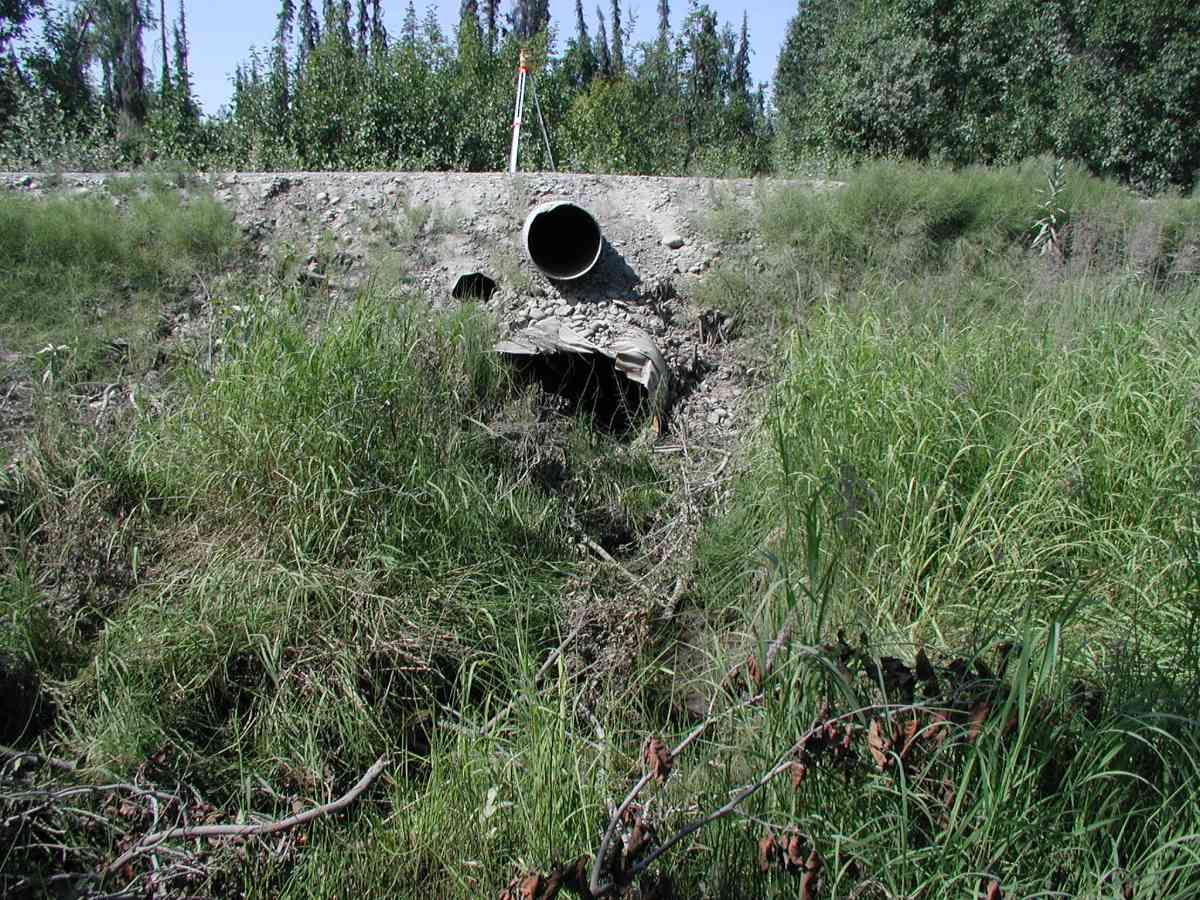

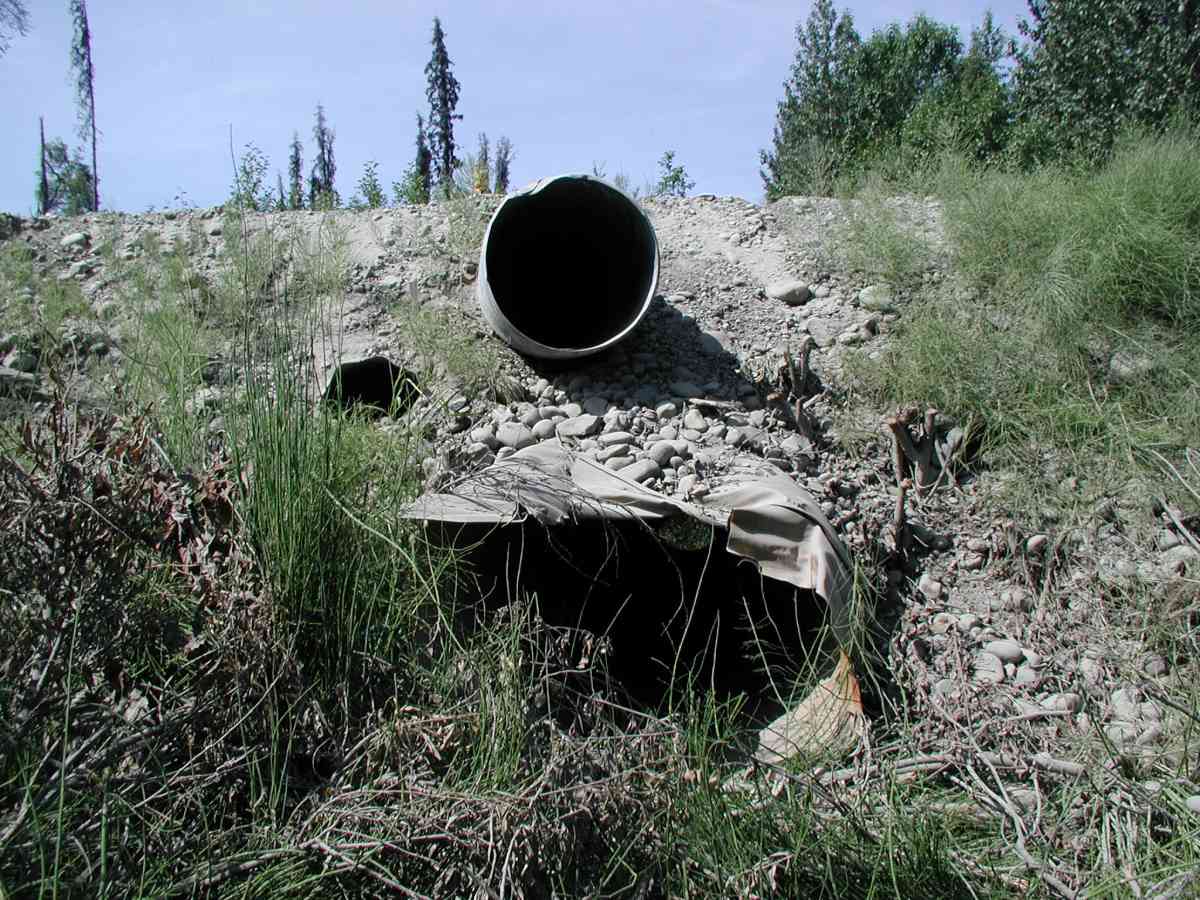

Comments: No water in pipe. The inlet is ripped, smashed and perched. Pipe condition=4. Not embedded.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 4.33
Upstream bank full 100.0 4.00
Upstream bed width 75.0 2.50
Upstream bed width 100.0 3.58
Upstream ordinary high water 75.0 2.50
Upstream ordinary high water 100.0 3.58

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Outlet Culvert Top (Orange spray painted "X" on top of outlet pipe.) 1 100.00
Outlet Invert 1 0.00 0.0 95.49
Inlet Culvert Invert 1 40.00 0.0 95.99

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
