Fish Passage Site 20300892

Coordinates (dec. deg.): 59.95374°, -151.70371°
Legal Description: S002S014W33
Region: South Central

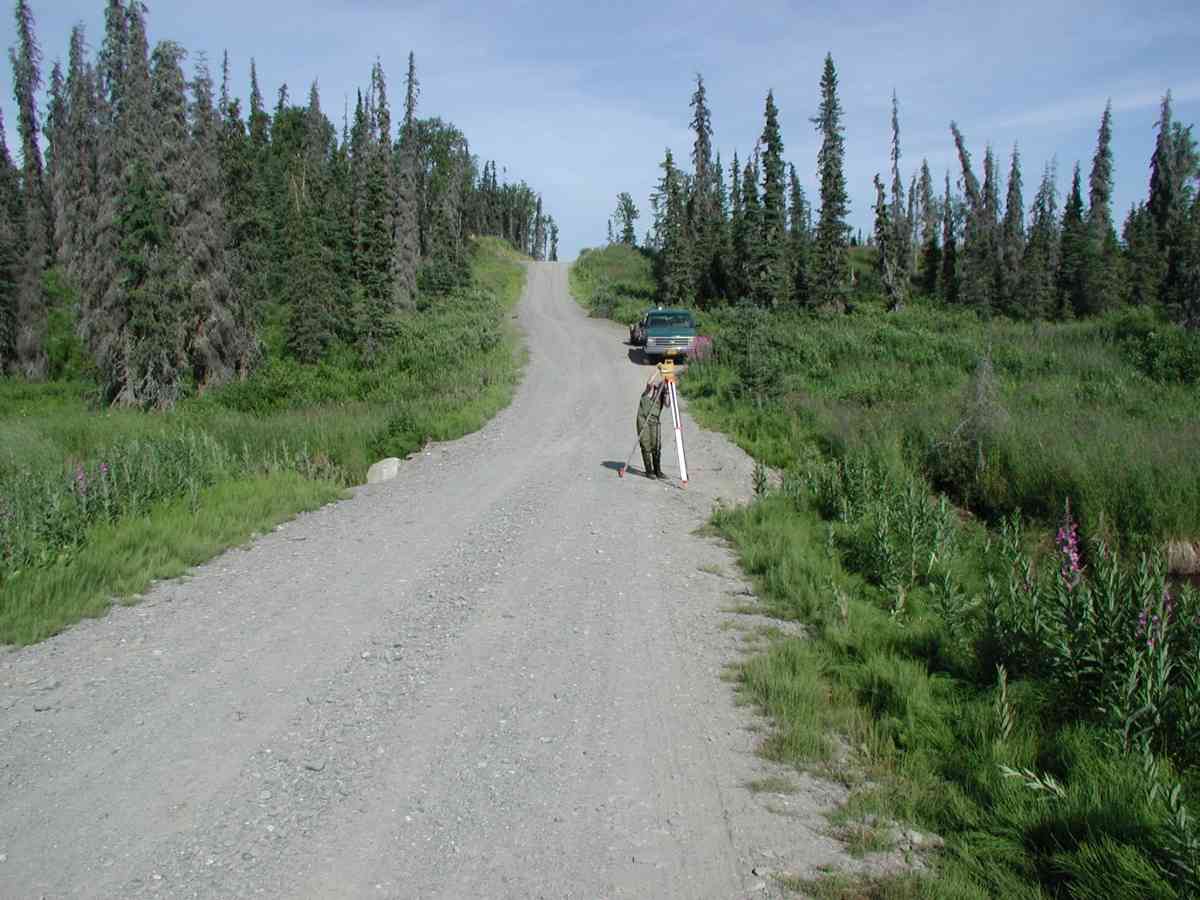

Road Name: East Road

Datum: NAD83
Quad Name / ITM: Seldovia D-5
AWC Stream #:
Stream Name:

Elevation:

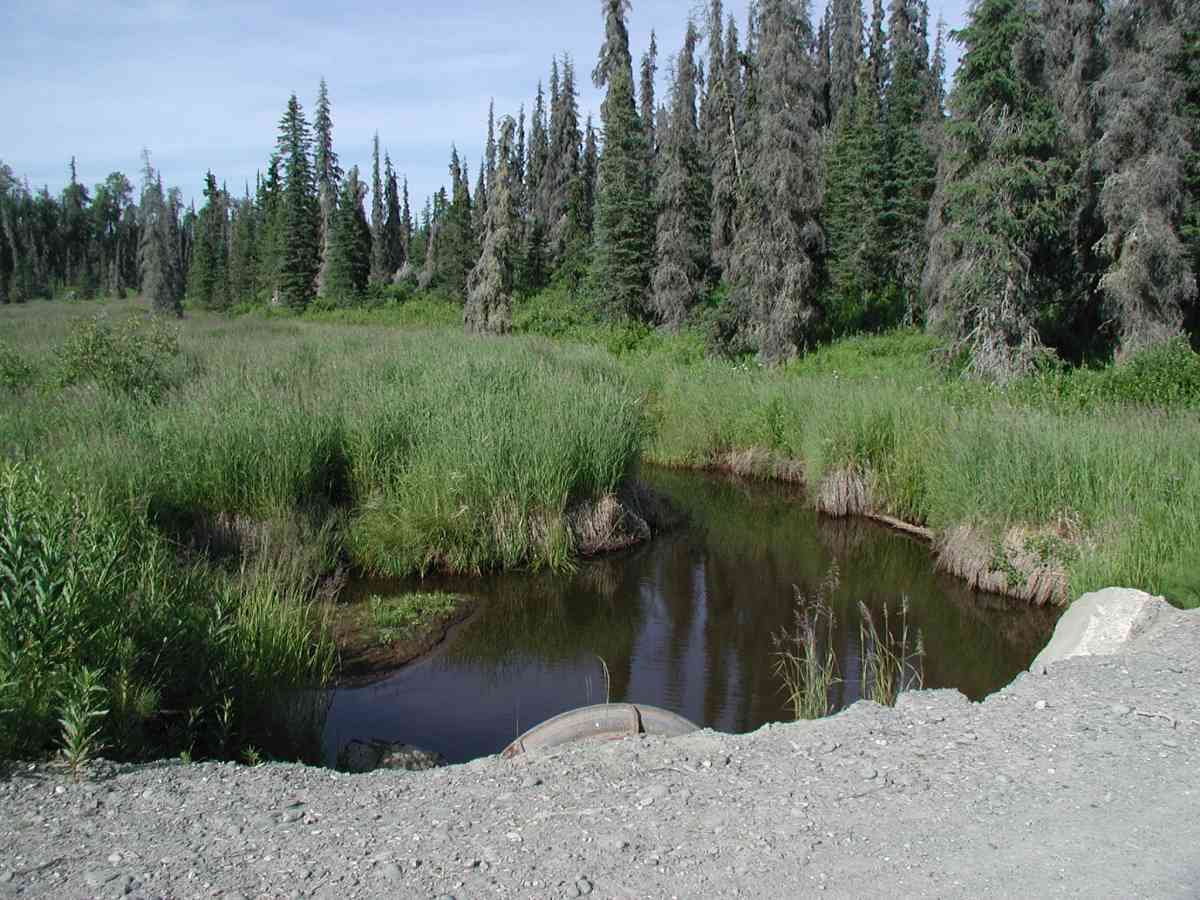

Site Comments: Location: East Rd. Deep ponding occurred upstream, extended beyond 150'.

Survey Date: Jul 12, 2004

Survey KPC04-1A021

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

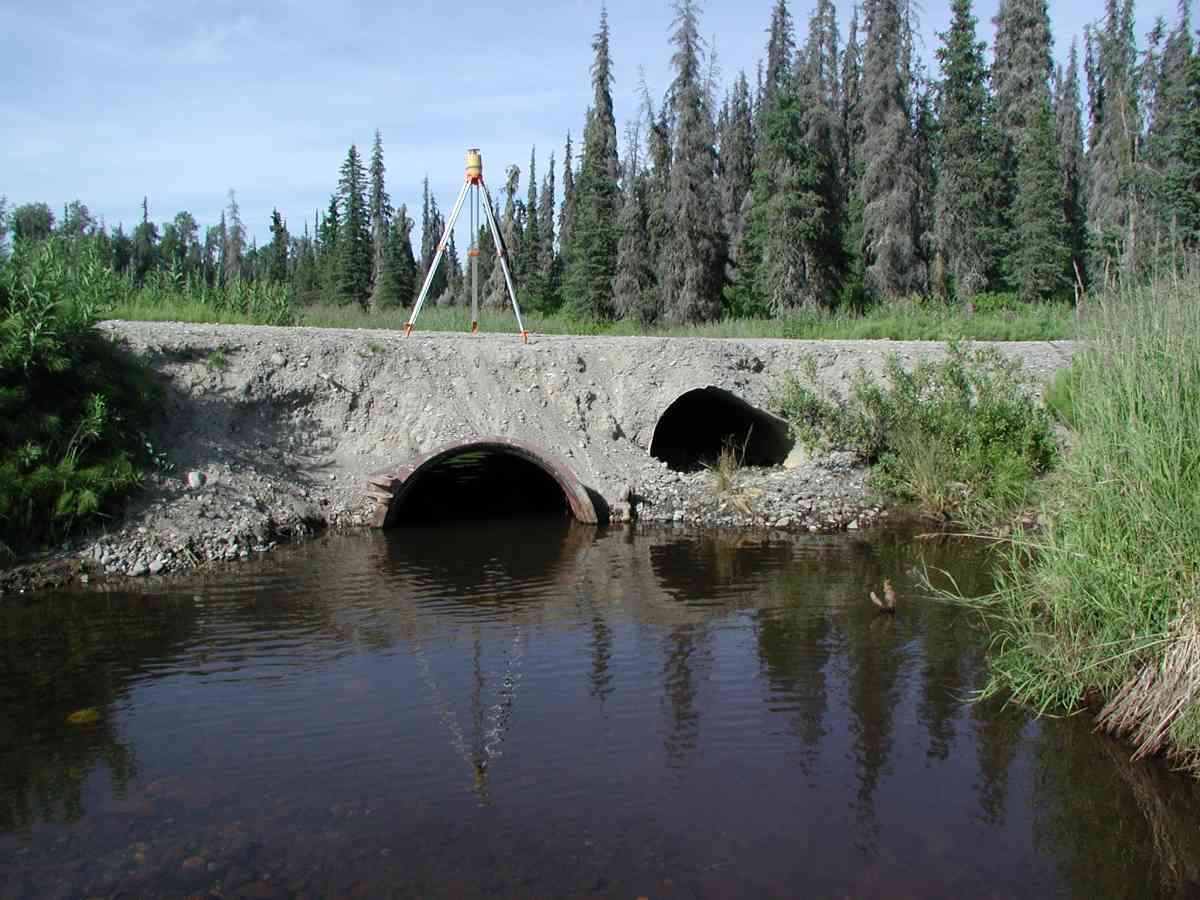

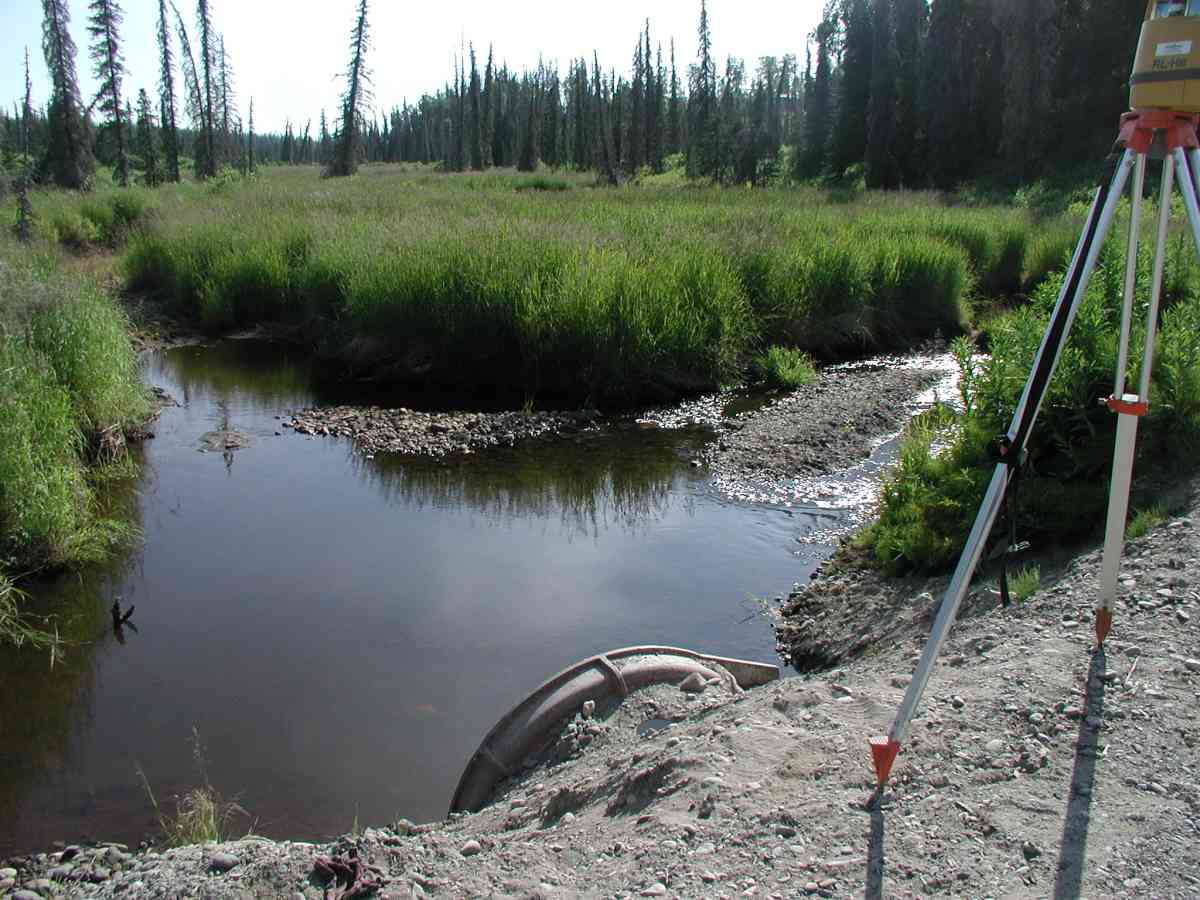

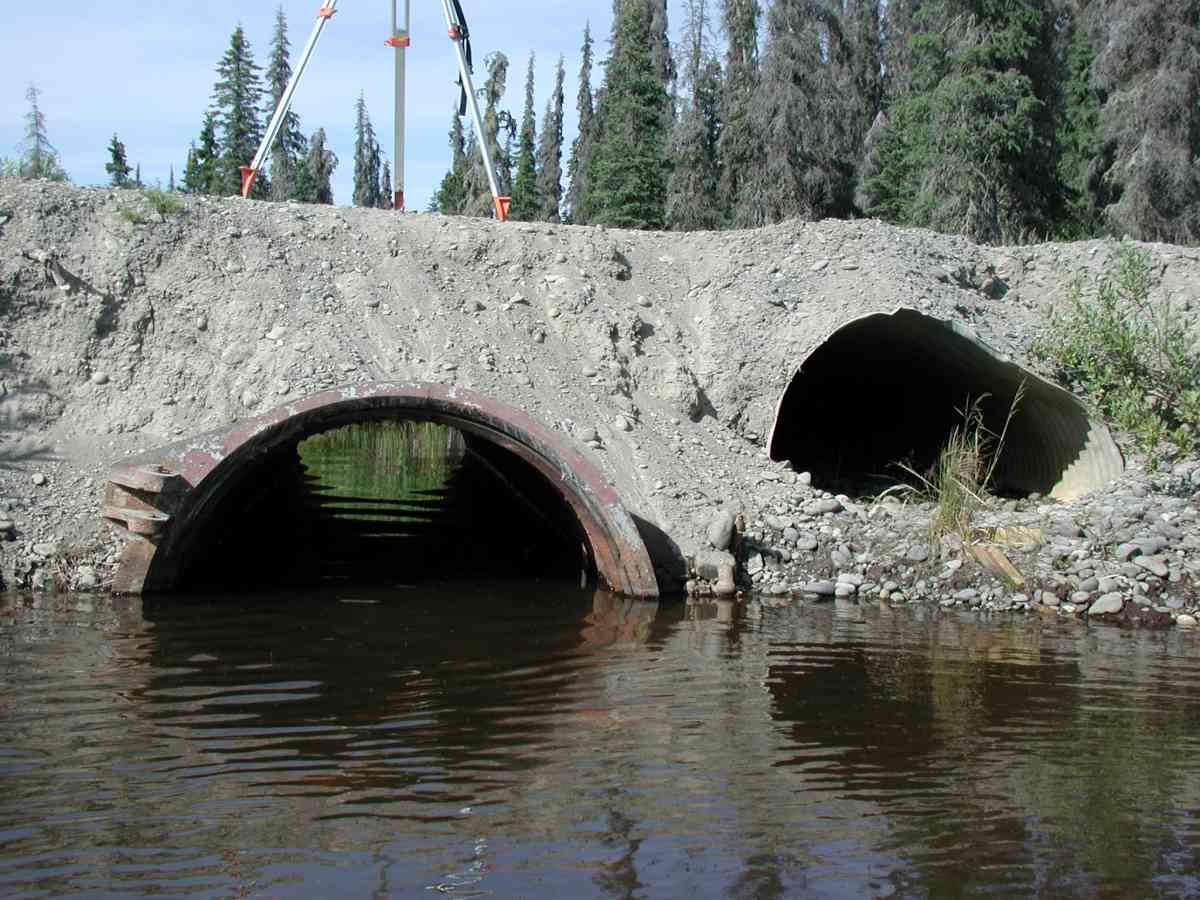

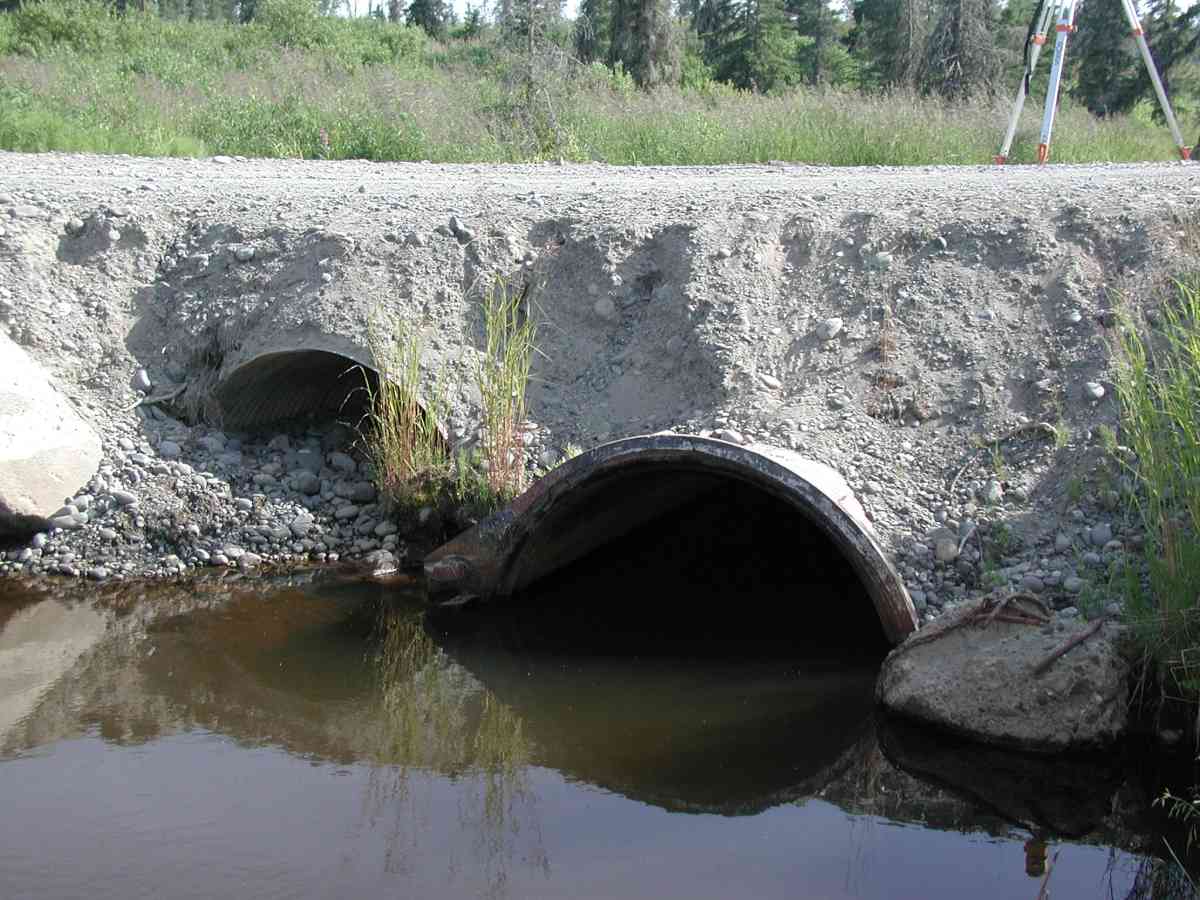

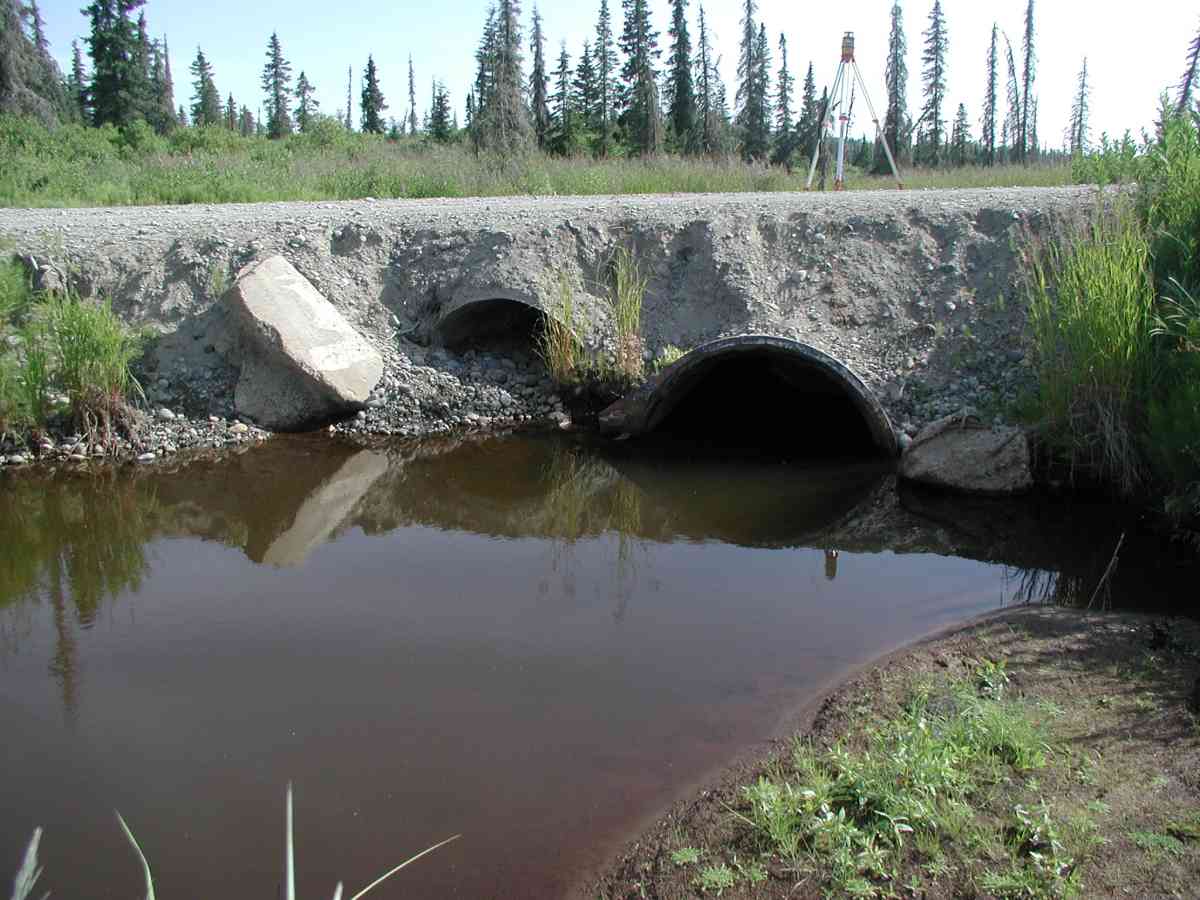

Comments: Location: East Rd. Stream: Deep ponding occurred upstream, extended beyond 150'. Stream braids into 2 channels at the tailcrest. Excavation failed at the inlet and outlet, measurements taken at the substrate level. Culvert: The overflow pipe was embedded half the height throughout its length. The functional pipe was embedded with gravel 1-2' deep the entire length. Pipe condition=4-5 (Pipe has minor deficiencies but is still functional). Steel pipe with valve type ends.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 28.98
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate: Gravel
InletOutlet
Width(ft):4.42
Height(ft):3.75
Apron Length(ft):
Water Depth(ft): 1.92
Rustline Height(ft):3.75
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.13
Outfall Type:
Constriction Ratio: 0.5
Culvert Gradient: -2.73%
Max Slope:
Max Slope Length:


Comments: The overflow pipe was embedded half the height throughout its length. The functional pipe was embedded with gravel 1-2' deep the entire length. Pipe condition=4-5 (Pipe has minor deficiencies but is still functional). Steel pipe with valve type ends.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 8.83
Upstream bank full 100.0 8.67
Upstream bank full 125.0 11.42
Upstream bank full 150.0 11.58
Upstream bed width 75.0 8.00
Upstream bed width 100.0 6.75
Upstream bed width 125.0 8.25
Upstream bed width 150.0 8.67
Upstream ordinary high water 75.0 8.33
Upstream ordinary high water 100.0 7.67
Upstream ordinary high water 125.0 9.08
Upstream ordinary high water 150.0 10.08

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
U/S Thalweg 1 94.74
D/S Thalweg 96.09
D/S Tailcrest or 1st Thalweg (Stream divides/ right channel.) 97.22
OHW Left Bank 97.77
OHW Left Bank 97.88
Outlet Culvert Top (Orange spot on rib of outlet top on the valve end.) 1 100.00
Max Pool Depth 0.00 5.0 96.08
Outlet Invert (Measurement taken from substrate.) 1 5.00 0.0 95.98
Road Elev (Road surface.) 19.50 102.00
Inlet Culvert Invert (Measurement taken from substrate.) 1 34.00 0.0 95.19

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
