Fish Passage Site 20300890

Coordinates (dec. deg.): 60.07112°, -151.33791°
Legal Description: S001S012W21
Region: South Central

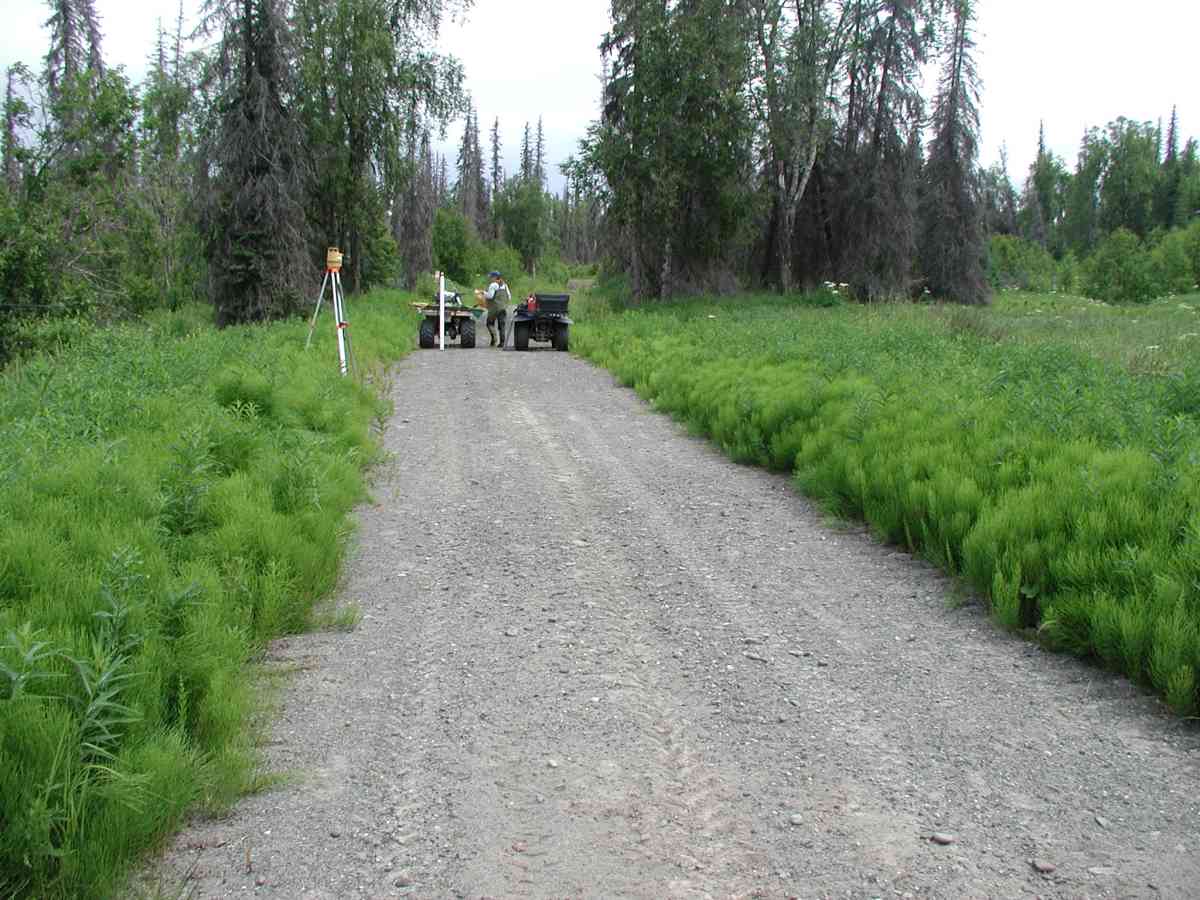

Road Name: Oil Well Road

Datum: NAD83
Quad Name / ITM: Kenai A-4
AWC Stream #: 244-20-10090-2030-3036
Stream Name:

Elevation:

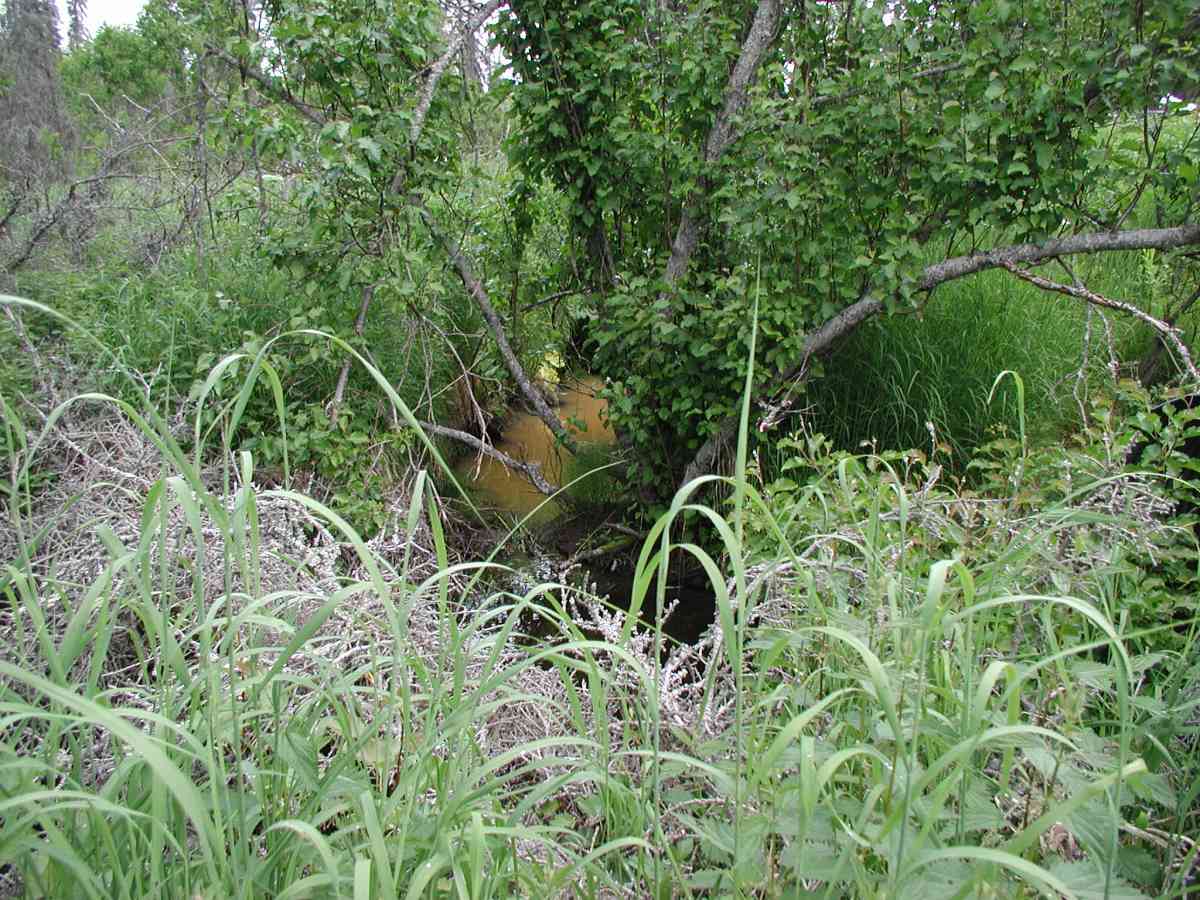

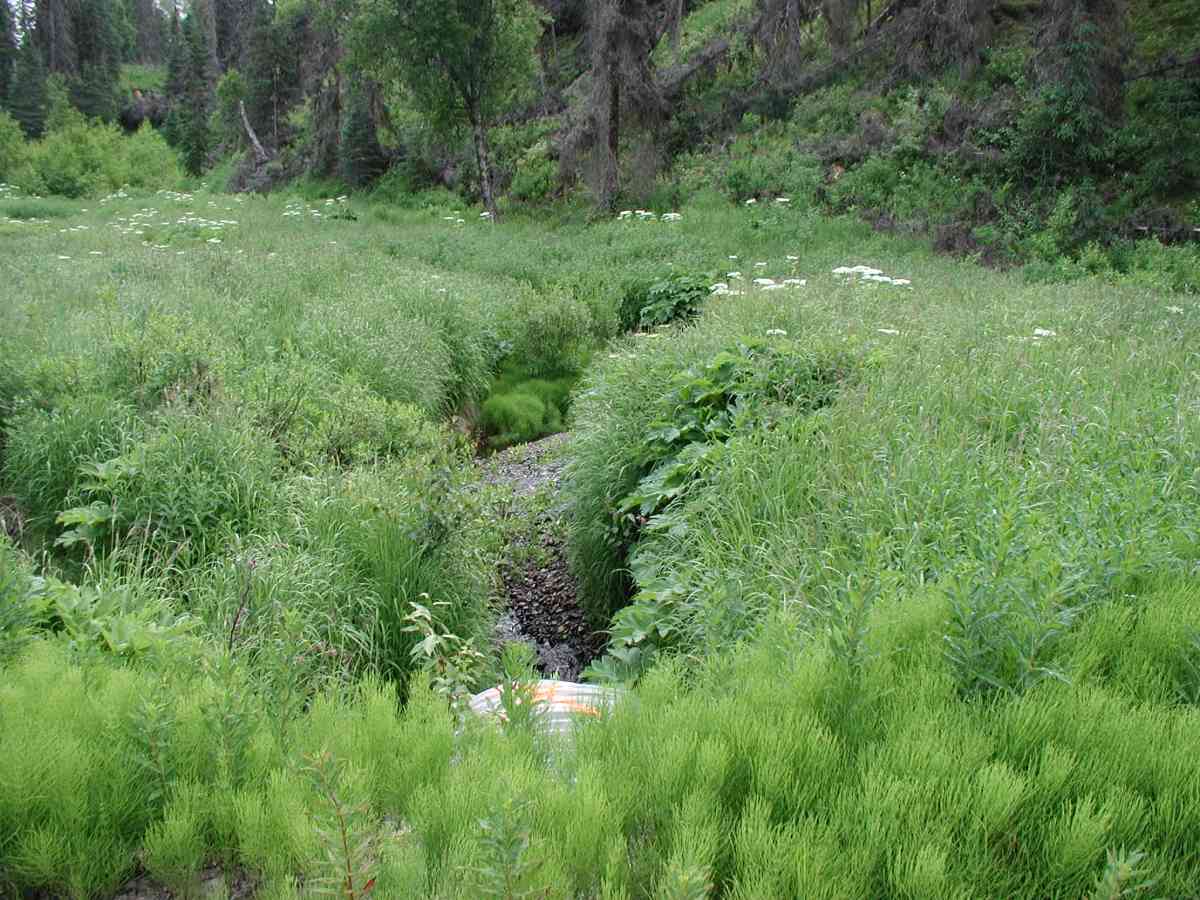

Site Comments: Location: Oil Well Road to 1200 Rd. Upstream is a meandering channel with good flow and gravel substrate.

Survey Date: Jun 29, 2004

Survey KPC04-1A017

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

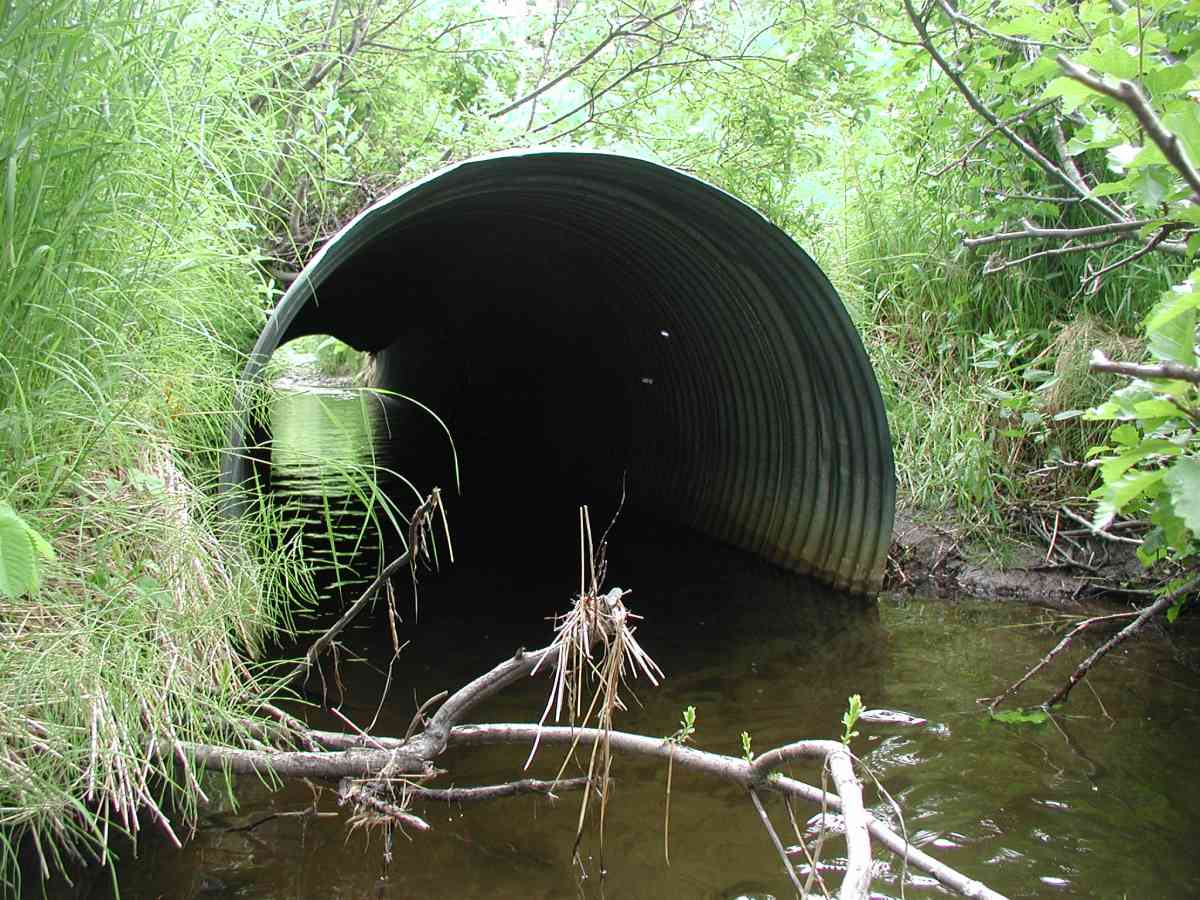

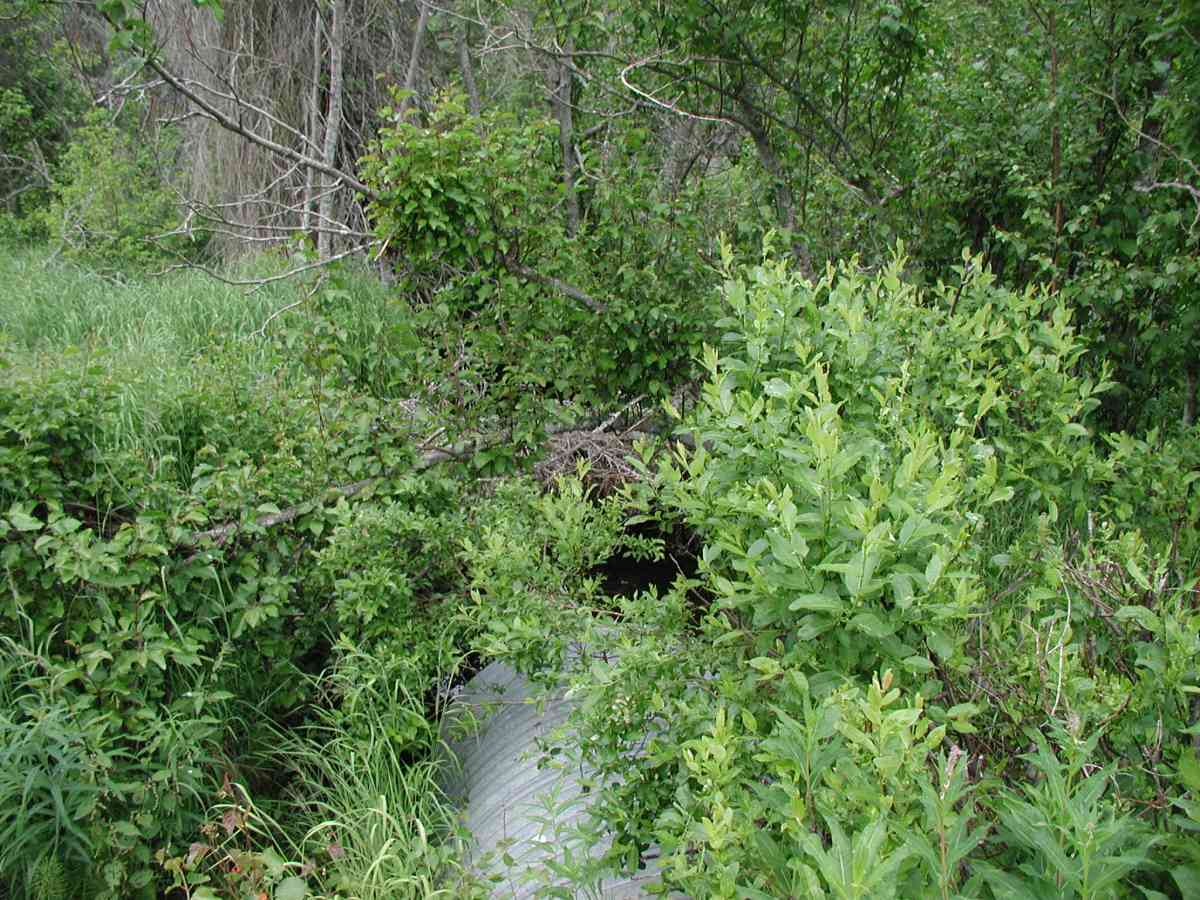

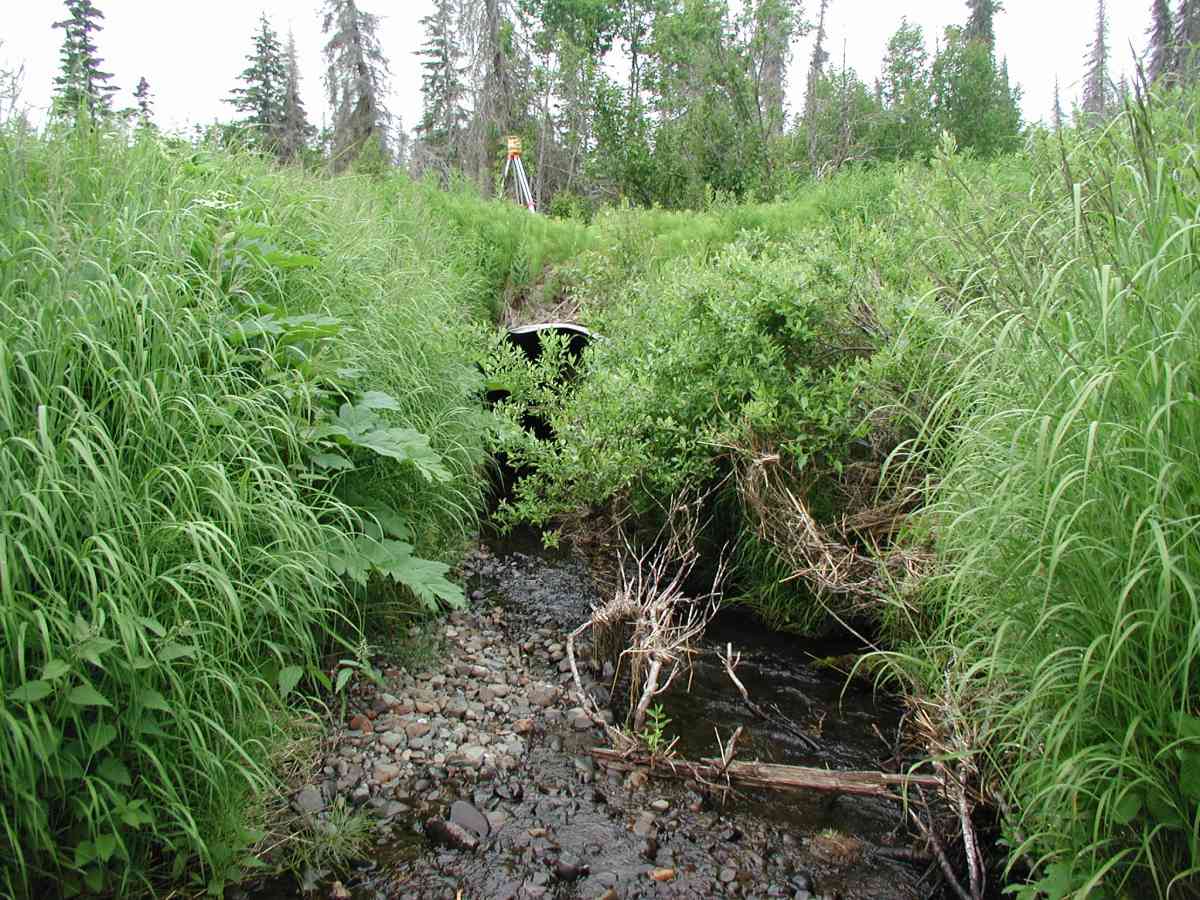

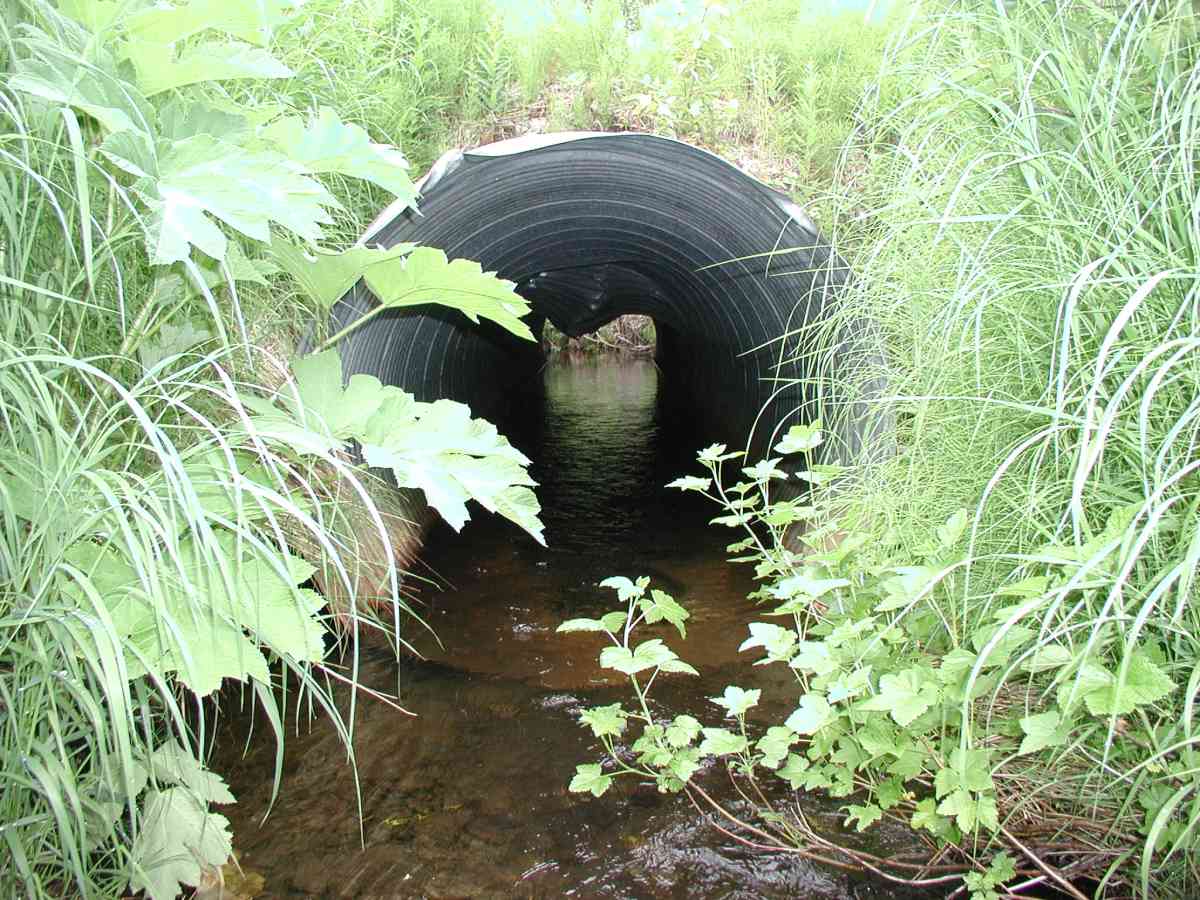

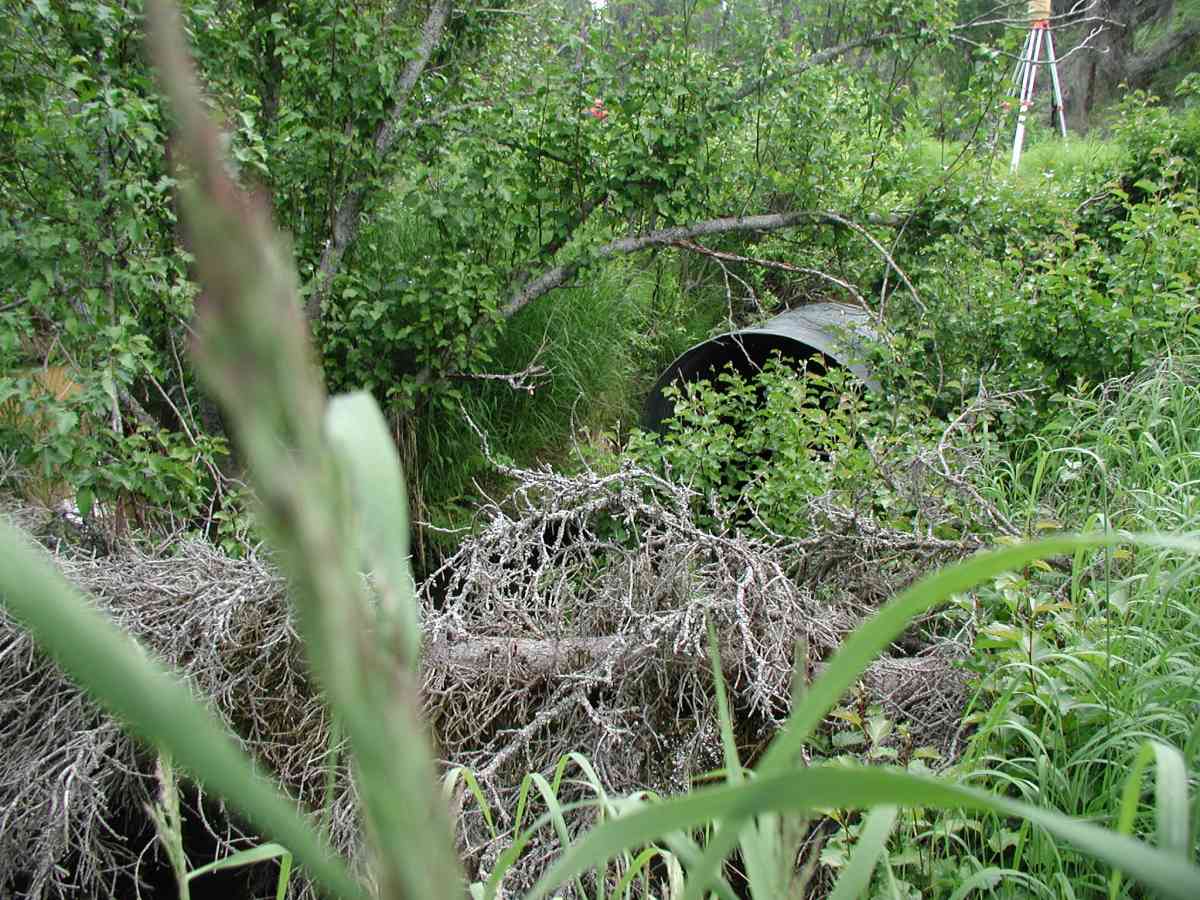

Comments: Location: Oil Well Road to 1200 Rd. Stream: Upstream is a meandering channel with good flow and gravel substrate. Large pool downstream of pipe; tailcrest is ~ 50-75' downstream. Bank undercut range: 4"-6". Culvert: The top of pipe has a rip about midway; bent in ~1'. Pipe condition=5. Not embedded.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 41.4
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate: Gravel
Outlet Substrate:
InletOutlet
Width(ft):5.0
Height(ft):5.5
Apron Length(ft):
Water Depth(ft): 1.1
Rustline Height(ft):1.17
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.36
Outfall Type:
Constriction Ratio: 0.65
Culvert Gradient: 0.53%
Max Slope:
Max Slope Length:


Comments: Culvert: The top of pipe has a rip about midway; bent in ~1'. Pipe condition=5. Not embedded.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 7.00
Upstream bank full 100.0 7.67
Upstream bank full 125.0 8.42
Upstream bank full 150.0 14.67
Upstream bed width 75.0 4.33
Upstream bed width 100.0 4.50
Upstream bed width 125.0 4.67
Upstream bed width 150.0 4.33
Upstream ordinary high water 75.0 5.67
Upstream ordinary high water 100.0 7.03
Upstream ordinary high water 125.0 6.67
Upstream ordinary high water 150.0 11.17

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 93.12
D/S Tailcrest or 1st Thalweg 95.12
OHW Left Bank 95.36
U/S Thalweg 1 95.54
OHW Left Bank 95.87
Outlet Culvert Top (Orange painted "X" on inlet pipe, located on last seam nearest to end.) 1 100.00
Max Pool Depth 0.00 5.0 93.45
Outlet Invert 1 5.00 0.0 94.62
Road Elev (Road surface) 25.50 102.06
Inlet Culvert Invert 1 46.00 0.0 94.84

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
