Fish Passage Site 20300889

Coordinates (dec. deg.): 60.06671°, -151.34230°
Legal Description: S001S012W28
Region: South Central
Road Name: Oil Well Road

Datum: NAD83
Quad Name / ITM: Kenai A-4
AWC Stream #:
Stream Name:

Elevation:

Site Comments: Location: Oil Well Road to 1200 Rd. Stream pools immediately downstream of the pipe with no apparent outlet; goes subterranean and reappears 50' downstream as a narrow and shallow stream. The substrate is mixed rock, gravel and sand.

Survey Date: Jun 29, 2004

Survey KPC04-1A016

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

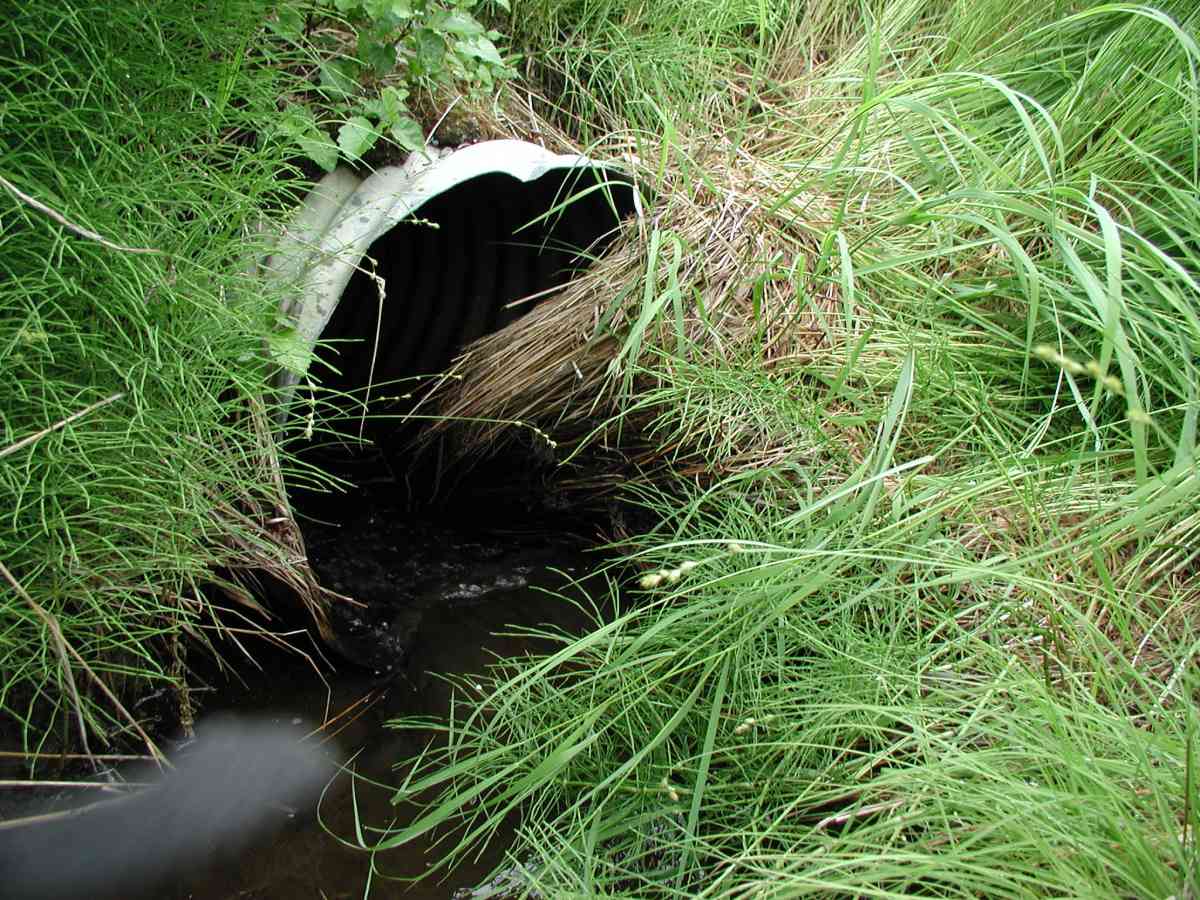

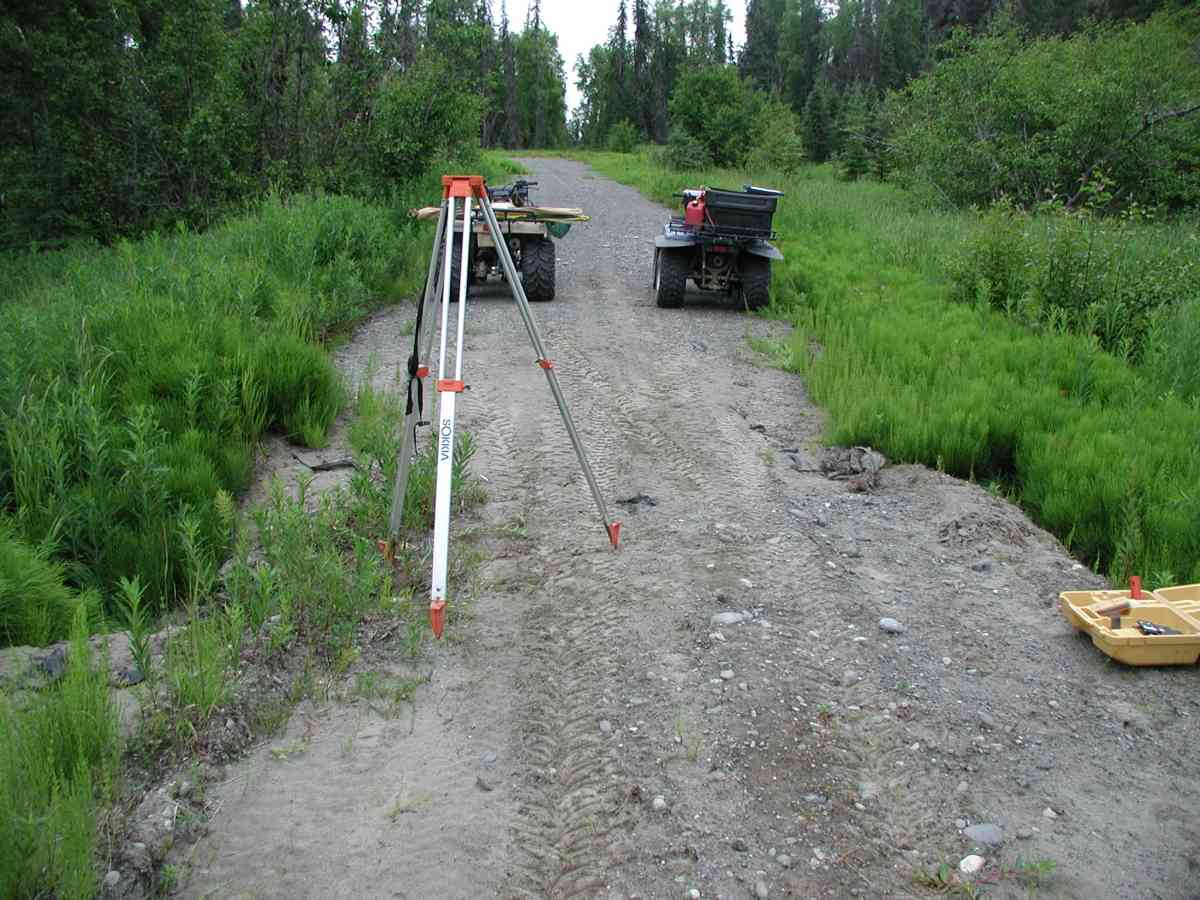

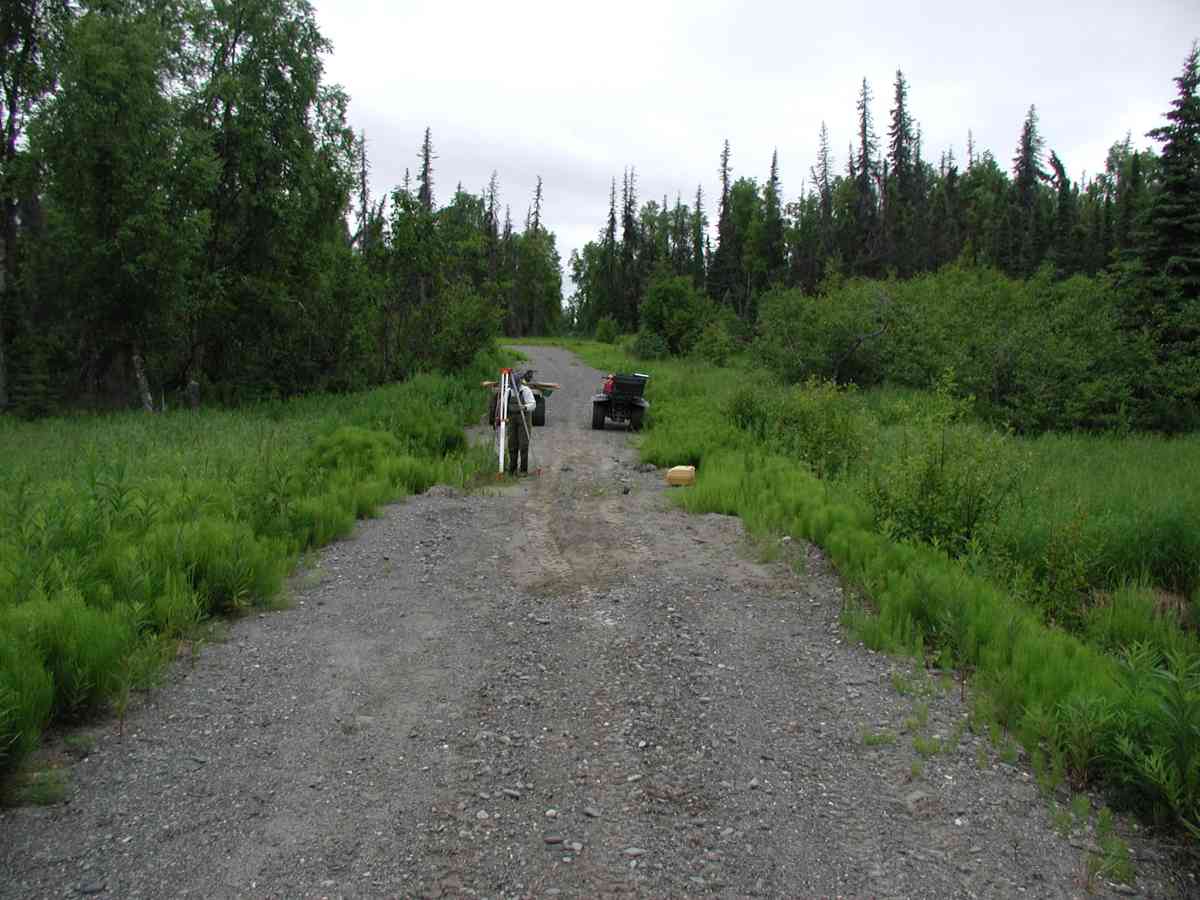

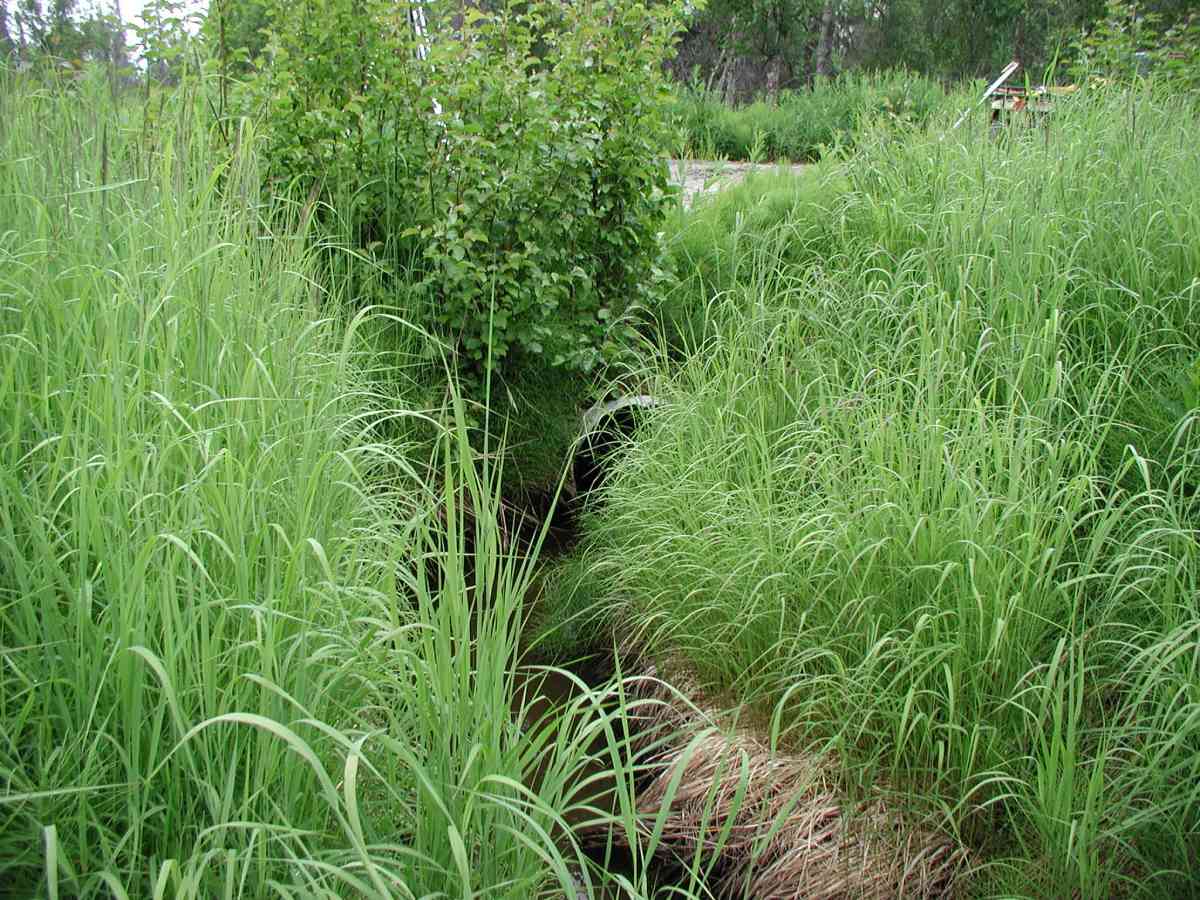

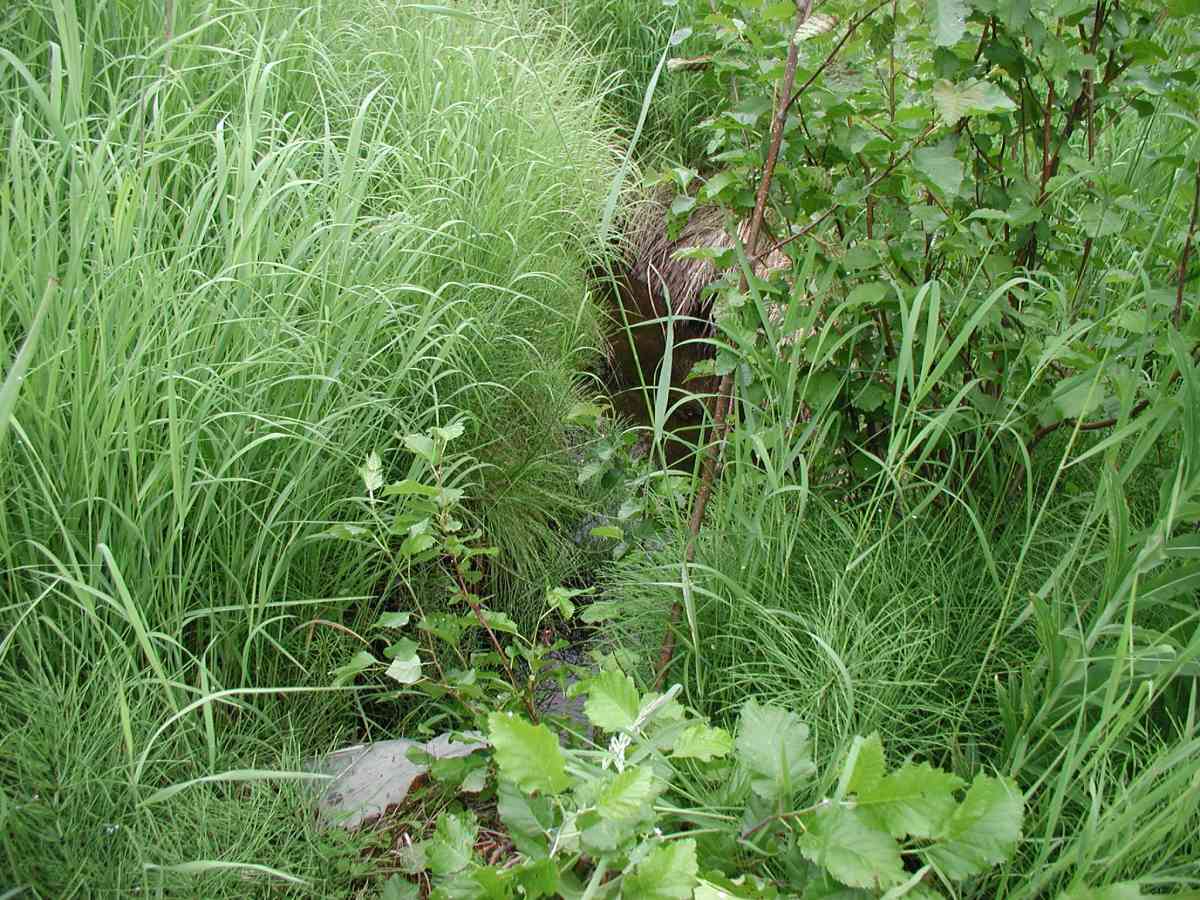

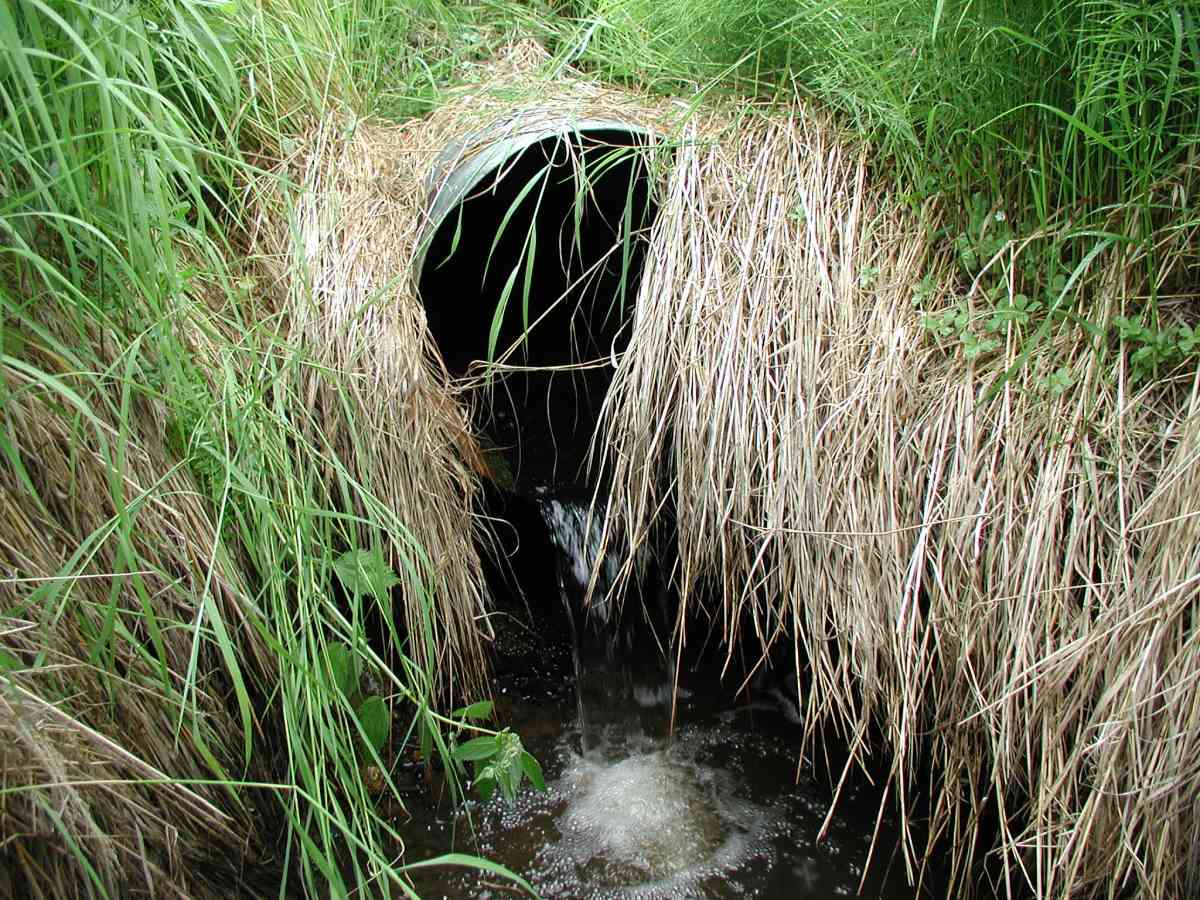

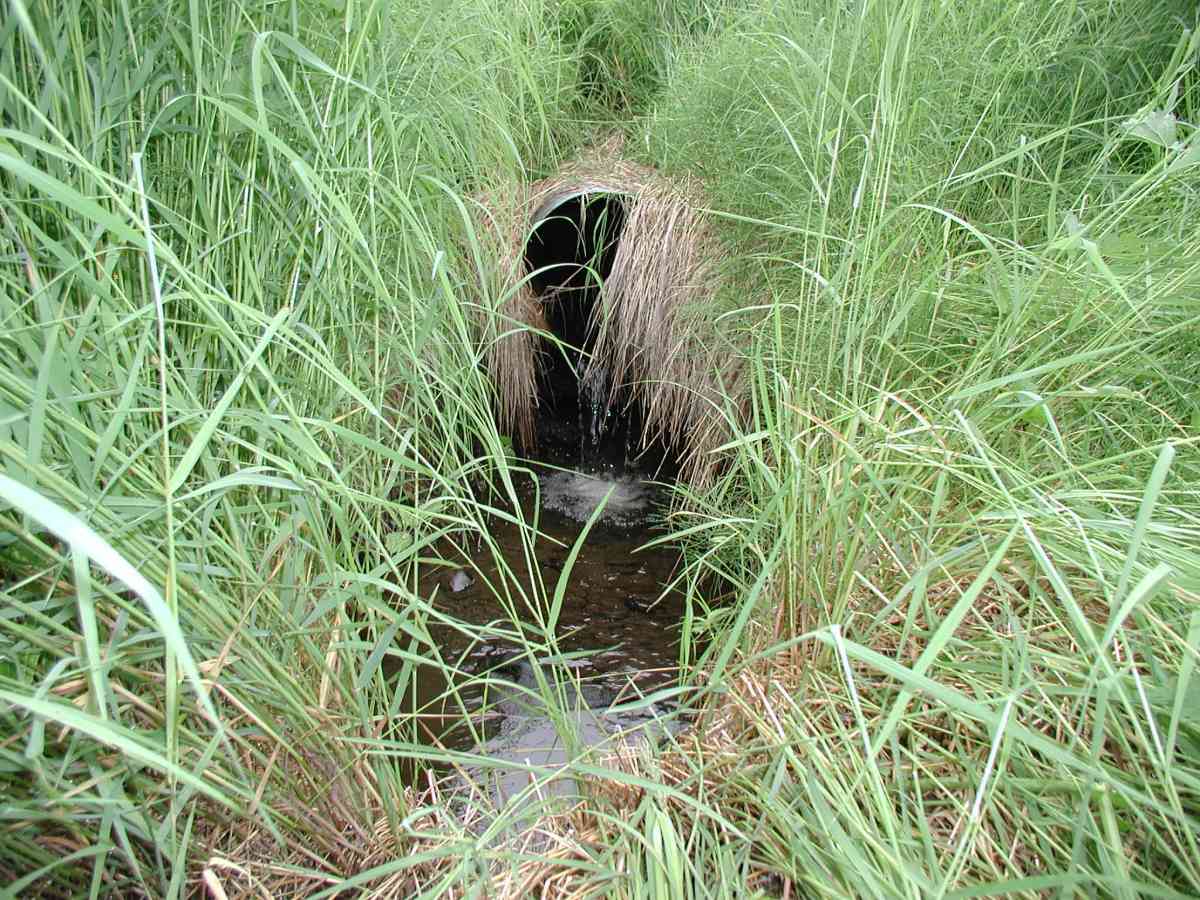

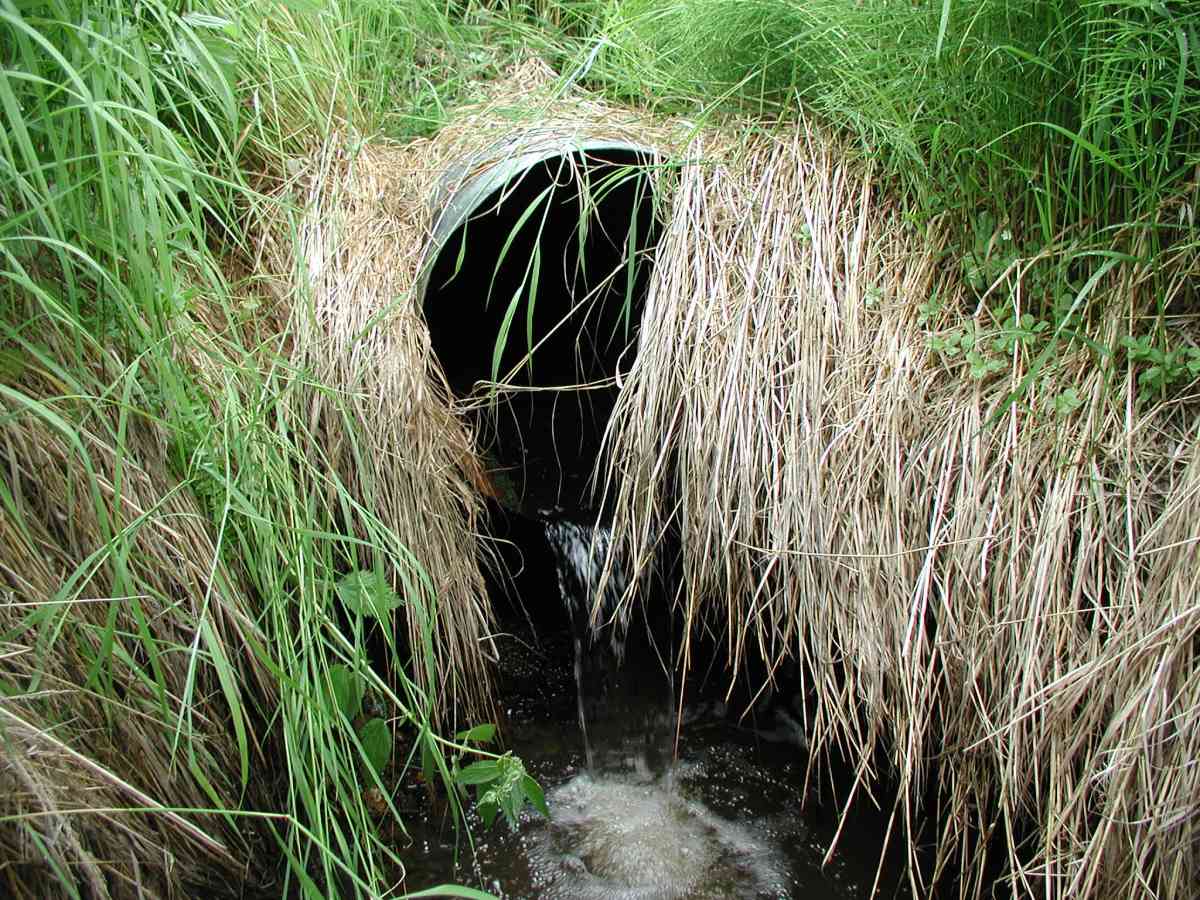

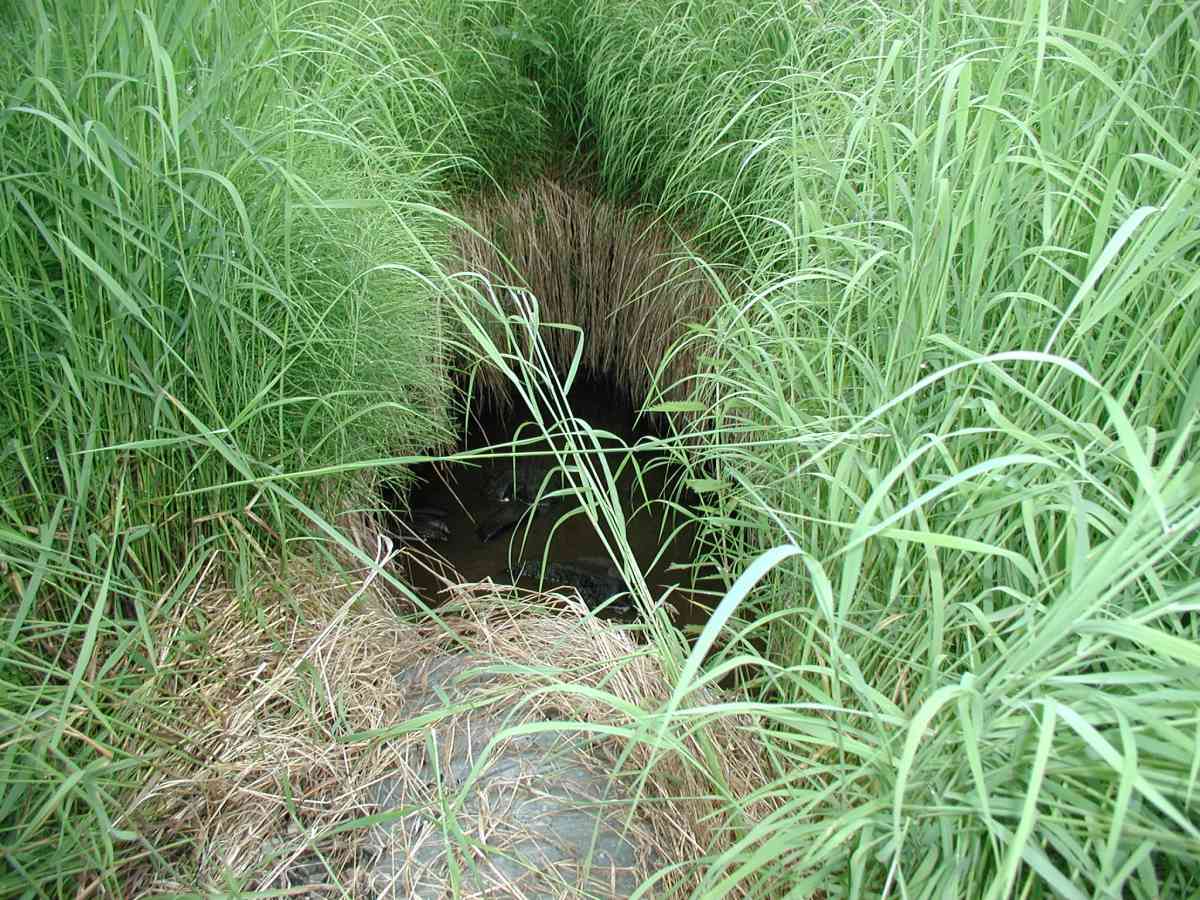

Comments: Location: Oil Well Road to 1200 Rd. Stream: Stream pools immediately downstream of the pipe with no apparent outlet; goes subterranean and reappears 50' downstream as a narrow and shallow stream. The substrate is mixed rock, gravel and sand. Bank undercut ~1.5'. No flow measurements taken; the stream was too shallow, steep or contained pools. Culvert: Pipe is perched about 2' and is slightly bent on edges of inlet. Road appears to have pr3viously washed out; typar visible in the sand and gravel that appears to have been recently altered. A low spot occurs in the road where culvert passes. Pipe condition=5.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 31.04
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.0
Height(ft):2.0
Apron Length(ft):
Water Depth(ft): 0.06
Rustline Height(ft):0.58
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 1.34
Outfall Type:
Constriction Ratio: 0.69
Culvert Gradient: 3.13%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 5.75
Upstream bank full 100.0 4.67
Upstream bank full 125.0 6.83
Upstream bank full 150.0 2.83
Upstream bed width 75.0 1.67
Upstream bed width 100.0 2.03
Upstream bed width 125.0 2.50
Upstream bed width 150.0 1.67
Upstream ordinary high water 75.0 3.17
Upstream ordinary high water 100.0 3.83
Upstream ordinary high water 125.0 2.83
Upstream ordinary high water 150.0 1.67

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 96.03
D/S Tailcrest or 1st Thalweg 96.45
OHW Left Bank 96.66
OHW Left Bank 98.14
U/S Thalweg 1 98.44
Outlet Culvert Top (Orange "X" on the cross, "X" located on pipe seam closest to end.) 1 100.00
Max Pool Depth 0.00 5.0 12.29
Outlet Invert 1 5.00 0.0 97.94
Road Elev (Road surface) 20.50 102.05
Inlet Culvert Invert 1 36.00 0.0 98.91

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
