Fish Passage Site 20300888

Coordinates (dec. deg.): 60.04927°, -151.34229°
Legal Description: S001S012W33
Region: South Central

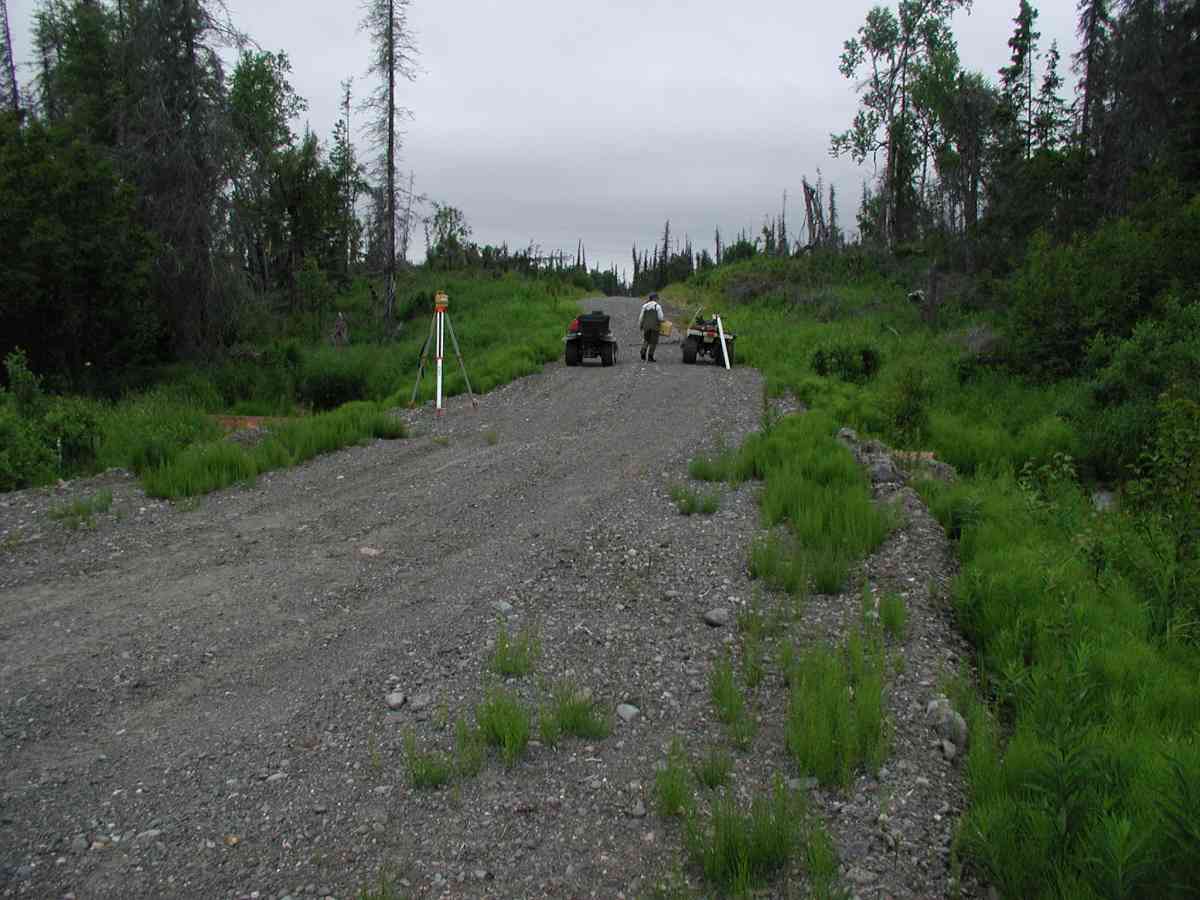

Road Name: Oil Well Road

Datum: NAD83
Quad Name / ITM: Kenai A-4
AWC Stream #:
Stream Name:

Elevation:

Site Comments: Location: Oil Well Road to 1200 Rd. Channel is braided upstream of pipe and narrows to one channel at 125'. The streambanks are very vegetated. The substrate is mixed rock sizes.

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey KPC04-1A015

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

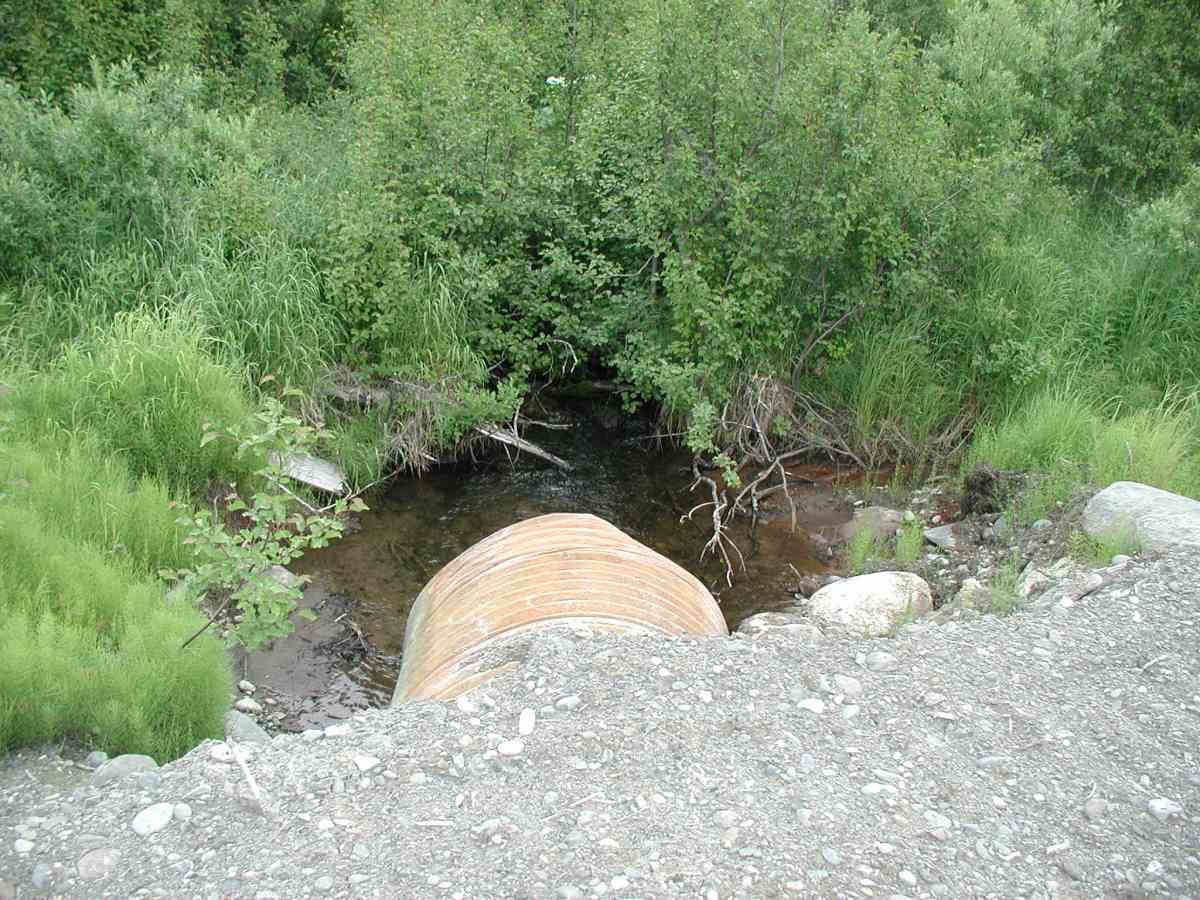

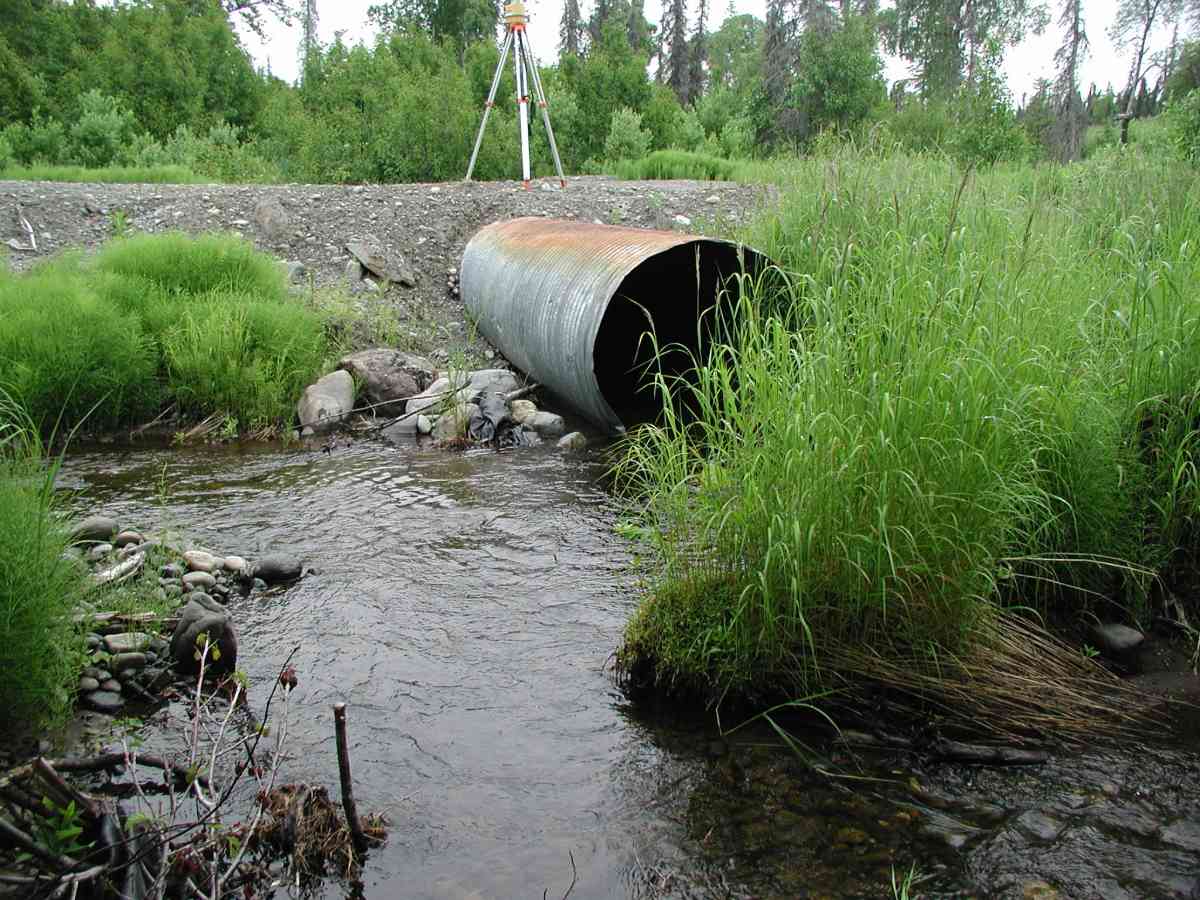

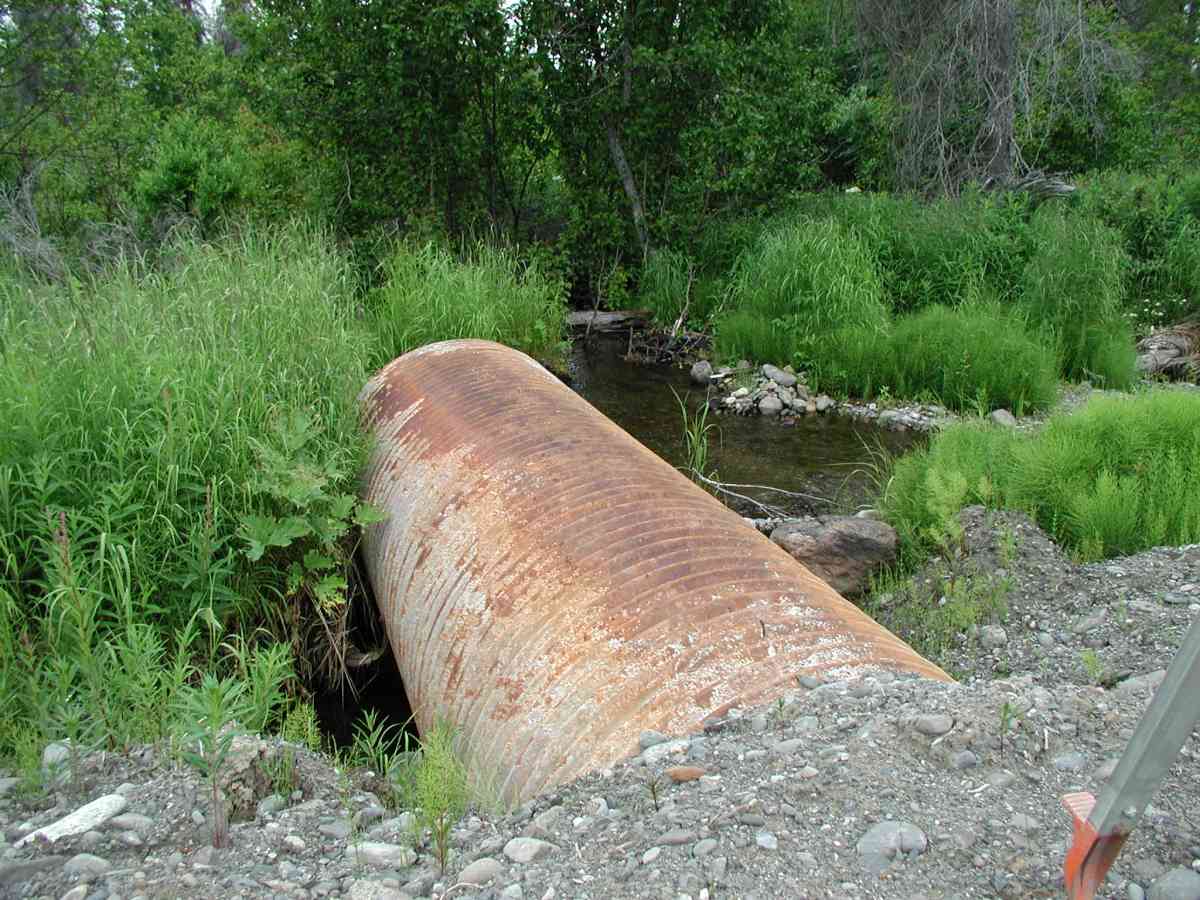

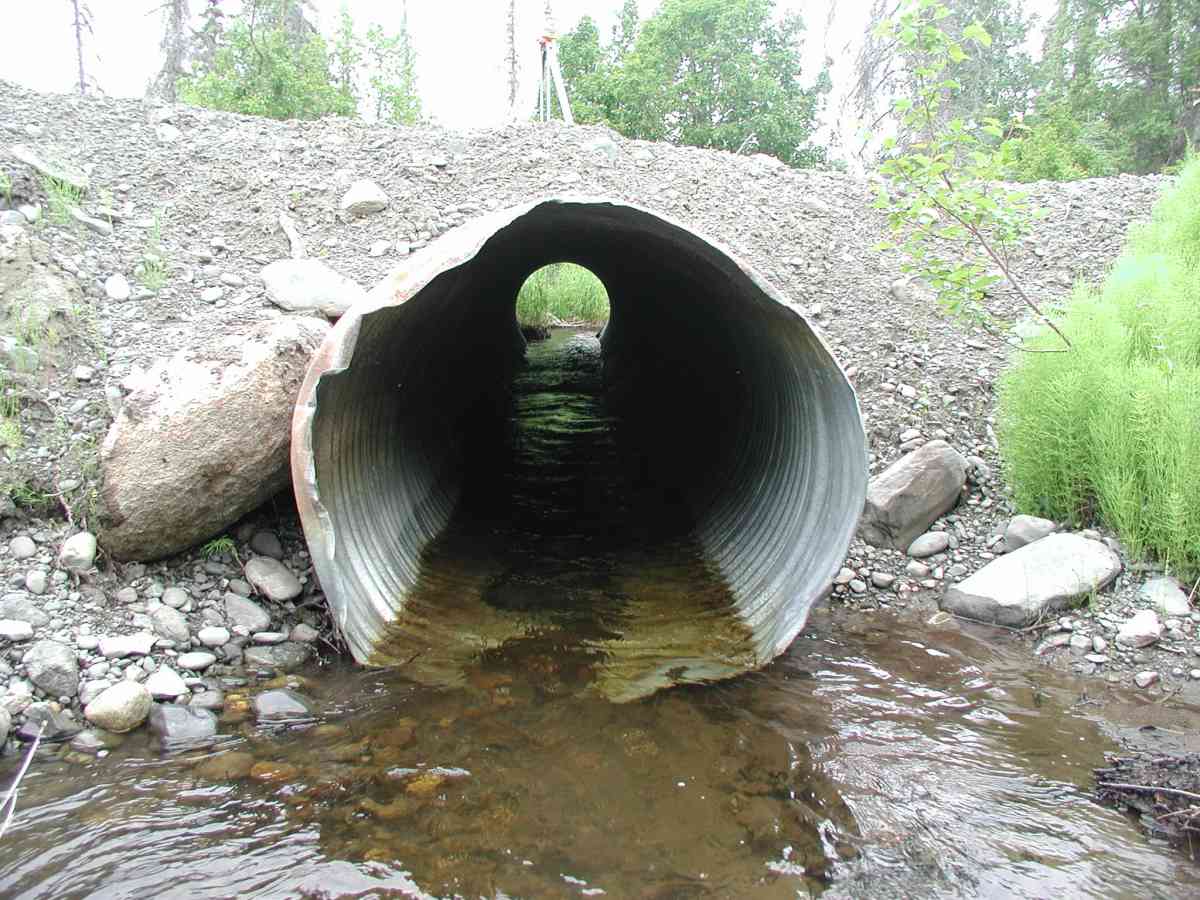

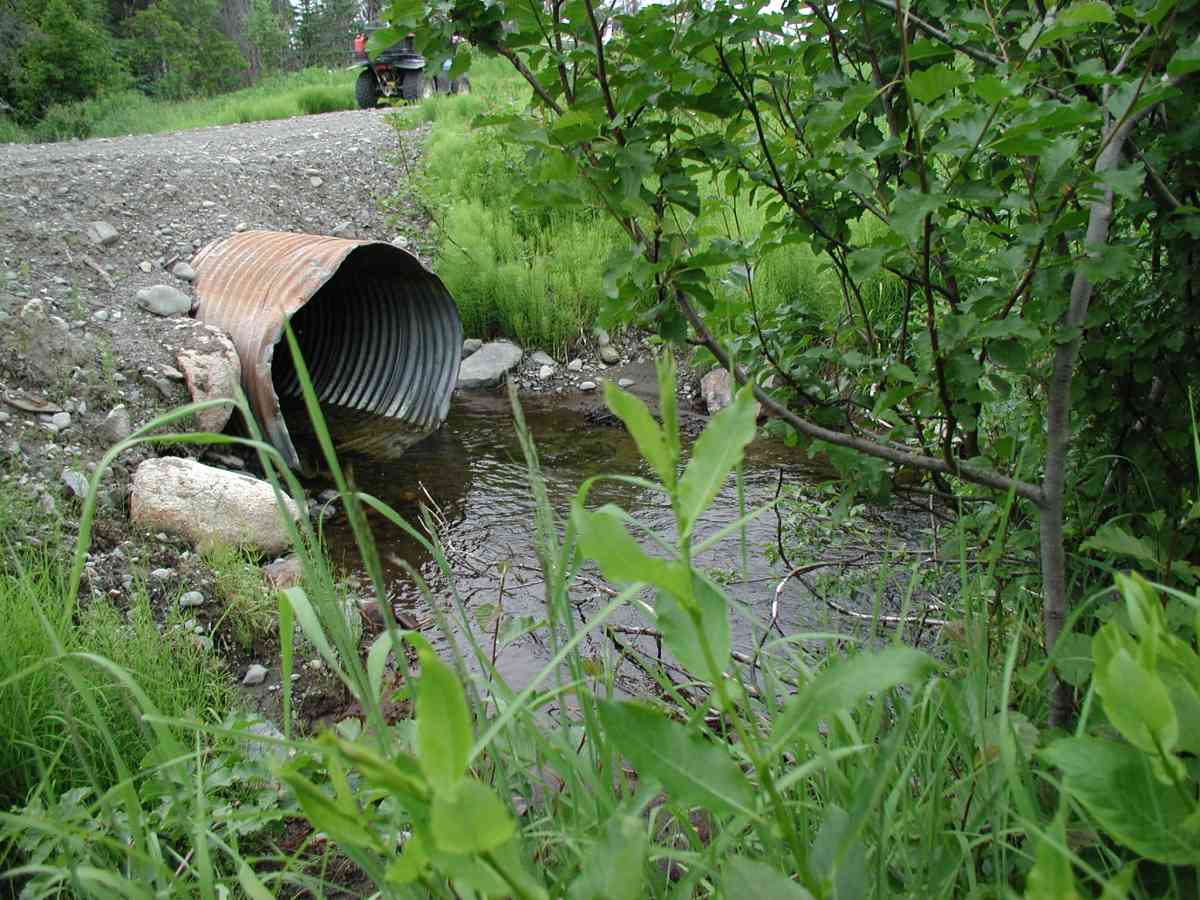

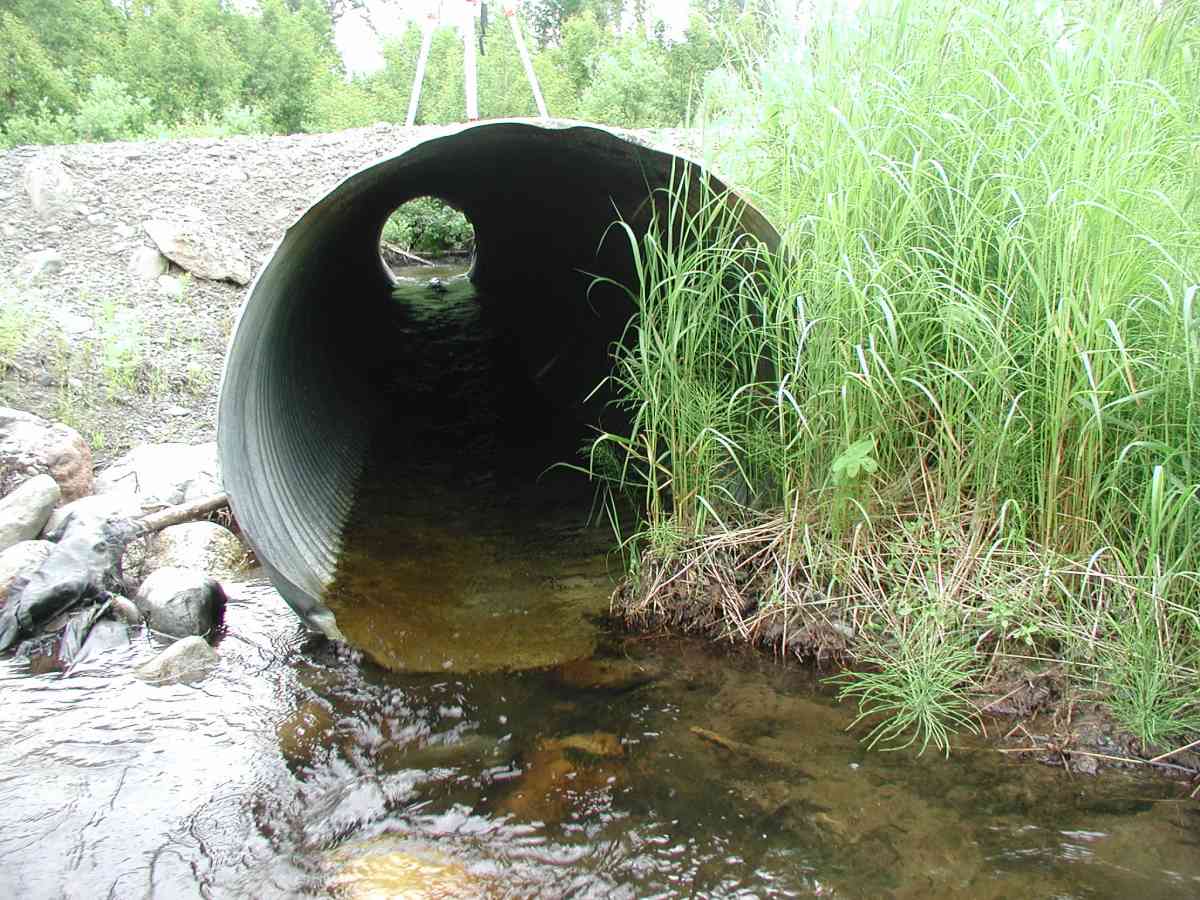

Comments: Location: Oil Well Road to 1200 Rd. Stream: Channel is braided upstream of pipe and narrows to one channel at 125'. The streambanks are very vegetated. The substrate is mixed rock sizes. Some vegetation growing in the pipe. Bank undercut ranged from 4"-10". Rocks in the channel interfered with stream flow measurements; taken at 125ft upstream. Culvert: Pipe condition=5 (good) The pipe had minor dents on the edges and rust all across the exterior. Not embedded.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 40.96
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):4.0
Height(ft):4.17
Apron Length(ft):
Water Depth(ft): 1.0
Rustline Height(ft):0.67
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.01
Outfall Type:
Constriction Ratio: 0.7
Culvert Gradient: 1.78%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 125.0 4.50
Upstream bank full 150.0 11.17
Upstream bed width 125.0 3.08
Upstream bed width 150.0 6.58
Upstream ordinary high water 125.0 3.08
Upstream ordinary high water 150.0 8.42

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 95.33
D/S Tailcrest or 1st Thalweg 96.03
U/S Thalweg 1 96.43
OHW Left Bank 96.59
OHW Left Bank 96.62
Outlet Culvert Top (Top of outlet culvert on cross of painted "X", located on 2nd seam from end of pipe.) 1 100.00
Max Pool Depth 0.00 5.0 96.02
Outlet Invert 1 5.00 0.0 95.63
Road Elev (Road surface) 25.50 100.86
Inlet Culvert Invert 1 46.00 0.0 96.36

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
