Fish Passage Site 20300887

Coordinates (dec. deg.): 60.04990°, -151.34671°
Legal Description: S001S012W33
Region: South Central

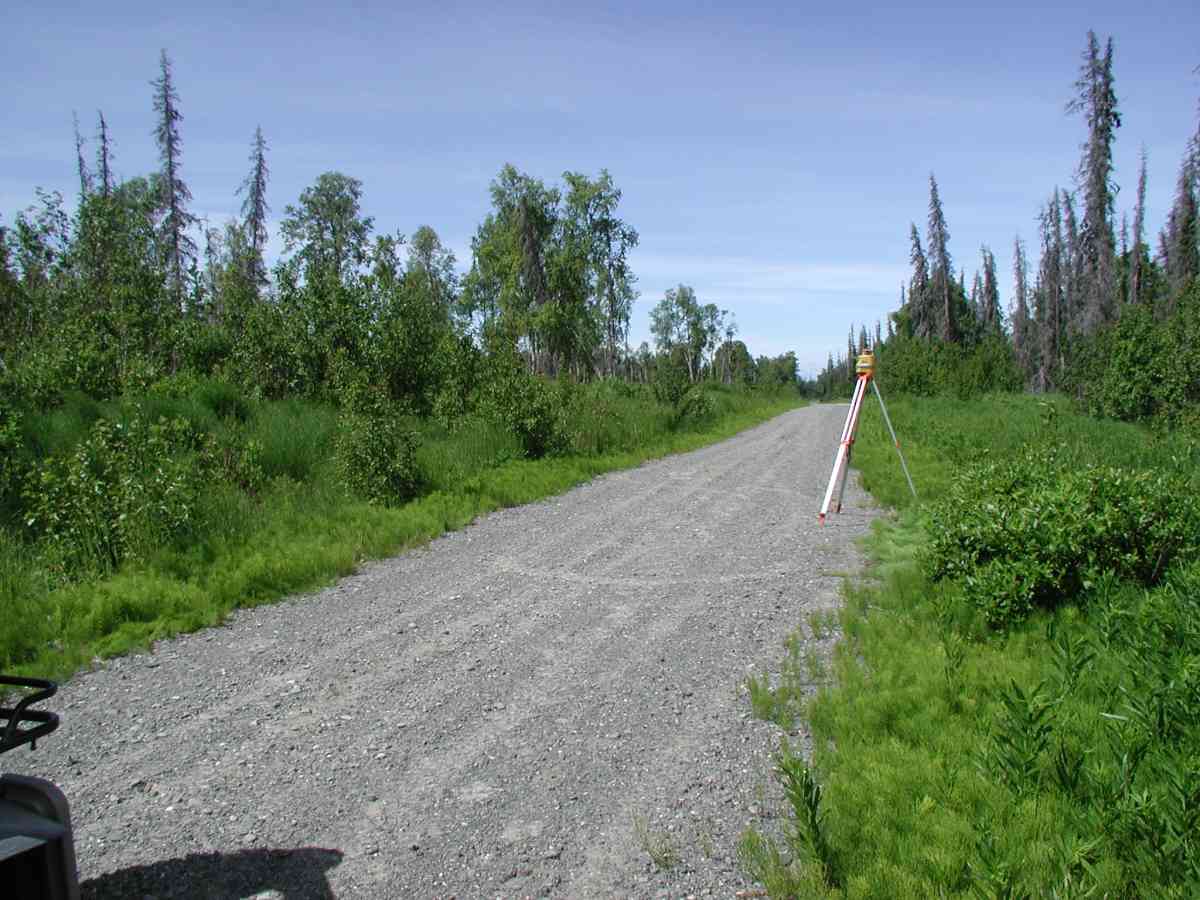

Road Name: Oil Well Road

Datum: NAD83
Quad Name / ITM: Kenai A-4
AWC Stream #:
Stream Name:

Elevation:

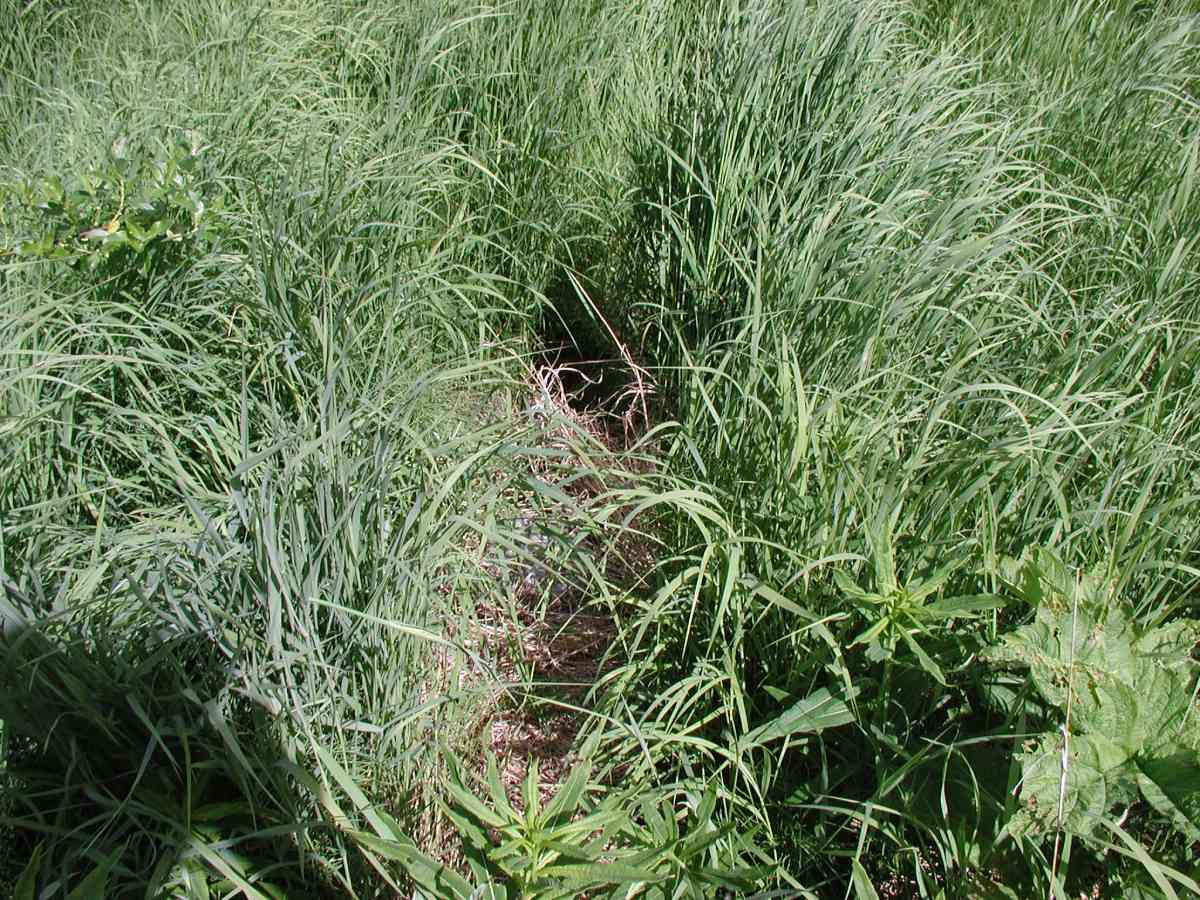

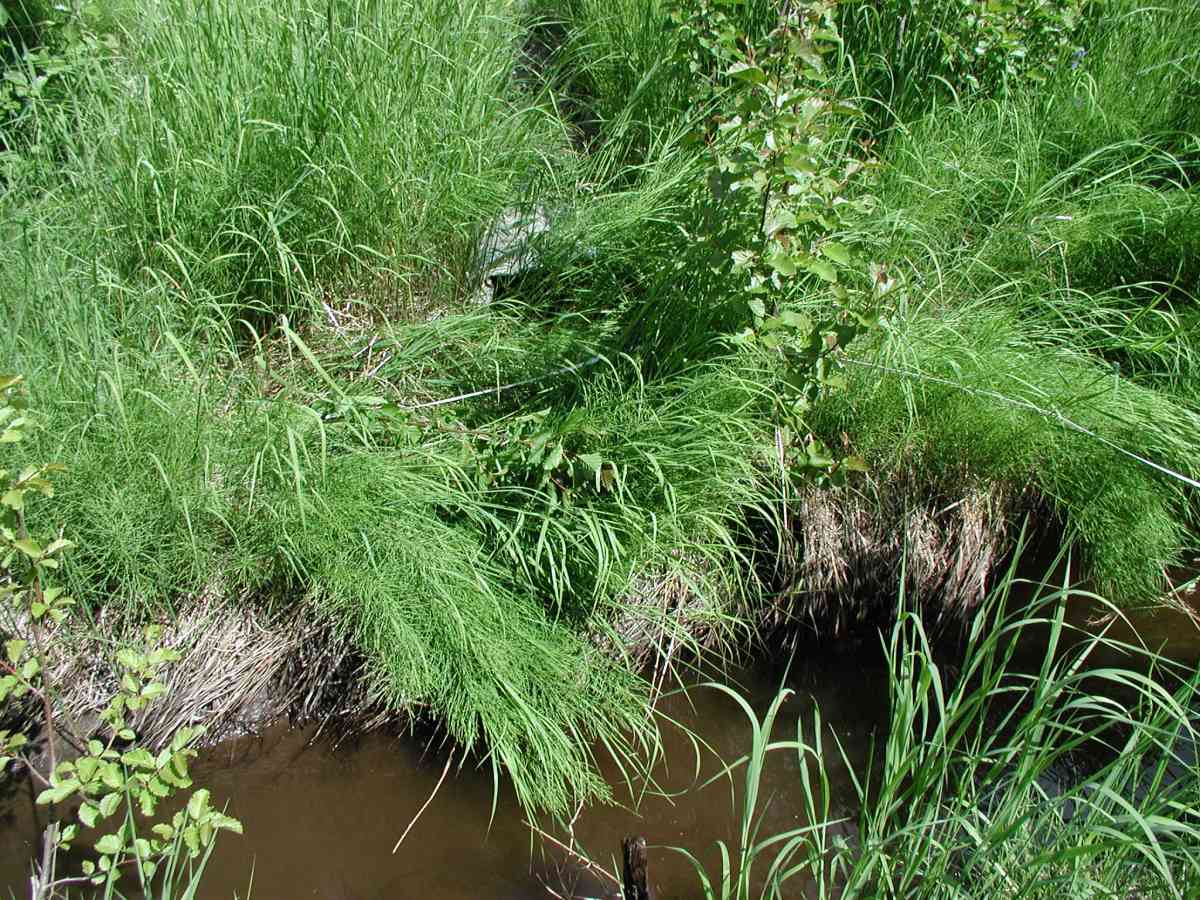

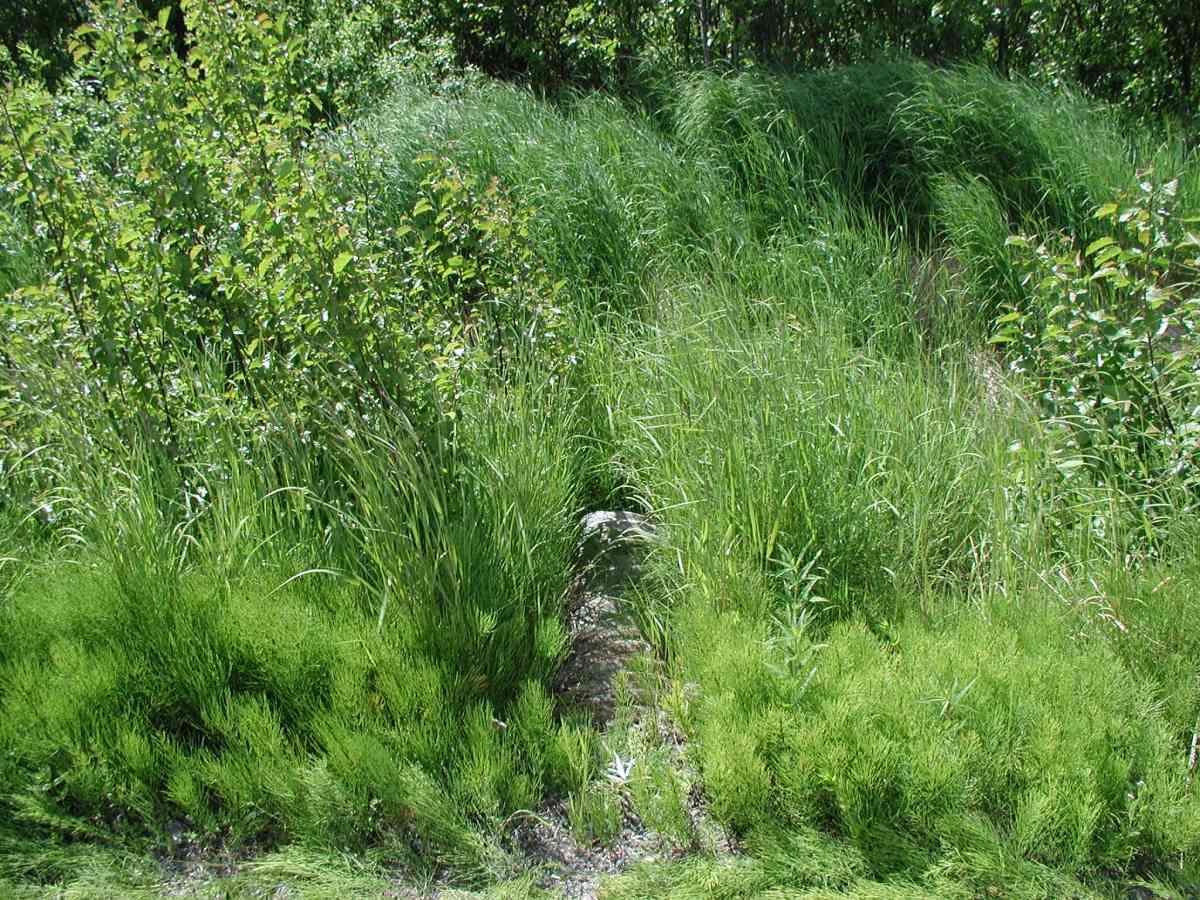

Site Comments: Location: Oil Well Road to Tribal Council Road. The stream formed a pond fro ~40' upstream and then went subterranean w/ overgrown vegetation.

Survey Date: Jun 26, 2004

Survey KPC04-1A014

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

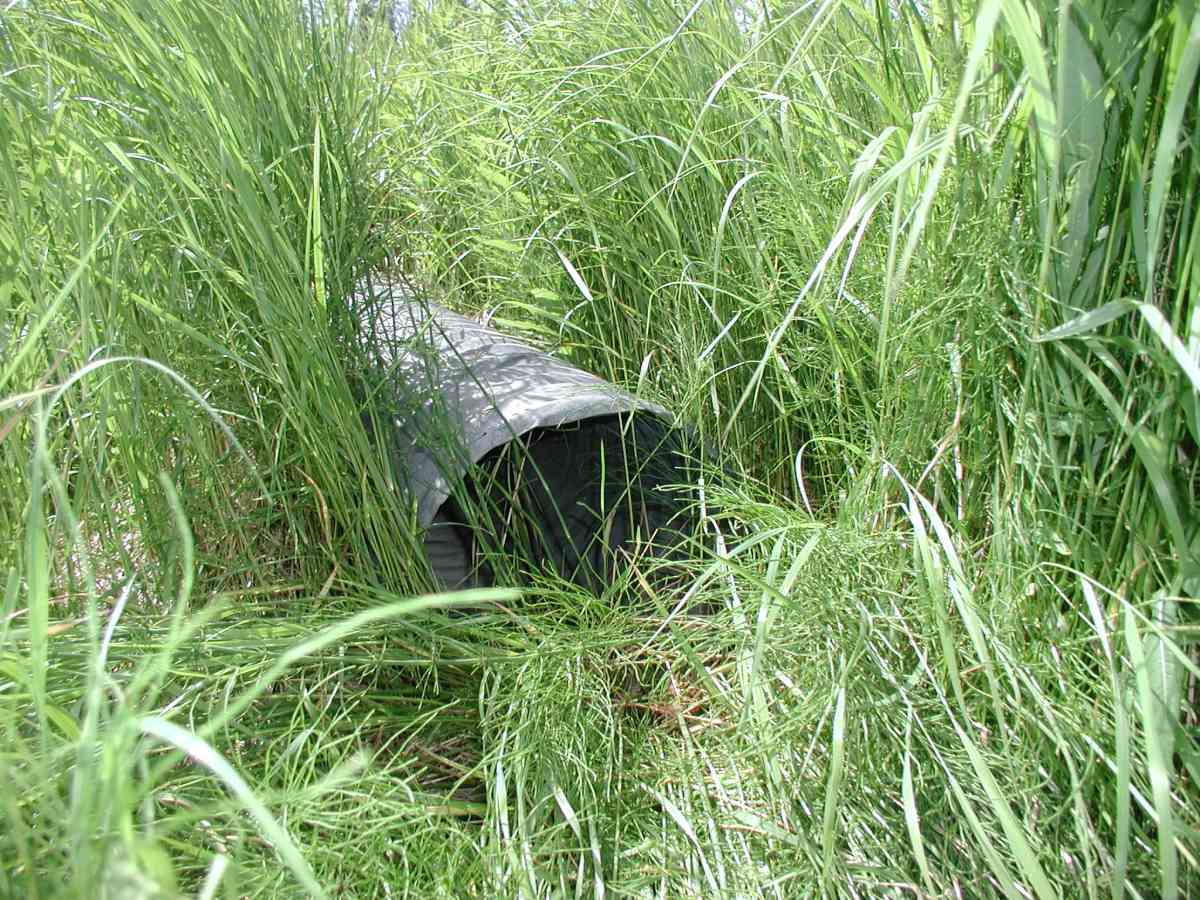

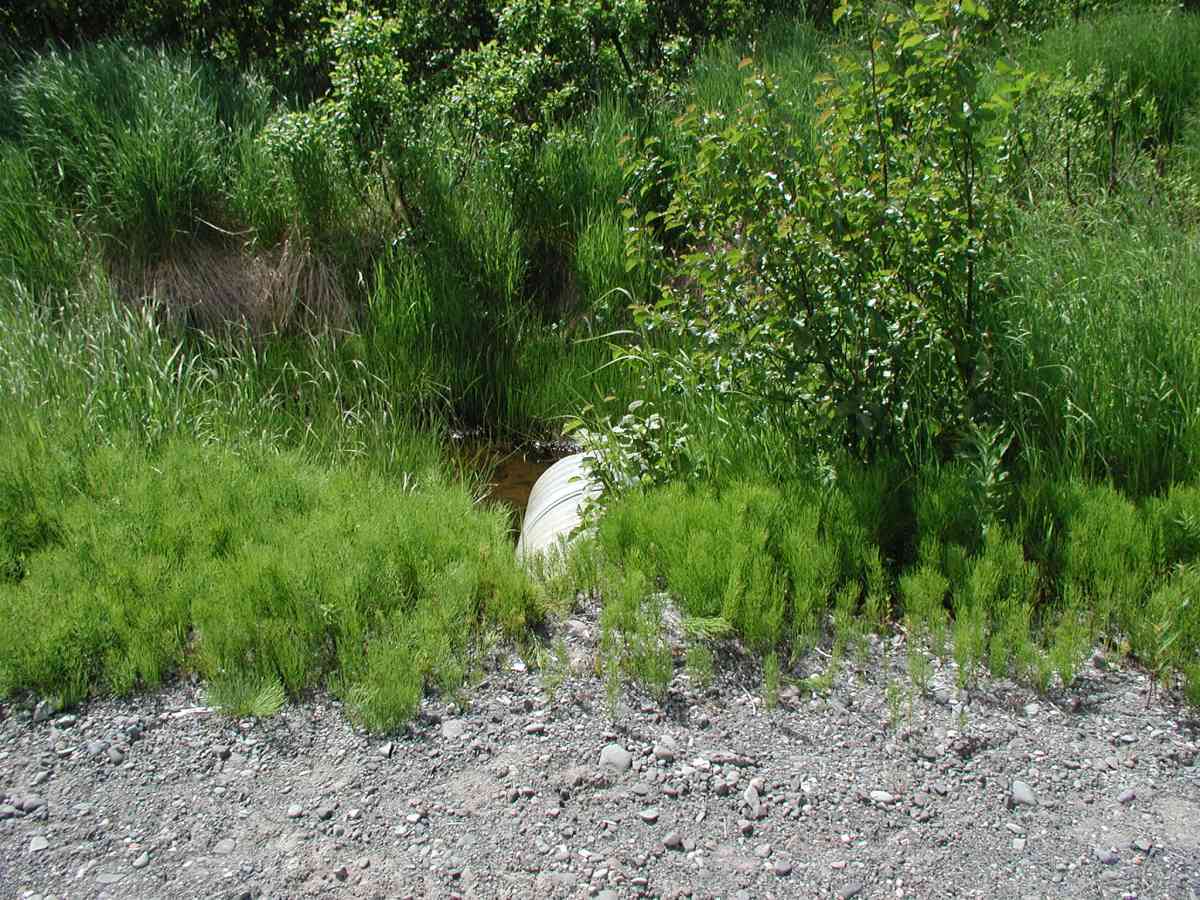

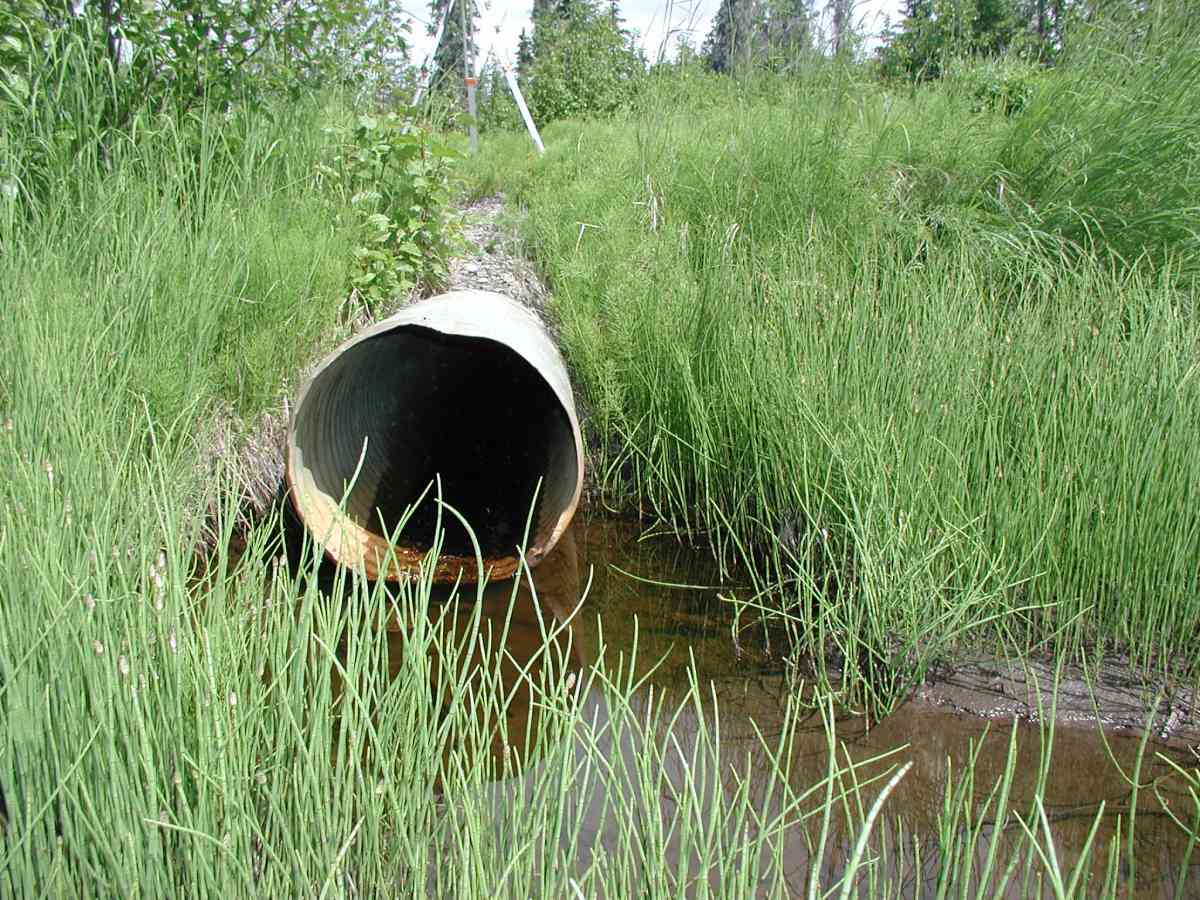

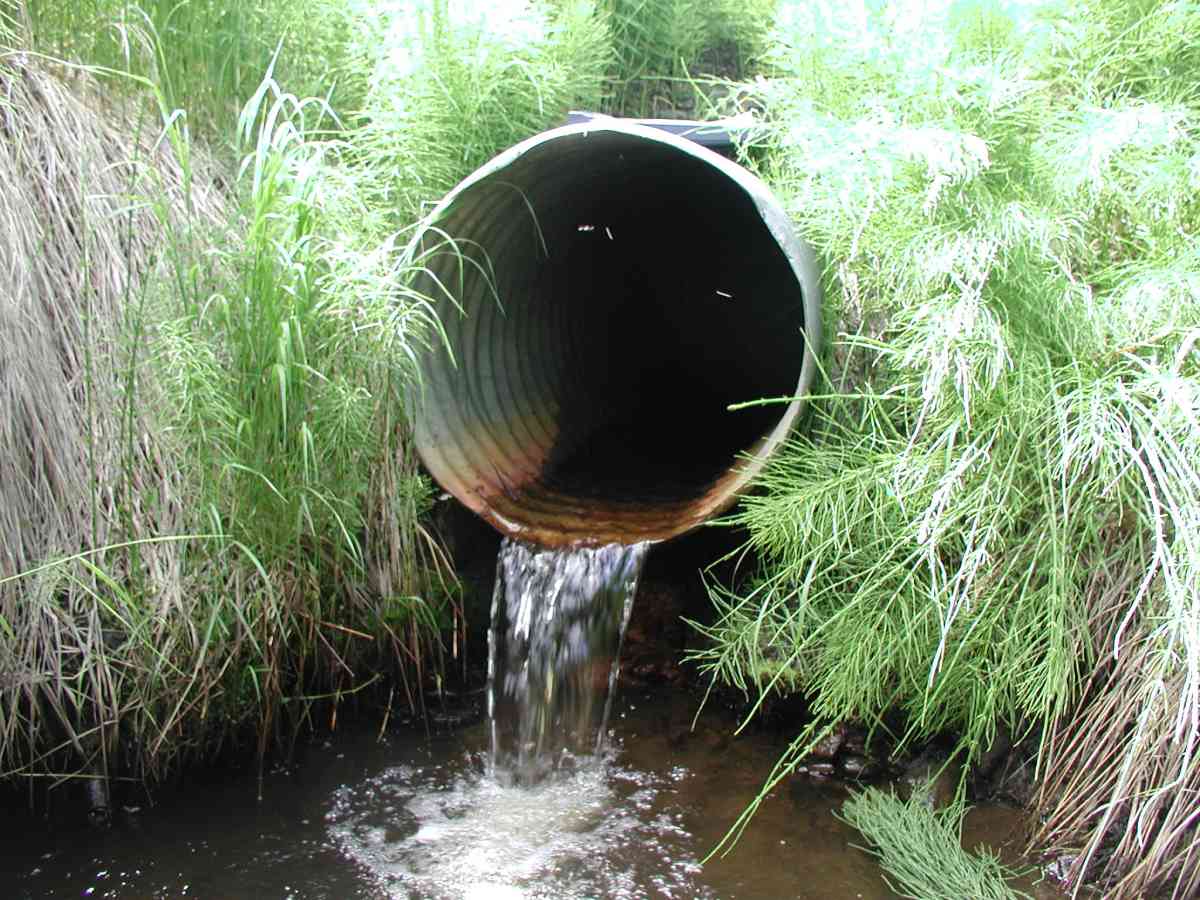

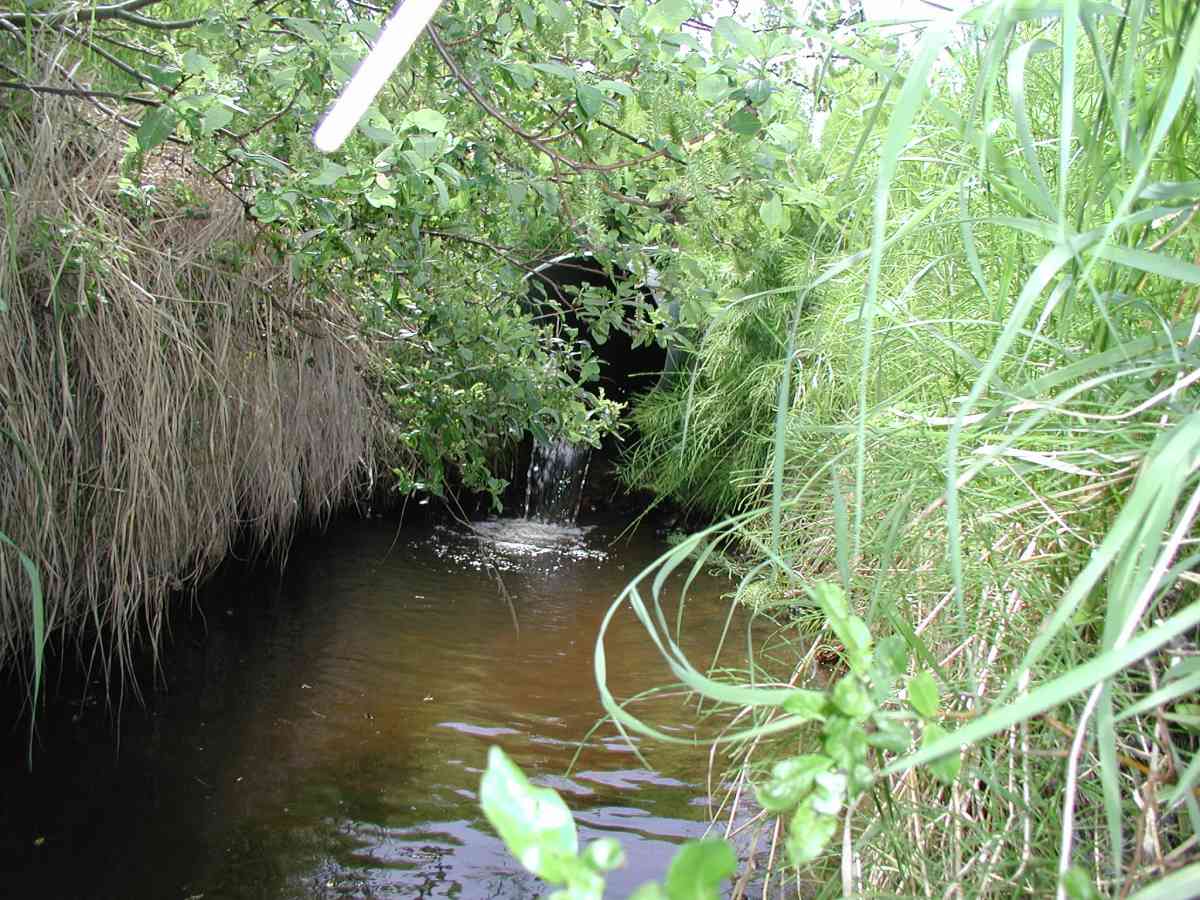

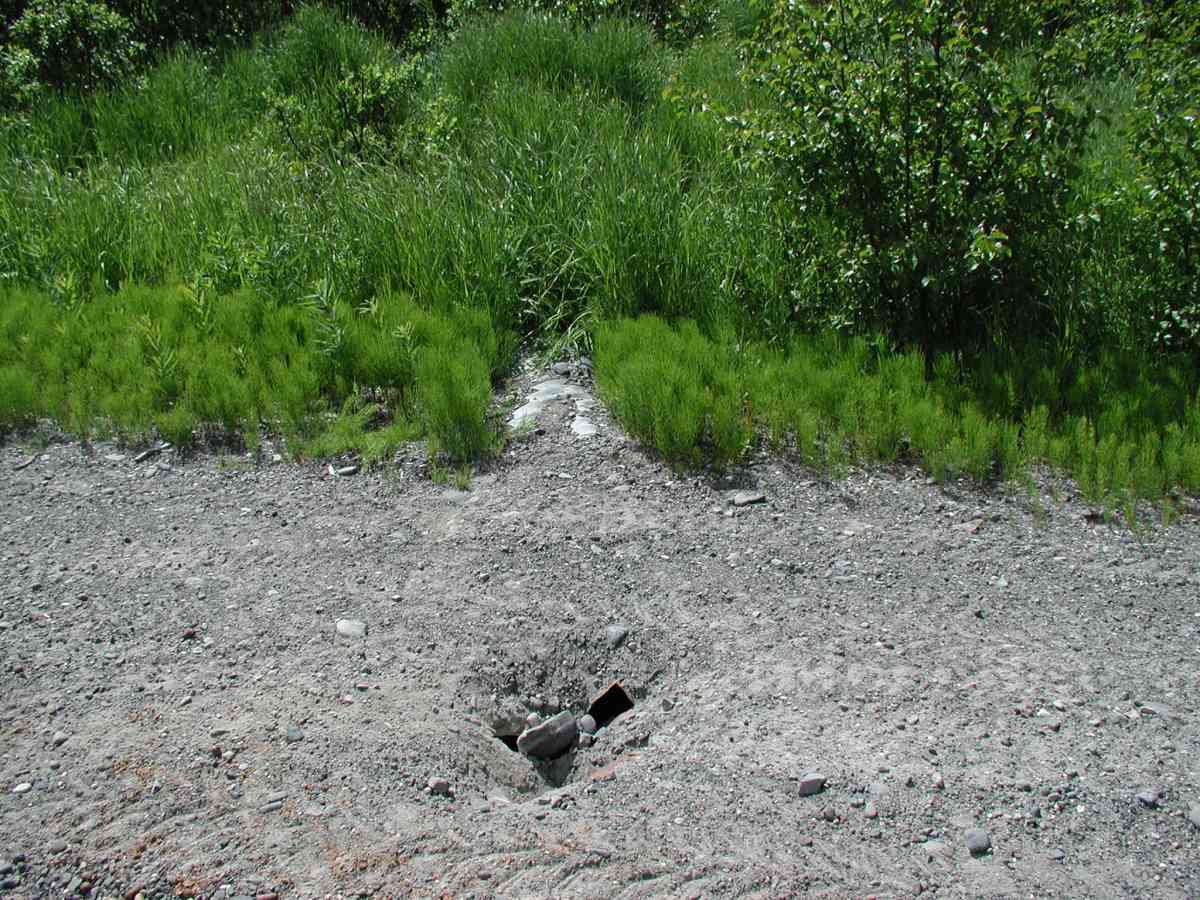

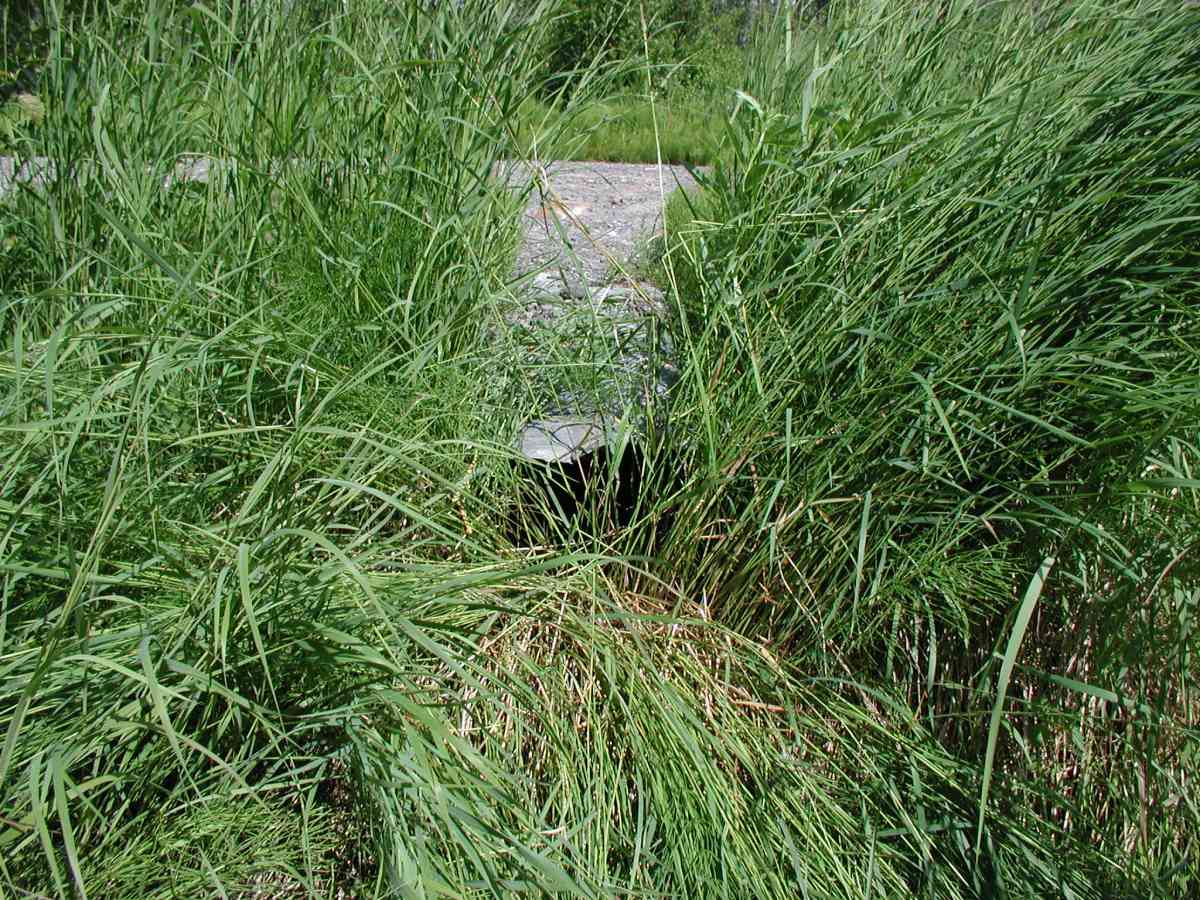

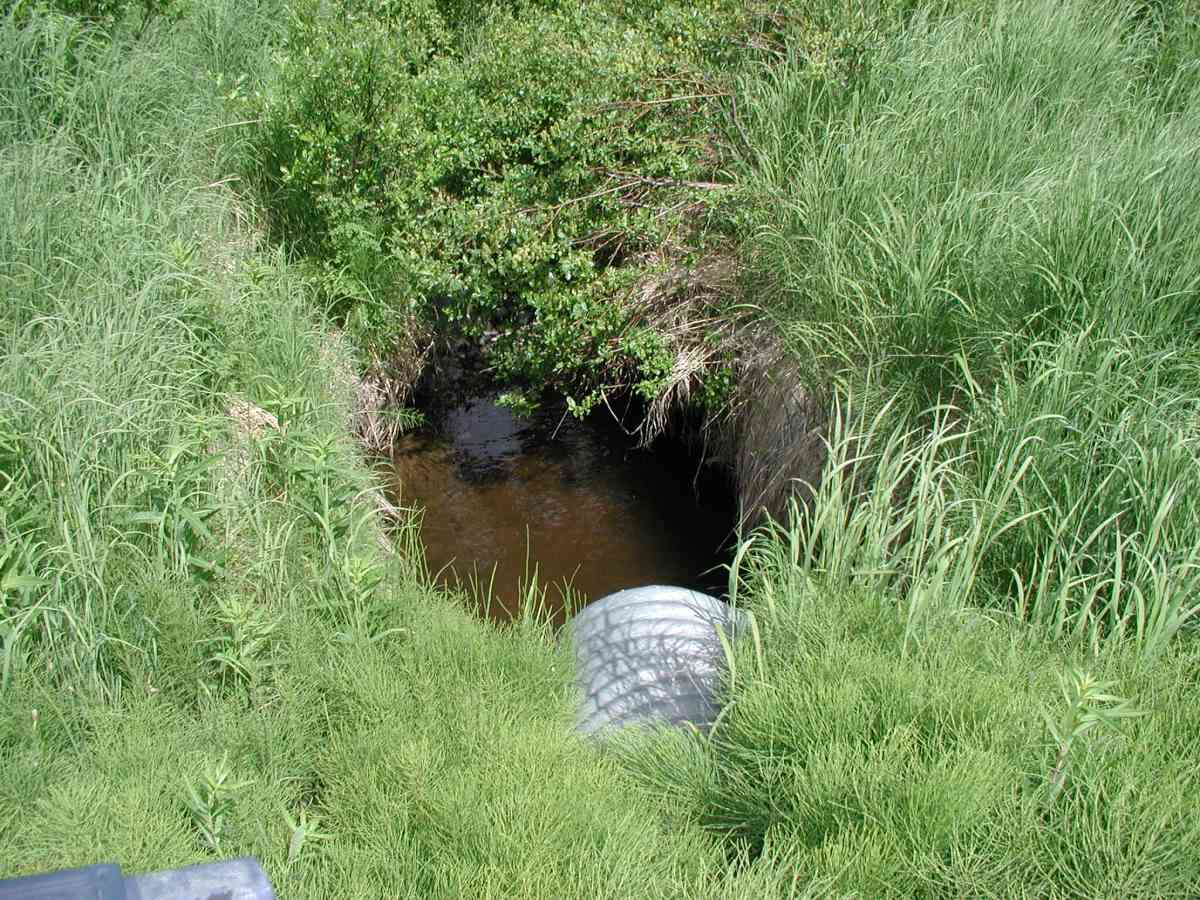

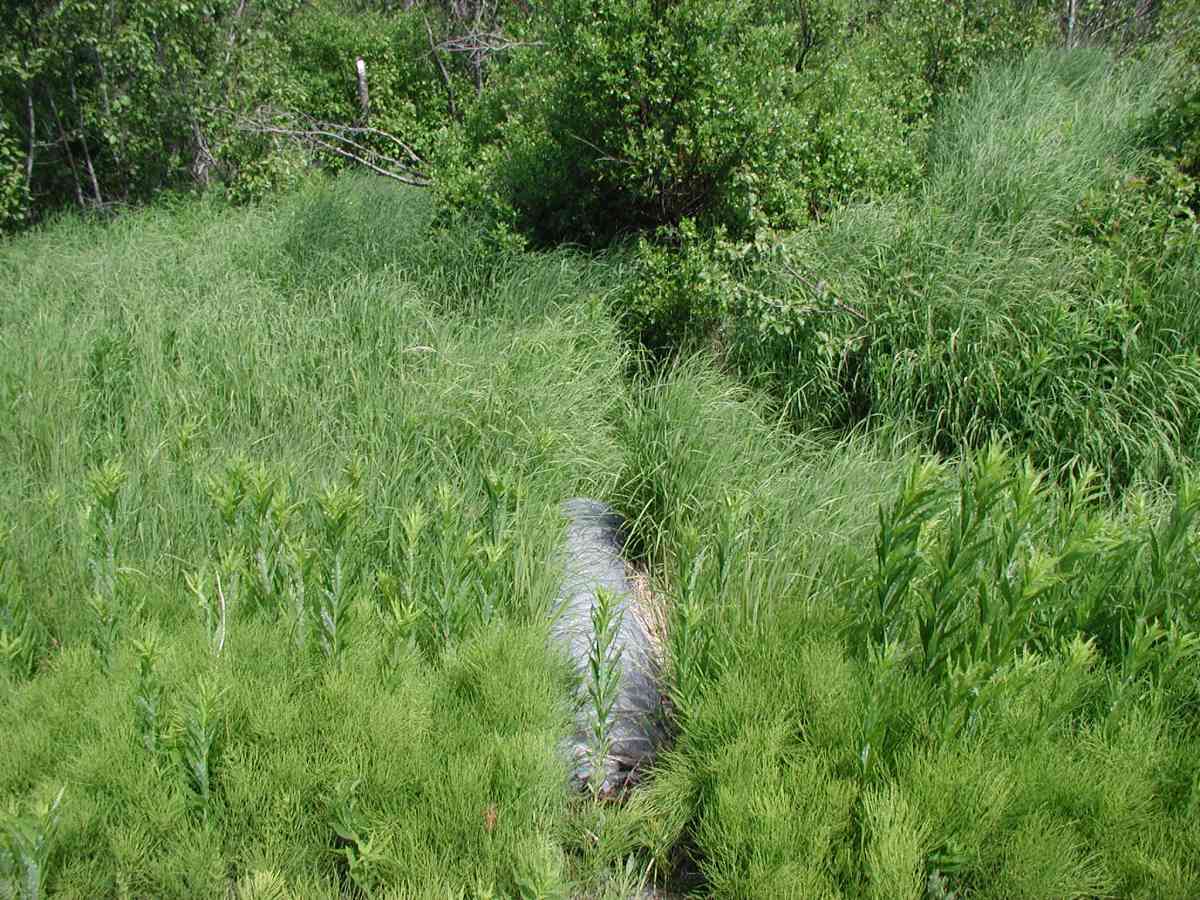

Comments: Location: Oil Well Road to Tribal Council Road. Stream: The stream formed a pond fro ~40' upstream and then went subterranean w/ overgrown vegetation. No stream flow measurements were taken--the stream was too shallow and it merged with another stream 30' downstream of the pipe. Culvert: Two overflow pipes were dry, overgrown with vegetation and were well above local stream surface in area. The left had a 1' hole on top with road surface gravel inside and the right was squashed. The functional pipe was perched. Pipe condition=3 (functional, with rust and abrasion showing). Not embedded.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 32.79
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.08
Height(ft):2.0
Apron Length(ft):
Water Depth(ft): 0.04
Rustline Height(ft):0.42
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 1.06
Outfall Type:
Constriction Ratio: 0.55
Culvert Gradient: 4.09%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 40.0 4.75
Upstream bed width 40.0 2.17
Upstream ordinary high water 40.0 3.75

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 95.66
Max Pool Depth 96.29
D/S Tailcrest or 1st Thalweg 96.74
OHW Left Bank 97.00
OHW Left Bank 97.63
U/S Thalweg 1 98.25
Outlet Culvert Top (Top crest of outlet, on seam nearest to pipe end, scratched a "carat".) 1 100.00
Outlet Invert 1 0.00 0.0 98.02
Road Elev (Road surface) 16.00 102.10
Inlet Culvert Invert 1 32.00 0.0 99.36

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
