Fish Passage Site 20300886

Coordinates (dec. deg.): 60.04943°, -151.38203°
Legal Description: S001S012W32
Region: South Central

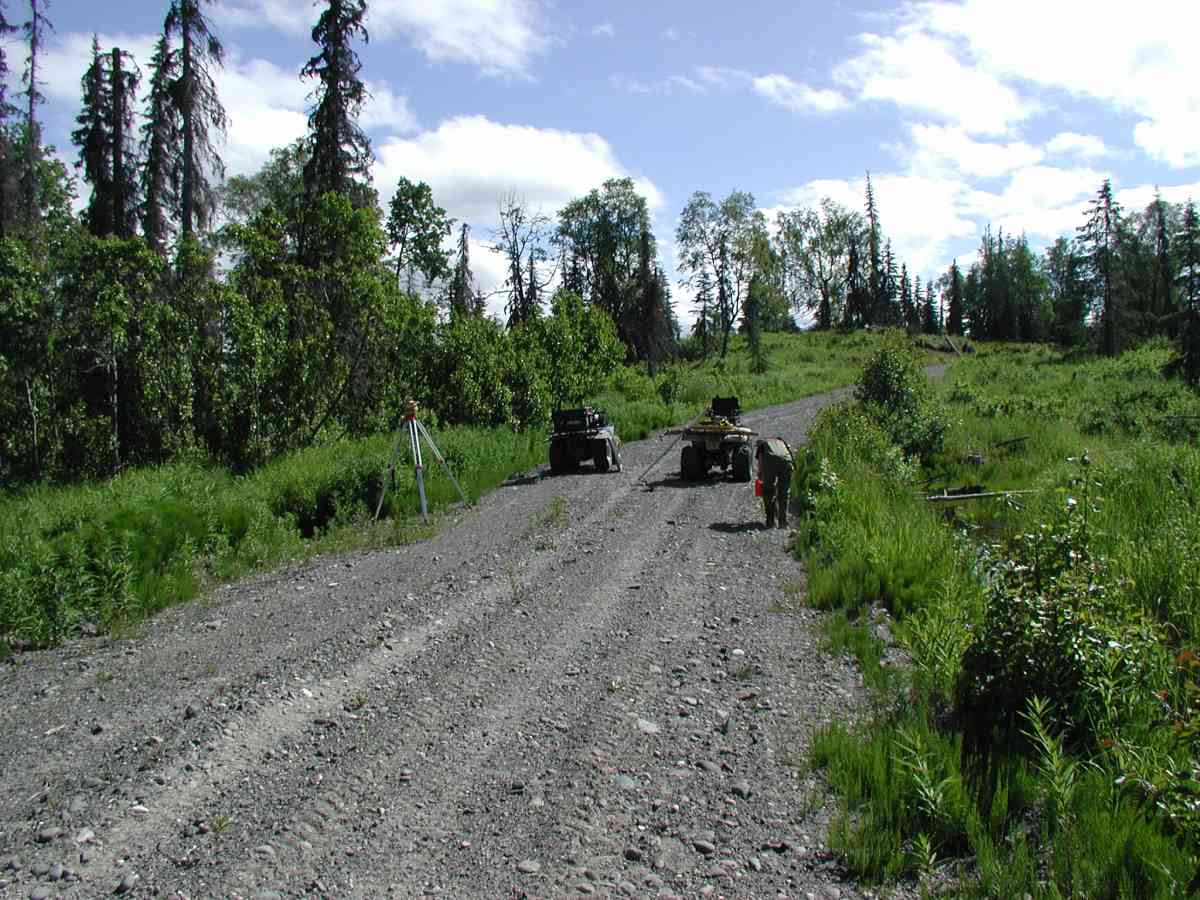

Road Name: Oil Well Road

Datum: NAD83
Quad Name / ITM: Kenai A-4
AWC Stream #:
Stream Name:

Elevation:

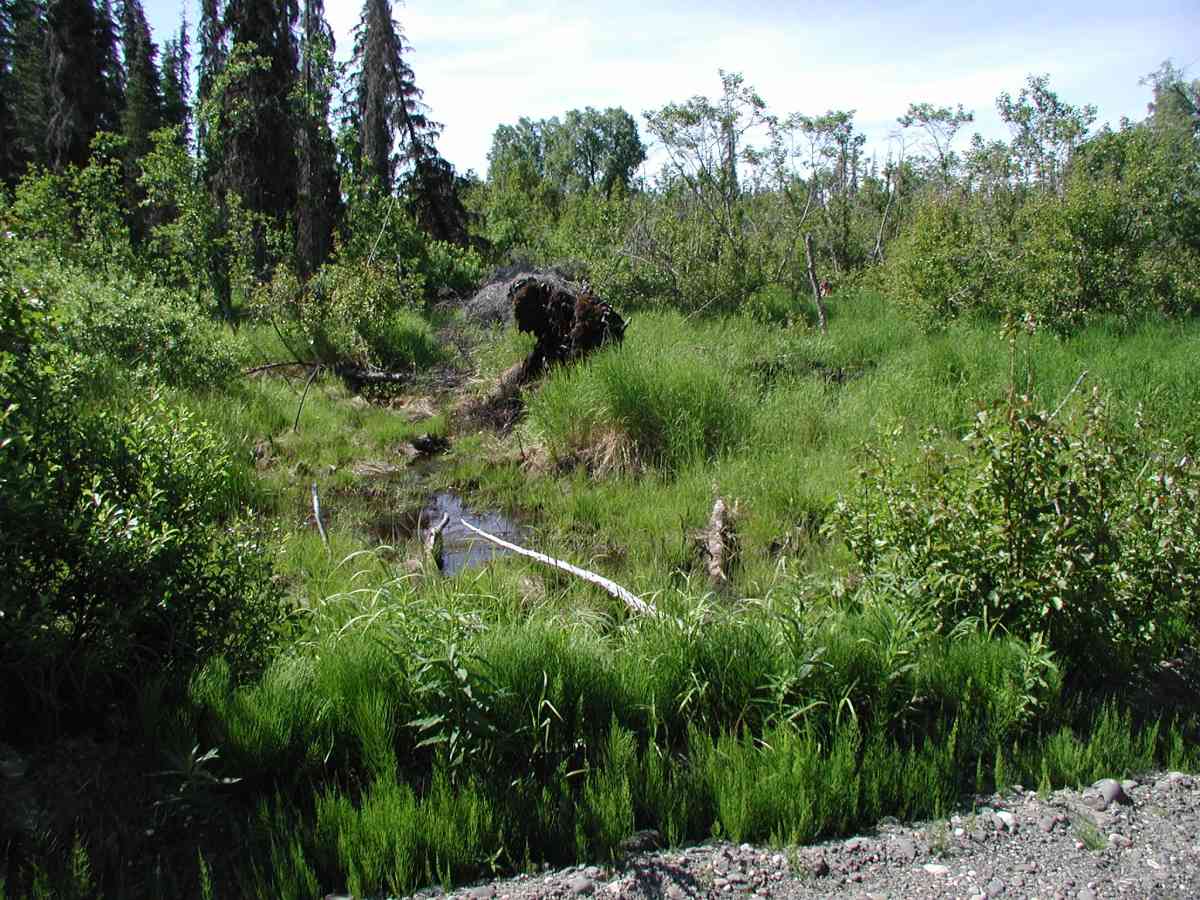

Site Comments: Location: Oil Well Road to Tribal Council Road. Stream lies in an open marsh that it drains. Substrate is mixed rocks.

Survey Date: Jun 23, 2004

Survey KPC04-1A013

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

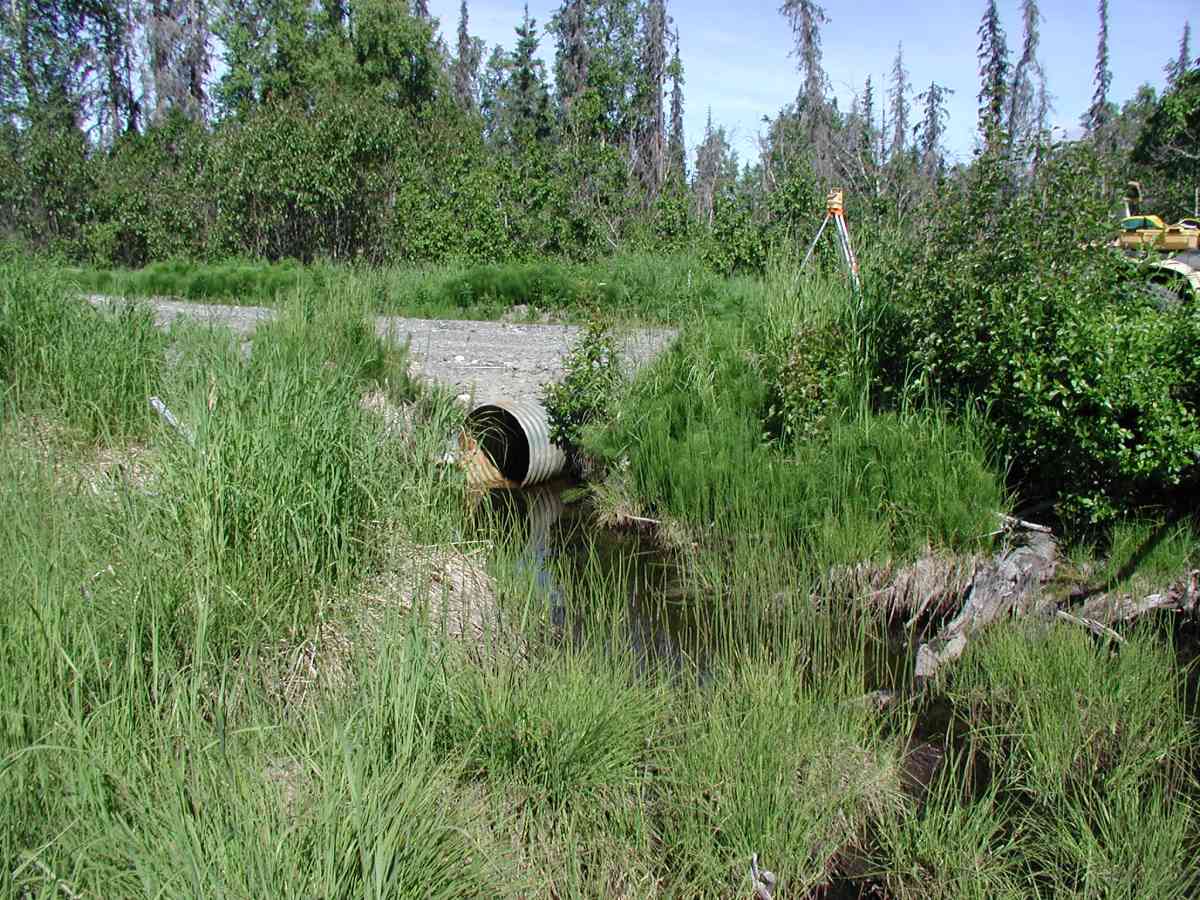

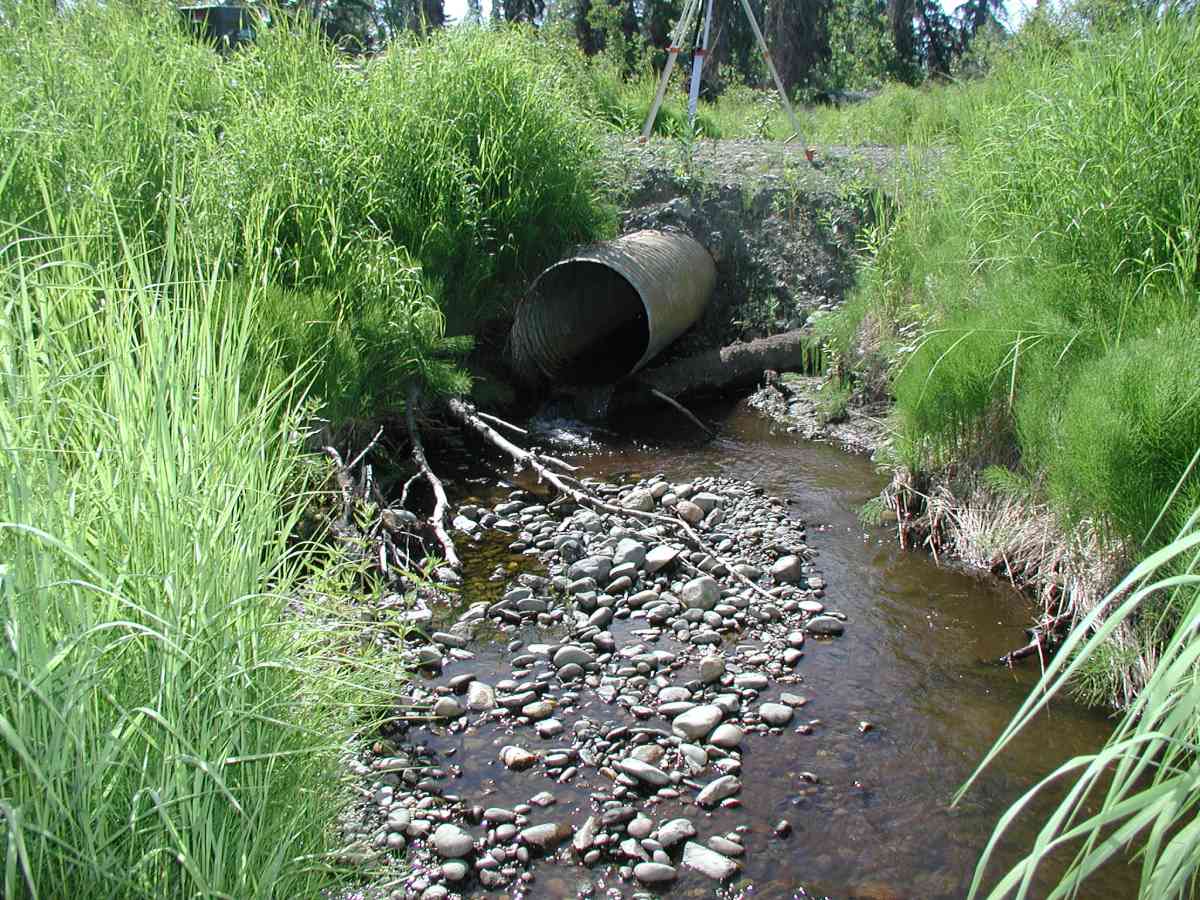

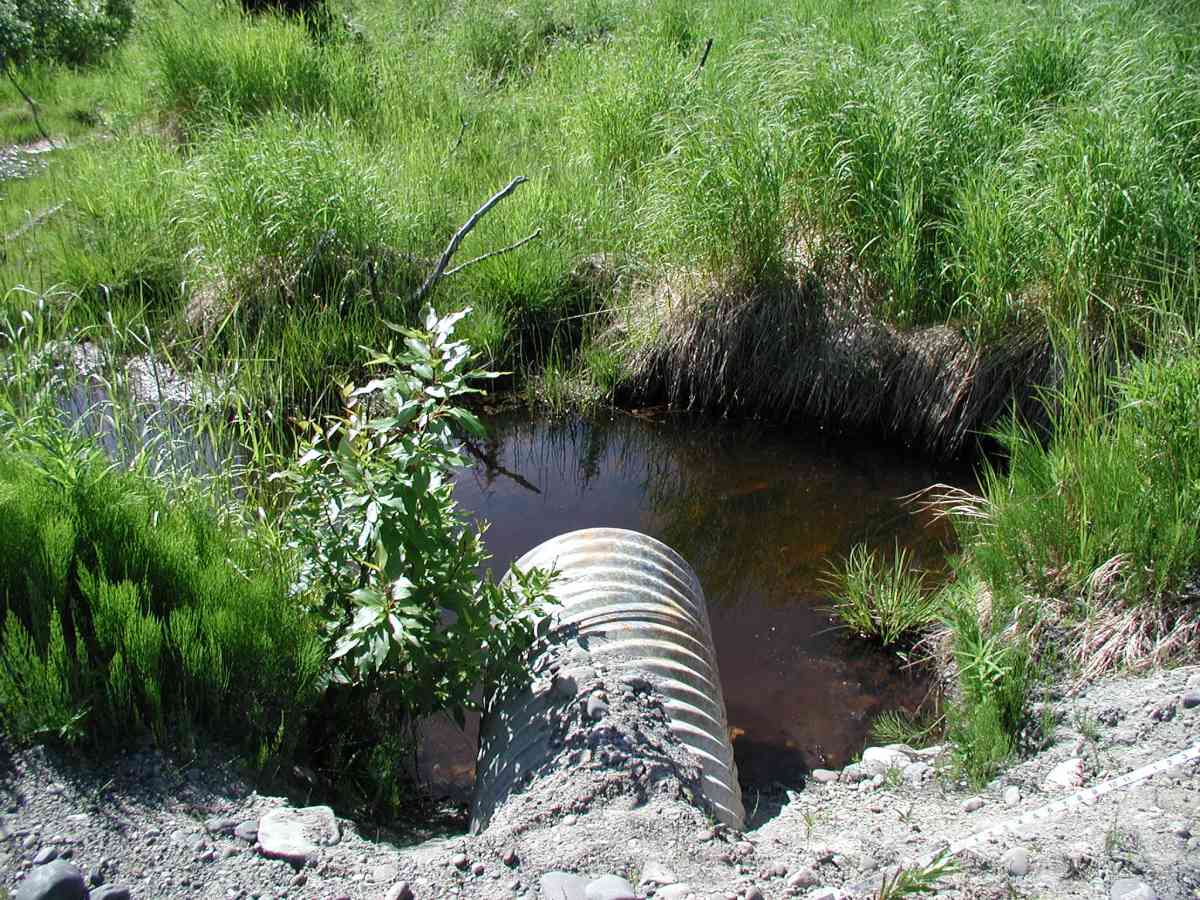

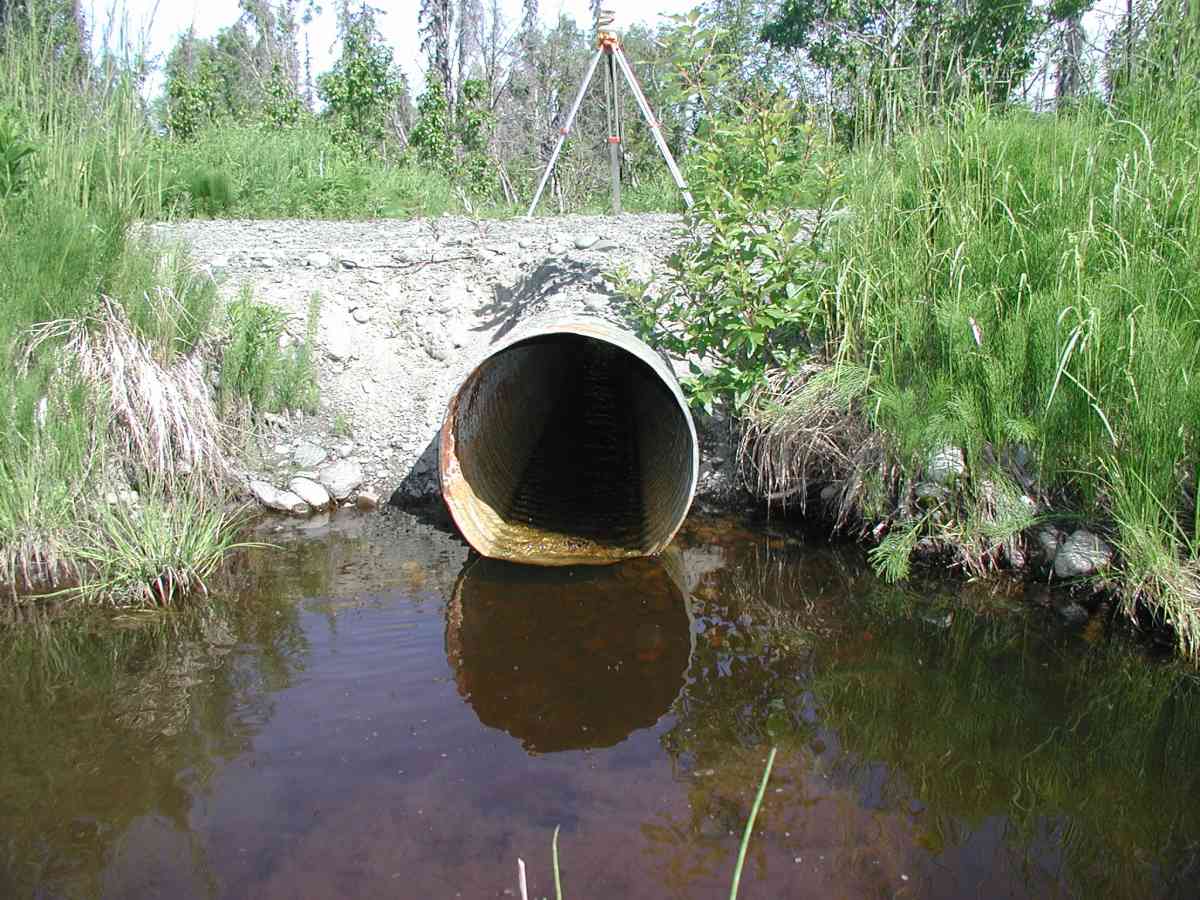

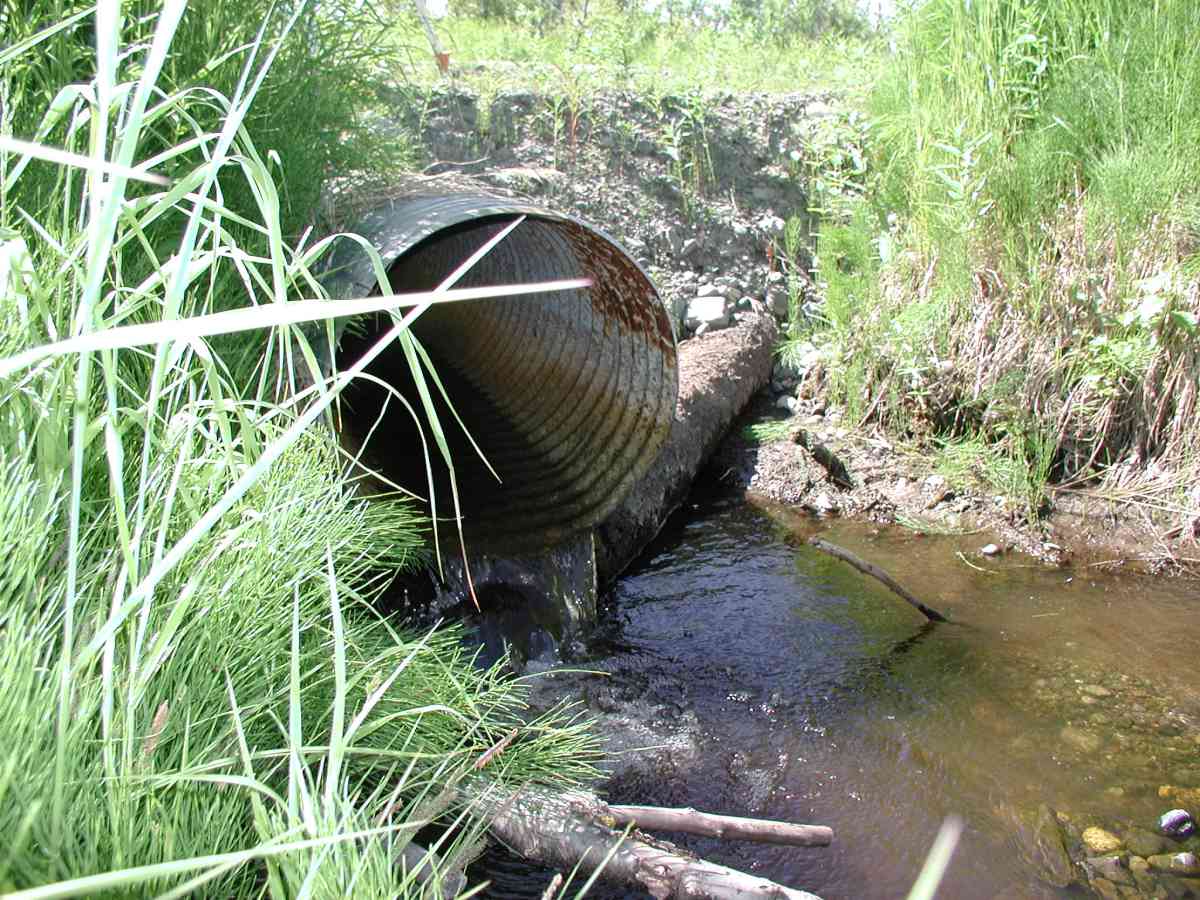

Comments: Location: Oil Well Road to Tribal Council Road. Stream: Stream lies in an open marsh that it drains. Substrate is mixed rocks. Due to ponding upstream of inlet, flow measurements were done downstream of outlet; rocks were problematic. Washout gravel formed a gravel bar 6ft in diameter downstream from the pipe. Bank undercut ranged from 0.5-2.5'. Culvert: Upstream ponding and erosion resulted in 1" stream depth in pipe. Outlet is supported by logs (1' diam.), extends 6' from roadside and is perched. Pipe condition=4-5. Not embedded.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 30.48
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.0
Height(ft):2.0
Apron Length(ft):
Water Depth(ft): 0.12
Rustline Height(ft):0.67
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.46
Outfall Type:
Constriction Ratio: 0.62
Culvert Gradient: 2.10%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 4.58
Upstream bank full 100.0 5.00
Upstream bank full 125.0 5.50
Upstream bank full 150.0 3.83
Upstream bed width 75.0 1.83
Upstream bed width 100.0 3.92
Upstream bed width 125.0 1.75
Upstream bed width 150.0 2.08
Upstream ordinary high water 75.0 3.75
Upstream ordinary high water 100.0 4.33
Upstream ordinary high water 125.0 2.58
Upstream ordinary high water 150.0 2.33

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
OHW Left Bank 97.59
OHW Left Bank 97.64
U/S Thalweg 1 97.84
D/S Thalweg 96.84
D/S Tailcrest or 1st Thalweg 97.16

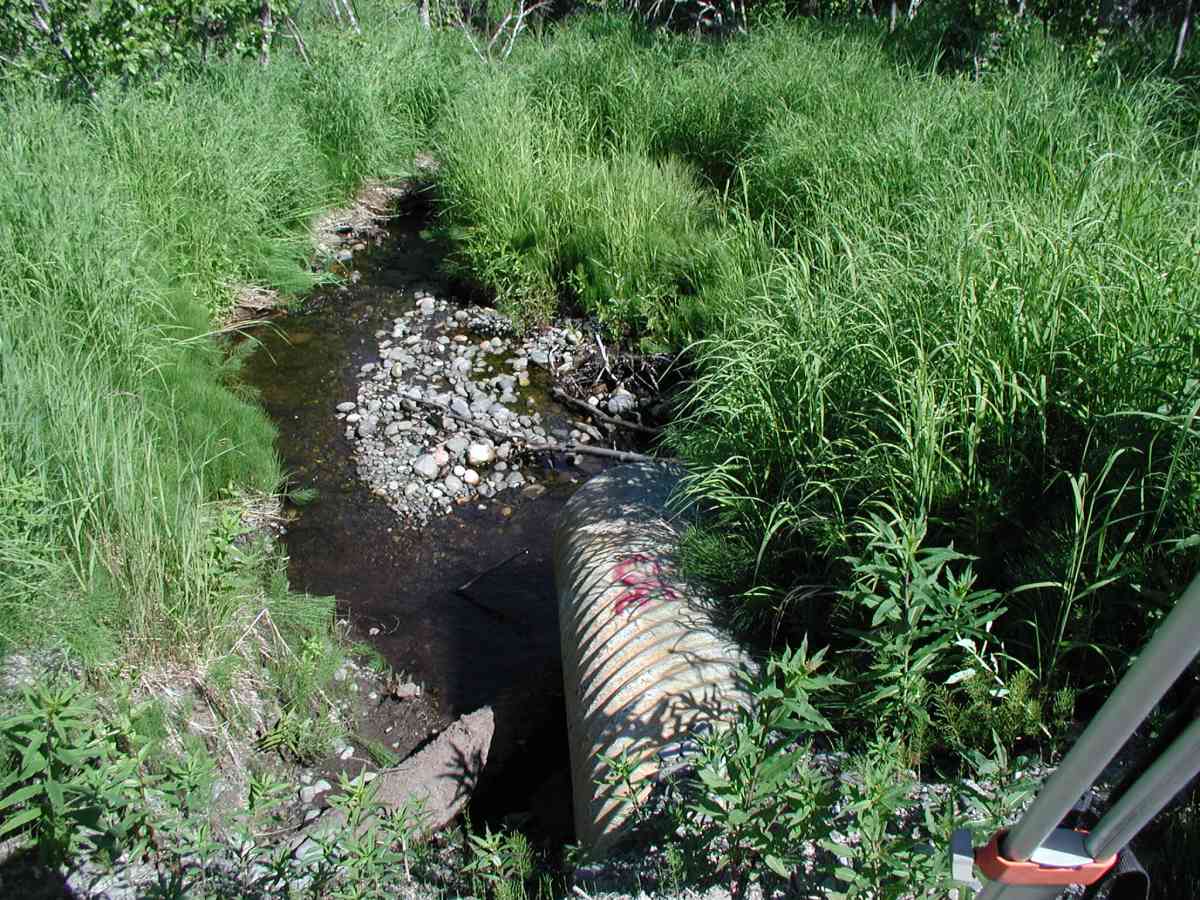

Outlet Culvert Top (Outlet pipe has a red #"30". TBM was taken from bottom o f"3" centered on the paint.) 1 100.00
Max Pool Depth 0.00 5.0 97.29
Outlet Invert 1 5.00 0.0 97.98
Road Elev (Road surface.) 20.00 100.86
Inlet Culvert Invert 1 35.00 0.0 98.62

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
