Fish Passage Site 20300885

Coordinates (dec. deg.): 60.04219°, -151.38575°
Legal Description: S001S012W32
Region: South Central
Road Name: Oil Well Road

Datum: NAD83
Quad Name / ITM: Kenai A-4
AWC Stream #:
Stream Name:

Elevation:

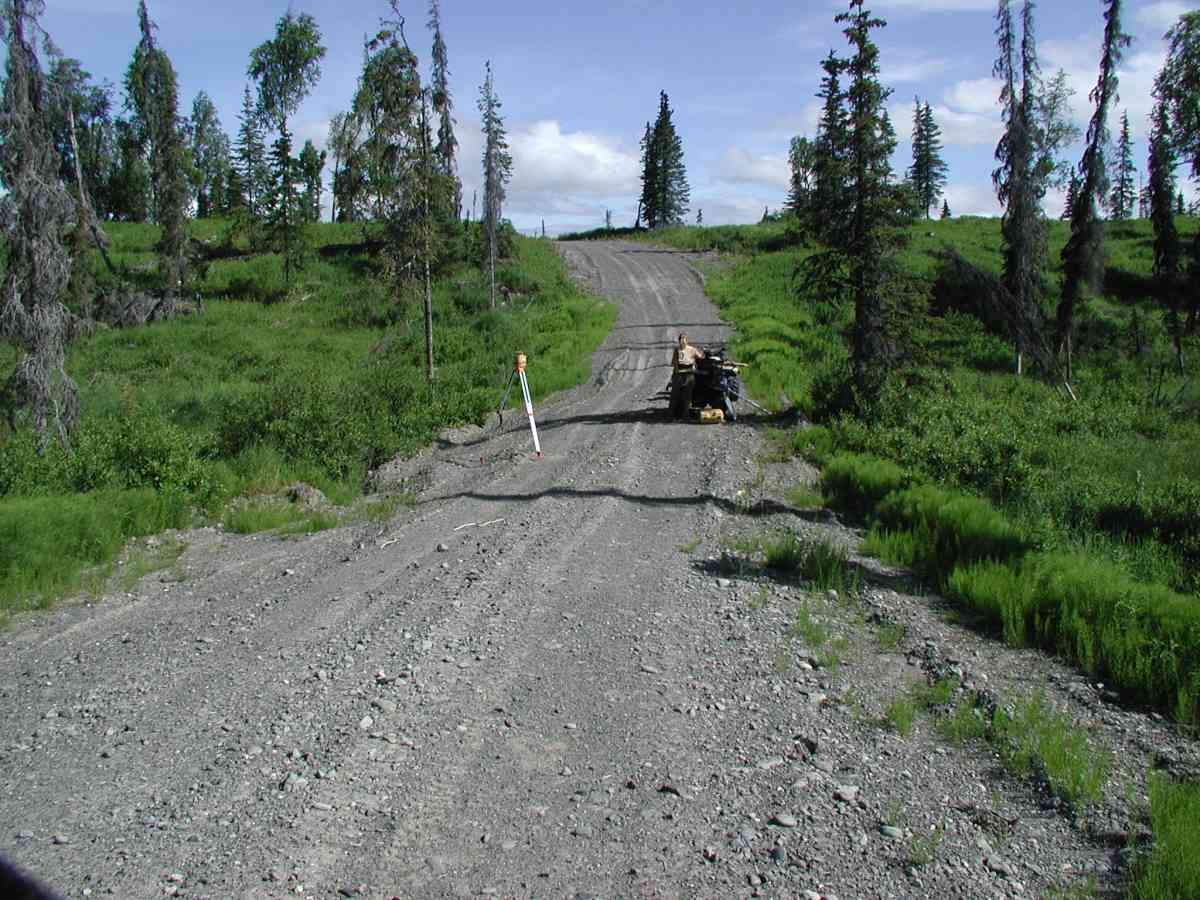

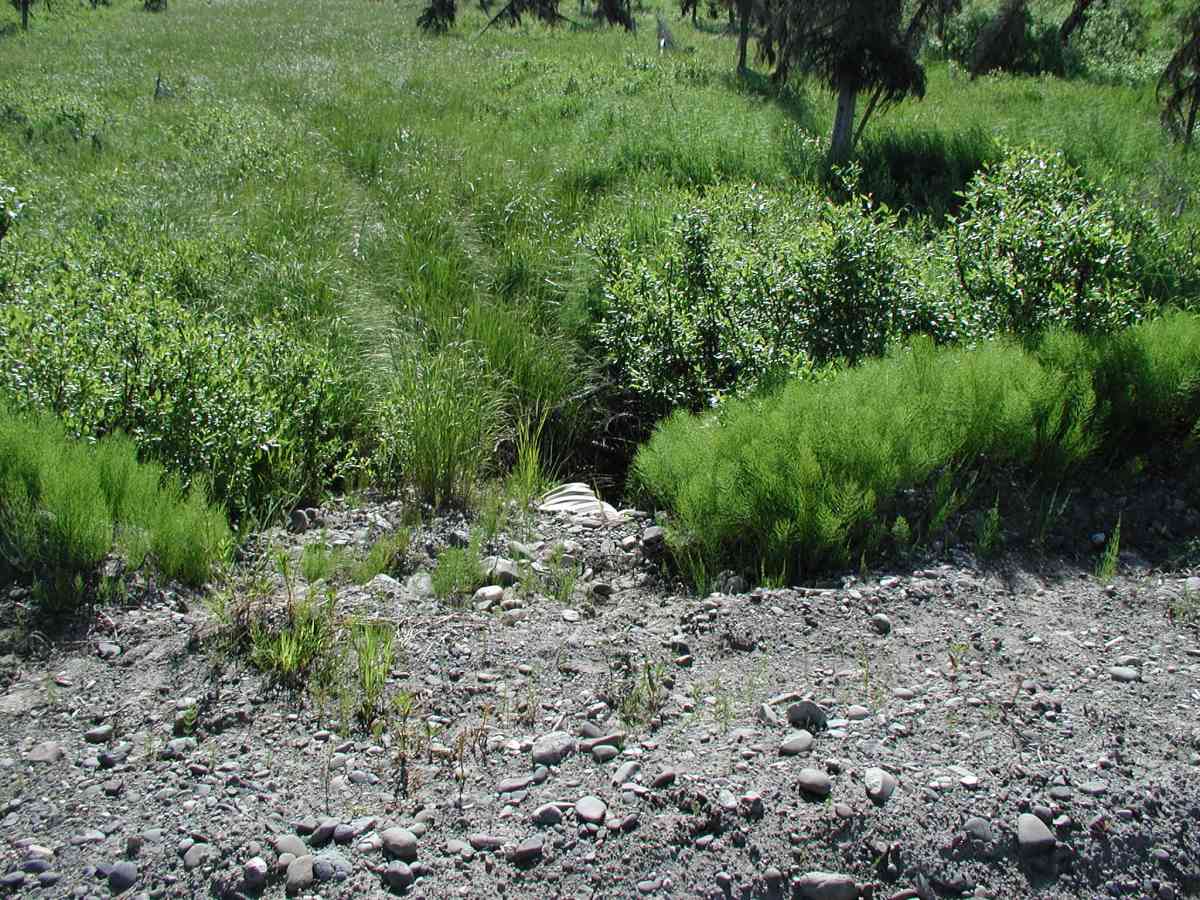

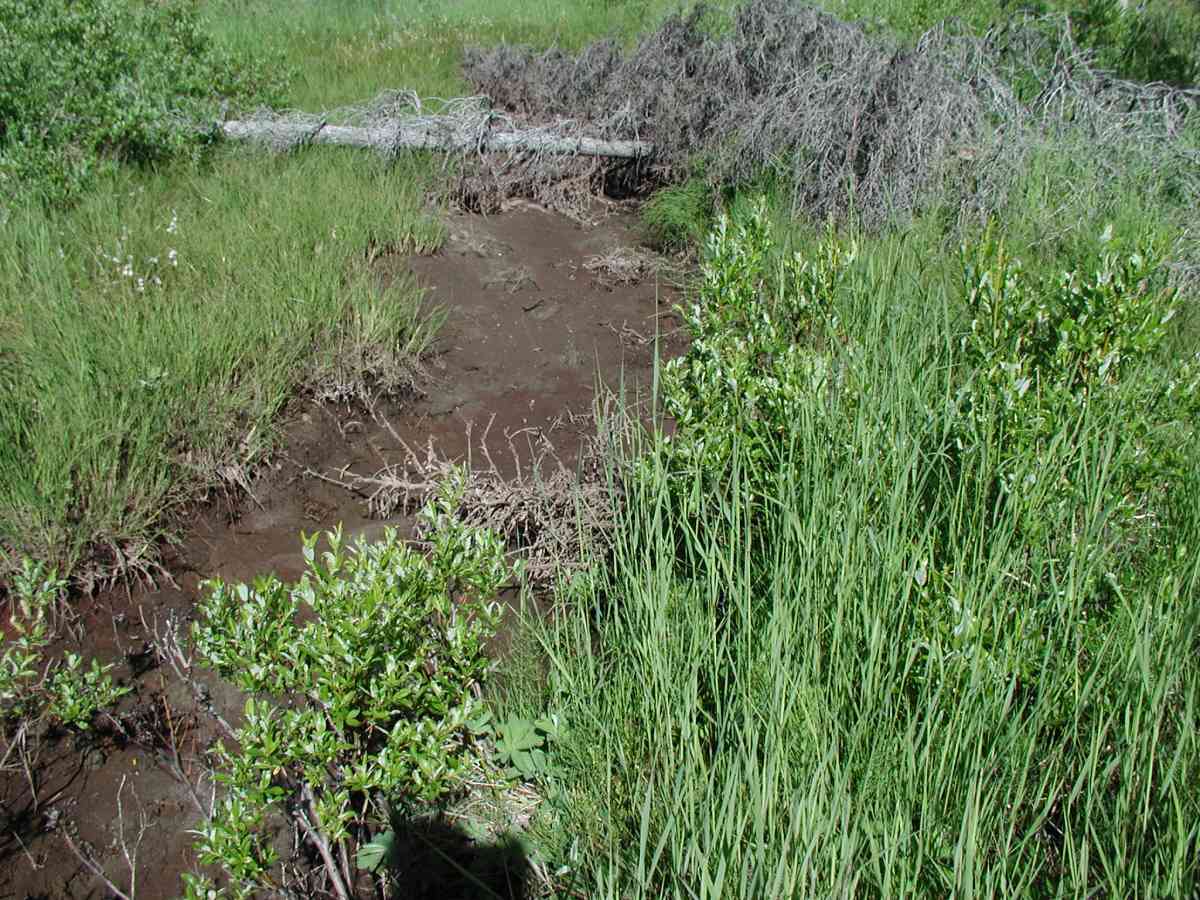

Site Comments: Location: Oil Well Rd. to 1200 Rd. Streambed is dry upstream and downstream with a little water inside the pipe. Channel disappears into a marsh about 5' upstream of the inlet.

Survey Date: Jun 23, 2004

Survey KPC04-1A012

Observers: Mary King, Pam Russell

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools:
Construction Year:

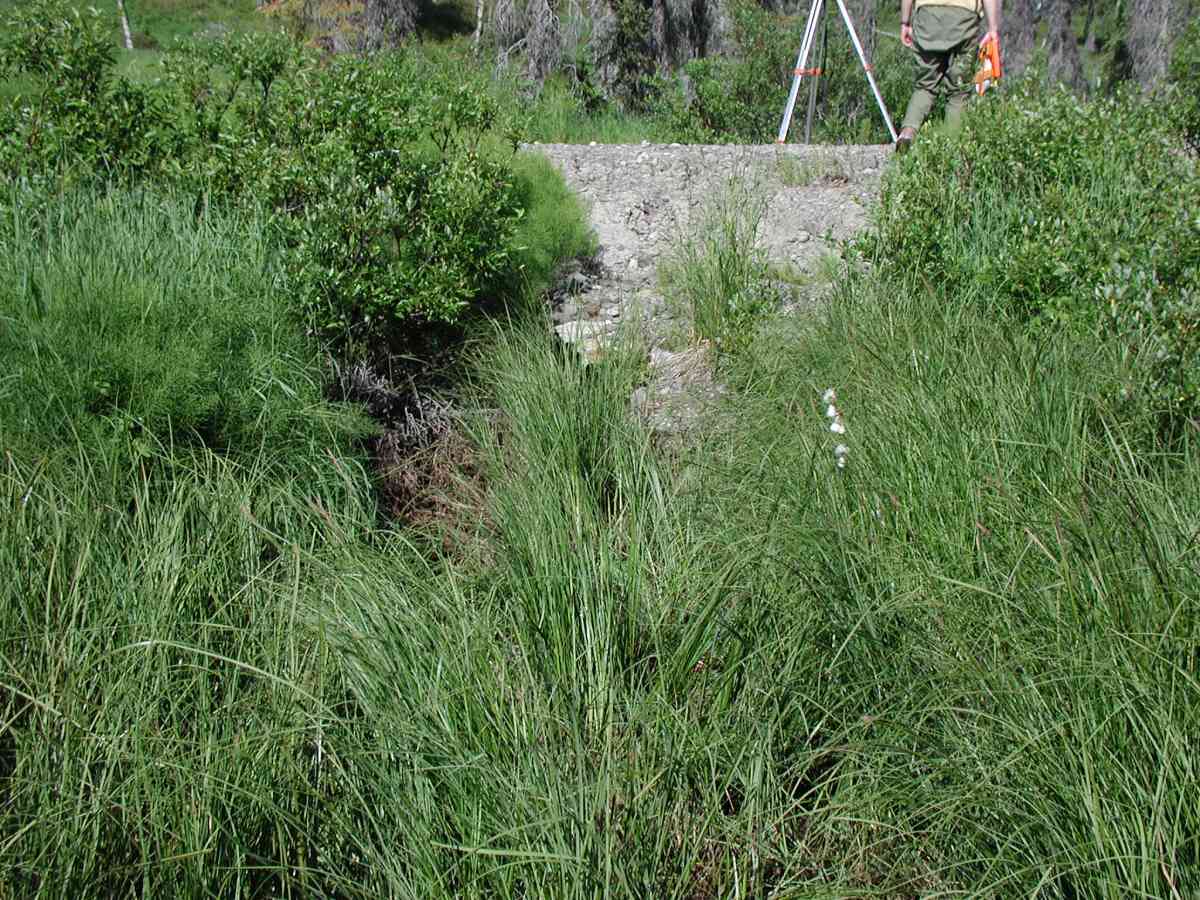

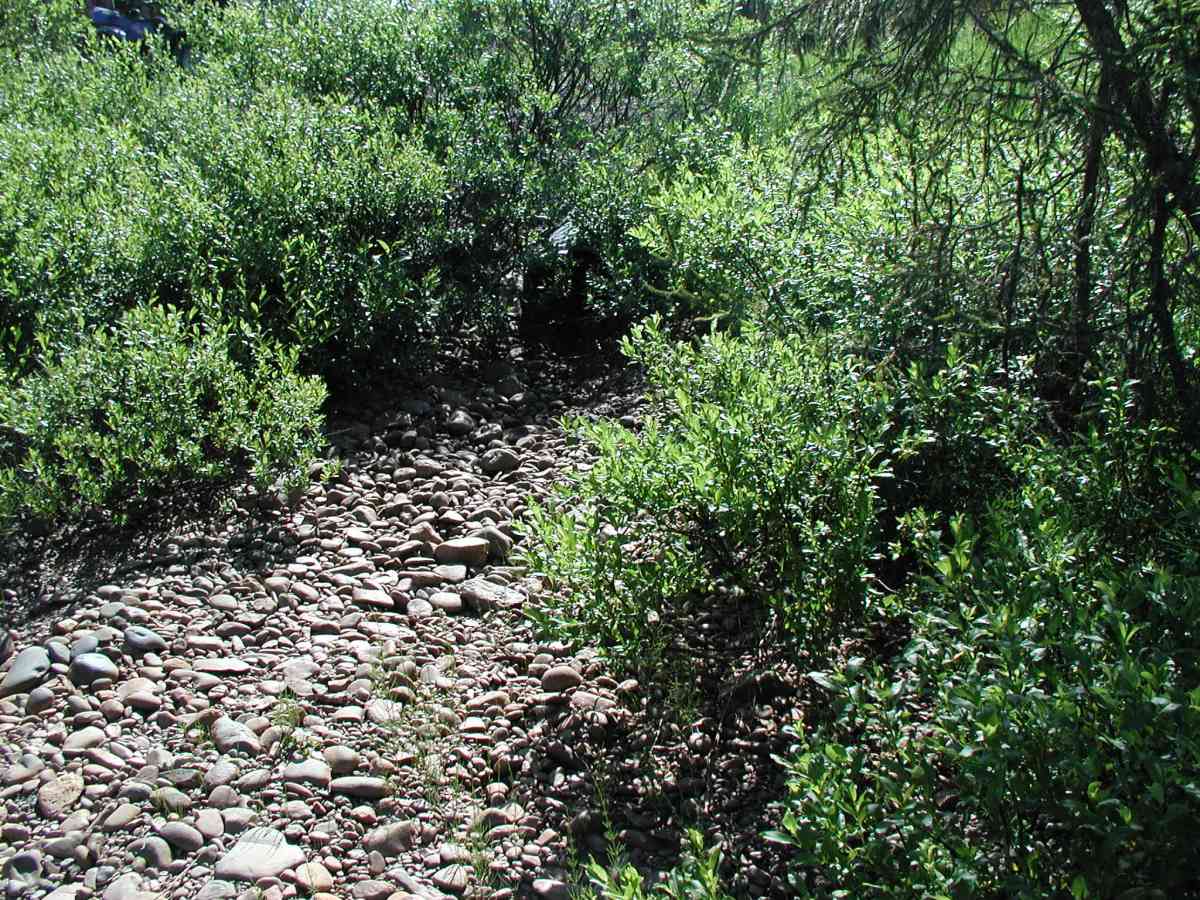

Comments: Location: Oil Well Rd. to 1200 Rd. Stream: Streambed is dry upstream and downstream with a little water inside the pipe. Channel disappears into a marsh about 5' upstream of the inlet. Gravel from washout is in large piles downstream of outlet. No stream flow ( no measurements taken).

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 36.68

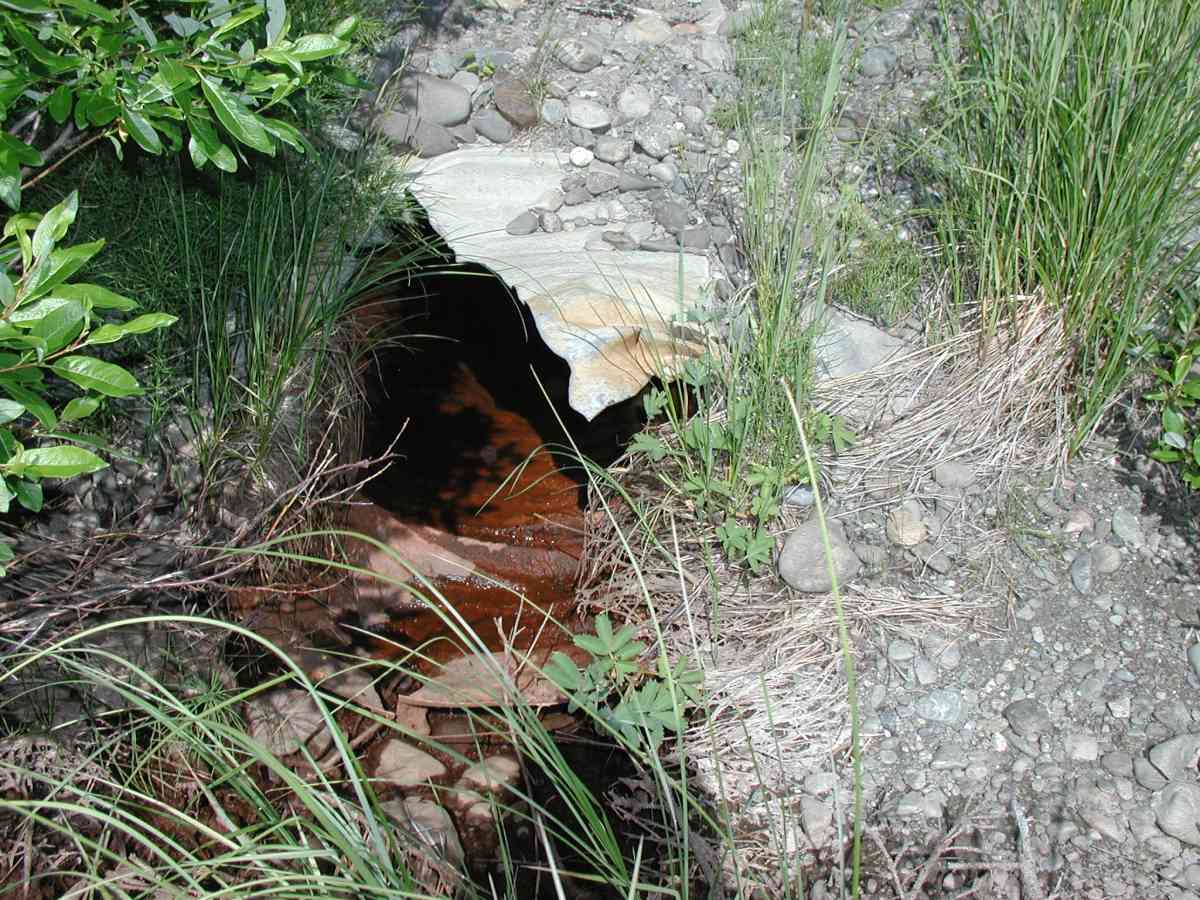

Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.17
Height(ft):1.75
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):1.75
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type:
Constriction Ratio:
Culvert Gradient: 0.52%
Max Slope:
Max Slope Length:

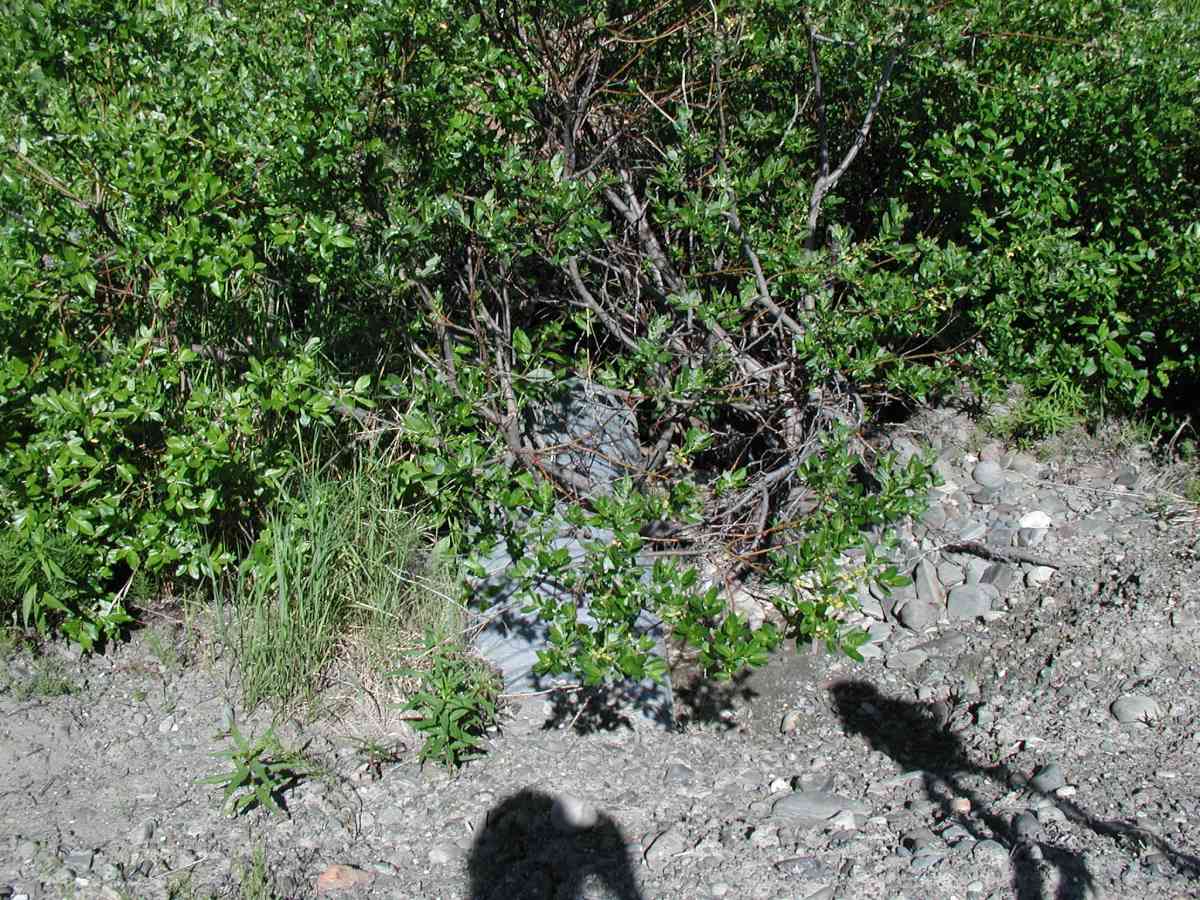

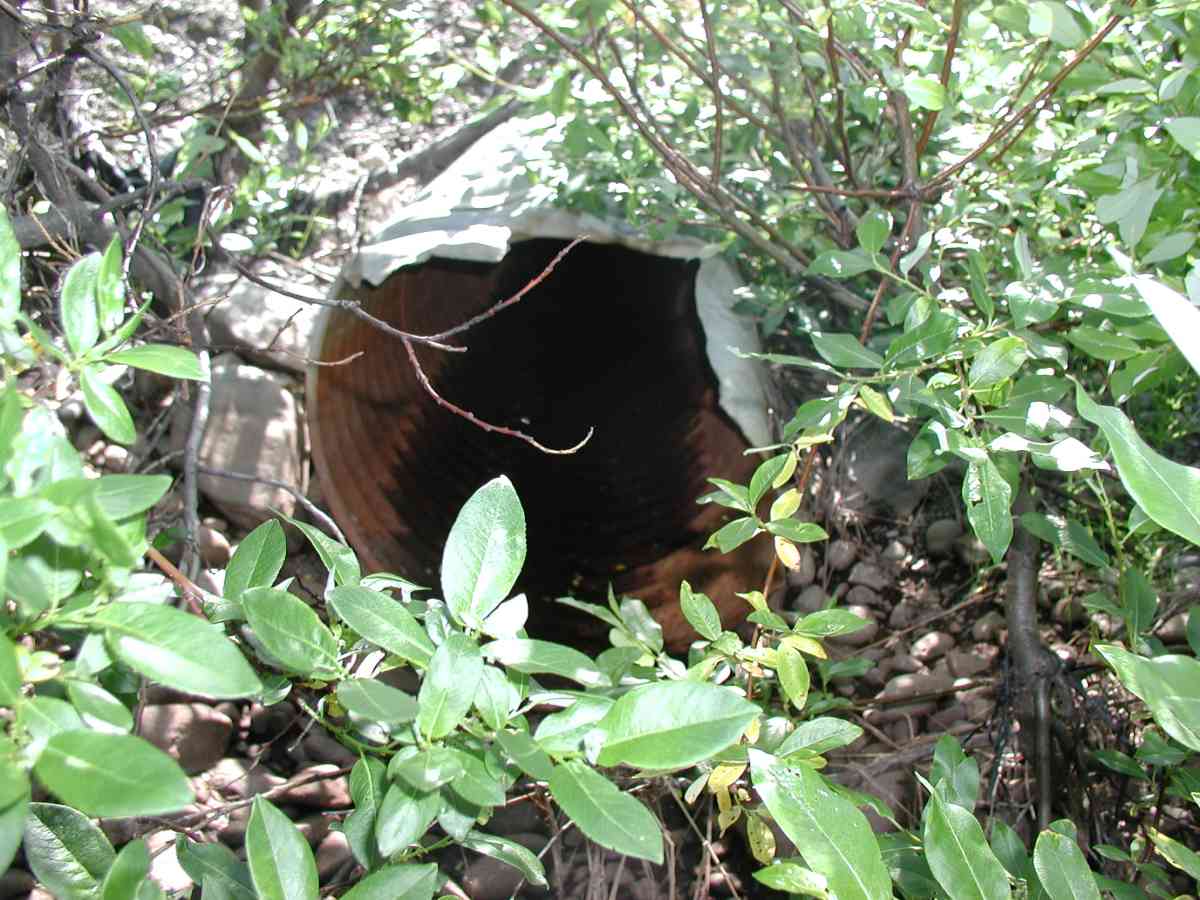

Comments: Culvert: Outlet pipe is cut at an angle on one side. Pipe condition=1. Embedded-No.

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Outlet Culvert Top (On 2nd seam from end of outlet pipe. Scratched a "carat" "V".) 1 100.00
Max Pool Depth 0.00 5.0 107.70
Outlet Invert 1 5.00 0.0 97.94
Road Elev (Road surface) 23.00 101.86
Inlet Culvert Invert 1 41.00 0.0 98.13

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
