Fish Passage Site 20100765

Coordinates (dec. deg.): 62.71638°, -144.24256°
Legal Description: C011N006E23
Region: South Central
Road Name: Tok Cut-Off

Datum: NAD83
Quad Name / ITM: Gulkana C-1
AWC Stream #:
Stream Name: Copper River Tributary, Unnamed

Elevation:

Site Comments: MP 51.5

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey CRB02-TC232

Observers: Dean Beers, James Laurence, James Laurence

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: None

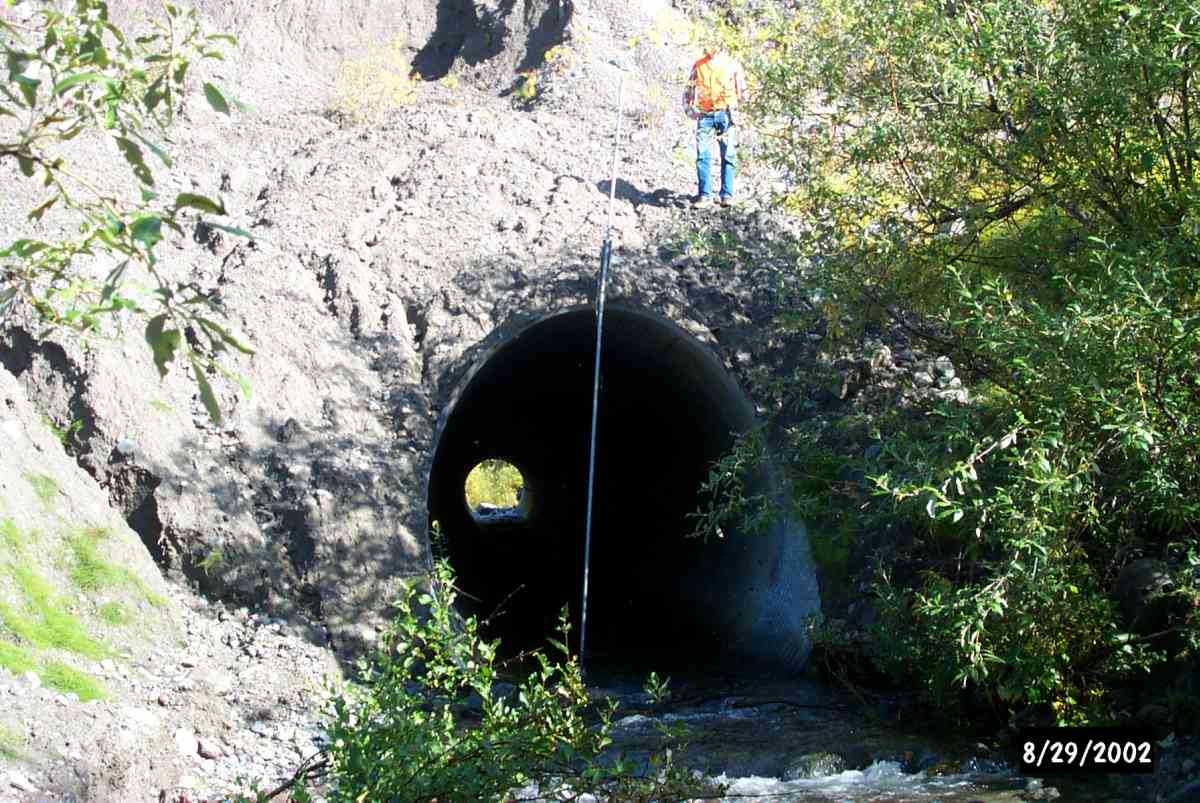

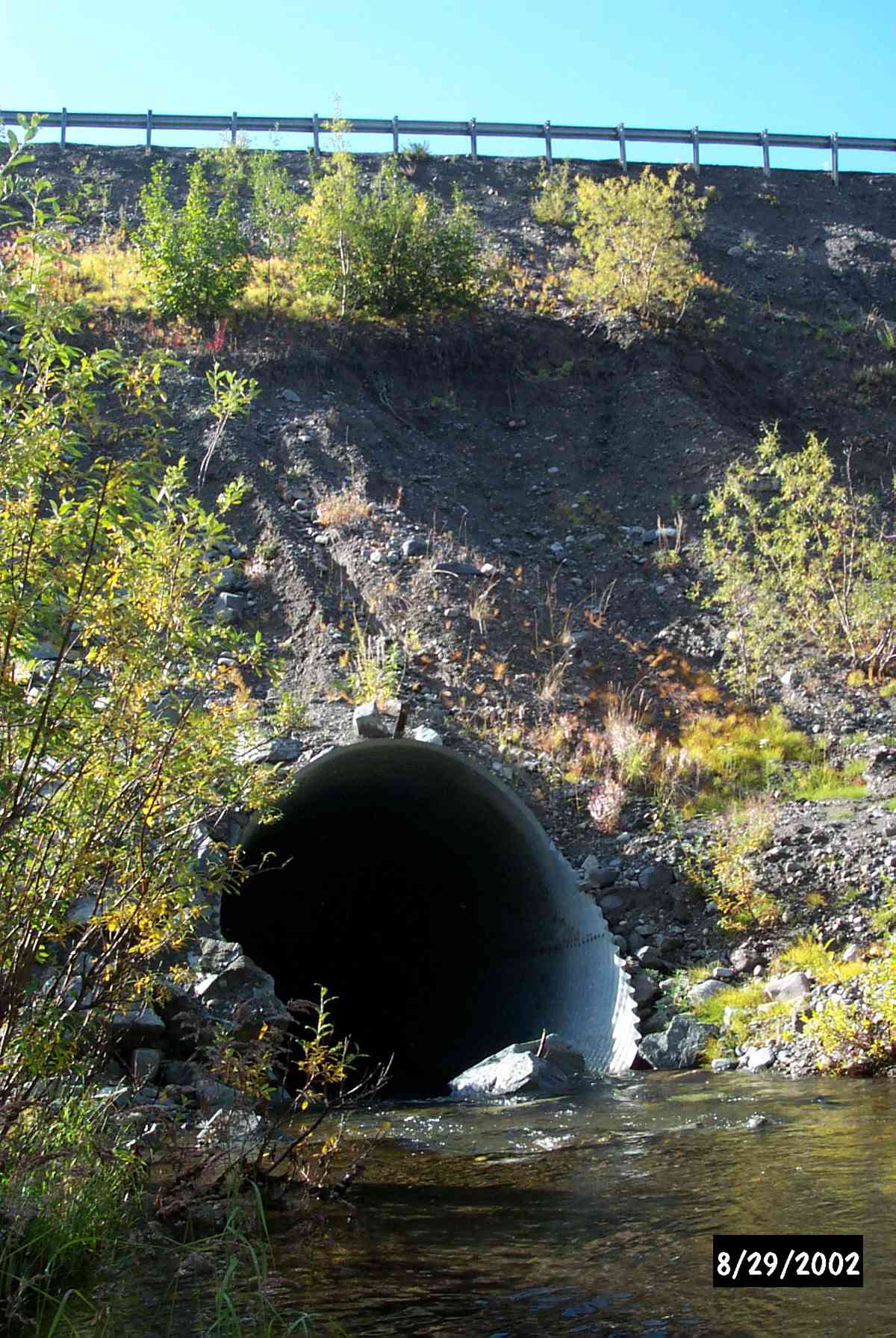

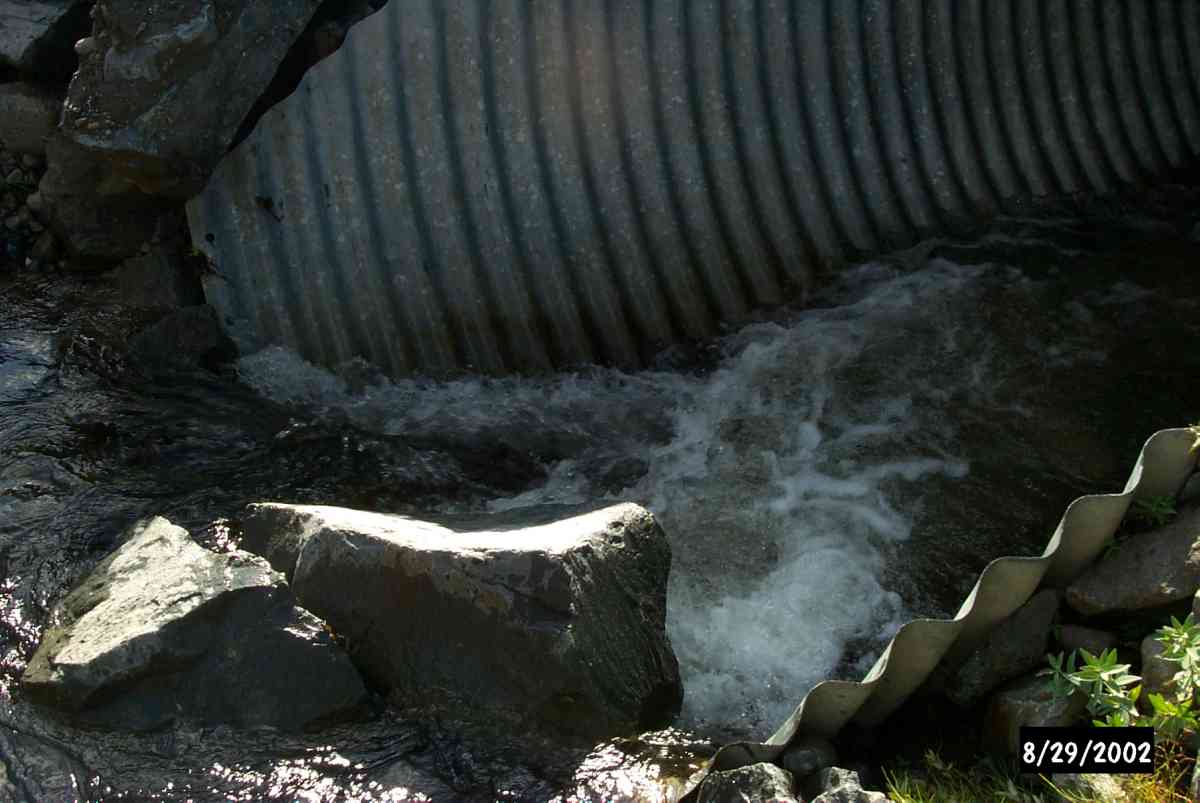

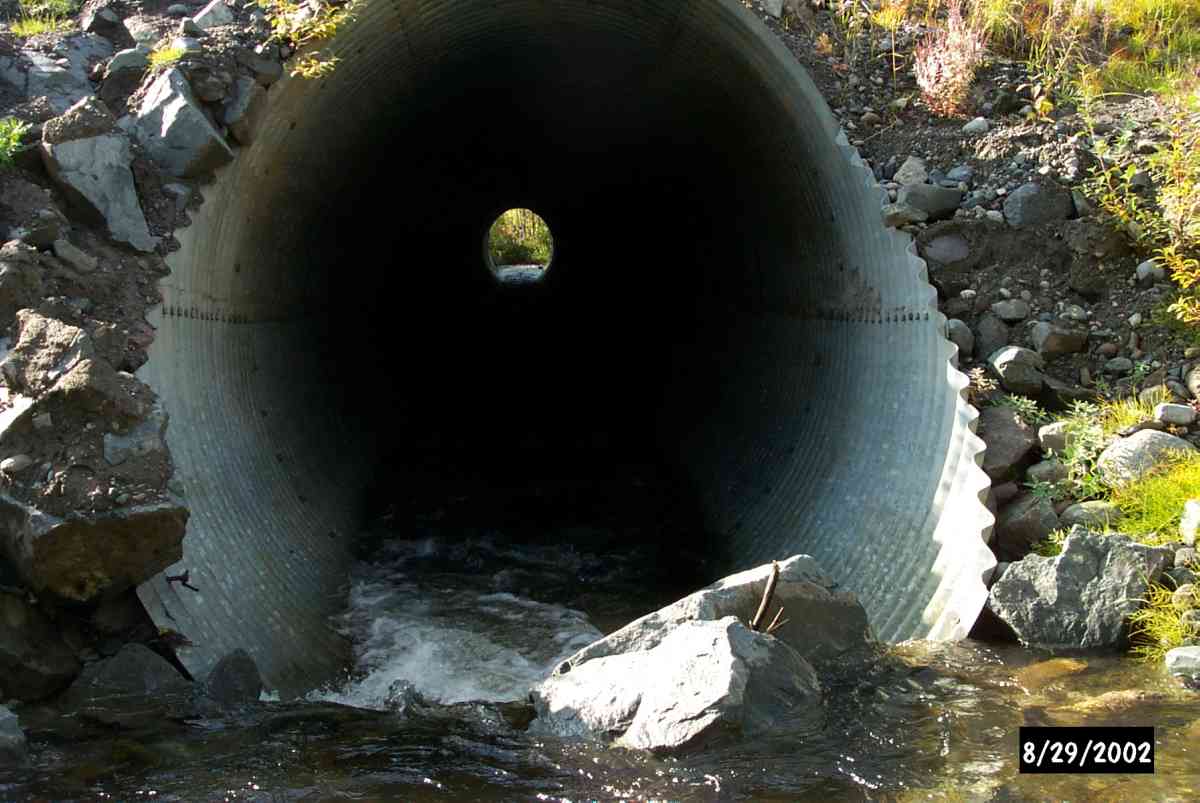

Culvert Measurements

ID: 1 Structure Type: Pipe-arch (Corrugated Metal) Fish Passage Rating:

Length(ft):
Inlet Type:
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):8.0
Height(ft):10.0
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type:
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

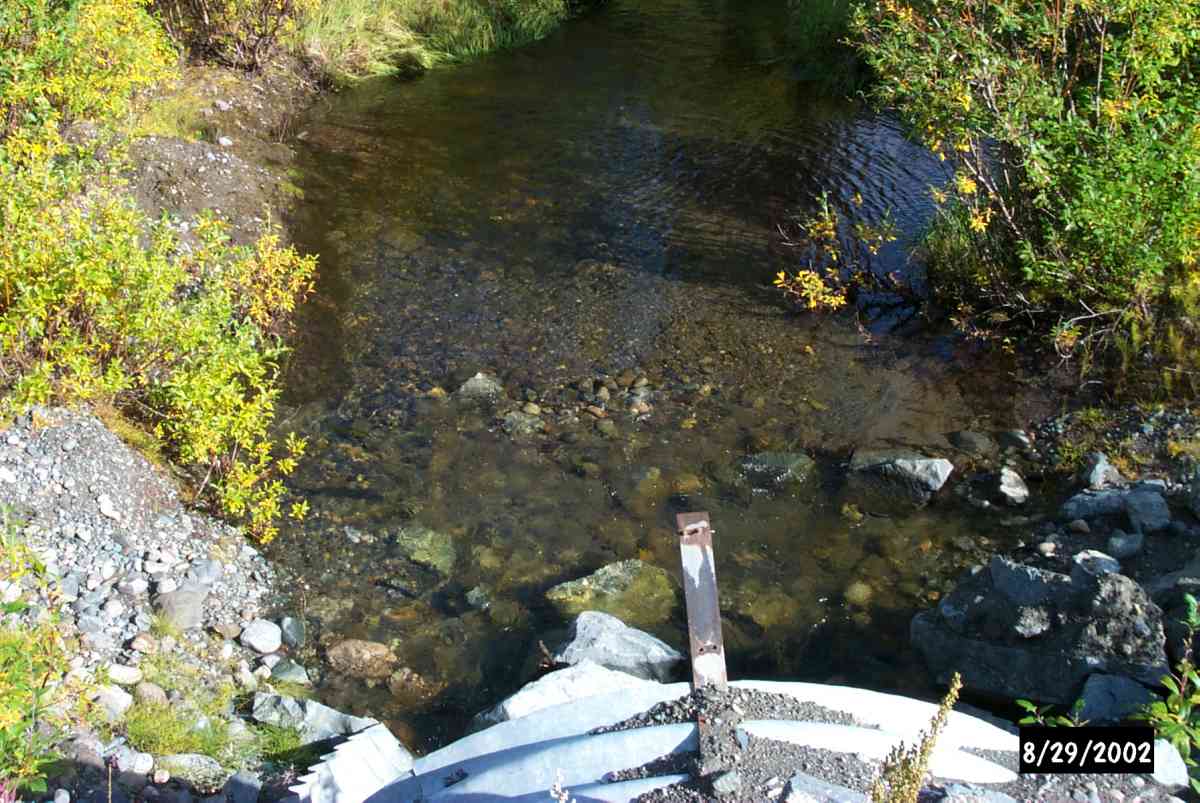

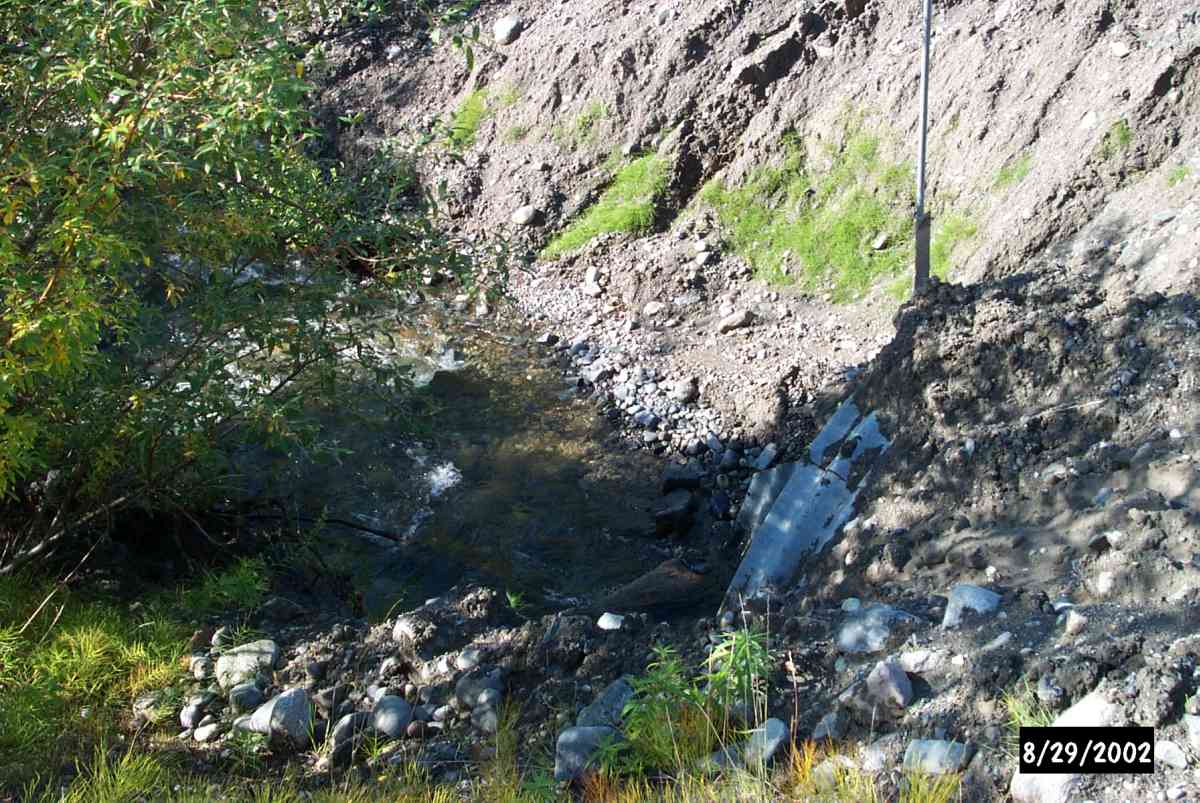

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
