Fish Passage Site 20100551

Coordinates (dec. deg.): 60.53677°, -145.72969°
Legal Description: C015S003W27
Region: South Central
Road Name: Copper River Highway

Datum: NAD83
Quad Name / ITM: Cordova C-5
AWC Stream #:
Stream Name: Eyak Lake tributary

Elevation:

Site Comments: Direct trib. To Eyak Lake

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey CRB02-CR086

Observers: Dean Beers, Scott Slemmons, Scott Slemmons

Overall Fish Passage Rating:

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: This site has been resurveyed, this old survey is for reference only.

Culvert Measurements

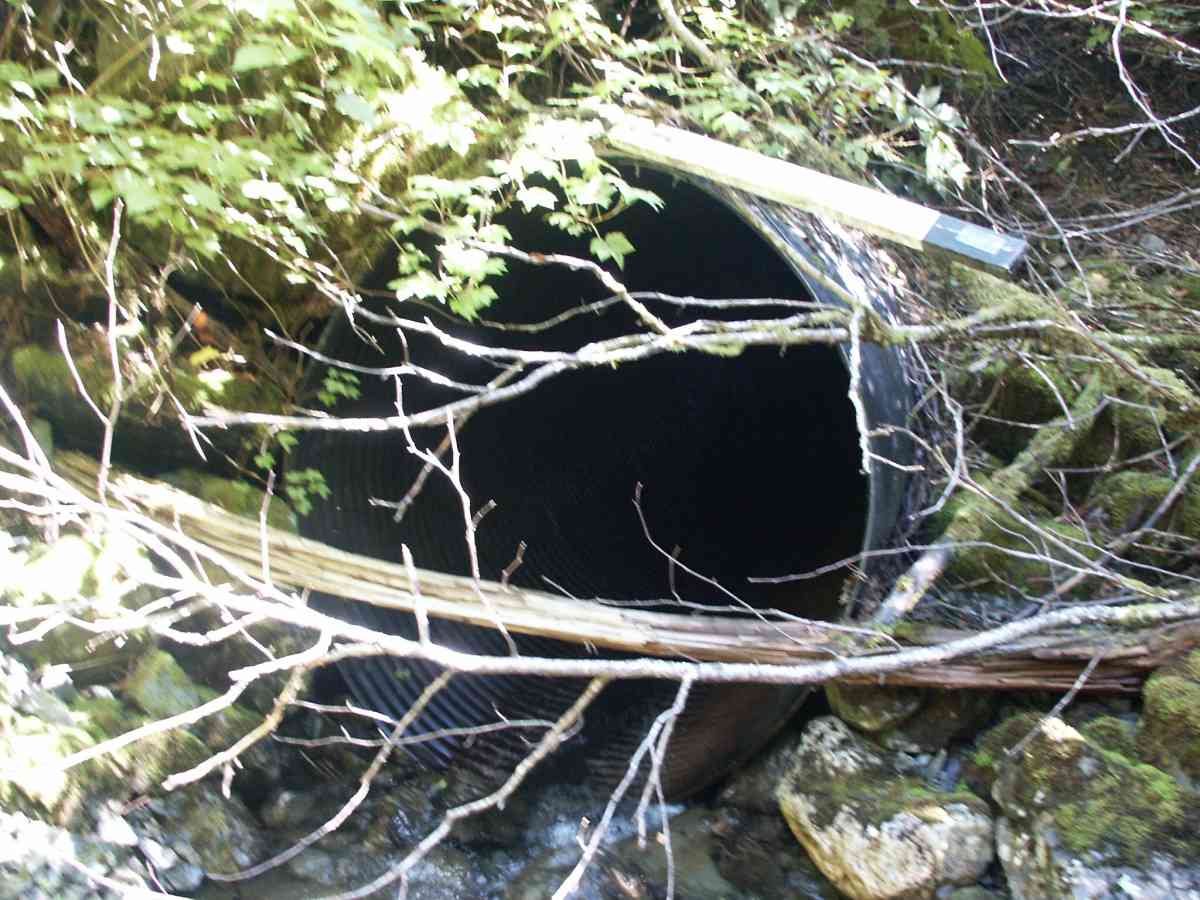

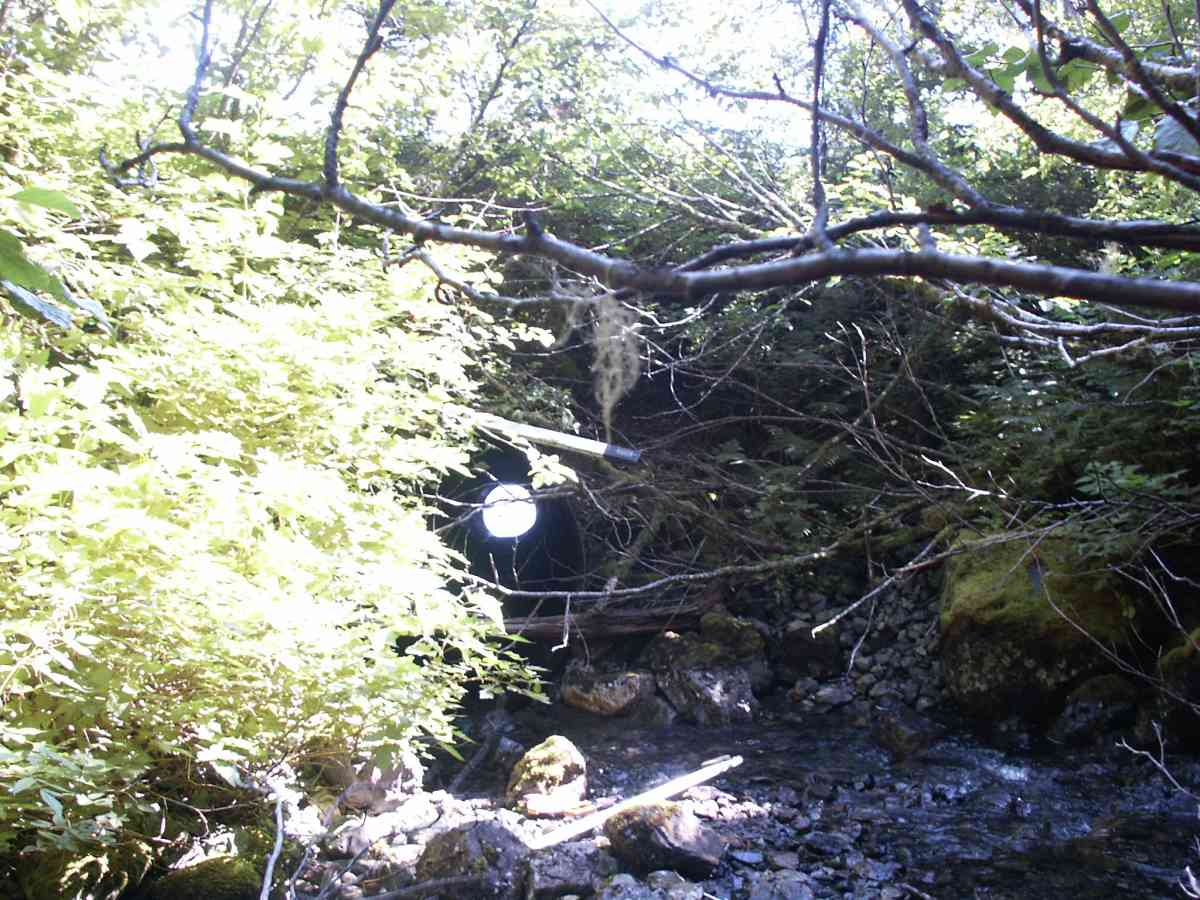

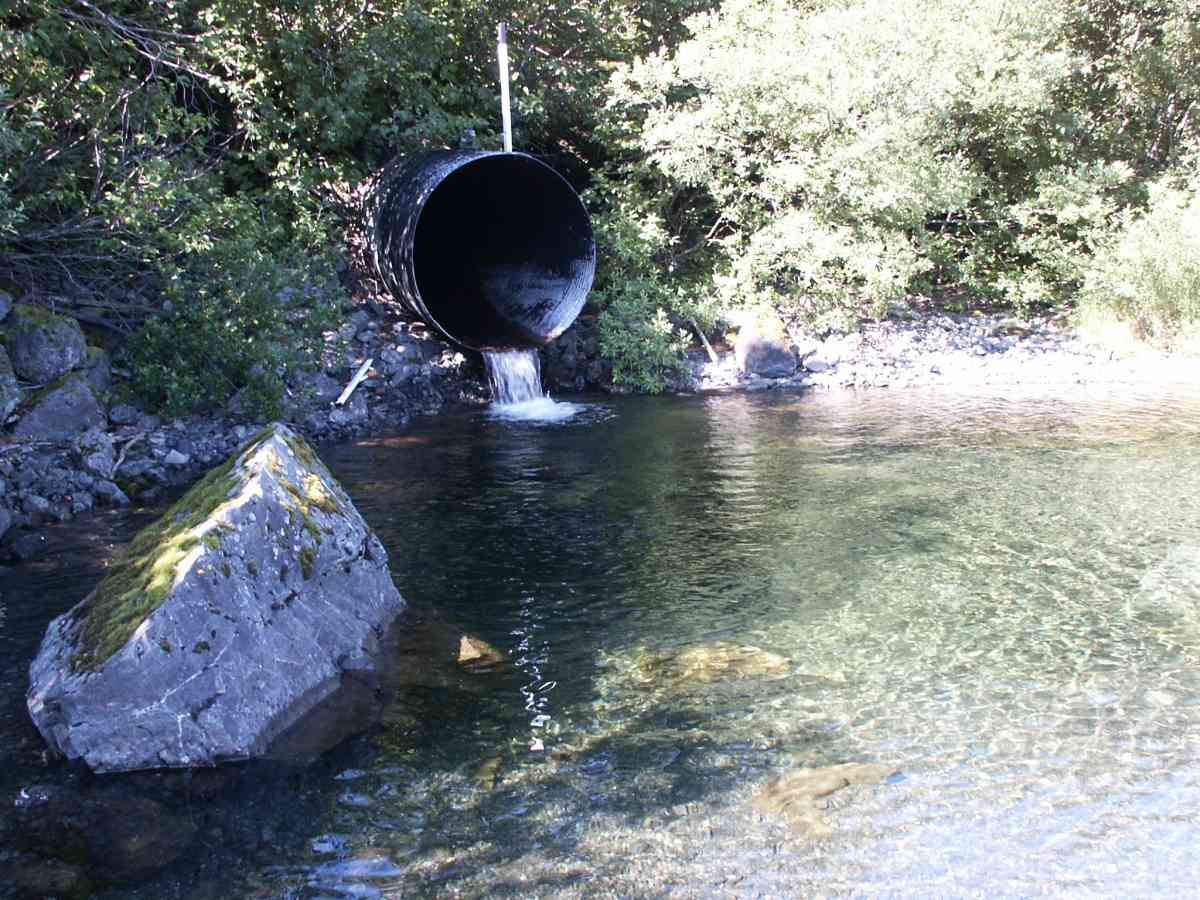

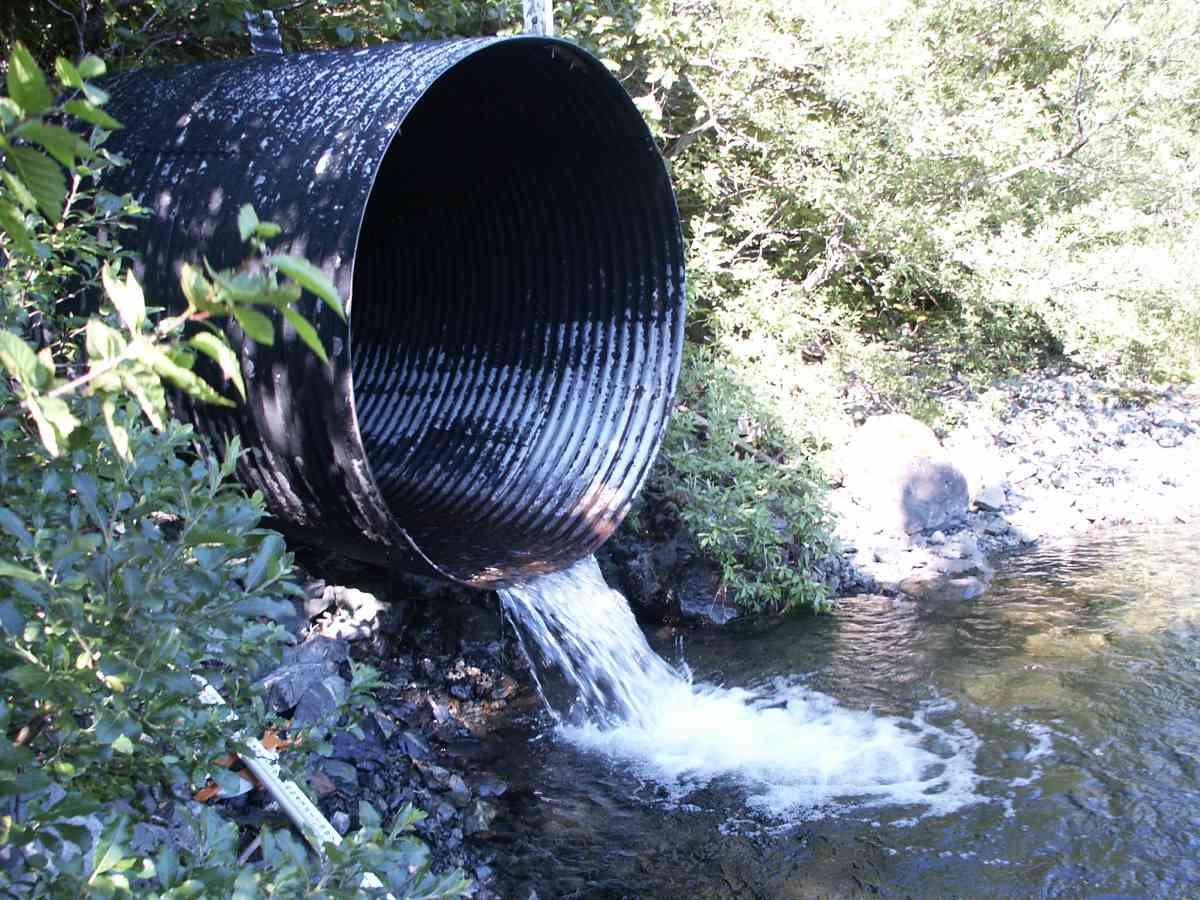

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 86.0
Inlet Type:
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):5.6
Height(ft):6.0
Apron Length(ft):
Water Depth(ft): 0.2
Rustline Height(ft):0.3
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type:
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 50.0 8.00
Upstream ordinary high water 75.0 7.00
Upstream ordinary high water 100.0 8.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Outlet Invert 1 0.00 0.0 99.00
Inlet Thalweg 1 86.00 0.0 78.10
Inlet Culvert Invert 1 86.00 0.0 78.13

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
