Fish Passage Site 20100520

Coordinates (dec. deg.): 60.46167°, -145.02038°
Legal Description: C016S002E27
Region: South Central
Road Name: Copper River Highway

Datum: NAD83
Quad Name / ITM: Cordova B-3
AWC Stream #:
Stream Name:

Elevation:

Site Comments: None

Survey Date: Jul 29, 2002

Survey CRB02-CR054

Observers: Dean Beers, Scott Slemmons, Scott Slemmons

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: None

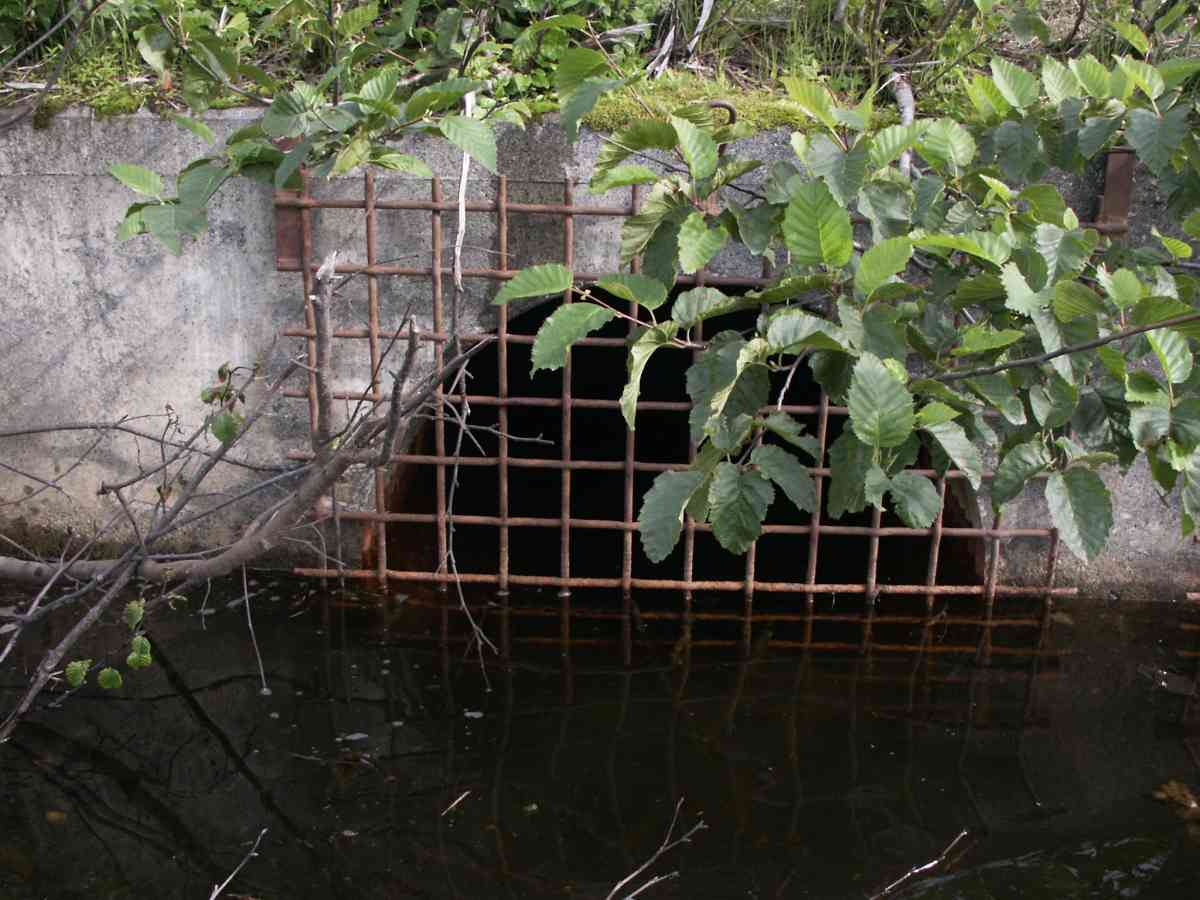

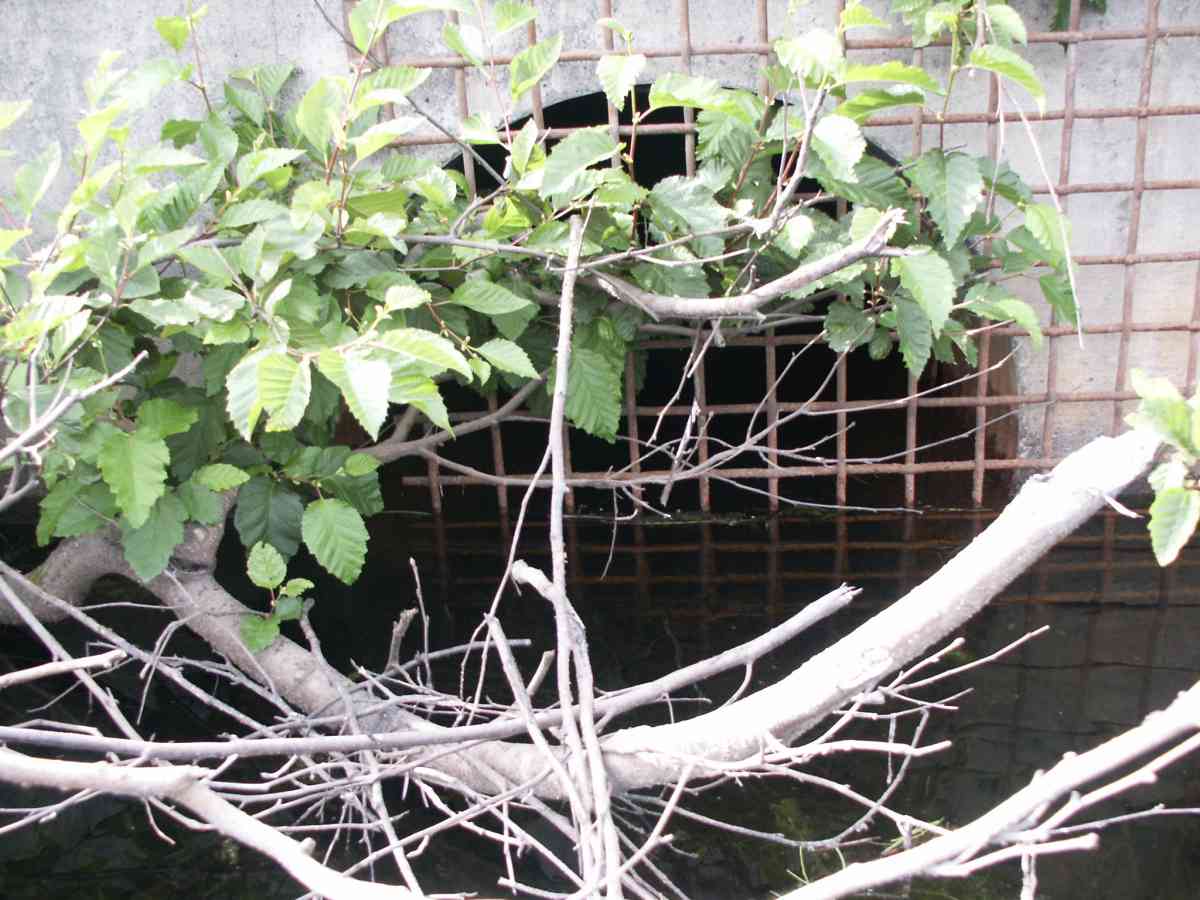

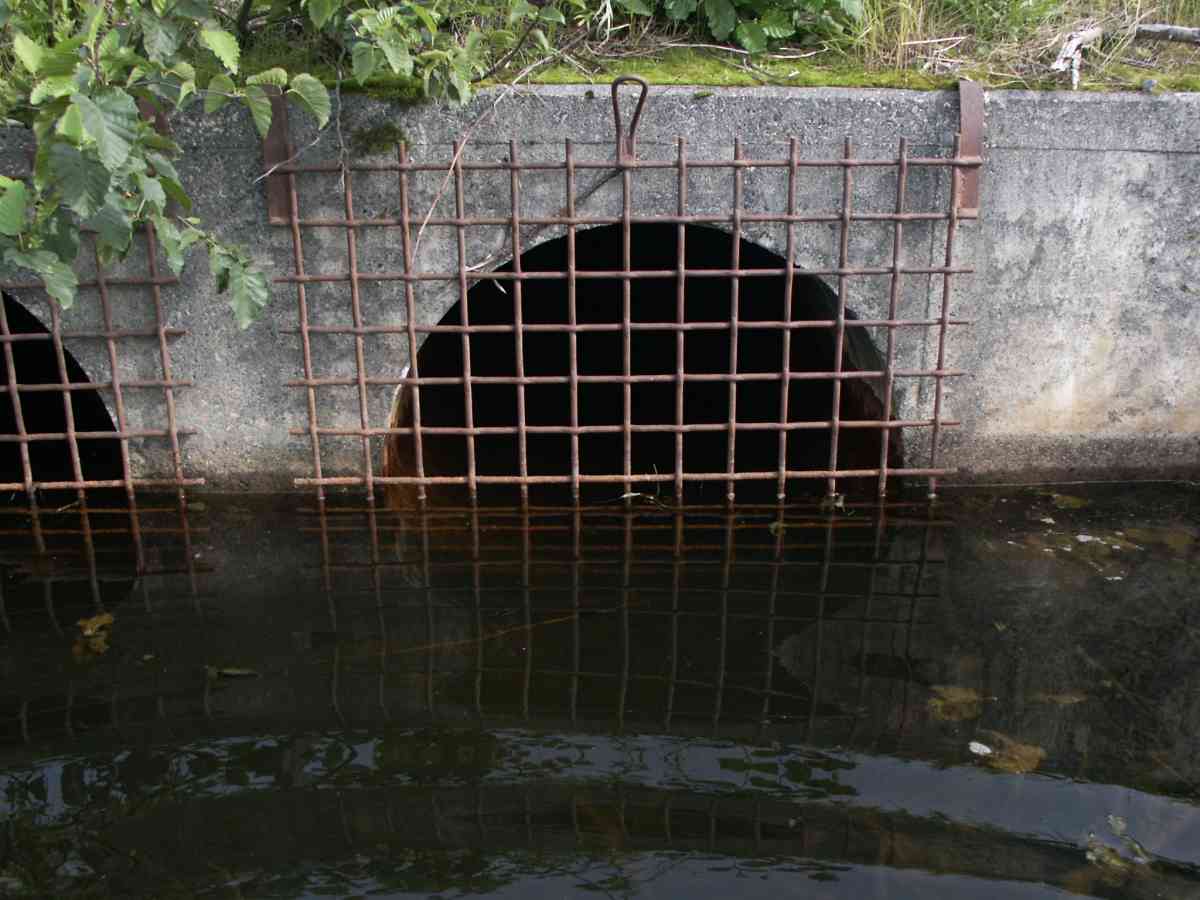

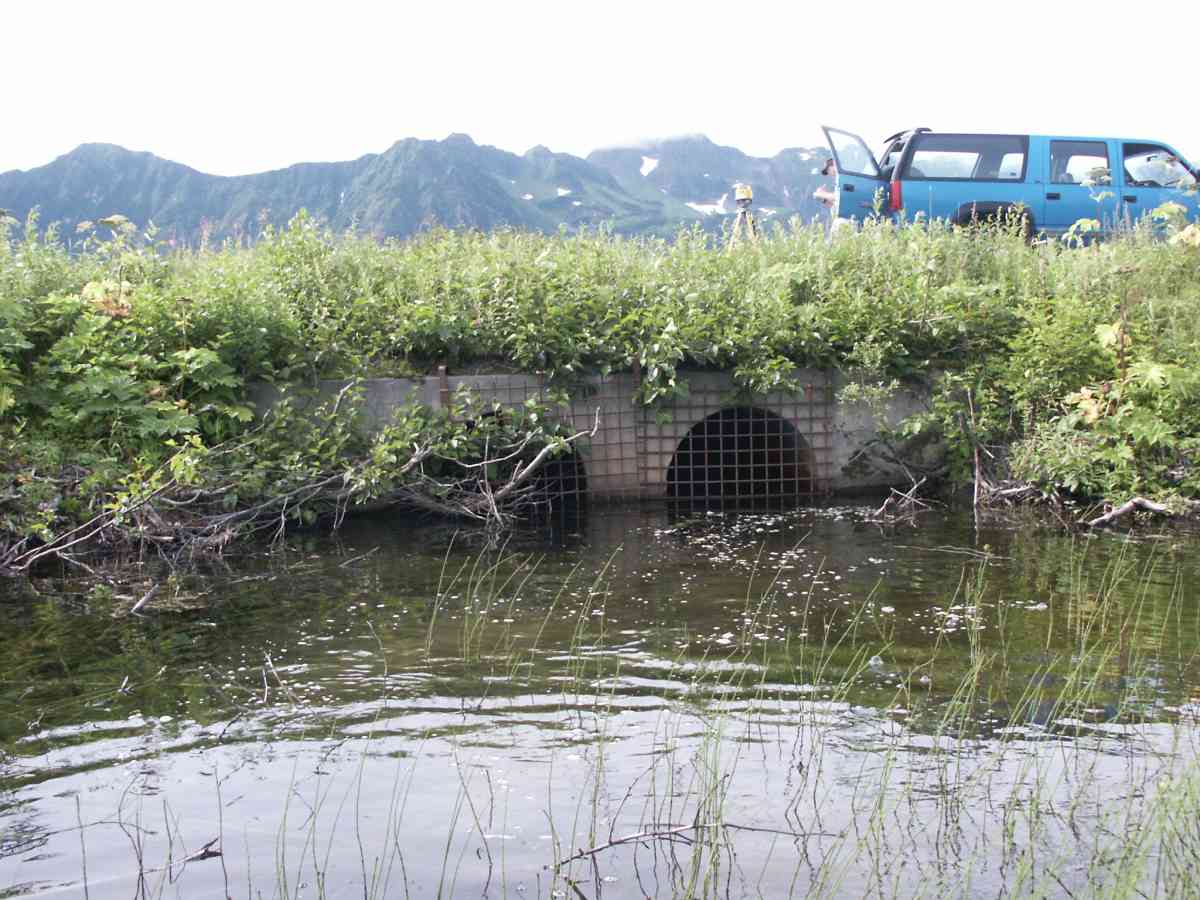

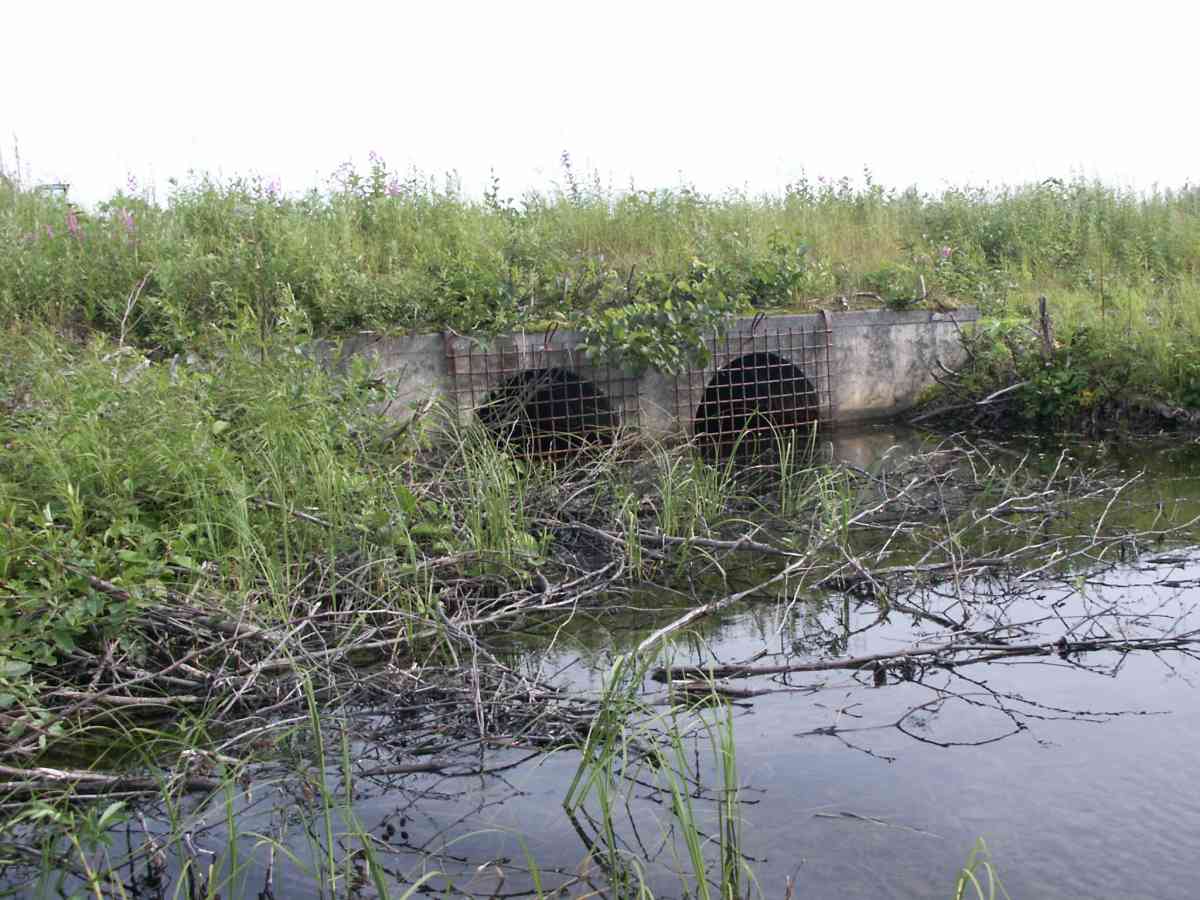

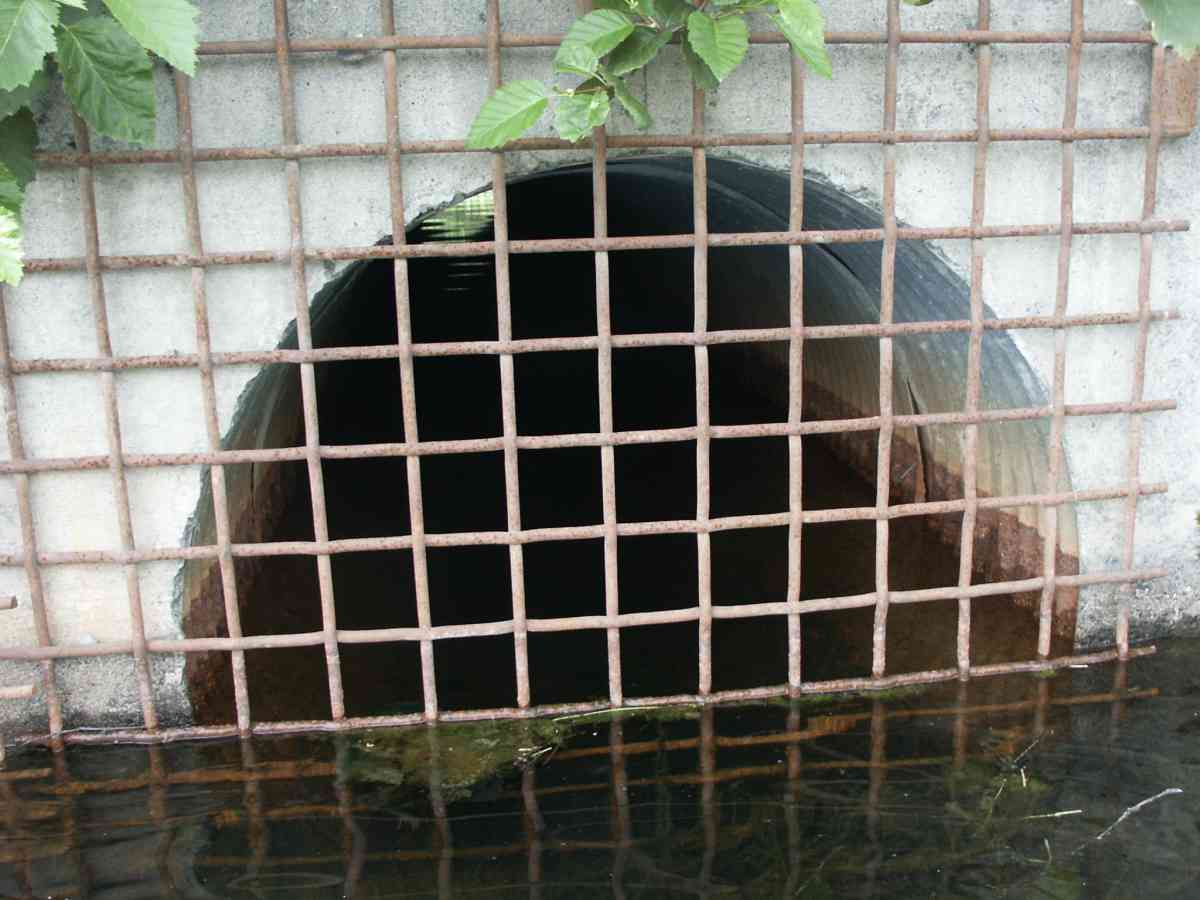

Culvert Measurements

ID: 1 Structure Type:N/A Fish Passage Rating:

Length(ft): 60.0
Inlet Type:
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):4.0
Height(ft):4.0
Apron Length(ft):
Water Depth(ft): 2.2
Rustline Height(ft):2.7
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type:
Constriction Ratio:
Culvert Gradient: 1.13%
Max Slope:
Max Slope Length:
ID: 2 Structure Type:N/A Fish Passage Rating:

Length(ft): 60.0
Inlet Type:
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):4.0
Height(ft):4.0
Apron Length(ft):
Water Depth(ft): 2.2
Rustline Height(ft):2.7
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type:
Constriction Ratio:
Culvert Gradient: 0.75%
Max Slope:
Max Slope Length:

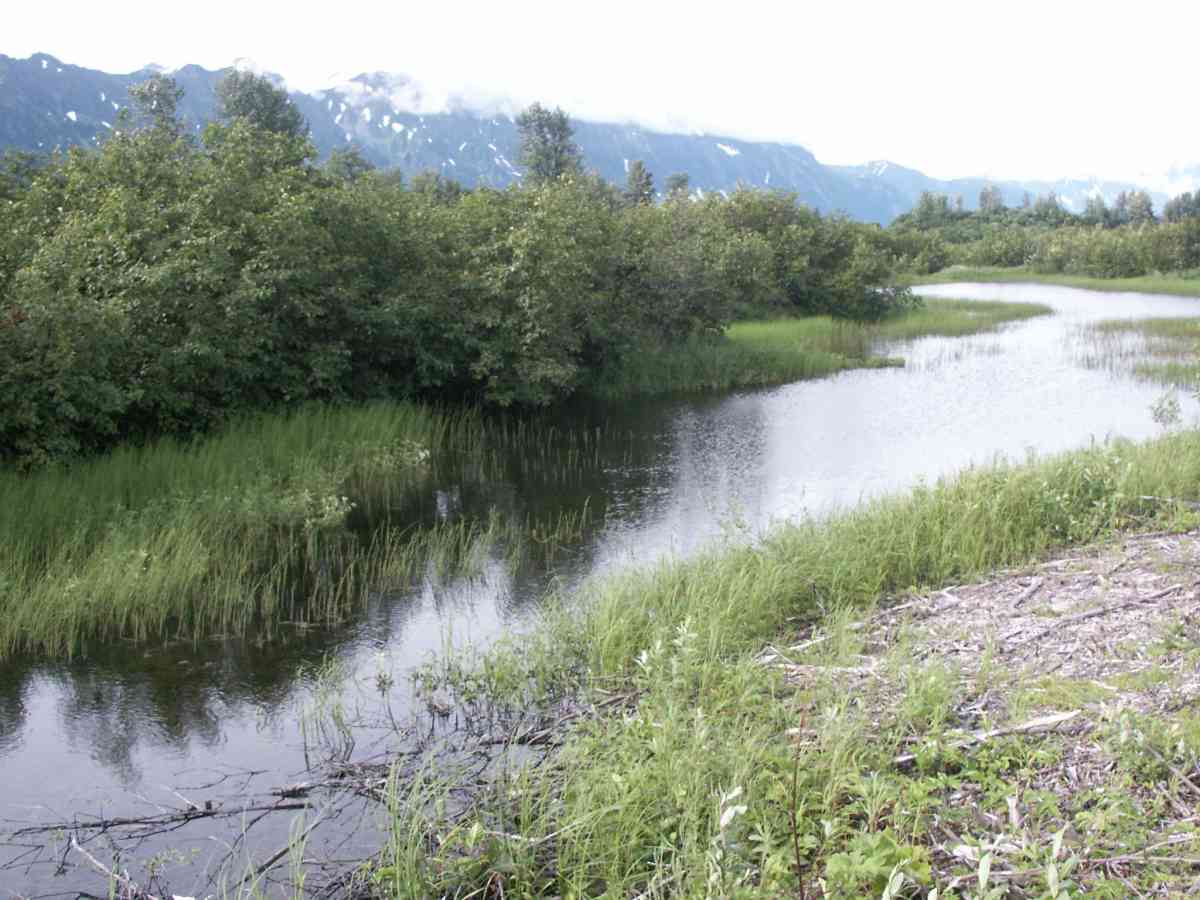

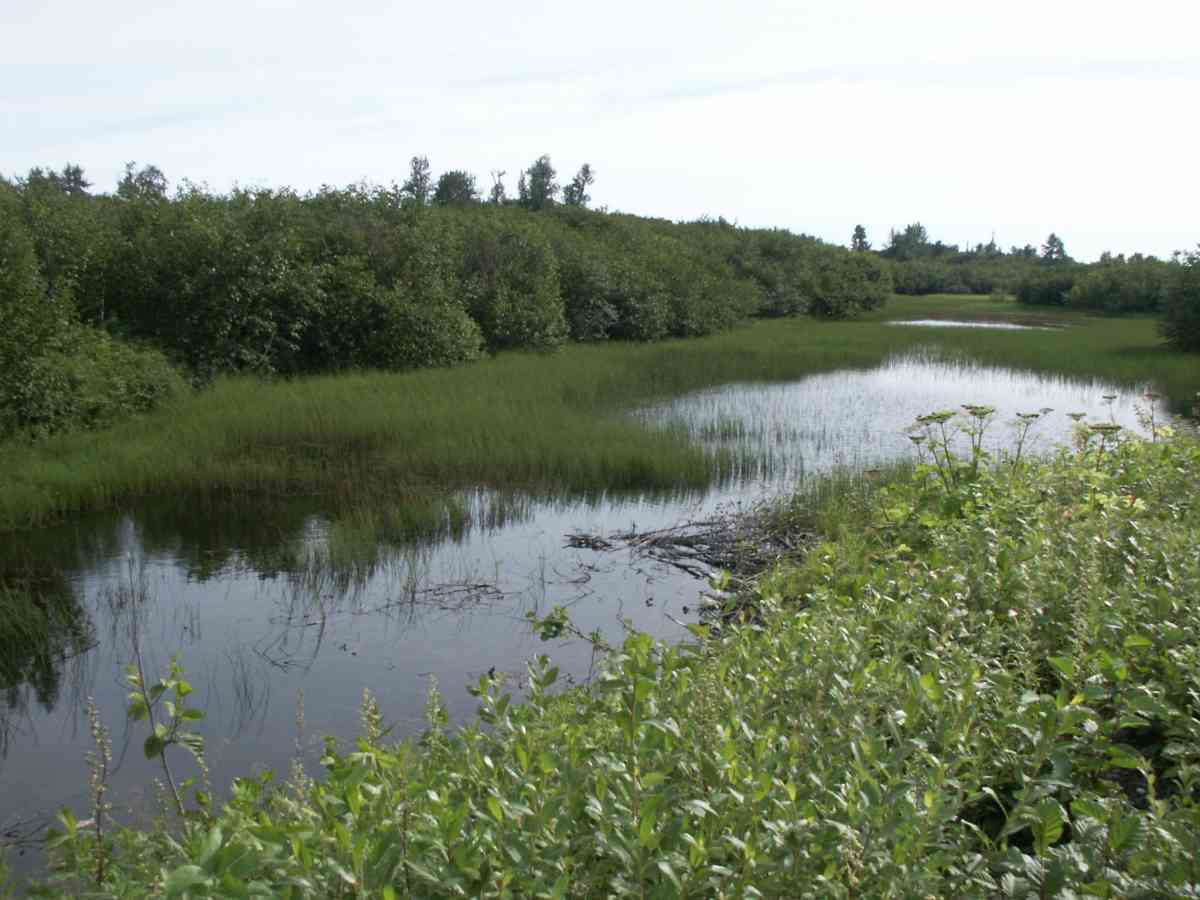

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Outlet Thalweg 1 0.00 0.0 87.57
Outlet Thalweg 2 0.00 0.0 87.59
Outlet Invert 1 0.00 0.0 88.09
Outlet Invert 2 0.00 0.0 88.43
Inlet Culvert Invert 1 60.00 0.0 88.77
Inlet Culvert Invert 2 60.00 0.0 88.88
Inlet Thalweg 2 60.00 0.0 88.21
Inlet Thalweg 1 60.00 0.0 87.65

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
