Fish Inventory Site FSNPR1604C03

Coordinates (dec. deg.): 69.25944°, -149.50317°
Legal Description: U002S011E21
Region: Arctic

Datum: WGS84
Quad Name / ITM: Sagavanirktok B-5
AWC Stream #:
Stream Name: Unnamed stream

Elevation:

Site Comments: H122 Tributary of Kuparuk River

Survey Date: Jul 29, 2016

Survey FSNPR16-04C03

Observers: Raye Ann Neustel, J Johnson

Station Characteristics

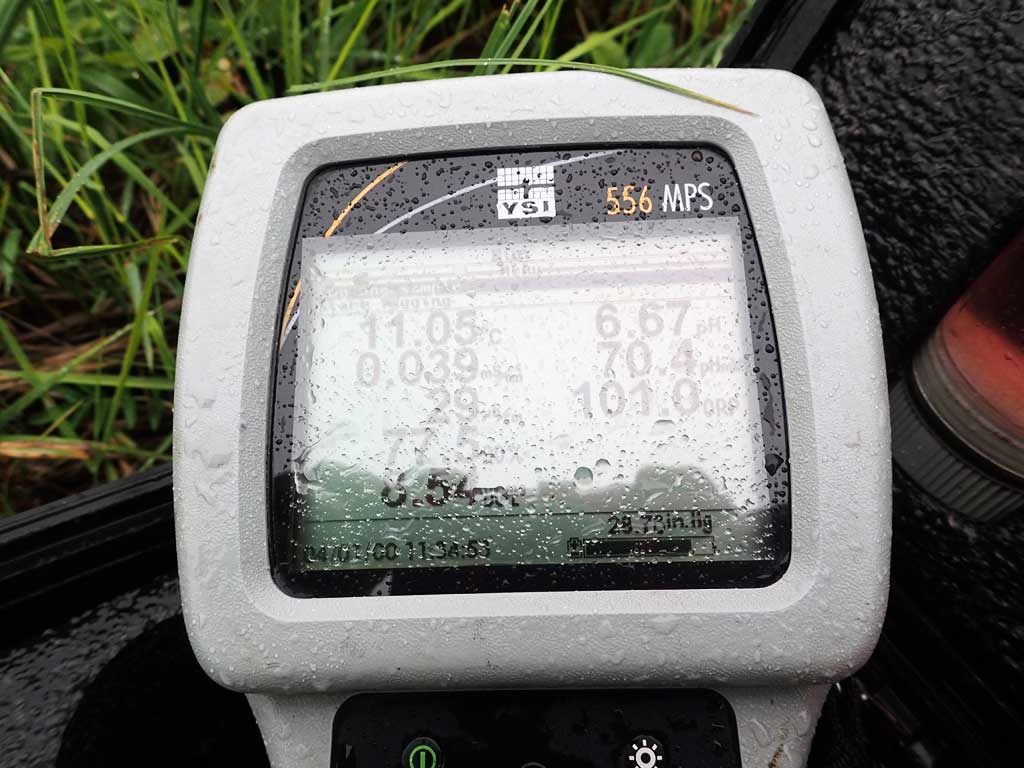

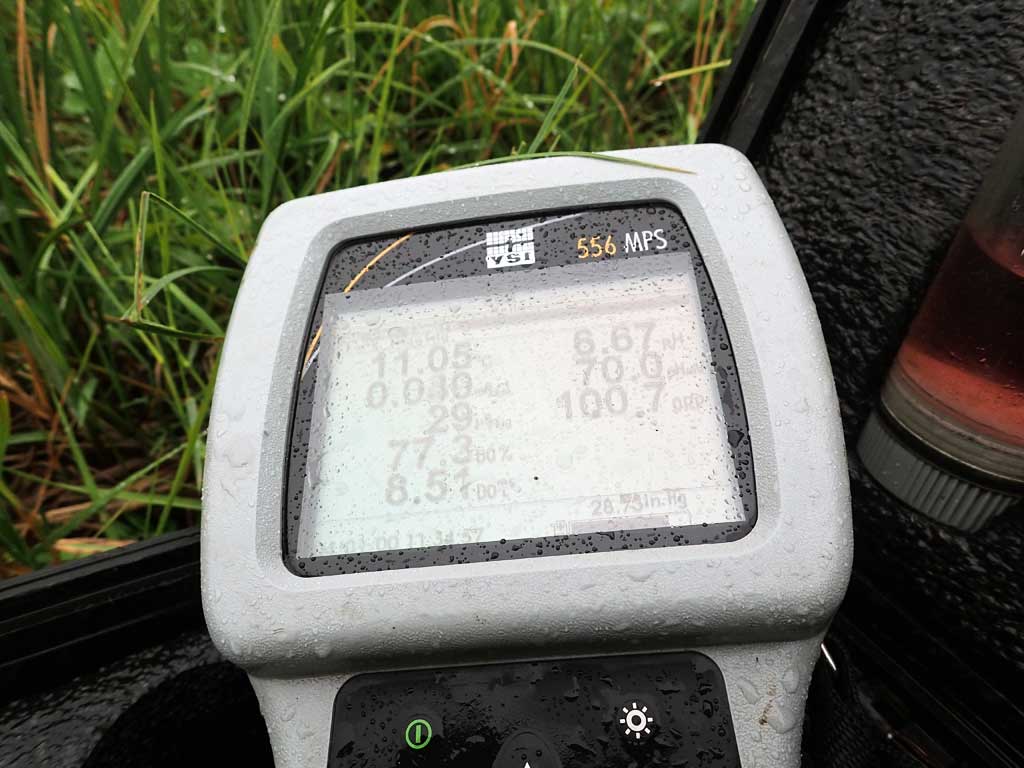

Water Temperature: 11.05° C DO: 8.54 ppm Conductivity: 29.0 μS/cm Stream Stage: Medium
Water Color: Humic Turbidity: 7.0 NTU / pH: 6.67 Stream Gradient: 0.75%
Qualitative Velocity: 48 hr. Precipitation/Runoff: Moderate
Substrates: Silt/Clay, Gravel, Cobble
Channel Dimensions:
  (OHW) (Wetted)

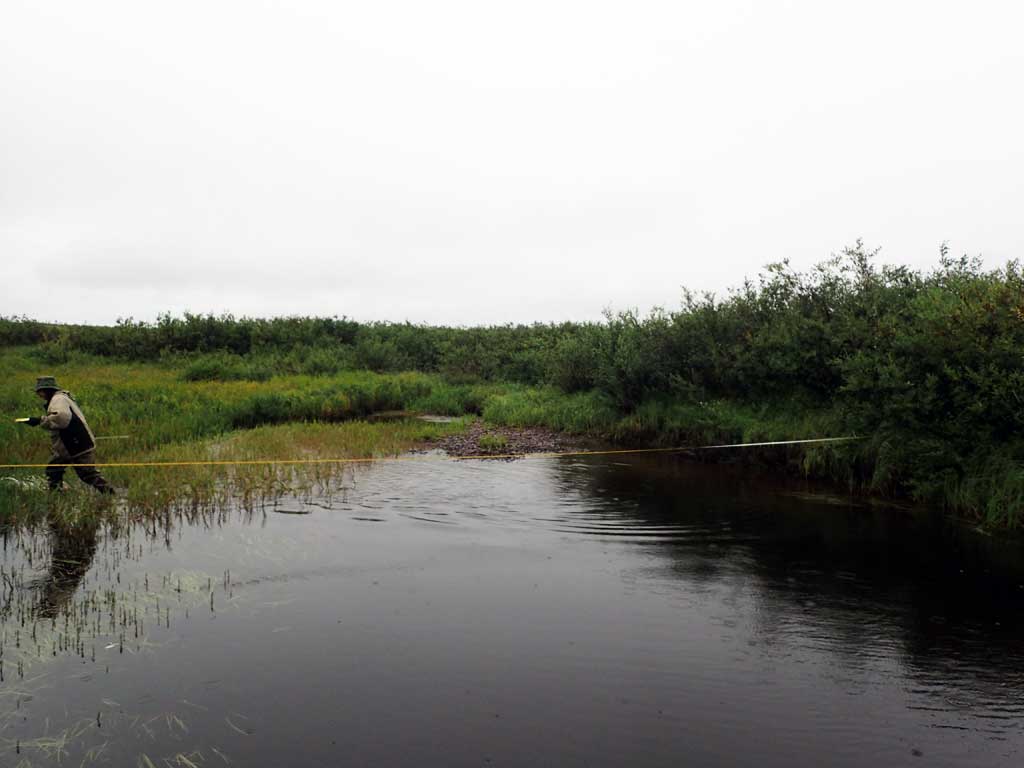

Stream Width: 21.8 m
Thalweg Depth: 0.34 m
Rosgen Channel Classification: (C5) Low gradient, meandering, point-bar, riffle/pool, alluvial channels with broad, well-defined floodplains.
Visit Comments: None

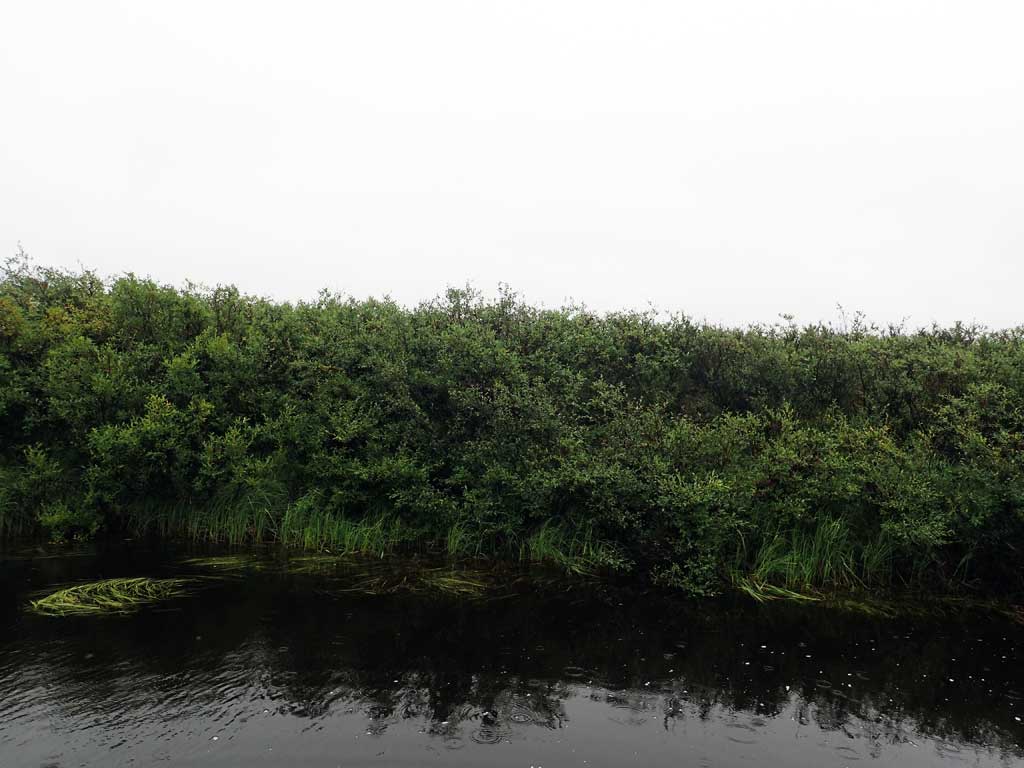

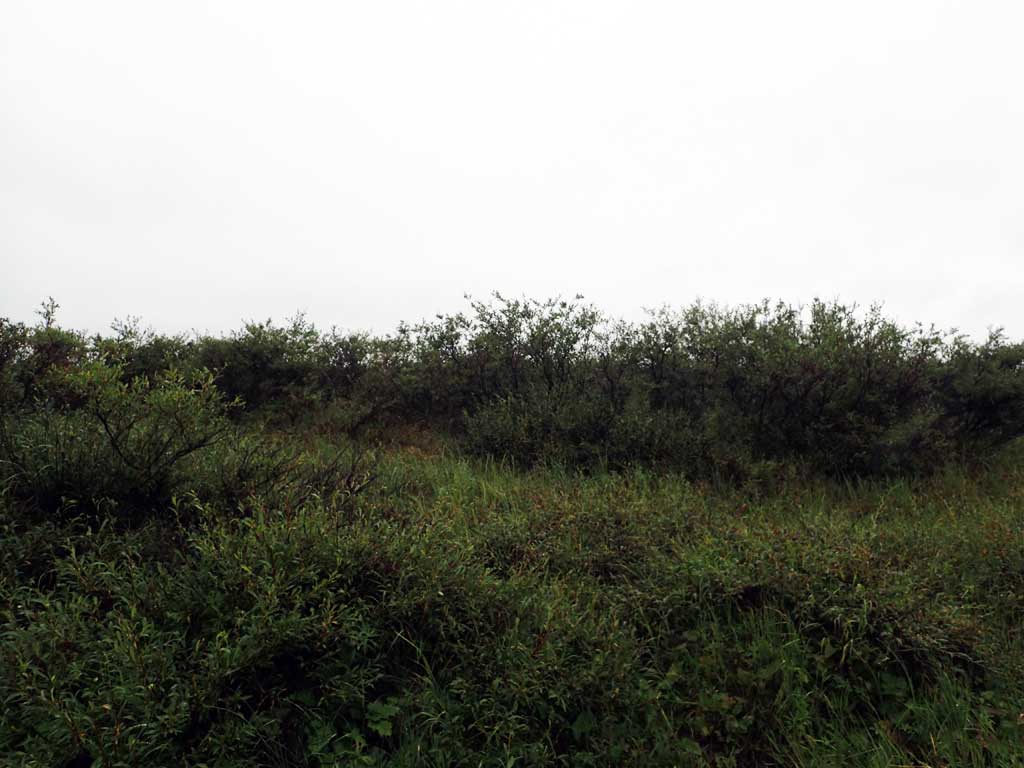

Vegetation Classification

Left Bank Right Bank
Distance
From
OHW(m)		 0-5 Bluejoint-Herb Closed Tall Willow Shrub
5-10 Bluejoint-Shrub Closed Tall Willow Shrub
10-20 Closed Tall Willow Shrub Tussock Tundra
20-30 Tussock Tundra Tussock Tundra

Fish Sampling Effort

Gear Type: Smith-Root LR-24 (A)
Channel Type: Main Channel (>50% of water flow)
Gear Type: Minnow Trap (B)
Channel Type:
Gear Type: Visual Observation, Ground (C)
Channel Type: Main Channel (>50% of water flow)

Fish Observations

Species: juvenile/adult Arctic grayling Life History: Resident
Total Fish Observed: 1 Fish Measured: 1 Passage Barrier:
Fork Lengths (mm) Min: 123 Max: 123 Mean: 123
Collected/Observed by Gear Type: Smith-Root LR-24 (1)

Species: juvenile/adult Arctic grayling Life History: Resident
Total Fish Observed: 2 Fish Measured: 1 Passage Barrier:
Fork Lengths (mm) Min: 47 Max: 47 Mean: 47
Collected/Observed by Gear Type: Smith-Root LR-24 (1) Minnow Trap (1)

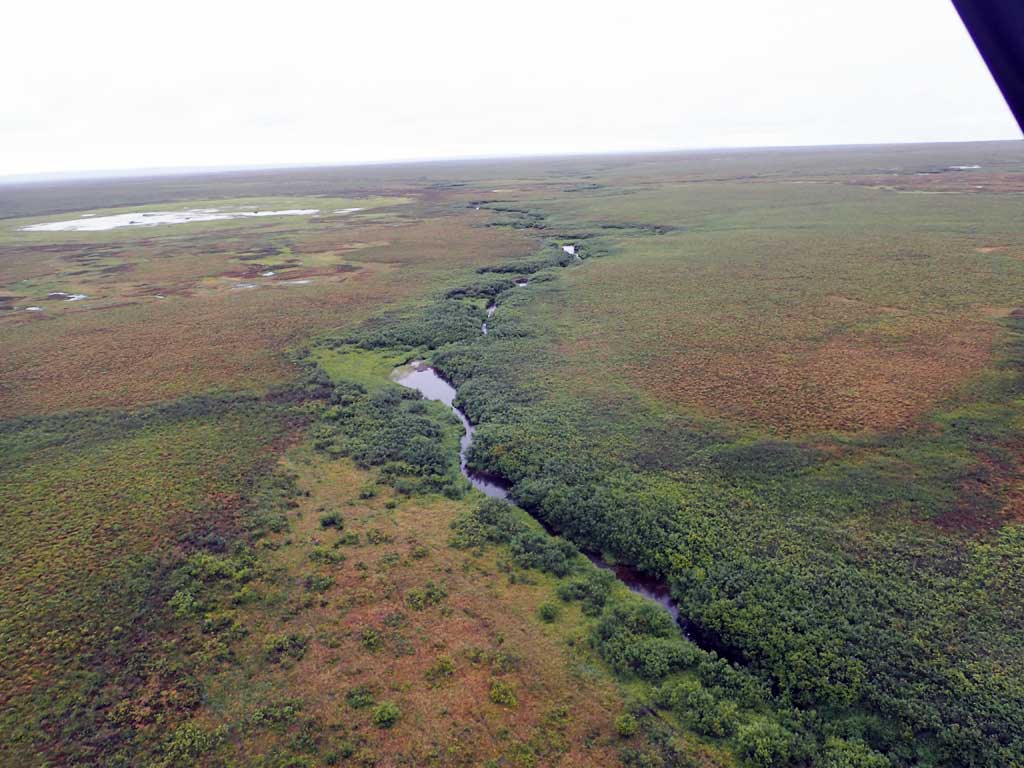

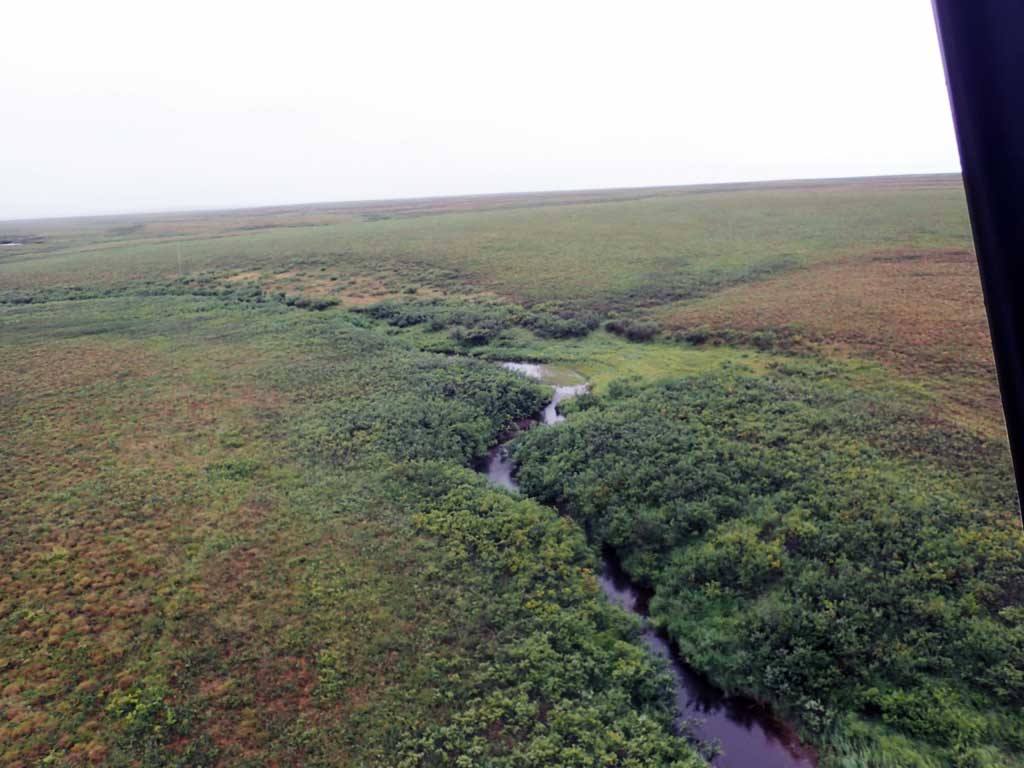

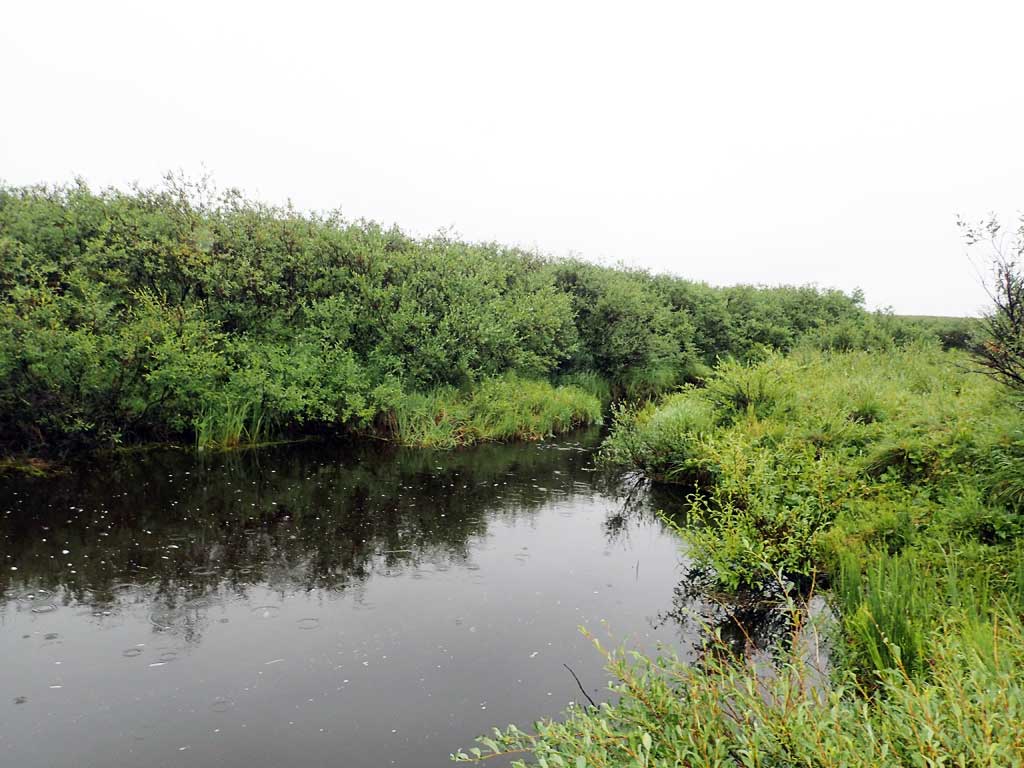

Photos
