Fish Passage Site 30303068

Coordinates (dec. deg.): 59.18661°, -158.76173°
Legal Description: S011S056W32
Region: Southwest

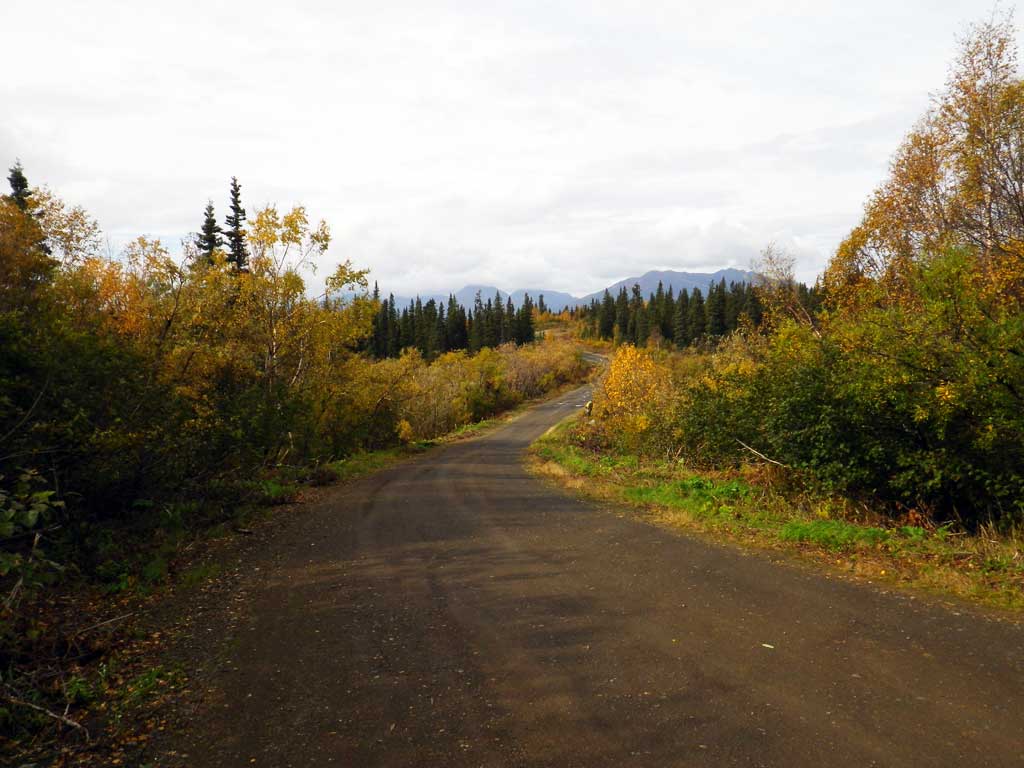

Road Name: Snake Lake Road

Datum: NAD83
Quad Name / ITM: Dillingham A-8
AWC Stream #:
Stream Name: Snake River tributary

Elevation:

Site Comments: None

Survey Date: Sep 19, 2012

Survey SWA12-DIL06

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: Gillian O'Doherty, Mark Eisenman

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Culvert gradient gray
  2. Constriction ratio gray
  3. Inlet perch
  4. Beaver Activity

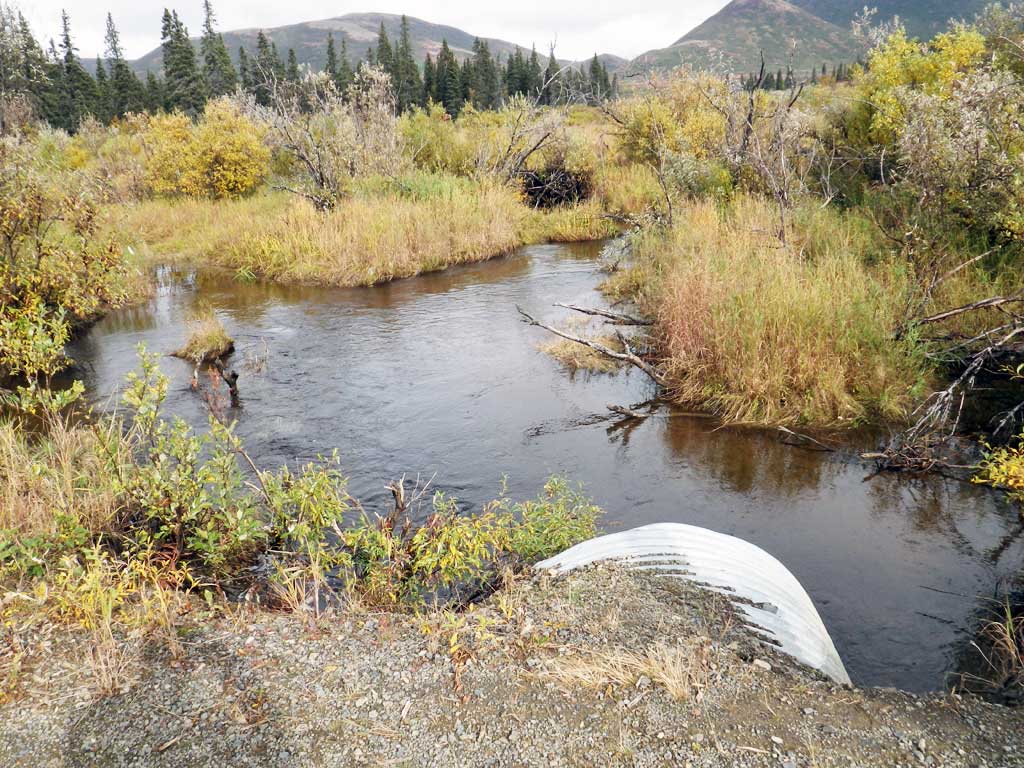

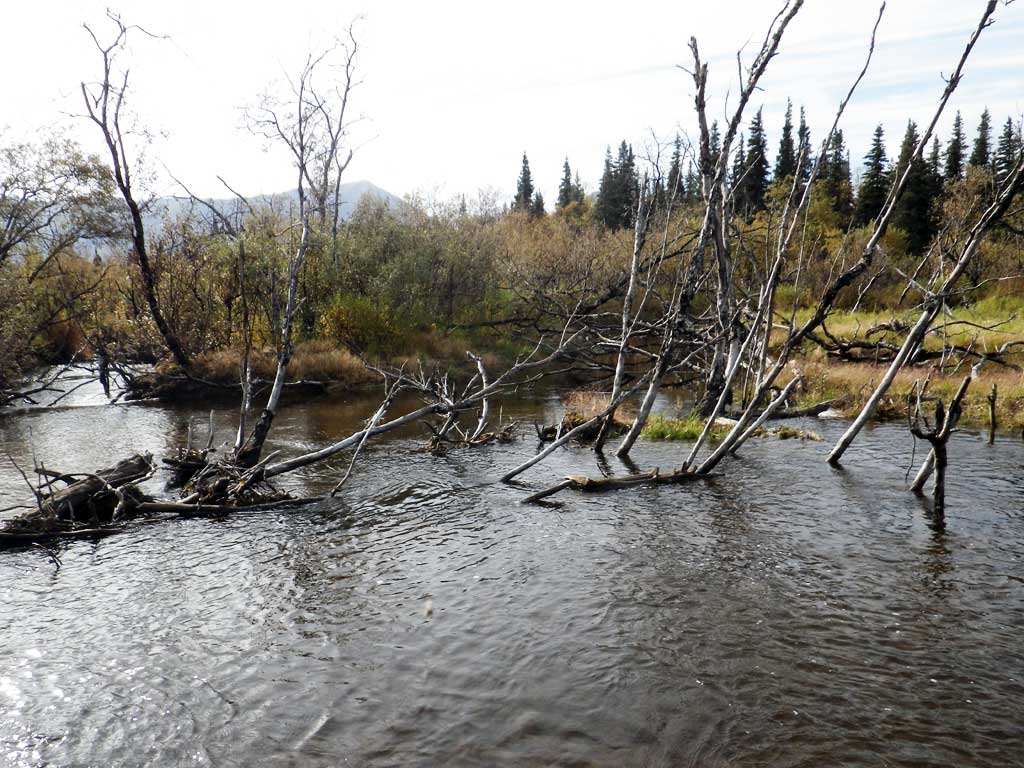

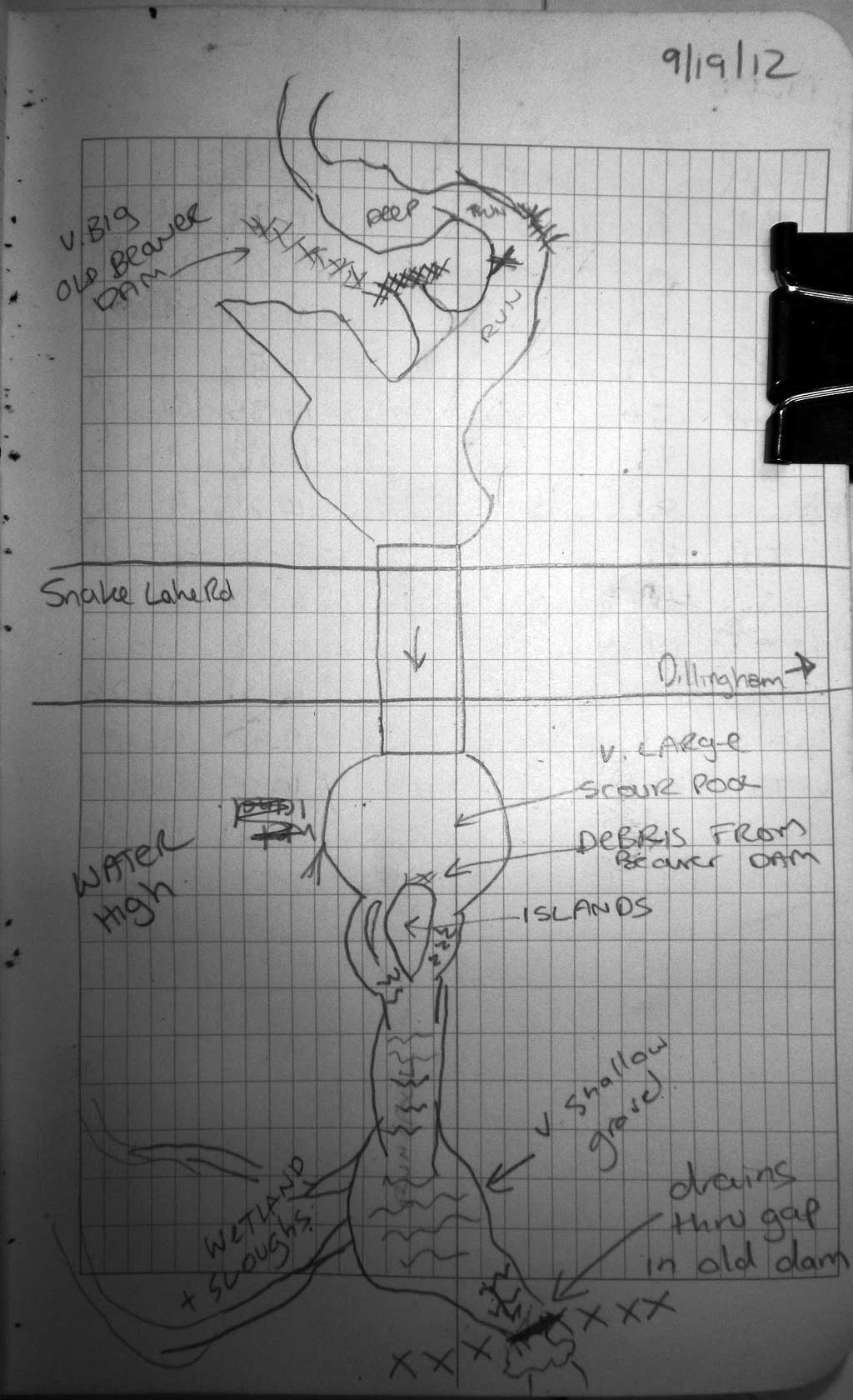

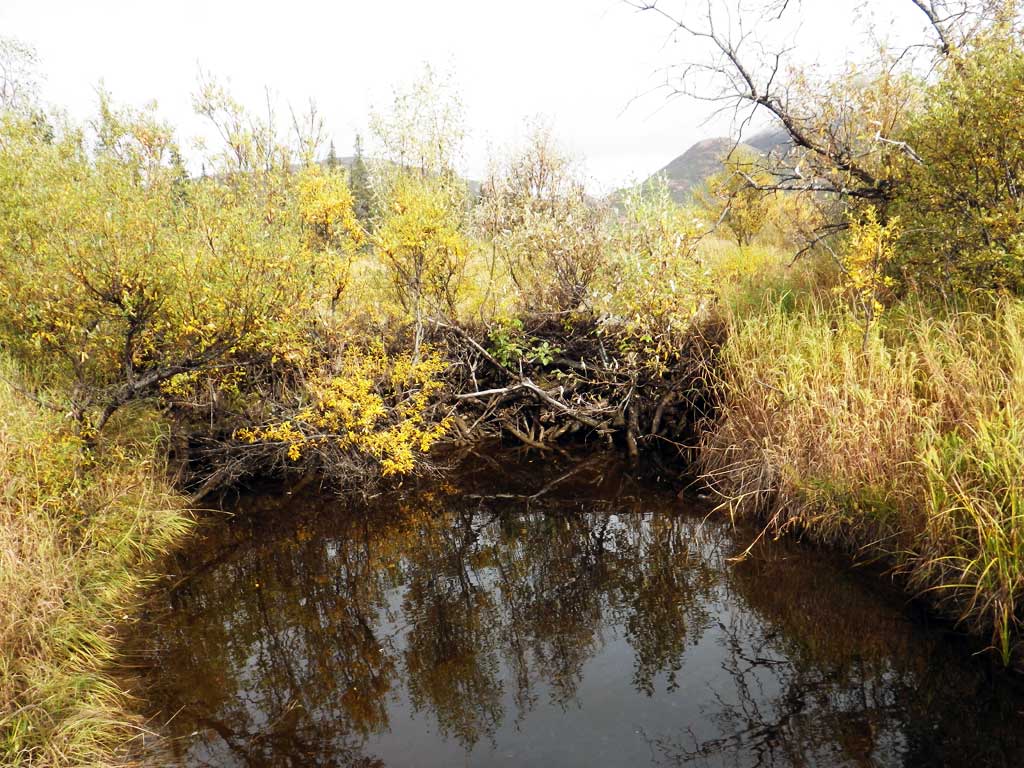

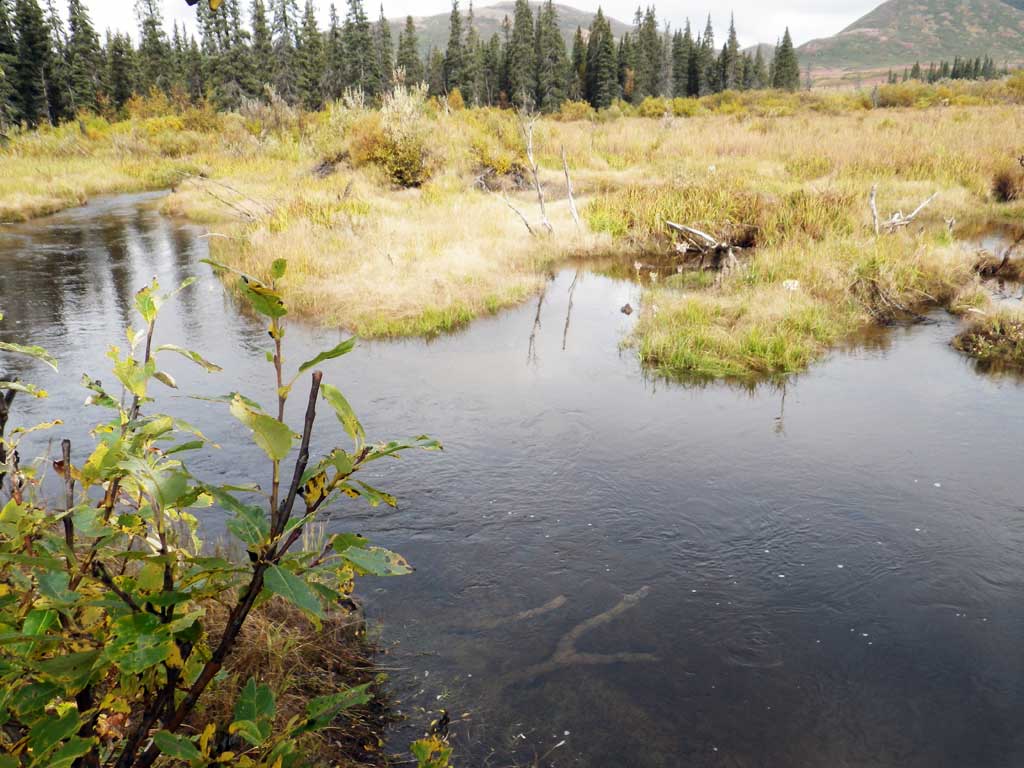

Comments: Constriction is definitiely an issue, especially at high flows. Upstream width approximately 12 to 14 feet. Old beaver dams upstream and downstream from culvert.

Culvert Measurements

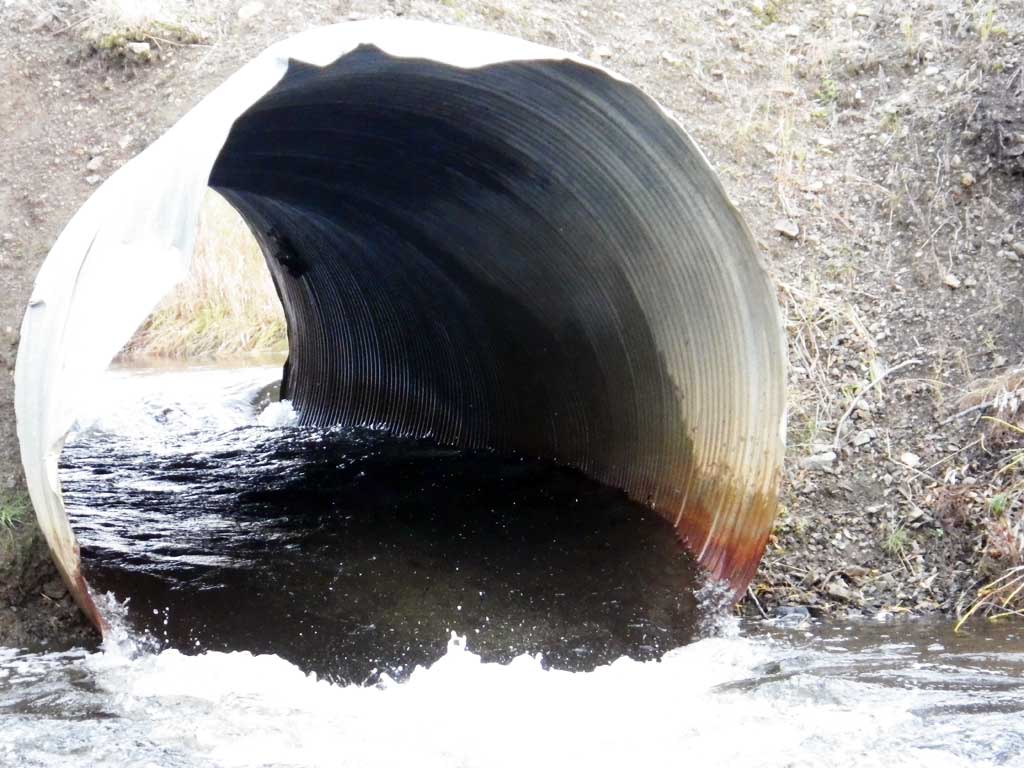

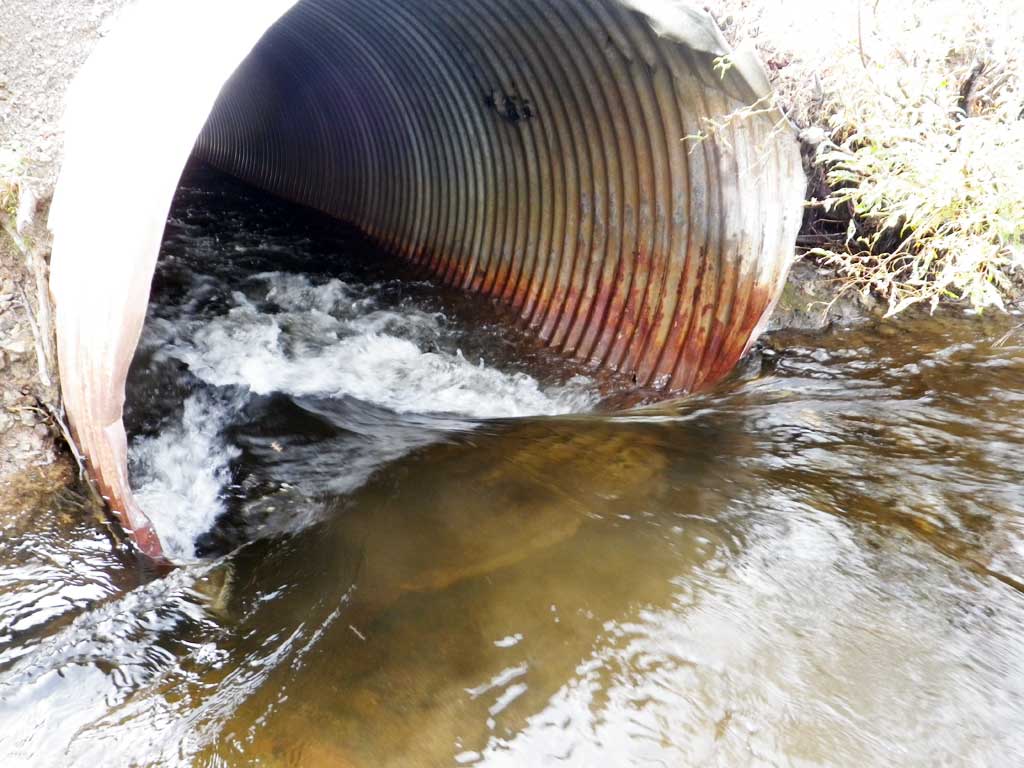

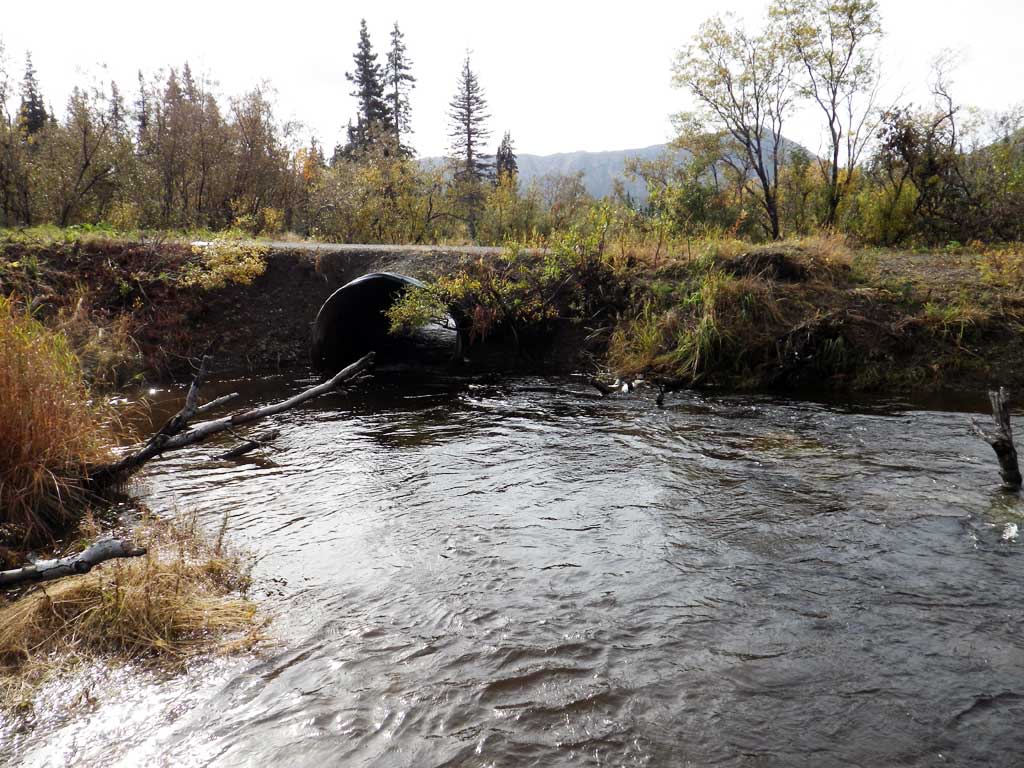

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Gray

Length(ft): 30.4

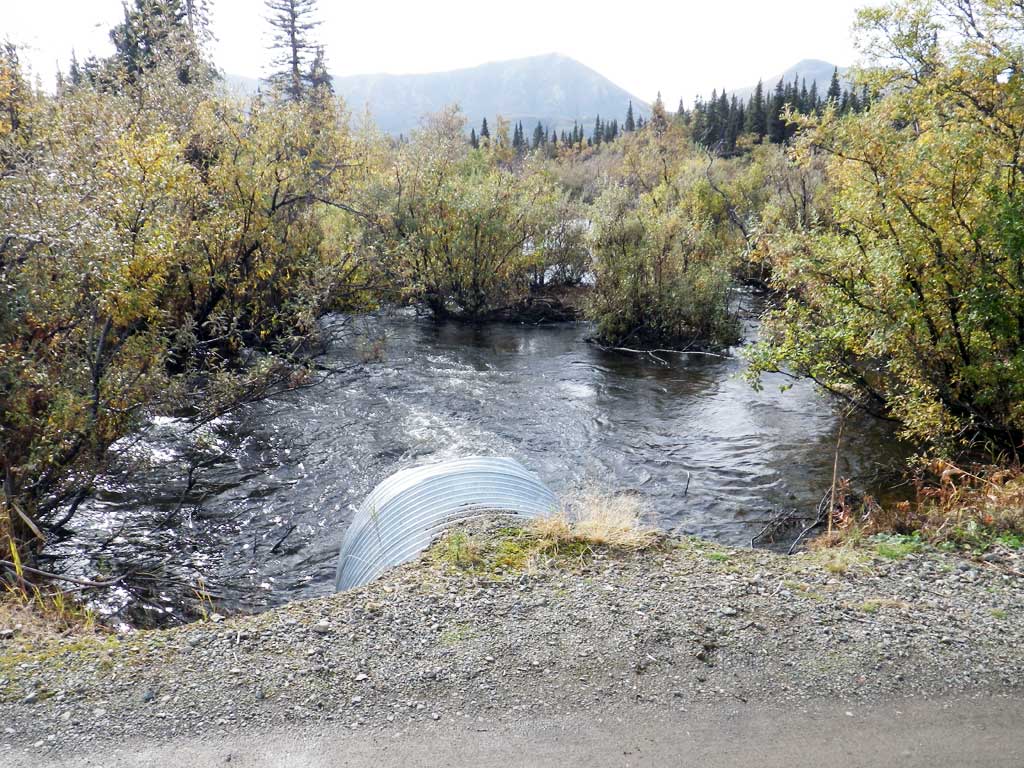

Inlet Type: Projecting

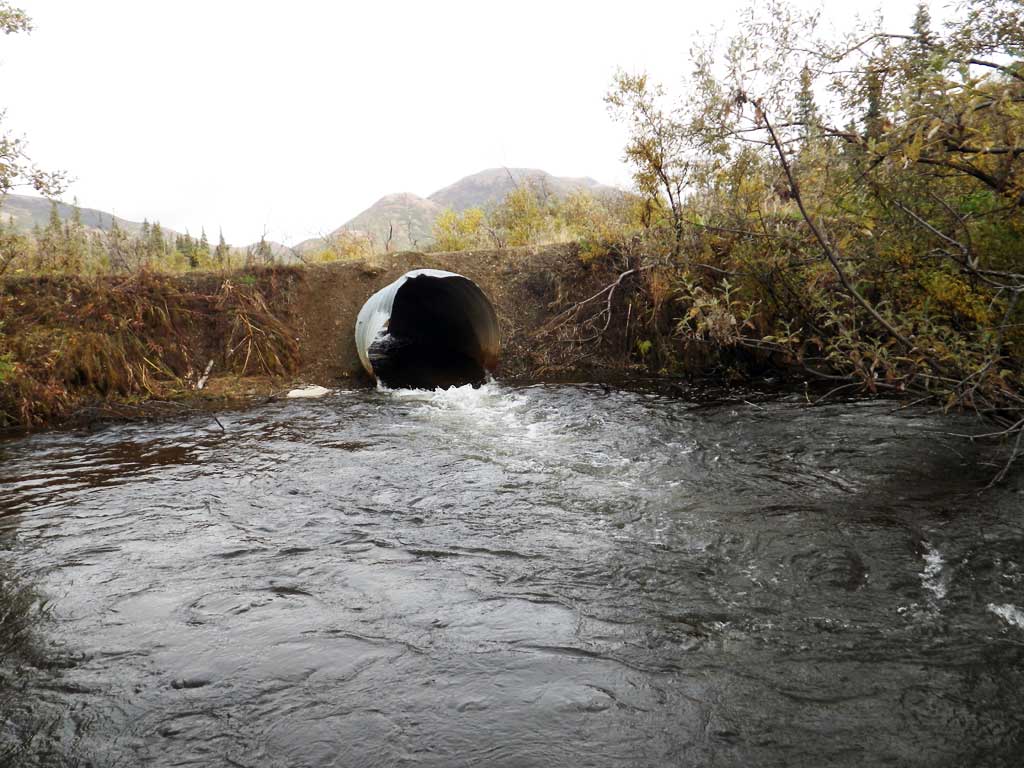

Outlet Type: Projecting
Corrugation Depth(in.): 1.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 2
Approach Angle: 42.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):5.5 6.0
Height(ft):5.7 5.9
Apron Length(ft):
Water Depth(ft): 1.37
Rustline Height(ft):2.2
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0

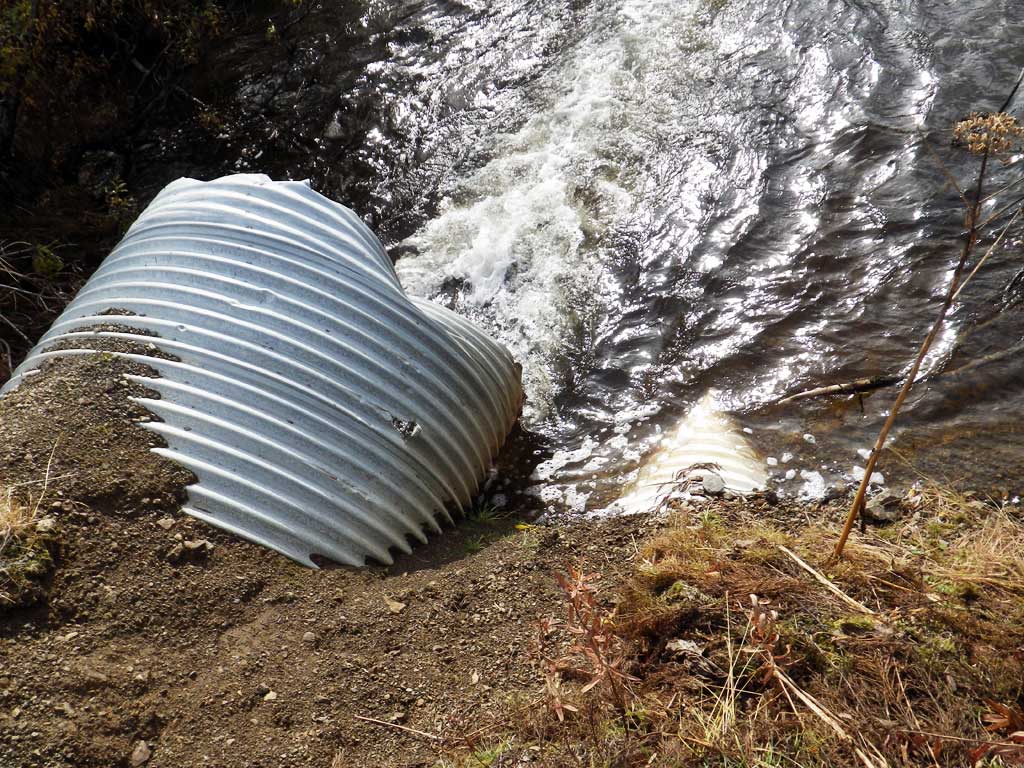

Outfall Type: Hydraulic Jump
Constriction Ratio:
Culvert Gradient: 1.02%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient gray
  2. Constriction ratio gray
  3. Inlet perch
  4. Beaver Activity

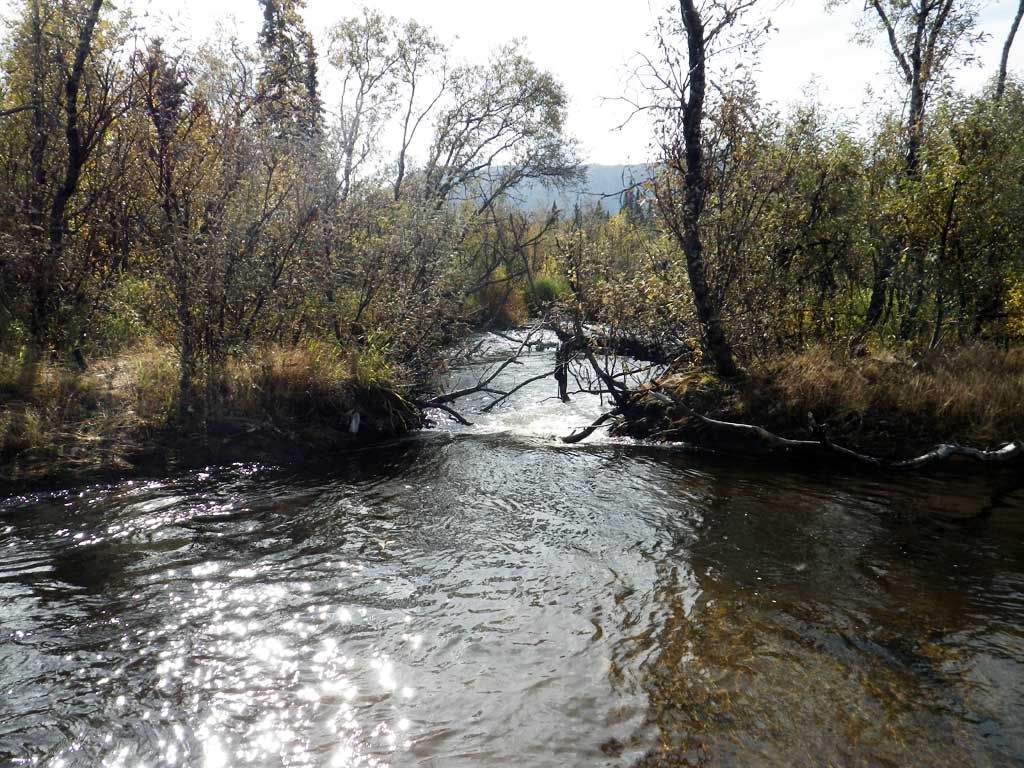

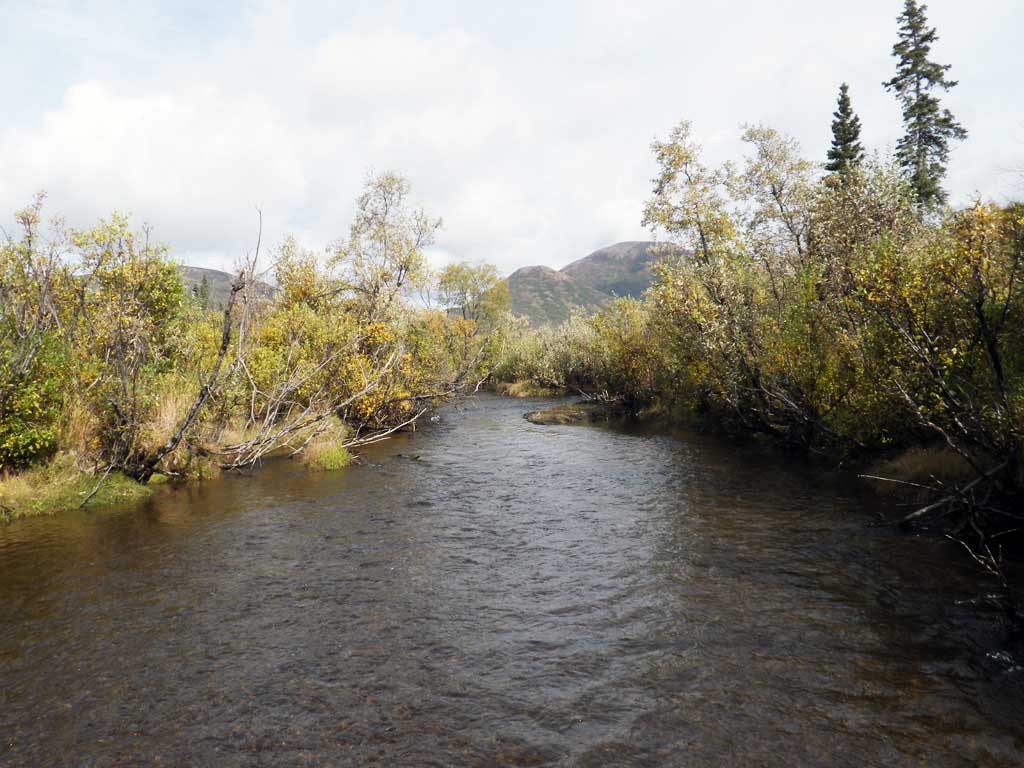

Stream Measurements

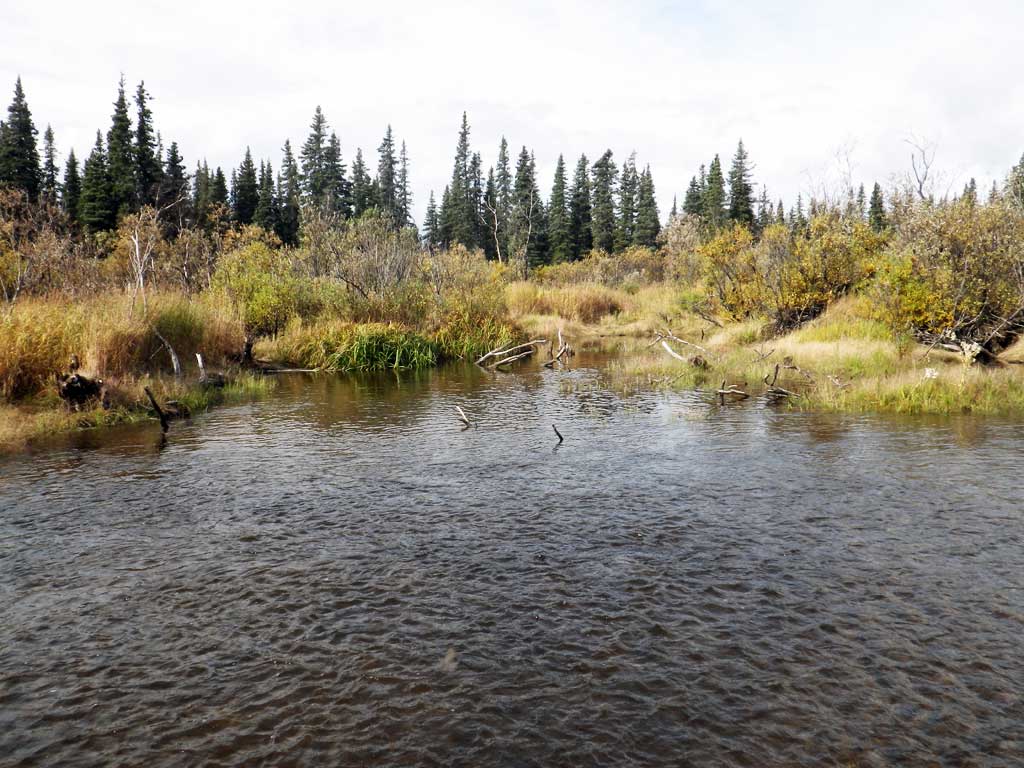

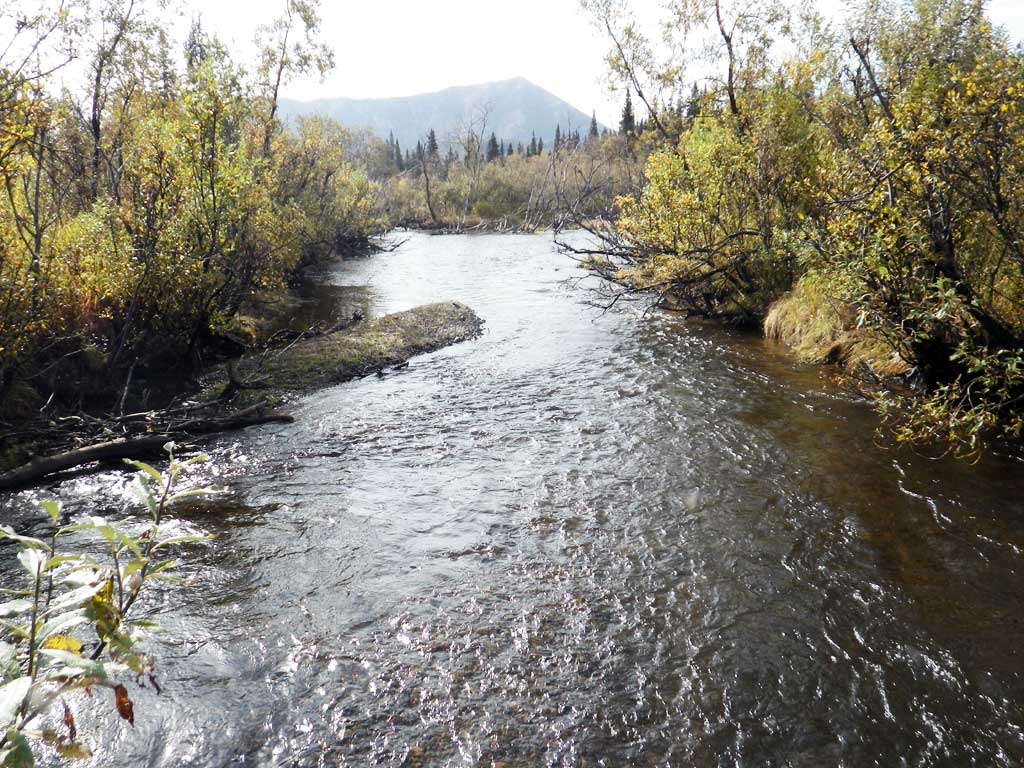

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:CobbleSand
Stream Slope(deg.):
Stream Flow Stage:High

No stream width data available.

Elevations

Locator ID Culvert
Number
River
Distance (ft)1
Distance From
Crossing (ft)2
Relative
Elevation (ft)
Road Elev 100.97
D/S Water Surface Elev 0.00 96.54
D/S Grade Ctrl (Thalweg) (head of d/s riffle through old pond) 0.00 94.08
D/S Water Surface Elev 39.00 95.02
D/S Tailcrest or 1st Thalweg (tailwater control; middle of channel 3) 39.00 94.27
Max Pool Depth (deepest point that could be measured; other spots may be deeper.) 56.00 90.72
Outlet Invert 81.00 93.95
D/S Water Surface Elev 81.00 95.32
Outlet Culvert Top 81.00 100.01
Inlet Culvert Top 111.40 100.00
U/S Water Surface Elev 111.40 96.15
Inlet Culvert Invert 111.40 94.26
U/S Water Surface Elev 144.40 96.36
U/S Grade Ctrl (Thalweg) (downstream of split channel; is run upstream for a long way) 144.40 94.70

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)
Comments: No traps set, no fish observed.

Fish Observations

No fish observations occurred during this survey.
