Fish Passage Site 20502060

Coordinates (dec. deg.): 63.20207°, -147.30284°
Legal Description: F020S002E11
Region: South Central
Road Name: Valdez Mining District Road

Datum: NAD83
Quad Name / ITM: Healy A-1
AWC Stream #:
Stream Name: Gregg Creek tributary

Elevation:

Site Comments: Old mining road off the Denali Highway.

Survey Date: Jul 06, 2011

Survey MSB11-PSVMD05

Project Supervisor: Gillian O'Doherty, Alaska Department of Fish and Game — Anchorage, AK
Observers: John Greuey, Abraham Gioffre

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red
  2. Structural Problem

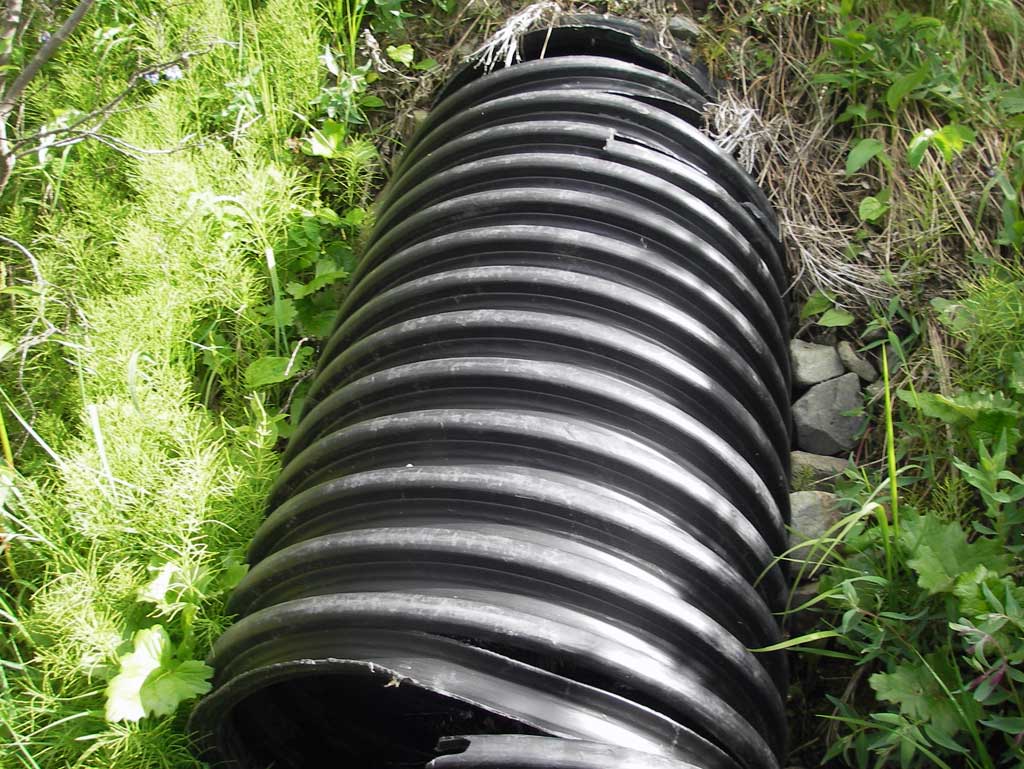

  3. Culvert sagging in middle
  4. Mechanical damage or joints parting
  5. Inlet perch

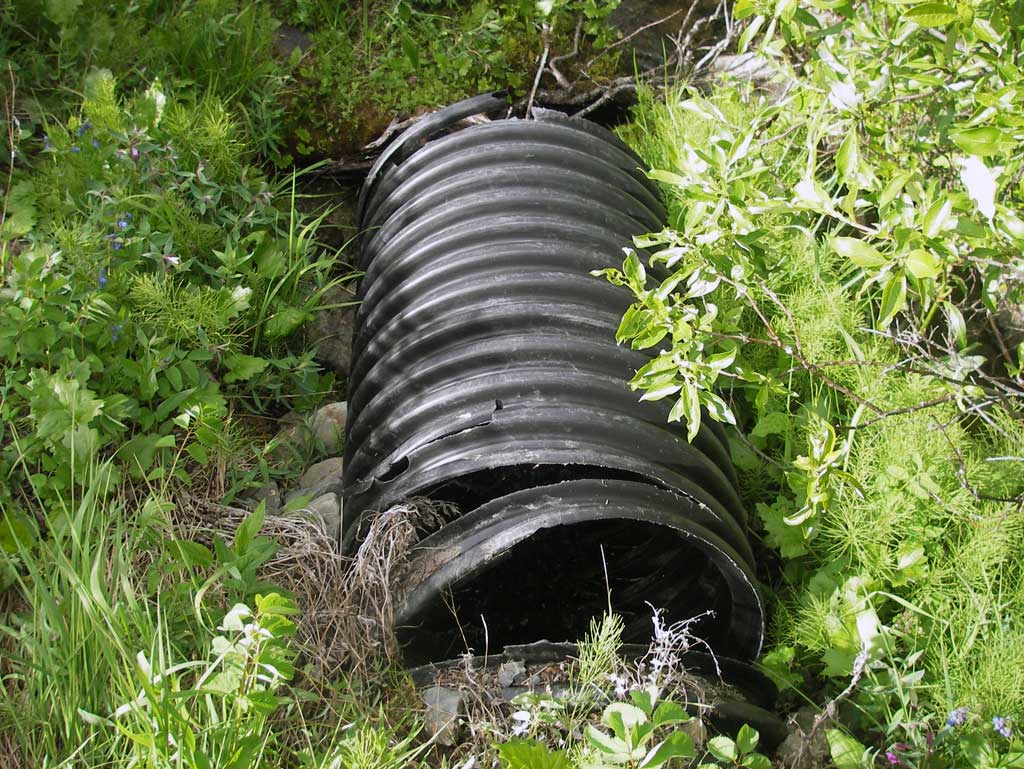

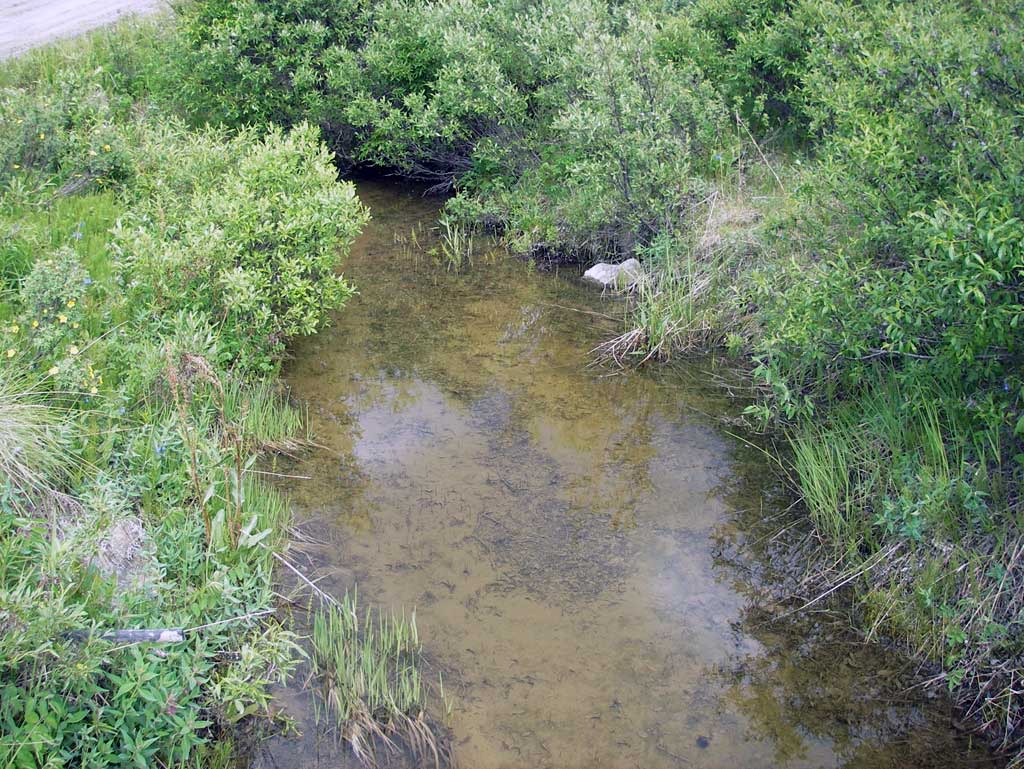

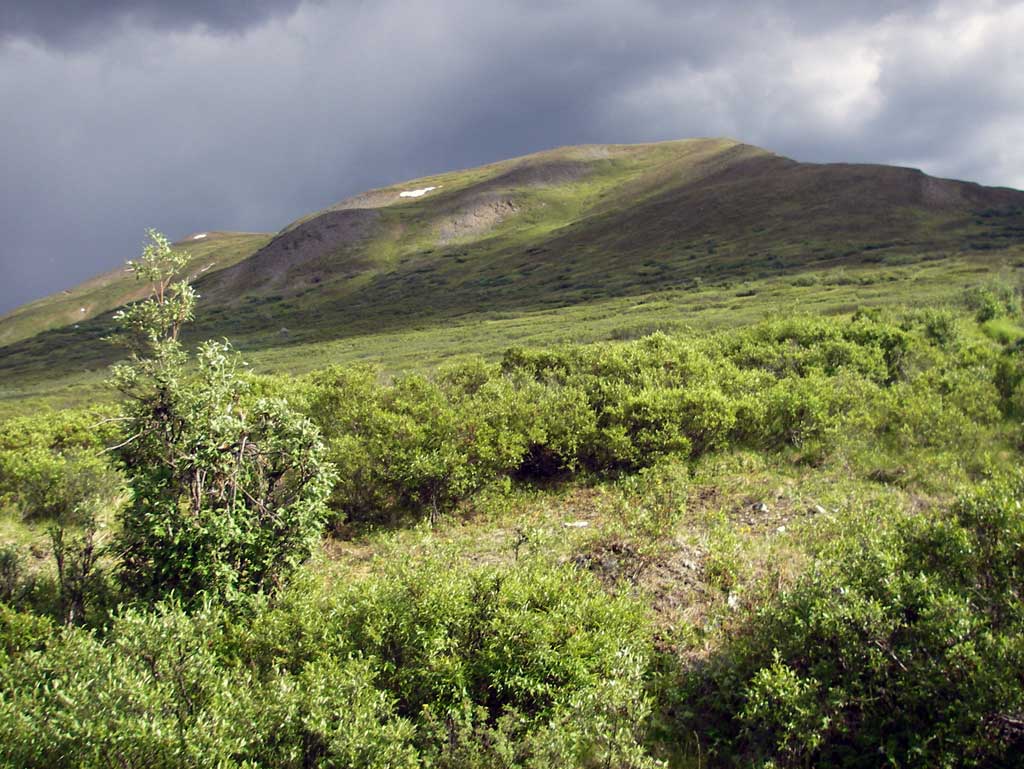

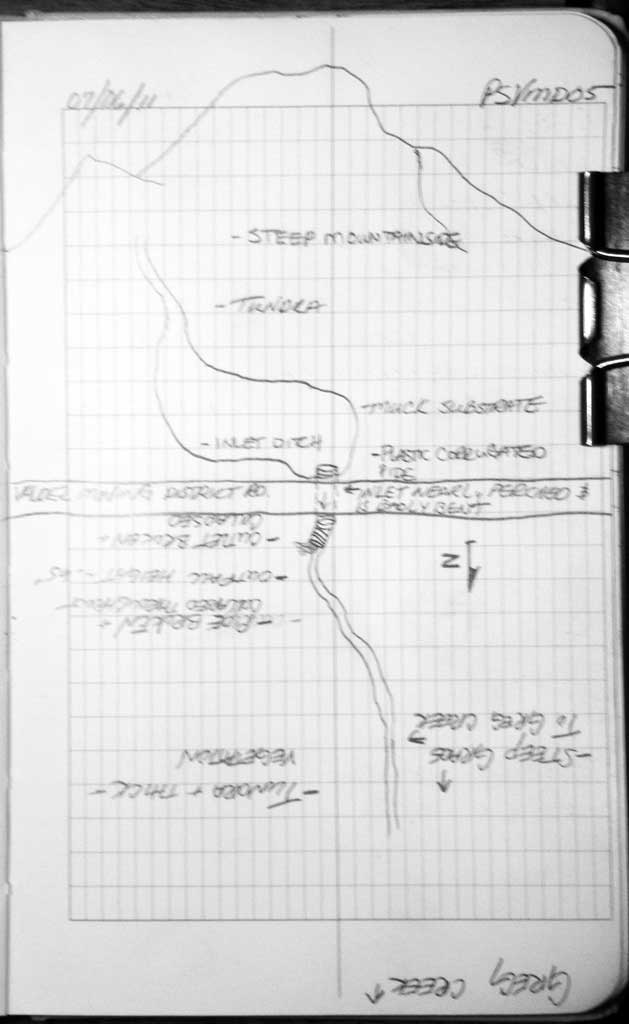

Comments: The drainage is a small upland tributary draining the base of the mountain and marsh area. At end of the pipe is a 4' broken piece of pipe creating a max gradient of approximately 2%. Pipe had a sag in middle, compound gradient and a perched inlet.

Culvert Measurements

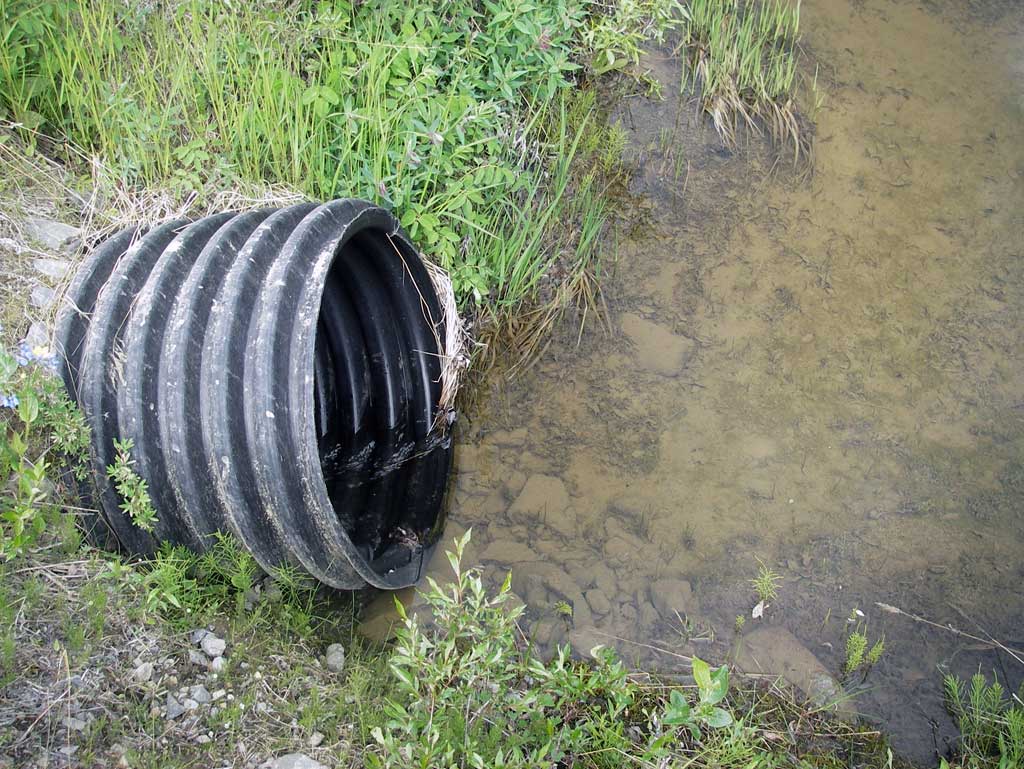

ID: 1 Structure Type: Circular pipe (Corrugated plastic) Fish Passage Rating: Red

Length(ft): 40.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 3.0
Condition Rating(1-5): 1
Approach Angle: 95.0
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):2.0 2.0
Height(ft):2.0 2.0
Apron Length(ft):0.0 0.0
Water Depth(ft): 0.15
Rustline Height(ft):
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No

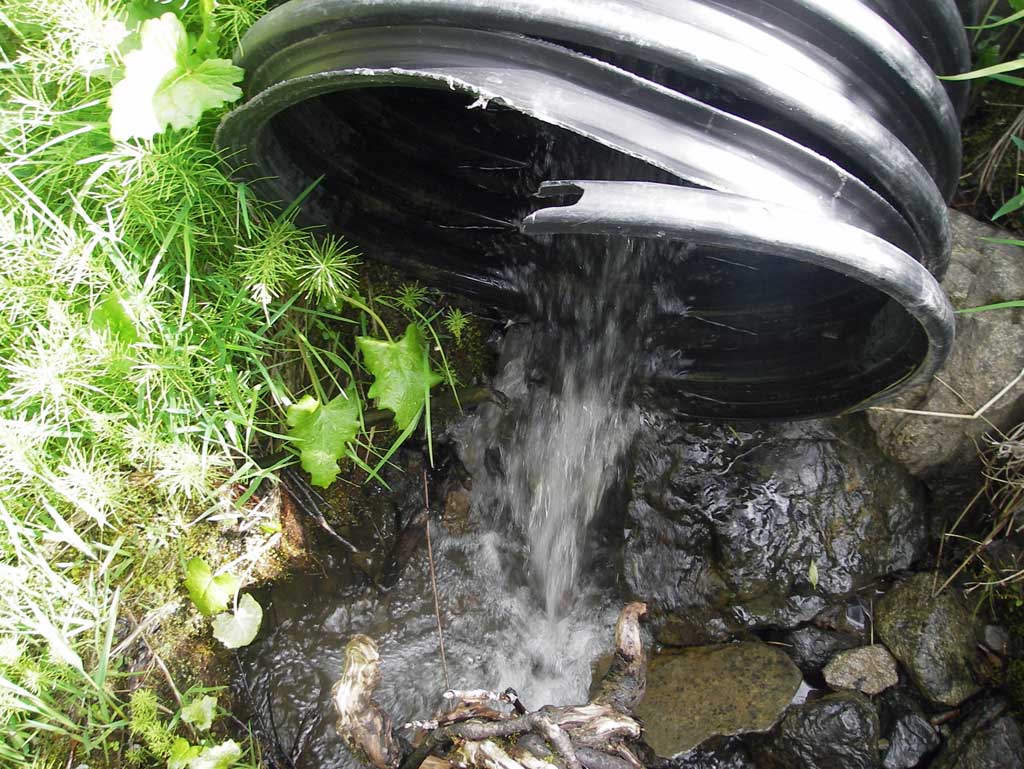

Outfall Height: 0.65
Outfall Type: Free Fall In To Pool
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Outfall height red
  2. Structural Problem
  3. Culvert sagging in middle
  4. Mechanical damage or joints parting
  5. Inlet perch

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:Silt/ClayCobble
Subdominant:OrganicGravel
Stream Slope(deg.):
Stream Flow Stage:Low

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
