Fish Passage Site 20501441

Coordinates (dec. deg.): 61.57046°, -149.51021°
Legal Description: S017N001W17
Region: South Central

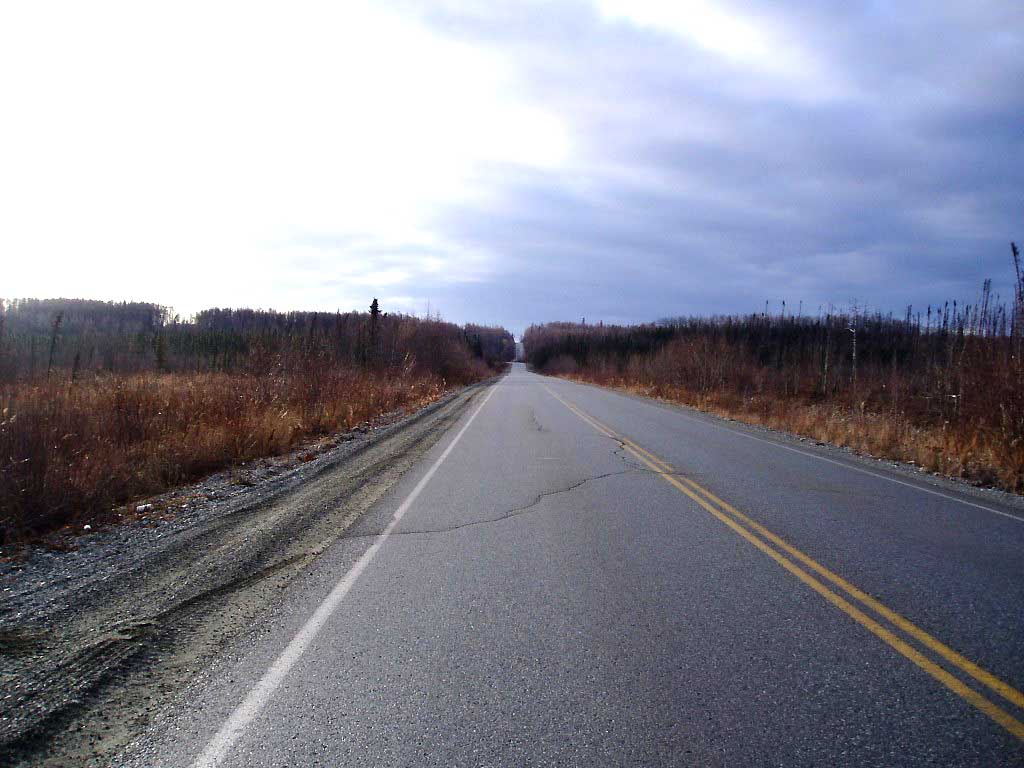

Road Name: Johnsons Road

Datum: NAD83
Quad Name / ITM: Anchorage C-7
AWC Stream #: 247-50-10330-2050-3030
Stream Name: Lucille Creek

Elevation:

Site Comments: SUSITNA RIVER WATERSHED

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB04-ML114

Observers: Gary Greenberg, Jen Ransom

Overall Fish Passage Rating: Green

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: , NO THALWEG AT OUTLET, COHO FRY ABOVE AND BELOW CULVERT. ***This site has been resurvyed and this survey should be used for historical purposes only.***

Culvert Measurements

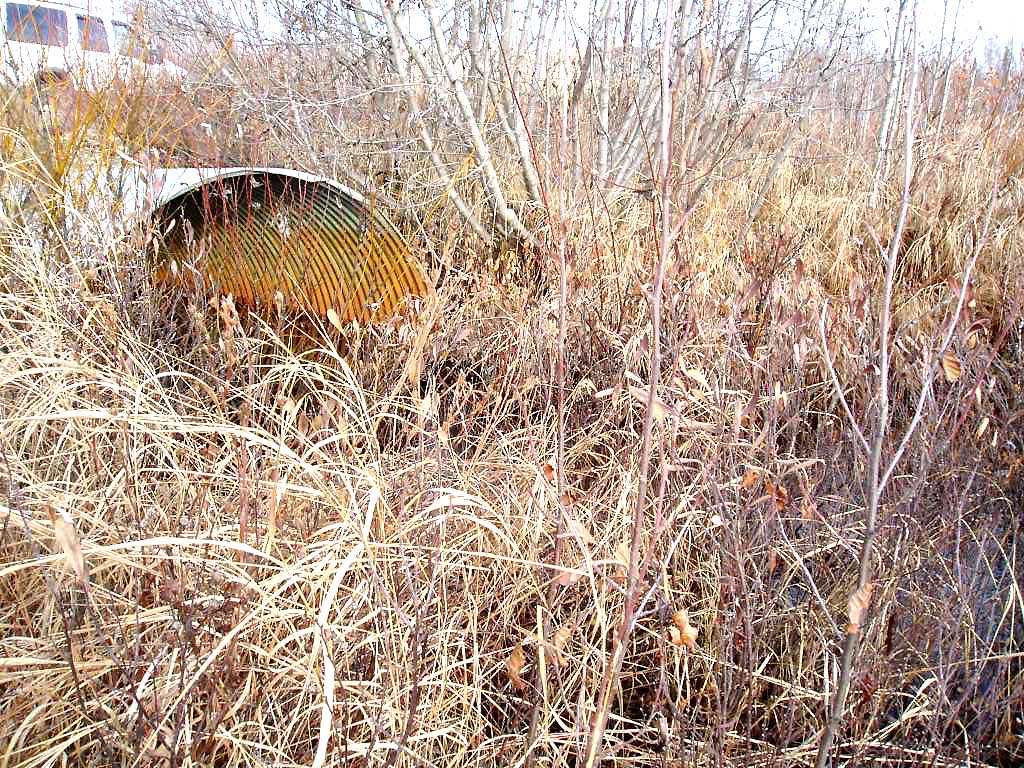

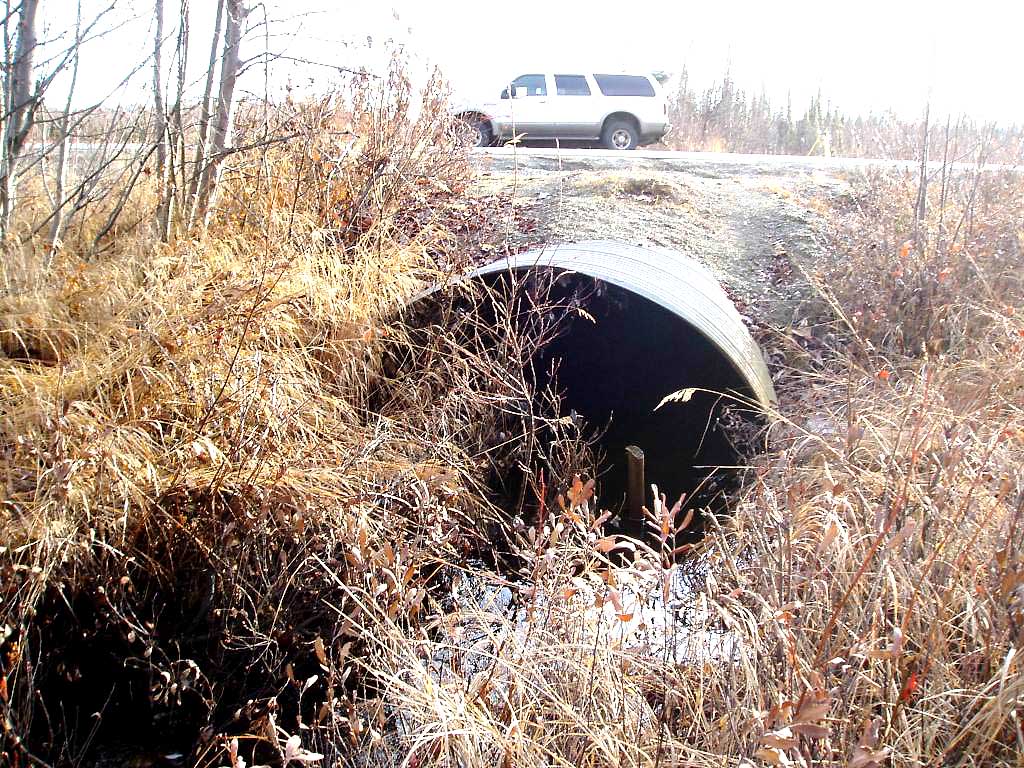

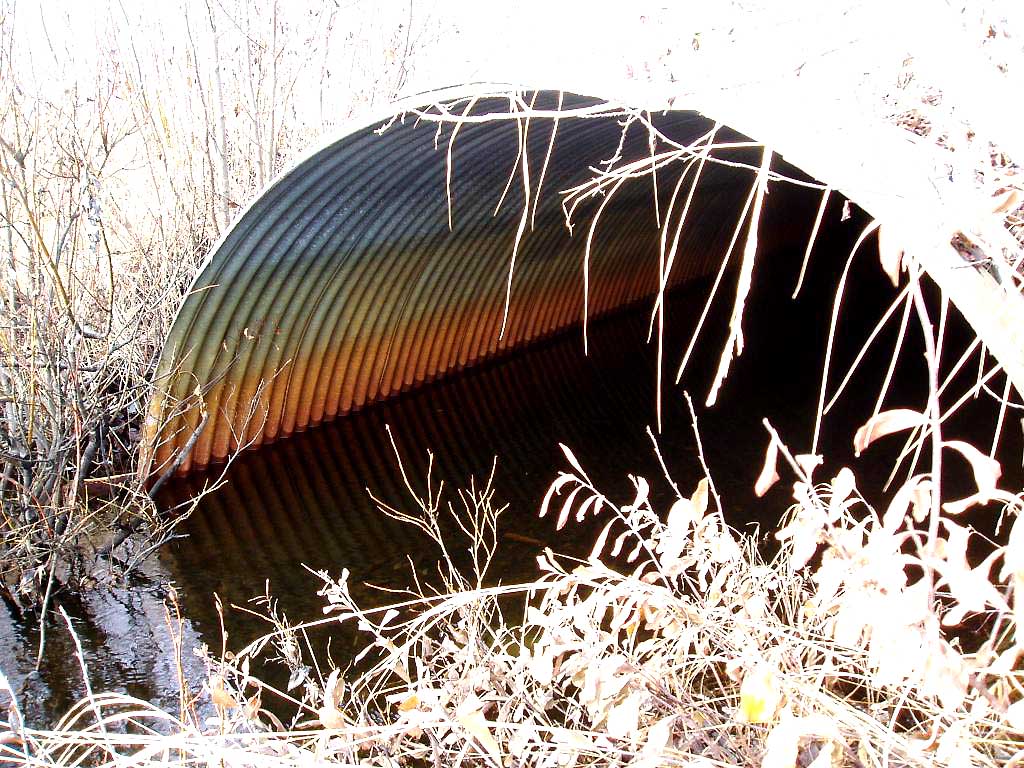

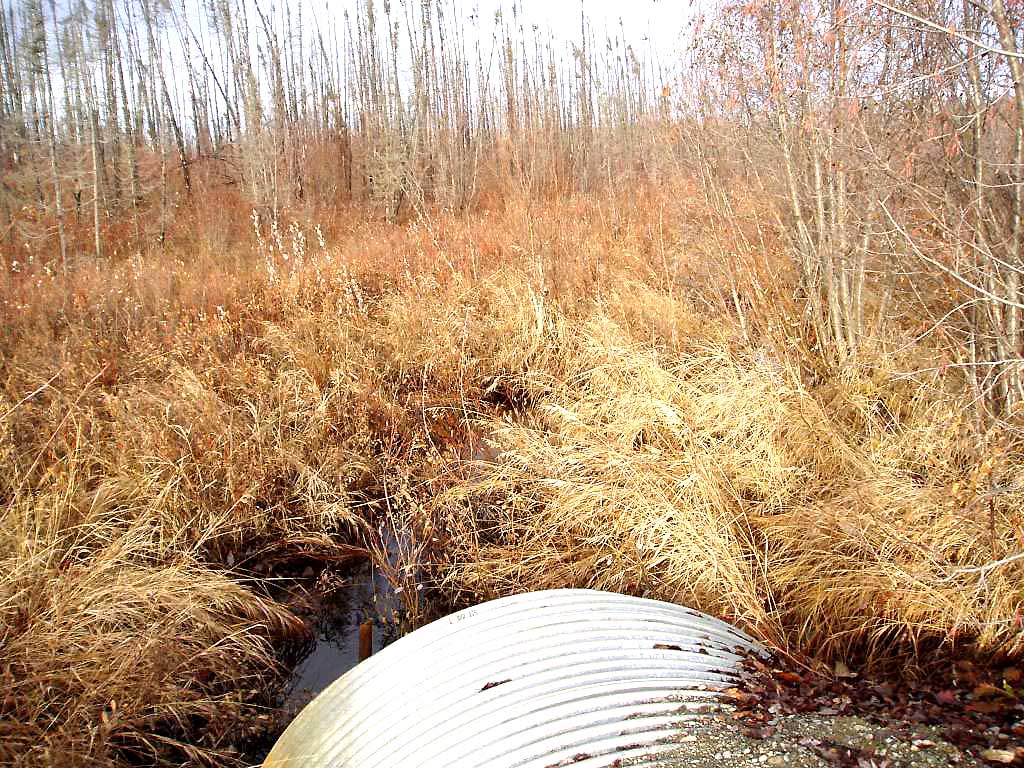

ID: 1 Structure Type: Open-bottom arch (Corrugated Metal) Fish Passage Rating: Green

Length(ft): 103.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.): 3.0
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):8.0
Height(ft):5.5
Apron Length(ft):
Water Depth(ft):2.0 2.5
Rustline Height(ft):4.5
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 0.62%
Max Slope:
Max Slope Length:

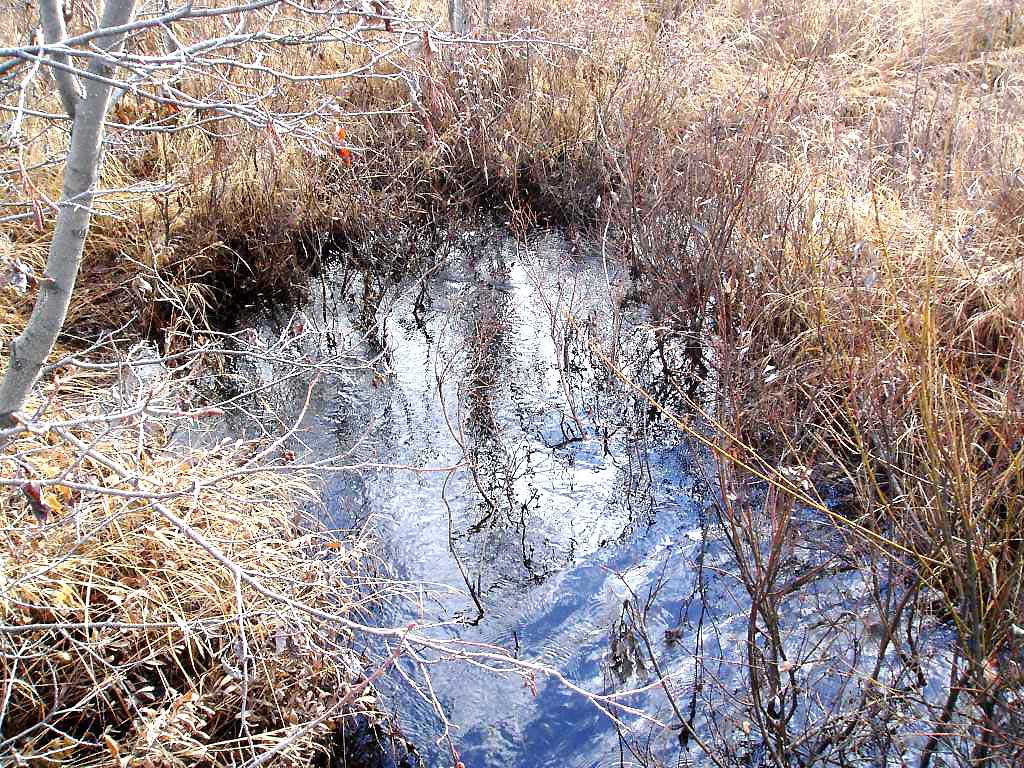

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bed width 75.0 6.20
Upstream bed width 100.0 7.10
Upstream bed width 125.0 5.60
Upstream bed width 150.0 6.10
Upstream ordinary high water 75.0 8.50
Upstream ordinary high water 100.0 9.20
Upstream ordinary high water 125.0 7.90
Upstream ordinary high water 150.0 8.30

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
OHW Left Bank 96.62
Max Pool Depth 0.00 0.0 93.57
D/S Thalweg 0.00 0.0 93.57
Outlet Invert 1 0.00 0.0 93.57
Road Elev 51.50 95.38
Inlet Culvert Invert 1 103.00 0.0 94.21
U/S Thalweg 1 119.00 16.0 93.31

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)
Comments: Coho fry observed upstream and downstream from culvert.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
