Fish Passage Site 20501139

Coordinates (dec. deg.): 61.58586°, -149.66972°
Legal Description: S017N002W05
Region: South Central

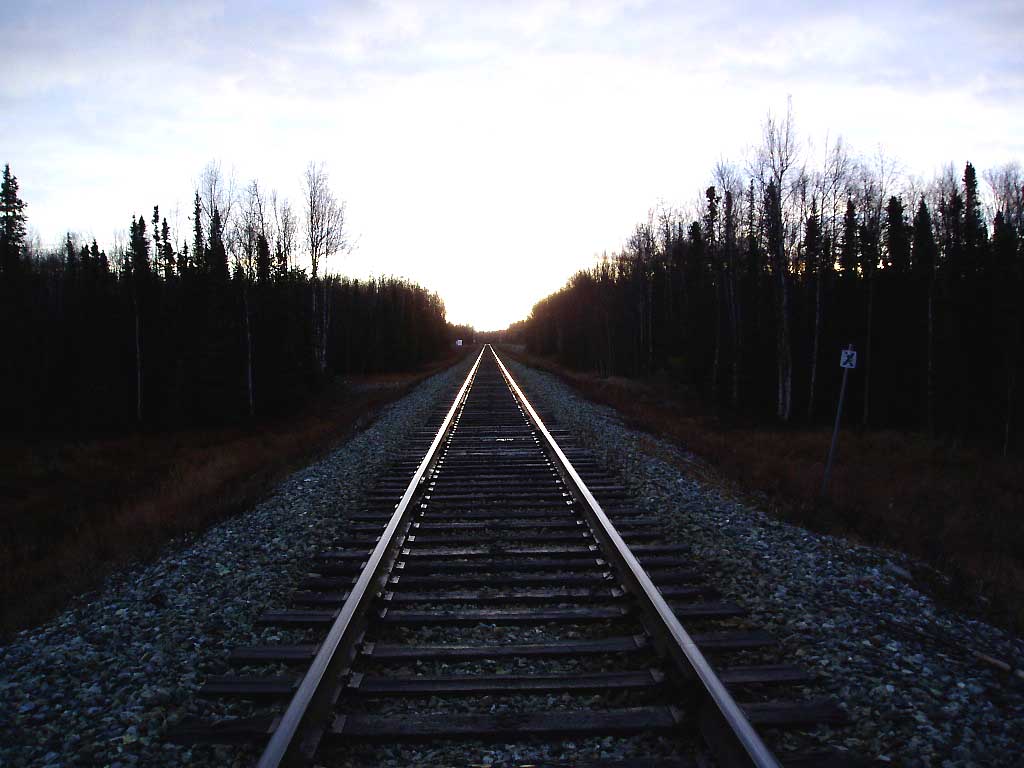

Road Name: Alaska Railroad

Datum: NAD83
Quad Name / ITM: Anchorage C-8
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: Tributary to Little Meadow Creek

Survey Date: Oct 20, 2004

Survey MSB04-ML113

Observers: Gary Greenberg, Jen Ransom

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Site Observations:

  1. Culvert gradient gray
  2. Constriction ratio gray

Comments: None

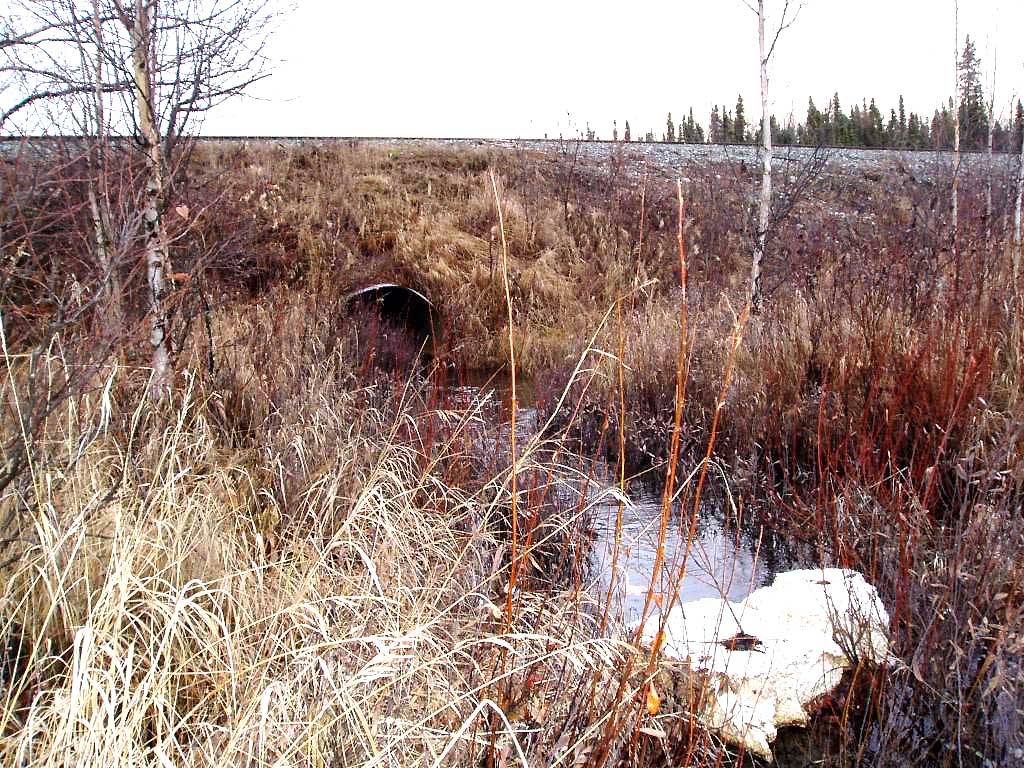

Culvert Measurements

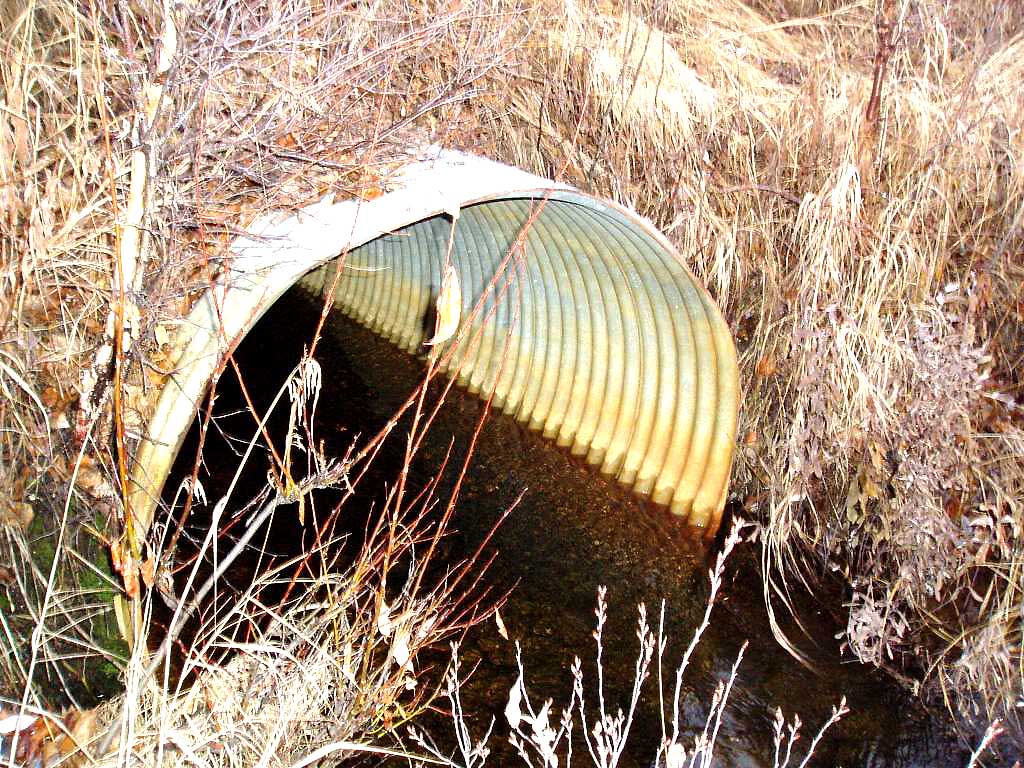

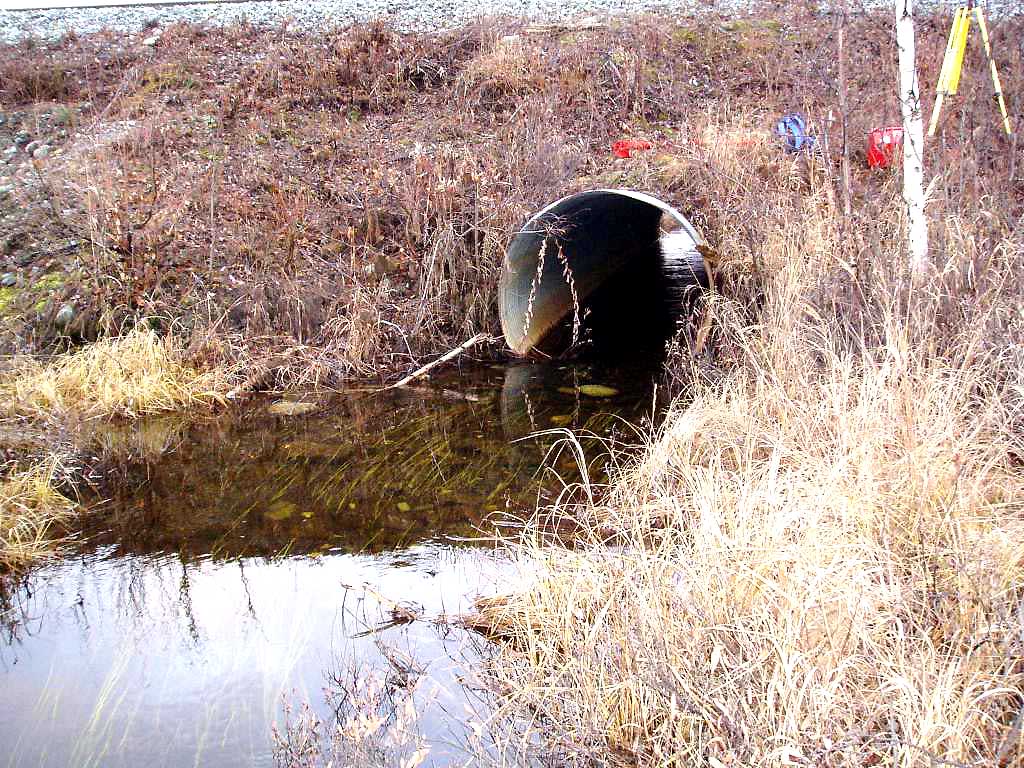

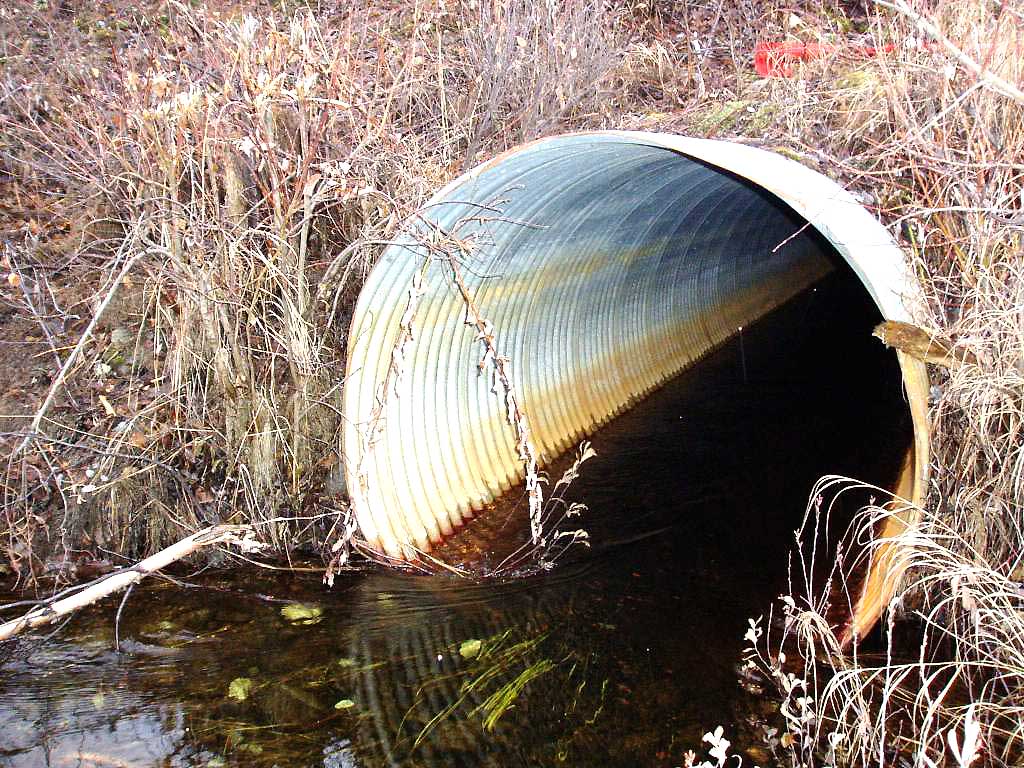

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating: Gray

Length(ft): 60.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.): 3.0
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):5.0
Height(ft):5.0
Apron Length(ft):
Water Depth(ft):1.1 1.7
Rustline Height(ft):3.4
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 0.66
Culvert Gradient: 0.65%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient gray
  2. Constriction ratio gray

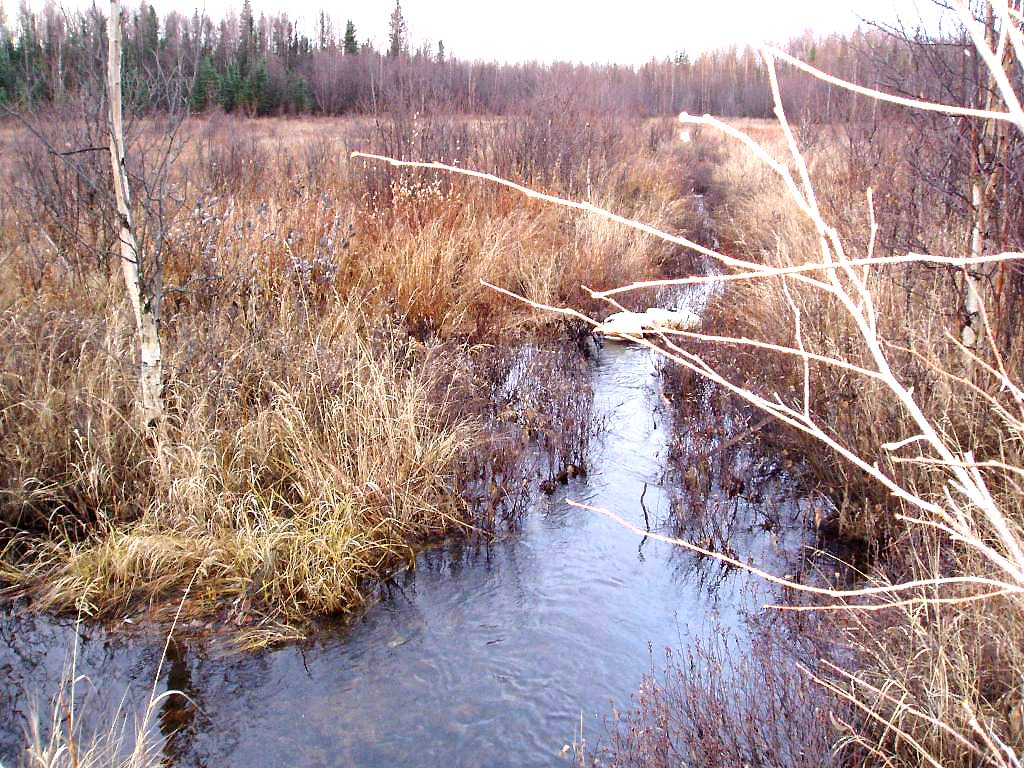

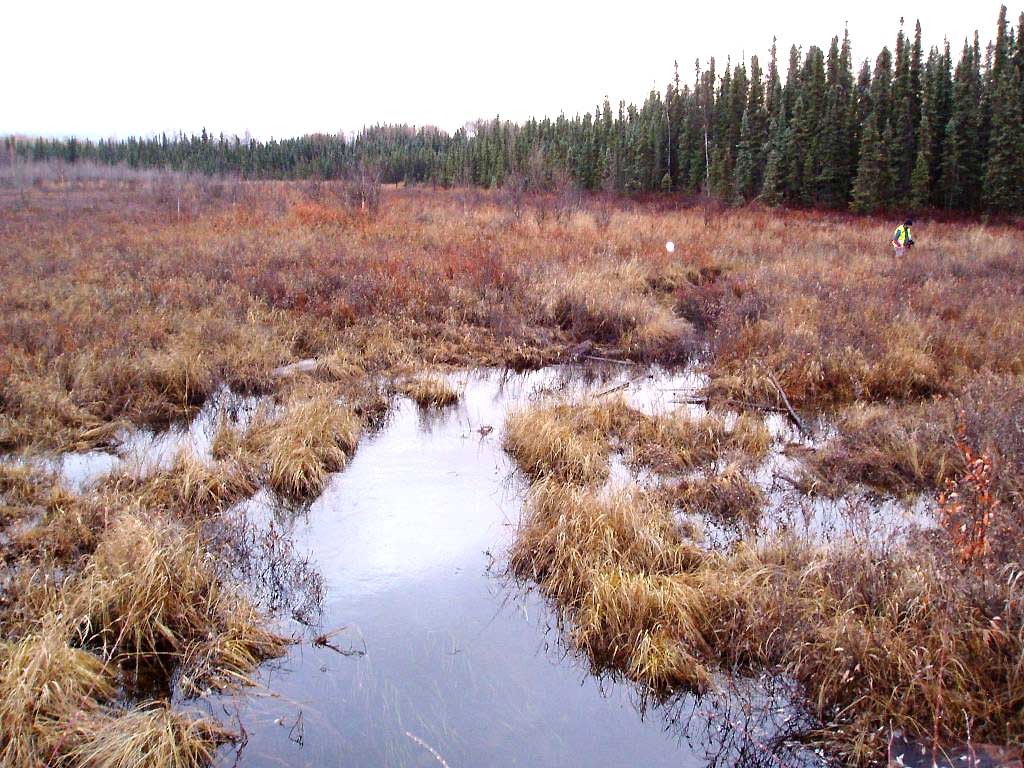

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bed width 75.0 8.10
Upstream bed width 100.0 3.20
Upstream bed width 125.0 4.50
Upstream bed width 150.0 4.20
Upstream ordinary high water 75.0 10.30
Upstream ordinary high water 100.0 5.60
Upstream ordinary high water 125.0 7.20
Upstream ordinary high water 150.0 7.10

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
OHW Left Bank 95.85
Max Pool Depth 0.00 4.8 94.30
D/S Thalweg 0.00 4.8 94.30
Outlet Invert 1 4.80 0.0 94.55
Road Elev 34.80 108.34
Inlet Culvert Invert 1 64.80 0.0 94.94
U/S Thalweg 1 74.80 10.0 94.13

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
