Fish Passage Site 20501137

Coordinates (dec. deg.): 61.51365°, -150.06941°
Legal Description: S017N004W31
Region: South Central

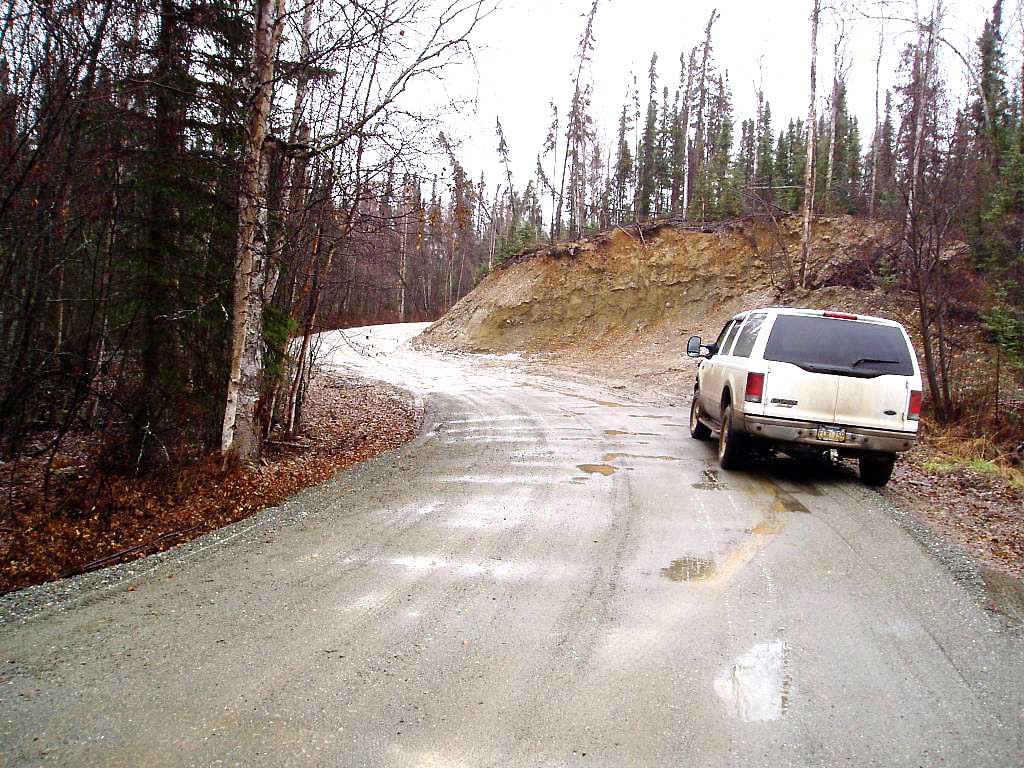

Road Name: PAPOOSE TWINS ROAD

Datum: NAD83
Quad Name / ITM: Tyonek C-1
AWC Stream #:
Stream Name: Crooked Lake outlet

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB04-ML111

Observers: Gary Greenberg, Jen Ransom

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Site Observations:

  1. Culvert gradient red

Comments: ***This site has been reevaluated and resurveyed. This old survey should only be used for historical purposes.***

Culvert Measurements

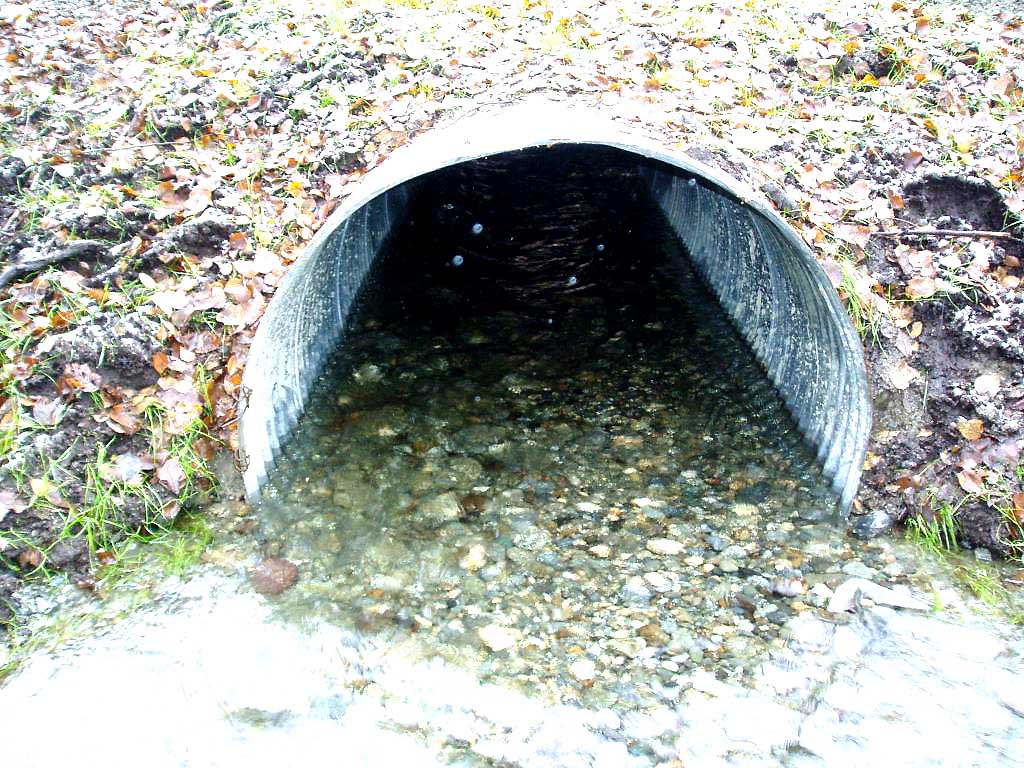

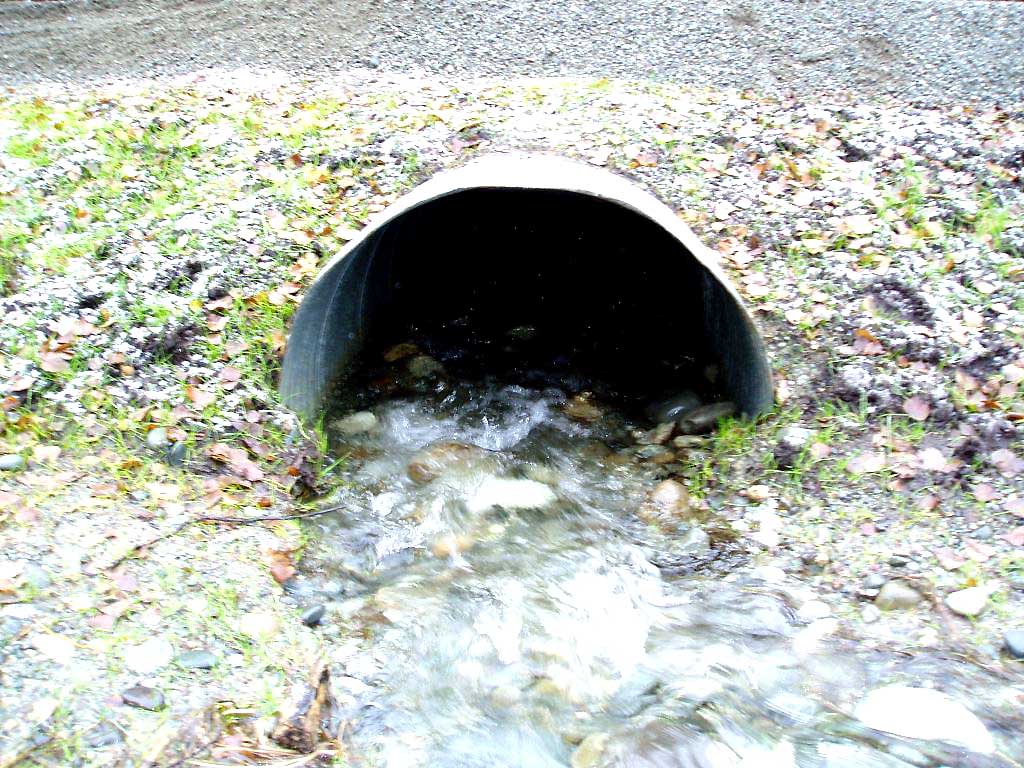

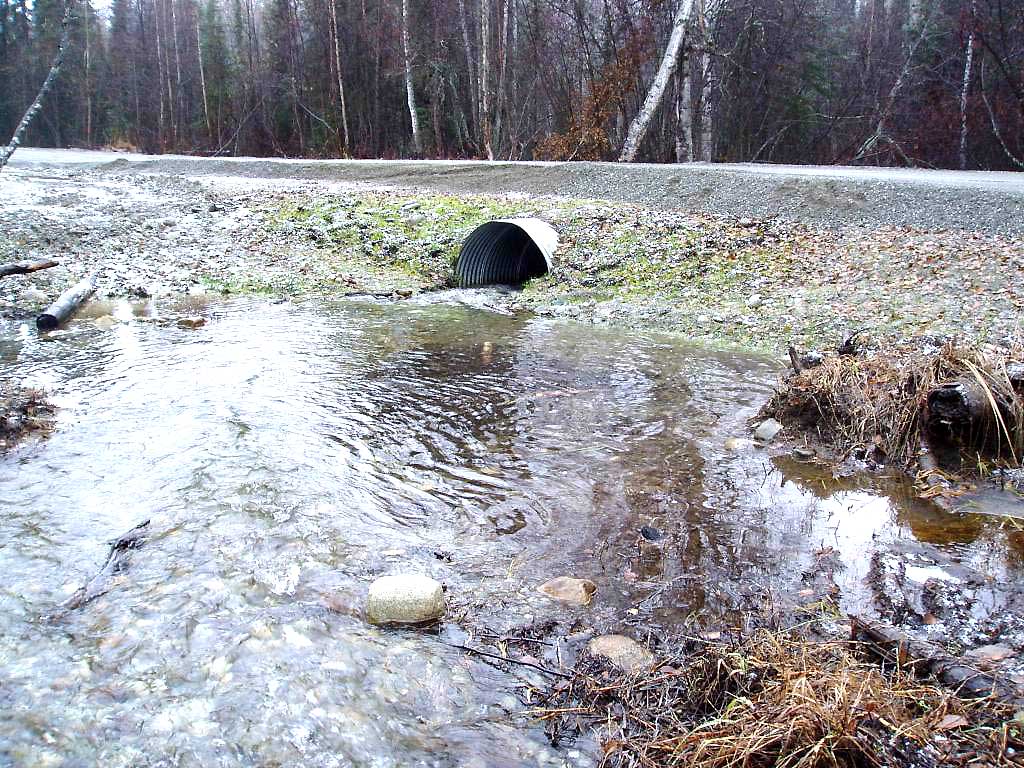

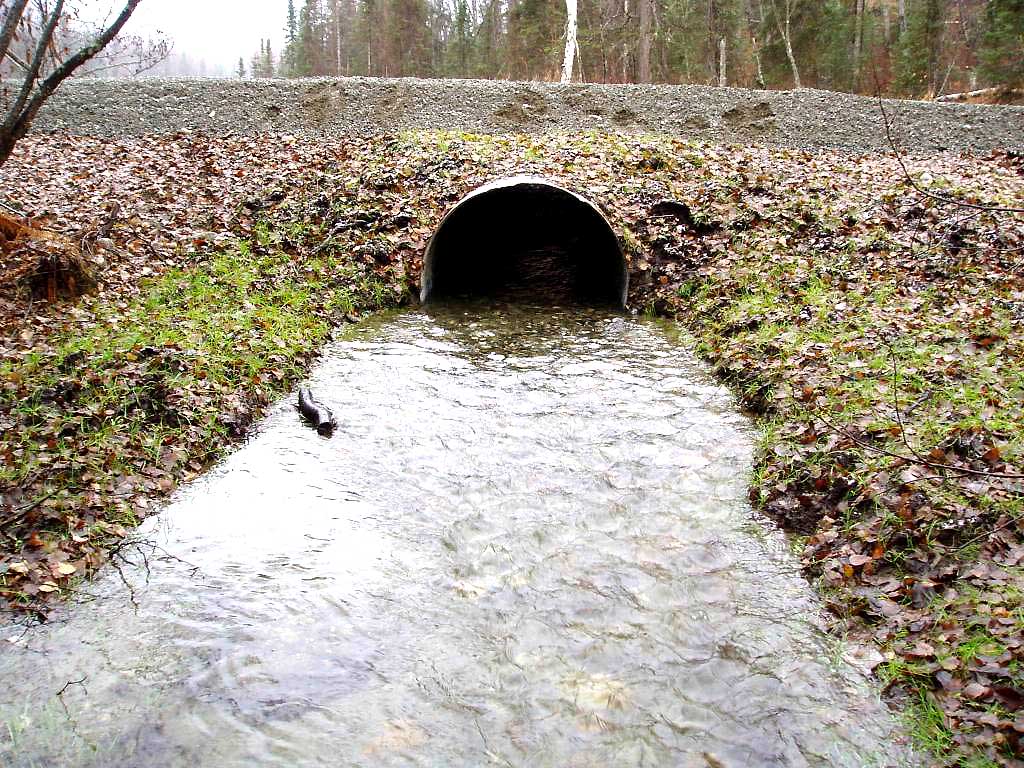

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating: Red

Length(ft): 33.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.): 0.0
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):3.9
Height(ft):4.0
Apron Length(ft):
Water Depth(ft):0.5 0.3
Rustline Height(ft):0.0
Substrate Depth(ft):
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient: 2.24%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient red

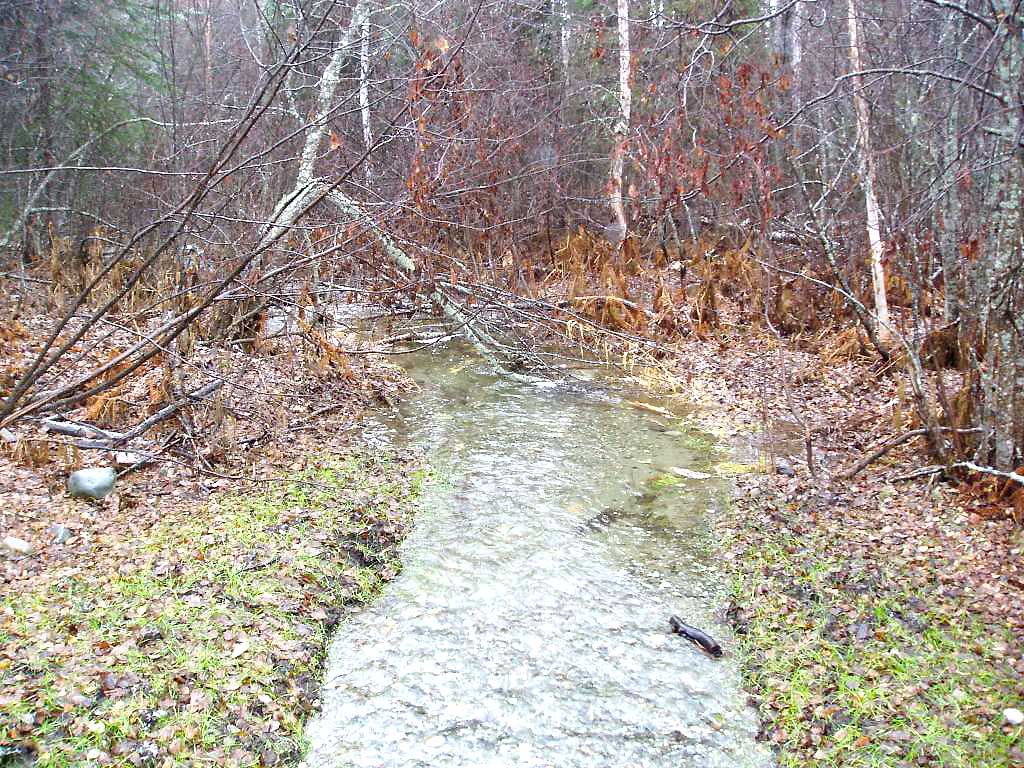

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bed width 100.0 3.30
Upstream bed width 125.0 3.80
Upstream ordinary high water 75.0 3.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
OHW Left Bank 96.65
OHW Left Bank 96.78
D/S Tailcrest or 1st Thalweg 0.00 19.5 96.41
D/S Thalweg 6.50 13.0 95.65
Max Pool Depth 14.50 5.0 96.45
Outlet Invert 1 19.50 0.0 96.55
Road Elev 36.00 101.41
Inlet Culvert Invert 1 52.50 0.0 97.29
U/S Water Surface Elev 1 56.80 4.3 97.71
U/S Thalweg 1 60.50 8.0 97.50

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
