Fish Passage Site 20501084

Coordinates (dec. deg.): 61.57824°, -149.73050°
Legal Description: S017N003W12
Region: South Central

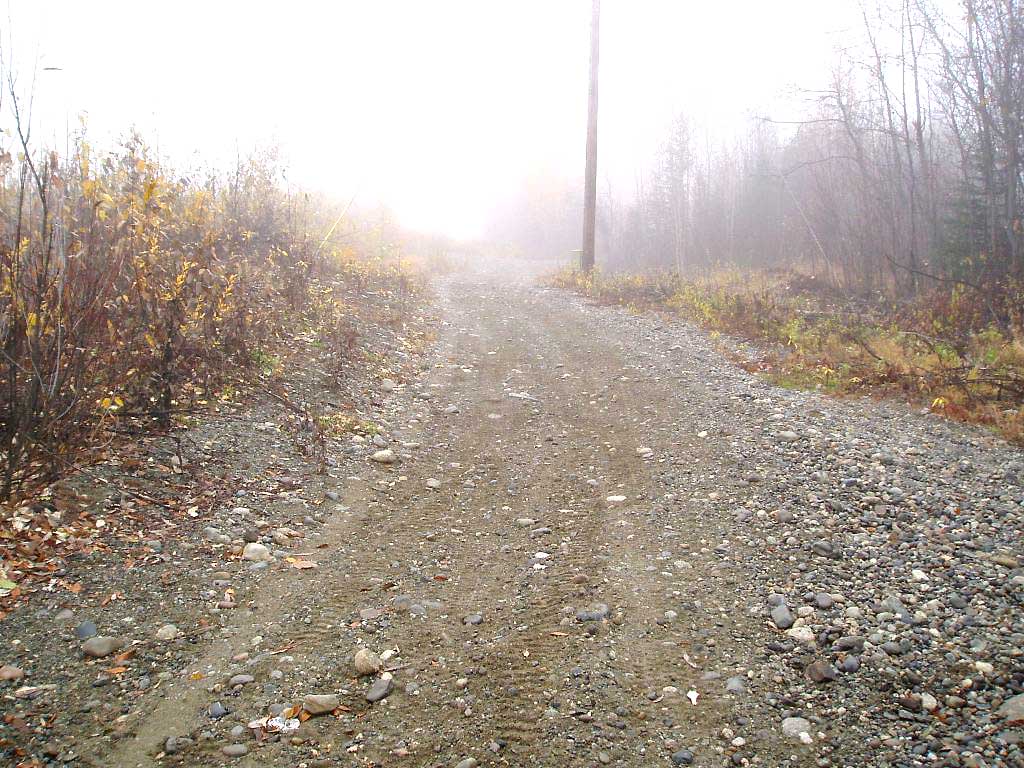

Road Name: Brittany Drive

Datum: NAD83
Quad Name / ITM: Anchorage C-8
AWC Stream #:
Stream Name: Little Meadow Creek

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB04-ML058

Observers: Gary Greenberg, I S

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Site Observations:

  1. Culvert gradient gray
  2. Constriction ratio gray

Comments: This site has been resurvyed and this old survey should be used for historical purposes only.

Culvert Measurements

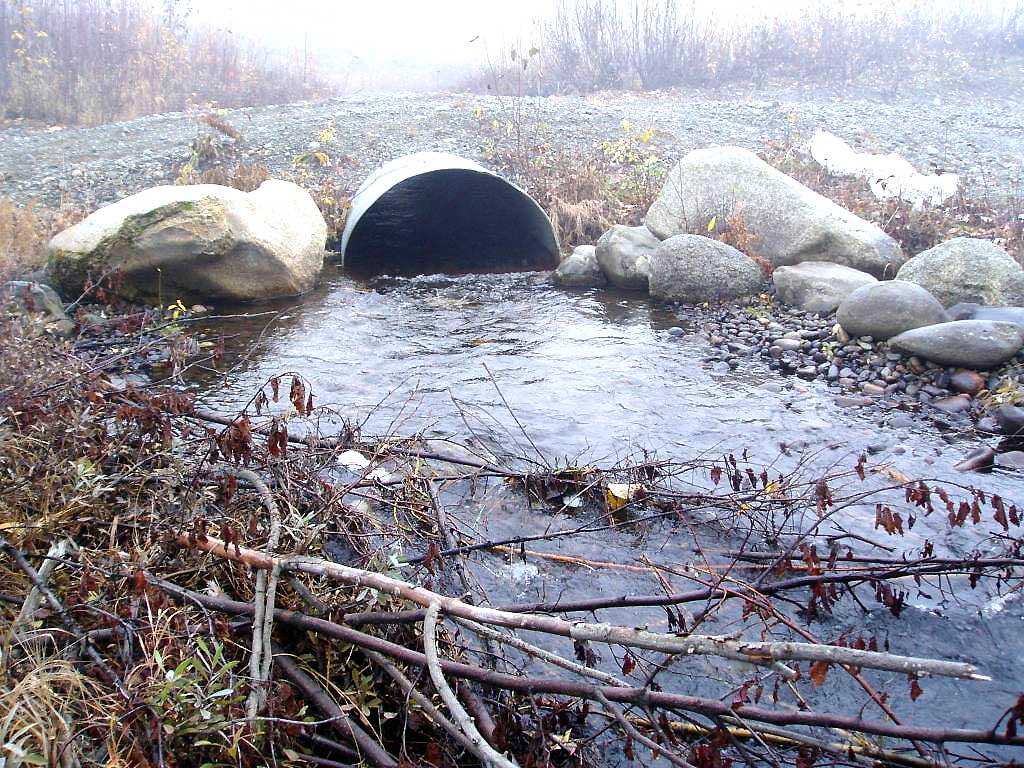

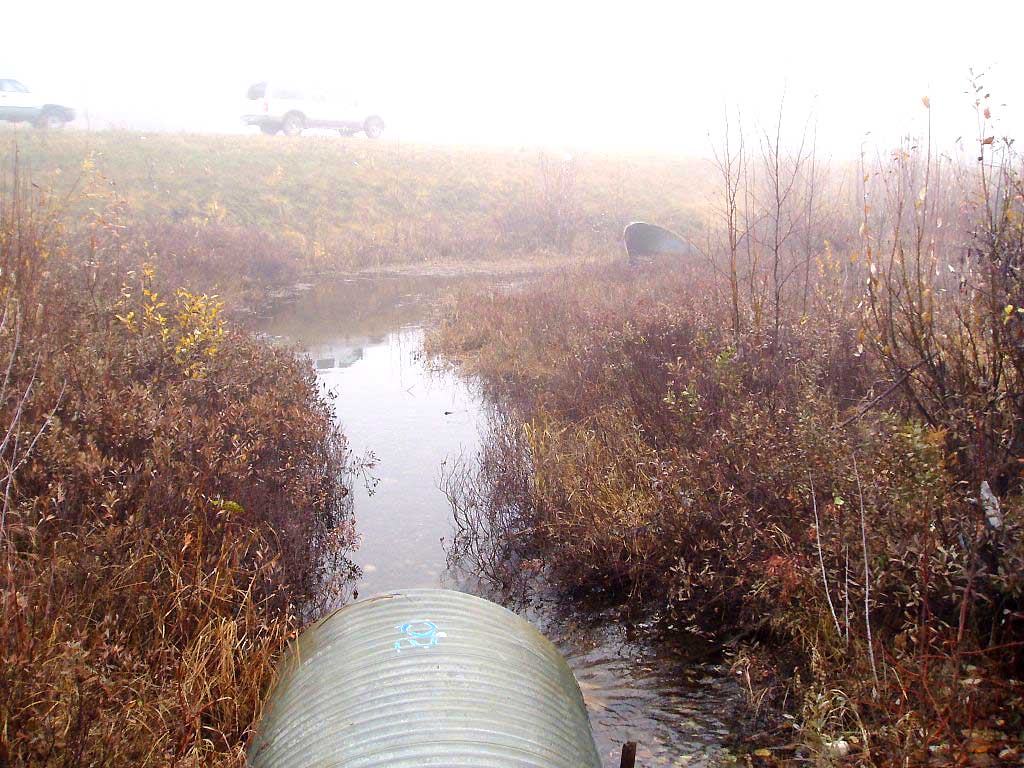

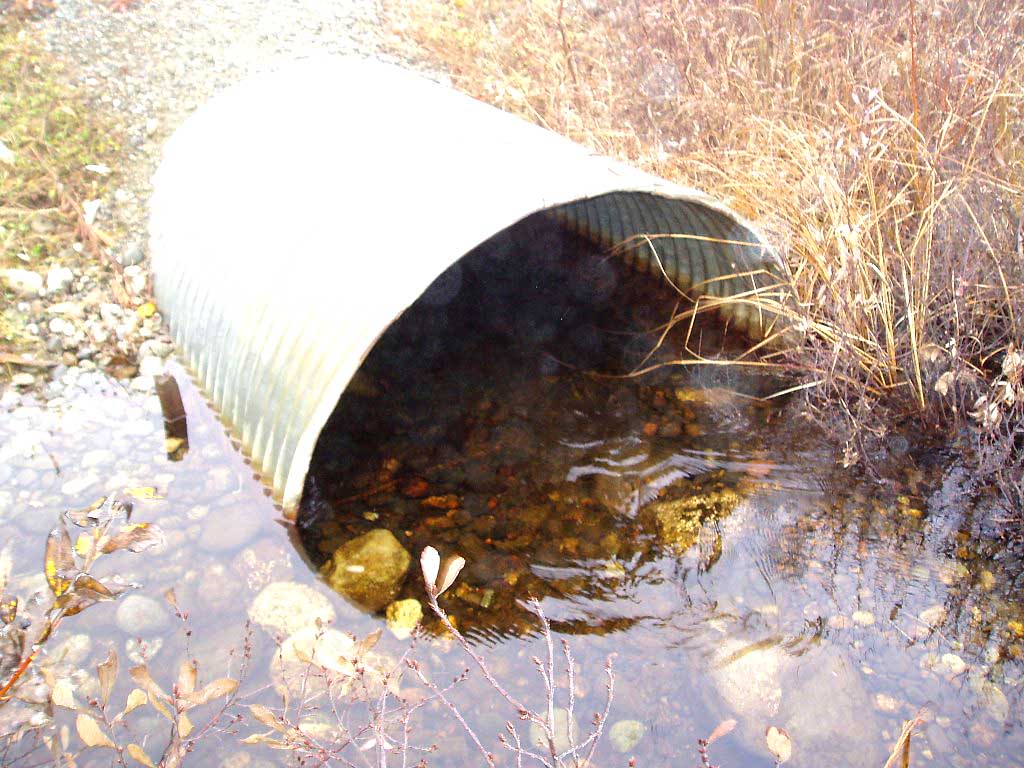

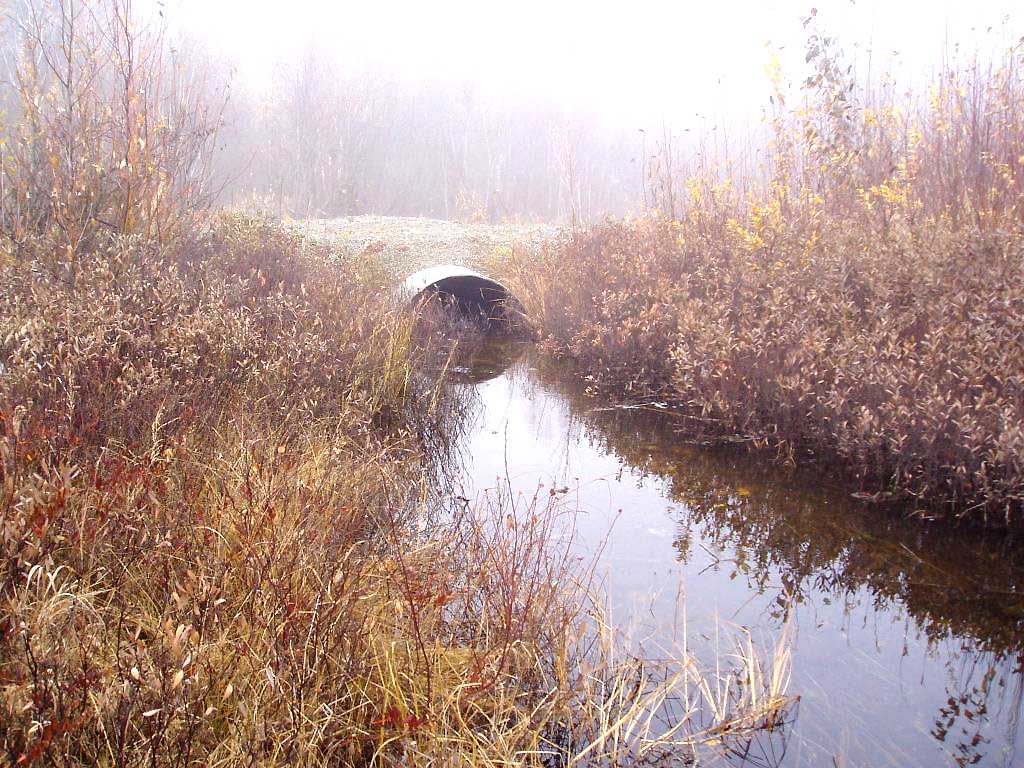

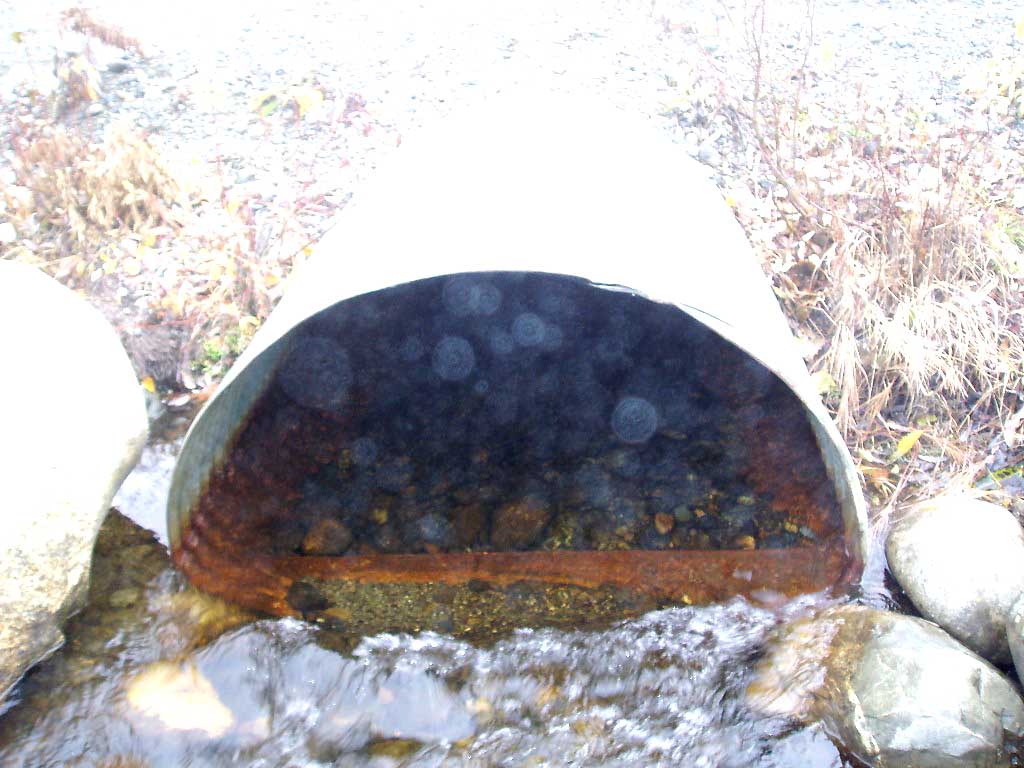

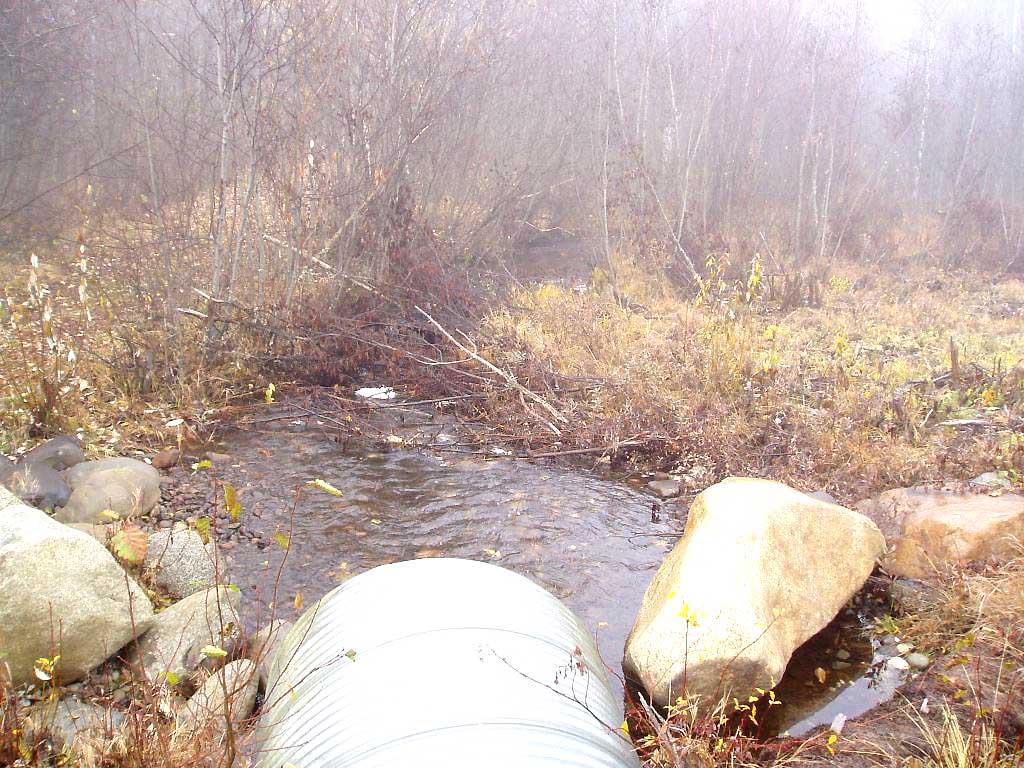

ID: 1 Structure Type: Pipe-arch (Corrugated Metal) Fish Passage Rating: Gray

Length(ft): 40.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.): 0.0
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):4.6
Height(ft):2.6
Apron Length(ft):
Water Depth(ft):0.5 0.6
Rustline Height(ft):0.7
Substrate Depth(ft):
Backwatered?:
Baffles Present: Yes
Embedded?: No
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio: 0.51
Culvert Gradient: 0.85%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient gray
  2. Constriction ratio gray

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bed width 75.0 9.00
Upstream ordinary high water 75.0 9.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
OHW Left Bank 97.80
OHW Left Bank 97.88
D/S Tailcrest or 1st Thalweg 0.00 8.6 97.31
Max Pool Depth 8.60 0.0 97.06
D/S Thalweg 8.60 0.0 97.06
Outlet Invert 1 8.60 0.0 97.06
Road Elev 28.60 100.88
Inlet Culvert Invert 1 48.60 0.0 97.40
U/S Water Surface Elev 1 52.00 3.4 97.13
U/S Thalweg 1 57.60 9.0 97.11

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
