Fish Passage Site 20501076

Coordinates (dec. deg.): 61.61480°, -149.58762°
Legal Description: S018N002W26
Region: South Central

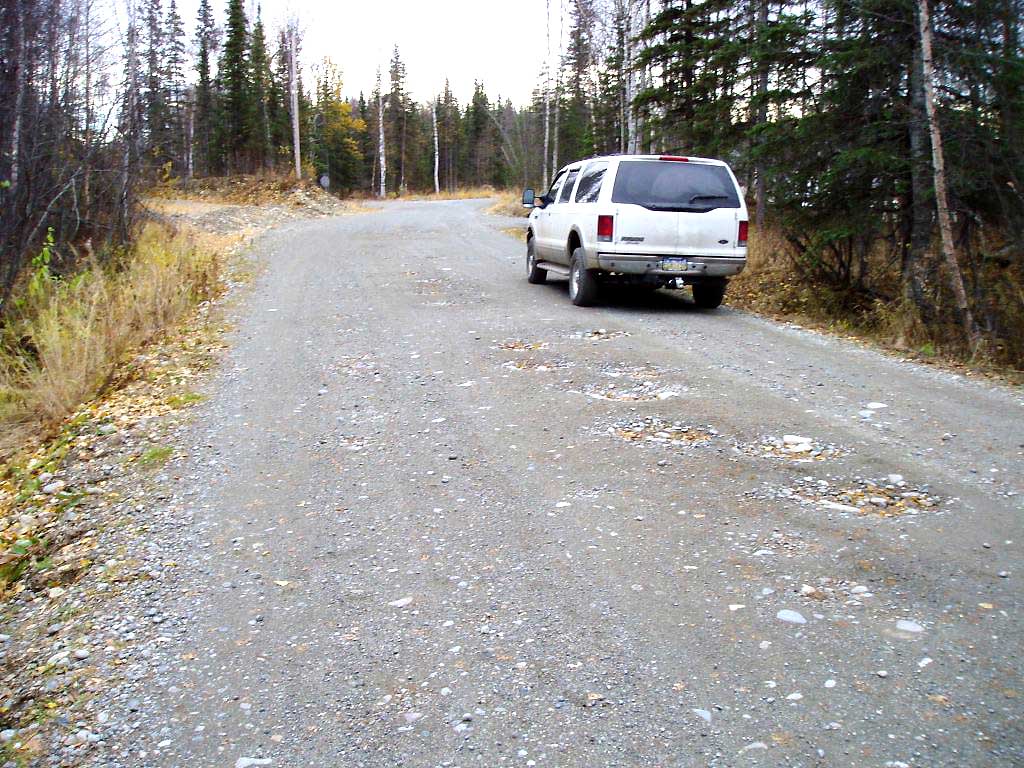

Road Name: North Kalmbach Lake Drive

Datum: NAD83
Quad Name / ITM: Anchorage C-7
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB04-ML050

Observers: Gary Greenberg, I S

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Site Observations:

  1. Constriction ratio gray

Comments: This site has been resurveyed this old survey should be used for historical purposes only.

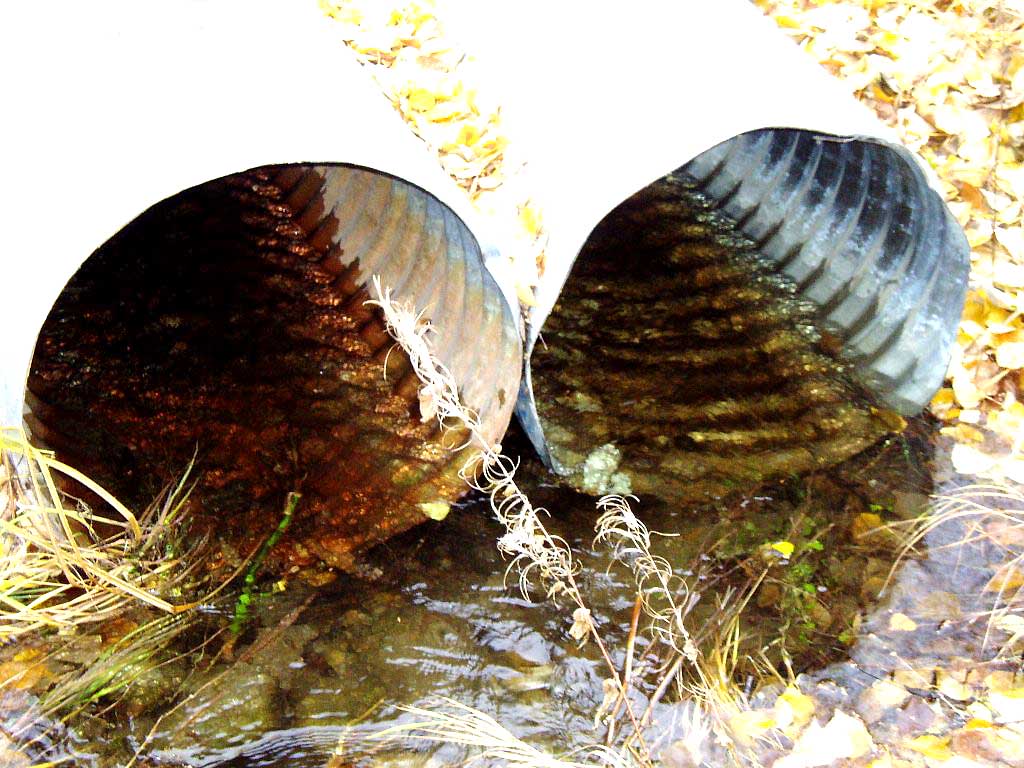

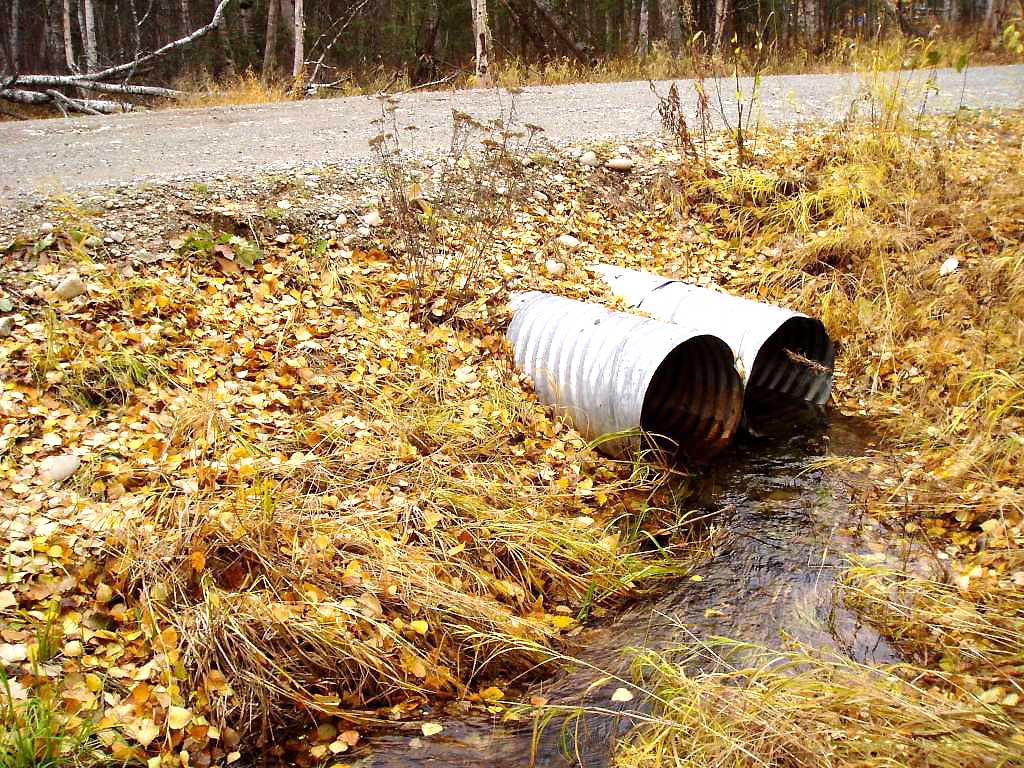

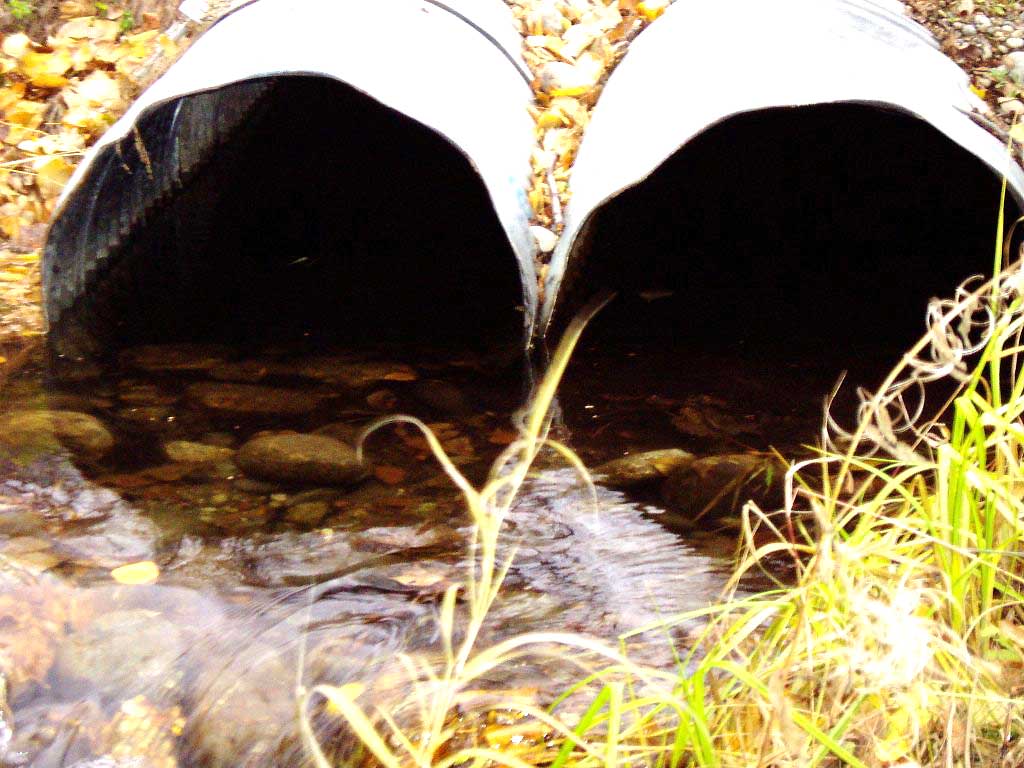

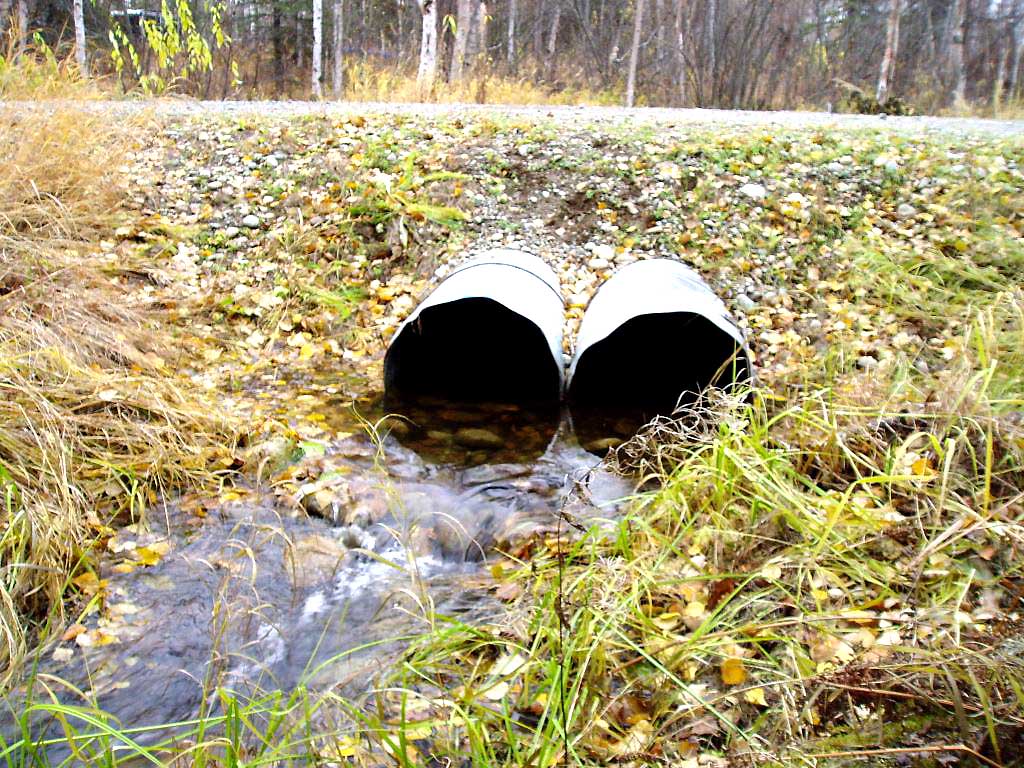

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating: Gray

Length(ft): 36.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.): 0.0
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.0
Height(ft):2.0
Apron Length(ft):
Water Depth(ft):0.4 0.5
Rustline Height(ft):0.6
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio: 0.6
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Constriction ratio gray
ID: 2 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating: Gray

Length(ft): 36.0
Inlet Type: Projecting
Outlet Type: Projecting
Corrugation Depth(in.):
Corrugation Width(in.): 0.0
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.0
Height(ft):2.0
Apron Length(ft):
Water Depth(ft):0.5 0.5
Rustline Height(ft):0.0
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio: 0.6
Culvert Gradient:
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Constriction ratio gray

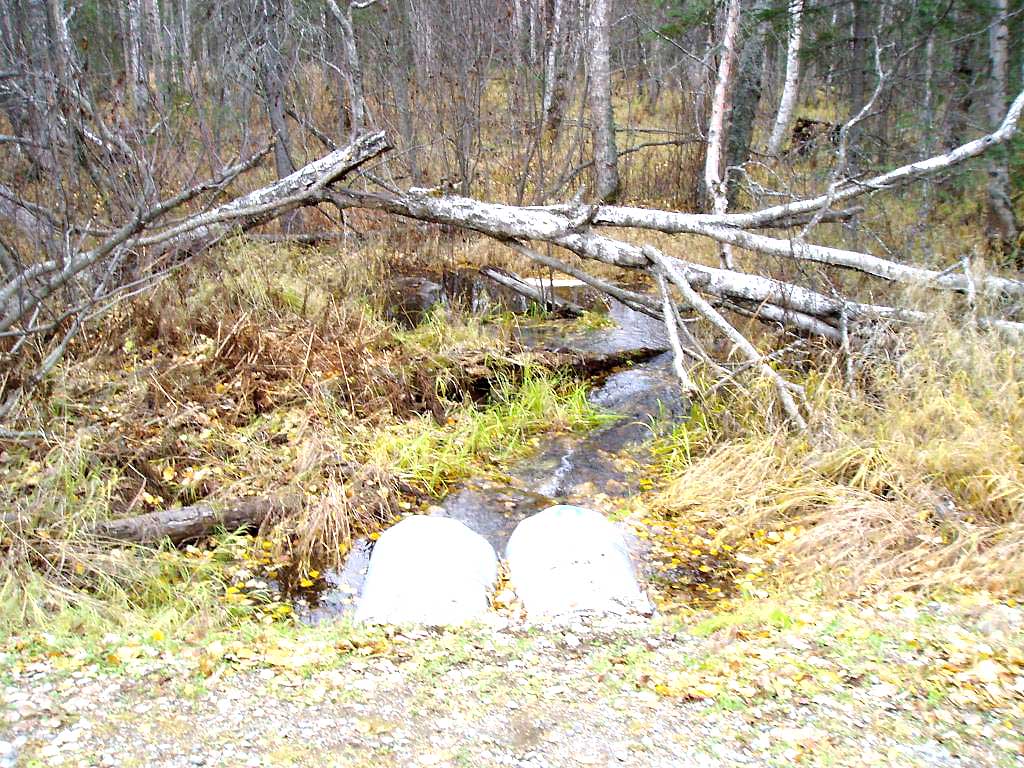

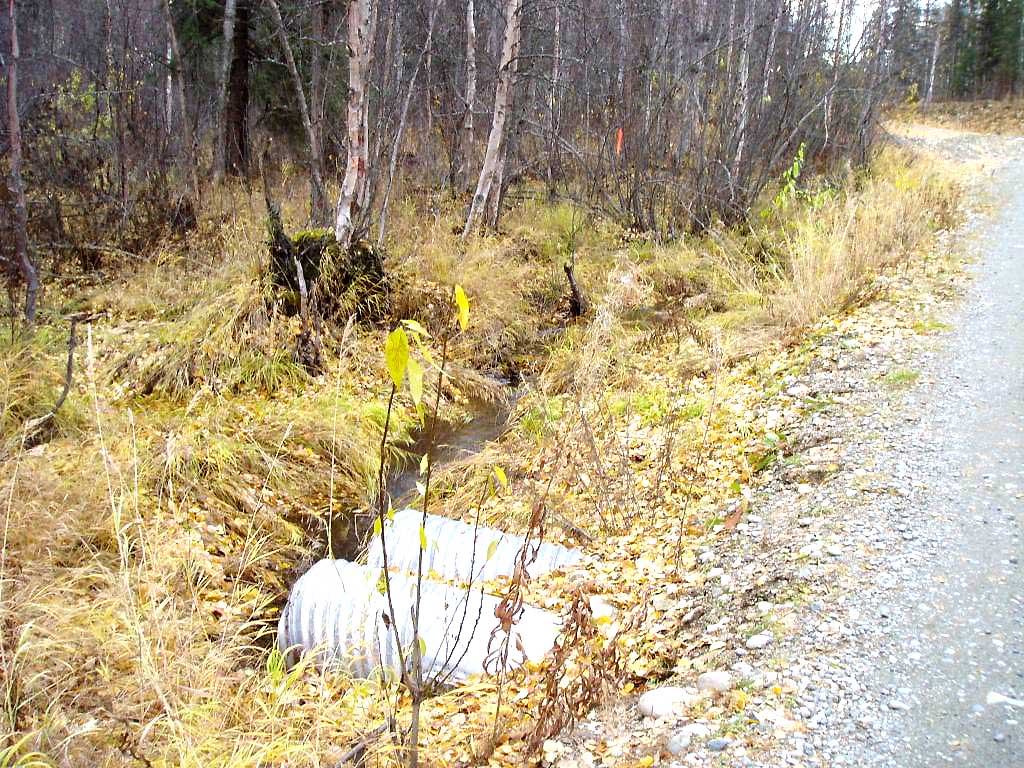

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bed width 125.0 5.70
Upstream bed width 150.0 5.90
Upstream ordinary high water 125.0 6.20
Upstream ordinary high water 150.0 7.10

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
OHW Left Bank 98.82
OHW Left Bank 98.85
D/S Tailcrest or 1st Thalweg 0.00 3.0 98.55
Max Pool Depth 0.40 2.6 98.31
D/S Thalweg 0.40 2.6 98.31
Outlet Invert 2 3.00 0.0 98.39
Outlet Invert 1 3.00 0.0 99.22
Road Elev 21.00 102.16
Inlet Culvert Invert 1 39.00 0.0 98.55
Inlet Culvert Invert 2 39.00 0.0 98.42
U/S Thalweg 1 43.00 4.0 98.24
U/S Thalweg 2 43.00 4.0 98.24
U/S Water Surface Elev 1 45.40 6.4 98.36
U/S Water Surface Elev 2 45.40 6.4 98.36

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
