Fish Passage Site 20501072

Coordinates (dec. deg.): 61.61915°, -149.59000°
Legal Description: S018N002W26
Region: South Central

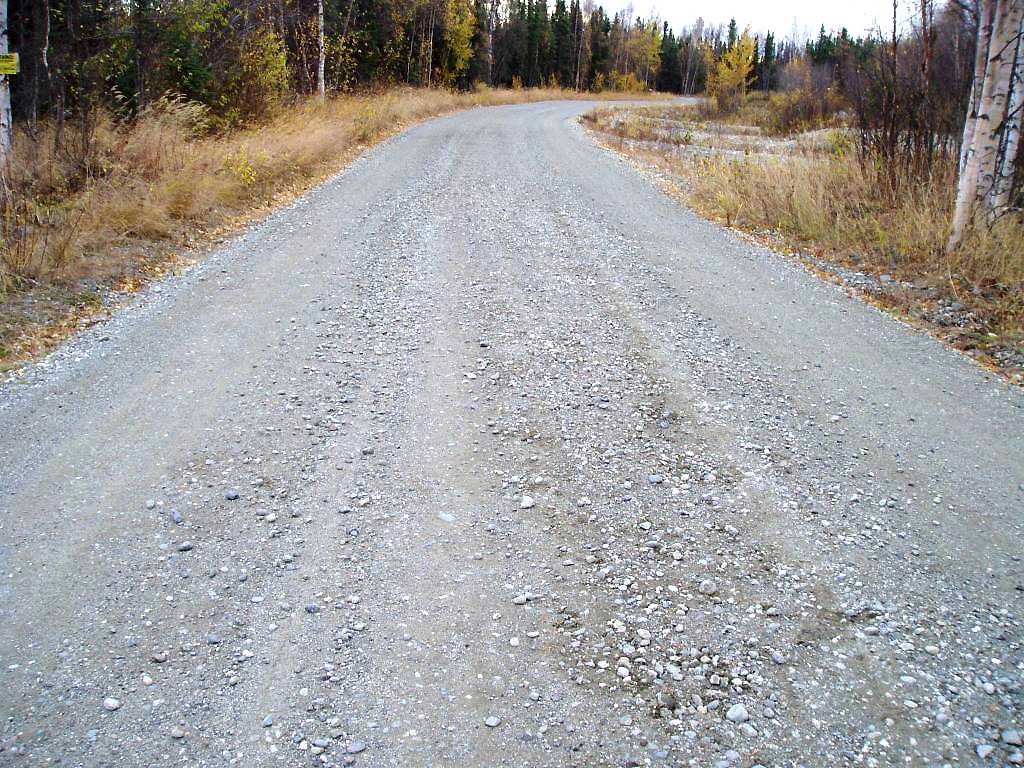

Road Name: Wyoming Drive

Datum: NAD83
Quad Name / ITM: Anchorage C-7
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey MSB04-ML046

Observers: Gary Greenberg, I S

Overall Fish Passage Rating:

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: None

Culvert Measurements

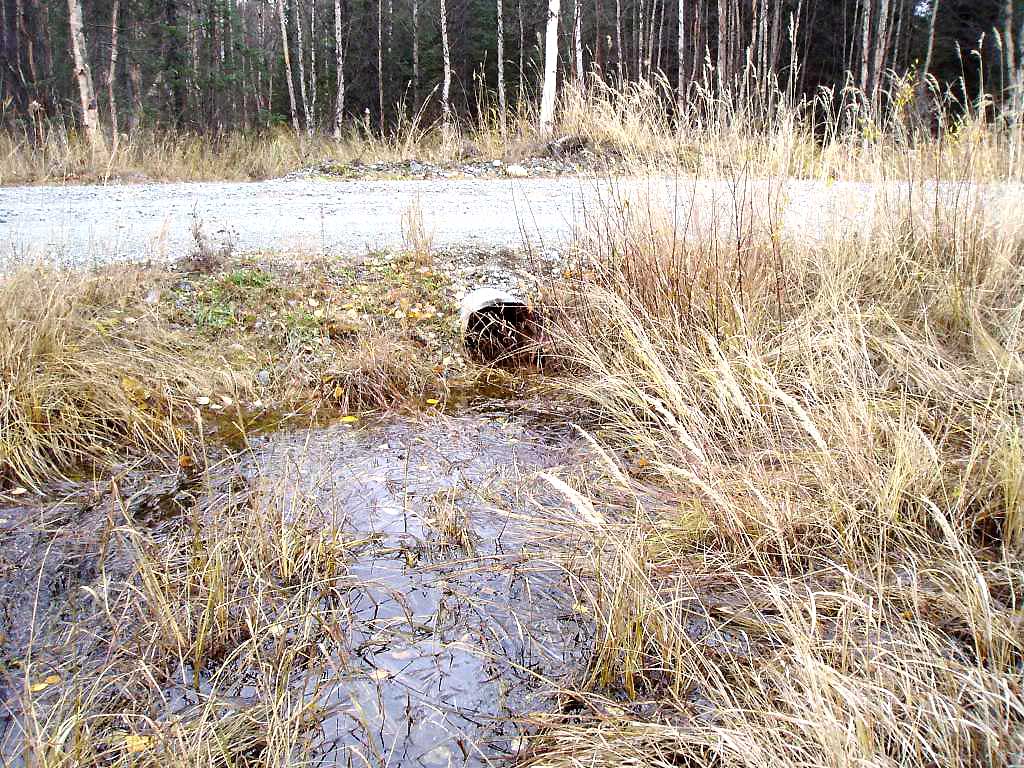

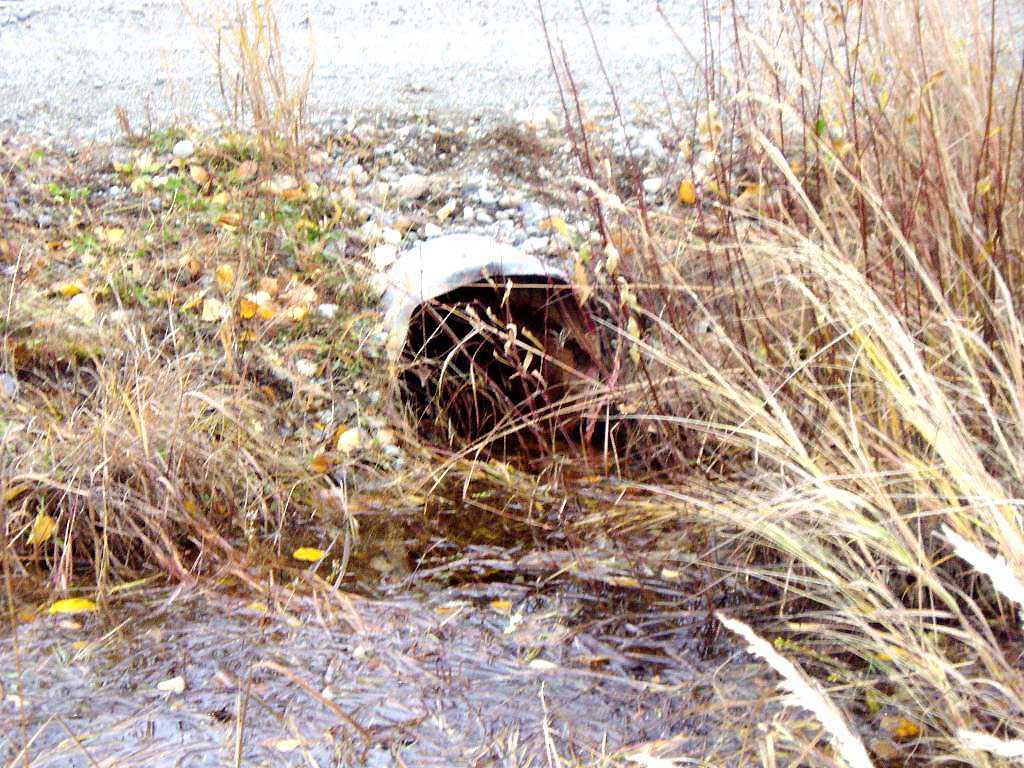

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 30.0
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.): 0.0
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):1.2
Height(ft):1.2
Apron Length(ft):
Water Depth(ft):0.1 0.3
Rustline Height(ft):0.4
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio: 0.94
Culvert Gradient: 3.00%
Max Slope:
Max Slope Length:

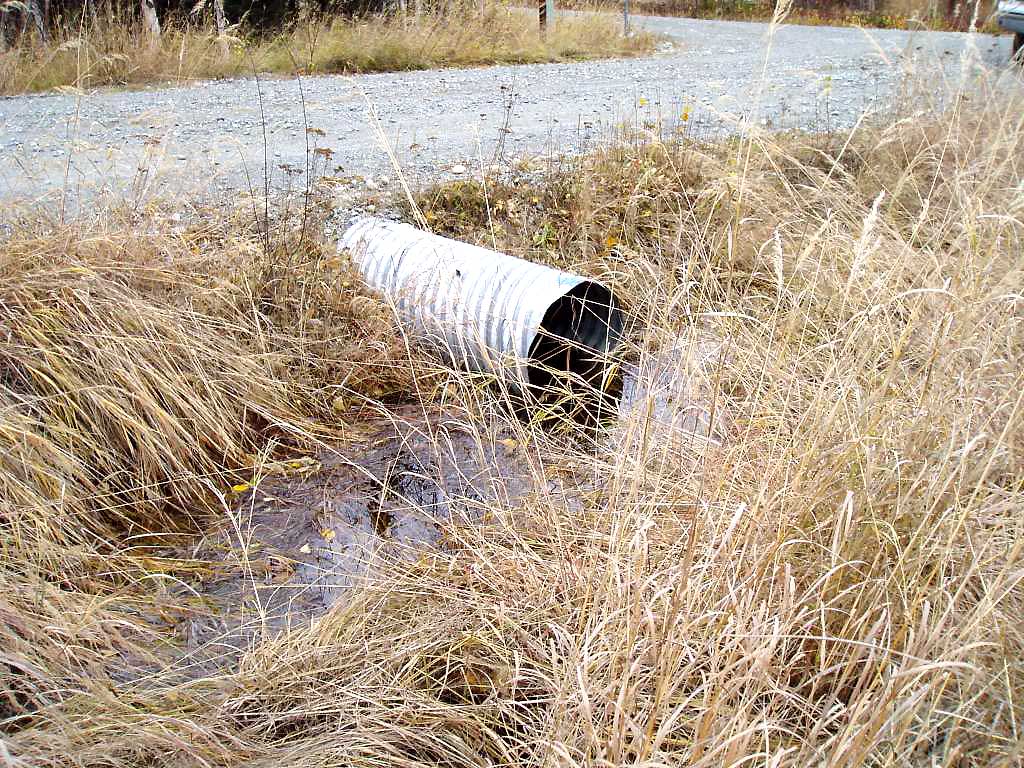

ID: 2 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 33.0
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.):
Corrugation Width(in.): 0.0
Condition Rating(1-5):
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):2.0
Height(ft):2.0
Apron Length(ft):
Water Depth(ft):0.7 0.4
Rustline Height(ft):0.5
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio: 0.94
Culvert Gradient: 0.12%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bed width 100.0 3.30
Upstream bed width 125.0 3.20
Upstream bed width 150.0 2.90
Upstream ordinary high water 100.0 3.50
Upstream ordinary high water 125.0 3.60
Upstream ordinary high water 150.0 3.10

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
OHW Left Bank 98.23
D/S Thalweg 0.00 5.0 96.34
Max Pool Depth 0.00 5.0 97.34
Outlet Invert 1 5.00 0.0 97.88
Outlet Invert 2 5.00 0.0 97.92
Road Elev 20.50 100.64
Inlet Culvert Invert 1 36.00 0.0 98.78
Inlet Culvert Invert 2 36.00 0.0 97.96
U/S Thalweg 2 40.00 4.0 97.77
U/S Thalweg 1 40.00 4.0 98.35

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.
