Fish Passage Site 20400153
Coordinates (dec. deg.): 61.09685°, -149.73620°
Legal Description: S012N003W25
Region: South Central

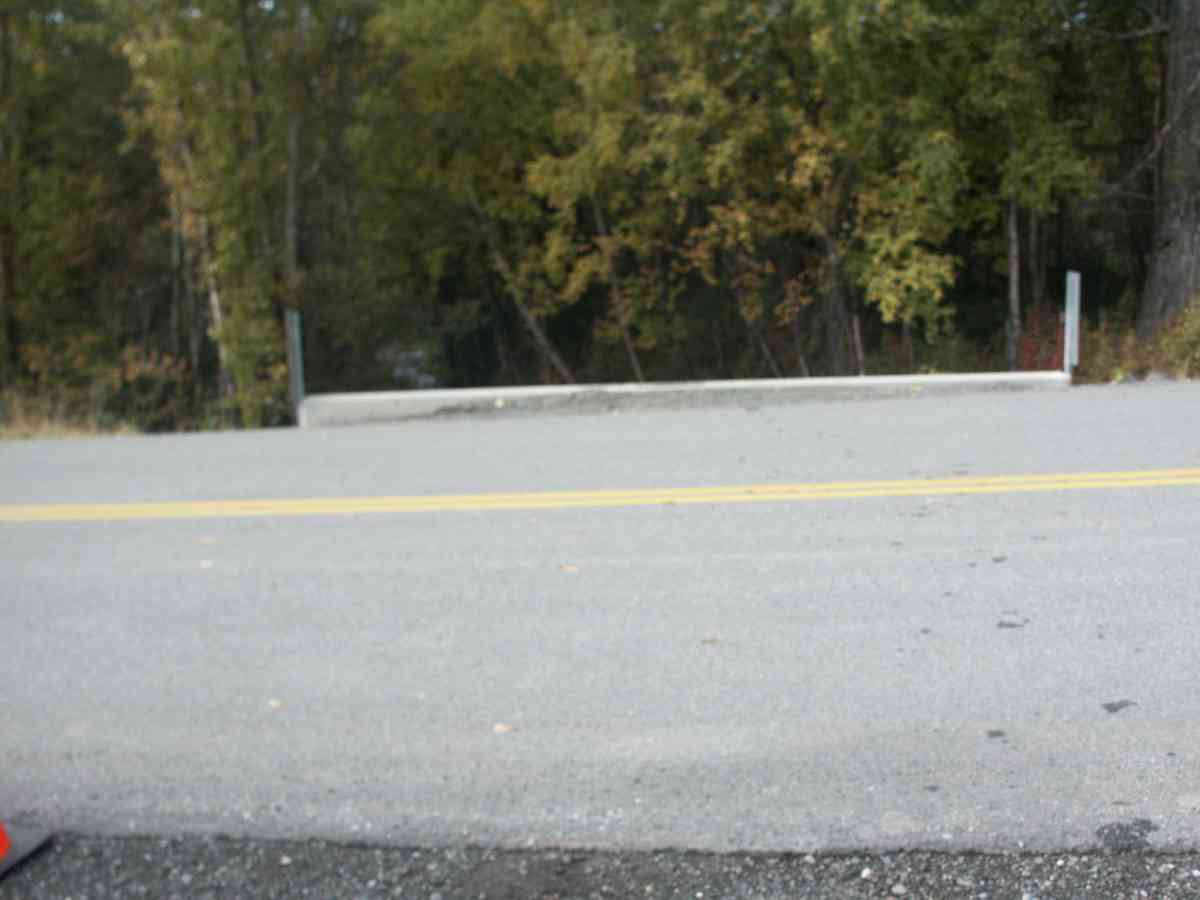

Road Name: Old Rabbit Creek Road
Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #: 247-60-10320
Stream Name: Rabbit Creek
Elevation:
Site Comments: RABBIT CREEK WATERSHED
Survey ANC04-3A153
Observers: Dean Beers, Vic Stanculescu
Overall Fish Passage Rating:
Tidal: No
Backwatered: No
Step Pools:
Construction Year:
Comments: RABBIT CREEK WATERSHED, DOLLY VARDEN CHAR AND ADULT COHO SALMON ABOVE CULVERT INLET
Culvert Measurements

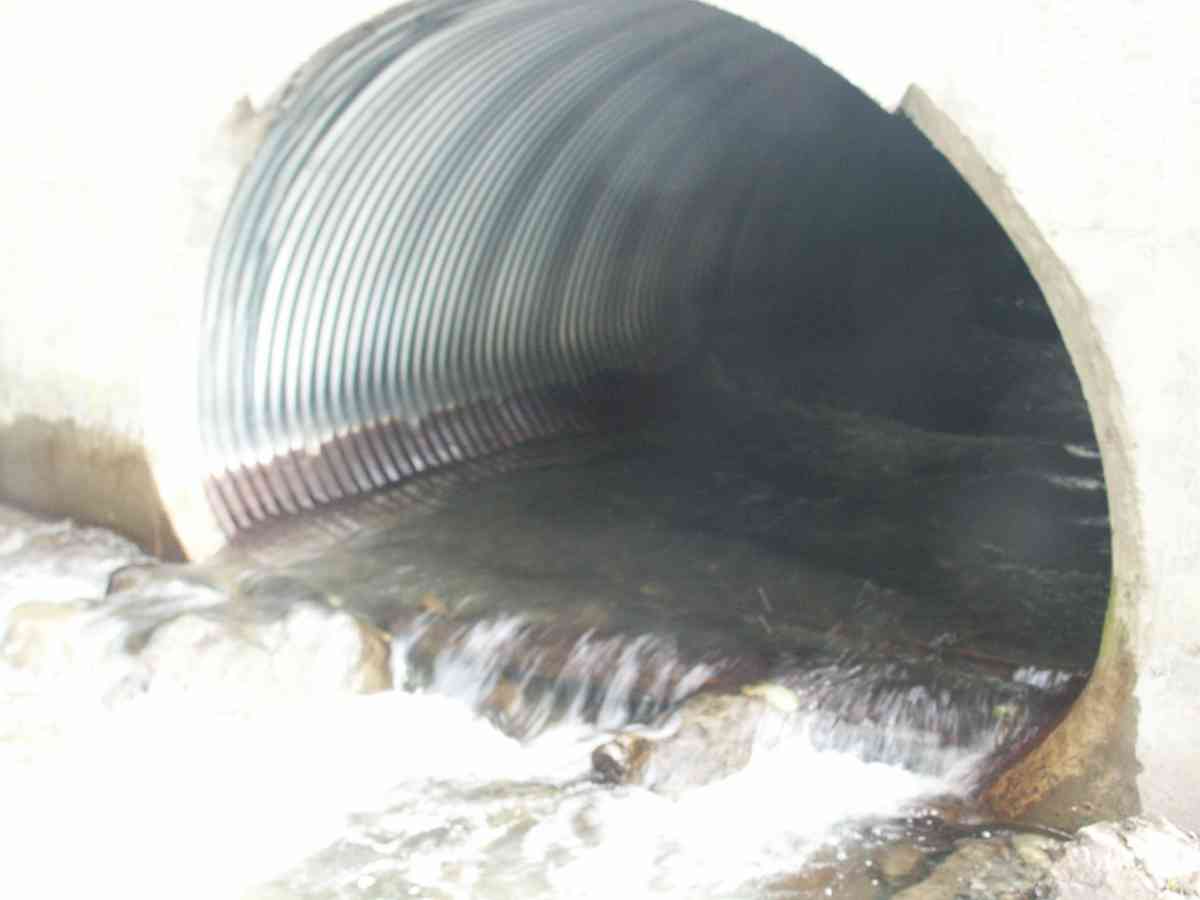

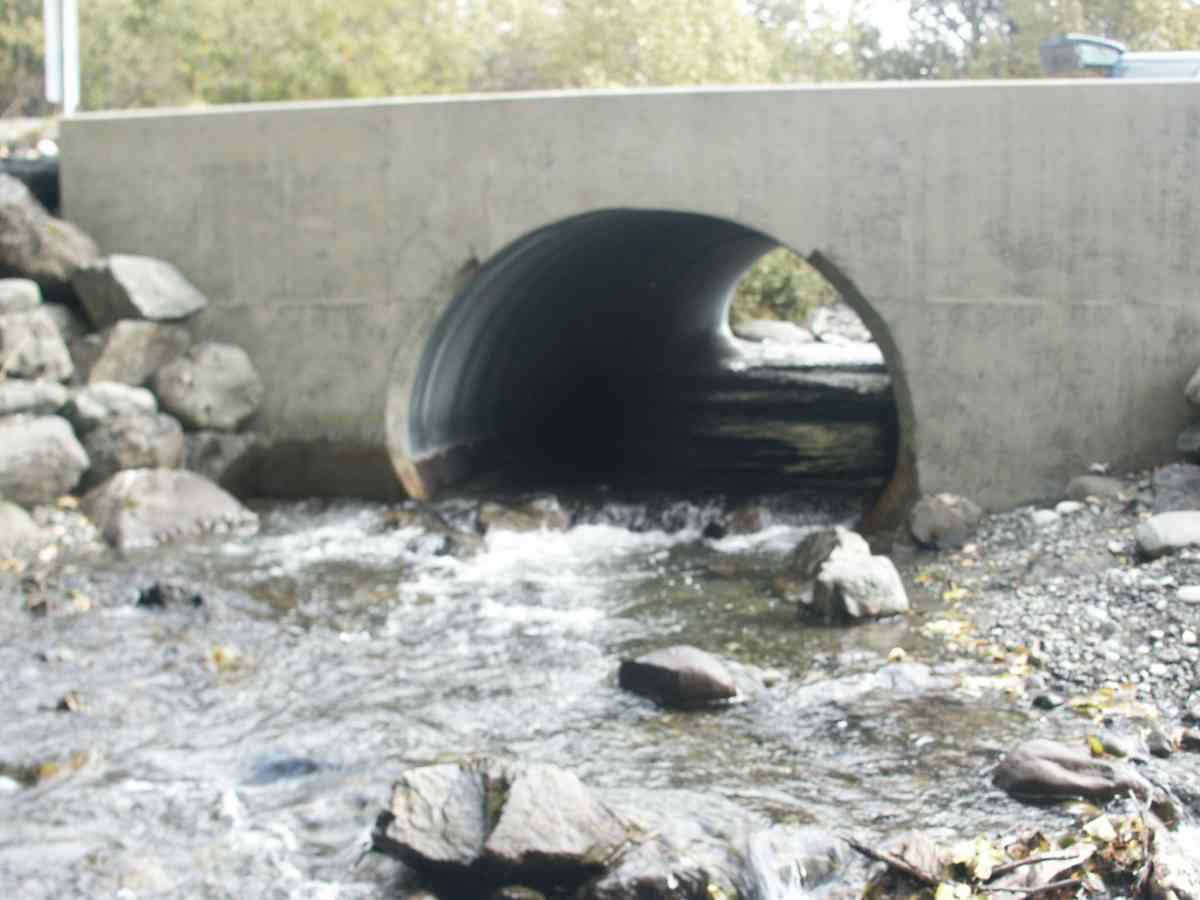

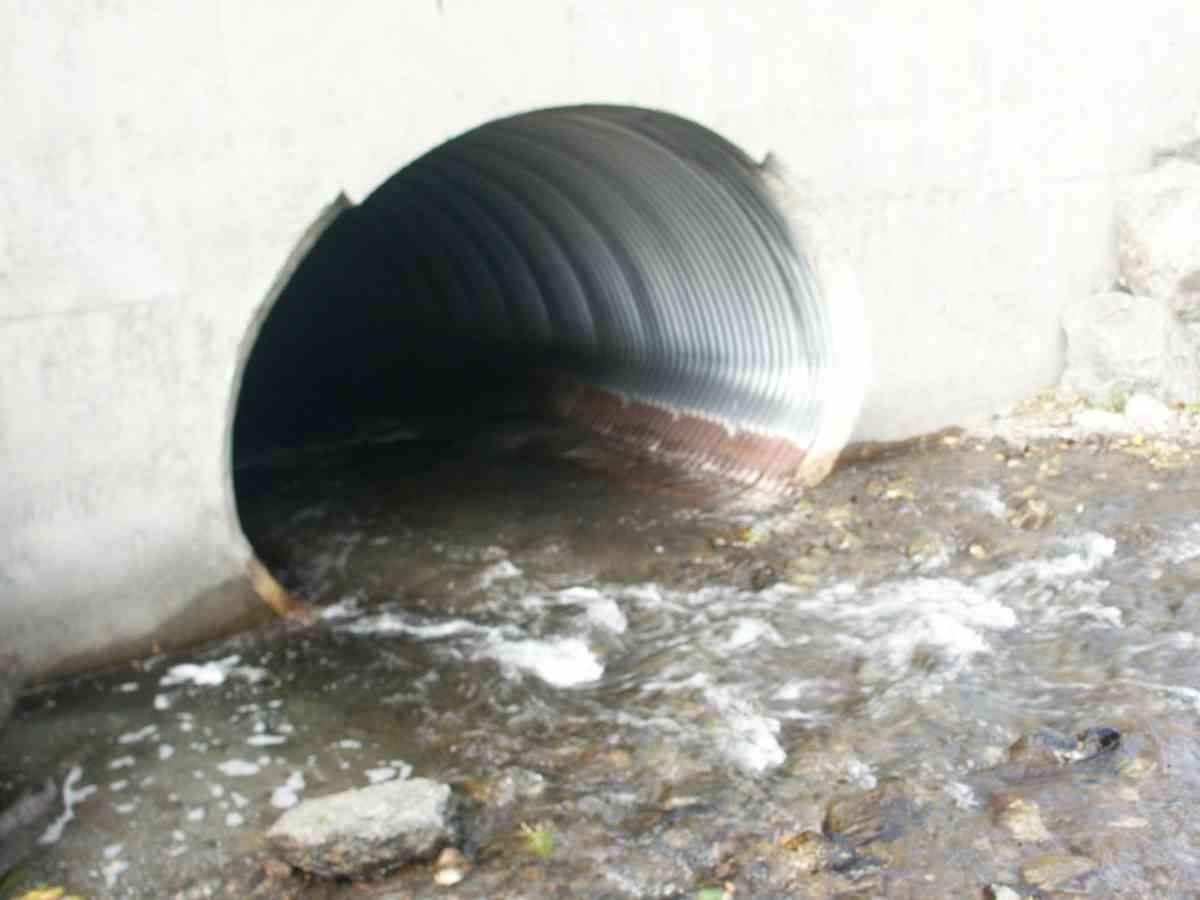

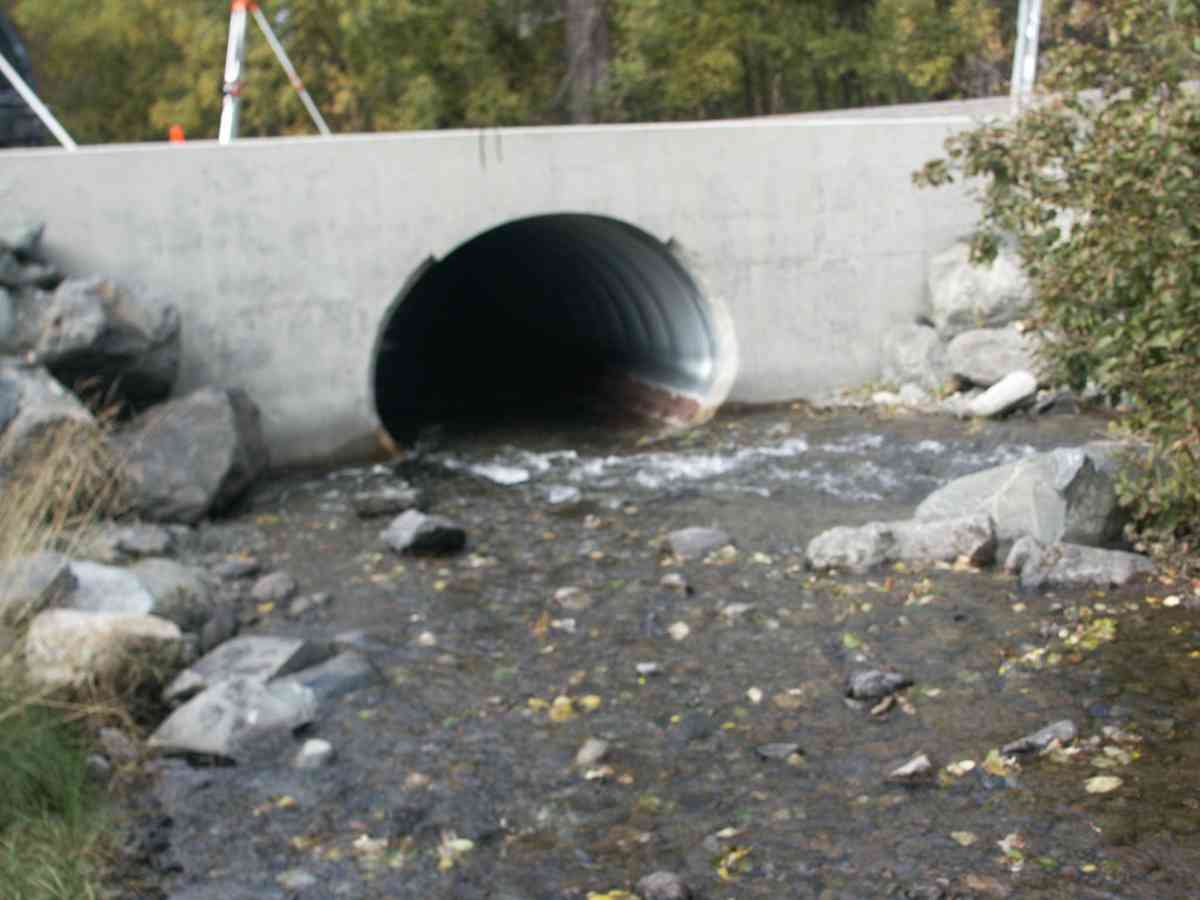

ID: 1 | Structure Type: Pipe-arch (Corrugated Metal) | Fish Passage Rating: | |||||||||||||||||||||||||||||||||||||||||
|
|
|

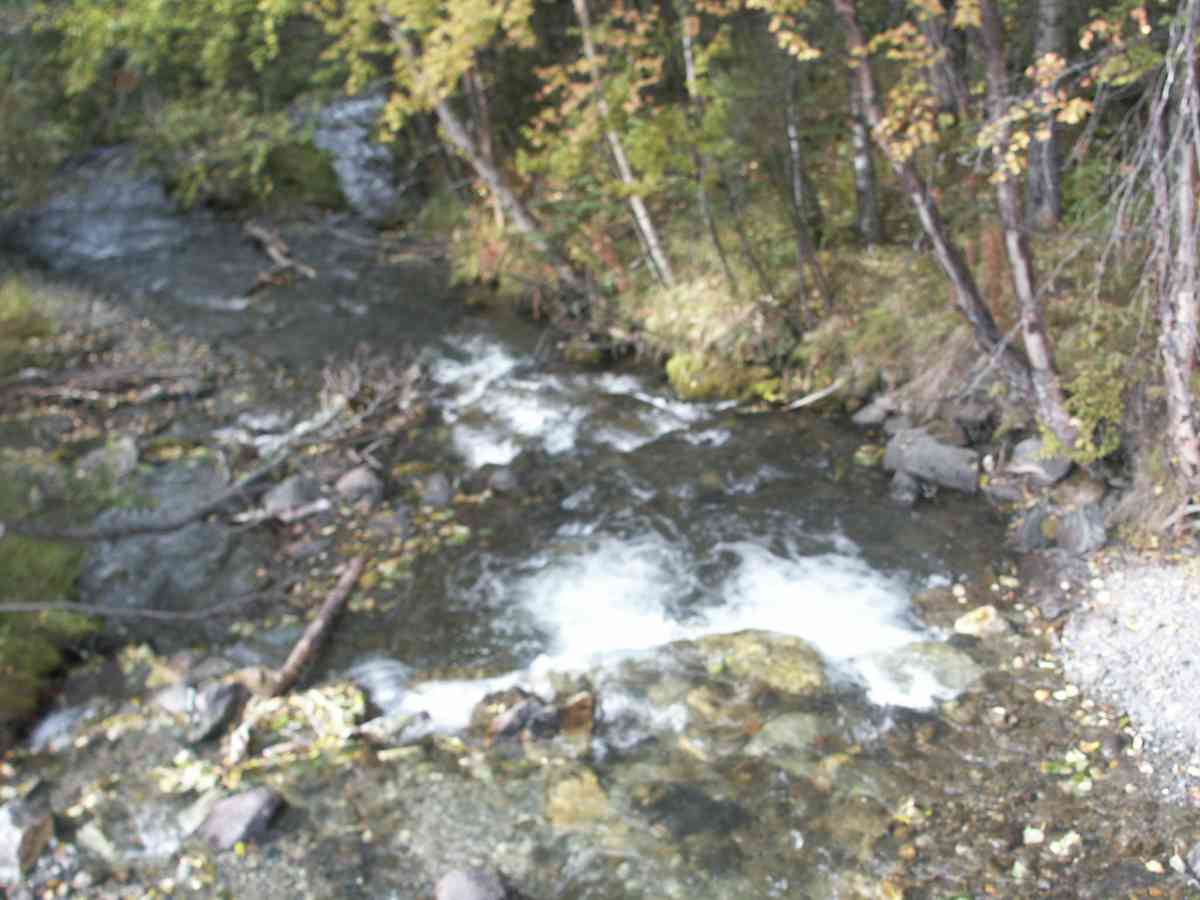

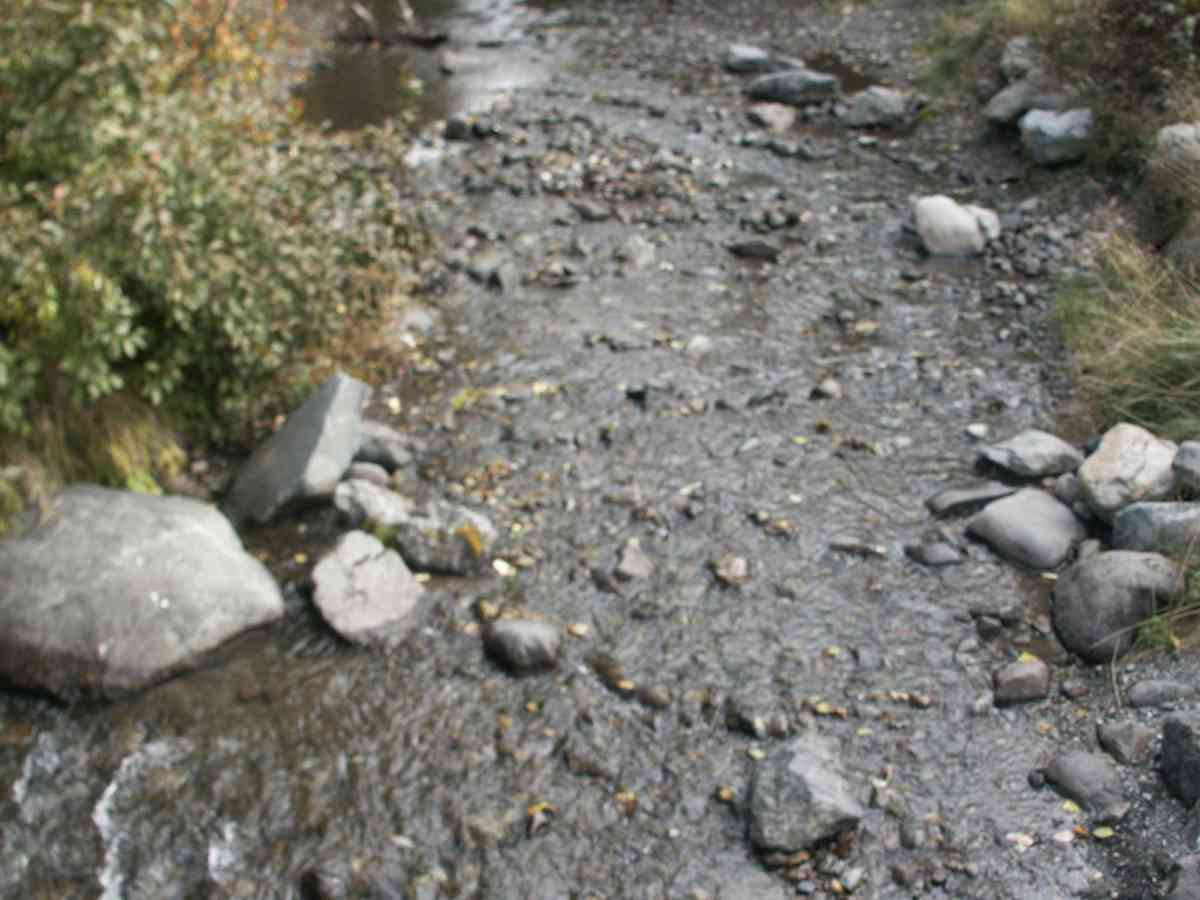

Stream Measurements
|
|
Stream Width Type | Distance From Crossing (ft) |
Stream Width (ft) |
---|---|---|
Upstream bank full | 100.0 | 63.70 |
Upstream bank full | 150.0 | 47.50 |
Upstream bed width | 100.0 | 37.20 |
Upstream bed width | 150.0 | 21.10 |
Upstream ordinary high water | 100.0 | 42.40 |
Upstream ordinary high water | 150.0 | 42.20 |
Elevations
Locator ID | Culvert Number |
River Distance (ft)1 |
Distance From Crossing (ft)2 |
Relative Elevation (ft) |
---|---|---|---|---|
D/S Thalweg | 88.63 | |||
D/S Tailcrest or 1st Thalweg | 88.64 | |||
Max Pool Depth | 88.90 | |||
OHW Left Bank | 89.91 | |||
OHW Left Bank | 89.99 | |||
U/S Thalweg | 1 | 91.47 | ||
Outlet Invert | 1 | 0.00 | 0.0 | 89.29 |
Road Elev | 23.00 | 99.93 | ||
Inlet Culvert Invert | 1 | 46.00 | 0.0 | 90.69 |
Notes:
- River distance is measured continuously throughout the survey reach along the thalweg of the stream.
- Measured from each end of the crossing along the thalweg of the stream.
Fish Sampling Efforts
Gear Type: Visual Observation, Ground (A) |
Fish Observations
No fish observations occurred during this survey.
