Fish Passage Site 20400140

Coordinates (dec. deg.): 61.15922°, -149.81201°
Legal Description: S012N003W04
Region: South Central

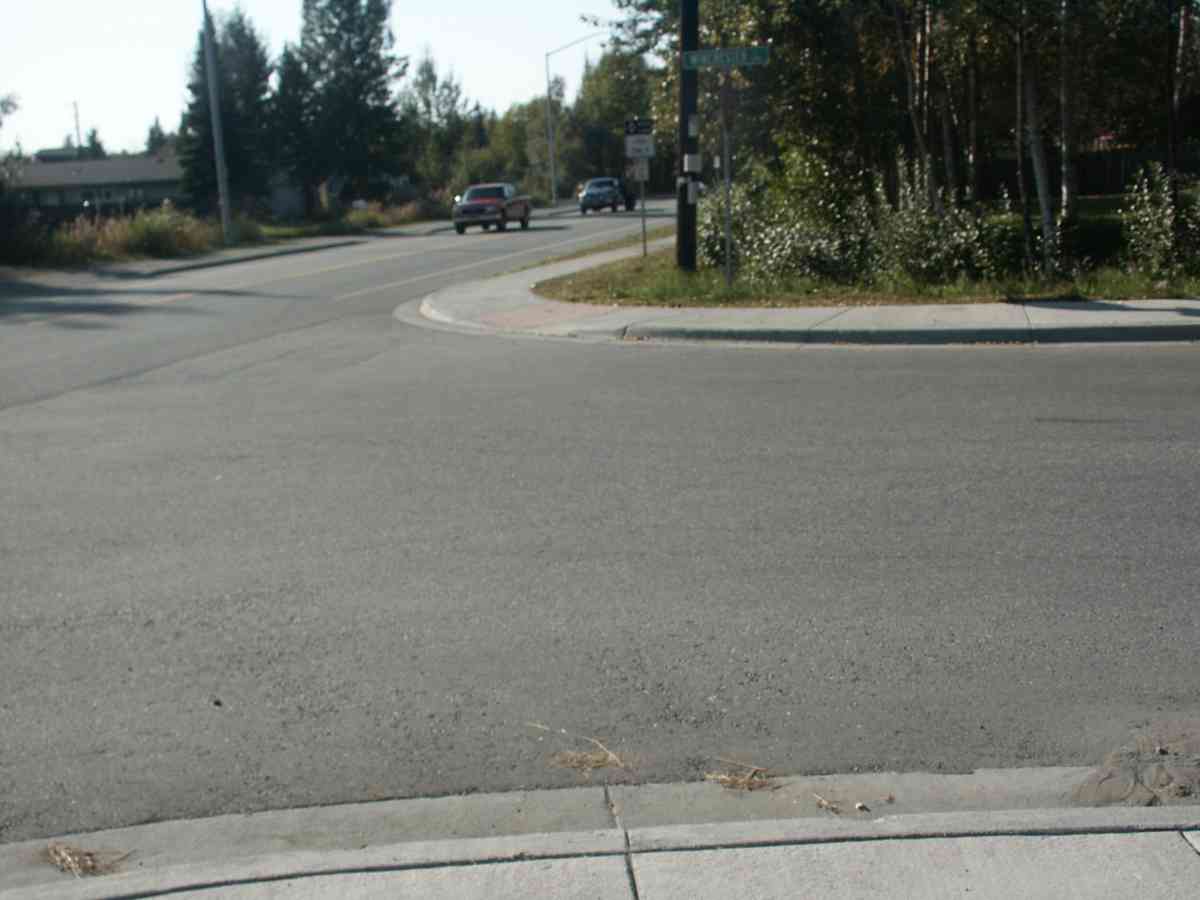

Road Name: East 68TH Street

Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #:
Stream Name: Little Campbell Creek North Fork

Elevation:

Site Comments: EAST 68TH & WINCHESTER. CAMPBELL CREEK WATERSHED

Survey Date: Sep 16, 2004

Survey ANC04-3A140

Observers: Dean Beers, Vic Stanculescu

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: CAMBELL CREEK WATERSHED, VERY BRUSHY DRAINAGE

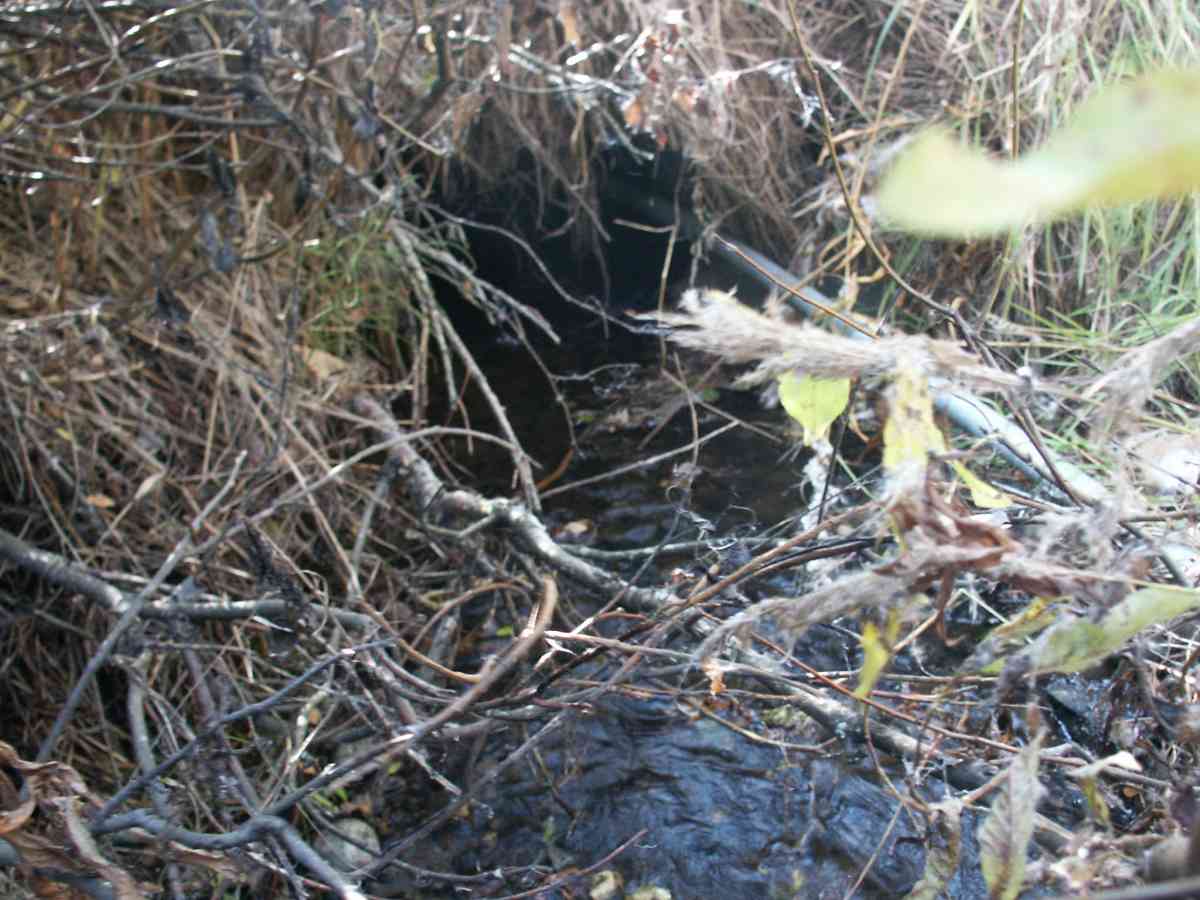

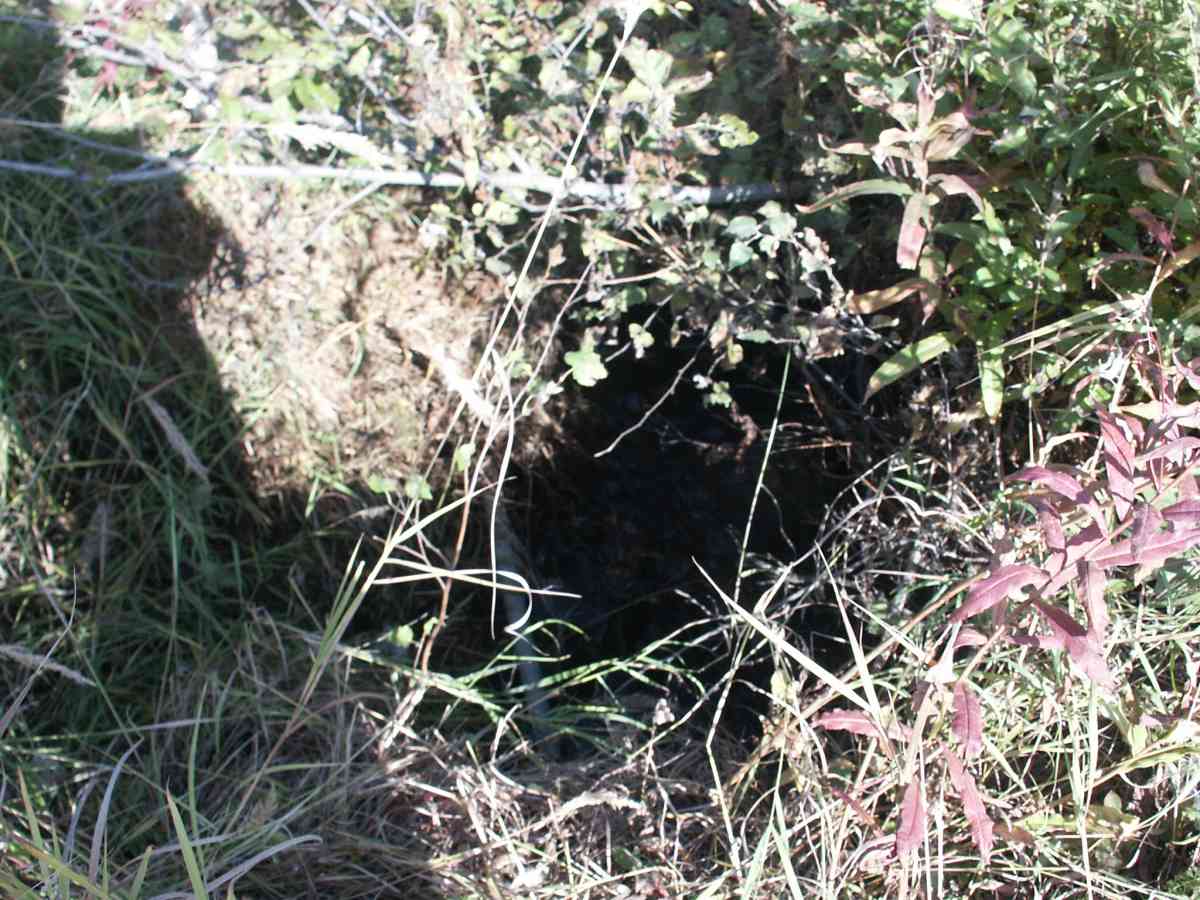

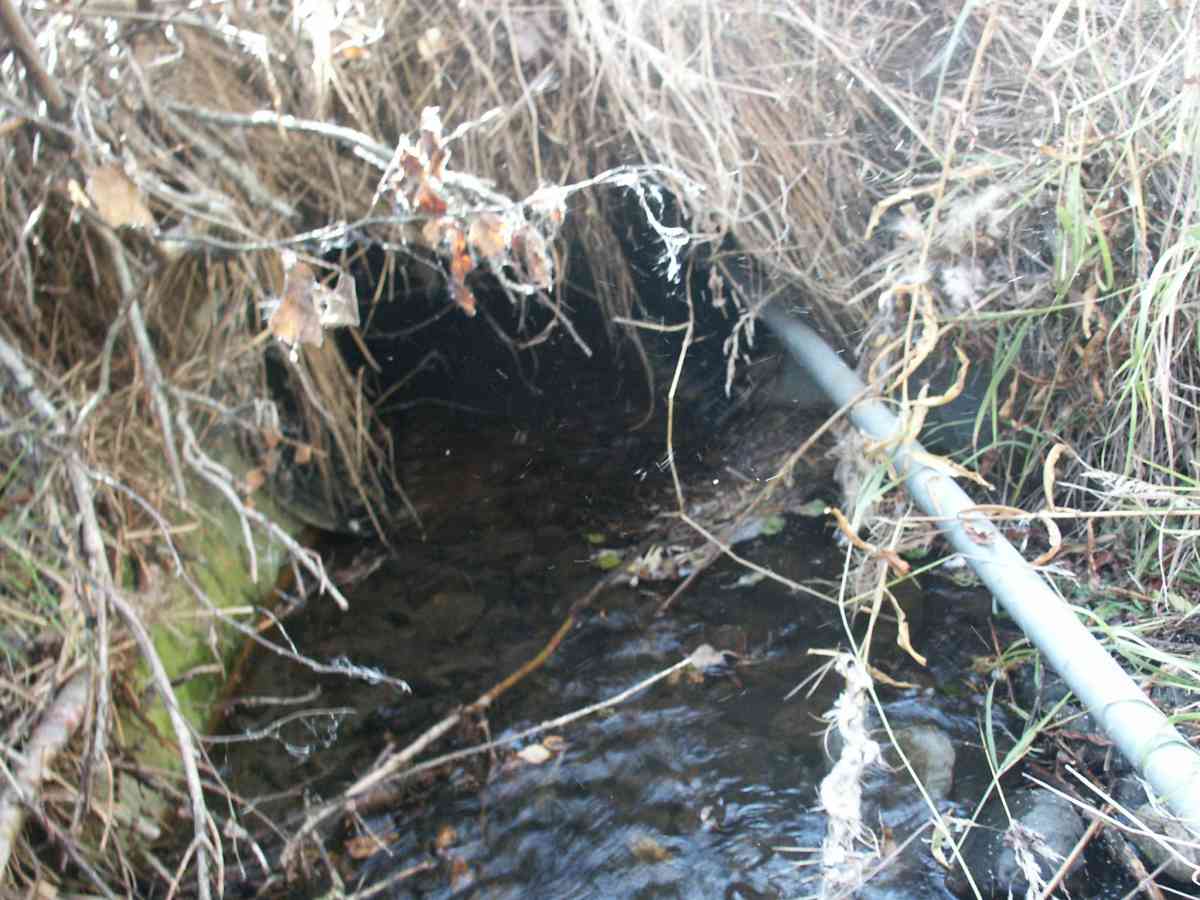

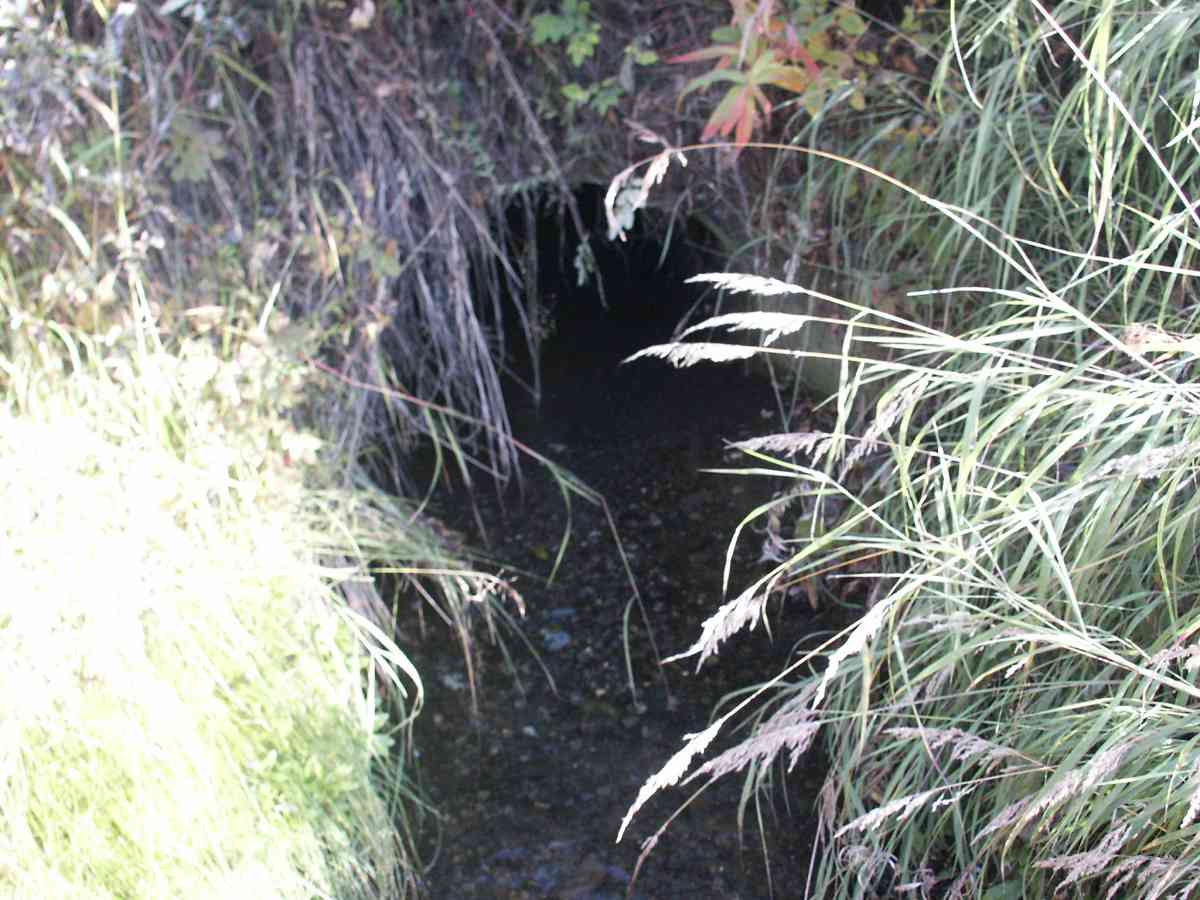

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 148.0
Inlet Type: Flared Inlet
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):3.0
Height(ft):2.0
Apron Length(ft):
Water Depth(ft): 0.4
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: -0.05
Outfall Type:
Constriction Ratio: 0.76
Culvert Gradient: 1.18%
Max Slope:
Max Slope Length:

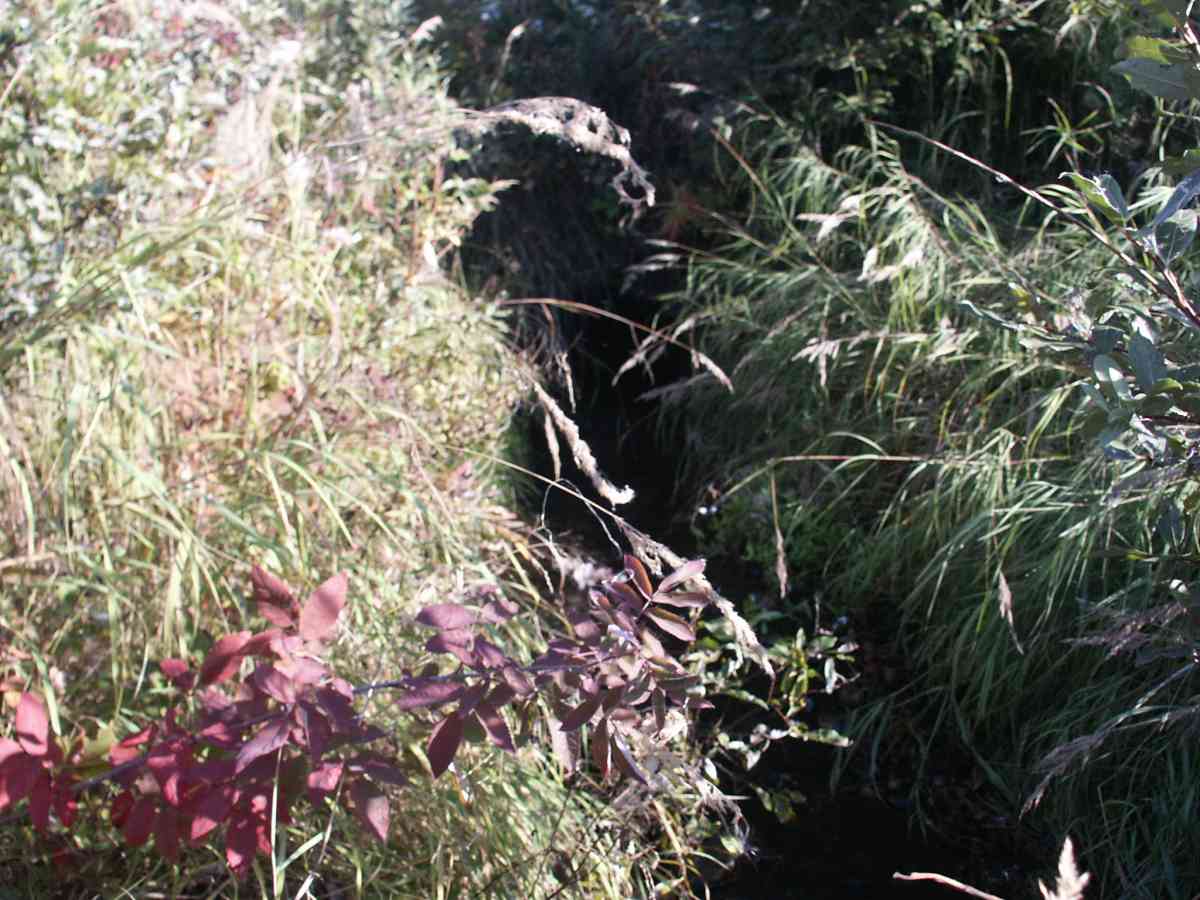

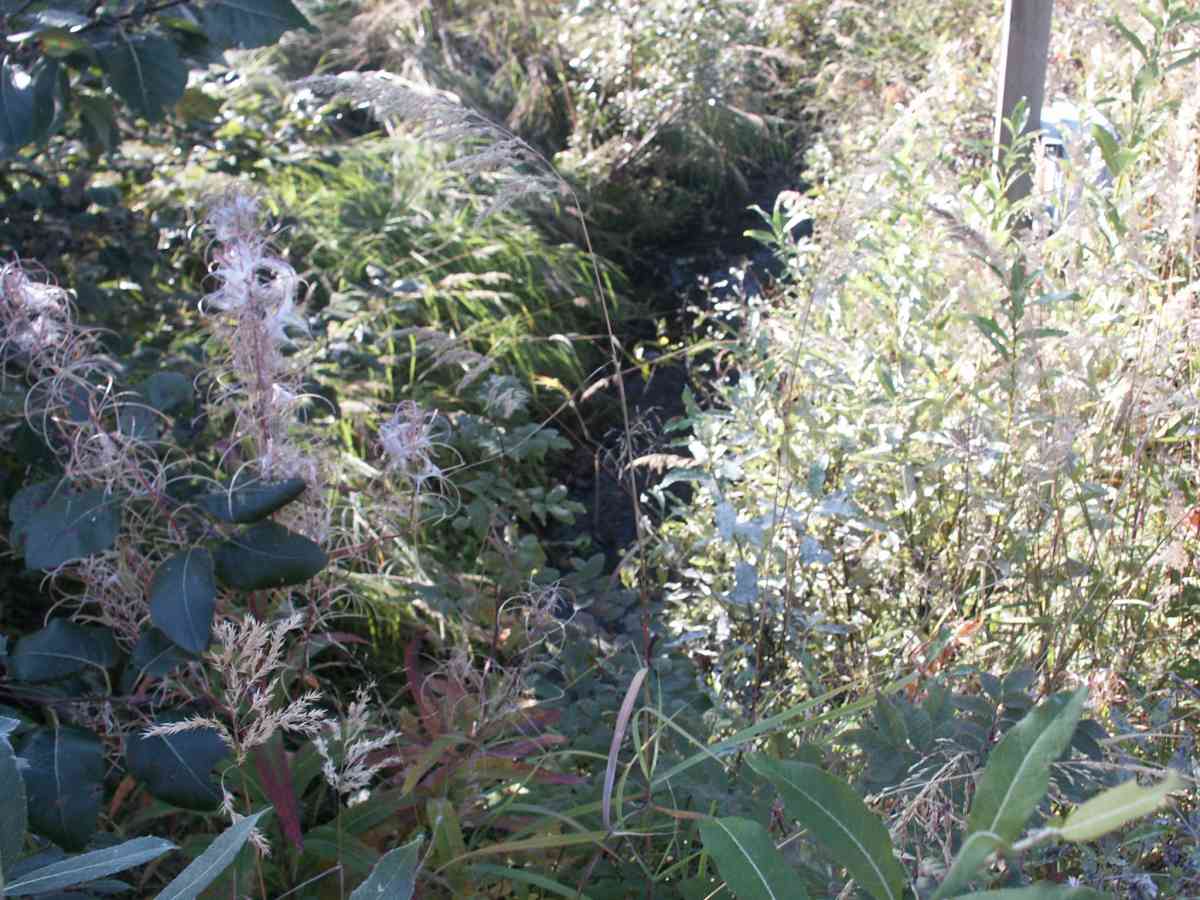

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 6.50
Upstream bank full 100.0 10.50
Upstream bank full 150.0 11.10
Upstream bed width 75.0 3.60
Upstream bed width 100.0 3.20
Upstream bed width 150.0 2.60
Upstream ordinary high water 75.0 3.70
Upstream ordinary high water 100.0 5.60
Upstream ordinary high water 150.0 2.60

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Max Pool Depth 97.08
D/S Thalweg 97.08
D/S Tailcrest or 1st Thalweg 97.15
OHW Left Bank 97.33
OHW Left Bank 97.36
U/S Thalweg 1 99.03
Outlet Invert 1 0.00 0.0 96.91
Road Elev 74.00 99.80
Inlet Culvert Invert (Off Substrate) 1 148.00 0.0 98.66

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

No fish observations occurred during this survey.
