Fish Passage Site 20400137
Coordinates (dec. deg.): 61.15870°, -149.82129°
Legal Description: S012N003W04
Region: South Central

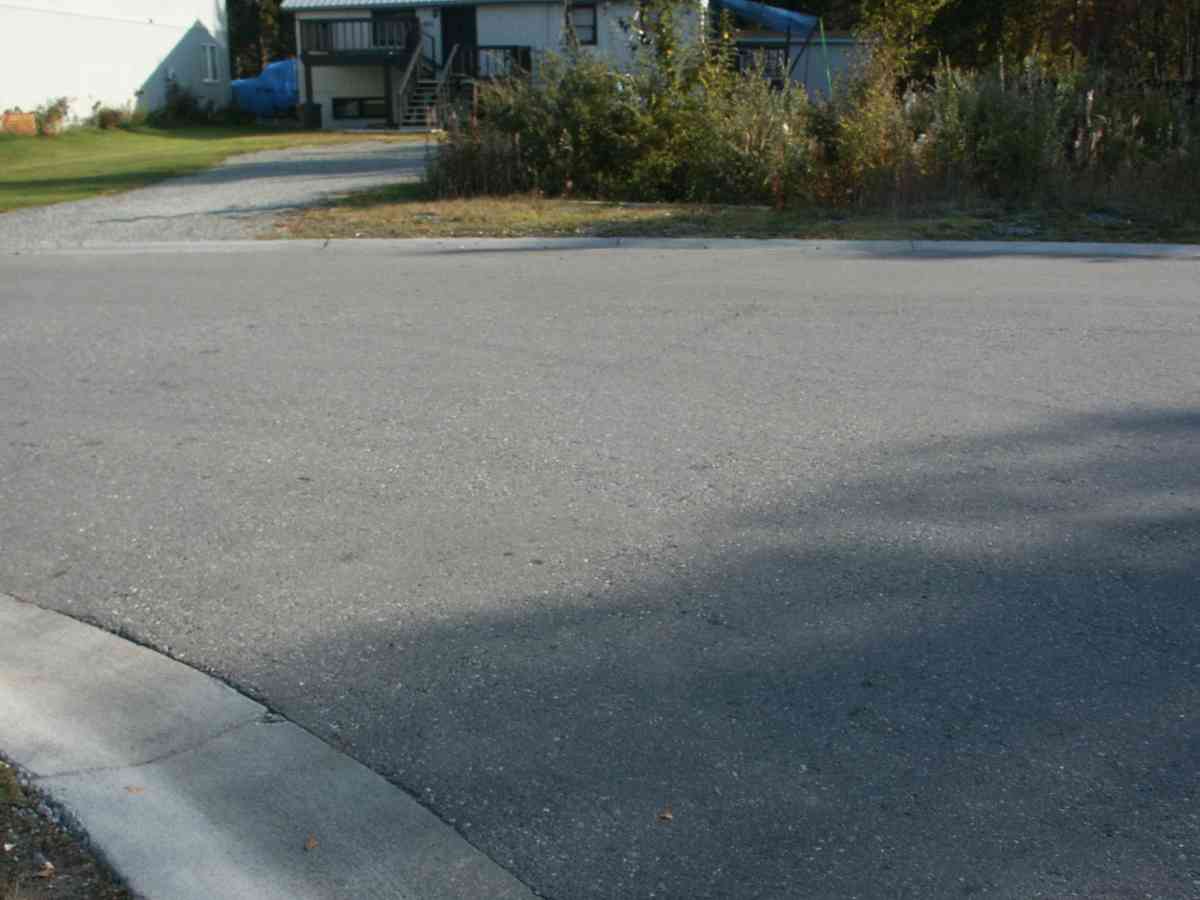

Road Name: Lewis Place
Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #: 247-60-10340-2018-3005-4011
Stream Name: Little Campbell Creek North Fork
Elevation:
Site Comments: LEWIS & SPAULDING. CAMBELL CREEK WATERSHED
Survey ANC04-3A137
Observers: Dean Beers, Vic Stanculescu
Overall Fish Passage Rating:
Tidal: No
Backwatered: No
Step Pools:
Construction Year:
Comments: CAMBELL CREEK WATERSHED, SCULPIN PRESENT ABOVE INLET
Culvert Measurements

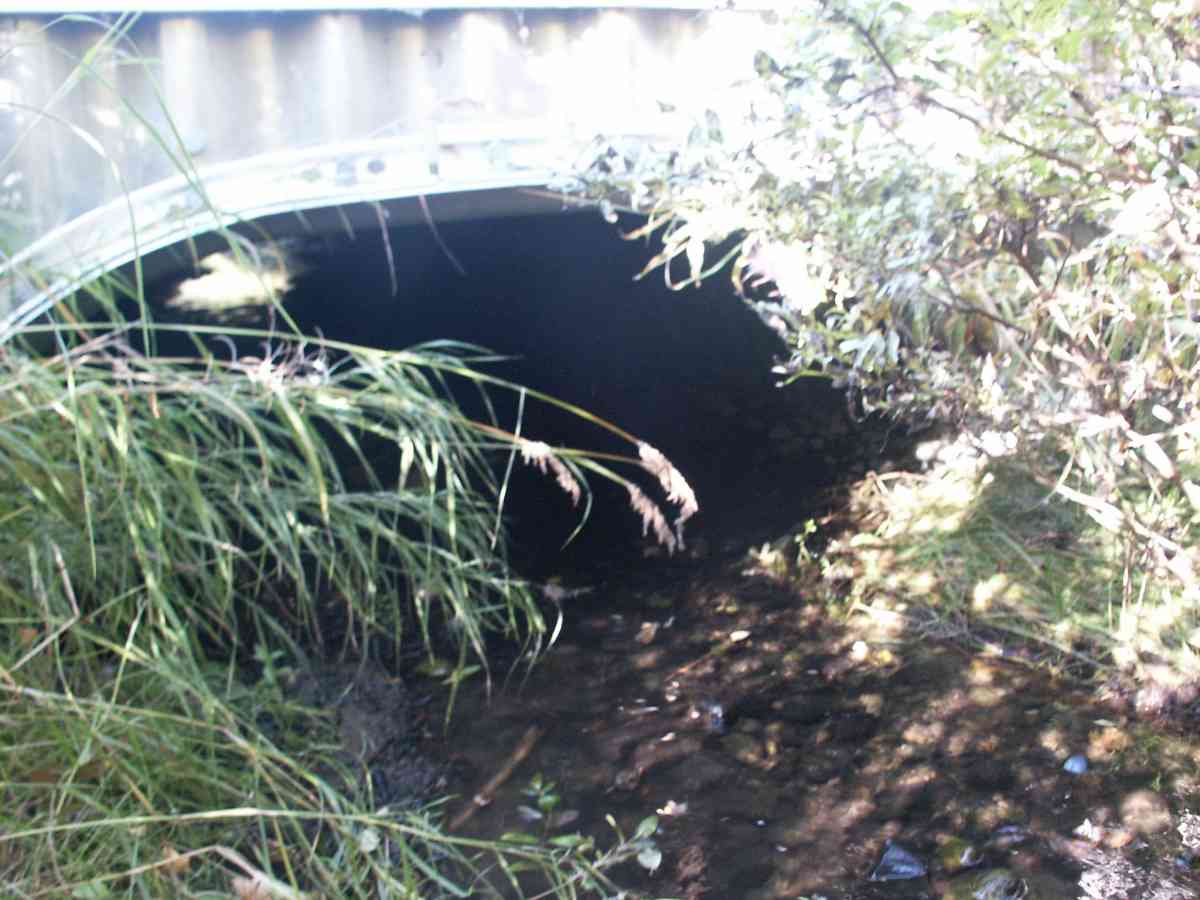

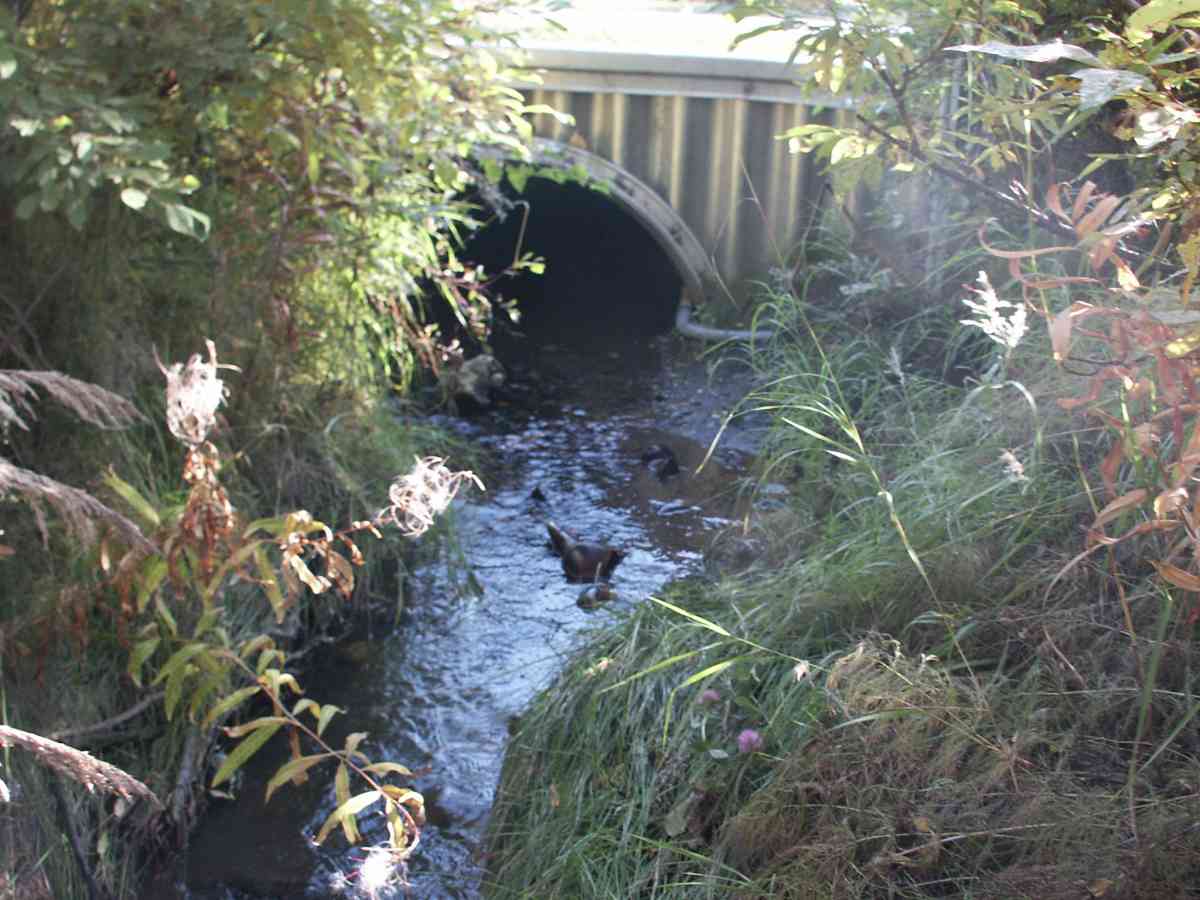

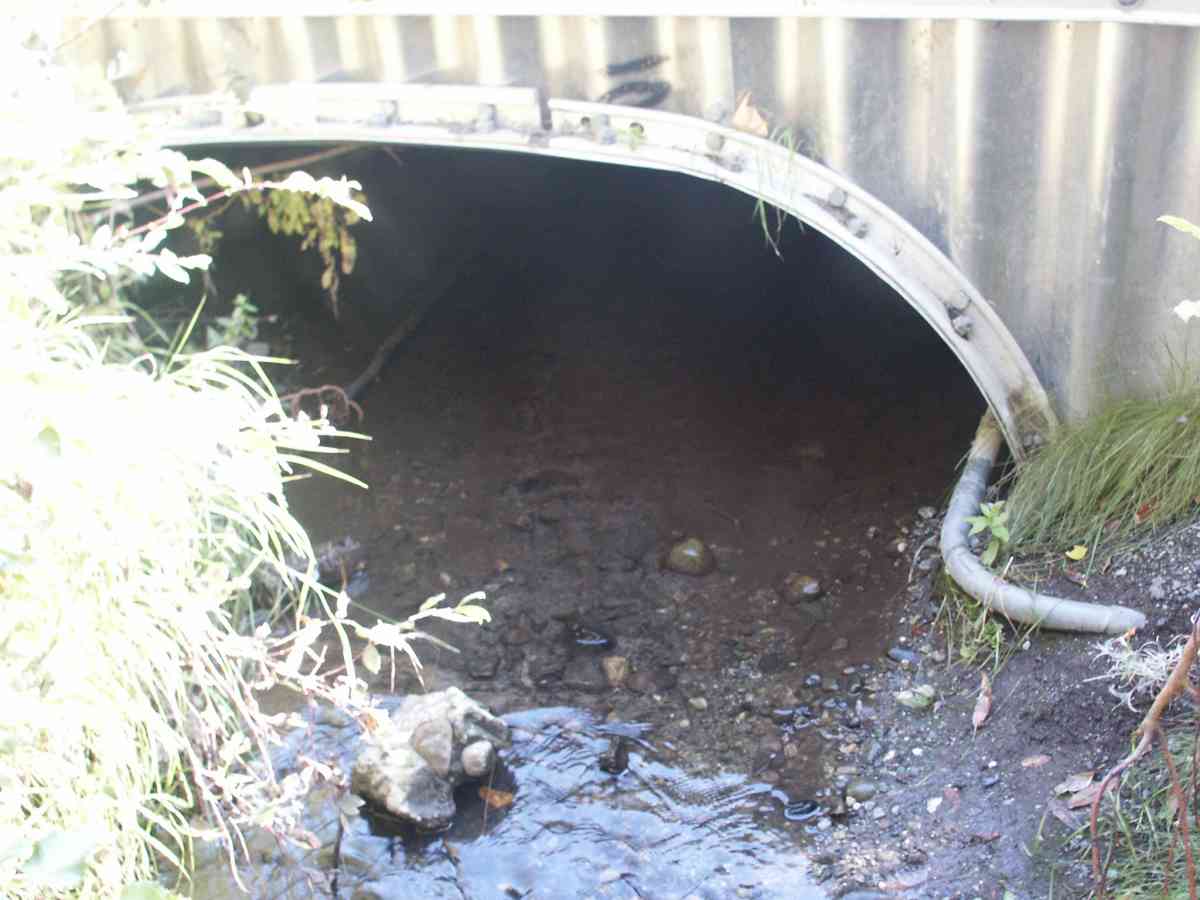

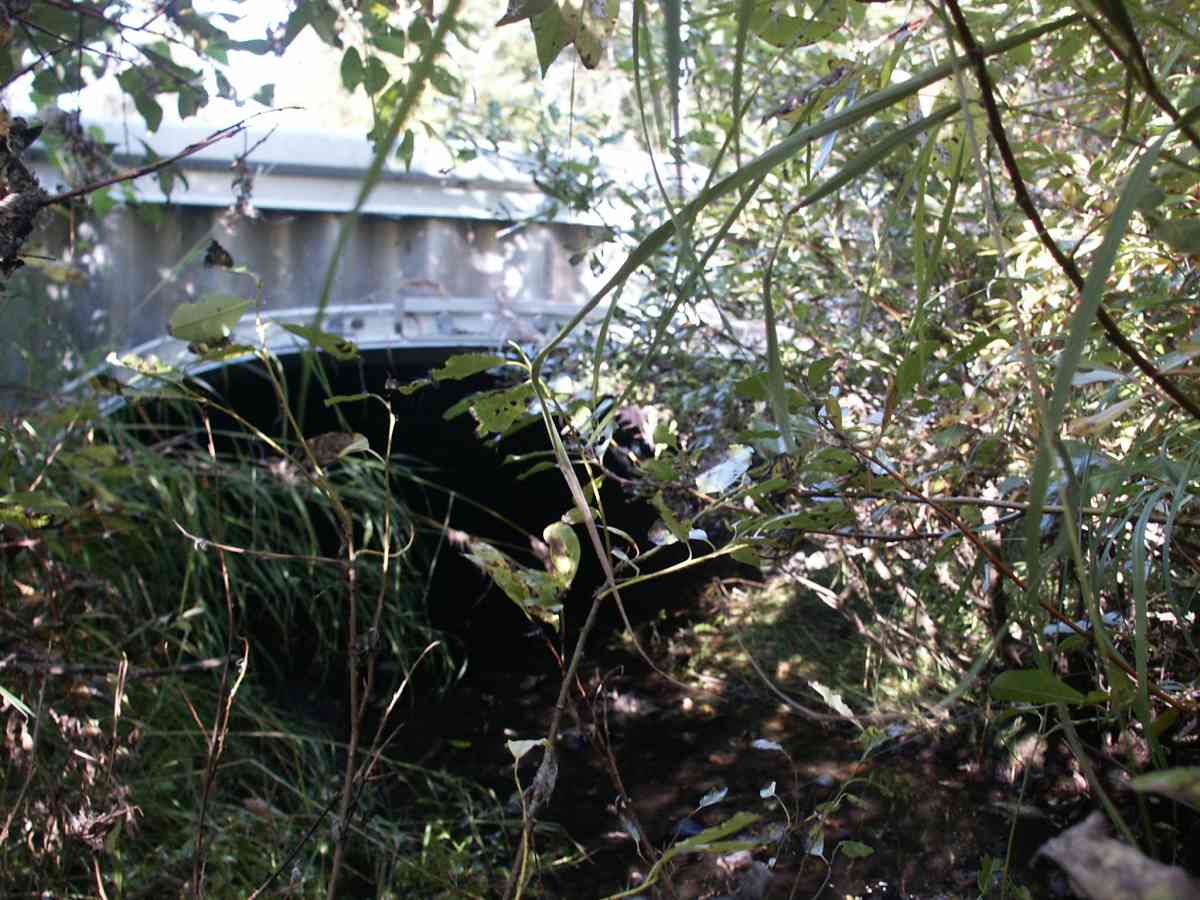

ID: 1 | Structure Type: Open-bottom arch (Strutural Metal Plate) | Fish Passage Rating: | |||||||||||||||||||||||||||||||||||||||||
|
|
|
Stream Measurements
|
|
Stream Width Type | Distance From Crossing (ft) |
Stream Width (ft) |
---|---|---|
Upstream bank full | 75.0 | 10.60 |
Upstream bank full | 100.0 | 9.90 |
Upstream bank full | 125.0 | 8.50 |
Upstream bank full | 150.0 | 9.50 |
Upstream bed width | 75.0 | 4.20 |
Upstream bed width | 100.0 | 4.60 |
Upstream bed width | 125.0 | 4.60 |
Upstream bed width | 150.0 | 3.90 |
Upstream ordinary high water | 75.0 | 4.50 |
Upstream ordinary high water | 100.0 | 4.70 |
Upstream ordinary high water | 125.0 | 5.00 |
Upstream ordinary high water | 150.0 | 4.20 |
Elevations
Locator ID | Culvert Number |
River Distance (ft)1 |
Distance From Crossing (ft)2 |
Relative Elevation (ft) |
---|---|---|---|---|
Max Pool Depth | 95.49 | |||
D/S Thalweg | 95.49 | |||
D/S Tailcrest or 1st Thalweg | 95.50 | |||
OHW Left Bank | 95.81 | |||
U/S Thalweg | 1 | 95.84 | ||
OHW Left Bank | 96.15 | |||
Outlet Invert | 1 | 0.00 | 0.0 | 95.49 |
Road Elev | 28.00 | 99.27 | ||
Inlet Culvert Invert | 1 | 56.00 | 0.0 | 95.73 |
Notes:
- River distance is measured continuously throughout the survey reach along the thalweg of the stream.
- Measured from each end of the crossing along the thalweg of the stream.
Fish Sampling Efforts
Gear Type: Visual Observation, Ground (A) |
Fish Observations
No fish observations occurred during this survey.
