Fish Passage Site 20400134
Coordinates (dec. deg.): 61.16008°, -149.83637°
Legal Description: S012N003W05
Region: South Central

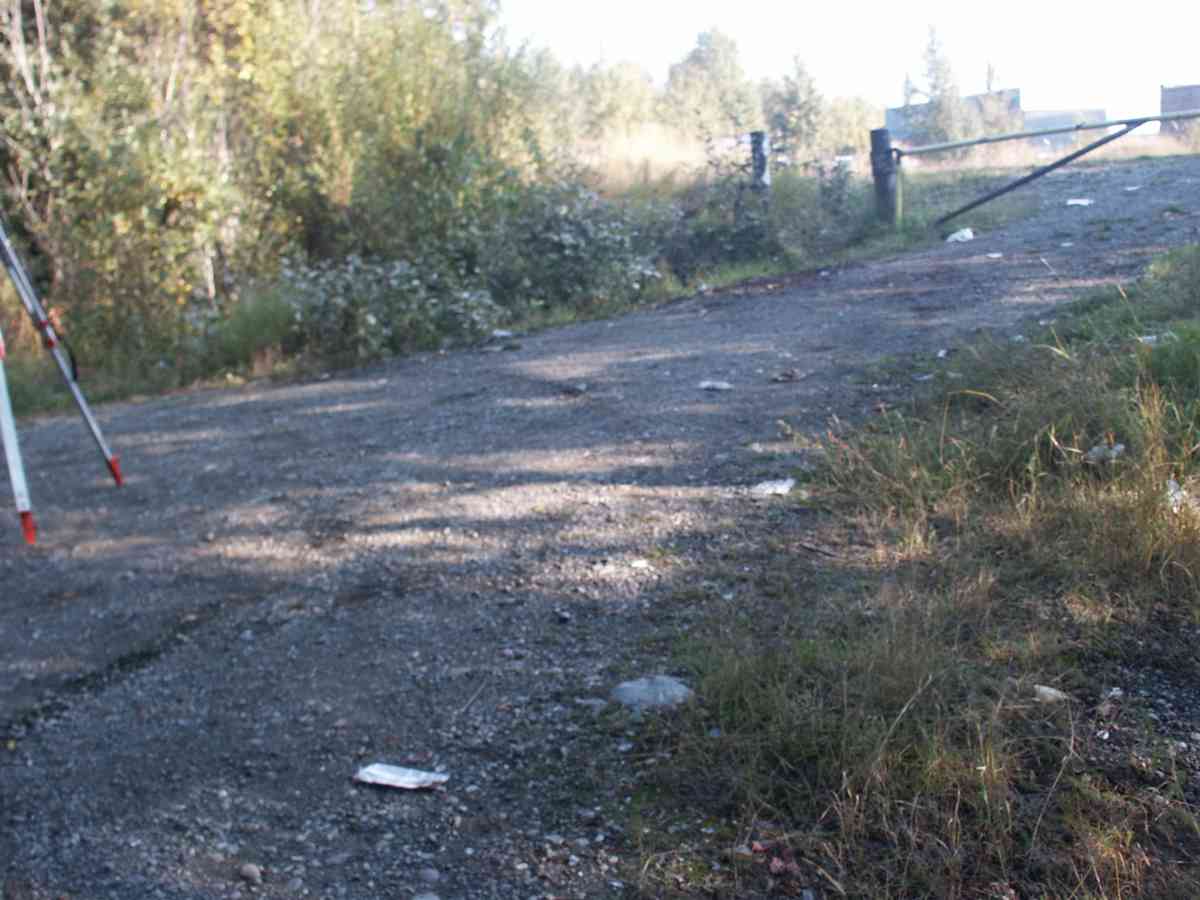

Road Name: DRIVEWAY TO VACANT LOT
Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #:
Stream Name: Little Campbell Creek North Fork
Elevation:
Site Comments: CAMBELL CREEK WATERSHED
arrow to the right of the survey date below to choose a different report for this site.
Survey ANC04-3A134
Observers: Dean Beers, Vic Stanculescu
Overall Fish Passage Rating:
Tidal: No
Backwatered: No
Step Pools:
Construction Year:

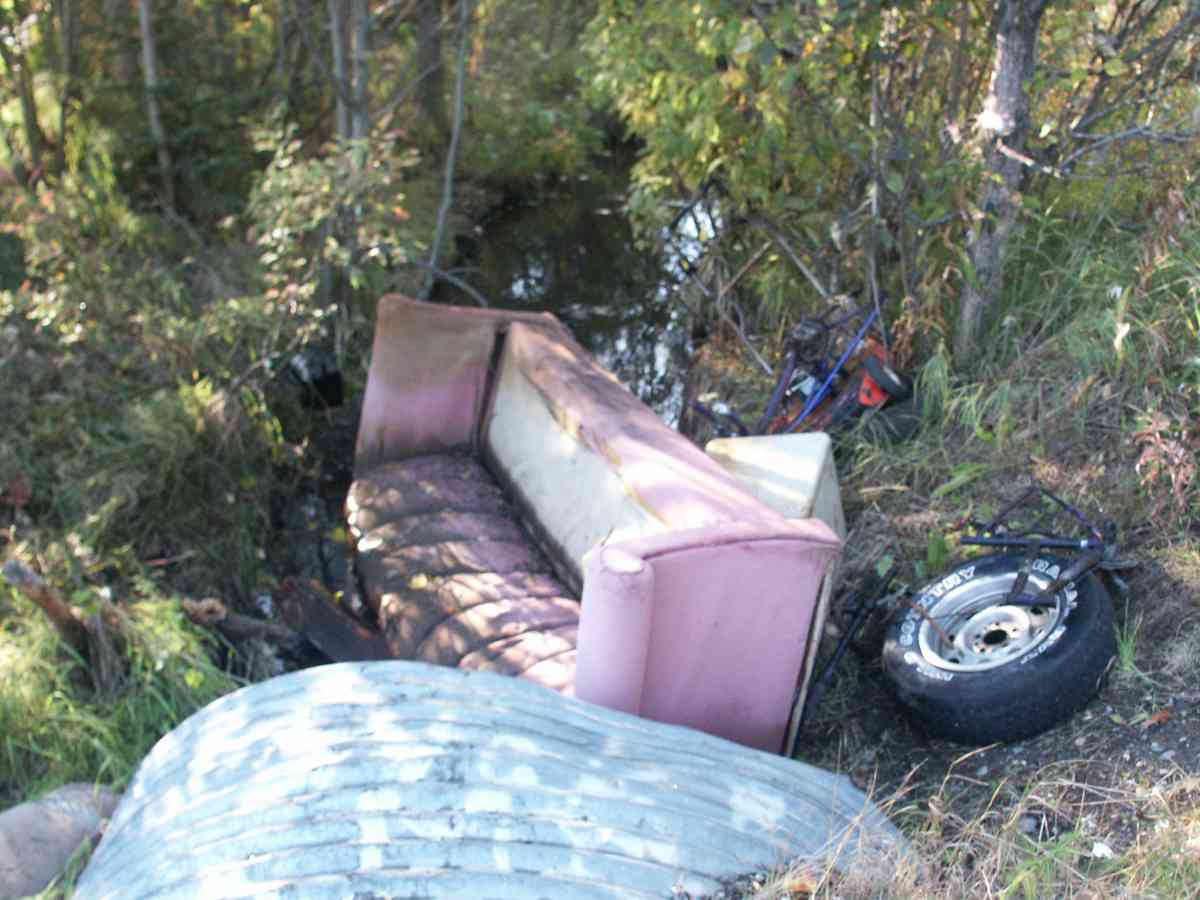

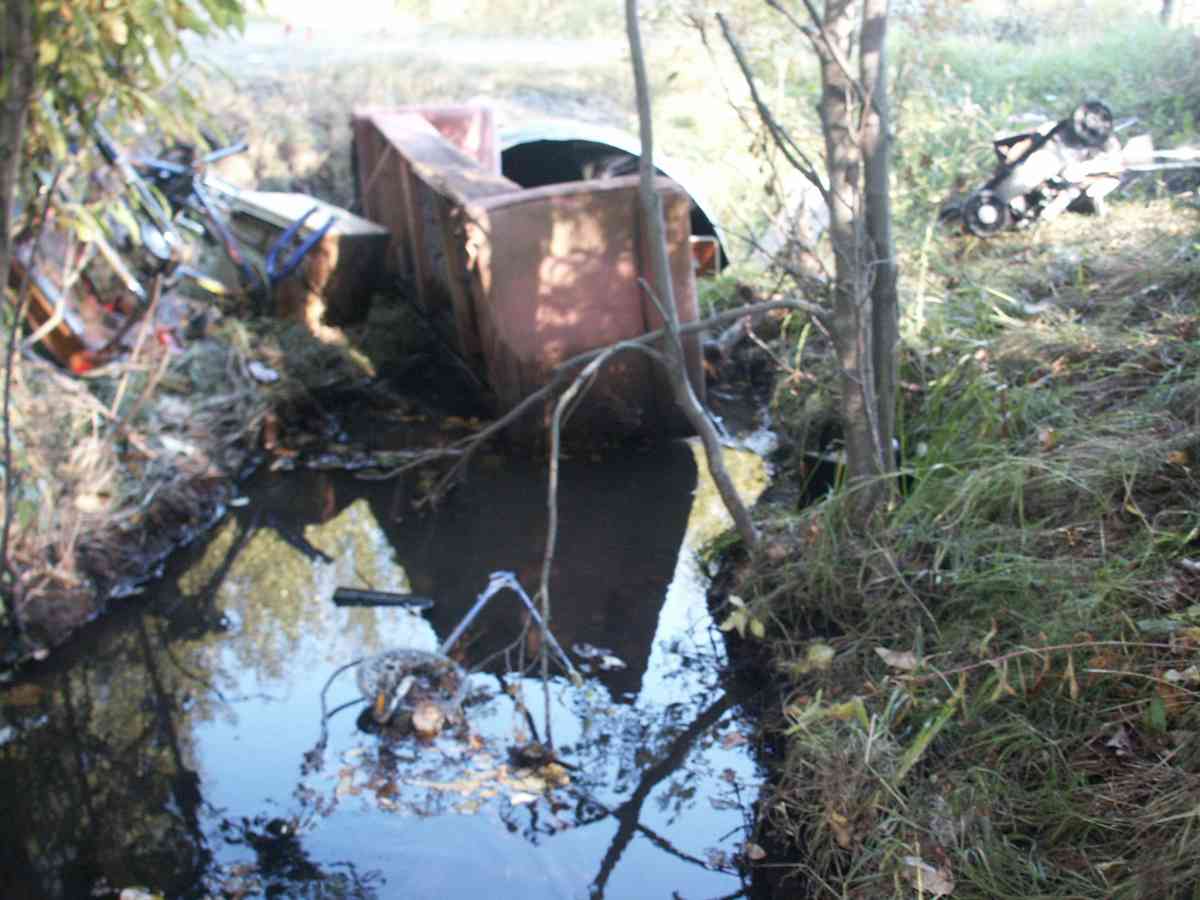

Comments: CAMBELL CREEK WATERSHED, LARGE AMOUNT OF TRASH IN CREEK
Culvert Measurements

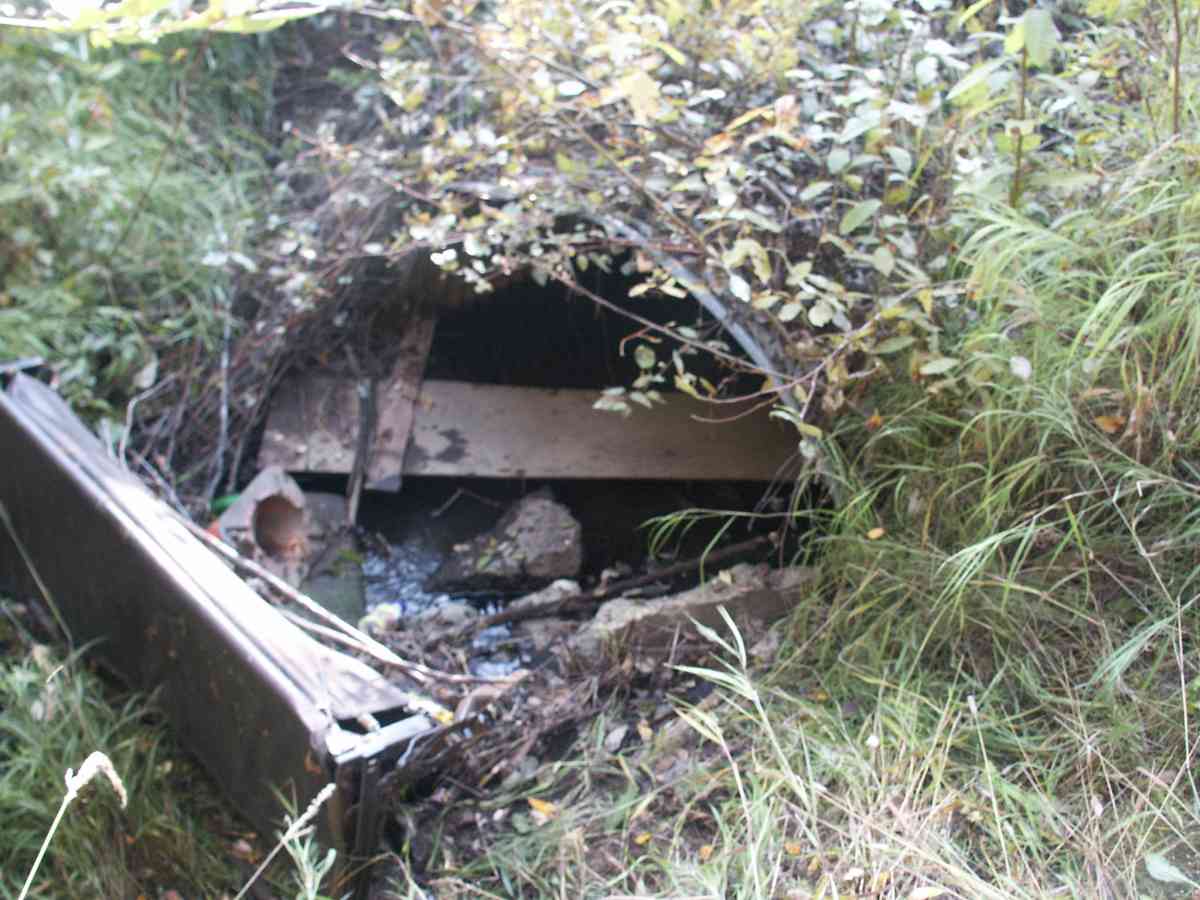

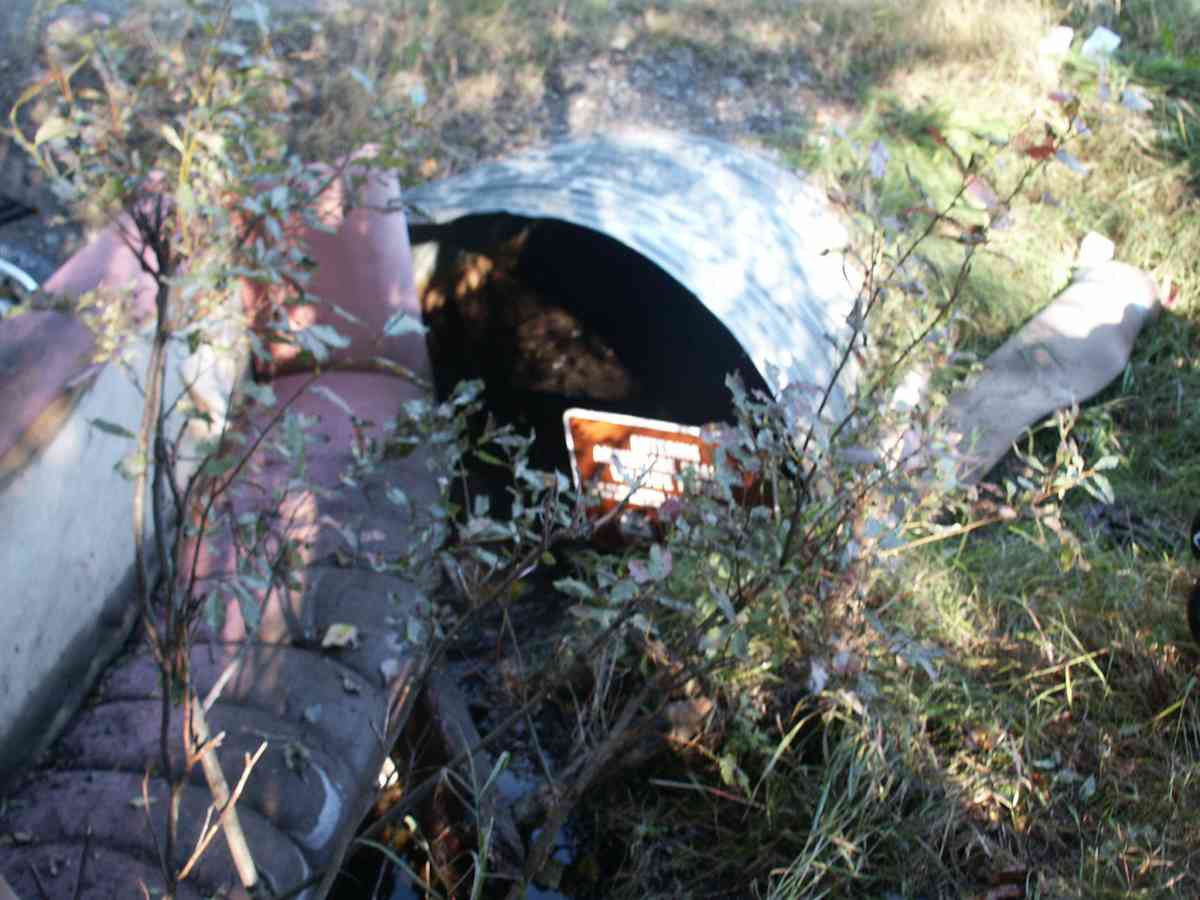

ID: 1 | Structure Type: Pipe-arch (Corrugated Metal) | Fish Passage Rating: | |||||||||||||||||||||||||||||||||||||||||
|
|
|
Stream Measurements
|
|
Stream Width Type | Distance From Crossing (ft) |
Stream Width (ft) |
---|---|---|
Upstream bank full | 75.0 | 9.20 |
Upstream bank full | 100.0 | 9.20 |
Upstream bank full | 125.0 | 12.50 |
Upstream bank full | 150.0 | 14.60 |
Upstream bed width | 75.0 | 5.00 |
Upstream bed width | 100.0 | 5.10 |
Upstream bed width | 125.0 | 5.10 |
Upstream bed width | 150.0 | 3.00 |
Upstream ordinary high water | 75.0 | 5.60 |
Upstream ordinary high water | 100.0 | 5.90 |
Upstream ordinary high water | 125.0 | 5.20 |
Upstream ordinary high water | 150.0 | 3.90 |
Elevations
Locator ID | Culvert Number |
River Distance (ft)1 |
Distance From Crossing (ft)2 |
Relative Elevation (ft) |
---|---|---|---|---|
D/S Thalweg | 96.12 | |||
D/S Tailcrest or 1st Thalweg | 96.16 | |||
Max Pool Depth | 96.19 | |||
OHW Left Bank | 96.69 | |||
U/S Thalweg | 1 | 96.80 | ||
OHW Left Bank | 96.88 | |||
Outlet Invert (TAKEN OFF SUBSTRATE) | 1 | 0.00 | 0.0 | 96.29 |
Road Elev | 20.00 | 101.07 | ||
Inlet Culvert Invert (TAKEN OFF SUBSTRATE) | 1 | 40.00 | 0.0 | 96.72 |
Notes:
- River distance is measured continuously throughout the survey reach along the thalweg of the stream.
- Measured from each end of the crossing along the thalweg of the stream.
Fish Sampling Efforts
Gear Type: Visual Observation, Ground (A) |
Fish Observations
No fish observations occurred during this survey.
