Fish Passage Site 20400113

Coordinates (dec. deg.): 61.12737°, -149.77421°
Legal Description: S012N003W15
Region: South Central

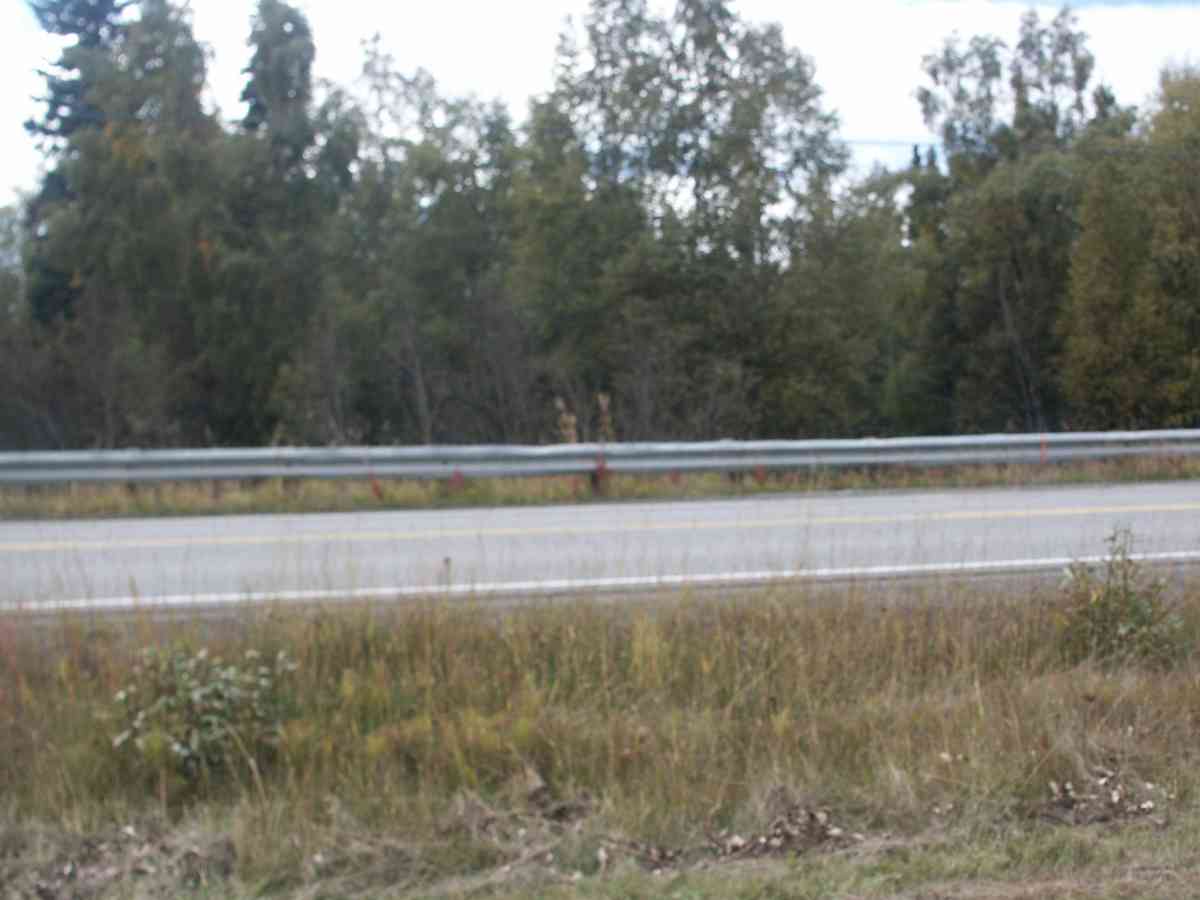

Road Name: Birch Road

Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #:
Stream Name: Craig Creek

Elevation:

Site Comments: CAMBELL CREEK WATERSHED, MARSH ABOVE INLET

Survey Date: Sep 13, 2004

Survey ANC04-3A113

Observers: Dean Beers, Vic Stanculescu

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: CAMBELL CREEK WATERSHED, MARSH ABOVE INLET

Culvert Measurements

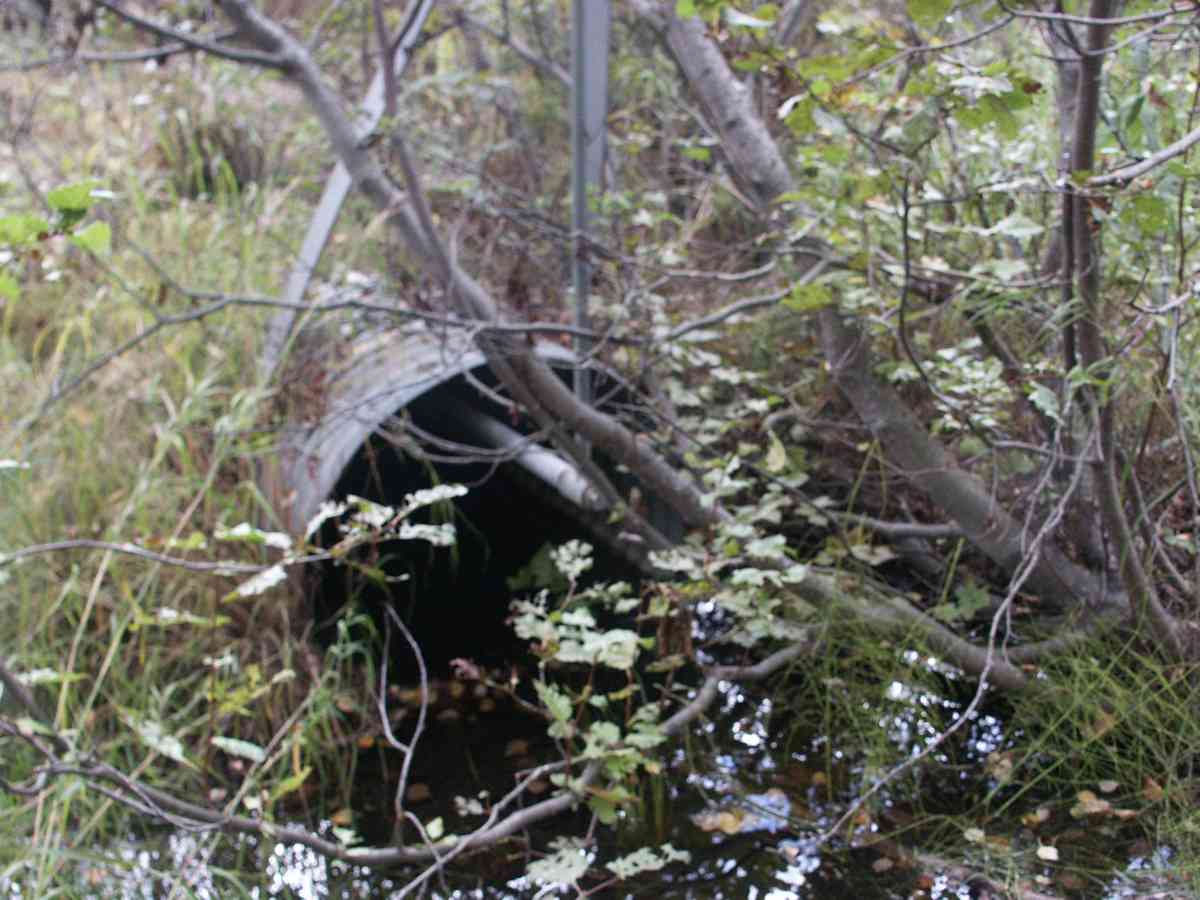

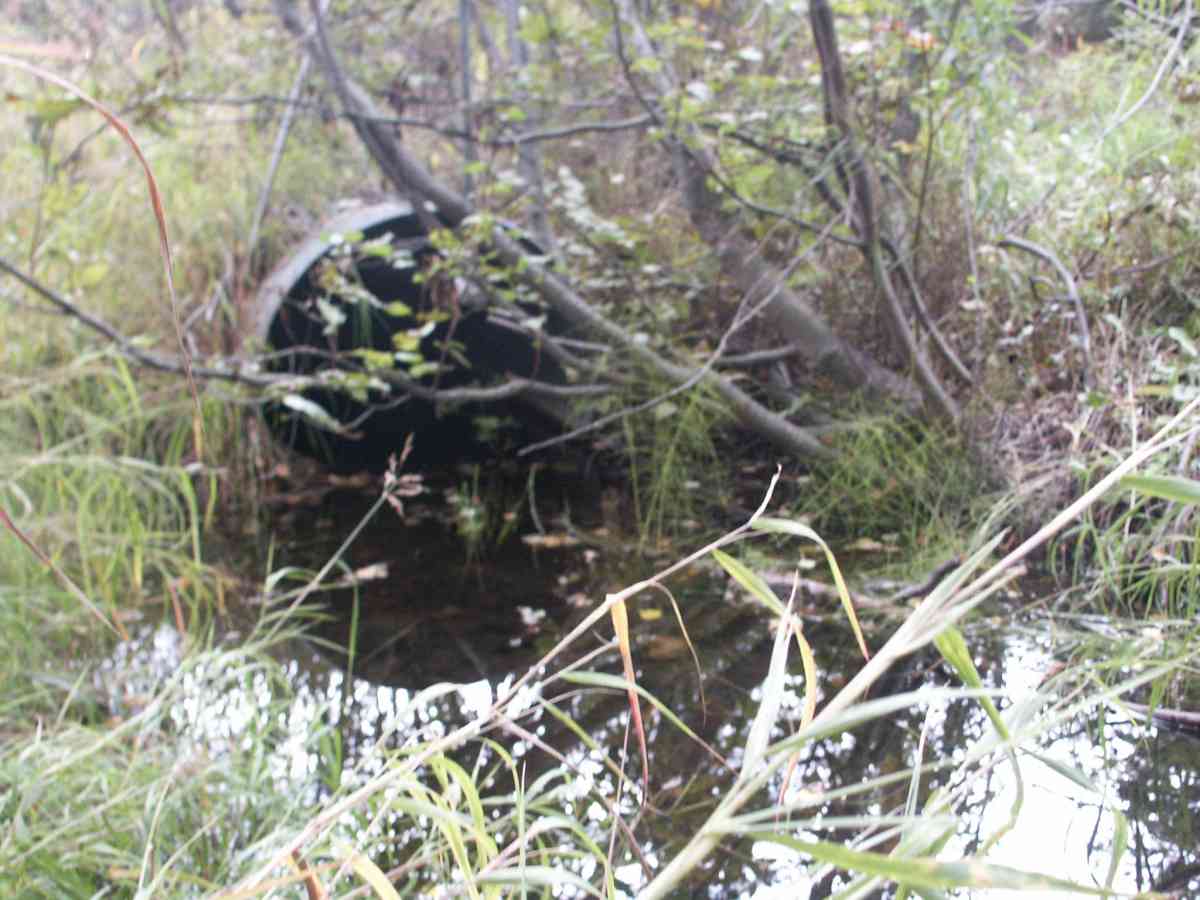

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 150.8
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):3.0
Height(ft):3.0
Apron Length(ft):
Water Depth(ft): 0.6
Rustline Height(ft):0.6
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: -0.01
Outfall Type:
Constriction Ratio:
Culvert Gradient: 0.09%
Max Slope:
Max Slope Length:

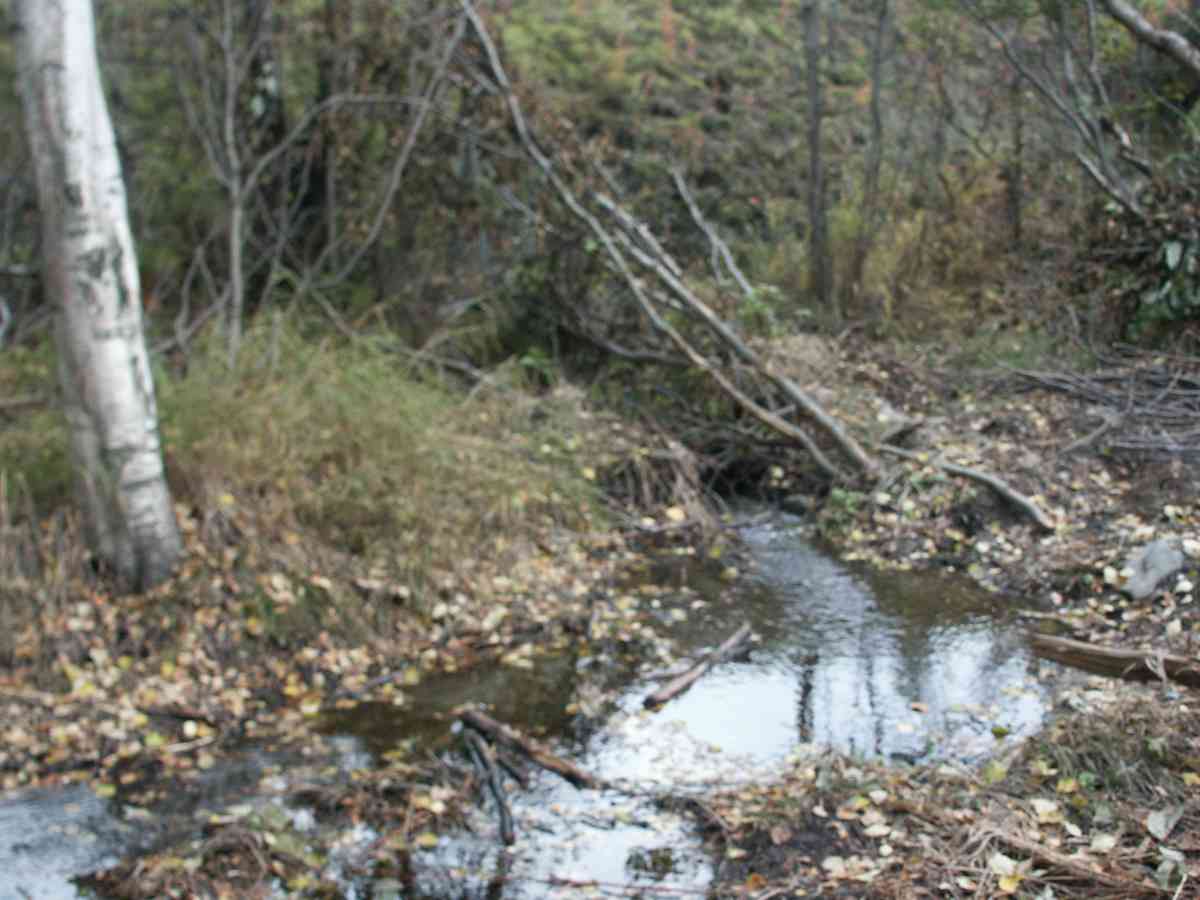

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
D/S Thalweg 92.63
Max Pool Depth 92.72
D/S Tailcrest or 1st Thalweg 92.73
OHW Left Bank 93.04
OHW Left Bank 93.10
U/S Thalweg 1 92.34
Outlet Invert 1 0.00 0.0 92.49
Road Elev 75.00 101.43
Inlet Culvert Invert 1 150.00 0.0 92.62

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

No fish observations occurred during this survey.
