Fish Passage Site 20400095

Coordinates (dec. deg.): 61.15808°, -149.85506°
Legal Description: S012N003W05
Region: South Central
Road Name: Seward Highway

Datum: NAD83
Quad Name / ITM: Anchorage A-8
AWC Stream #: 247-60-10340-2018-3005
Stream Name: Little Campbell Creek North Fork

Elevation:

Site Comments: CAMBELL CREEK WATERSHED - Site 20403919 downstream for crossing.

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-0095

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Mark Eisenman

Overall Fish Passage Rating: Green

Tidal:
Backwatered:

Step Pools:
Construction Year: 2017

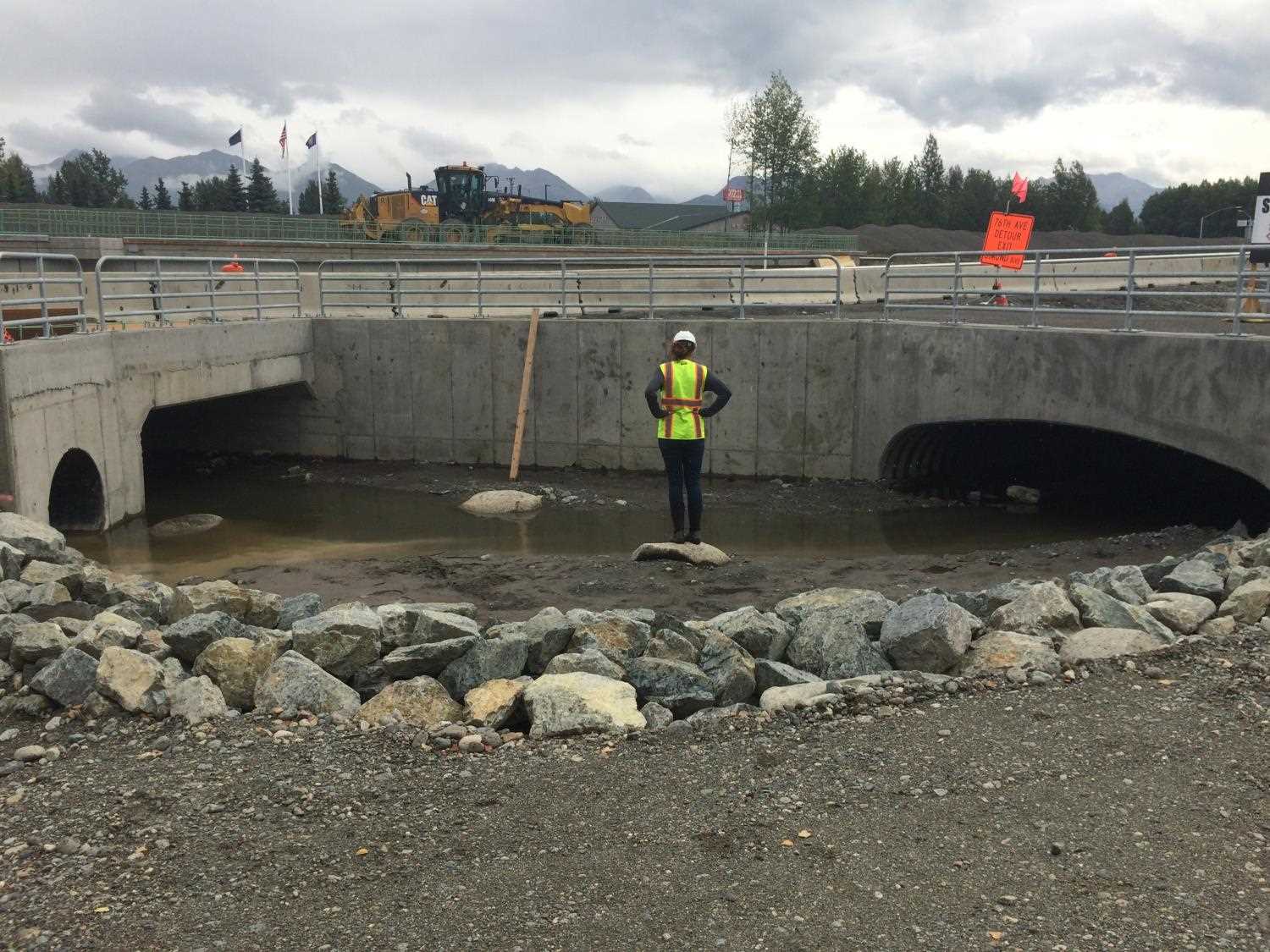

Comments: Culvert replaced under ADFG Habitat Permit FH-16-II-0007 during the 2016-2017 Seward Highway upgrade. Site 20403919 was also replaced just downstream from outlet.

Culvert Measurements

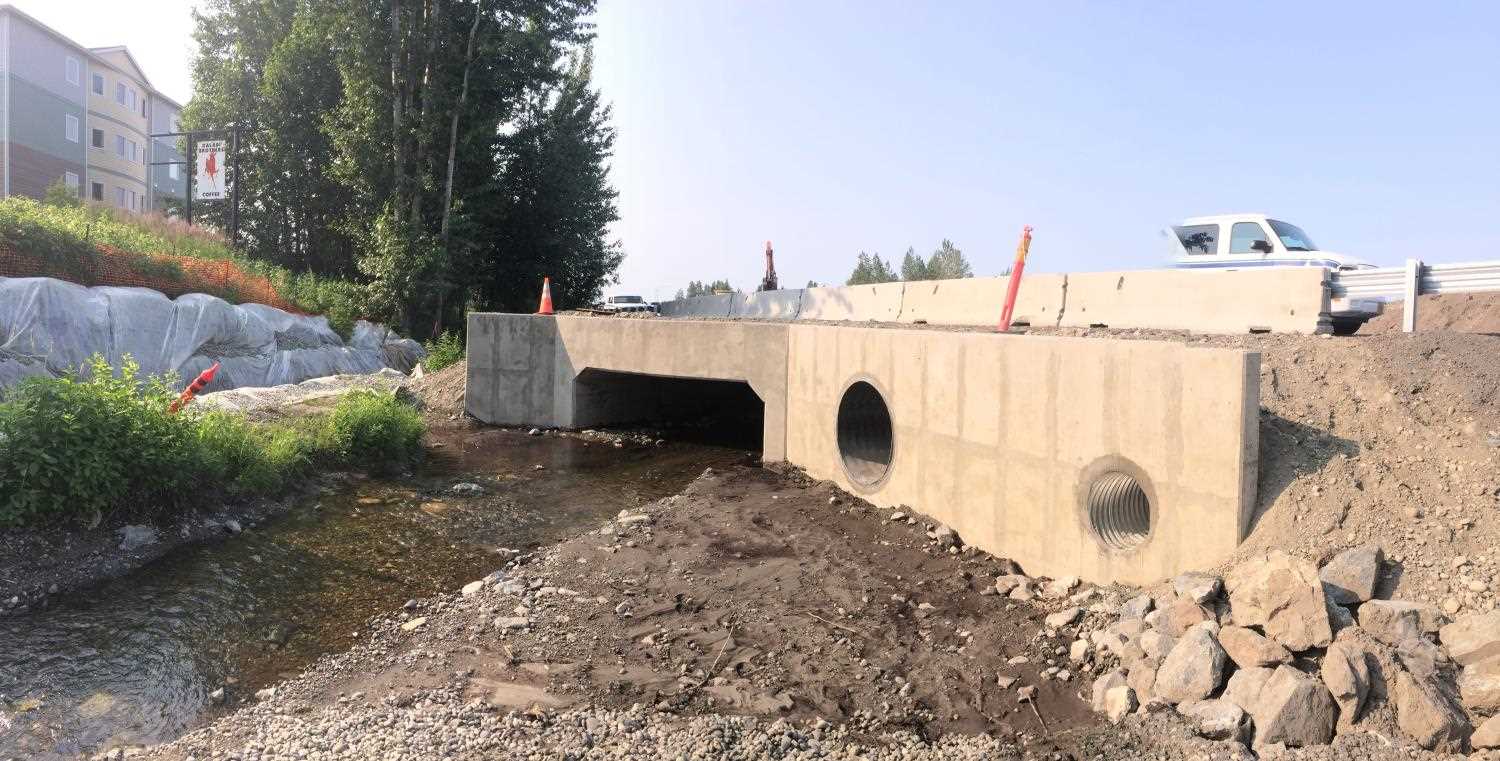

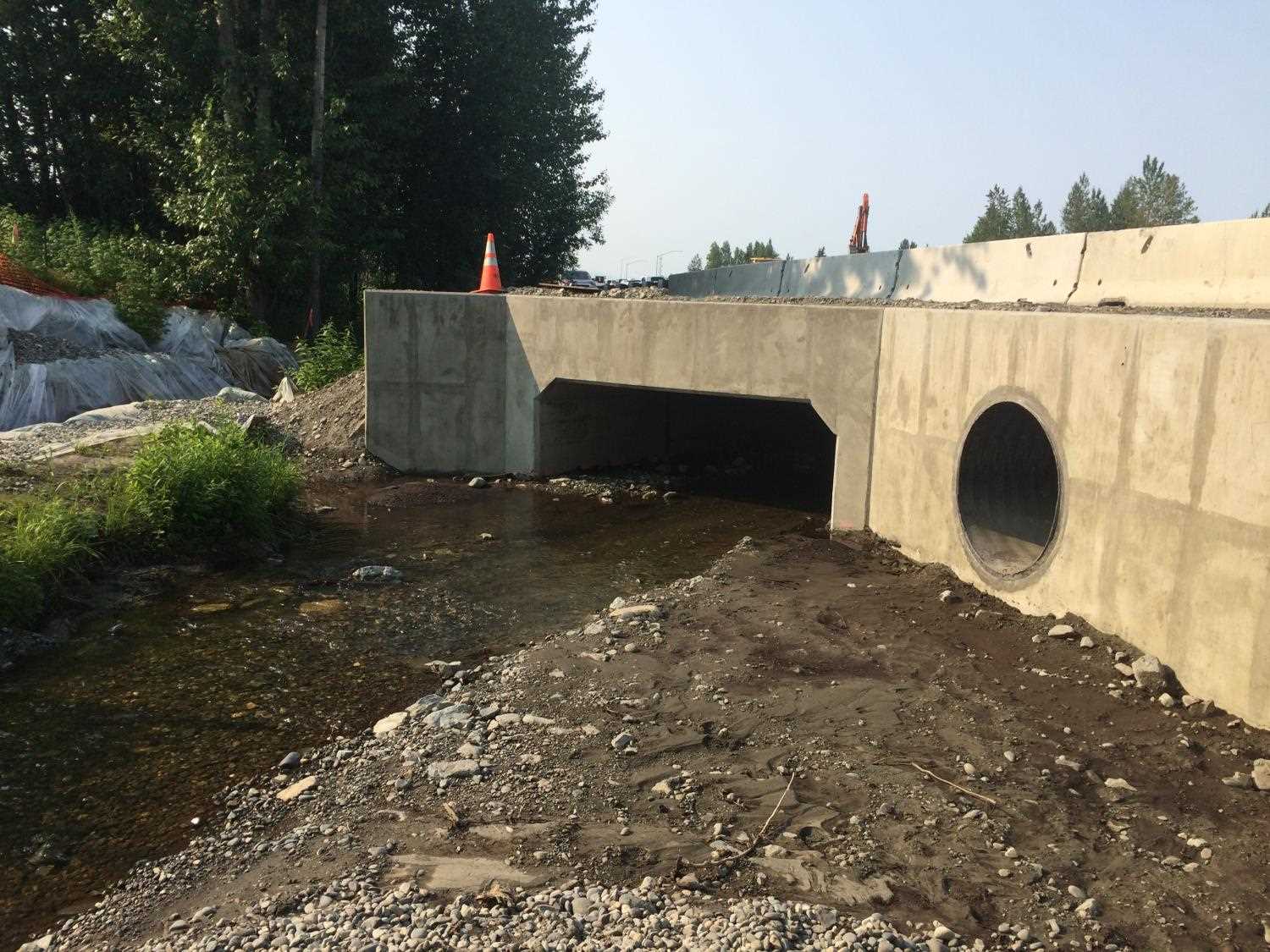

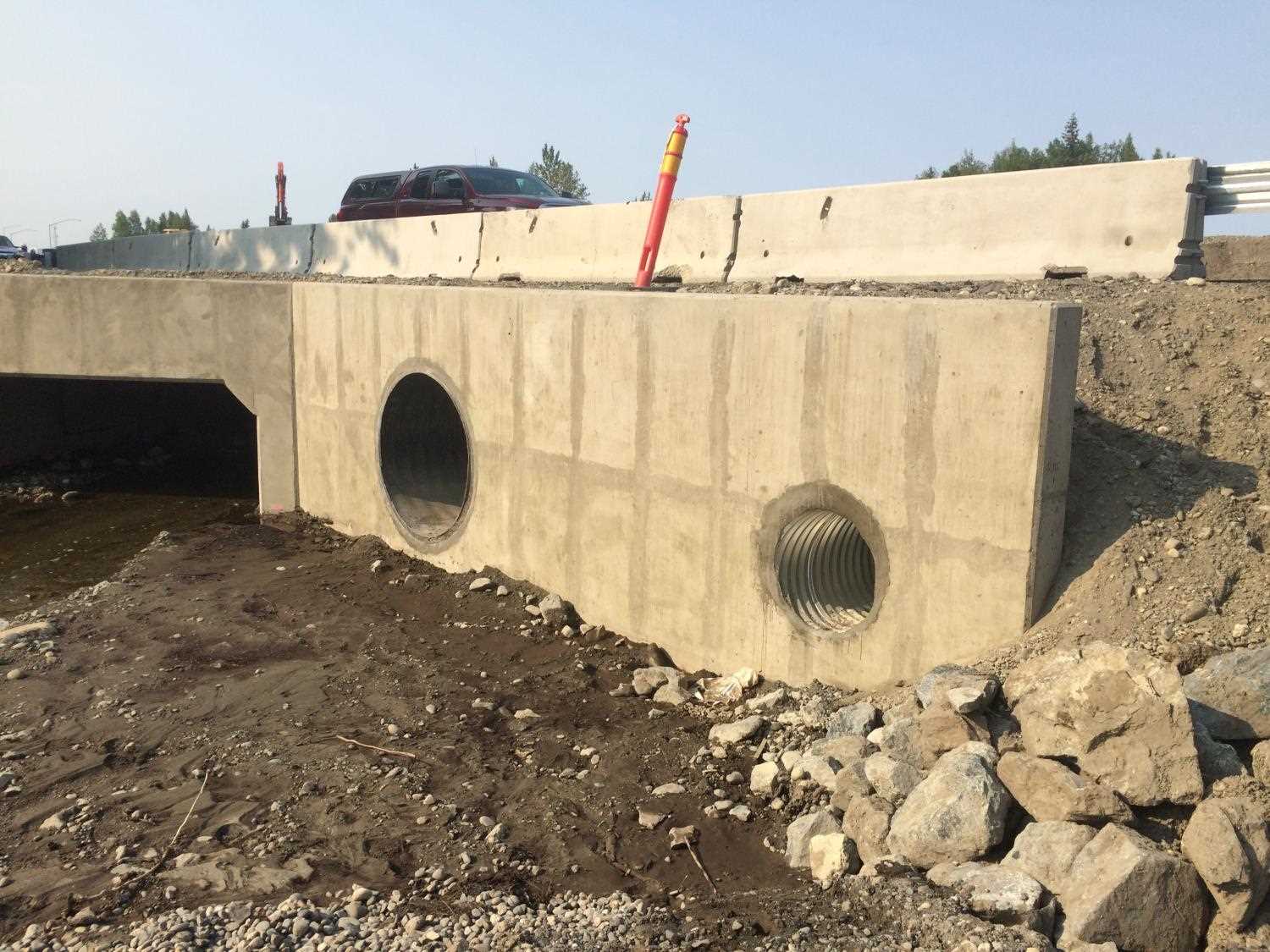

ID: 1 Structure Type: Box culvert (Reinforced concrete) Fish Passage Rating: Green

Length(ft):
Inlet Type: Headwall
Outlet Type: Headwall
Corrugation Depth(in.):
Corrugation Width(in.):
Condition Rating(1-5): 5
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):
Height(ft):
Apron Length(ft):
Water Depth(ft):
Rustline Height(ft):
Substrate Depth(ft):
Backwatered?:
Baffles Present:
Embedded?: Yes
Outfall Height:
Outfall Type: At Stream Grade
Constriction Ratio:
Culvert Gradient:
Max Slope:
Max Slope Length:

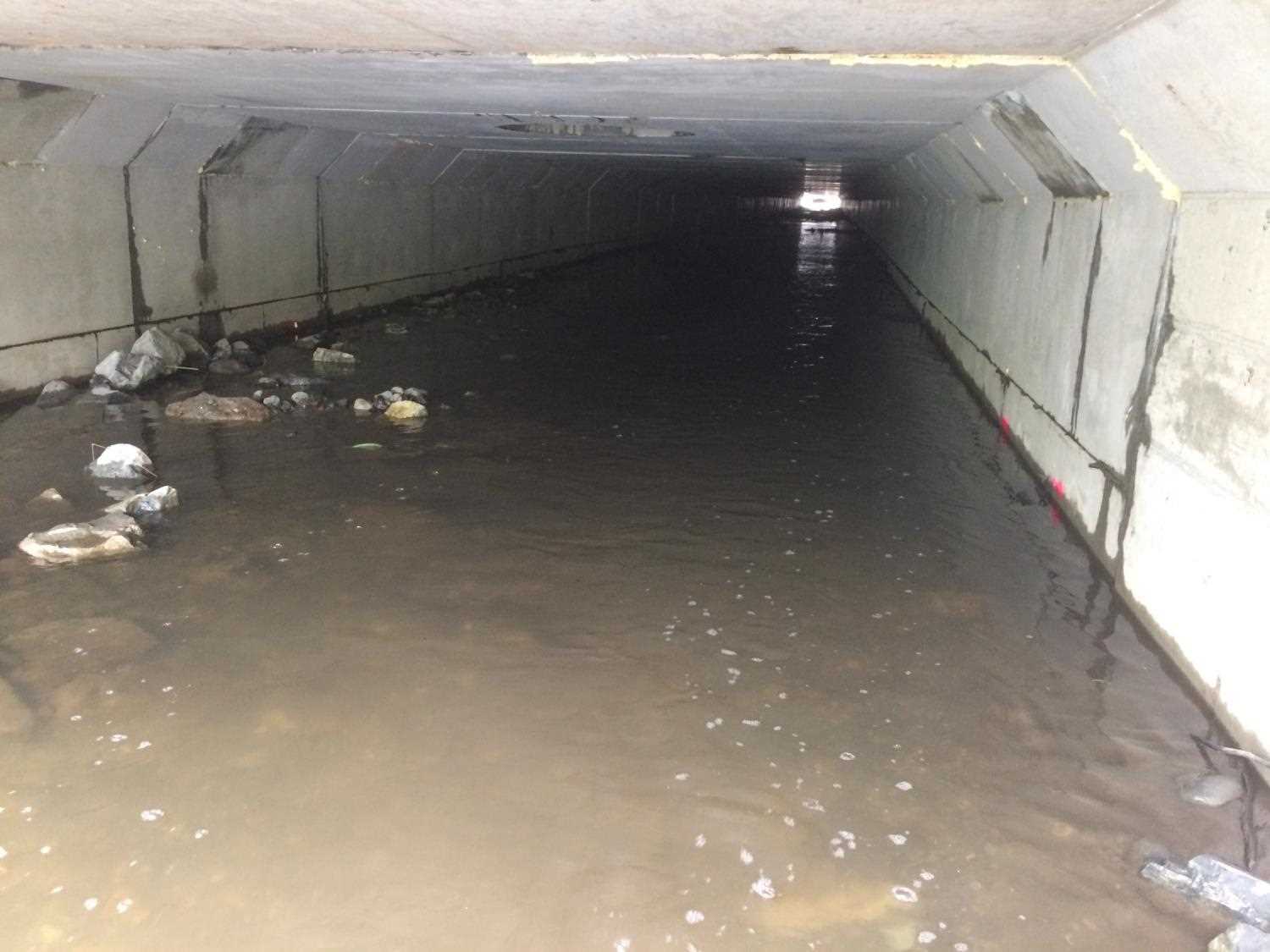

Comments: Culvert dimensions and substrate depth taken from site plans and have not been field verified. Culvert width 12 ft., culvert height 3.5' to top of substrate, substrate depth 2 ft. Culvert length 400.

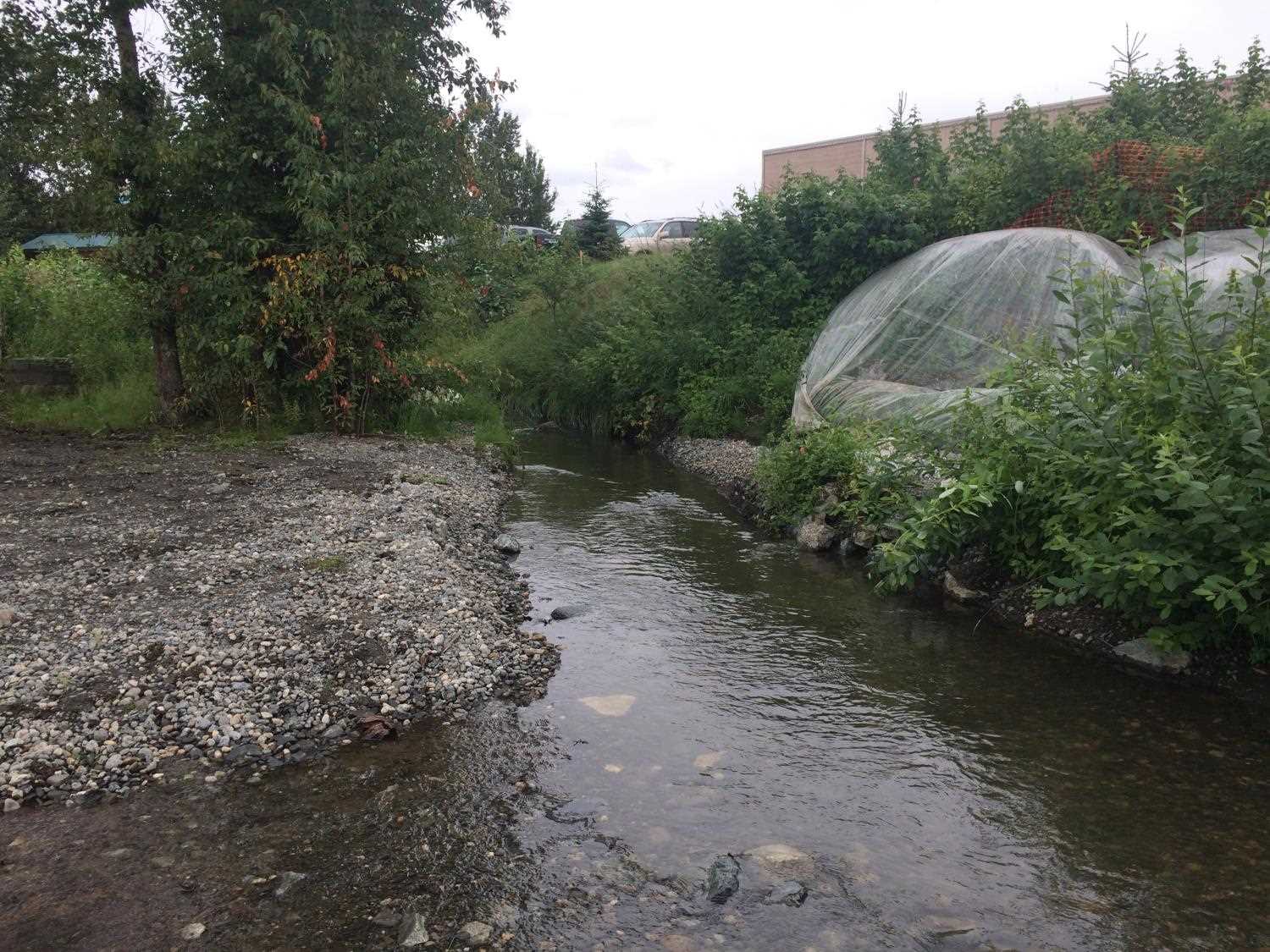

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

No elevation data available.

Fish Sampling Efforts

No fish sampling occurred during this survey.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
