Fish Passage Site 20300229

Coordinates (dec. deg.): 60.87350°, -149.03794°
Legal Description: S009N002E14
Region: South Central

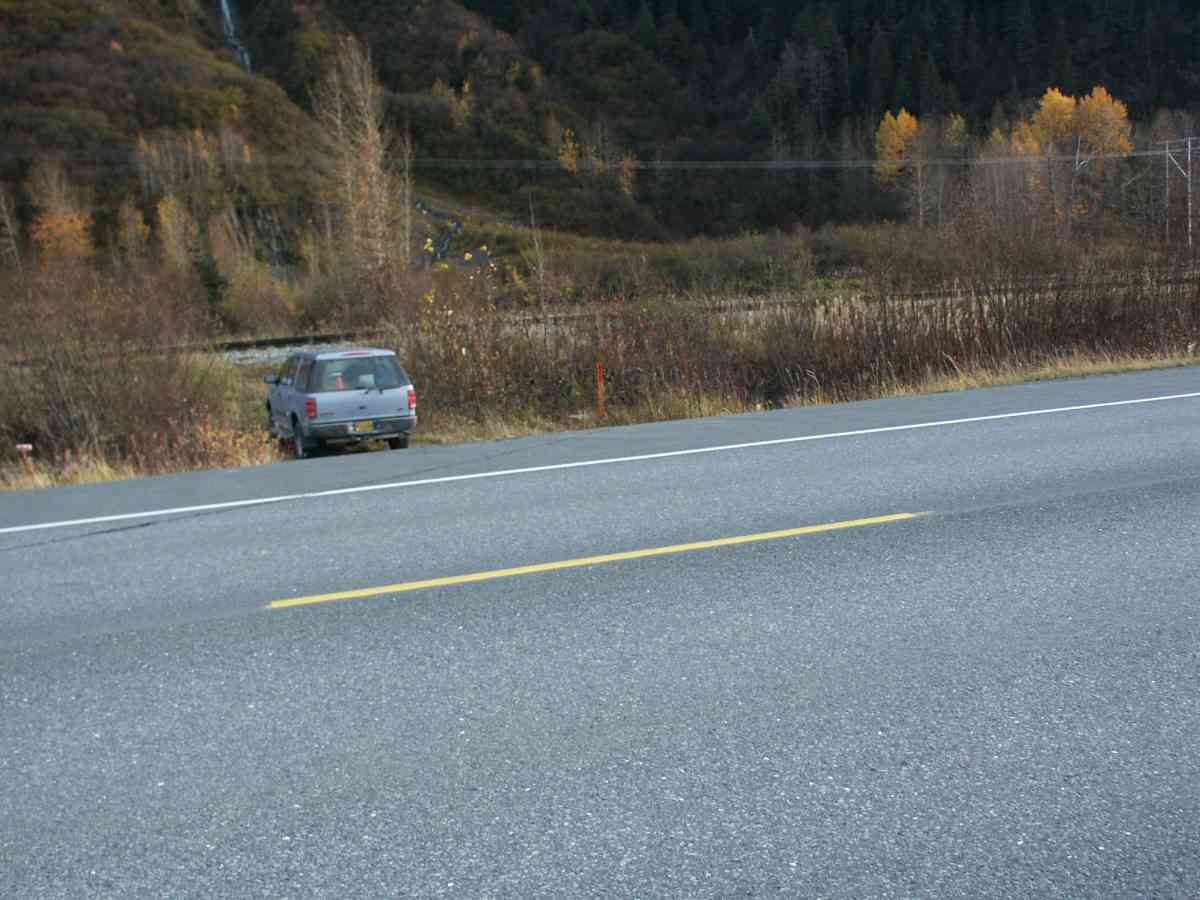

Road Name: Seward Highway

Datum: NAD83
Quad Name / ITM: Seward D-6
AWC Stream #: 247-60-10236
Stream Name: Unnamed

Elevation:

Site Comments: UNKNOWN WATERSHED, POND ABOVE, PART OF FOUR CULVERT GROUP, 2 UNDER RR TRACKS AND 2 UNDER SEWARD HWY. DOLLY VARDEN ABOVE CULVERT NEAR WATERFALL.

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey ANC04-4A229

Observers: Dean Beers, Vic Stanculescu

Overall Fish Passage Rating: Gray

Tidal: Yes
Backwatered: No

Step Pools:
Construction Year:


Comments: UNKNOWN WATERSHED, POND ABOVE, . DOLLY VARDEN ABOVE CULVERT NEAR WATERFALL.

Culvert Measurements

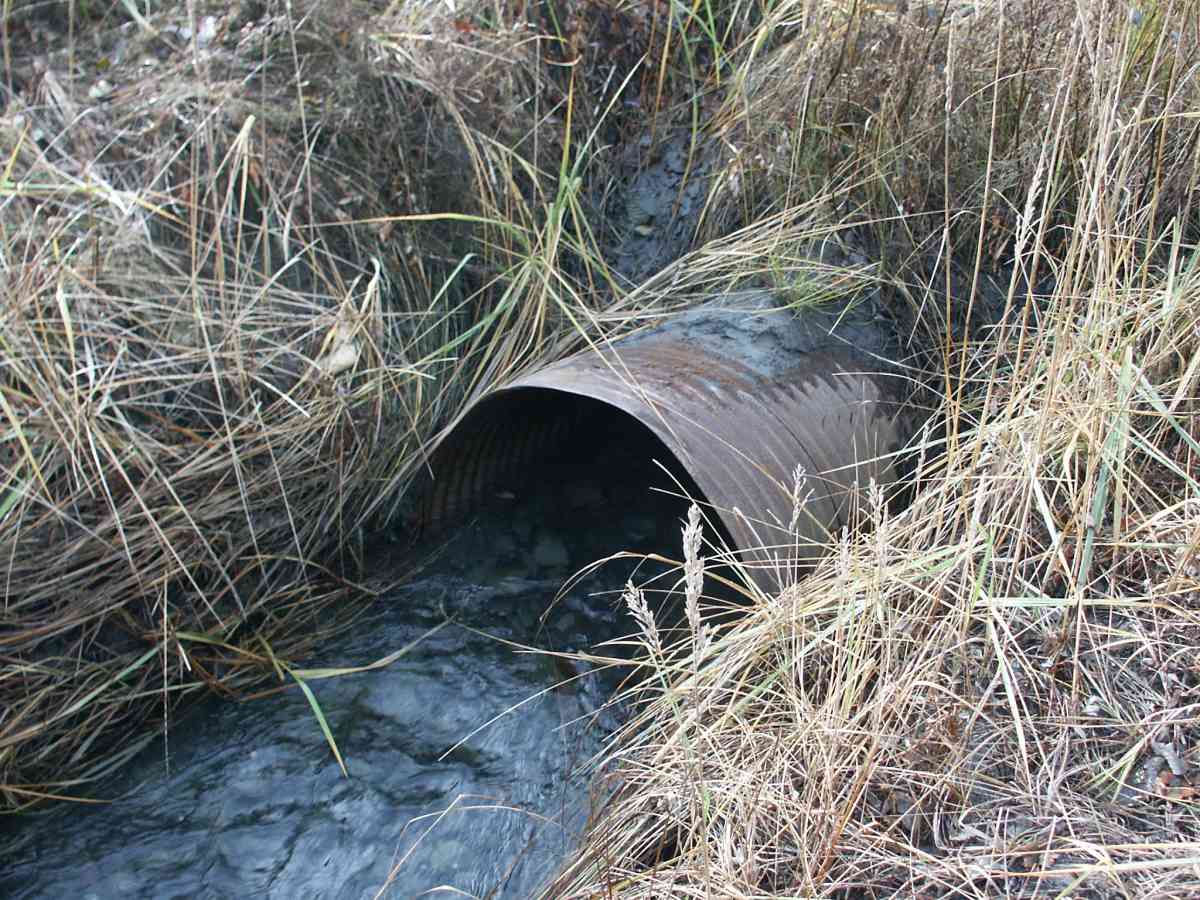

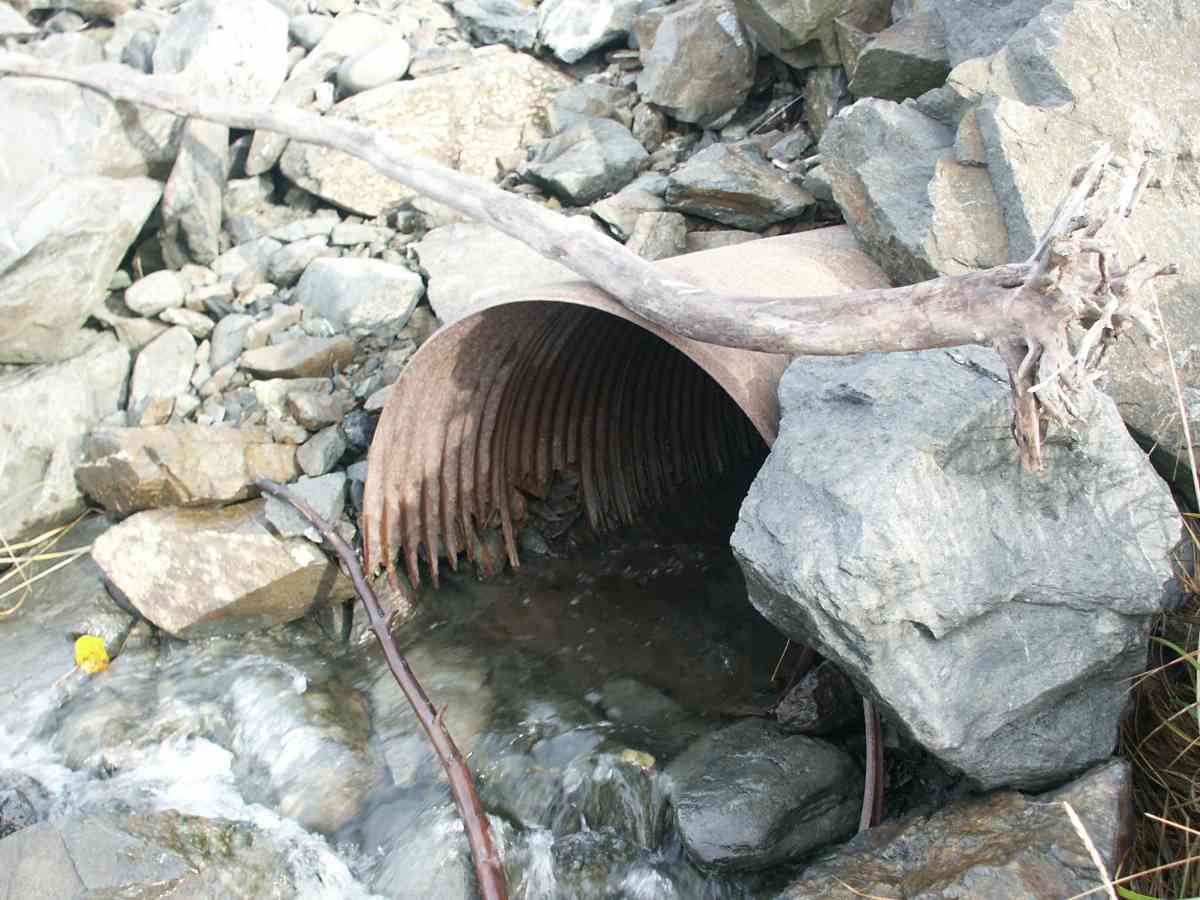

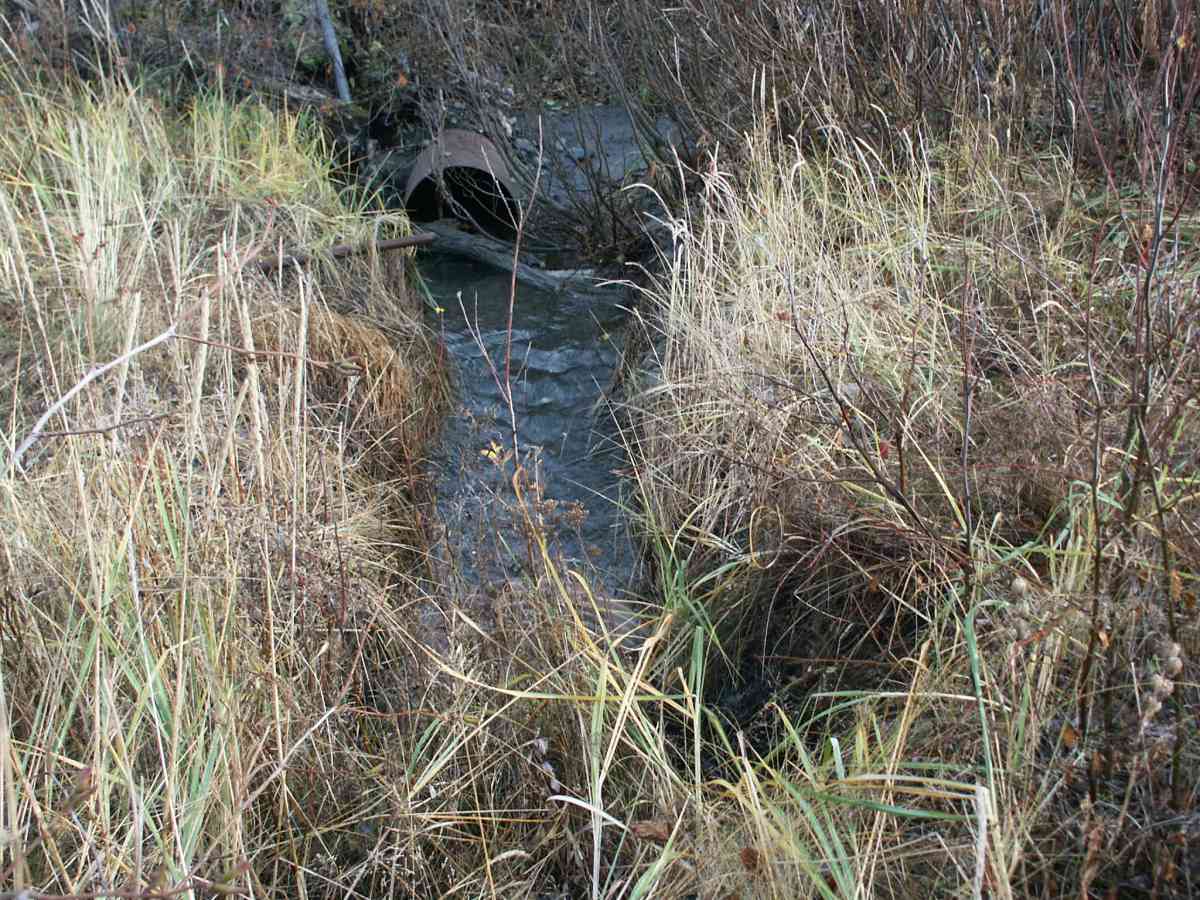

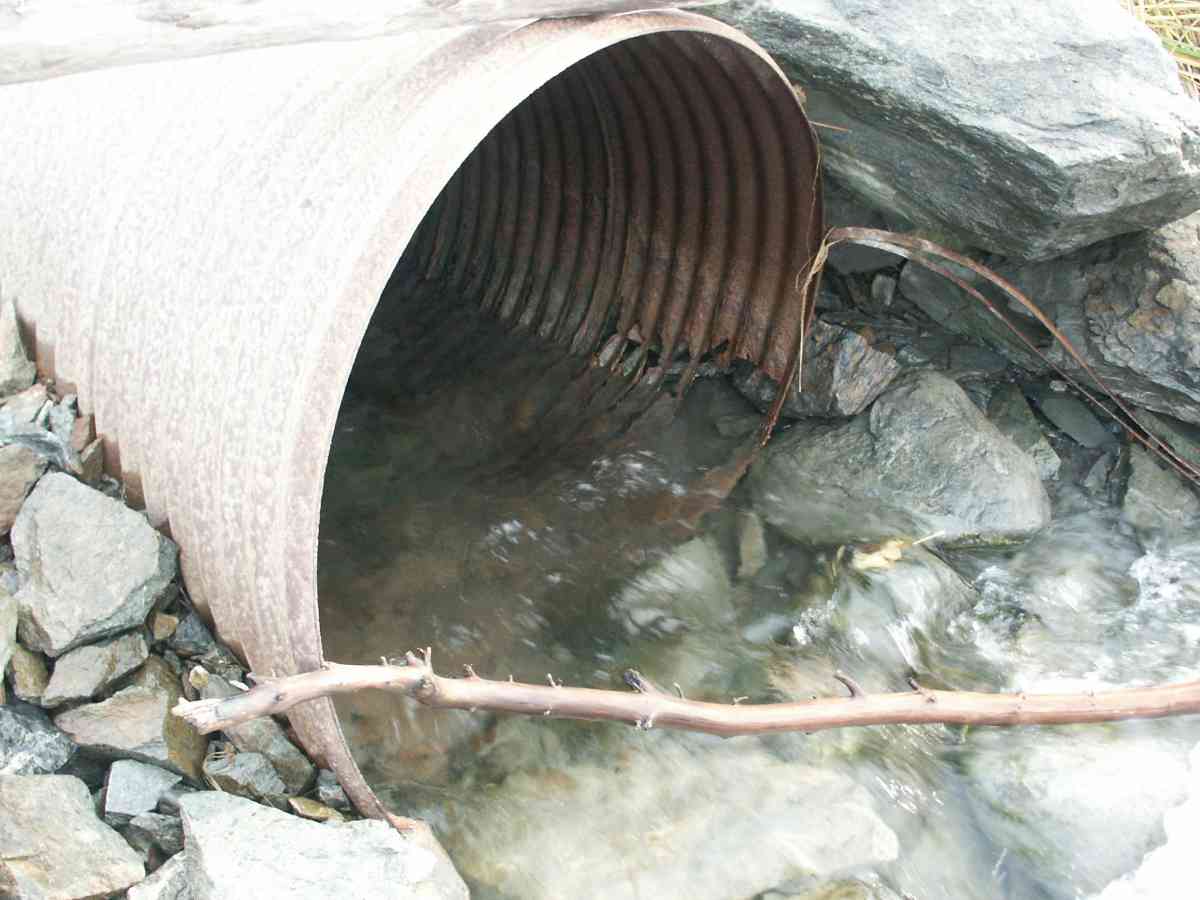

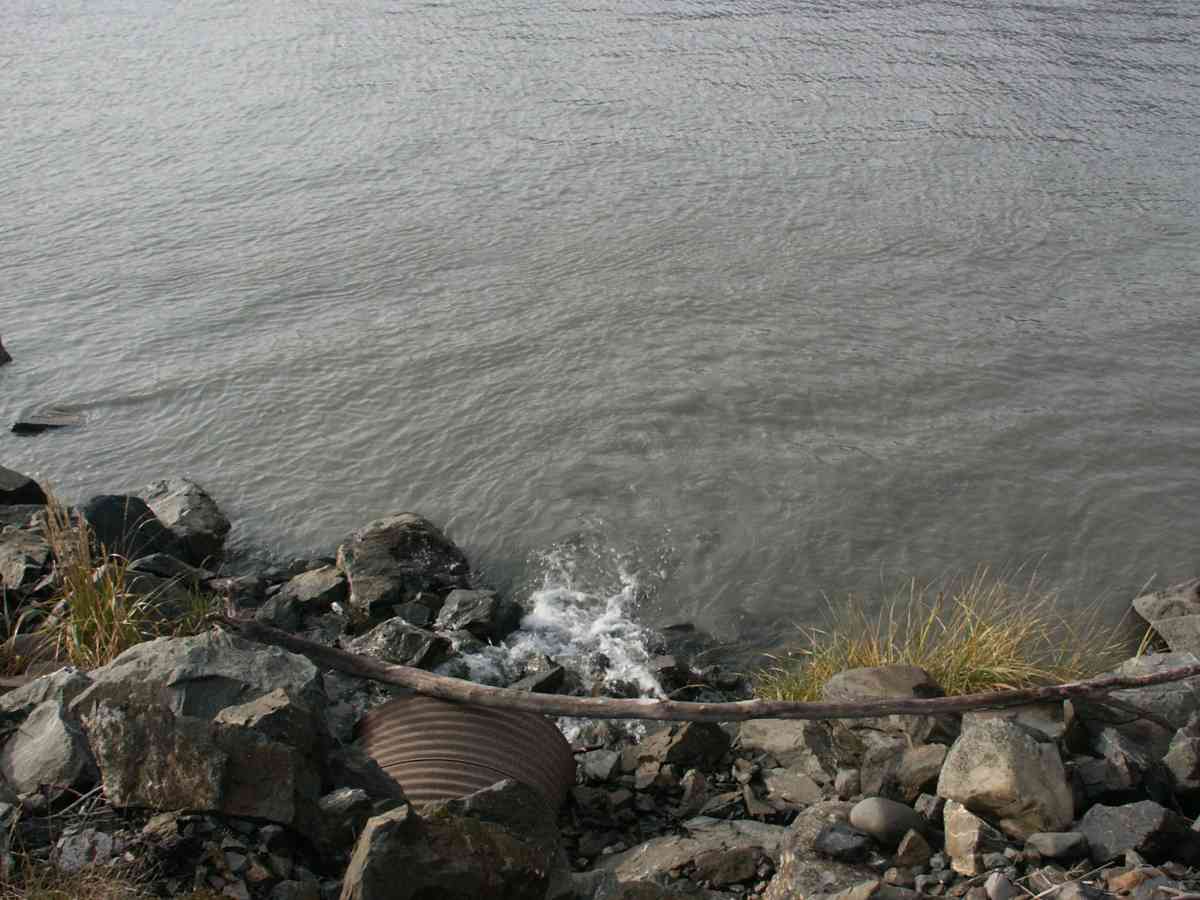

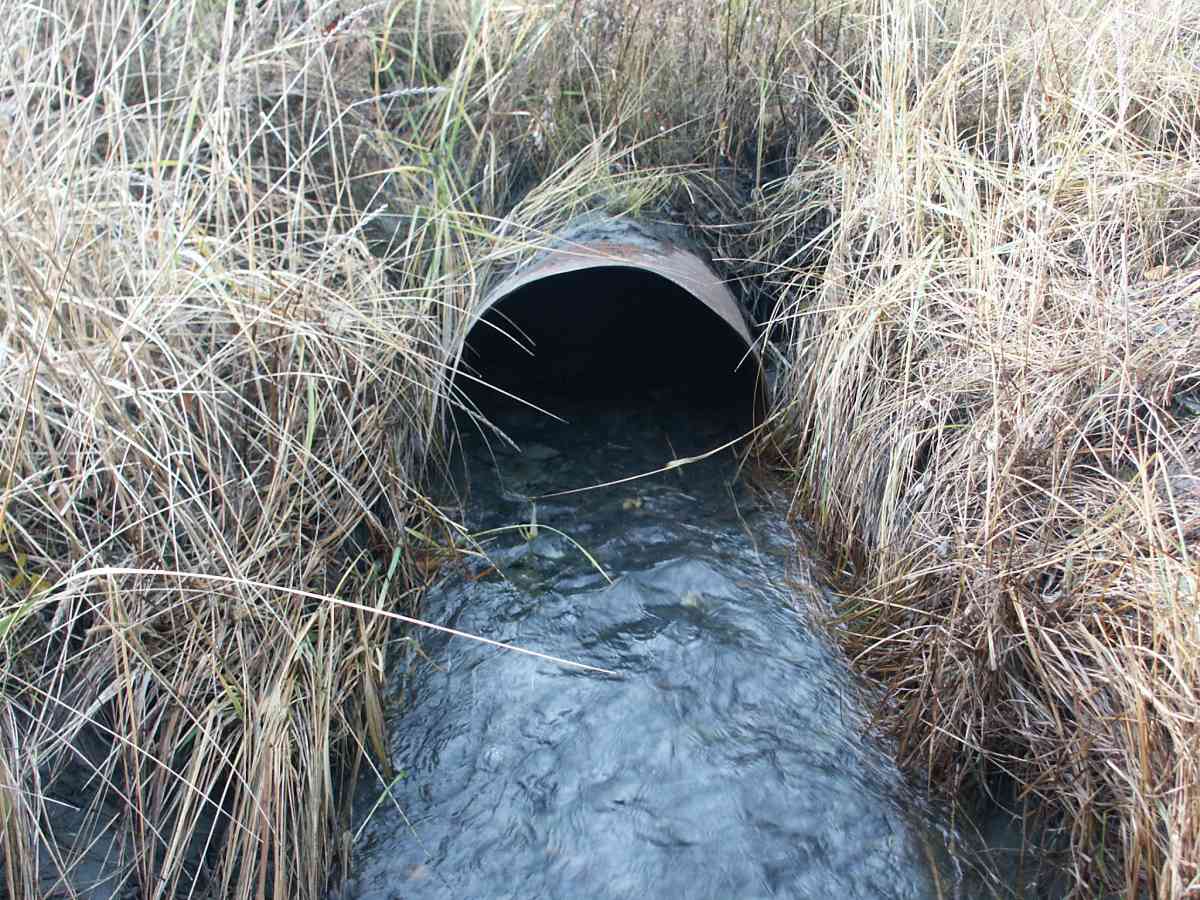

ID: 1 Structure Type: Circular pipe (Corrugated Metal) Fish Passage Rating:

Length(ft): 85.5
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5): 2
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):3.0
Height(ft):3.0
Apron Length(ft):
Water Depth(ft): 0.5
Rustline Height(ft):3.0
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.18
Outfall Type:
Constriction Ratio:
Culvert Gradient: 0.20%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:

No stream width data available.

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Max Pool Depth 96.97
D/S Thalweg 96.97
OHW Left Bank 97.49
U/S Thalweg 1 97.68
Outlet Invert 1 0.00 0.0 97.17
Road Elev 42.50 107.47
Inlet Culvert Invert 1 85.00 0.0 97.34

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

No fish observations occurred during this survey.
