Fish Passage Site 20300210

Coordinates (dec. deg.): 60.95712°, -149.11770°
Legal Description: S010N002E16
Region: South Central

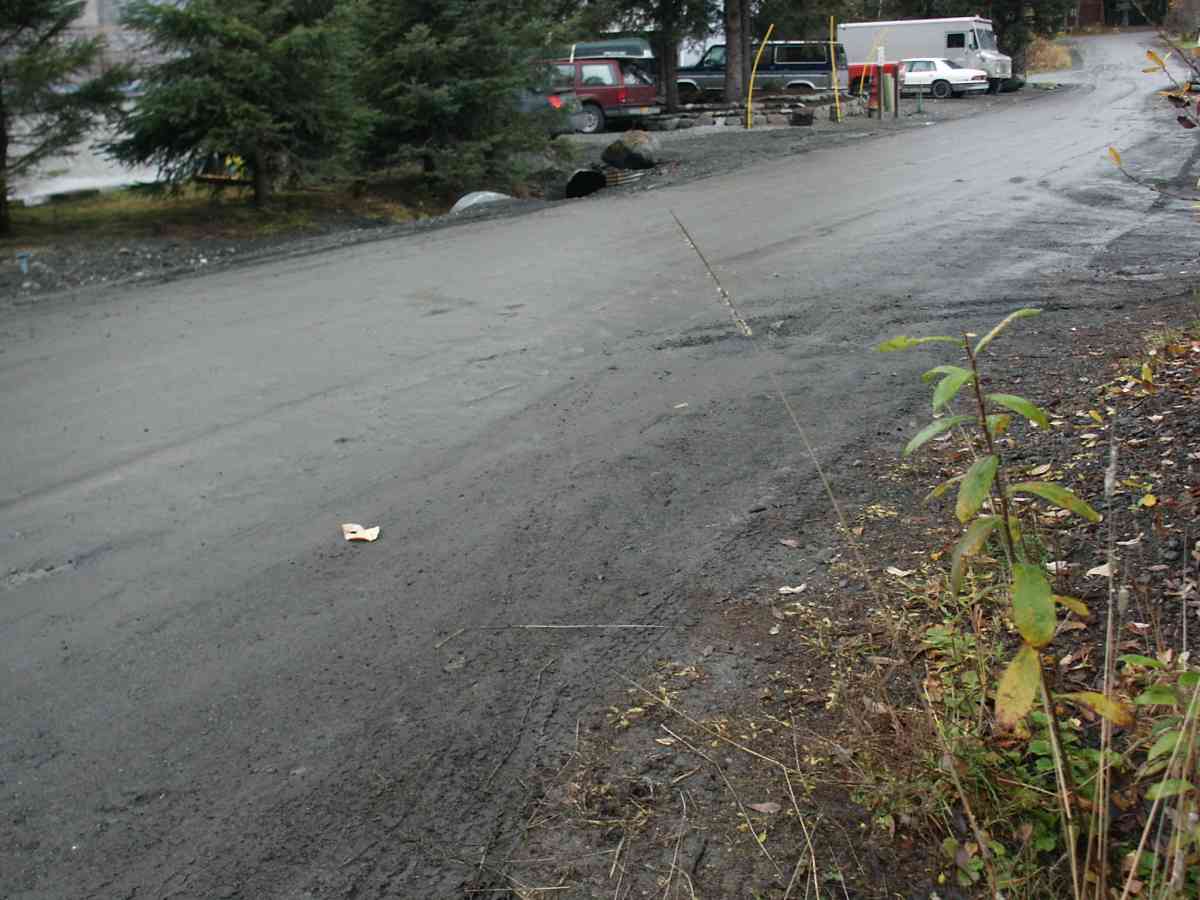

Road Name: LOVELAND

Datum: NAD83
Quad Name / ITM: Seward D-6
AWC Stream #:
Stream Name: Glacier Creek tributary

Elevation:

Site Comments: GLACIER CREEK WATERSHED

Survey Date: Oct 11, 2004

Survey ANC04-4A210

Observers: Dean Beers, Vic Stanculescu

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools:
Construction Year:


Comments: GLACIER CREEK WATERSHED, DOLLY VARDEN CHAR PRESENT ABOVE CULVERT INLET

Culvert Measurements

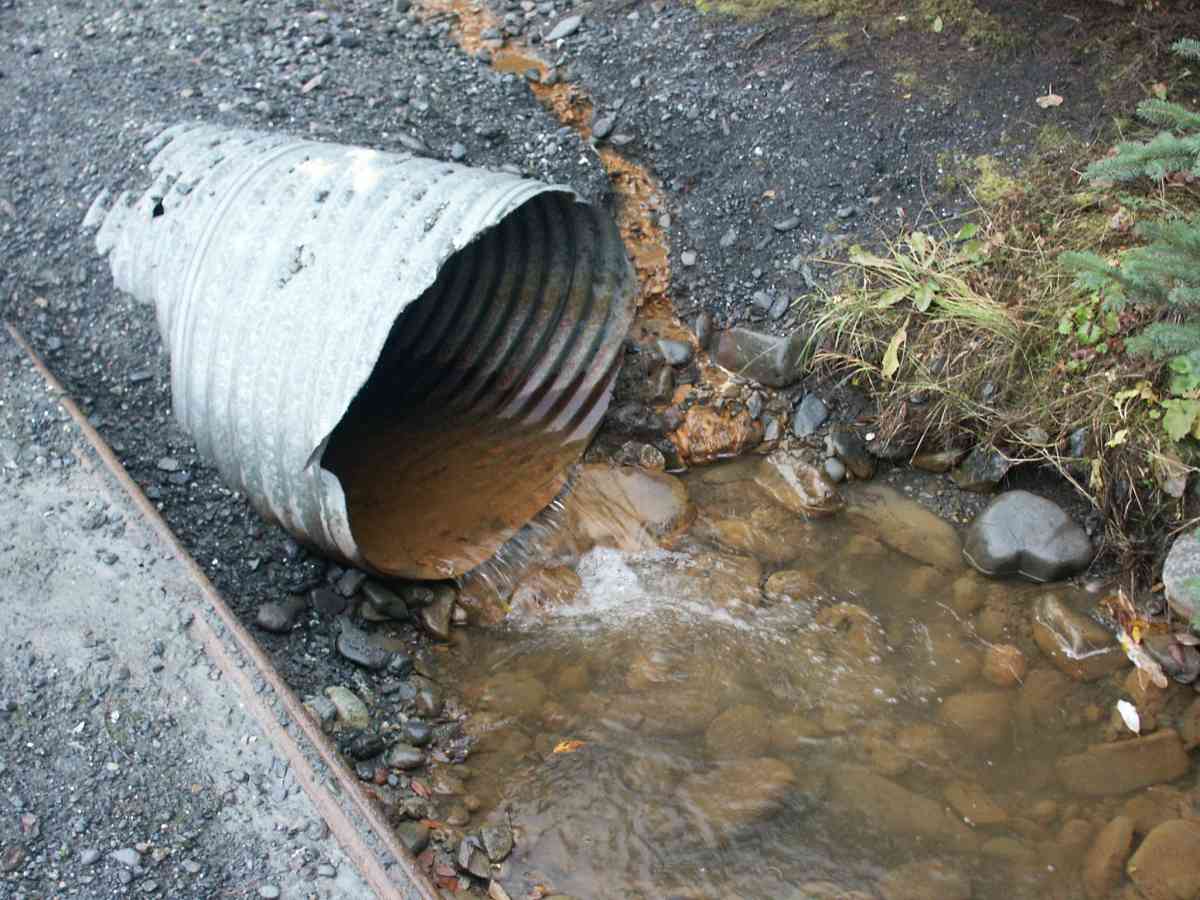

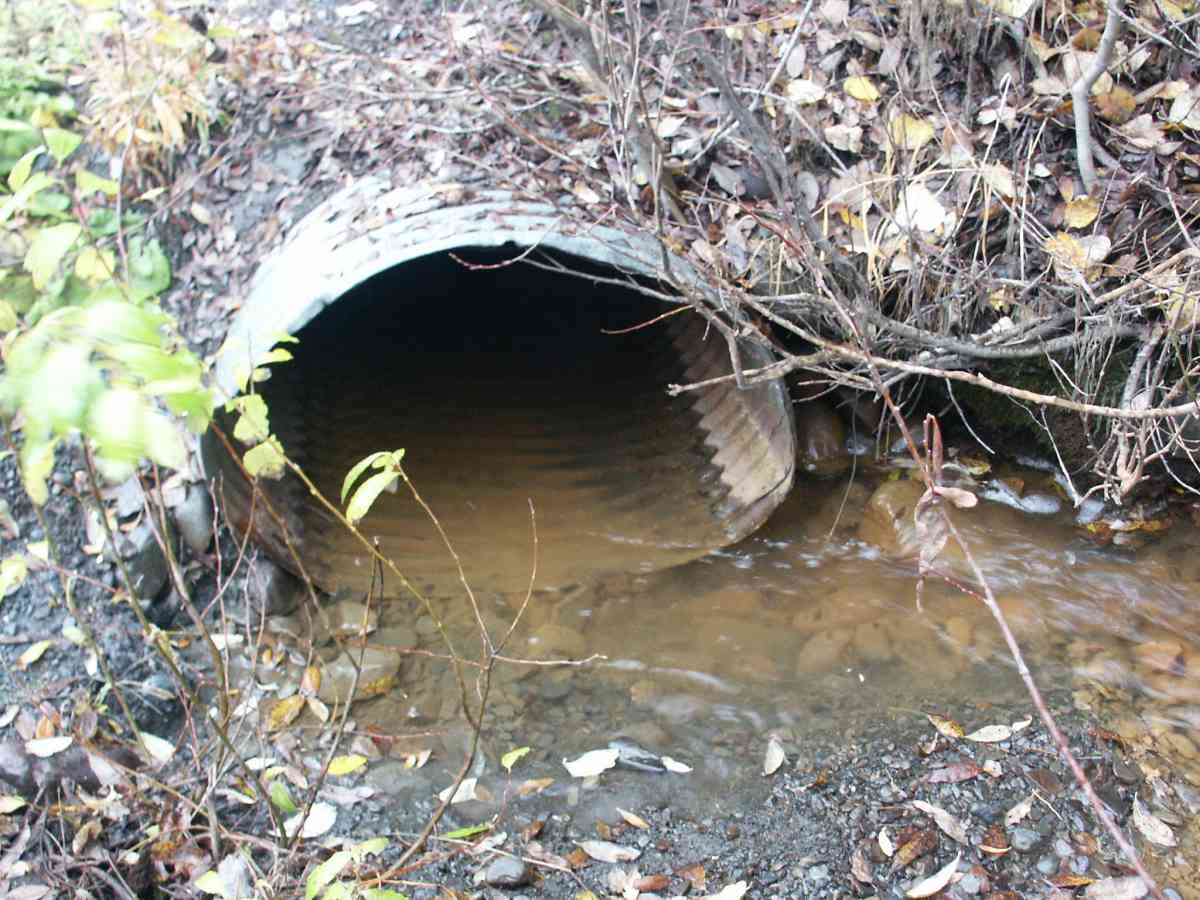

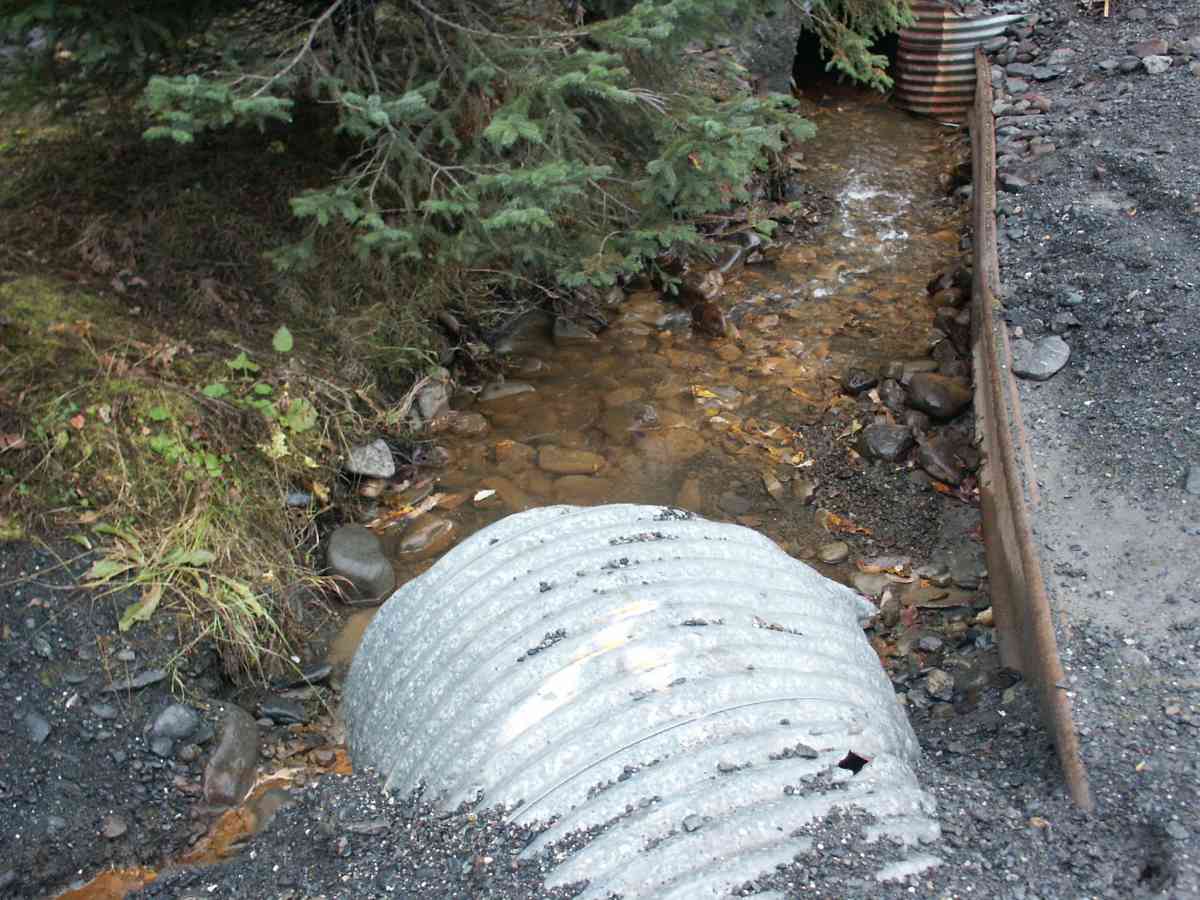

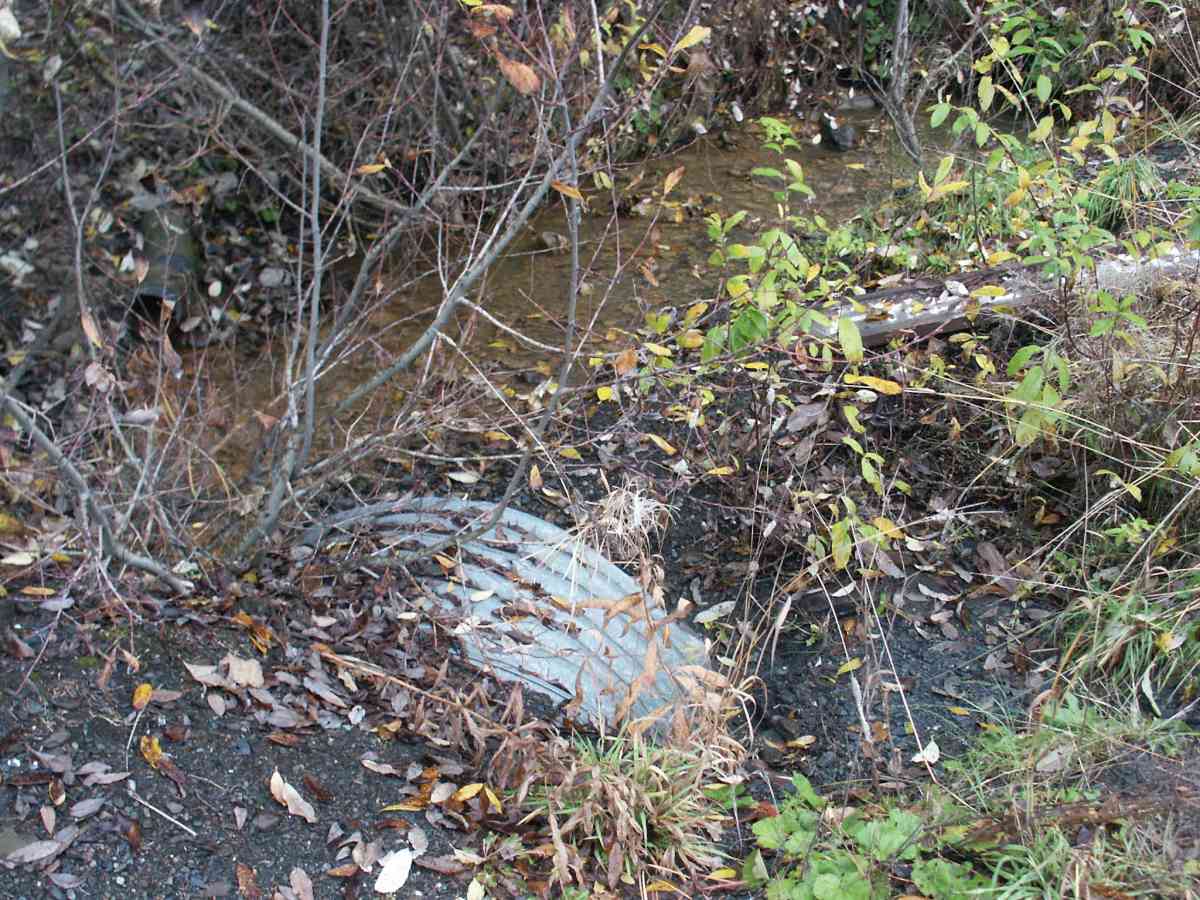

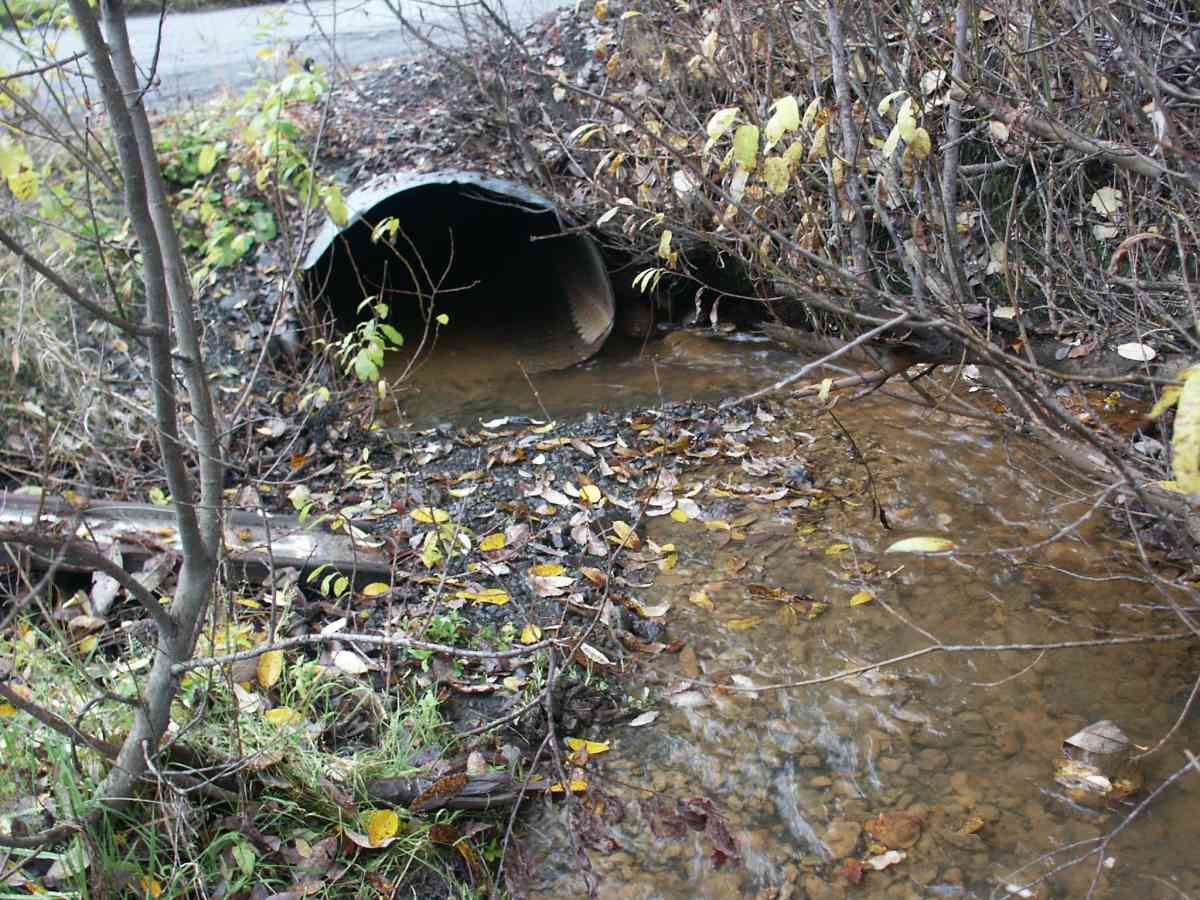

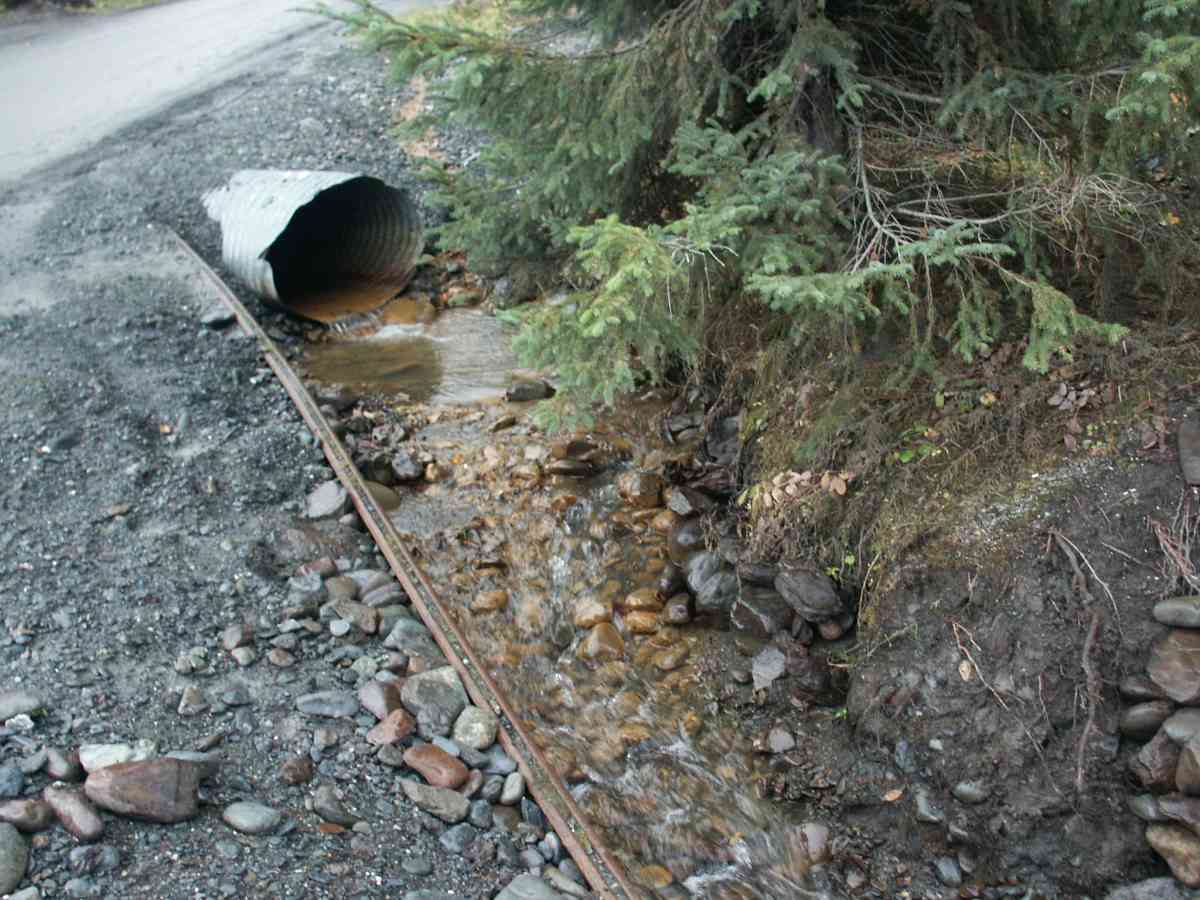

ID: 1 Structure Type: Pipe-arch (Corrugated Metal) Fish Passage Rating:

Length(ft): 52.0
Inlet Type: Projecting
Outlet Type:
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.67
Condition Rating(1-5): 3
Approach Angle:
Sedimentation At Inlet:
Inlet Substrate:
Outlet Substrate:
InletOutlet
Width(ft):3.5
Height(ft):3.5
Apron Length(ft):
Water Depth(ft): 0.2
Rustline Height(ft):1.0
Substrate Depth(ft):
Backwatered?:
Baffles Present: No
Embedded?: No
Outfall Height: 0.34
Outfall Type:
Constriction Ratio: 0.71
Culvert Gradient: 0.98%
Max Slope:
Max Slope Length:

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream bank full 75.0 9.60
Upstream bank full 100.0 10.00
Upstream bed width 75.0 4.50
Upstream bed width 100.0 5.20
Upstream ordinary high water 75.0 4.50
Upstream ordinary high water 100.0 5.40

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Max Pool Depth 90.44
D/S Thalweg 90.44
D/S Tailcrest or 1st Thalweg 90.79
OHW Left Bank 91.04
OHW Left Bank 91.20
U/S Thalweg 1 91.95
Outlet Invert 1 0.00 0.0 91.18
Road Elev 26.00 94.42
Inlet Culvert Invert 1 52.00 0.0 91.69

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Visual Observation, Ground (A)

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
