Fish Passage Site 20100770

Coordinates (dec. deg.): 62.65892°, -144.47870°
Legal Description: C010N005E09
Region: South Central
Road Name: Tok Cut-Off

Datum: NAD83
Quad Name / ITM: Gulkana C-1
AWC Stream #:
Stream Name: Copper River Tributary, Unnamed

Elevation:

Site Comments: None

Multiple surveys have been conducted at this site — click on the drop down
arrow to the right of the survey date below to choose a different report for this site.

Survey UPDATE-TOK3

Project Supervisor: Gillian O'Doherty, ADFG
Observers: Andrew Kastning

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height gray
  2. Constriction ratio gray
  3. Culvert gradient red

Comments: This assessment was performed by the Copper River Watershed Project.

Culvert Measurements

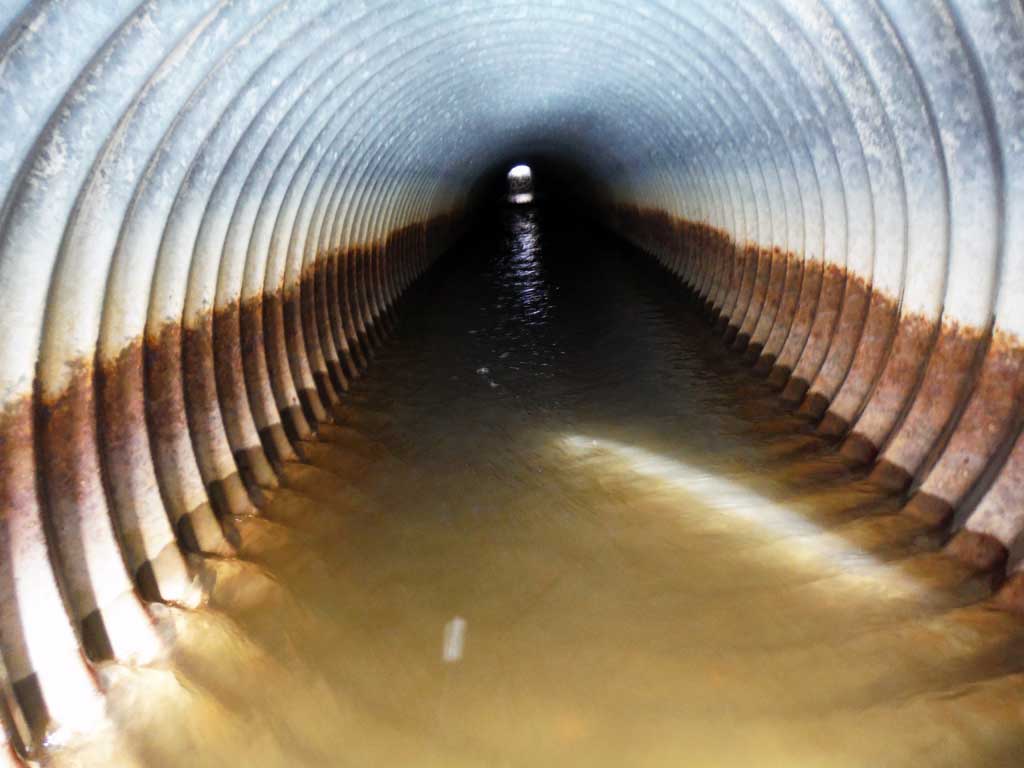

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 89.3

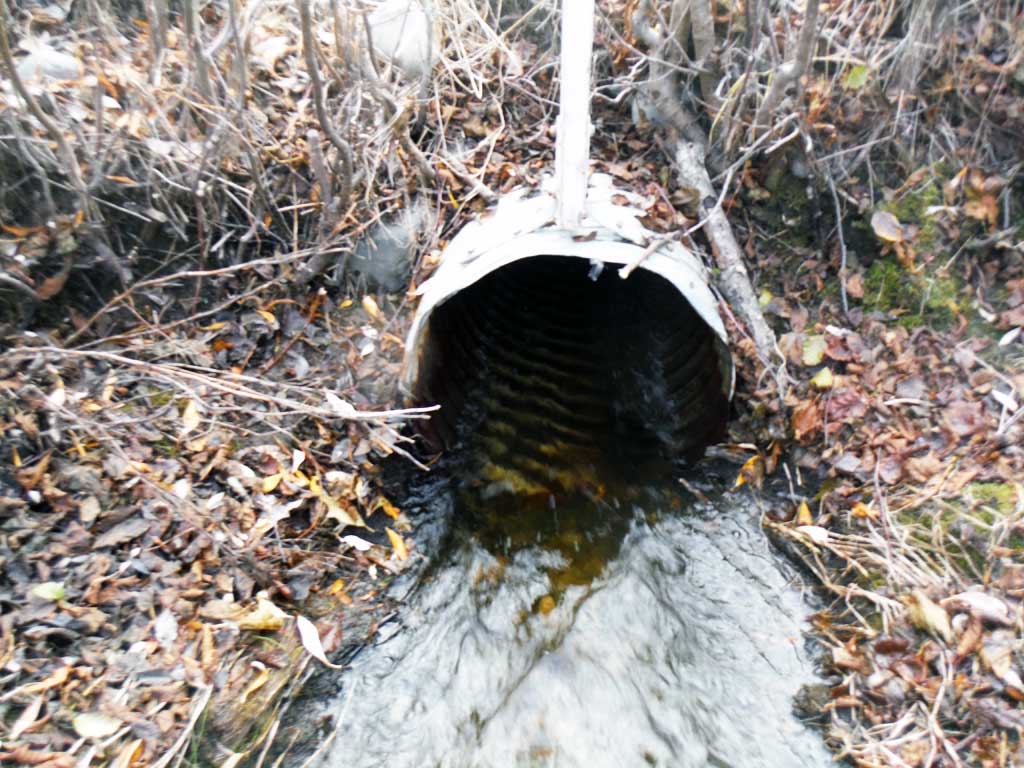

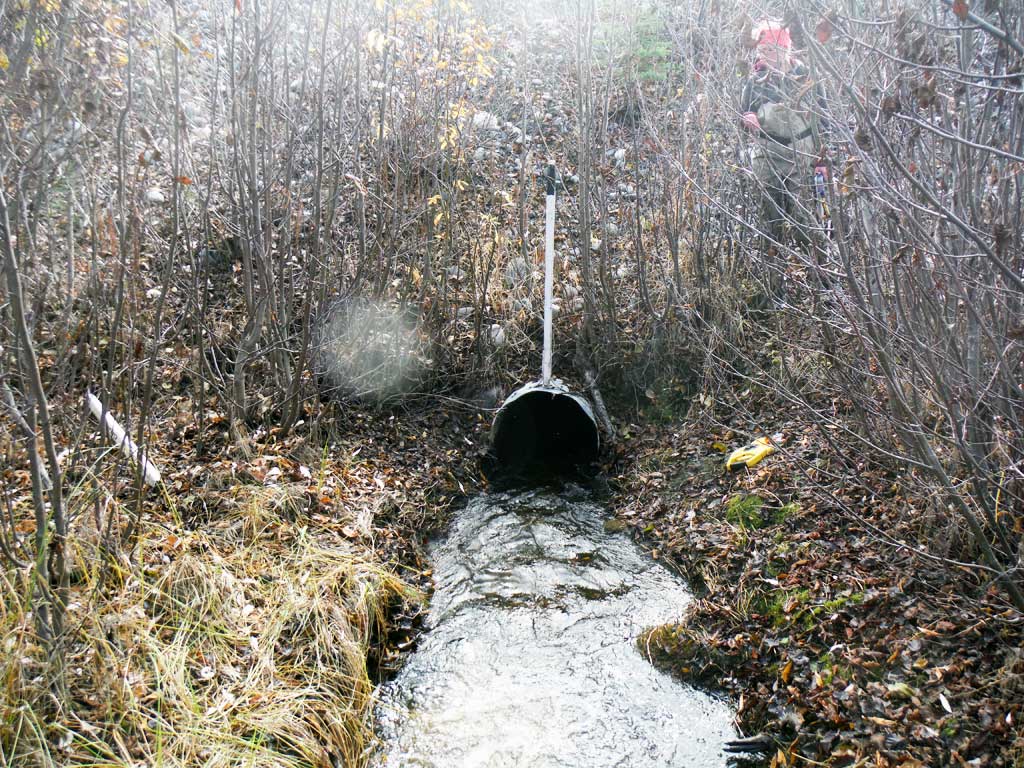

Inlet Type: Projecting

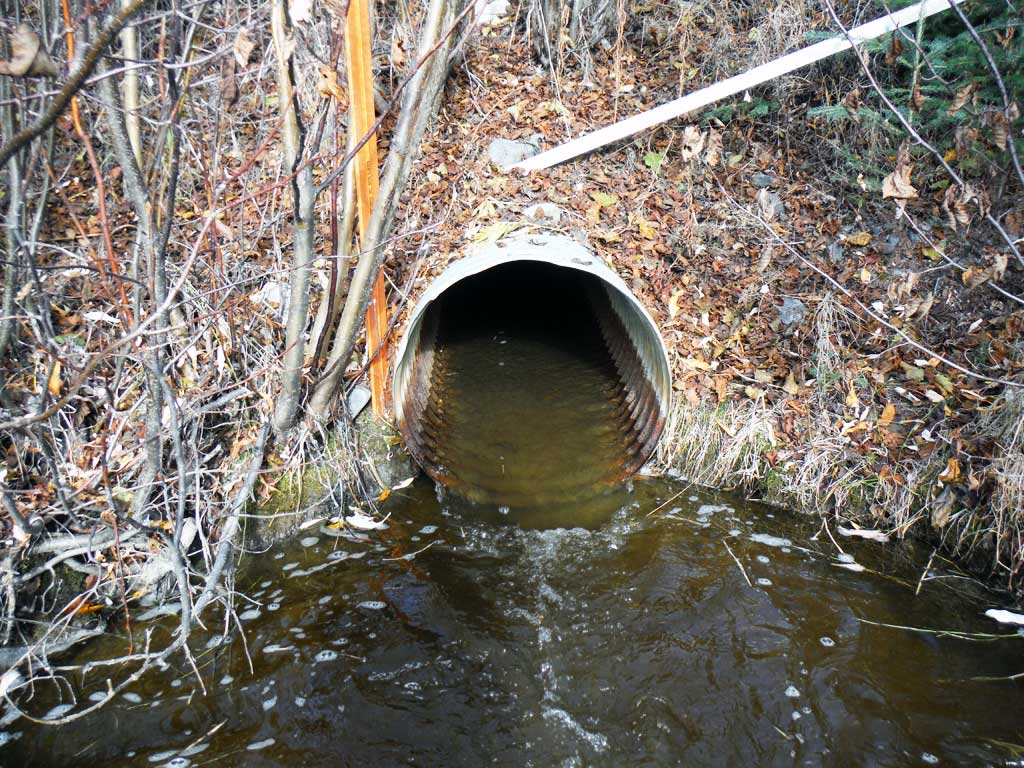

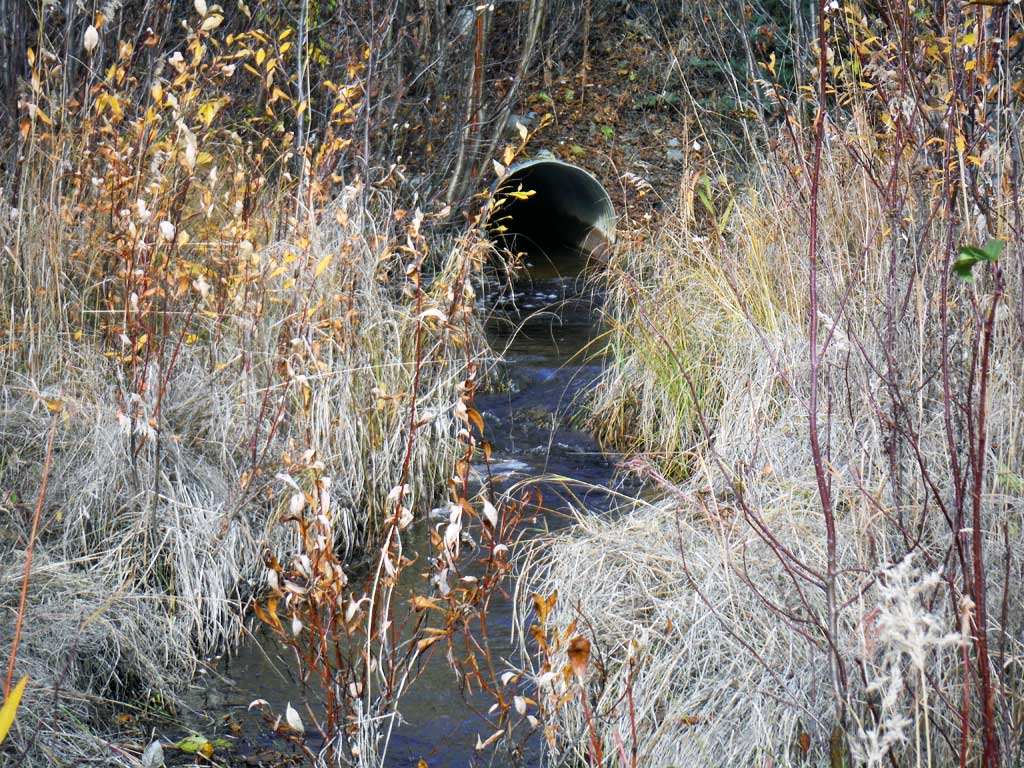

Outlet Type: Projecting
Corrugation Depth(in.): 0.75
Corrugation Width(in.): 2.75
Condition Rating(1-5): 3
Approach Angle: 10.0
Sedimentation At Inlet: No
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):2.05 2.25
Height(ft):2.03 2.05
Apron Length(ft):
Water Depth(ft): 0.4
Rustline Height(ft):0.96
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.17
Outfall Type: Hydraulic Jump
Constriction Ratio: 0.69
Culvert Gradient: 2.75%
Max Slope:
Max Slope Length:
  Culvert Observations:
  1. Culvert gradient red
  2. Outfall height gray
  3. Constriction ratio gray

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:SandSand
Stream Slope(deg.):4
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)

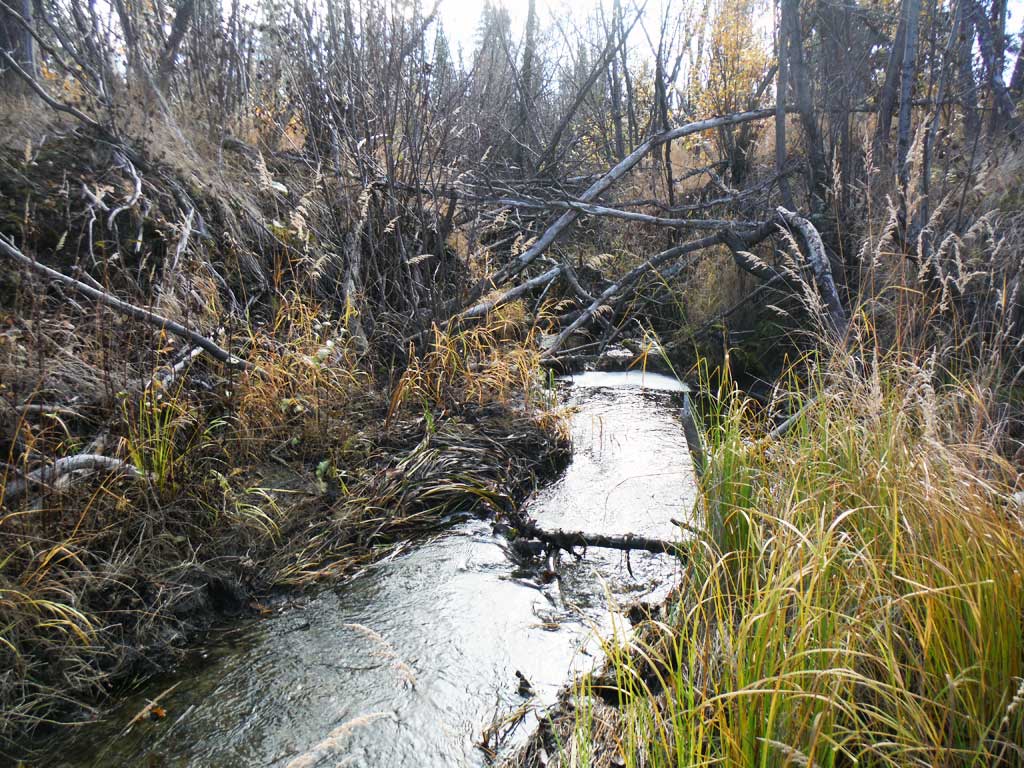

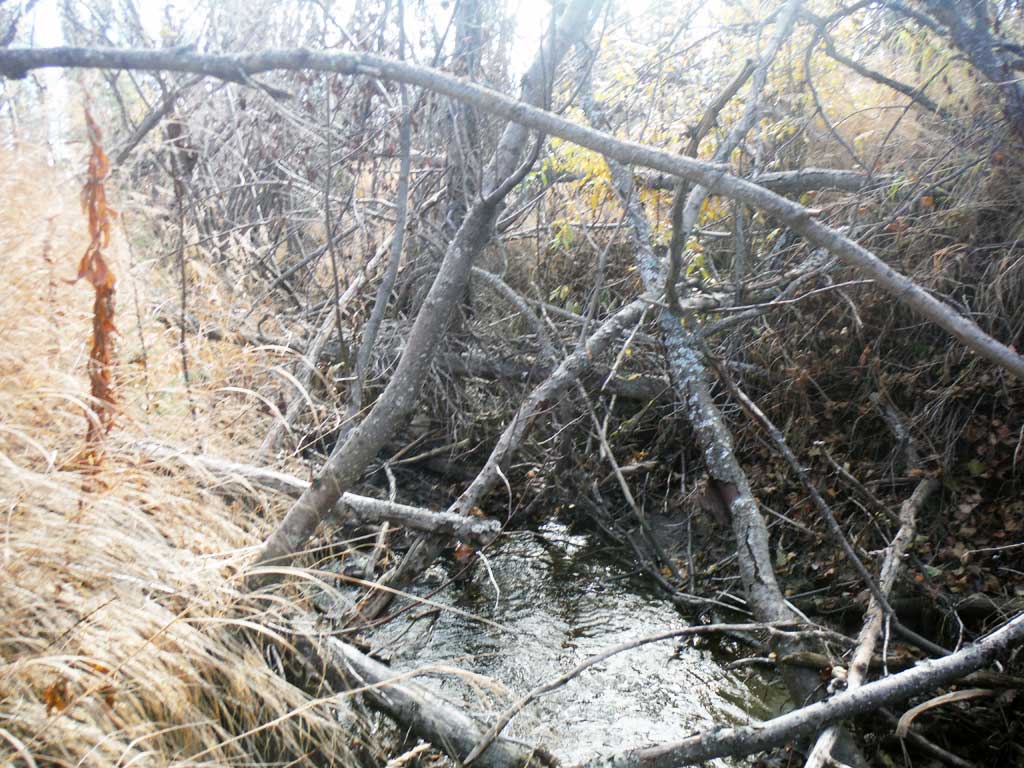

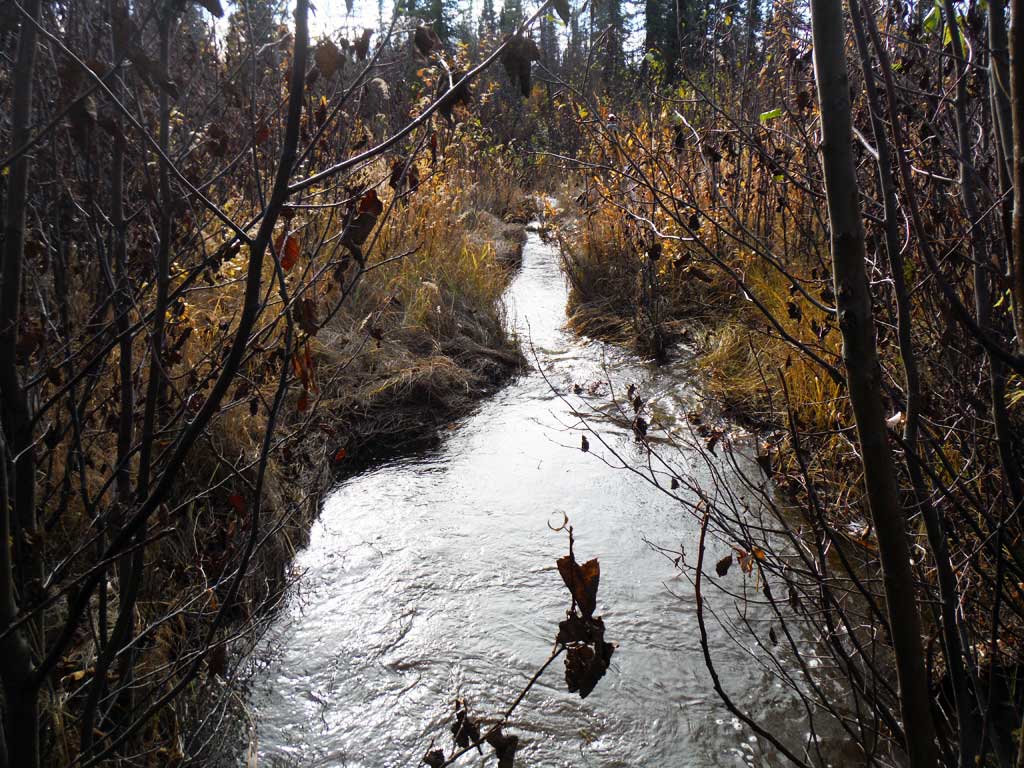

Downstream ordinary high water 5.10
Downstream ordinary high water 3.60
Downstream ordinary high water 2.80

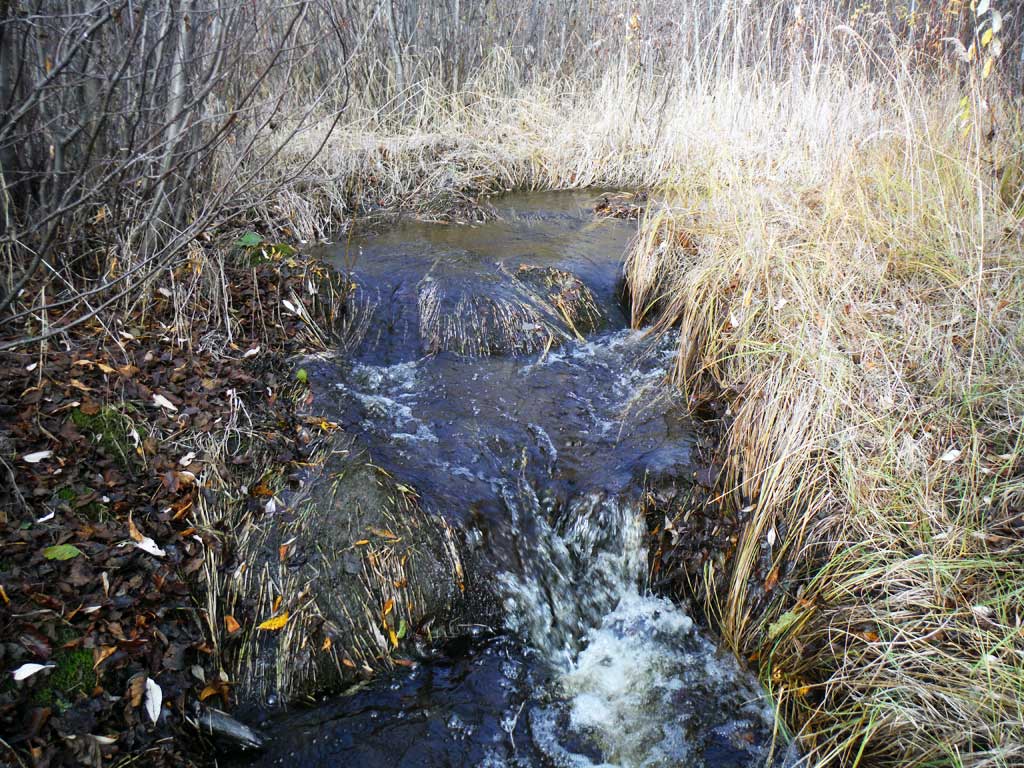

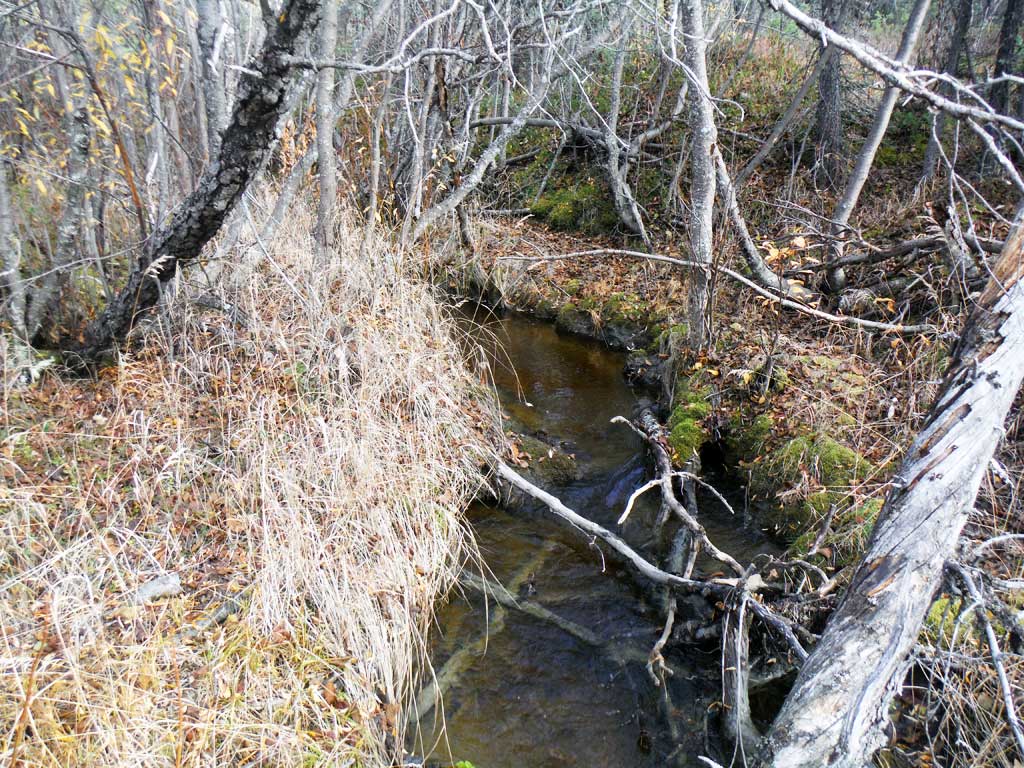

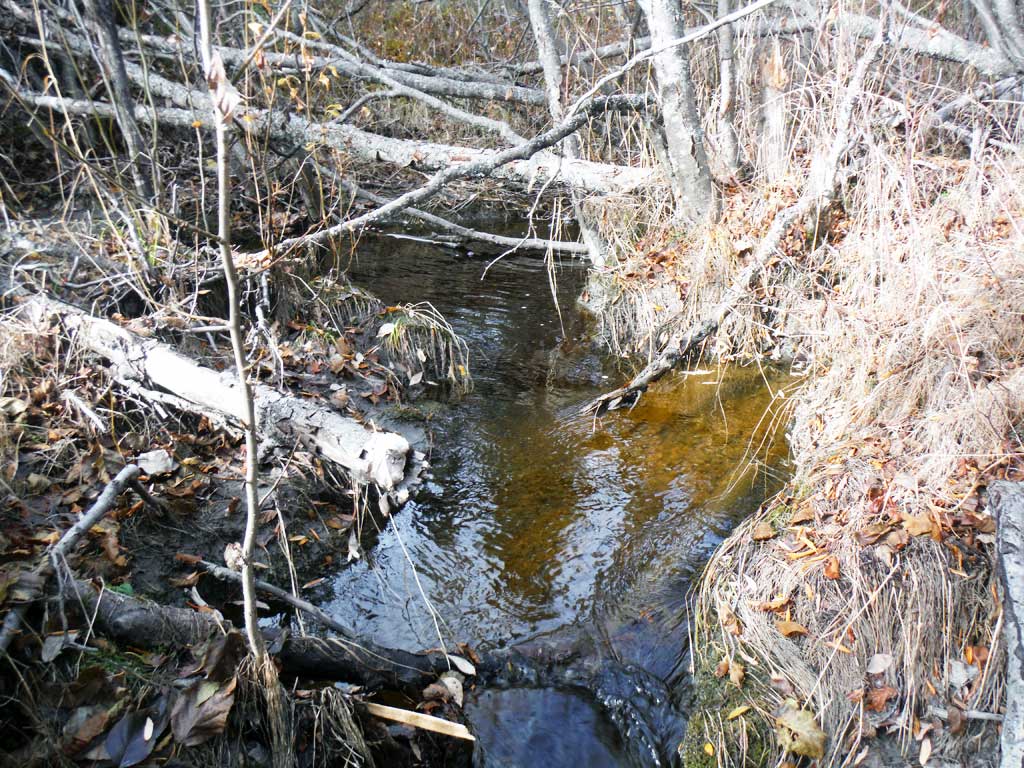

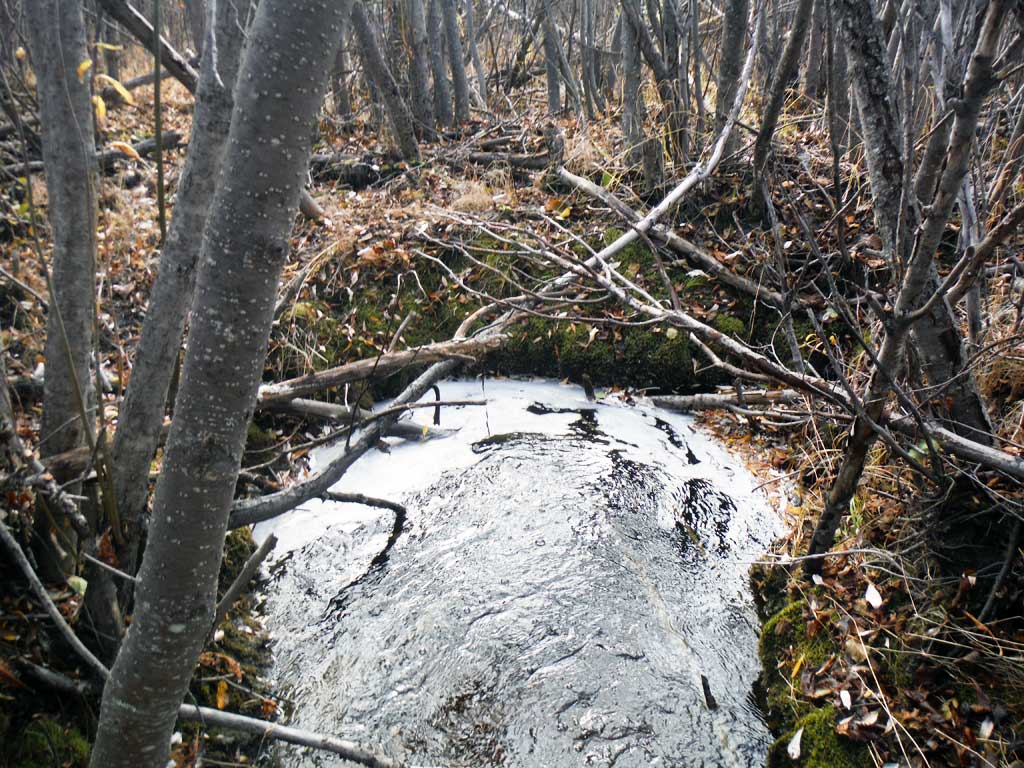

Upstream ordinary high water 4.20
Upstream ordinary high water 2.10
Upstream ordinary high water 2.60

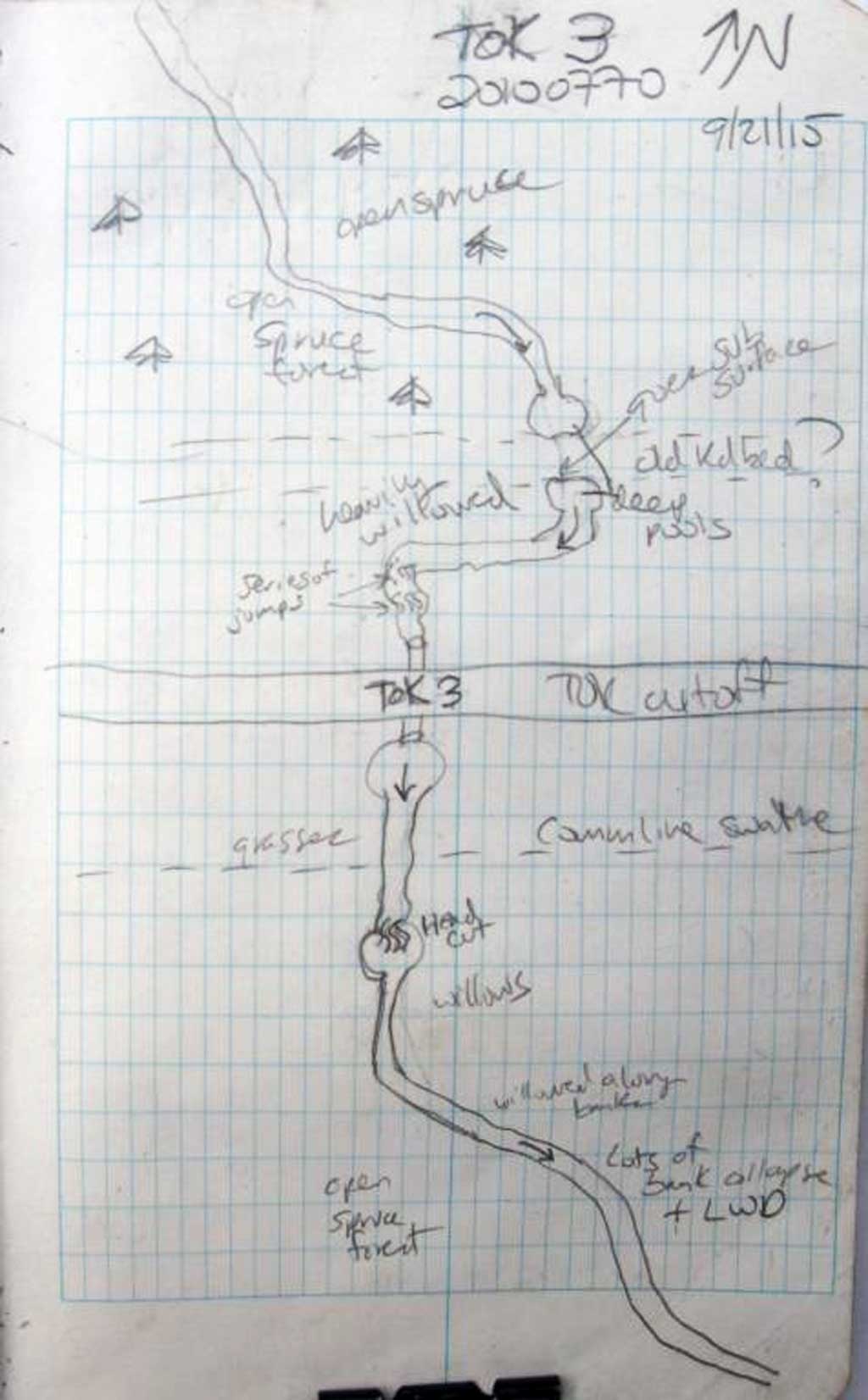

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 114.15

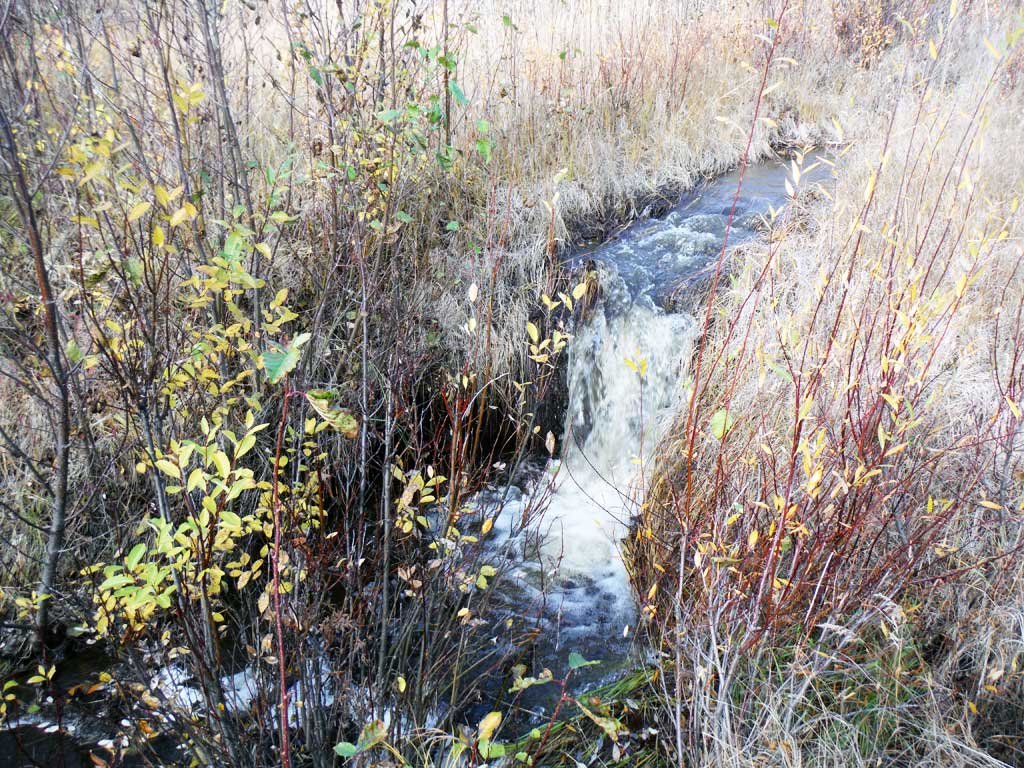

D/S Thalweg (Bottom of head cut) 0.00 88.97
D/S Water Surface Elev 0.00 92.42
D/S Grade Ctrl (Thalweg) (Top of head cut) 4.00 95.00
D/S Water Surface Elev 4.00 95.35
D/S Grade Ctrl (Thalweg) 40.00 96.76
D/S Water Surface Elev 40.00 97.36
D/S Tailcrest or 1st Thalweg 61.00 97.87
D/S Water Surface Elev 61.00 98.16
Outlet Pool Water Elev 70.60 98.18
Max Pool Depth 70.60 96.34

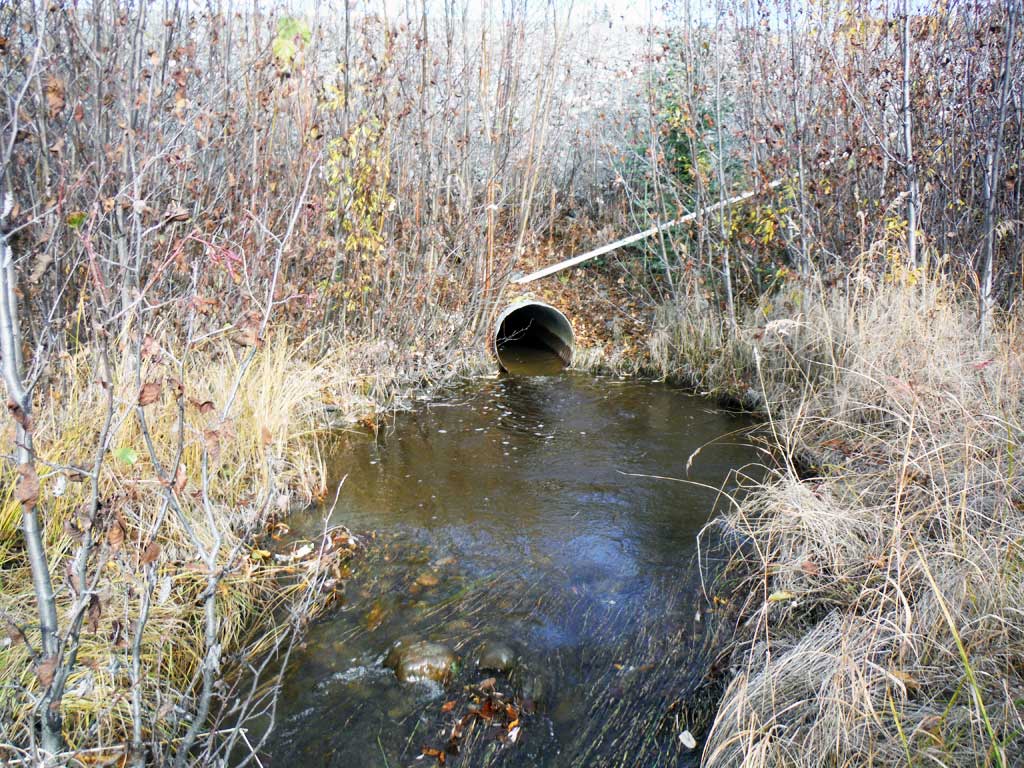

Outlet Invert 75.20 97.95
D/S Water Surface Elev 75.20 98.35
Outlet Culvert Top 75.20 100.00
Inlet Culvert Invert (On pipe) 164.50 100.41
U/S Water Surface Elev 164.50 101.06
Inlet Culvert Top 164.50 102.44
U/S Water Surface Elev 168.50 101.18
U/S Grade Ctrl (Thalweg) 168.50 100.68
U/S Grade Ctrl (Thalweg) 175.00 101.40
U/S Water Surface Elev 175.00 101.90
U/S Grade Ctrl (Thalweg) 181.50 101.82
U/S Water Surface Elev 181.50 102.53
U/S Water Surface Elev 195.00 102.60
U/S Grade Ctrl (Thalweg) 195.00 101.54

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 18.0
Comments: 2 traps set upstream, no fish caught or recorded

Gear Type: Minnow Trap (B) Trap Duration(h): 18.0
Comments: 2 traps set downstream, no fish caught or observed.

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
