Fish Passage Site 10103585

Coordinates (dec. deg.): 55.75483°, -132.97951°
Legal Description: C070S081E34
Region: Southeast

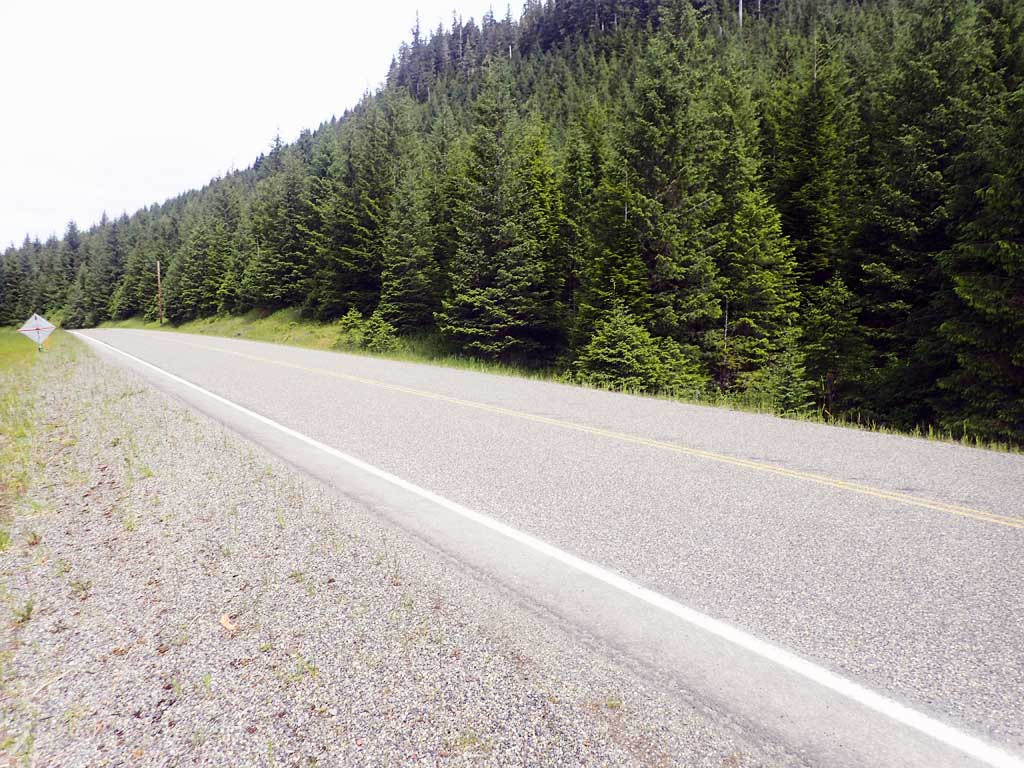

Road Name: North Prince of Wales Road

Datum: NAD83
Quad Name / ITM: Craig D-3
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Survey Date: Jun 28, 2017

Survey SEA17-NPW19

Observers: Elizabeth Flory, Kelly Petty

Overall Fish Passage Rating: Red

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Outfall height red
  2. Culvert gradient red
  3. Constriction ratio gray

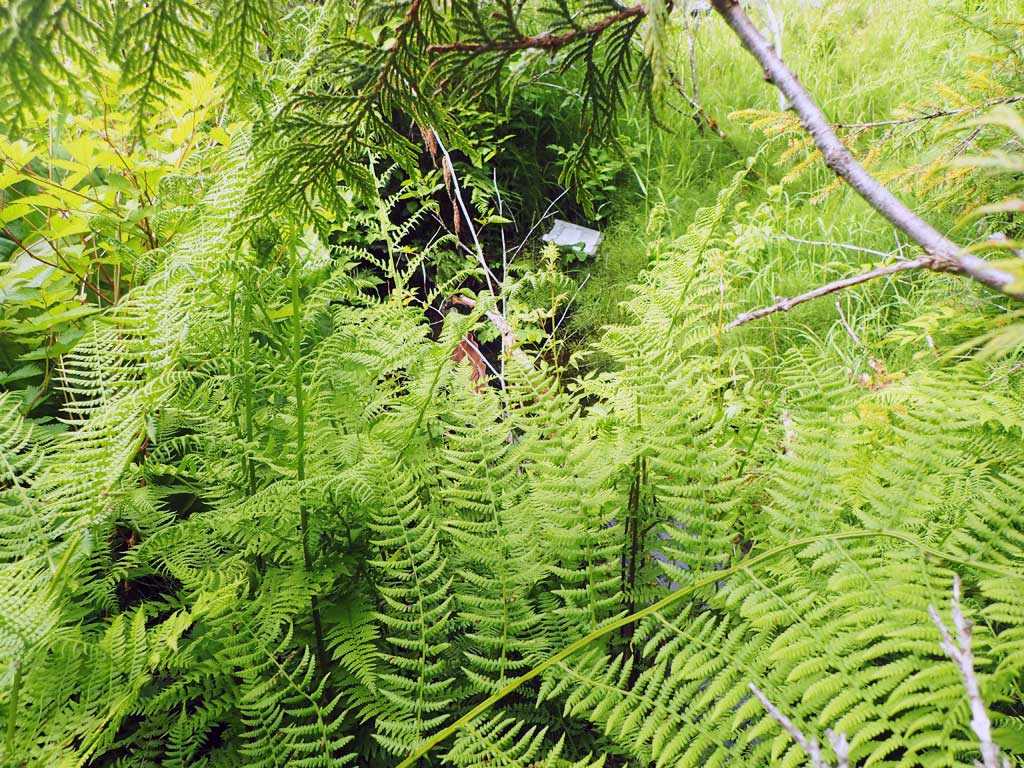

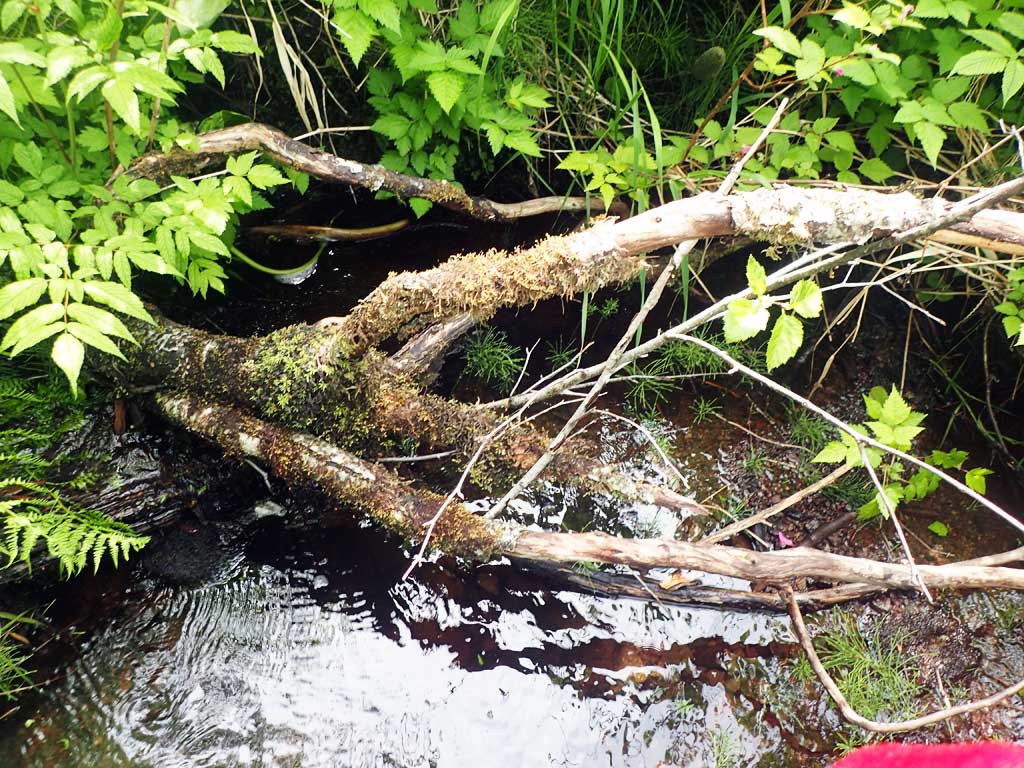

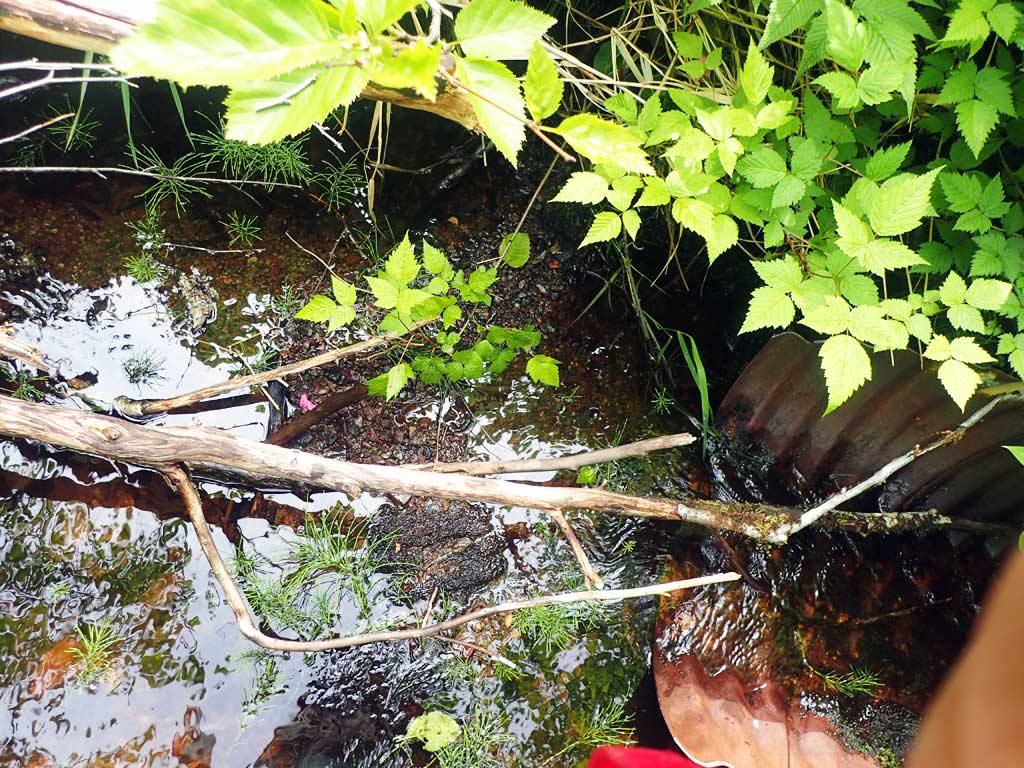

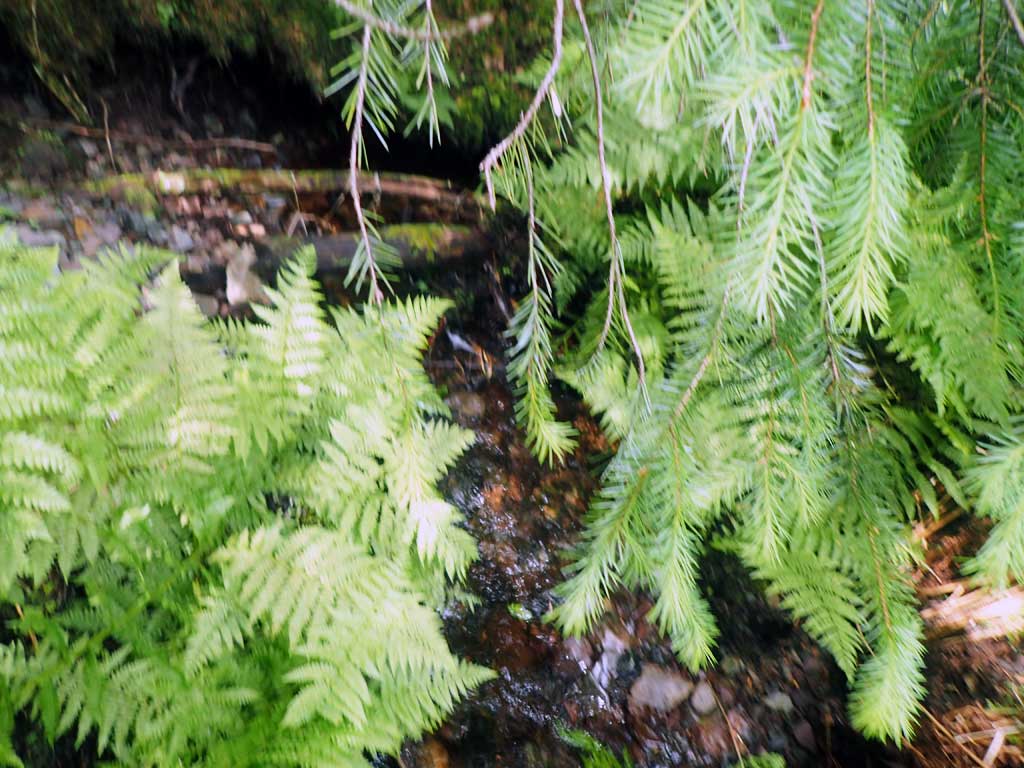

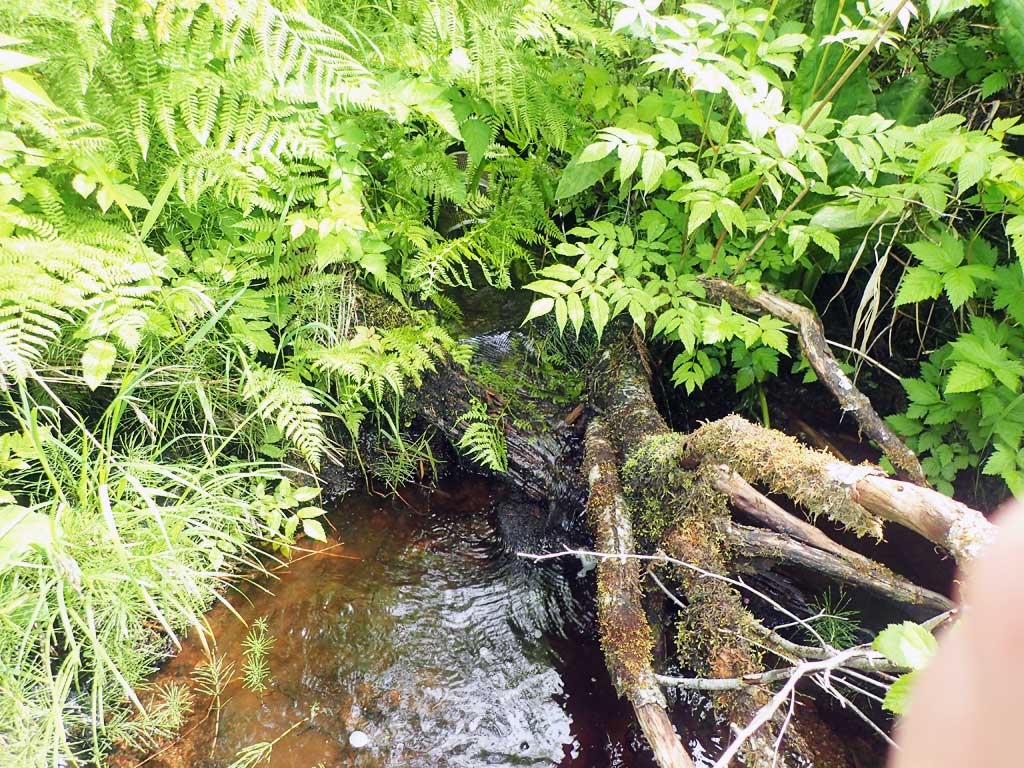

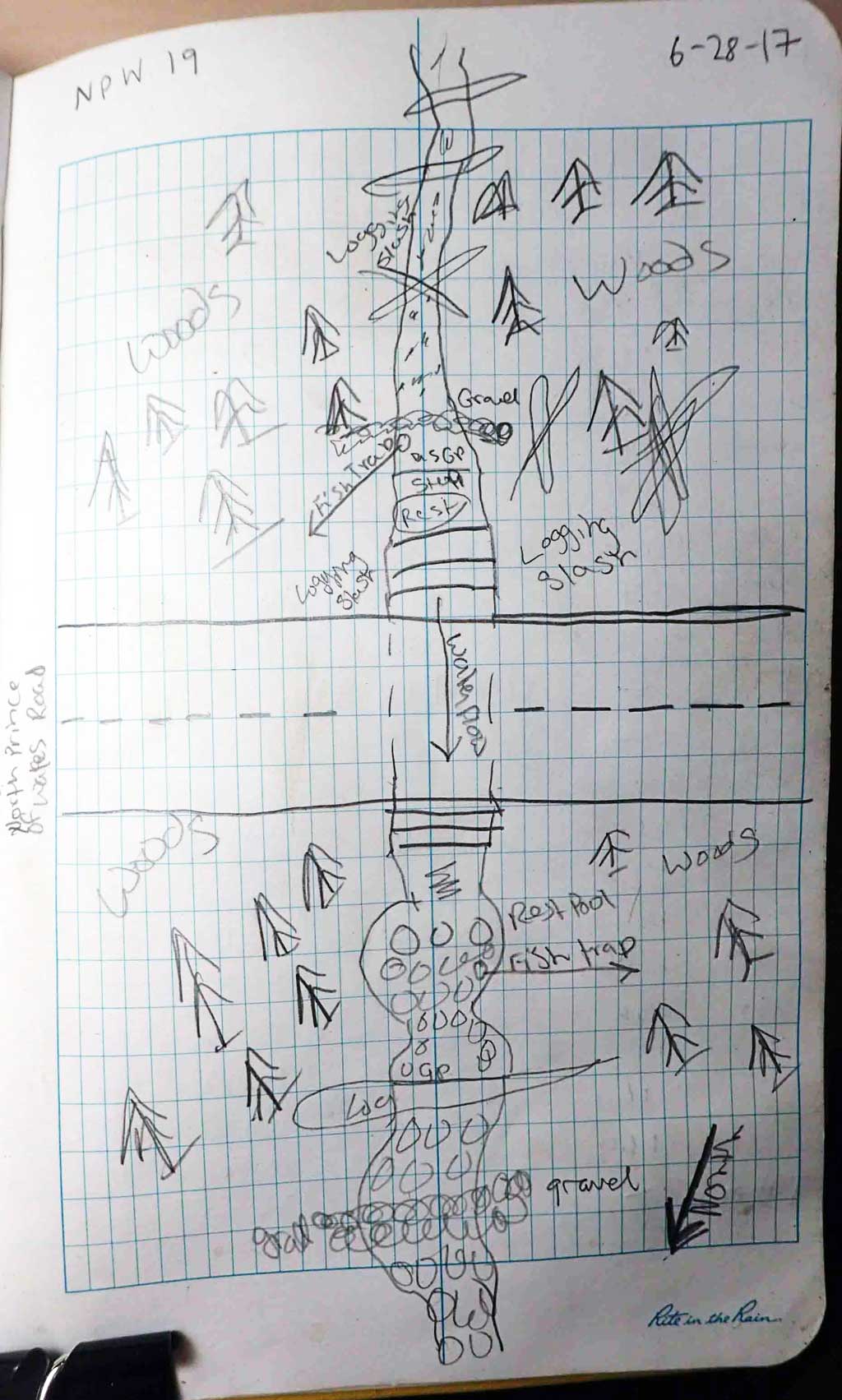

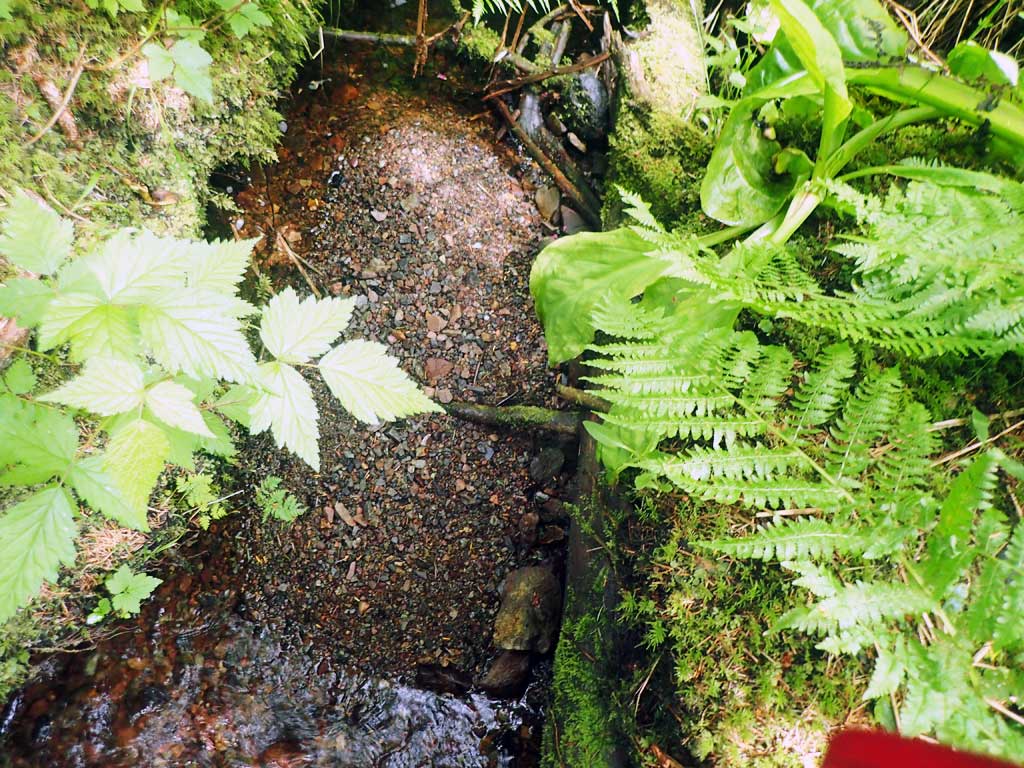

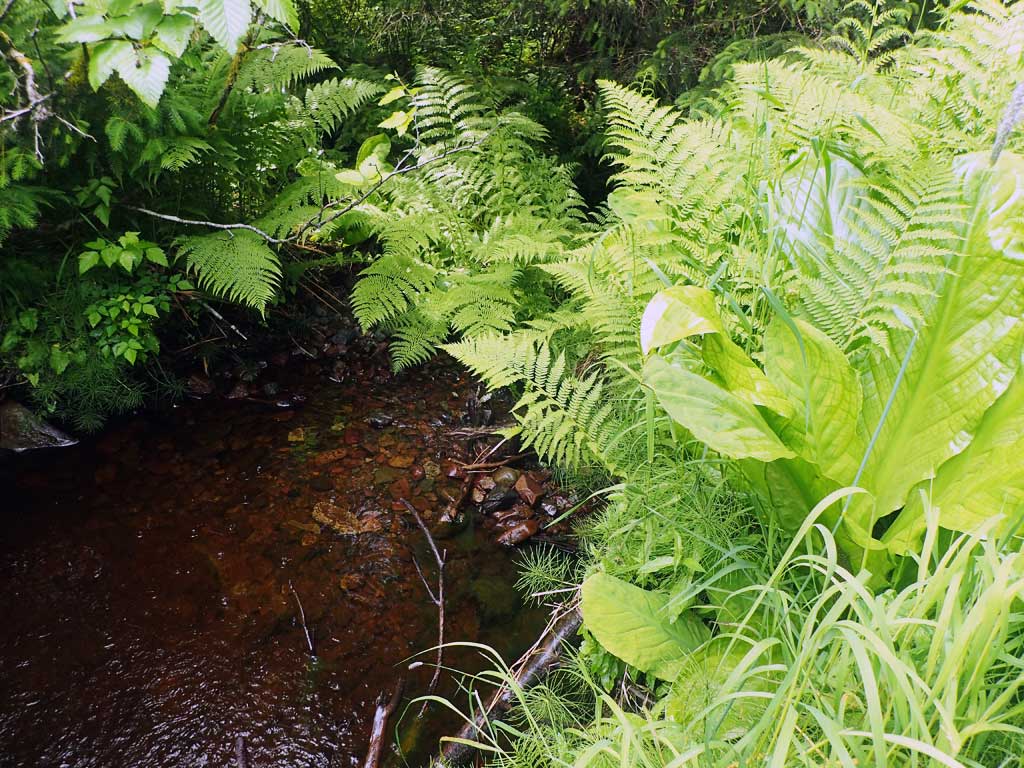

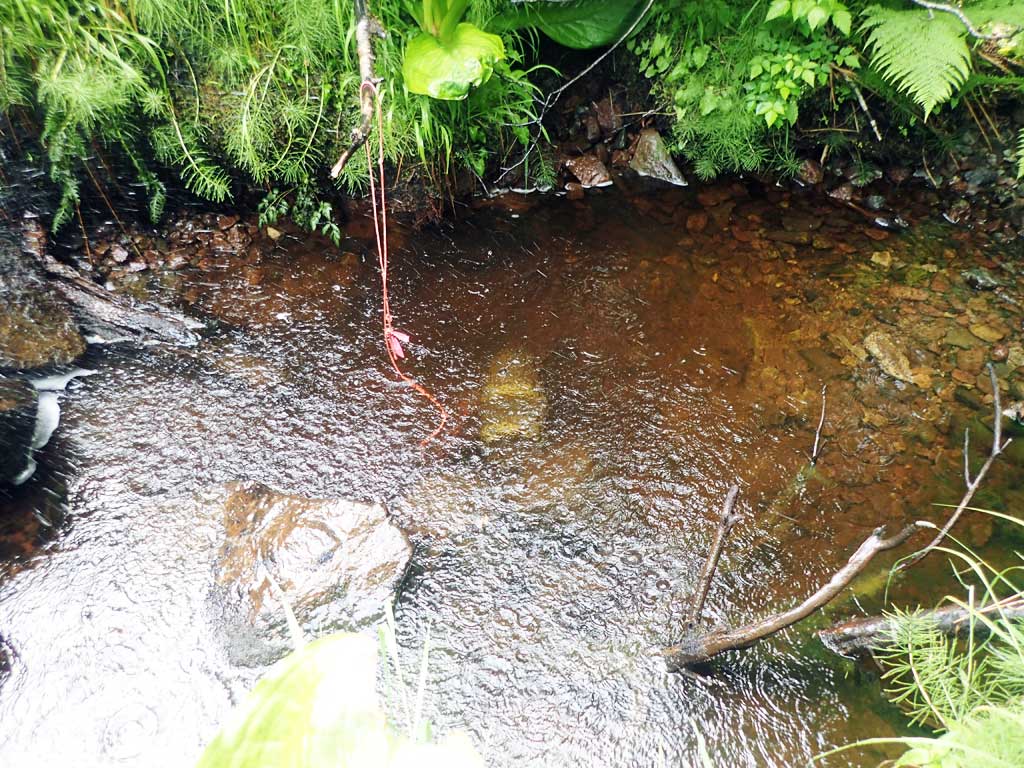

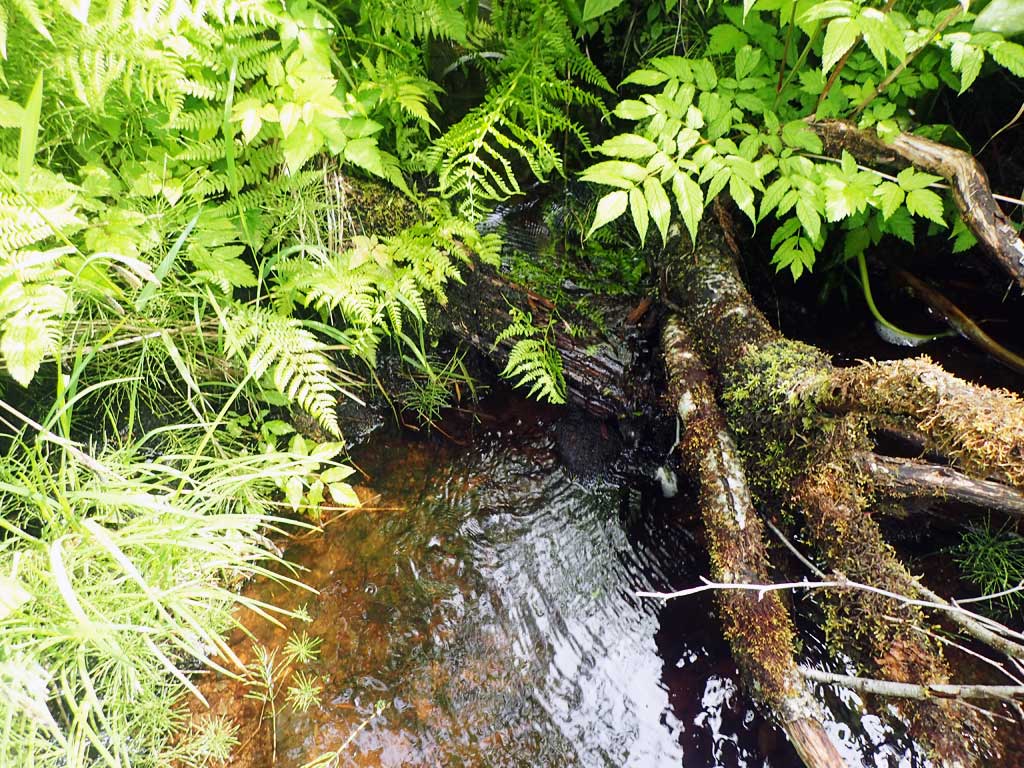

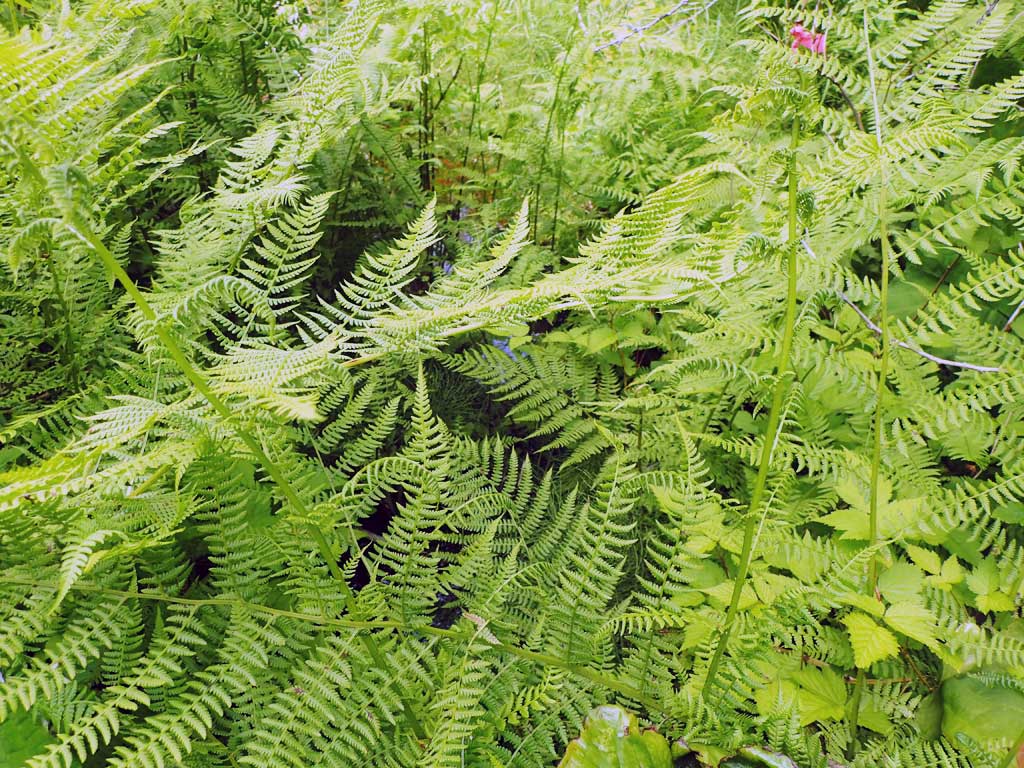

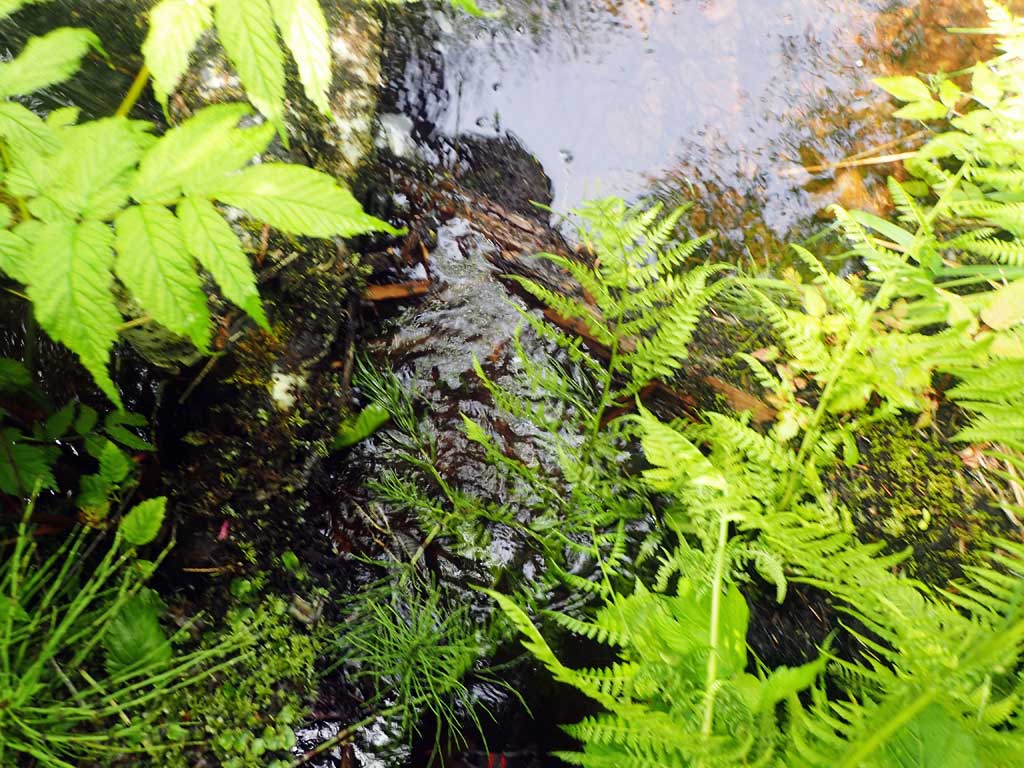

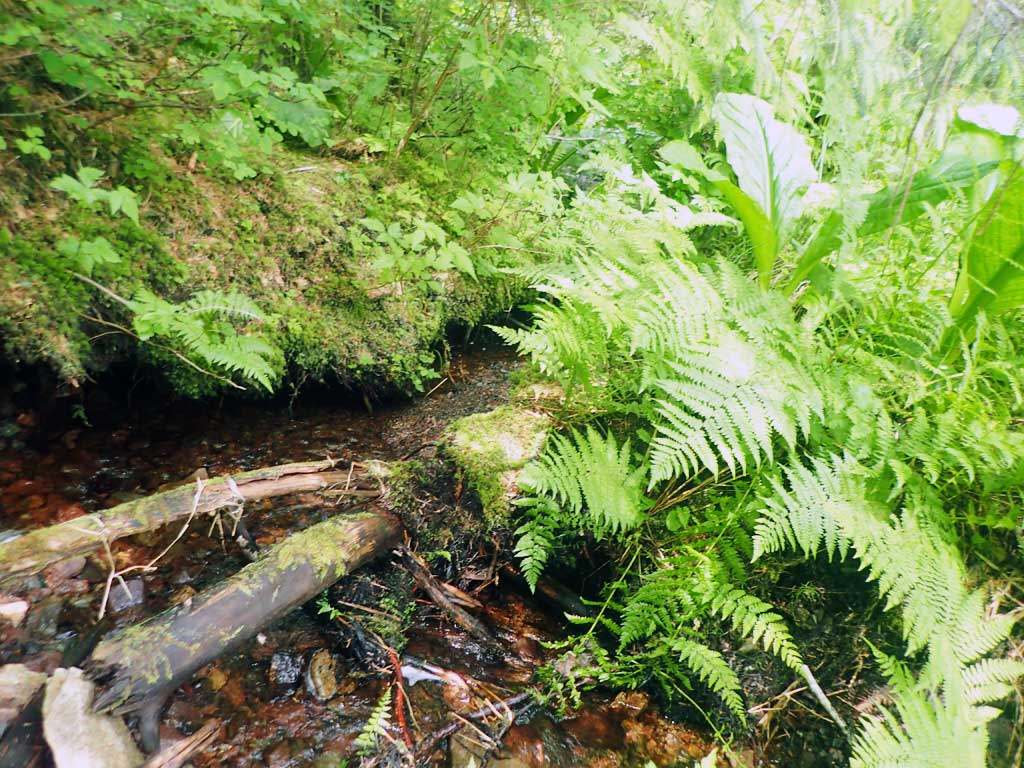

Comments: Small pool just above inlet. Lots of old logging slash covers first 100ft of stream upstream, some 3ft diameter logs. Some large woody debris steps, fairly low gradient. Slash is covered in moss and forest debris. Shallow, not many pools. Outfall 6ft. Lots of spruce downstream. Too brushy for gradient survey.

Culvert Measurements

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Red

Length(ft): 106.0
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 0.5
Corrugation Width(in.): 2.5
Condition Rating(1-5): 3
Approach Angle: 13.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):2.0 2.0
Height(ft):2.0 2.0
Apron Length(ft):
Water Depth(ft): 0.15
Rustline Height(ft):1.0
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No

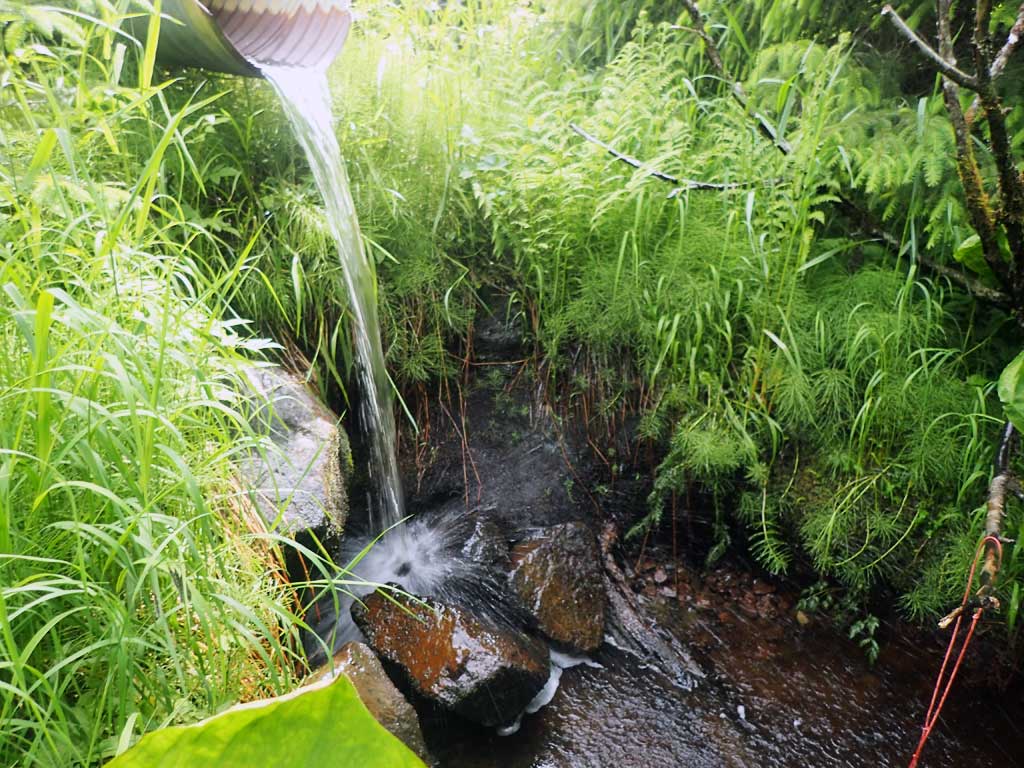

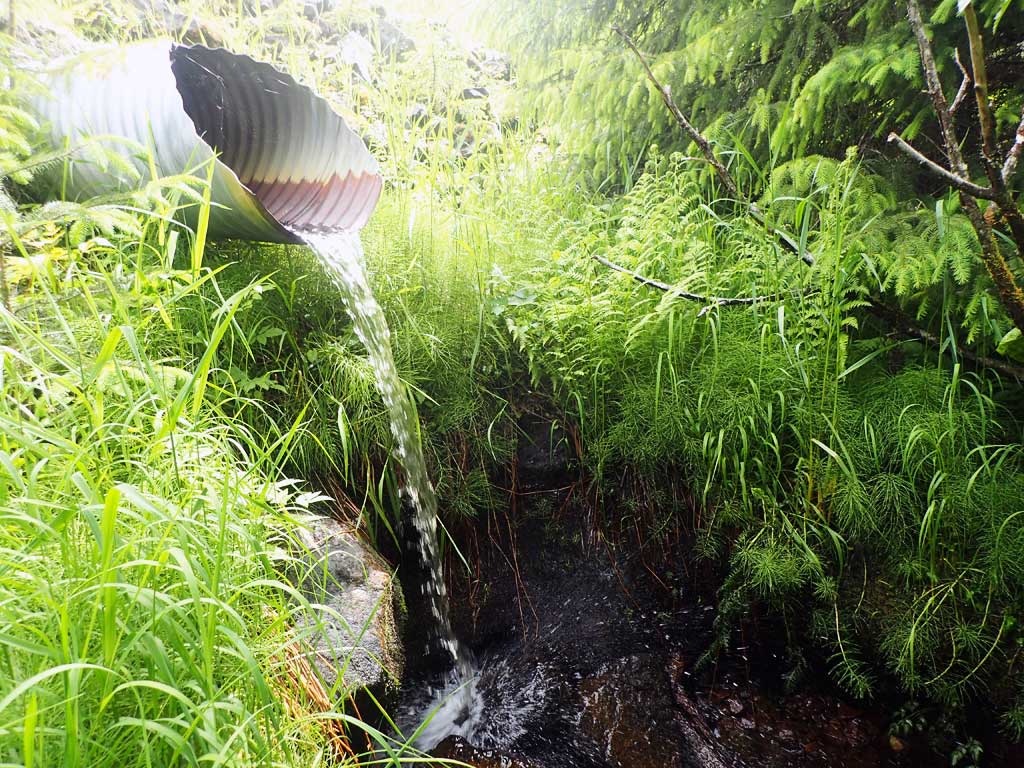

Outfall Height: 6.08

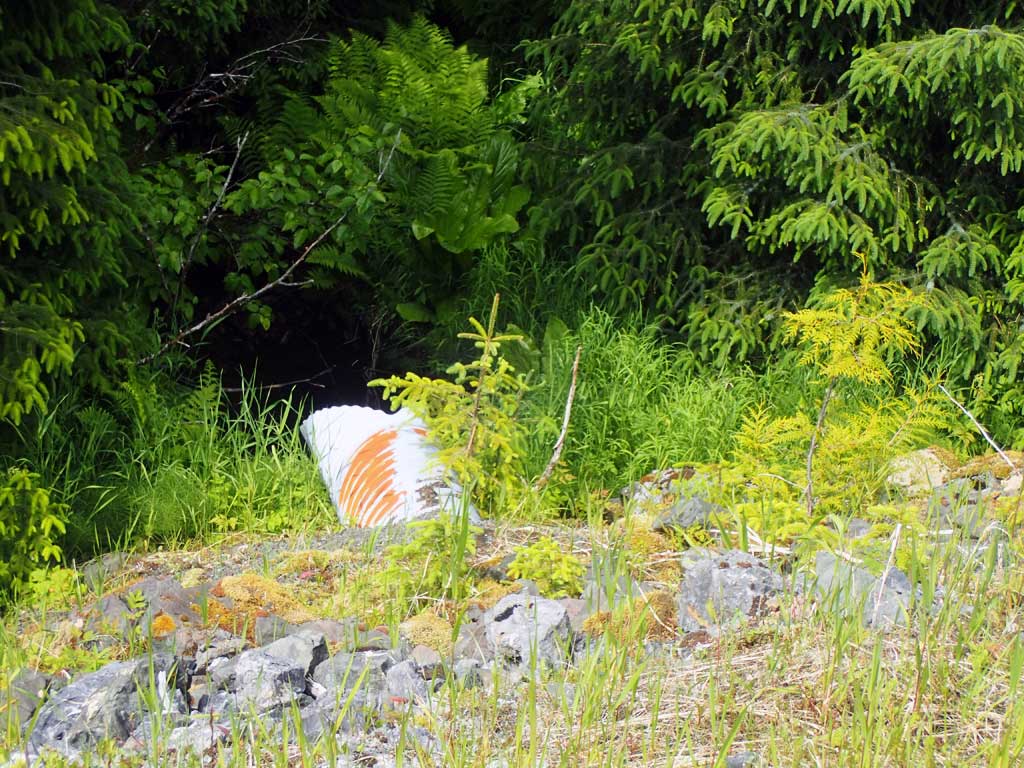

Outfall Type: Free Fall on To Rip Rap
Constriction Ratio: 0.6
Culvert Gradient: 3.05%
Max Slope:
Max Slope Length:

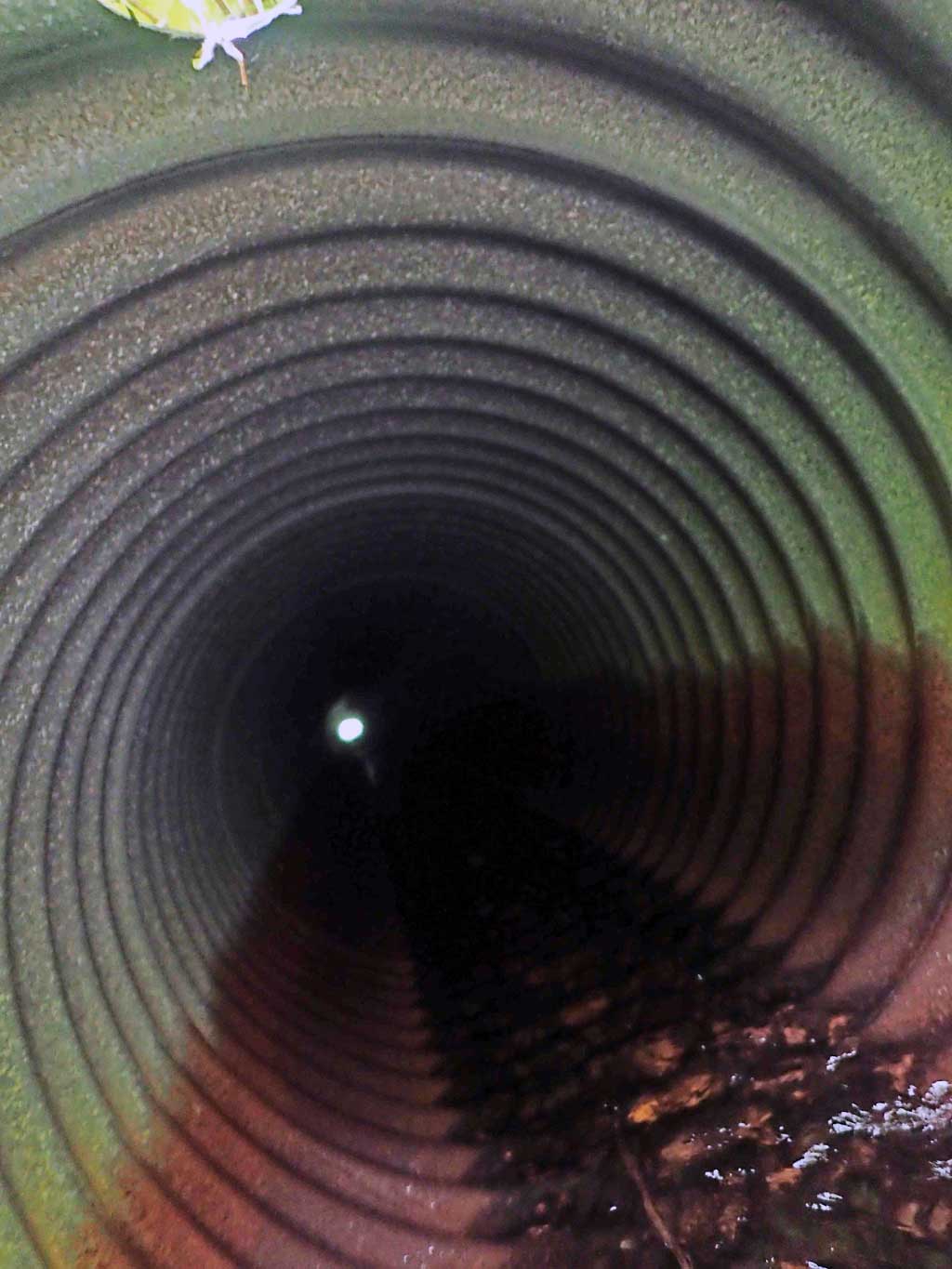

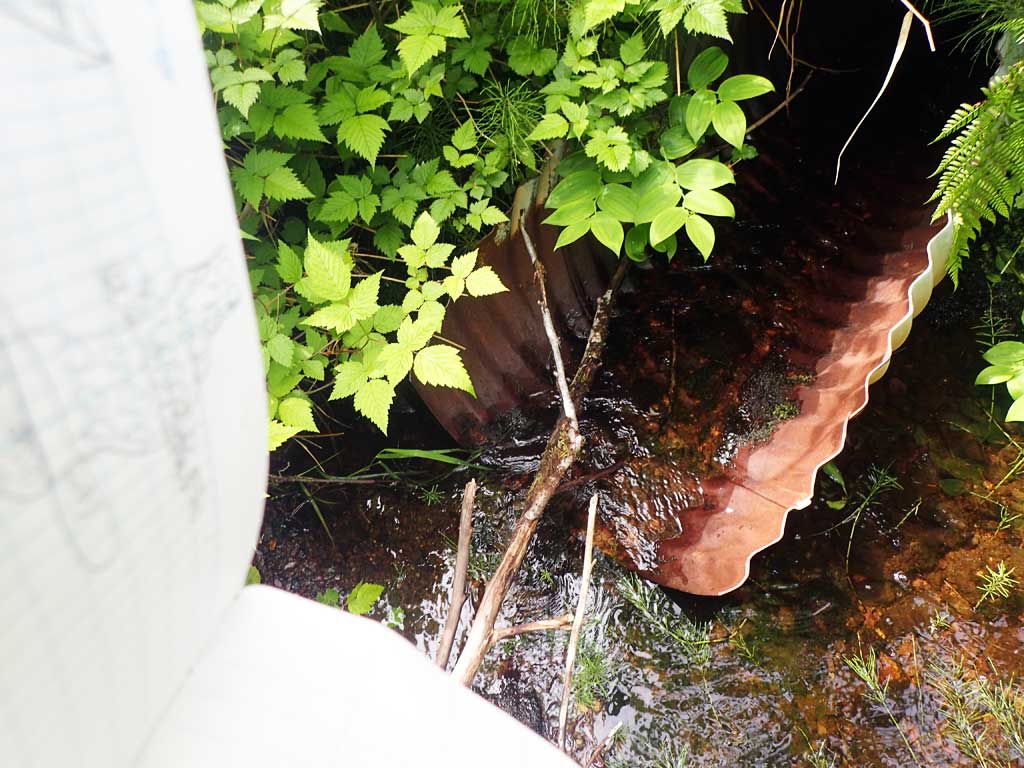

Comments: Pipe pretty rusty. First resting at inlet. Top of culvert length 100'.
  Culvert Observations:
  1. Outfall height red
  2. Culvert gradient red
  3. Constriction ratio gray

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:GravelGravel
Subdominant:Cobble
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 100.0 3.50
Upstream ordinary high water 120.0 3.50
Upstream ordinary high water 140.0 3.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 116.80
D/S Grade Ctrl (Thalweg) 0.00 90.77
D/S Water Surface Elev 0.00 91.13
D/S Tailcrest or 1st Thalweg 16.00 91.89
D/S Water Surface Elev 16.00 92.12
D/S Water Surface Elev 25.00 91.91
Max Pool Depth 25.00 90.00
Outlet Invert (on pipe) 34.00 97.84
D/S Water Surface Elev 34.00 97.99
Outlet Culvert Top 36.00 100.00
Inlet Culvert Top 136.00 103.05
Inlet Culvert Invert (on pipe) 140.00 101.15
U/S Water Surface Elev 140.00 101.19
D/S Water Surface Elev 144.00 101.26
U/S Grade Ctrl (Thalweg) (pool) 144.00 100.75
U/S Grade Ctrl (Thalweg) 156.00 102.53
U/S Water Surface Elev 156.00 102.67
U/S Water Surface Elev 164.00 102.87
U/S Grade Ctrl (Thalweg) 164.00 102.50

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

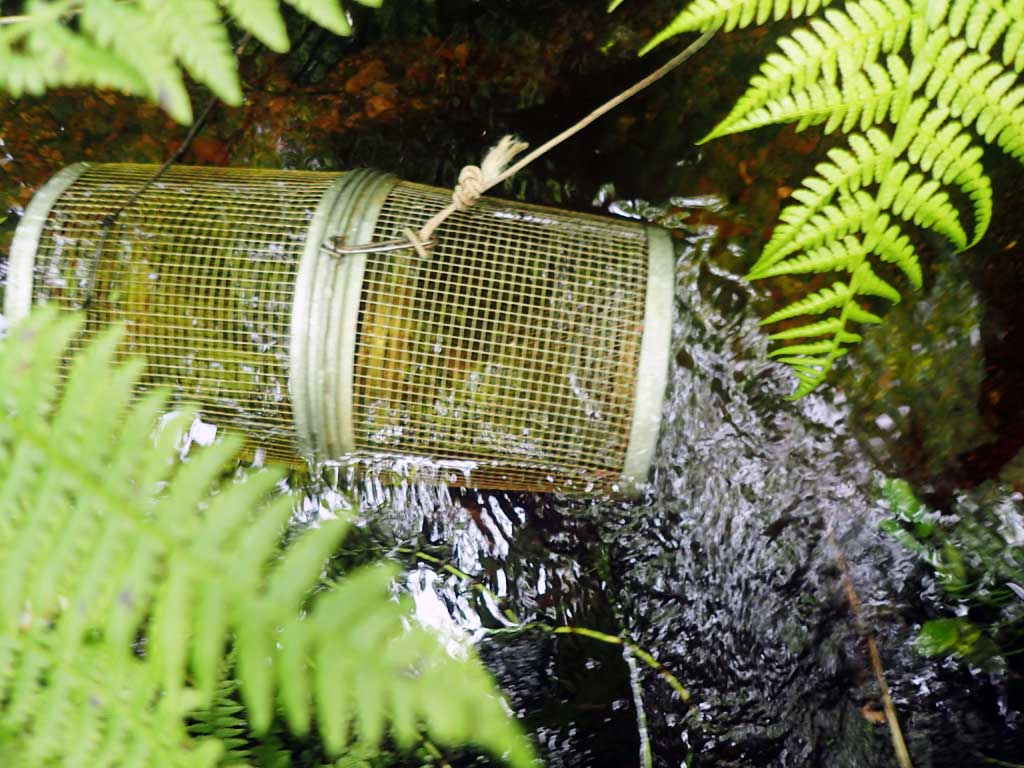

Gear Type: Minnow Trap (A) Trap Duration(h): 1.5
Comments: 20ft upstream, no fish

Gear Type: Minnow Trap (B) Trap Duration(h): 1.5
Comments: 20ft downstream, no fish

Fish Observations

No fish observations occurred during this survey.

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
