Fish Passage Site 10103551

Coordinates (dec. deg.): 55.90107°, -133.01257°
Legal Description: C069S081E09
Region: Southeast

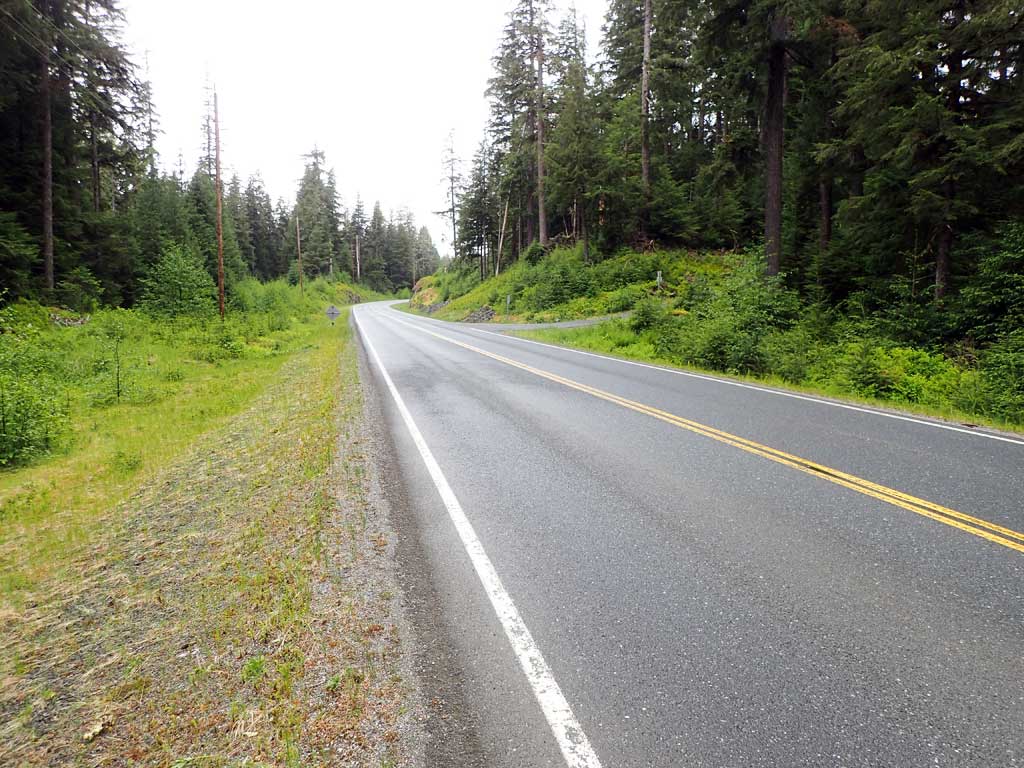

Road Name: Coffman Cove Road

Datum: NAD83
Quad Name / ITM: Craig D-4
AWC Stream #:
Stream Name: Unnamed

Elevation:

Site Comments: None

Survey Date: Jun 02, 2017

Survey SEA17-CVR02

Observers: Mark Eisenman, Elizabeth Flory, Kelly Petty

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Culvert gradient gray

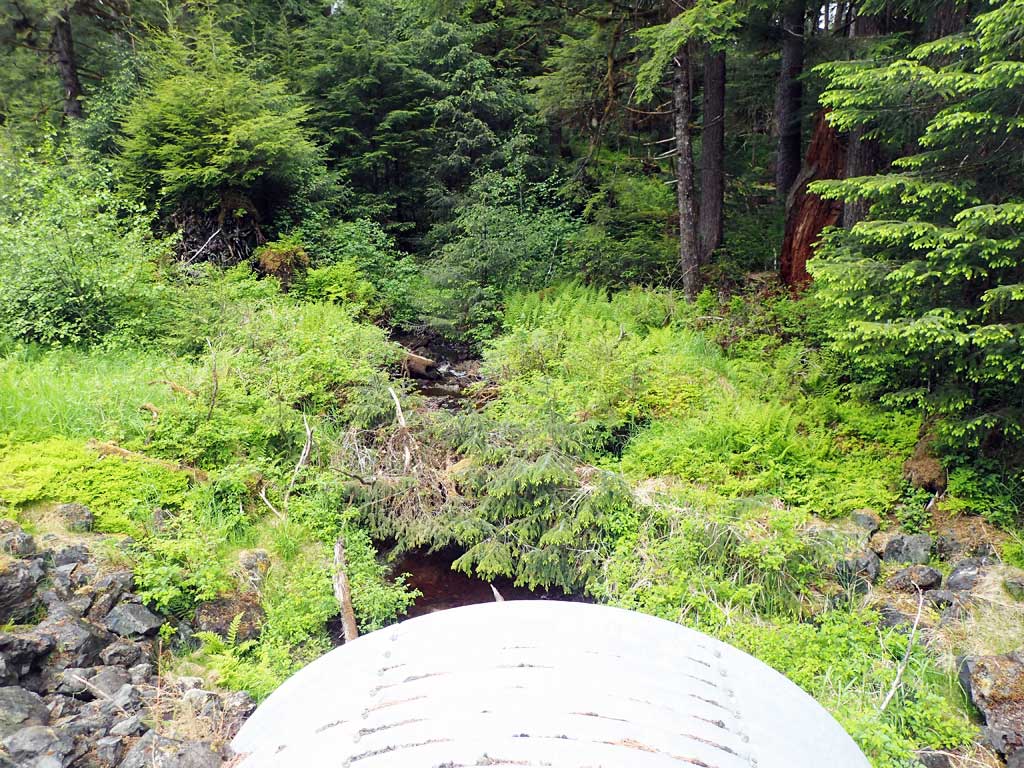

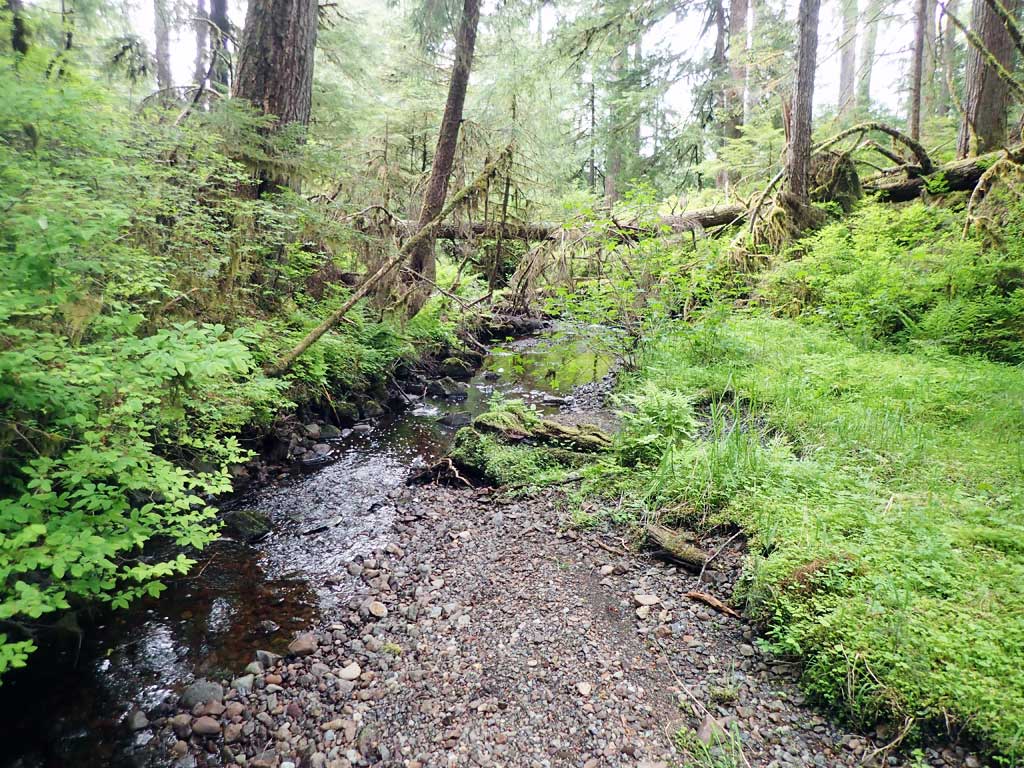

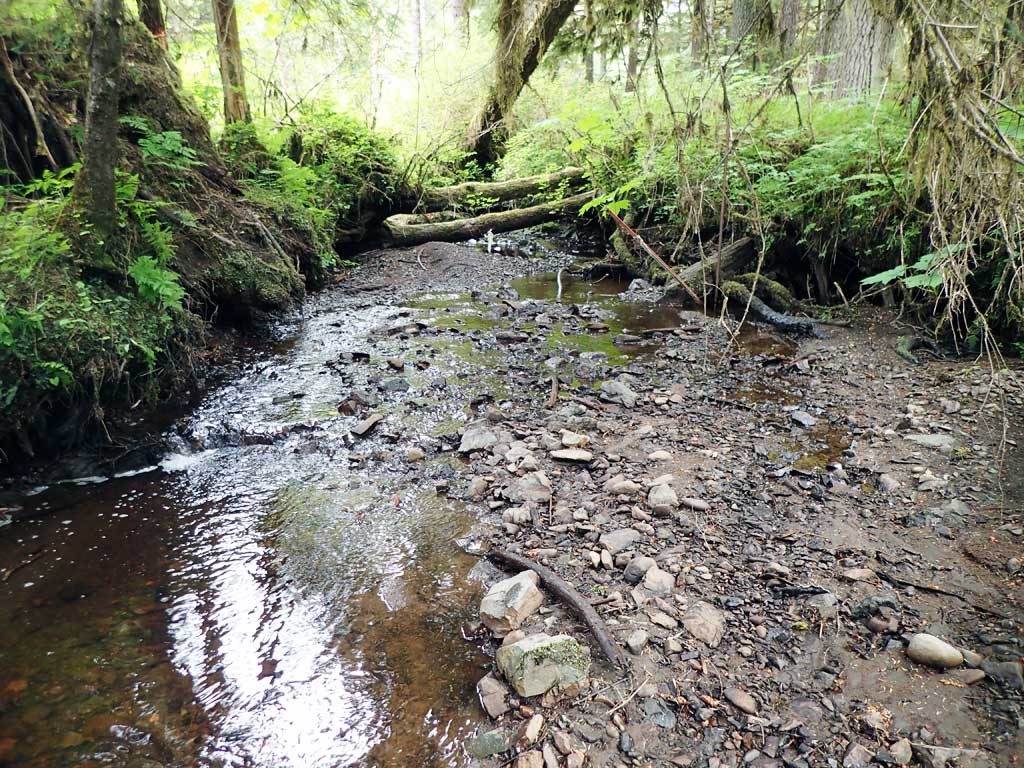

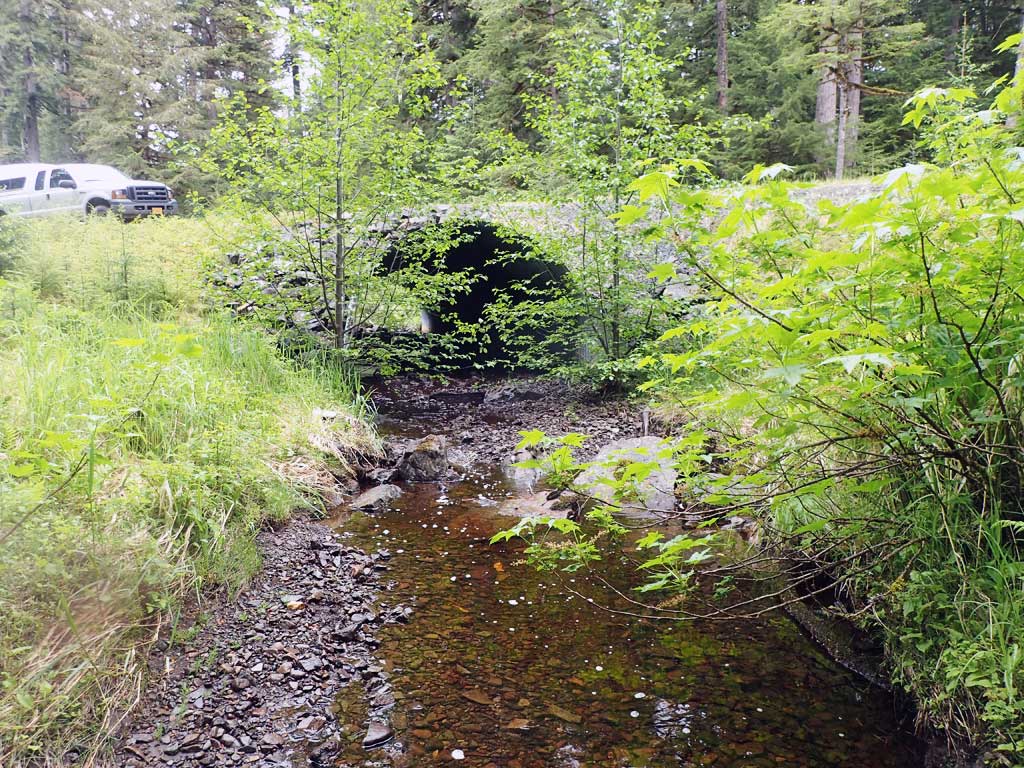

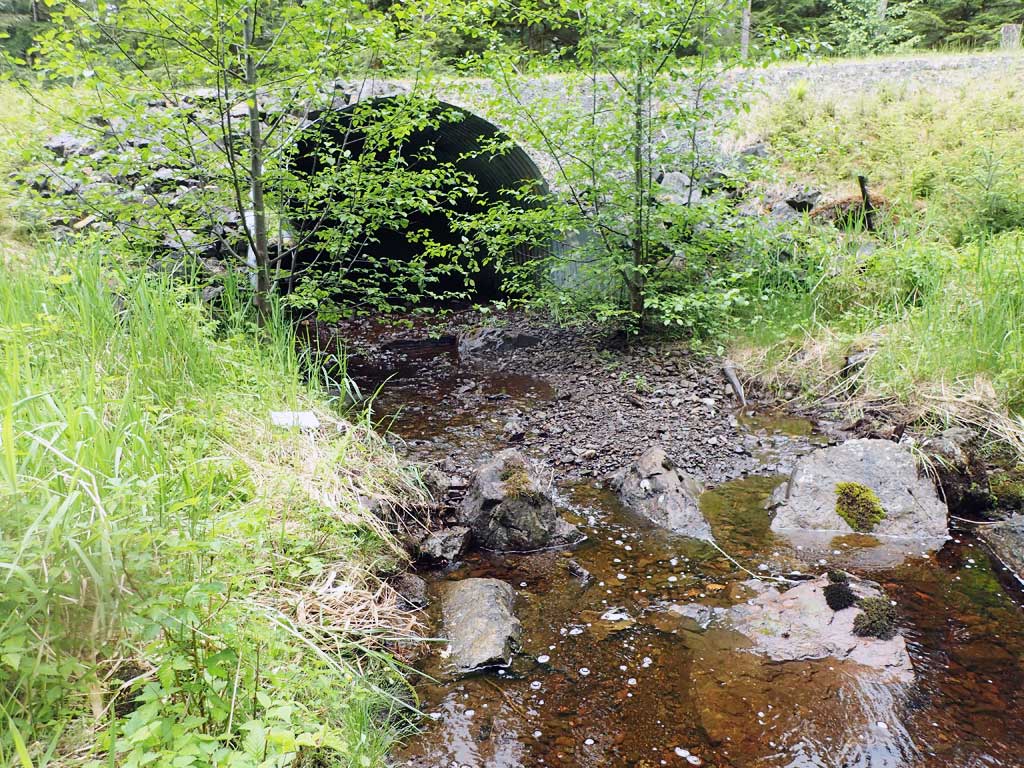

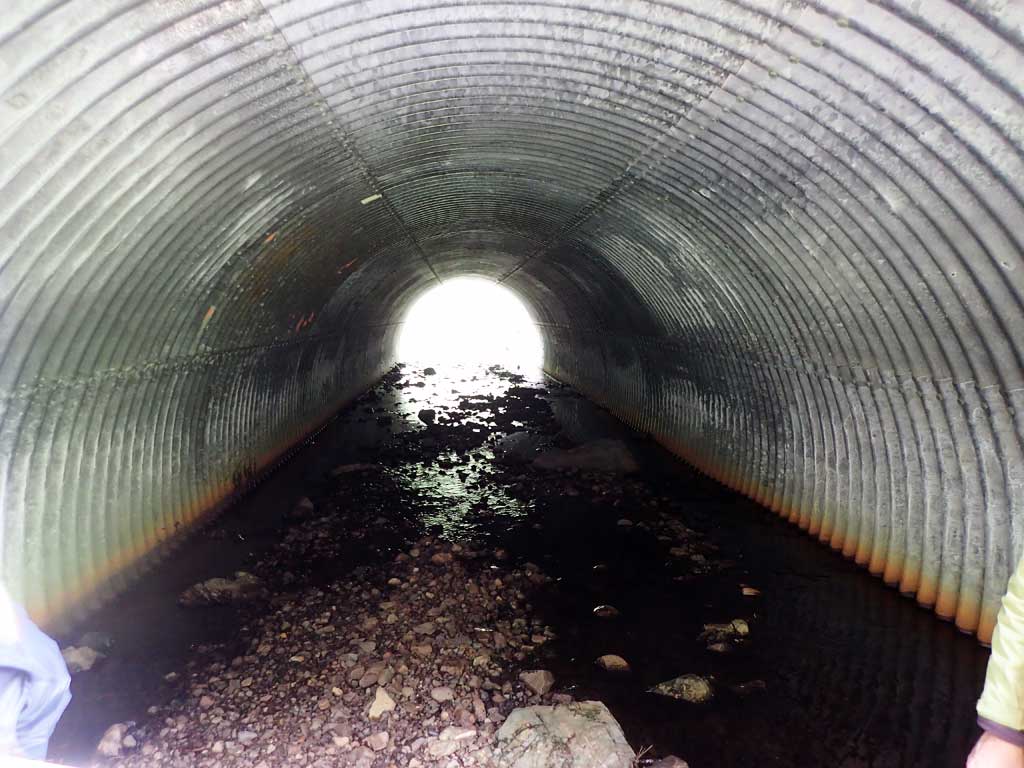

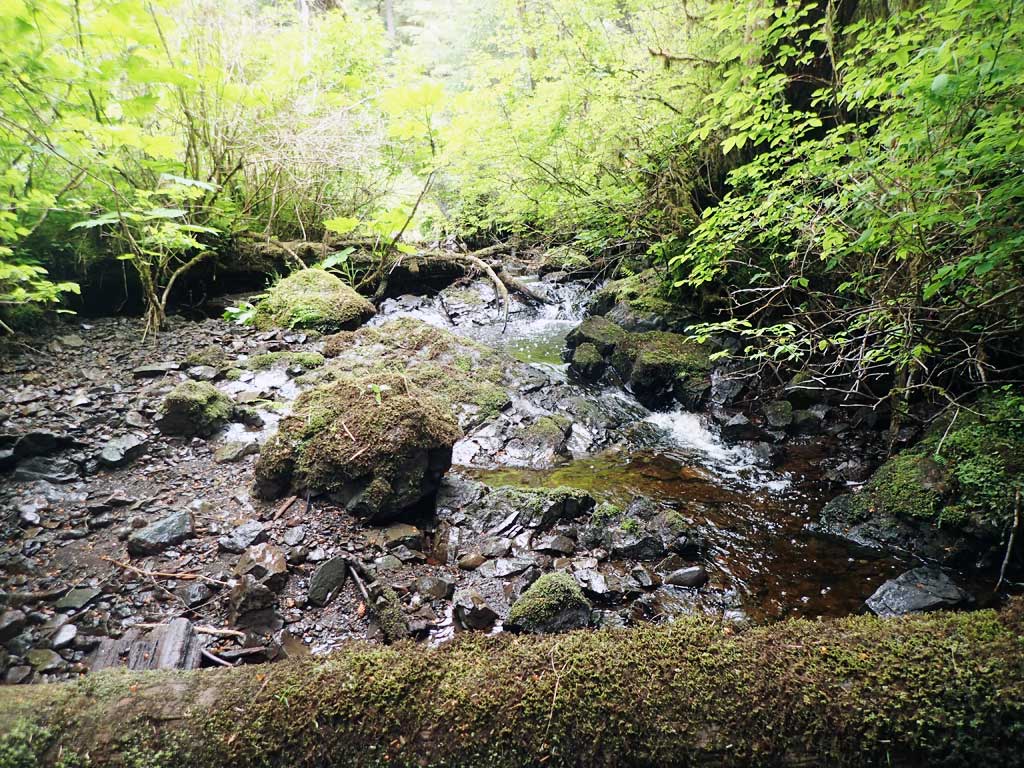

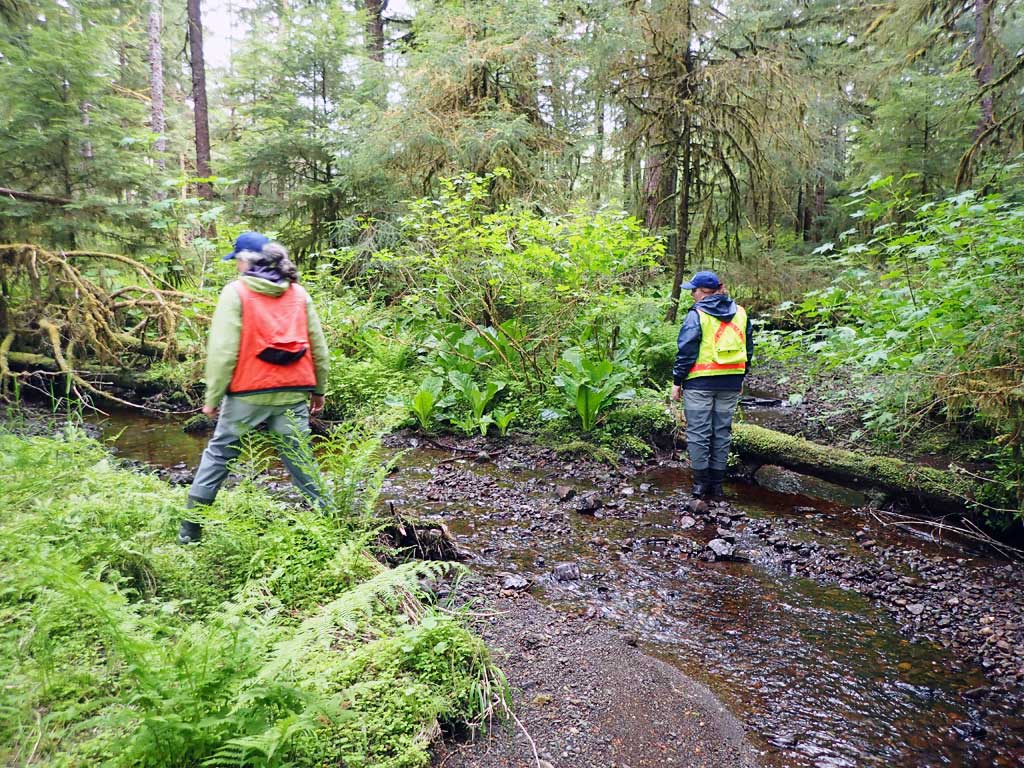

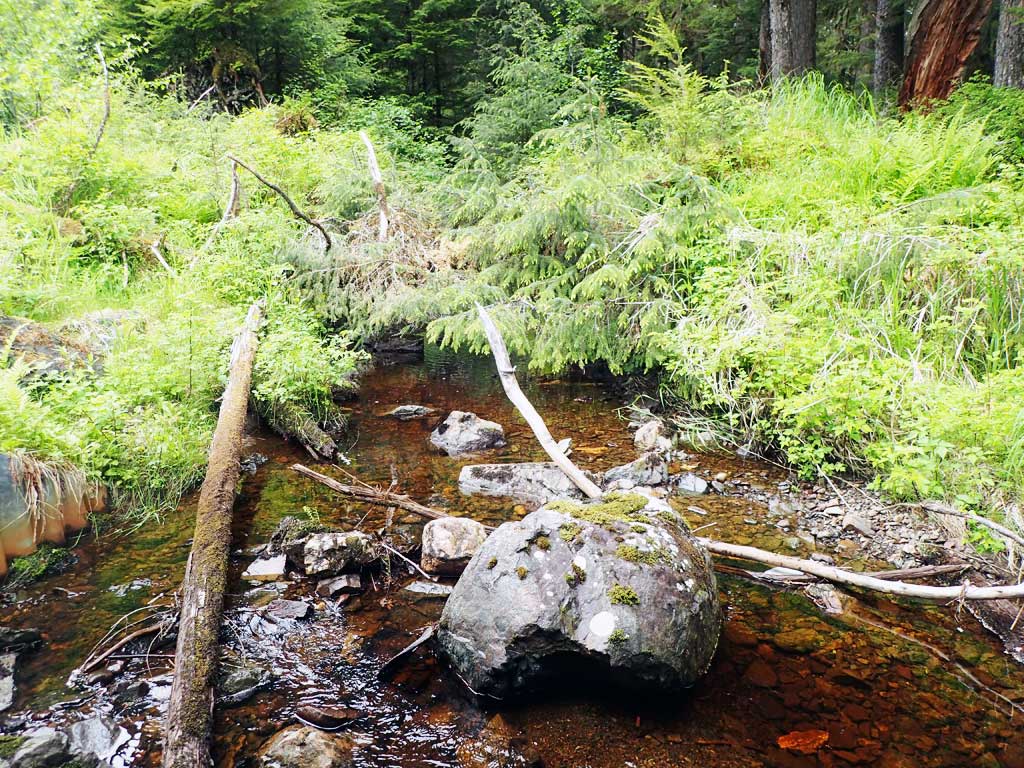

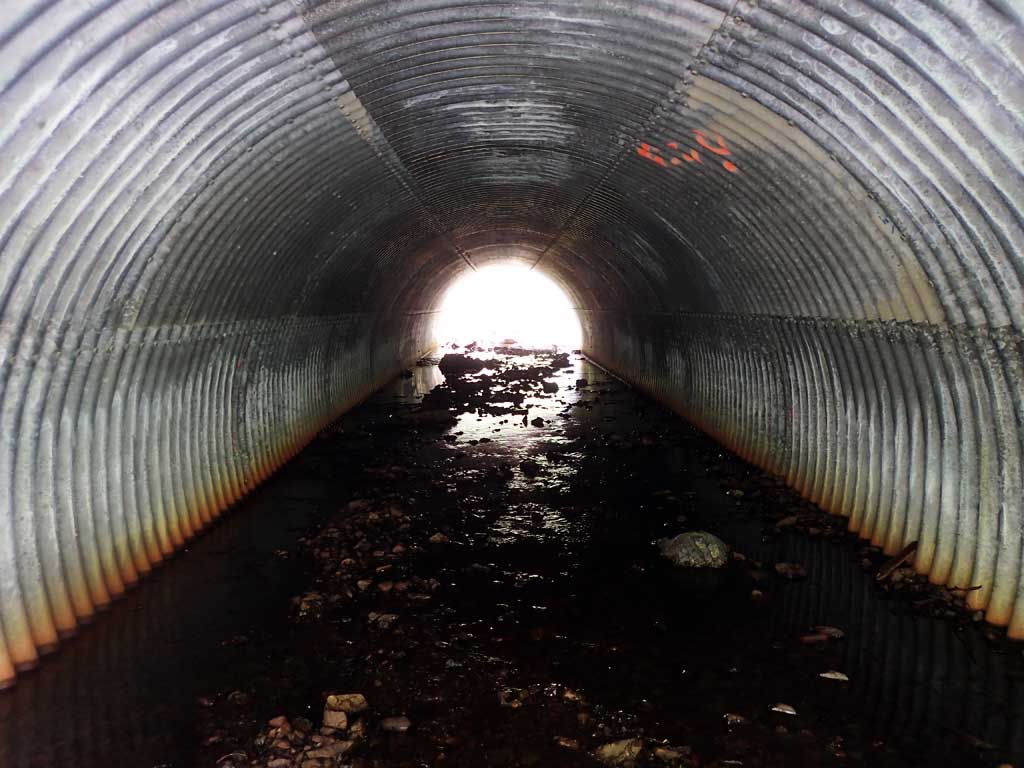

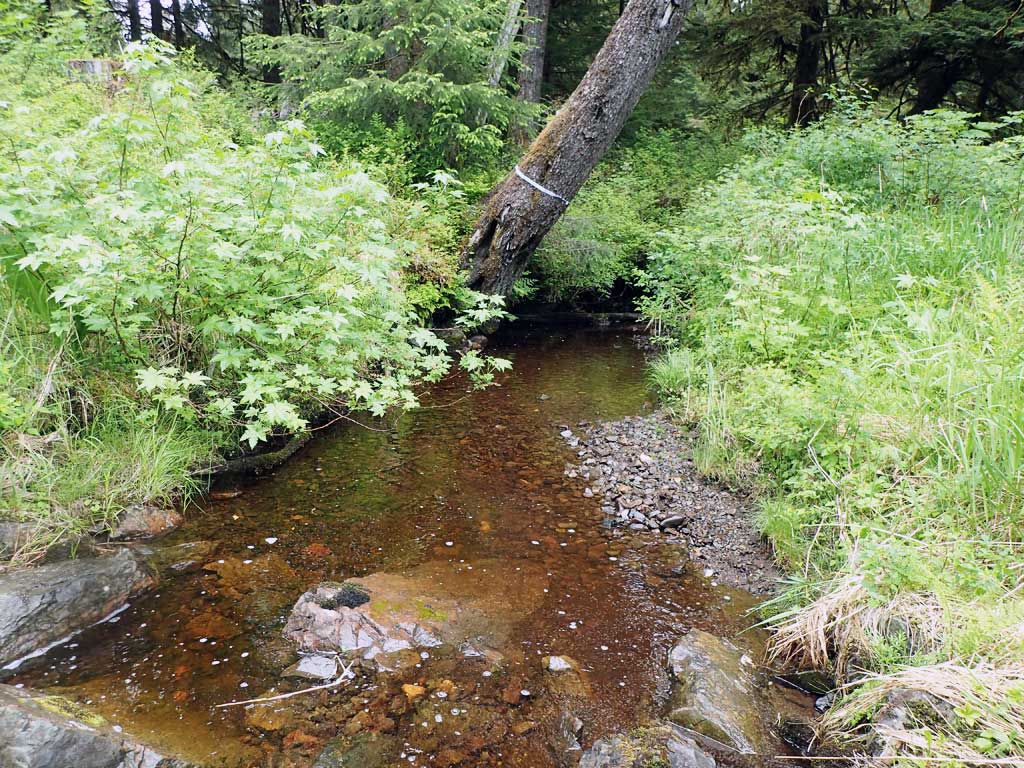

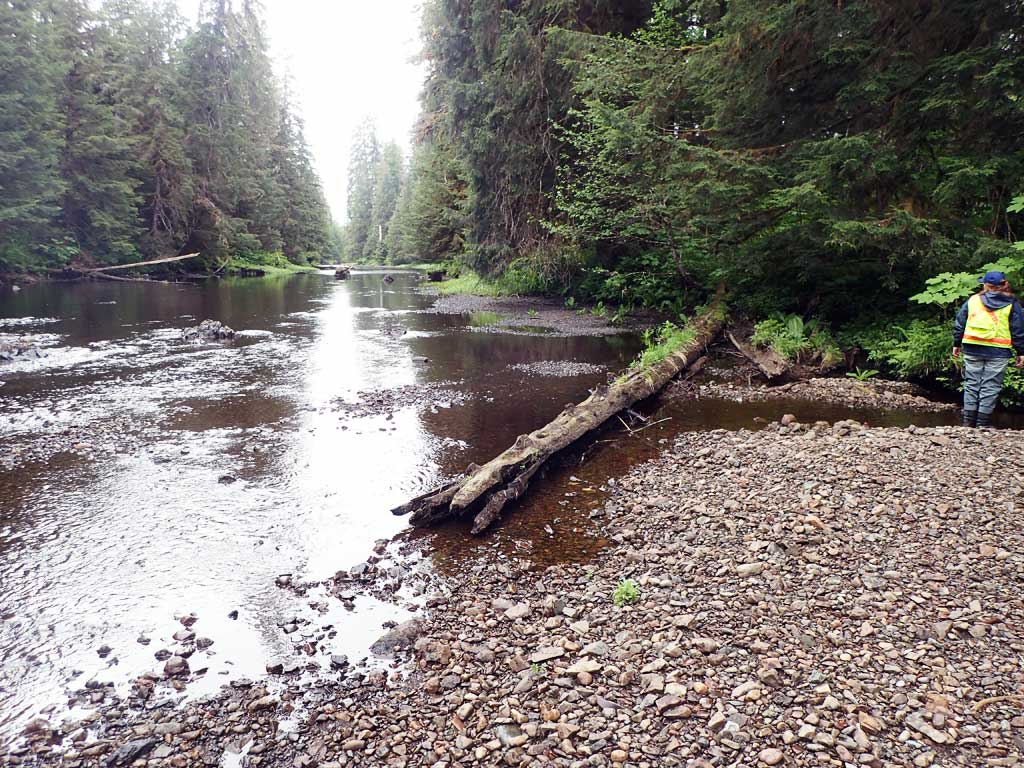

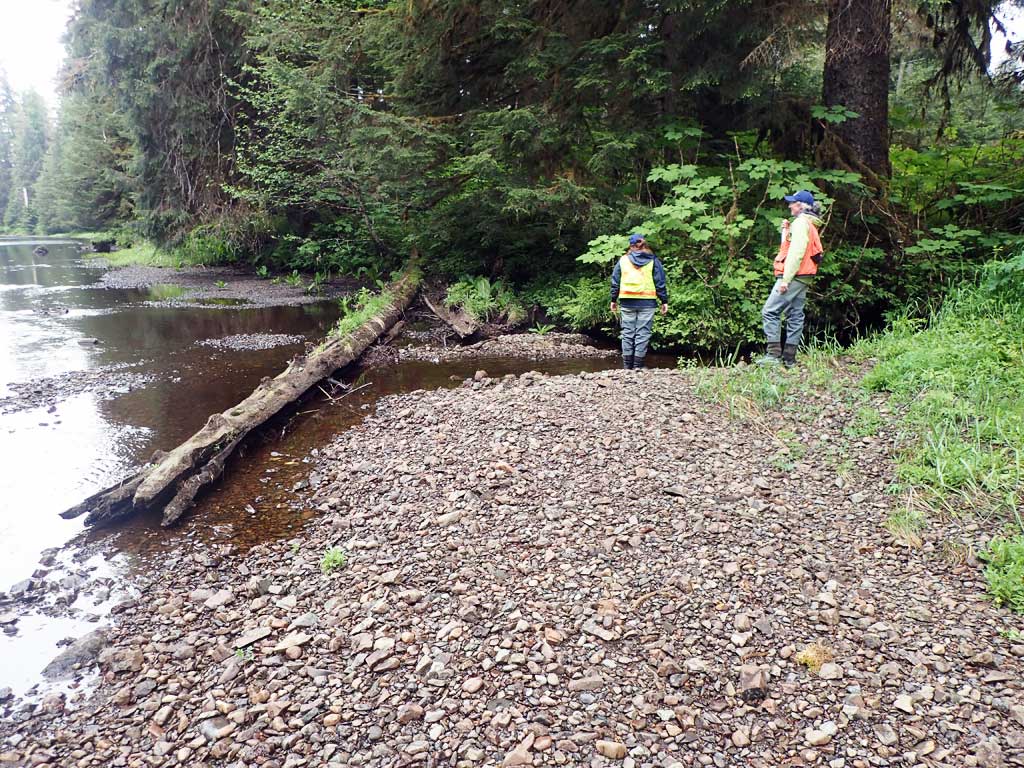

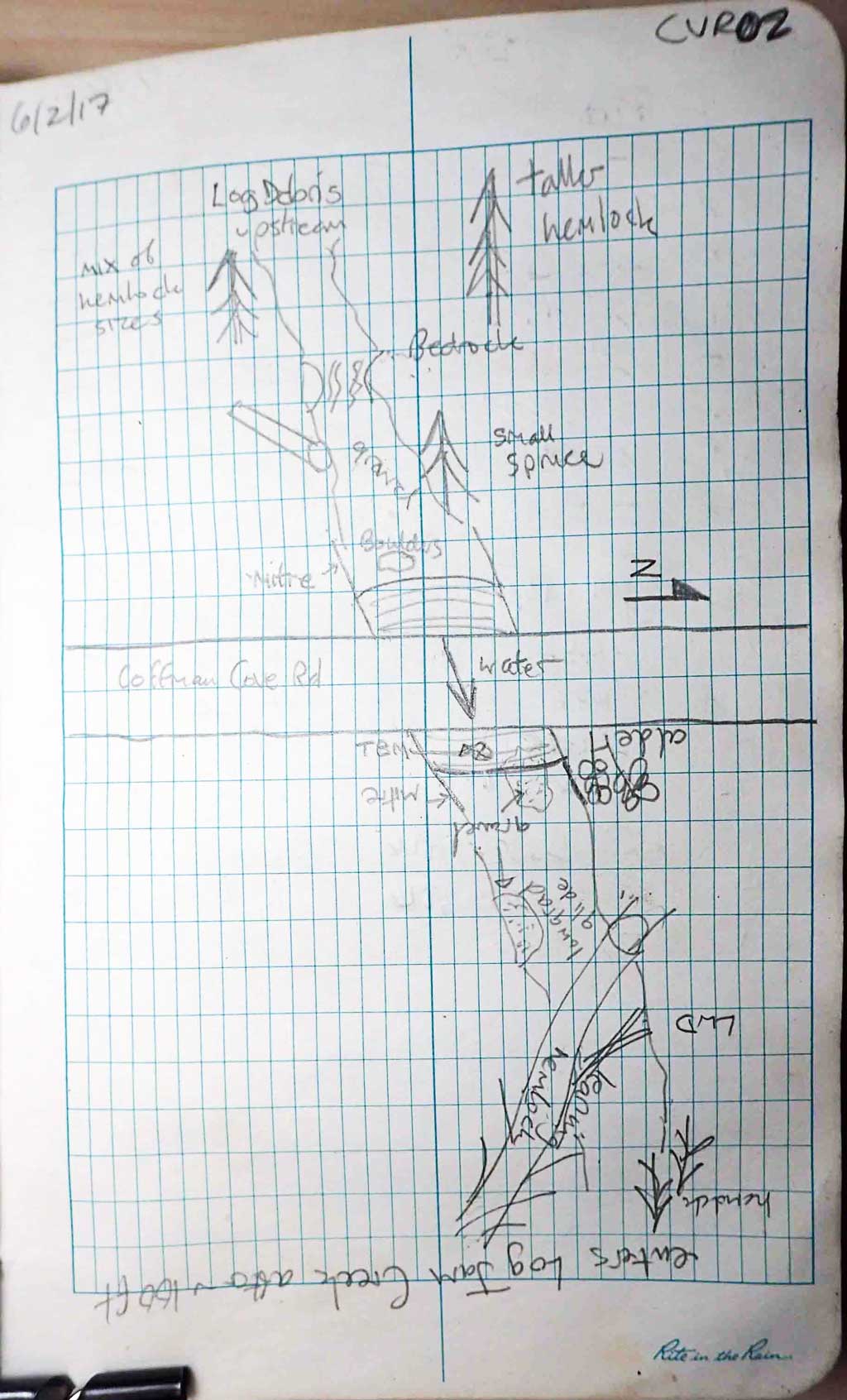

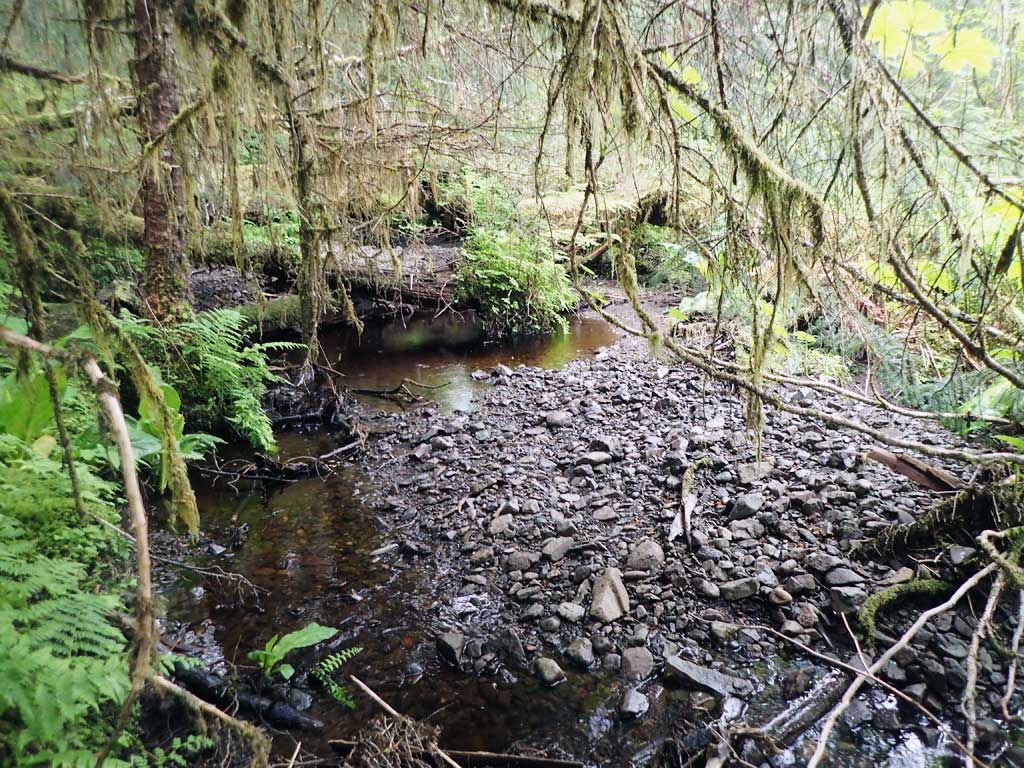

Comments: Near road #2360. Nice habitat upstream and downstream, stream splits 250ft upstream. Confluence with Log Jam Creek 100ft downstream. No barriers. Large woody debris and pools. Some bedrock control. Shallow water depth though barrel of culvert, looks like channel has moved to sides of culvert.

Culvert Measurements

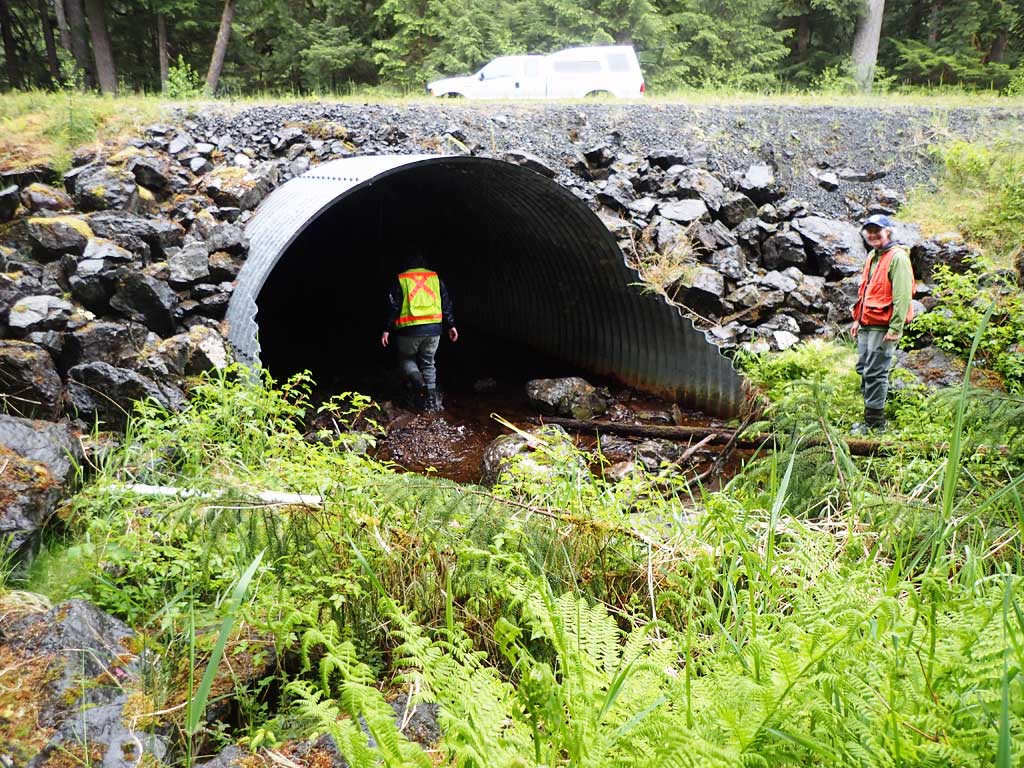

ID: 1 Structure Type: Circular pipe (Structural steel plate) Fish Passage Rating: Gray

Length(ft): 95.2
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 2.0
Corrugation Width(in.): 6.25
Condition Rating(1-5): 4
Approach Angle: 3.0
Sedimentation At Inlet: Yes

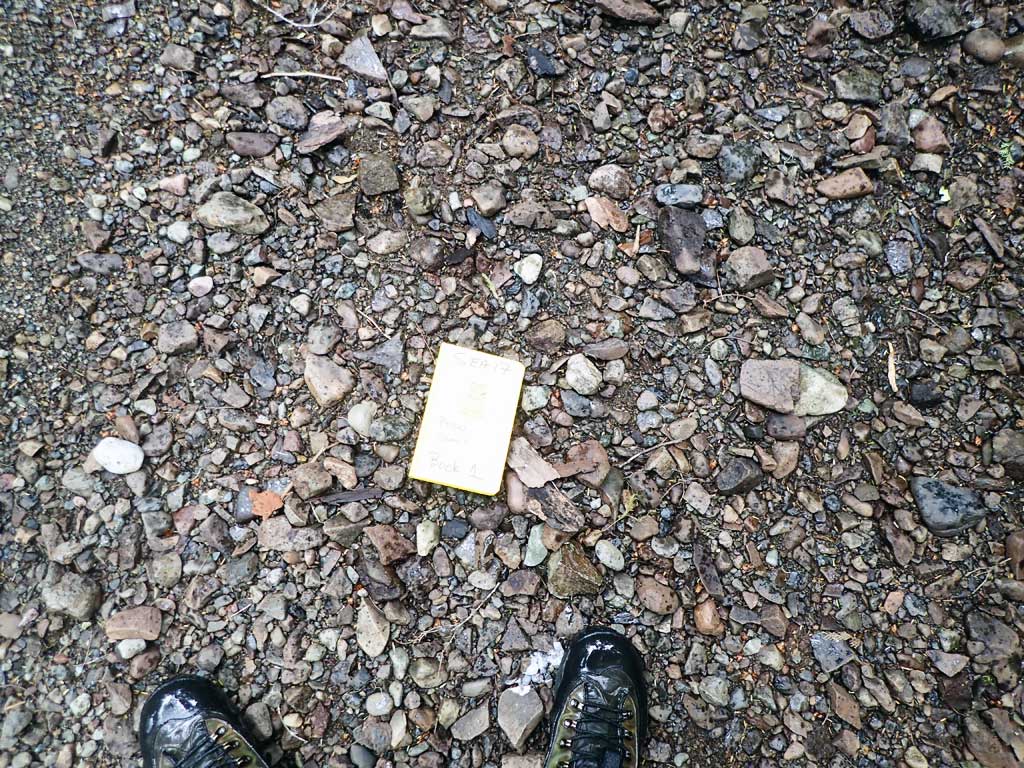

Inlet Substrate: Gravel
Outlet Substrate: Gravel
InletOutlet
Width(ft):13.88 14.4
Height(ft):8.66 8.8
Apron Length(ft):
Water Depth(ft): 0.1
Rustline Height(ft):1.0
Substrate Depth(ft):5.22 5.22
Backwatered?: No
Baffles Present: No
Embedded?: Yes
Embedded Depth(ft): 5.22
Outfall Height: 0.0
Outfall Type: At Stream Grade
Constriction Ratio: 1.3
Culvert Gradient: 0.14%
Max Slope:
Max Slope Length:

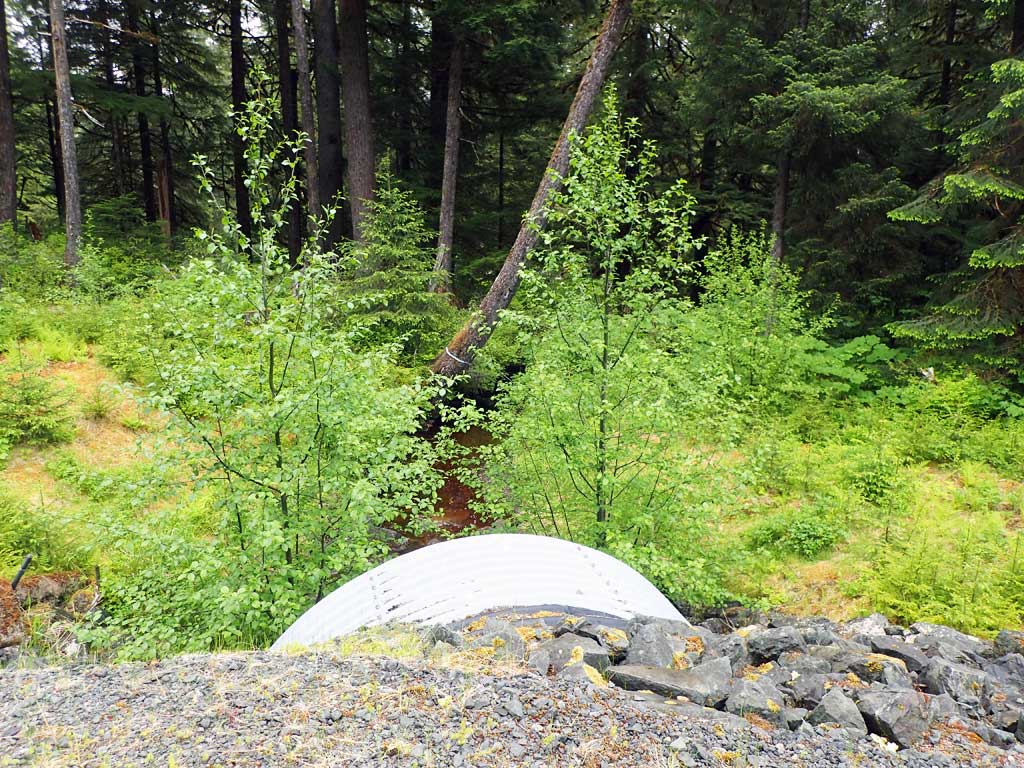

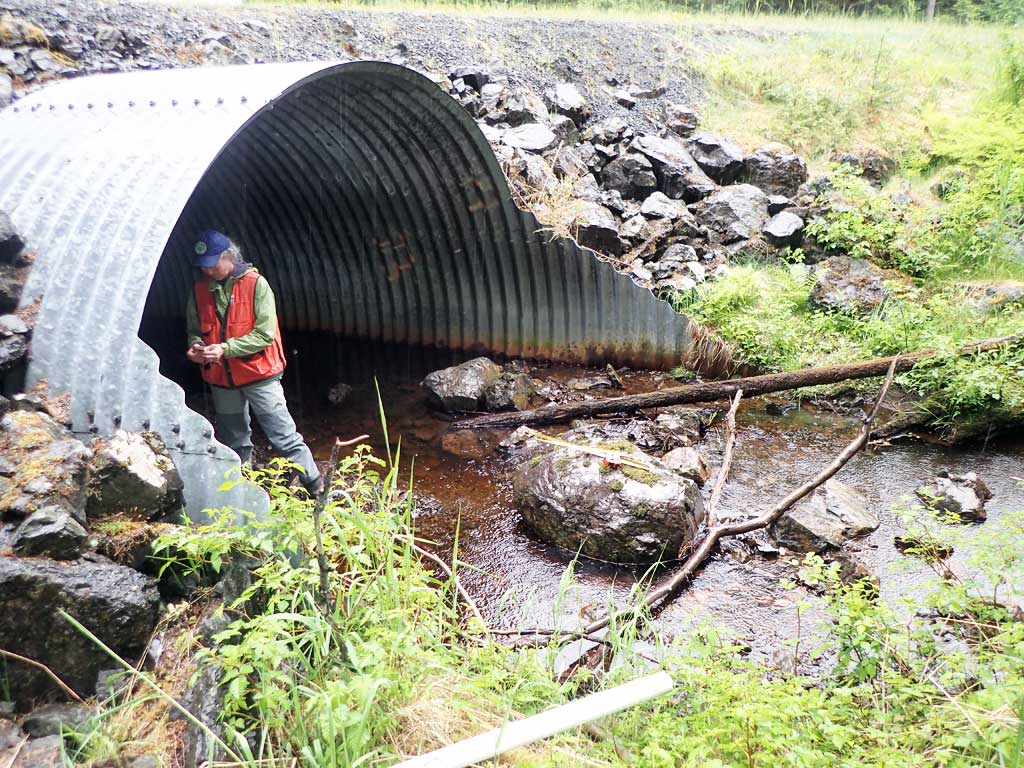

Comments: Outlet mitre 9ft long, inlet mitre exposed to 7ft. Top of culvert length 79.6'.
  Culvert Observations:
  1. Culvert gradient gray

Stream Measurements

Stream SubstratesUpstreamDownstream
Dominant:GravelCobble
Subdominant:CobbleGravel
Stream Slope(deg.):2.62
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Upstream ordinary high water 50.0 10.40
Upstream ordinary high water 120.0 10.70
Upstream ordinary high water 220.0 11.00

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 103.40
D/S Grade Ctrl (Thalweg) 0.00 90.47
D/S Water Surface Elev 0.00 90.54
D/S Grade Ctrl (Thalweg) (head of riffle) 45.00 90.56
D/S Water Surface Elev 45.00 90.76
Outlet Invert (on substrate) 51.00 90.60
D/S Water Surface Elev 51.00 90.70
Outlet Culvert Top 60.00 100.00
Inlet Culvert Top 139.60 100.11
Inlet Culvert Invert (on substrate) 147.60 91.58
U/S Water Surface Elev 147.60 91.93
U/S Grade Ctrl (Thalweg) 171.60 92.06
D/S Water Surface Elev 171.60 92.50
U/S Grade Ctrl (Thalweg) 397.60 98.12
U/S Water Surface Elev 397.60 98.42

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 3.0
Comments: 150ft upstream, no fish

Gear Type: Minnow Trap (B) Trap Duration(h): 3.0
Comments: 40ft downstream, one cutthroat

Fish Observations

Species: cutthroat trout Life History:
Total Fish Observed: 1 Fish Measured: 1 Fork Lengths (mm) Min: 56 Max: 56 Mean: 56
Collected/Observed by Gear Type: Downstream Minnow Trap (1)
