Fish Passage Site 10103548

Coordinates (dec. deg.): 55.56313°, -133.07825°
Legal Description: C073S081E03
Region: Southeast

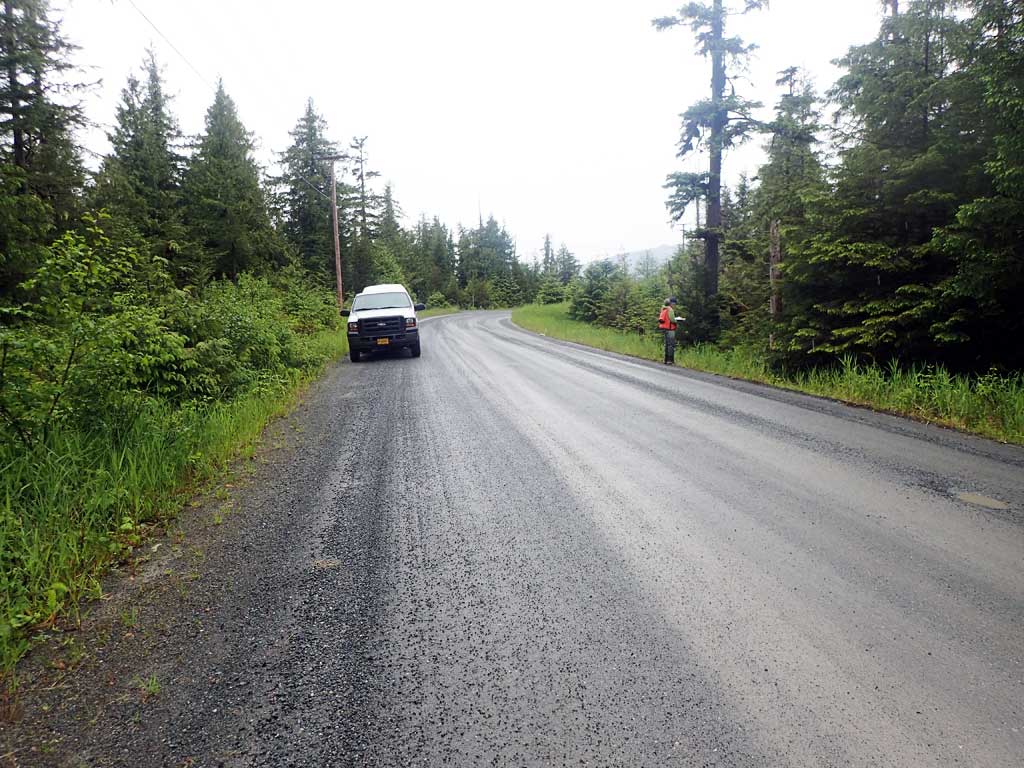

Road Name: Cemetary Road

Datum: NAD83
Quad Name / ITM: Craig C-4
AWC Stream #: 103-60-10450-2003
Stream Name: "Cemetary Creek"

Elevation:

Site Comments: None

Survey Date: Jun 09, 2017

Survey SEA17-CEM01

Observers: Elizabeth Flory, Mark Eisenman

Overall Fish Passage Rating: Gray

Tidal: No
Backwatered: No

Step Pools: No
Construction Year:


Site Observations:

  1. Hydraulic flows exceeded capacity
  2. Culvert gradient gray
  3. Constriction ratio gray
  4. Outfall height gray
  5. Structural Problem
  6. Mechanical damage or joints parting

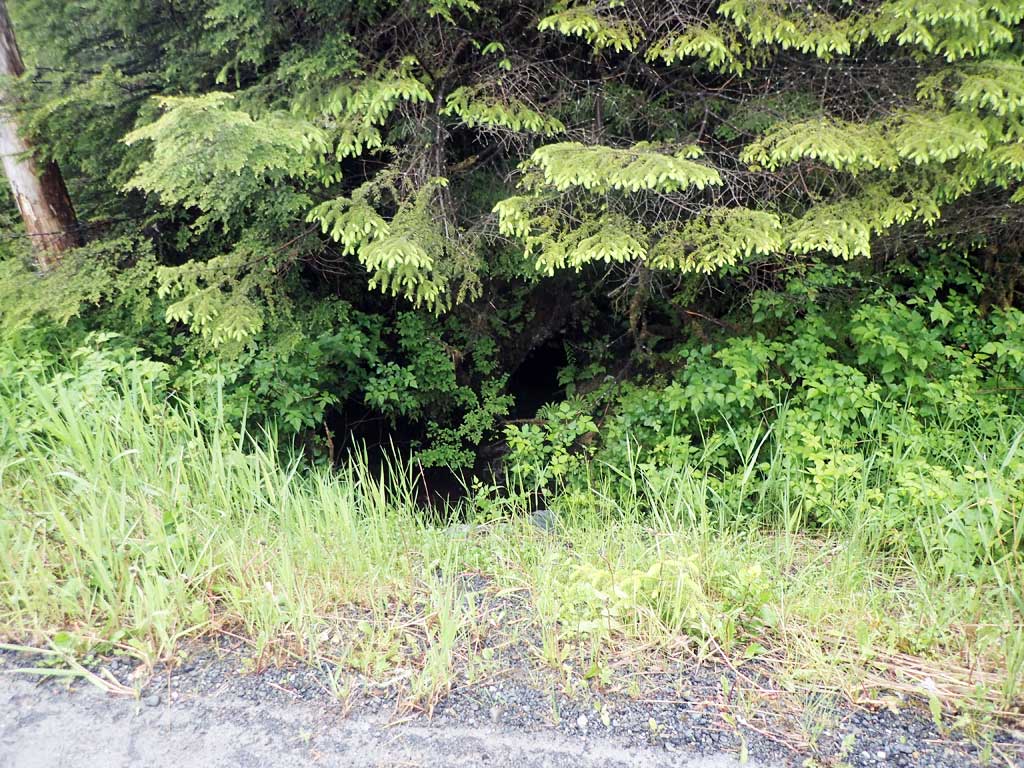

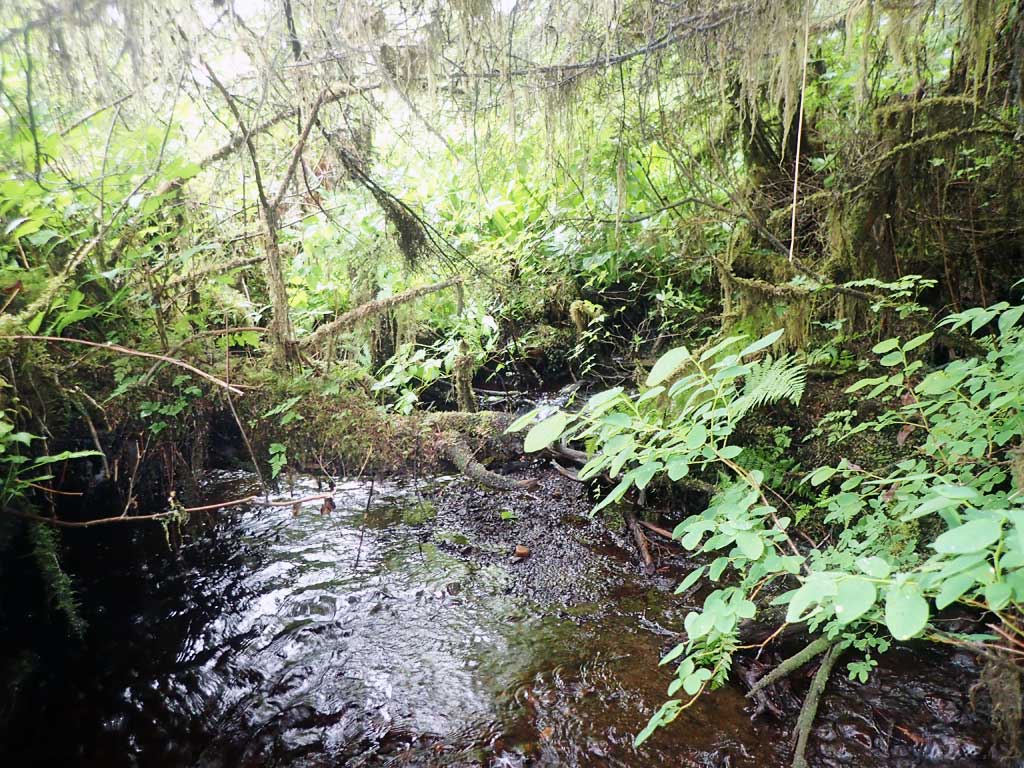

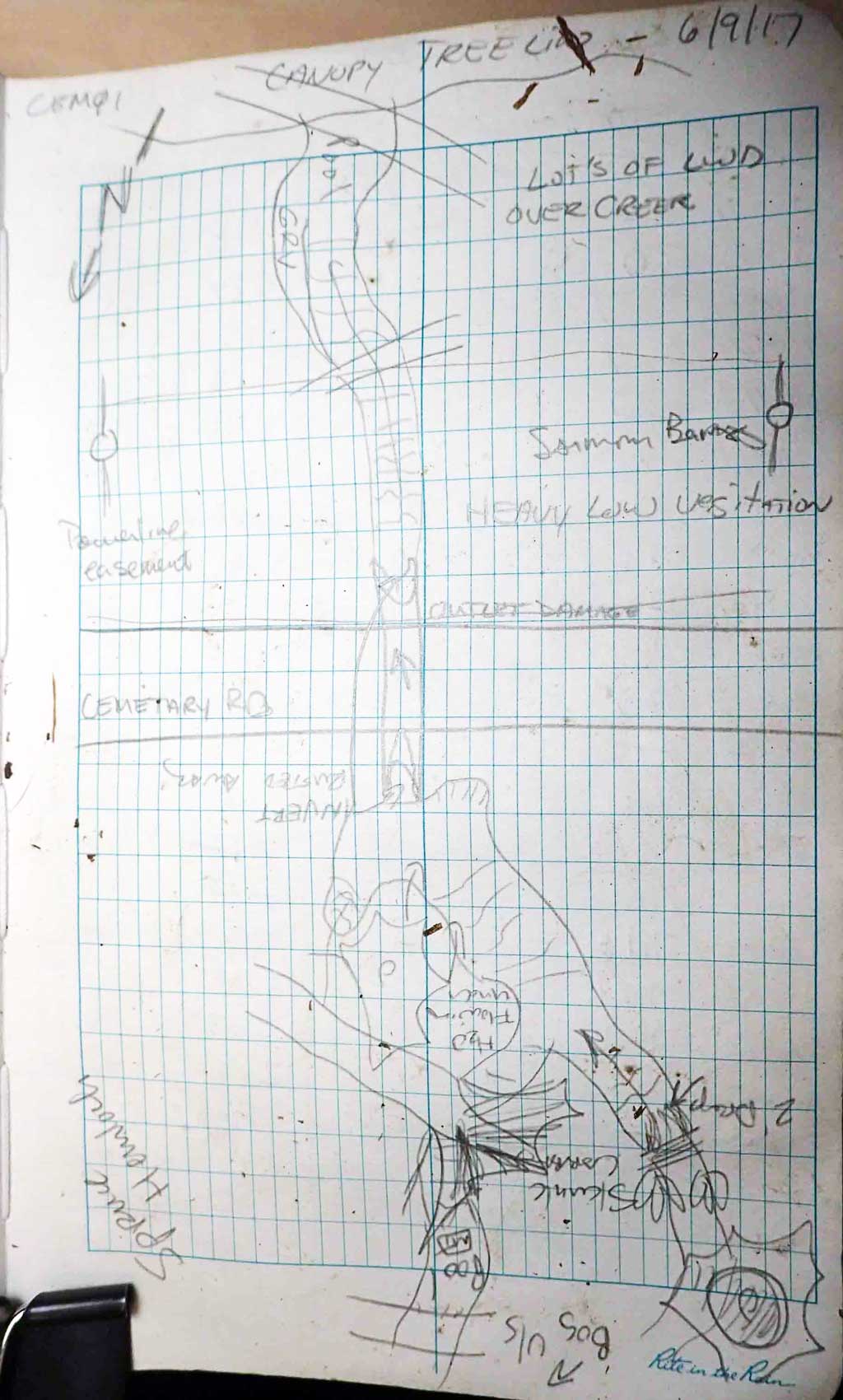

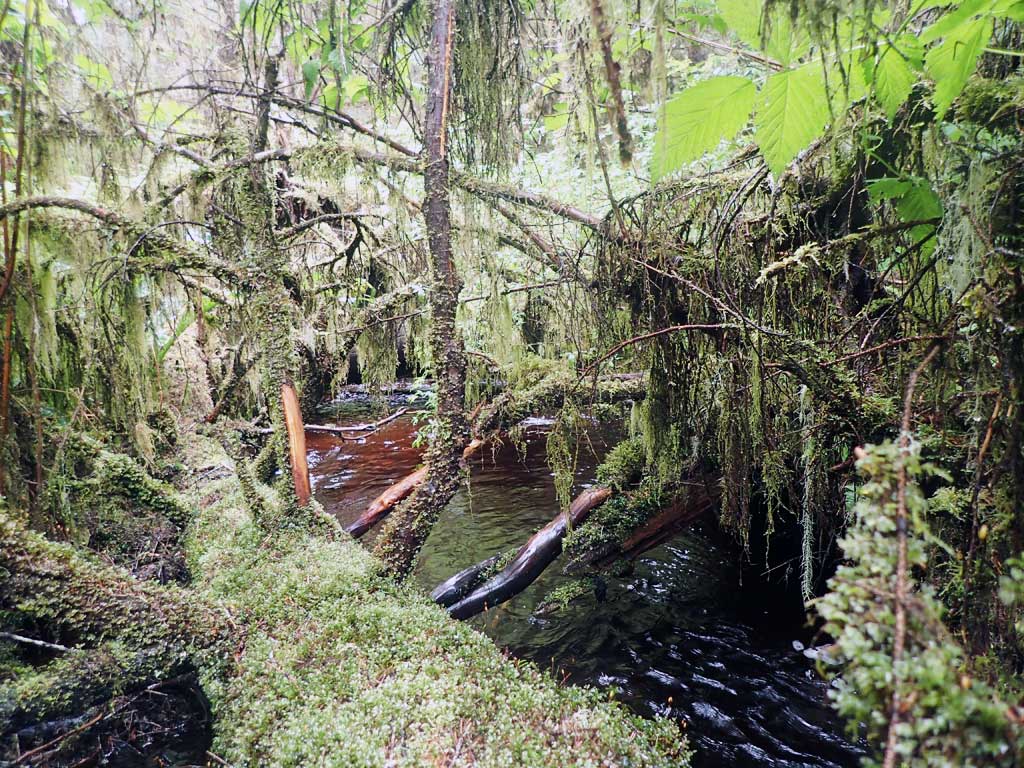

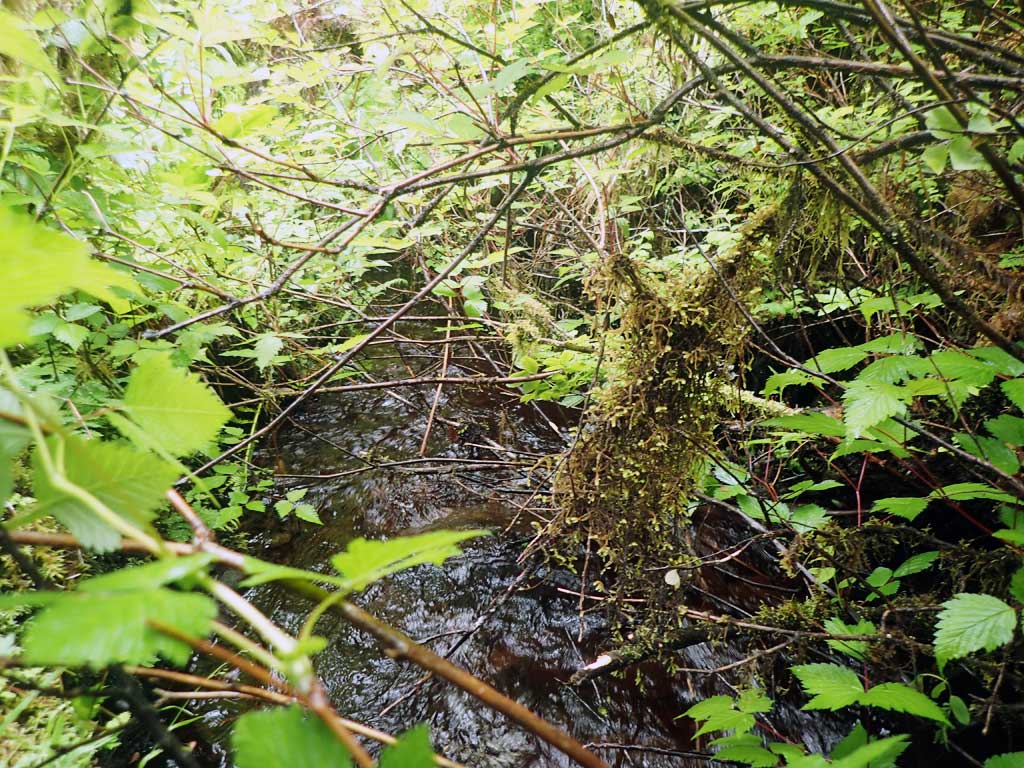

Comments: Channel split 10ft upstream. Took downstream widths as upstream braided. Downstream widths taken close together in section where braids joined but before another tributary comes in. Lots of large woody debris over creek.

Culvert Measurements

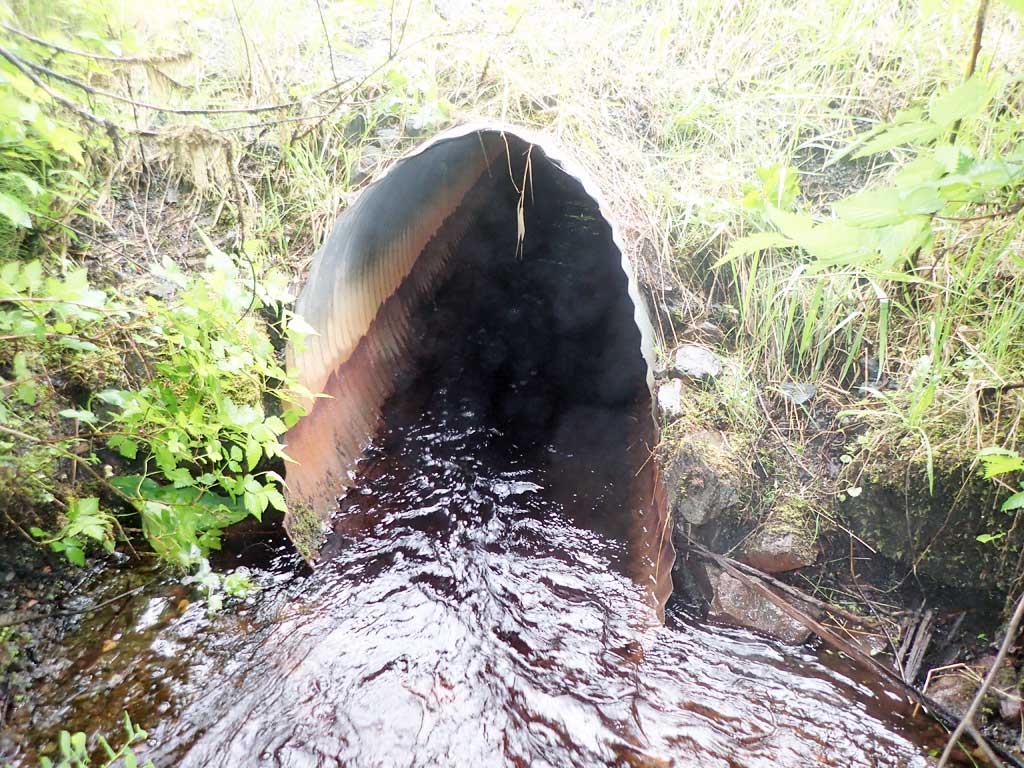

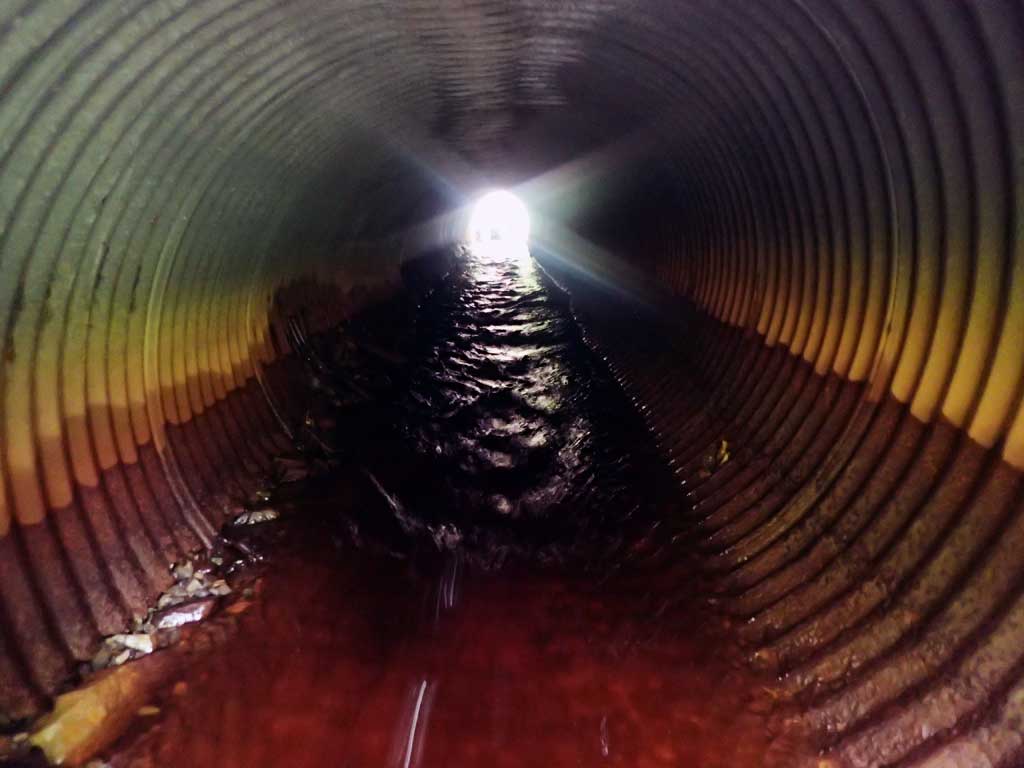

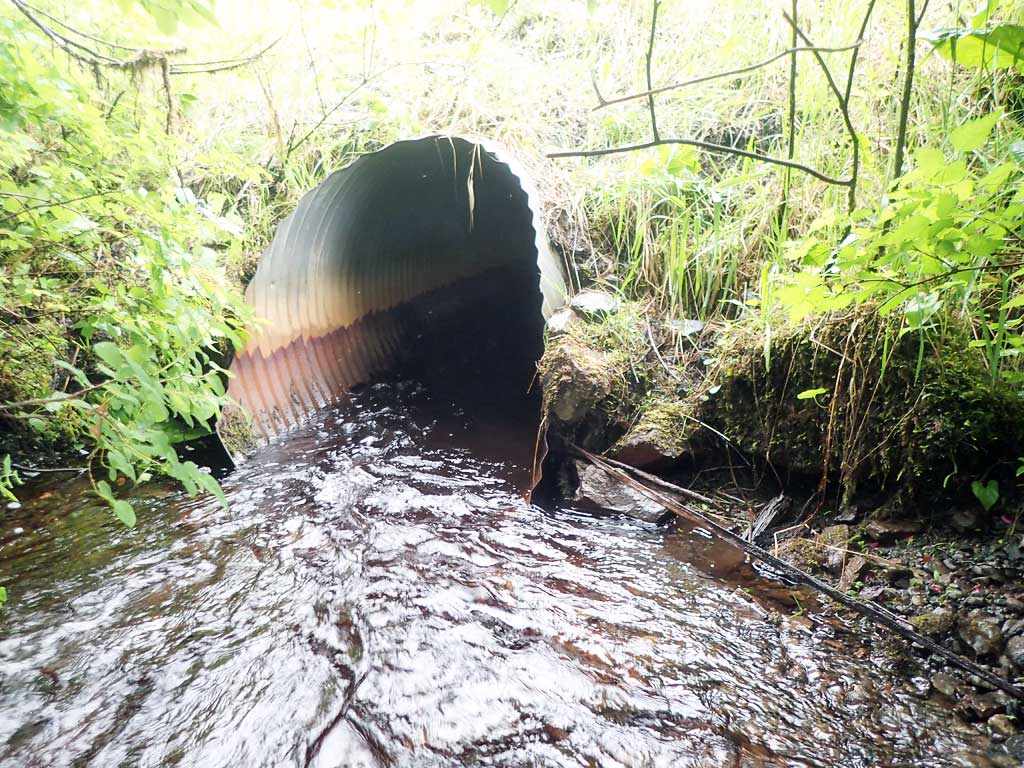

ID: 1 Structure Type: Circular pipe (Corrugated steel) Fish Passage Rating: Gray

Length(ft): 53.7
Inlet Type: Mitered
Outlet Type: Mitered
Corrugation Depth(in.): 0.75
Corrugation Width(in.): 3.0
Condition Rating(1-5): 1
Approach Angle: 10.0
Sedimentation At Inlet: Yes
Inlet Substrate: None
Outlet Substrate: None
InletOutlet
Width(ft):3.5 3.9
Height(ft):4.1 3.8
Apron Length(ft):
Water Depth(ft): 0.31
Rustline Height(ft):0.75
Substrate Depth(ft):0.0 0.0
Backwatered?: No
Baffles Present: No
Embedded?: No
Outfall Height: 0.06
Outfall Type: Hydraulic Jump
Constriction Ratio: 0.53
Culvert Gradient: 0.61%
Max Slope:
Max Slope Length:

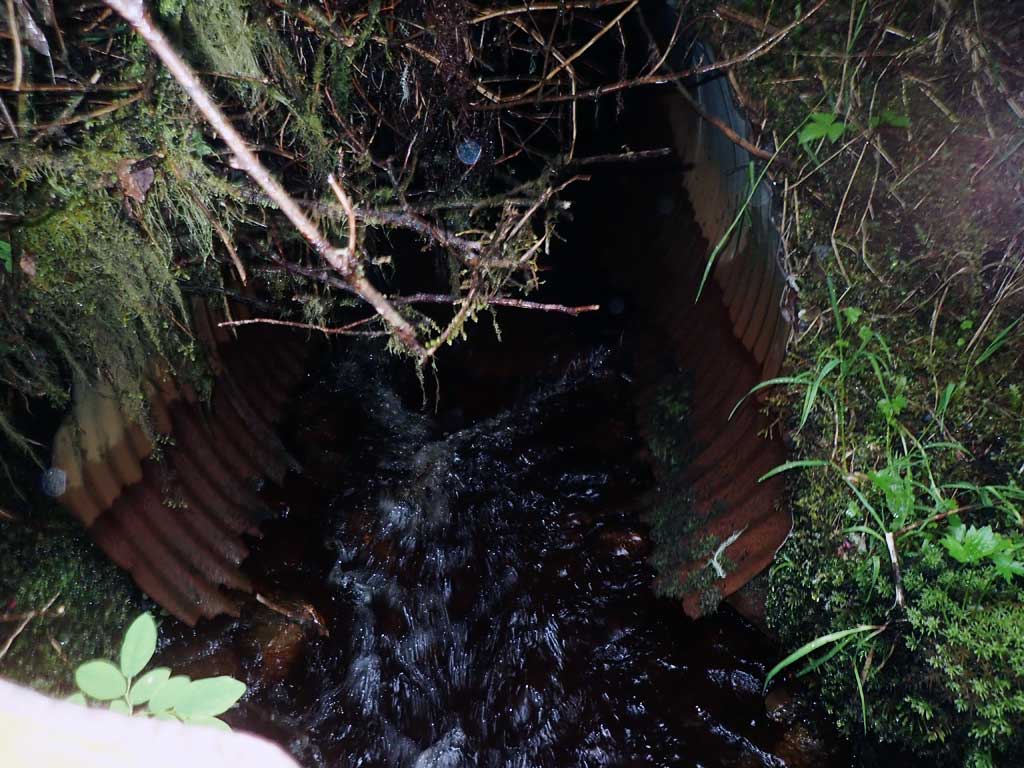

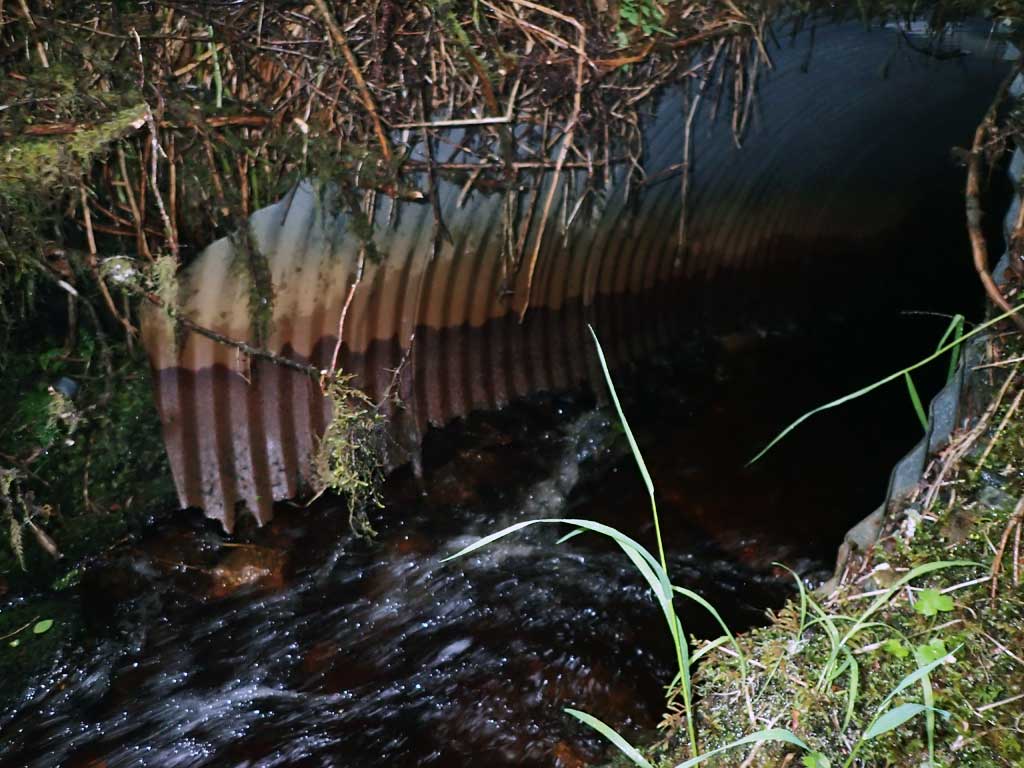

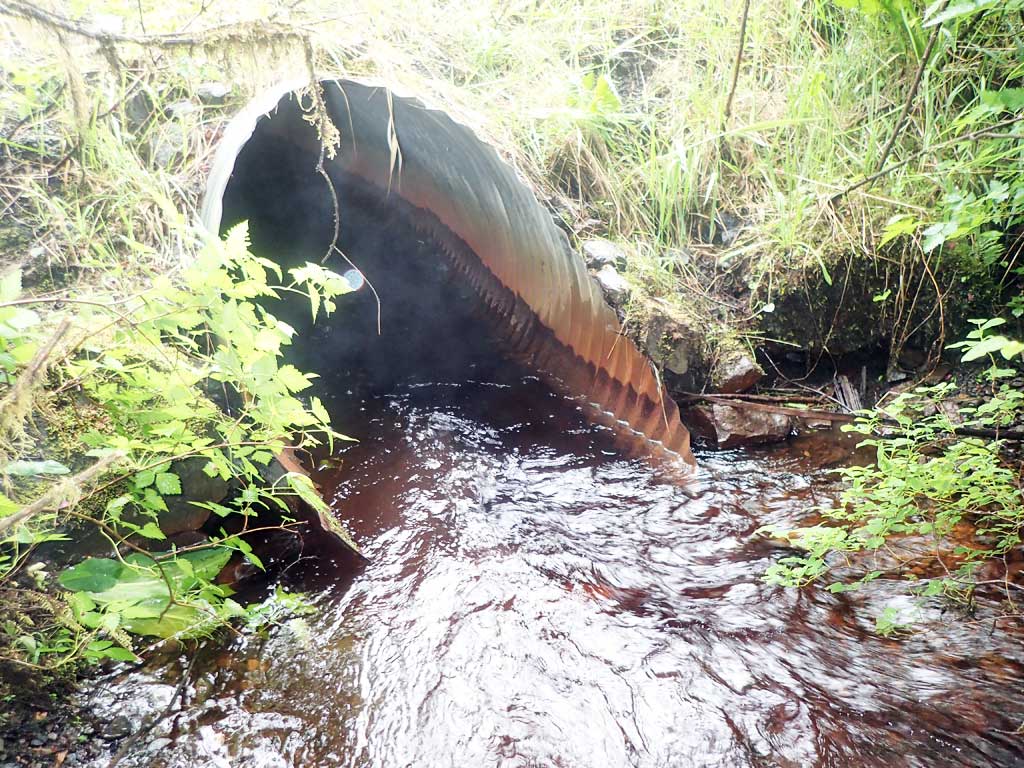

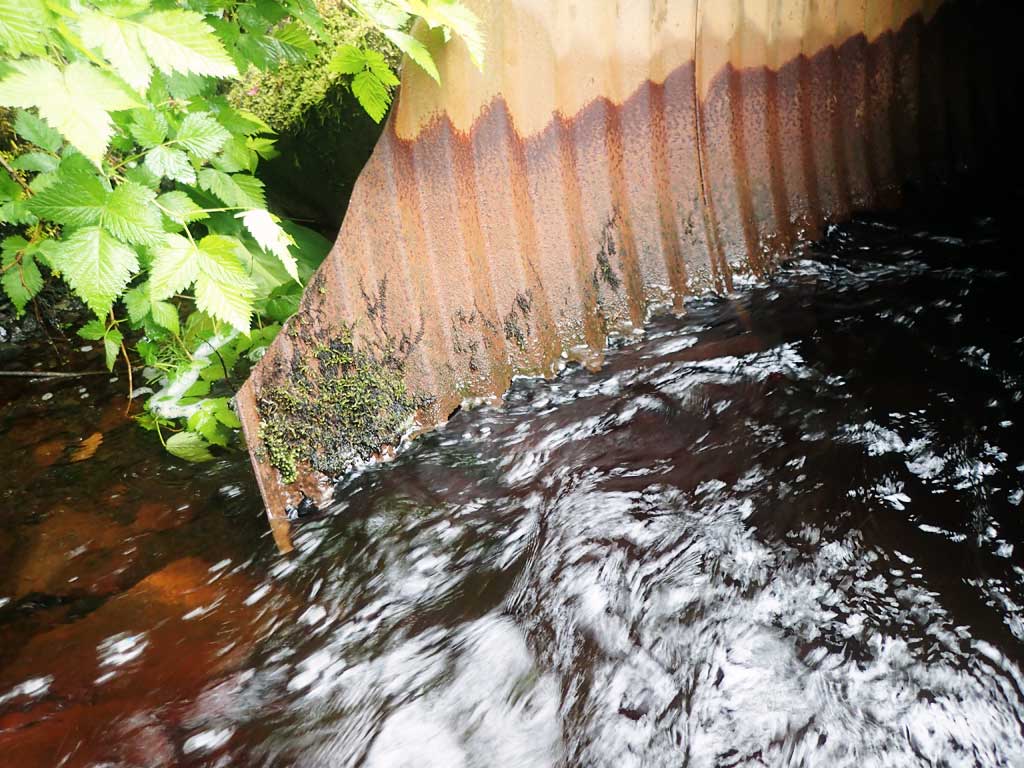

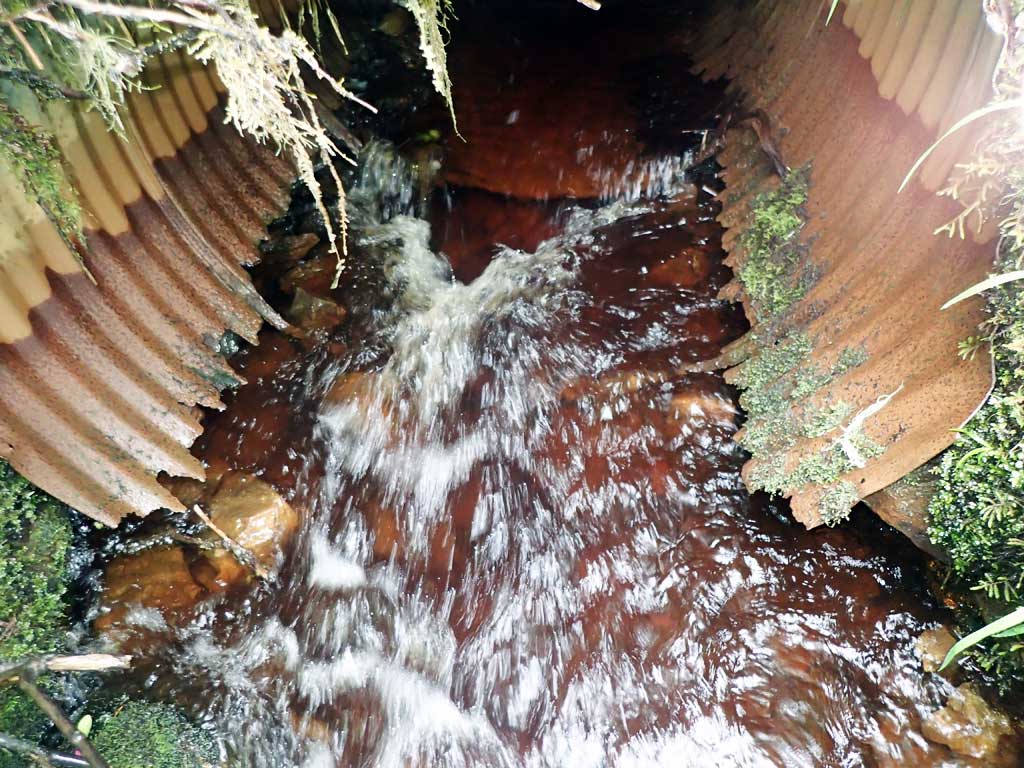

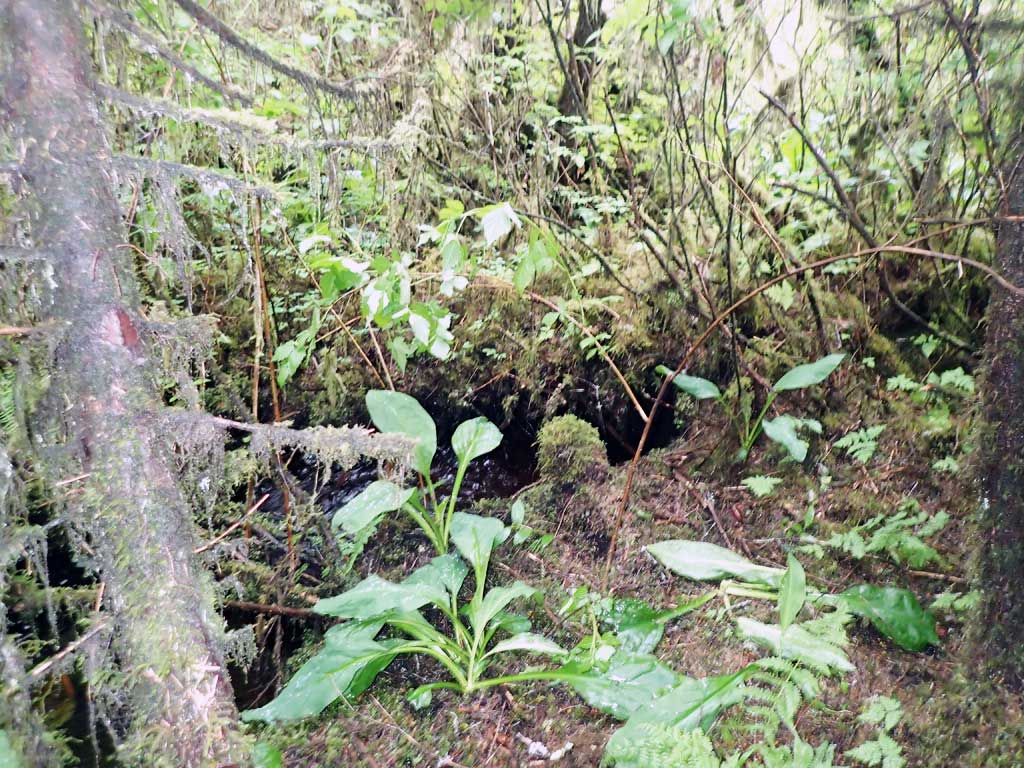

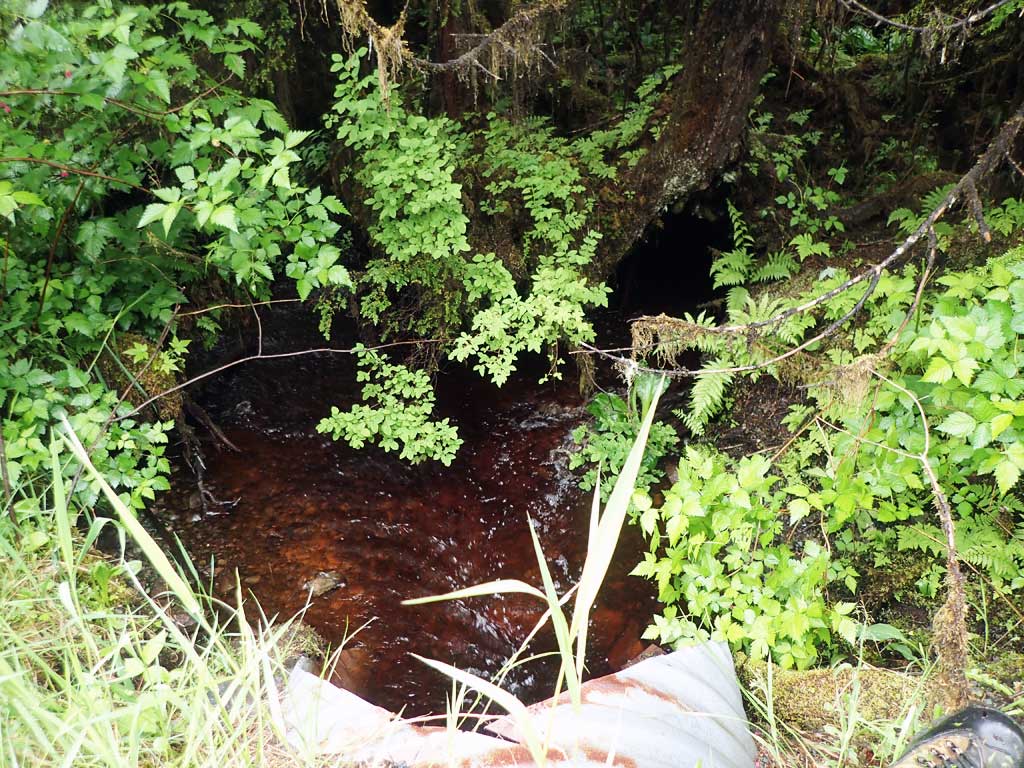

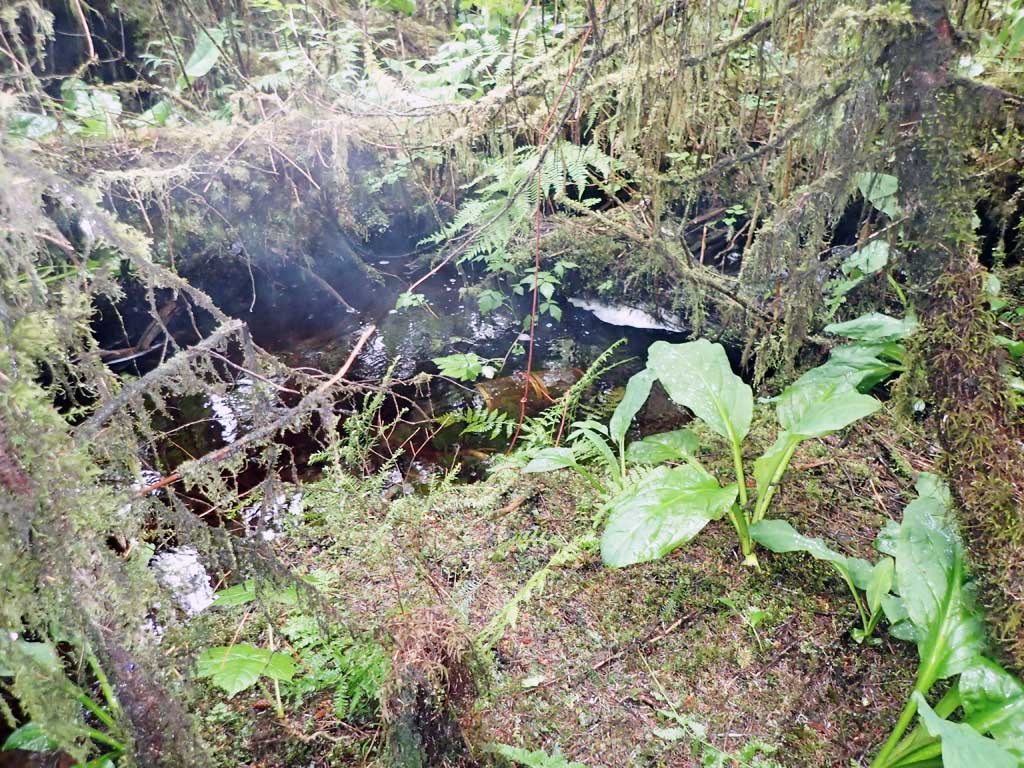

Comments: Bottom of pipe rusted out at outlet.
  Culvert Observations:
  1. Hydraulic flows exceeded capacity
  2. Culvert gradient gray
  3. Constriction ratio gray
  4. Outfall height gray
  5. Structural Problem
  6. Mechanical damage or joints parting

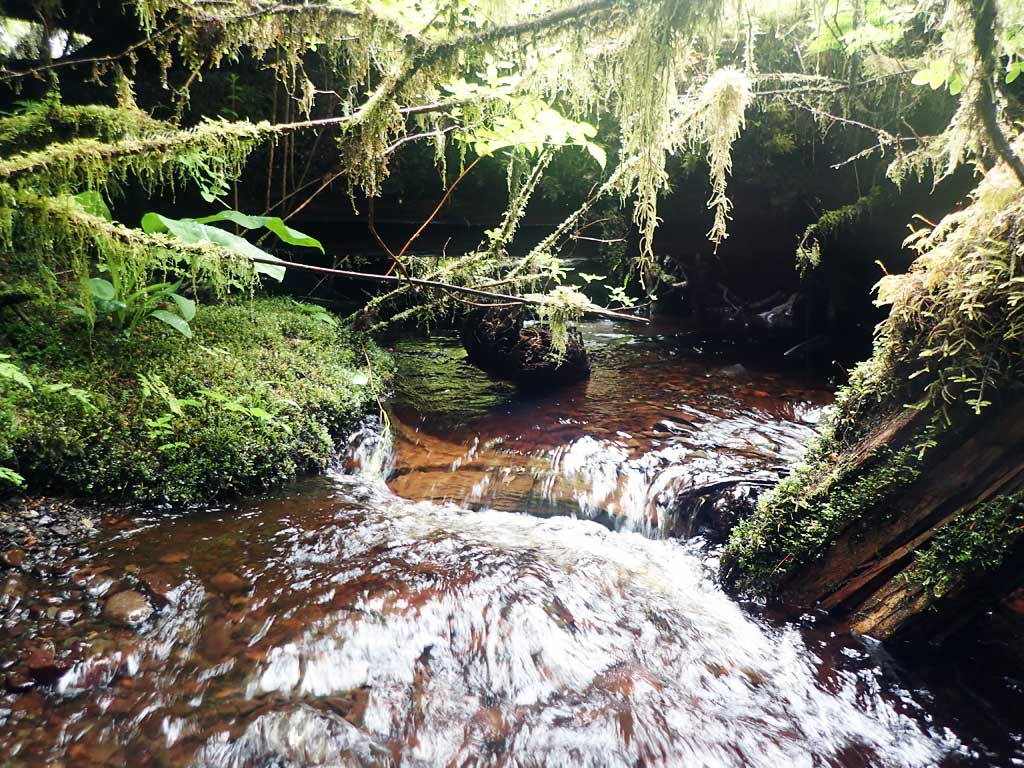

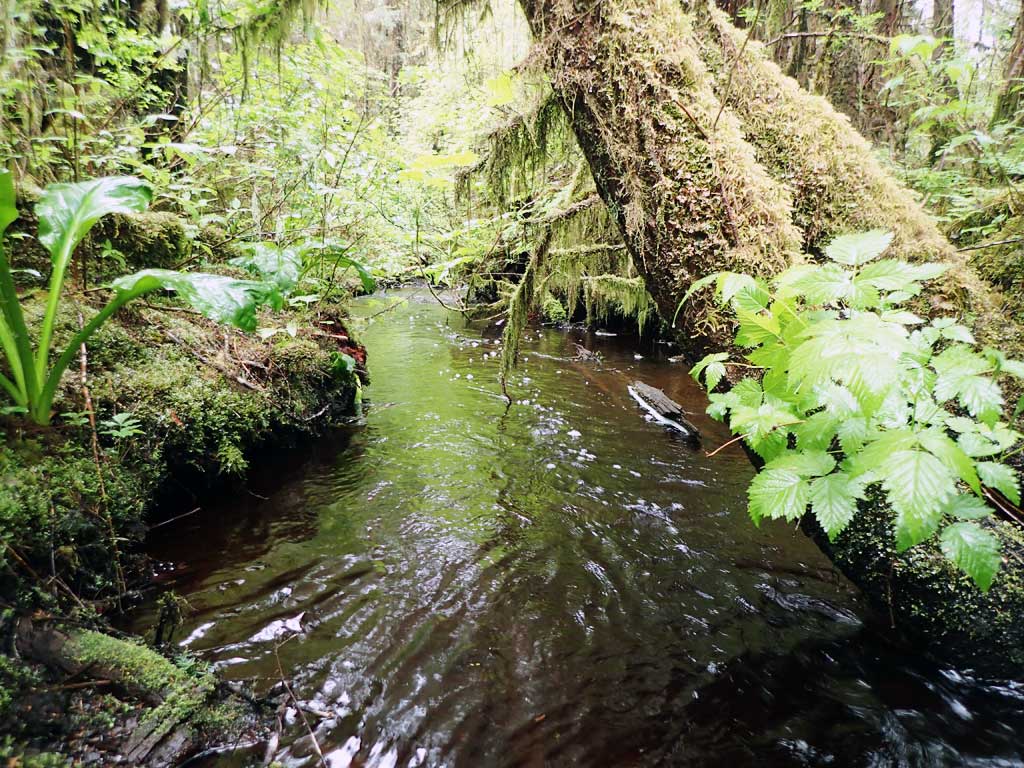

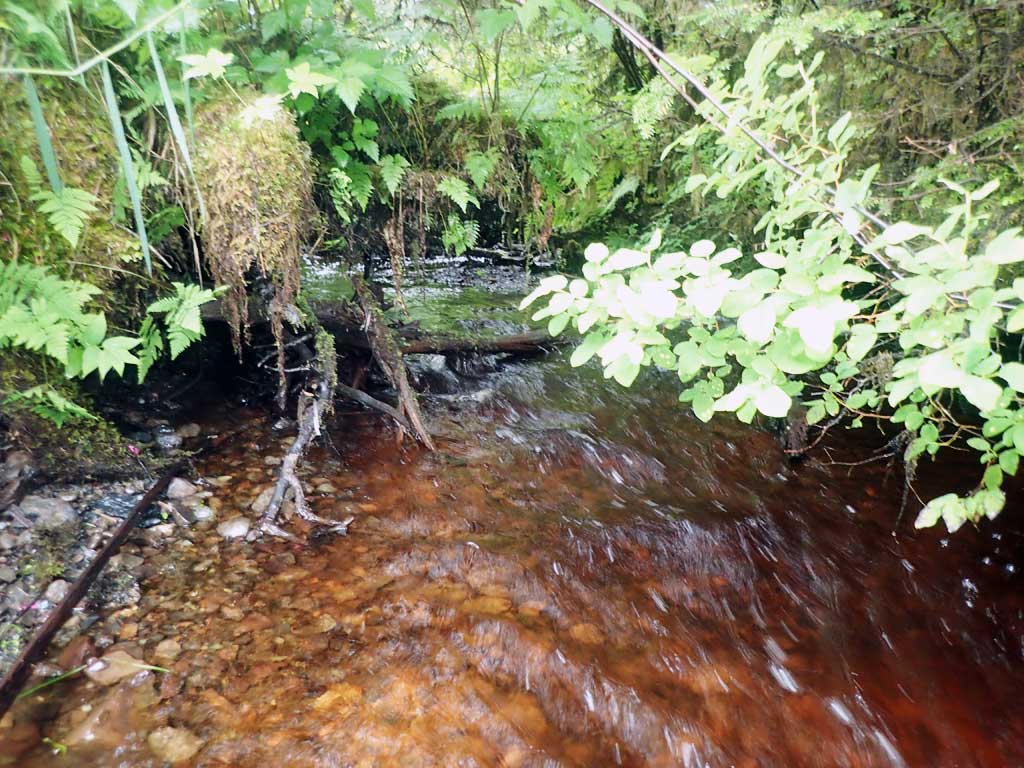

Stream Measurements

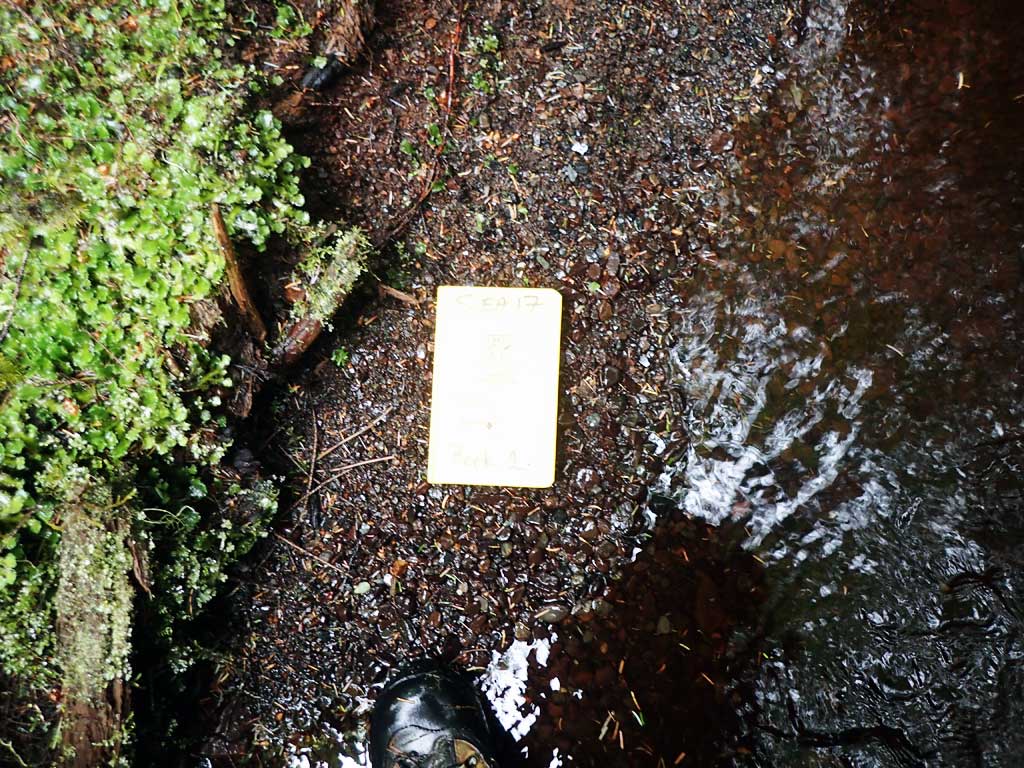

Stream SubstratesUpstreamDownstream

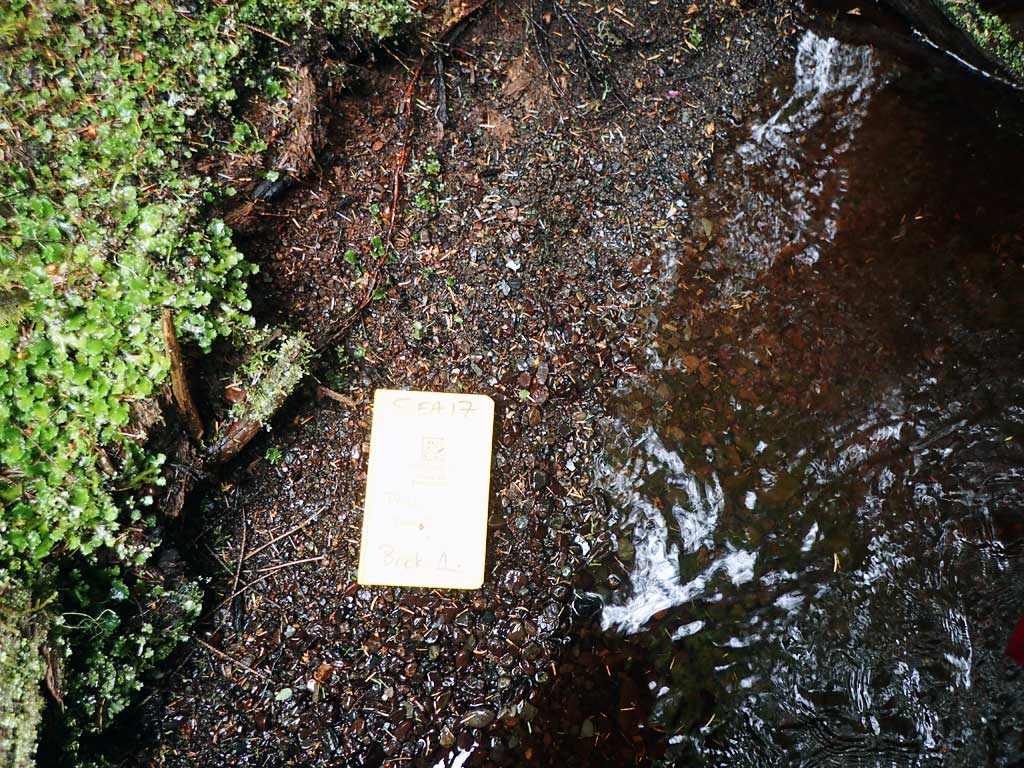

Dominant:GravelGravel
Subdominant:
Stream Slope(deg.):
Stream Flow Stage:Medium
Stream Width Type Distance From
Crossing (ft)		 Stream
Width (ft)
Downstream ordinary high water 80.0 6.30
Downstream ordinary high water 90.0 6.50
Downstream ordinary high water 100.0 7.50

Elevations

Locator ID Culvert
Number		 River
Distance (ft)1		 Distance From
Crossing (ft)2		 Relative
Elevation (ft)
Road Elev 105.19
D/S Grade Ctrl (Thalweg) 0.00 95.70
D/S Water Surface Elev 0.00 95.94
D/S Water Surface Elev 7.00 96.05
D/S Grade Ctrl (Thalweg) 7.00 95.75
Outlet Invert (on substrate as pipe disintegrated) 20.00 95.59
D/S Water Surface Elev 20.00 96.48
D/S Water Surface Elev 23.00 96.42
D/S Thalweg 23.00 95.87
D/S Thalweg (pipe below mitre) 24.00 96.19
D/S Water Surface Elev 24.00 96.50
Outlet Culvert Top 24.00 100.00
Inlet Culvert Top 70.10 100.28
U/S Water Surface Elev 70.10 97.10
U/S Thalweg (substrate below mitre as pipe rusted out) 70.10 96.16

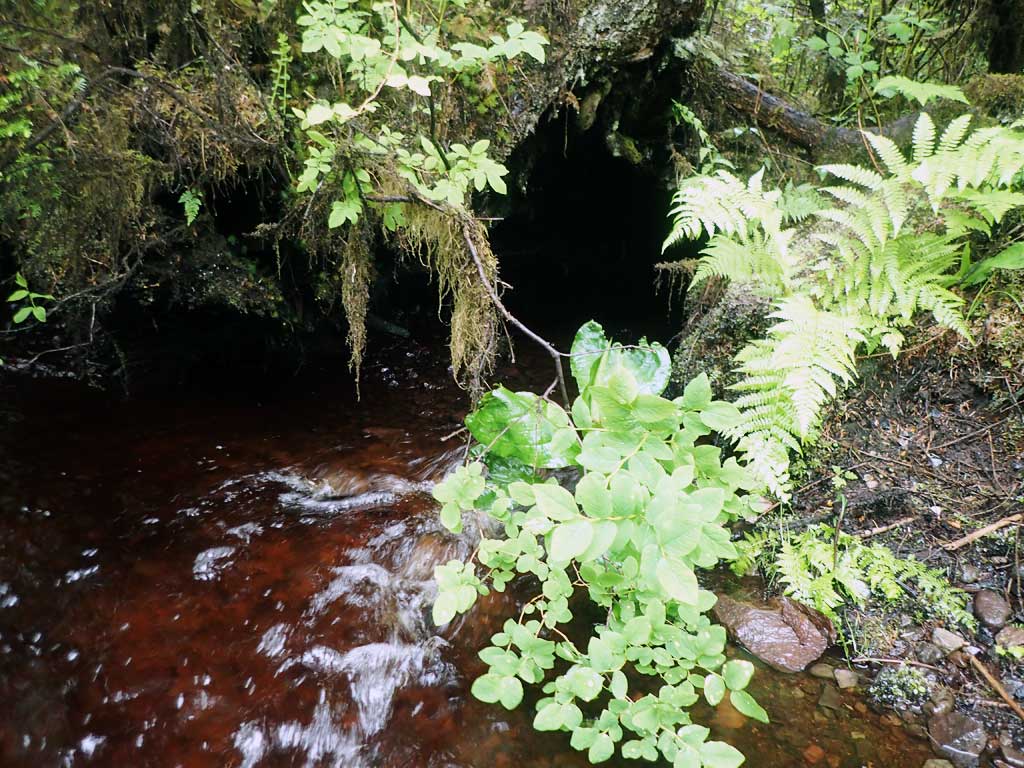

Inlet Culvert Invert (on substrate as pipe rusted out) 74.10 96.39
U/S Water Surface Elev 74.10 97.14
U/S Water Surface Elev 78.10 97.20
U/S Thalweg (upstream confluence) 78.10 96.91

Notes:

  1. River distance is measured continuously throughout the survey reach along the thalweg of the stream.
  2. Measured from each end of the crossing along the thalweg of the stream.

Fish Sampling Efforts

Gear Type: Minnow Trap (A) Trap Duration(h): 1.75
Comments: trap reset overnight, no fish

Gear Type: Minnow Trap (B) Trap Duration(h): 2.0
Comments: 1 coho, 1 dolly caught, traps reset overnight but no more caught

Fish Observations

Species: juvenile coho salmon Life History:
Total Fish Observed: 1 Fish Measured: 1 Fork Lengths (mm) Min: 82 Max: 82 Mean: 82
Collected/Observed by Gear Type: Downstream Minnow Trap (1)

Species: juvenile Dolly Varden Life History:
Total Fish Observed: 1 Fish Measured: 1 Fork Lengths (mm) Min: 155 Max: 155 Mean: 155
Collected/Observed by Gear Type: Downstream Minnow Trap (1)

Questions or comments about this report can be directed to dfg.dsf.webmaster@alaska.gov
